Introduction: Precision Material Handling with Doebritz PE Quick-release Rotary Valve
In demanding pneumatic conveying and gravity discharge applications, selecting the correct rotary valve directly impacts plant uptime, product purity, and energy efficiency. The Doebritz PE Quick-release rotary valve represents a specialized solution for powder and granule handling where quick cleaning, contamination prevention, and process flexibility are mission-critical. This engineering guide delivers data-driven specifications, including volumetric capacity per revolution, differential pressure ratings, rotor-to-housing clearances, and sizing methodology, while adhering to ATEX, NFPA, FDA, CE, and EHEDG standards where applicable.
Housing & Rotor Engineering: Precision Metallurgy and CNC Tolerances
Base Material Selection for Corrosive and Hygienic Environments
The Doebritz PE Quick-release rotary valve is manufactured from SUS304 or SUS316L stainless steel as standard, with carbon steel options available for non-corrosive bulk solids. For abrasive or chemically aggressive powders, internal surfaces can receive tungsten carbide (WC) coatings, ceramic coatings, or polymer liners (PE, PTFE, PA). The housing undergoes precision CNC machining to achieve a rotor-to-housing radial clearance of 0.1–0.2 mm, ensuring minimal air leakage across differential pressures up to 1.0 bar (100 kPa) for dense phase conveying and up to 16 bar explosion containment for isolated safety scenarios.

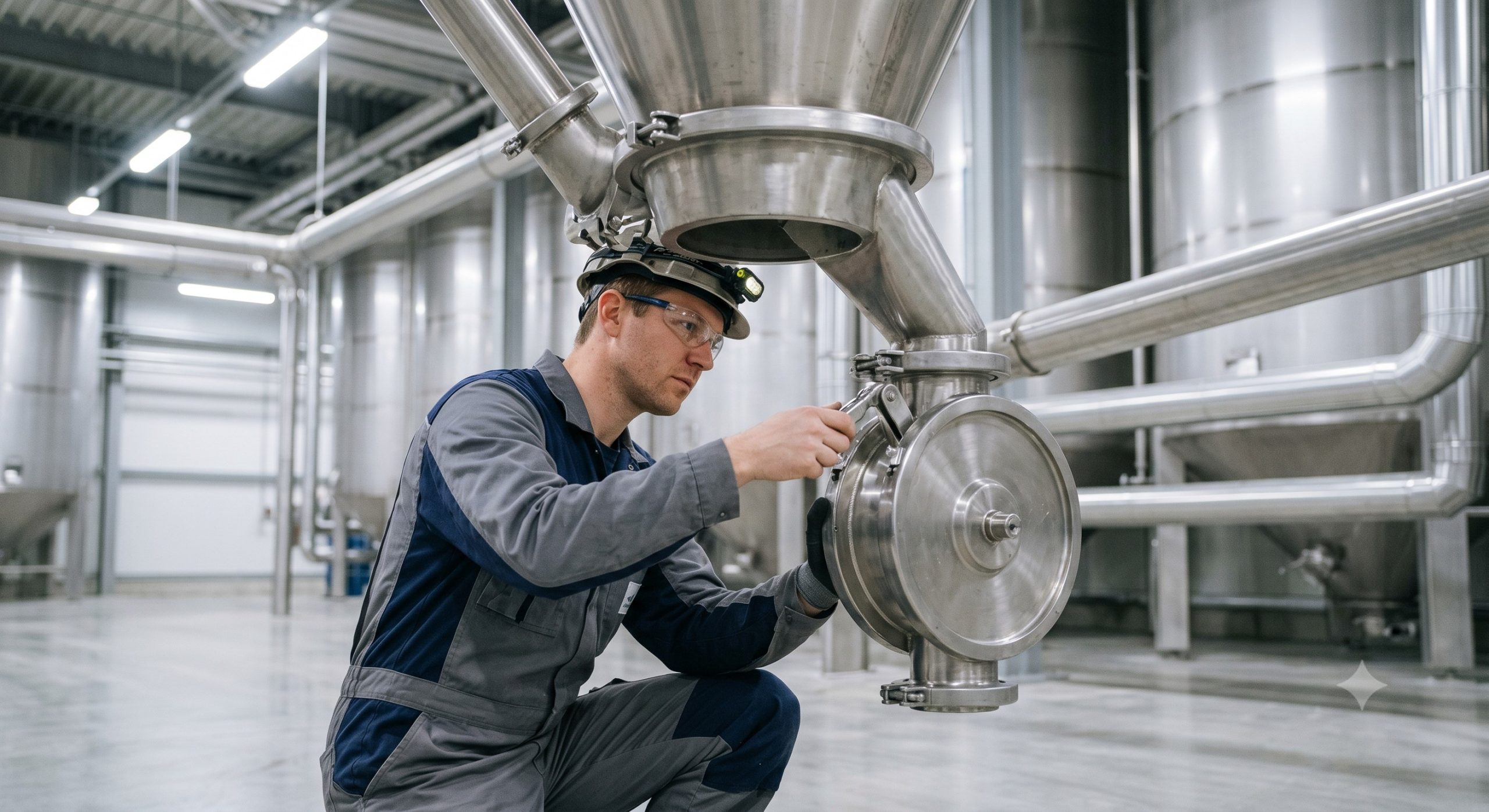

Quick-Release Demountable Structure for Hygienic Access
The valve features a tool-free quick-release end-cover design, enabling complete disassembly in under five minutes. This demountable configuration supports manual cleaning after disassembly, online CIP (Clean-in-Place), and WIP (Wash-in-Place) followed by manual inspection. Internal surface finishes reach Ra ≤ 0.4 μm (mirror finish) for FDA-compliant food and pharmaceutical lines, with Ra ≤ 0.8 μm or ≤ 1.6 μm available for less critical applications.
Outboard Bearing and Shaft Sealing Technologies
To prevent contamination of the bearing housing and product zone, the Doebritz PE Quick-release rotary valve incorporates outboard-mounted bearings isolated from the material flow path. Shaft sealing is achieved via lip seal rings with air purge or lantern ring packing glands, allowing injection of clean, dry air or nitrogen to prevent fine powder migration. This design extends mean time between failures (MTBF) in abrasive or sticky powder applications.
Technical Specifications: Performance Data for Accurate Sizing
Engineers must size rotary valves based on volumetric displacement, differential pressure, rotor speed, and material bulk density. The Doebritz PE Quick-release rotary valve offers the following certified parameters:
| Key Parameter | Technical Specification |
|---|---|
| Max Differential Pressure (Positive) | 0.4 bar (low-pressure dilute phase); 1.0 bar (high-pressure dense phase, VFD controlled) |
| Max Differential Pressure (Negative) | -0.4 bar (low vacuum); -1.0 bar (high vacuum, VFD controlled) |
| Operating Temperature Range | Ambient: -15°C to +60°C; Material: 0°C to +120°C (Optional water cooling jacket available) |
| Rotor-to-Housing Radial Clearance | 0.1 – 0.2 mm (precision CNC machined) |
| Volumetric Capacity per Revolution | Dependent on DN size: DN50 ~ 1.5 L/rev; DN100 ~ 6 L/rev; DN150 ~ 15 L/rev; DN200 ~ 28 L/rev; DN300 ~ 65 L/rev (factory data based on 100% fill efficiency, derate to 60-80% for free-flowing powders) |
| Typical Rotor Speed Range | 5 – 50 rpm (VFD adjustable for metering or continuous duty) |
| Maximum Housing Pressure Containment (Explosion Isolation) | 16 bar (for ATEX Zone 20/21/22 flame-proof configuration) |
| Surface Finish (Internal) | Mirror Ra ≤ 0.4 μm (hygienic/FDA); Ra ≤ 0.8 μm; Ra ≤ 1.6 μm; or wear coating (WC/ceramic/polymer) |
| Flange Standard | HG20592 (DIN/ANSI equivalents available on request) |
| Certifications | CE, TÜV, Statement certification (ATEX Zone 20/21/22, NFPA, FDA compliance available by design) |
| Cleaning Methods | Manual cleaning after quick-release disassembly; Online CIP; Online WIP + manual inspection |
Heavy-Duty Application Scenarios Across Industries
1. Food & Pharmaceutical Hygienic Lines
For dairy powder, coffee, flour, spices, vitamin premixes, and probiotic powders, the Doebritz PE Quick-release rotary valve provides quick disassembly + CIP compatibility + mirror-finish internal surfaces. It meets Class C, Class D, 100,000-class (10W), and 300,000-class (30W) cleanroom requirements, with CE and TÜV certification validating GMP compliance.
2. Chemical, Mining & High-Abrasive Powders
Handling carbon black, titanium dioxide, lithium battery anode/cathode materials, silicon powder, and PET granules demands wear resistance. The optional tungsten carbide coating (hardness up to 1,200 HV) or ceramic-lined housing extends service life by 3–5× compared to standard stainless steel. ATEX Zone 20/21/22 certification enables safe operation in explosive dust atmospheres with a pressure-resistant housing rated to 16 bar for flame containment.
3. Pneumatic Conveying (Dilute & Dense Phase)
Under positive pressure dilute phase (<0.4 bar) or dense phase (0.4–1.0 bar) and negative pressure systems (down to -1 bar), the precision gap of 0.1–0.2 mm reduces air leakage to <2–4% of volumetric displacement (depending on ΔP), minimizing energy waste and preventing blowback upstream. Variable frequency drive (VFD) compatibility allows real-time flow adjustment from 5–50 rpm for batch metering and continuous feeding.
4. Automated Batching & Recipe Formulation
Integrated with PLC control, the Doebritz PE Quick-release rotary valve supports loss-in-weight batching, recipe metering, and automated配料 (automated dosing). Typical accuracy: ±1–2% of setpoint when paired with a load cell or flow meter.
Conclusion: Quantifiable Advantages for Plant Engineers
The Doebritz PE Quick-release rotary valve delivers measurable benefits: reduced cleaning downtime (from hours to minutes via quick-release design), lower air leakage (0.1–0.2 mm clearance), extended wear life (tungsten carbide/ceramic coatings), and full compliance with ATEX, NFPA, FDA, CE, TÜV, and EHEDG guidelines. For engineering teams seeking a rotary valve that balances hygienic quick-change capability with heavy-duty pneumatic conveying performance, the Doebritz PE series represents a best-in-class solution backed by 15+ years of field data across food, pharmaceutical, chemical, and energy storage industries.
