ATEX Zone 20/21 Compliant Valve: Doebritz Ton Bag Discharging System | Certified Explosion Safety with Precision Machined Rotor & Minimal Leakage

Heavy-Duty Discharging Efficiency for Ton Bag & Silo Systems

In the demanding world of bulk solids handling, the transition from storage to process line requires absolute precision, uncompromised safety, and relentless reliability. The Doebritz Ton Bag Discharging System (Series DBR-1237) is engineered to serve as the critical interface between flexible intermediate bulk containers (FIBCs), silos, and downstream pneumatic conveying networks. More than a simple rotary valve, this system represents a paradigm shift in how heavy industry approaches material discharge, offering a meticulously crafted solution that addresses the core challenges of abrasive wear, pressure differentials, and stringent safety regulations. Built on Doebritz’s legacy of heavy industrial manufacturing, this system incorporates a quick-release, gravity-fed rotary valve that sets a new standard for airlock integrity and operational efficiency.

Why Global Plant Engineers and Procurement Specialists Choose Doebritz

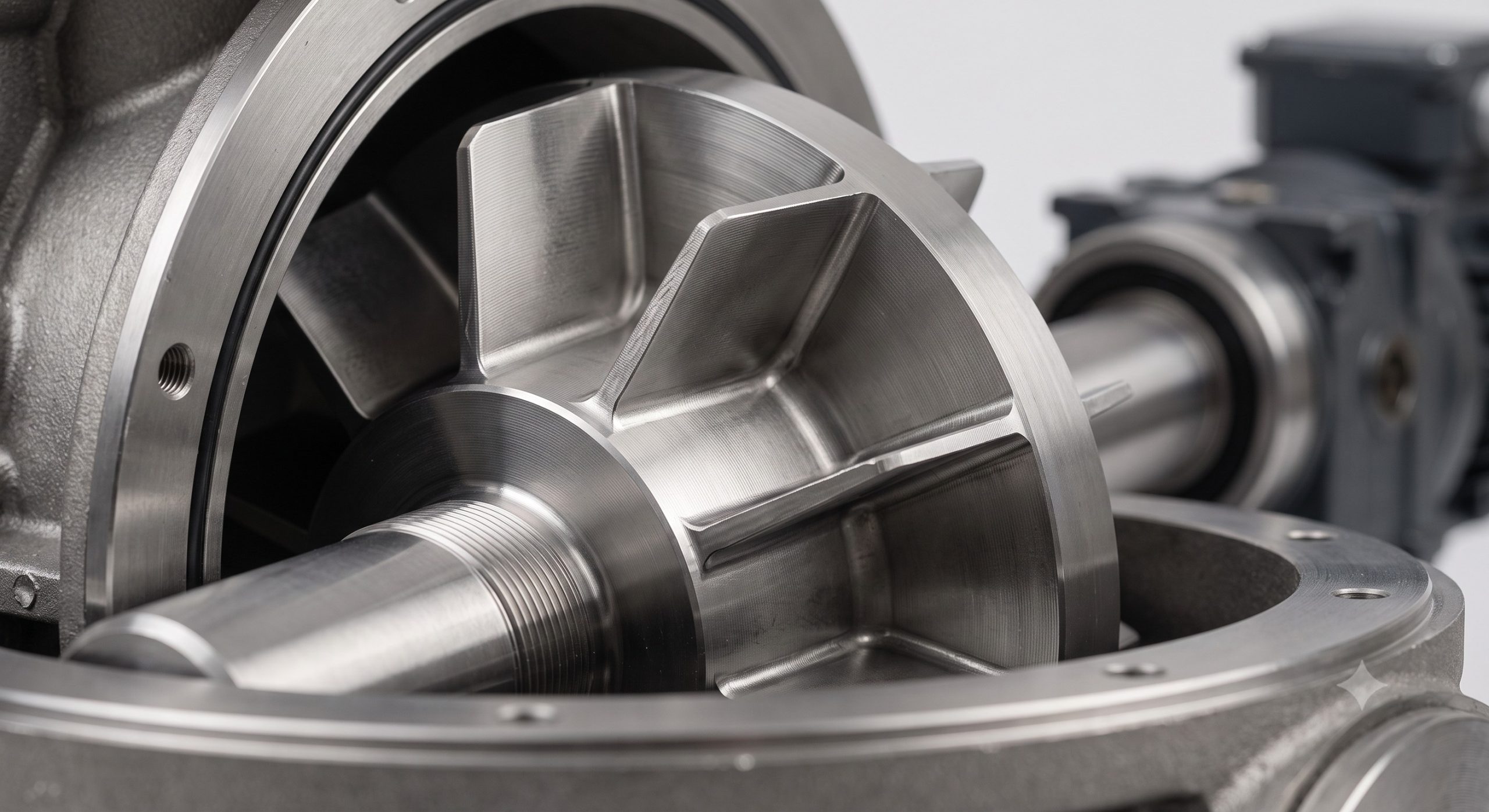

In an era where production downtime is measured in thousands of dollars per minute, the Doebritz Ton Bag Discharging System offers a distinct competitive advantage rooted in superior engineering and robust manufacturing. The system’s core advantage lies in its ability to maintain a precise, low-tolerance seal across high-pressure differentials, ensuring consistent material flow without compromising airlock performance. The valve achieves this through a combination of precision-machined rotors and meticulously honed housing bores, maintaining radial clearances as tight as 0.1 – 0.2 mm. This is not a standard off-the-shelf component; it is a testament to Doebritz’s commitment to CNC machining excellence, where every component is manufactured to exacting tolerances that significantly reduce air leakage and enhance volumetric efficiency. This engineering rigor translates directly into lower energy consumption for downstream pneumatic conveying systems, a tangible cost saving that impacts the total cost of ownership from day one.

Engineering Deep Dive: Housing, Rotor, and Sealing Technologies

The Doebritz Ton Bag Discharging System is built around a robust housing and rotor assembly designed to withstand the rigors of continuous heavy-duty operation. The housing is available in a range of premium materials, including SUS304 and SUS316L stainless steel for sanitary and corrosive applications, as well as robust Carbon Steel options for general industrial use. For handling highly abrasive materials such as carbon black, lithium battery powders, or mineral fillers, Doebritz offers advanced surface protection technologies including Tungsten Carbide (WC), Ceramic, and specialized polymer coatings applied to all material contact surfaces. The rotor itself is a masterpiece of heavy-duty design, featuring a sturdy vane configuration that facilitates reliable gravity discharge while minimizing material degradation. The shaft sealing system, a critical point of failure in many rotary valves, is engineered with a multi-layered defense using advanced lip seal air-tight seals, with optional purge connections to prevent contamination ingress and bearing failure, ensuring the system’s long-term reliability in dusty and high-temperature environments.

Global Safety & Compliance: The ATEX Certified Standard

Safety is a non-negotiable aspect of modern industrial processing, particularly when handling combustible dusts. The Doebritz Ton Bag Discharging System is engineered to comply with the most stringent international safety standards. The system is available in configurations certified for ATEX Zone 20, Zone 21, and Zone 22 hazardous areas, making it a suitable choice for the chemical, pharmaceutical, and food processing industries. The ATEX-compliant models are constructed with a flameproof housing capable of withstanding internal deflagration up to 16 bar, effectively containing any ignition and preventing it from propagating to the surrounding atmosphere. This robust construction, coupled with the ultra-precise rotor-to-housing clearance that prevents mechanical sparking, provides plant managers with absolute confidence in the safety of their bulk handling operations. This commitment to safety is backed by a full suite of international certifications, including CE, TÜV, and Statement certifications, providing traceable compliance for global OEM supply chains and regulatory audits.

Technical Specifications & Performance Data

The Doebritz Ton Bag Discharging System’s versatility is reflected in its comprehensive range of technical parameters, allowing for a perfect match to any process requirement. The following table provides a high-level overview of the system’s key configurable specifications.

Specification	Details & Options
Housing & Rotor Material	SUS304 / SUS316L Stainless Steel, Carbon Steel Painted, Carbon Steel Nickel-Plated
Wear Protection Coating	Tungsten Carbide (WC), Ceramic, PE, PTFE, PA, High Polymer Materials
Rotor-to-Housing Clearance	0.1 – 0.2 mm (Precision Ground)
Shaft Seal Type	Lip Seal Air-Tight Seal with Optional Purge Connection
ATEX Certification	Zone 20 / Zone 21 / Zone 22 Compliant (Optional)
Pressure Rating	Up to 16 bar (Flameproof Construction)
Surface Finish (Internal)	Mirror Finish, Ra ≤ 0.4 / 0.8 / 1.6 μm, or Coated
Connection Sizes (DN)	DN50, DN100, DN150, DN200, DN300, DN350
Flange Standard	HG20592 (DIN/ANSI Customizable)
Ambient Temperature	-15°C to +60°C
Material Temperature	0°C to +120°C (Optional Water-Cooling Jacket)
Cleaning & Maintenance	Quick-Release Demountable, CIP / WIP Compatible
Control & Metering	VFD Speed Control, PLC Integration, Batch & Recipe Metering
Certifications	CE, TÜV, Statement Certification

Heavy-Duty Application Scenarios

Dense & Dilute Phase Pneumatic Conveying

The system’s superior lock-air capability, with minimal leakage thanks to the 0.1-0.2mm clearance, makes it an ideal feeder for both dense and dilute phase pneumatic conveying lines. By minimizing air loss, the system ensures stable line pressure, reducing the risk of material dropout and line blockages, while optimizing the energy efficiency of the blower or compressor system. This is critical for maintaining consistent throughput over long conveying distances in plants processing materials such as PE/PP pellets, PTA, cement, and mineral powders.

Silo & Hopper Discharge

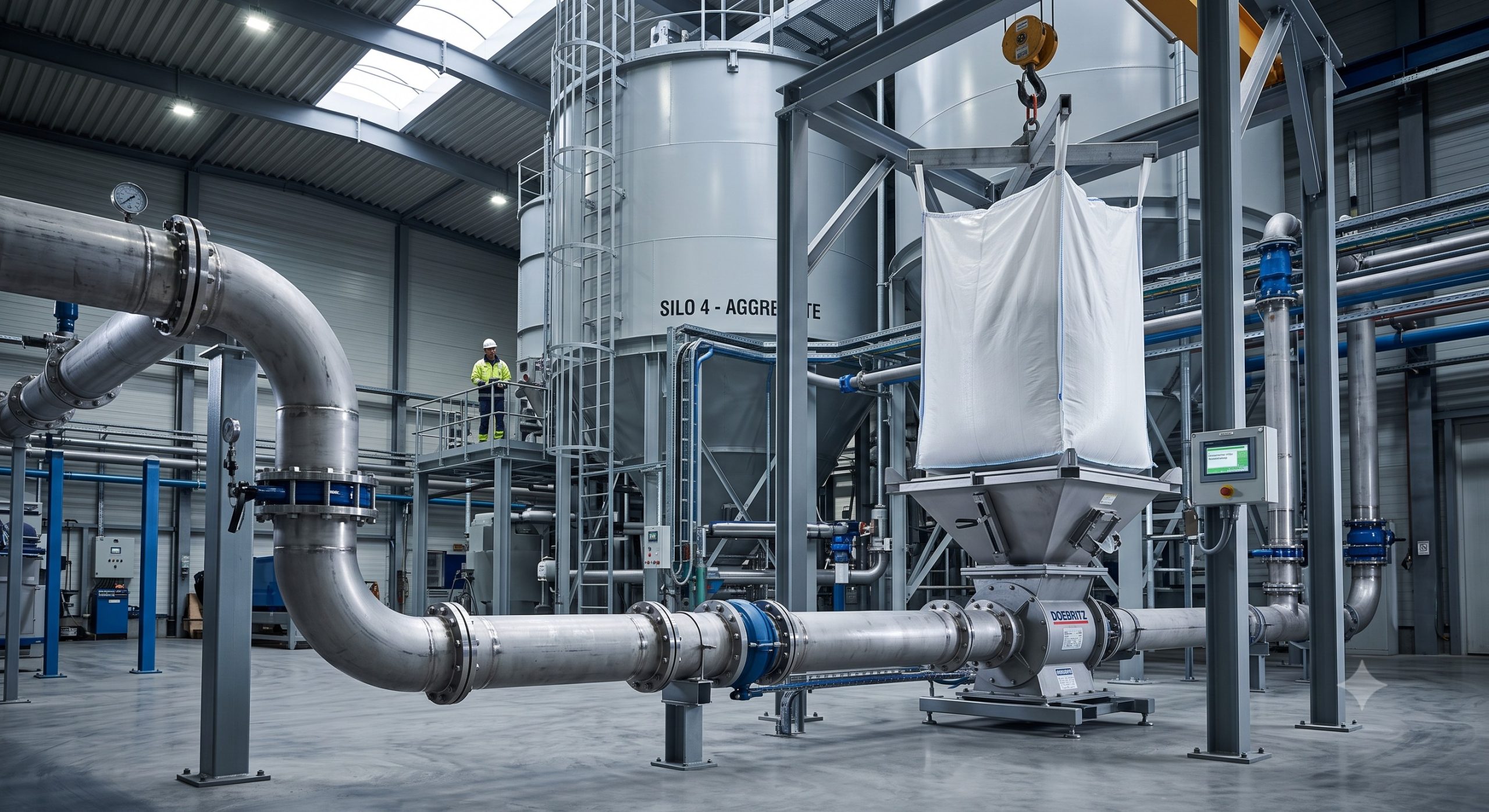

Engineered for reliable gravity discharge, the Doebritz system is the central component for emptying ton bags, silos, and hoppers. The system effectively handles materials ranging from free-flowing food ingredients like flour and sugar to more challenging materials like fine chemical powders and carbon black. The quick-release design facilitates rapid cleaning and product changeovers, a vital feature for multi-product manufacturing lines, while the ability to integrate with VFD (Variable Frequency Drive) control allows for precise, adjustable feed rates.

Automated Batch & Recipe Metering

In an industrial landscape increasingly driven by automation, the Doebritz system excels as a precision metering device. When paired with a PLC (Programmable Logic Controller), the rotary valve provides accurate, repeatable feeding for batch processes and complex recipe formulations. This capability is vital in industries such as food & beverage, pharmaceuticals, and advanced battery material production, where precise ingredient ratios dictate product quality and process efficiency.

Global OEM Assurance & Supply Chain Reliability

As a global OEM supplier, Doebritz offers a sourcing partnership built on a foundation of manufacturing excellence and supply chain reliability. Every unit is produced on high-precision CNC machining centers, ensuring consistency and interchangeability of parts, a key consideration for global plant maintenance and multi-site operations. Our commitment to quality is reflected in our rigorous inspection and testing protocols, where each valve is subjected to a series of functional and pressure tests to ensure it meets the exacting specifications before dispatch. With a flexible manufacturing setup, Doebritz is well-equipped to handle both standard orders and large-scale project requirements, offering custom flange configurations (DIN, ANSI, HG20592), a full range of connection sizes from DN50 to DN350, and a variety of motor and drive options to suit any installation. This combination of technical expertise, manufacturing prowess, and a global logistics network ensures that our customers can rely on a consistent, high-quality supply of critical components for their most demanding applications.

Frequently Asked Questions

What are the standard material options for the Doebritz Ton Bag Discharging System?

The Doebritz system is available in a comprehensive selection of materials to suit the widest range of applications. Standard materials include SUS304 and SUS316L stainless steel for excellent corrosion resistance and hygienic processing, and Carbon Steel in painted or nickel-plated finishes for general industrial use. For applications involving highly abrasive materials, we offer advanced protection options such as Tungsten Carbide, Ceramic, and specialized PE, PTFE, and PA polymer coatings for all material contact surfaces.

How does the Doebritz system achieve such low air leakage rates?

Low air leakage, a core performance metric for any rotary valve, is achieved through precise engineering. Doebritz’s proprietary manufacturing process ensures an extremely tight radial clearance between the rotor blades and the housing, typically between 0.1mm and 0.2mm. This minimal clearance reduces the open passage for air, significantly decreasing leakage and increasing the volumetric efficiency of the pneumatic conveying system, which translates to substantial energy savings over the valve’s operational life.

Is the Doebritz Ton Bag Discharging System suitable for ATEX classified hazardous areas?

Yes. A fundamental requirement for many bulk solids processing lines is compliance with explosion safety regulations. The Doebritz system can be specifically configured and certified for operation in hazardous areas. We offer full ATEX certification for Zones 20, 21, and 22. The explosion-proof design features a robust housing that can withstand internal pressures up to 16 bar in the event of an ignition, preventing the propagation of flames and ensuring the safety of the personnel and facility.

What maintenance and cleaning options are available for this system?

Understanding the need for efficient plant maintenance, Doebritz has designed the system with hygiene and uptime as key priorities. The quick-release (demountable) design allows for fast and simple disassembly without specialized tools, enabling rapid access to the rotor and housing for manual cleaning and inspection. For automated production lines requiring minimal human intervention, the system is also compatible with online CIP (Clean-in-Place) and WIP (Wash-in-Place) cleaning protocols, significantly reducing downtime associated with product changeovers or regular sanitation.

Can the Doebritz system handle high-temperature materials?

Yes, the system’s robust construction makes it suitable for a wide range of process temperatures. Depending on the material selection, the system is designed to operate with material temperatures ranging from 0°C to 120°C. For processes requiring additional thermal management, the system can be fitted with an optional water-cooling jacket, ensuring stable and reliable operation even under high thermal stress.
