Doebritz PA Quick-release rotary valve: CNC Machined & Minimal Leakage – Ready for Deployment
Doebritz PA Quick-release rotary valve: Precision CNC machined rotor, minimal air leakage 0.1–0.2mm, ATEX ready, sanitary polish, quick-clean design. OEM supply for global heavy industry.

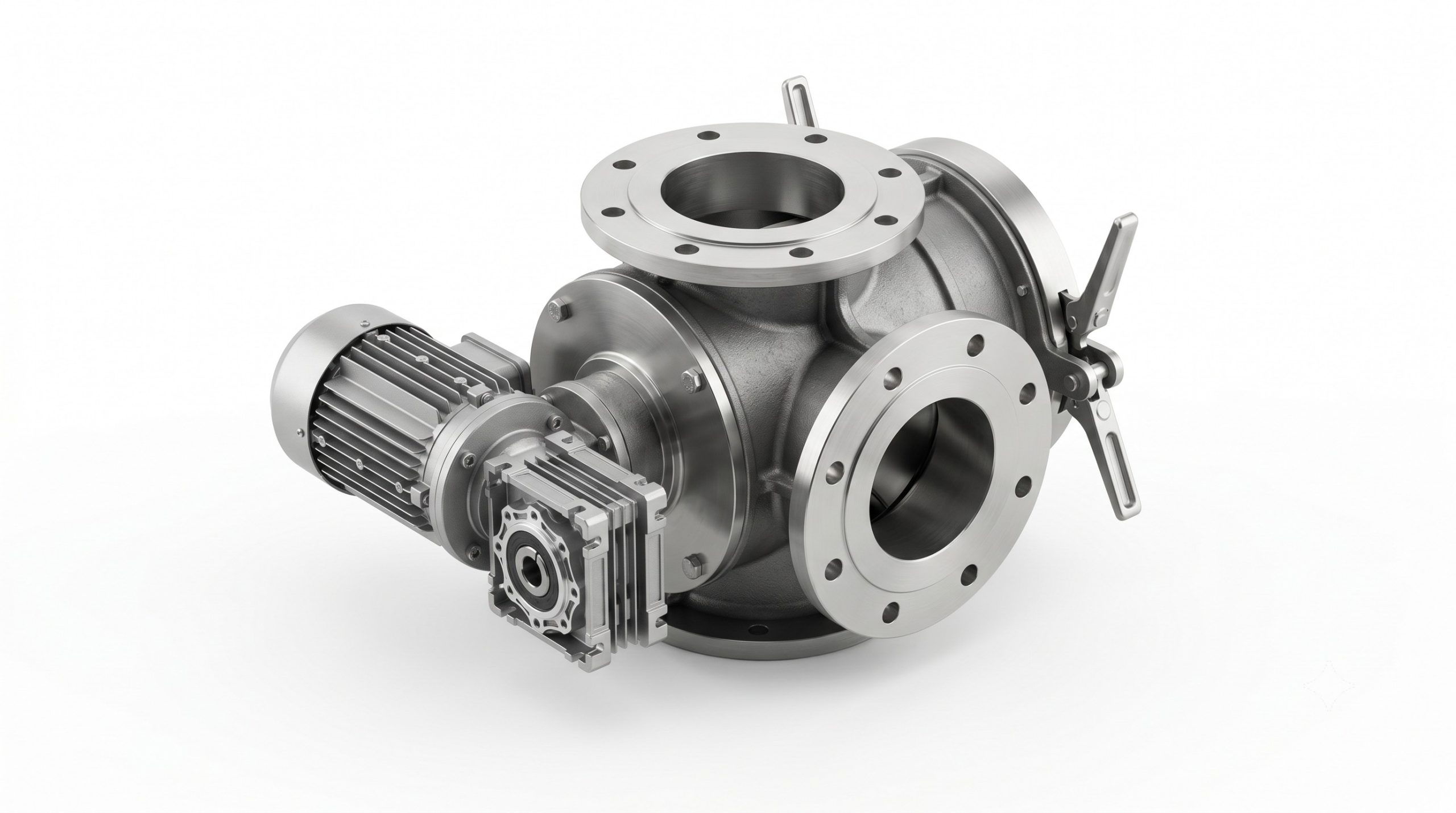

Product Summary
The Doebritz PA Quick-release rotary valve is a high-performance airlock feeder engineered for gravity discharge, pneumatic conveying, and batch metering in demanding industrial environments. Designed with a quick-demountable housing, precision-ground rotor, and low-leakage clearances (0.1–0.2mm), it delivers exceptional pressure stability, minimal cross-contamination risk, and rapid maintenance access. Built on Doebritz‘s heavy-duty manufacturing platform, the PA series supports food, pharmaceutical, chemical, and新能源 material handling applications with full ATEX and sanitary compliance.
Why Plant Sourcing Chooses Doebritz PA Quick-release rotary valve
- Minimal Air Leakage: Tight rotor-to-housing clearance (0.1–0.2mm) reduces blowback and pressure loss in dense/dilute phase systems.
- CNC Precision Machining: All rotor vanes and housing bores are CNC-finished for consistent volumetric discharge and extended wear life.
- Quick-Release Demountable Design: No special tools required – disassemble in minutes for manual clean, CIP/WIP, or vane inspection.
- ATEX Zone 20/21/22 Ready: Flameproof construction with 16bar pressure containment, explosion-proof motor option, and precision gap control.
- Global OEM Supply: Doebritz provides full custom flanges (HG20592, DIN, ANSI), direct gearmotor or VFD drive, and material certifications (3.1/EN10204).
Housing & Rotor Engineering

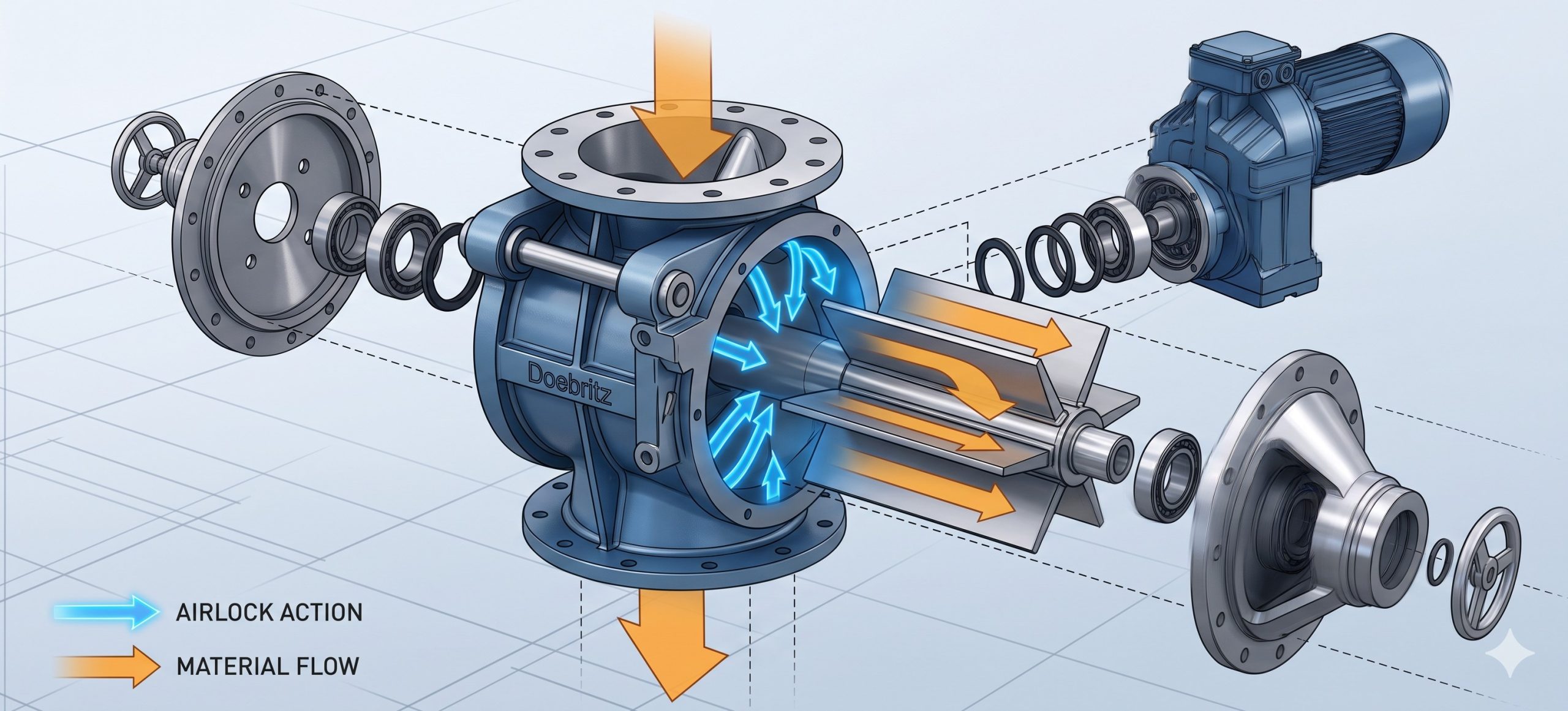

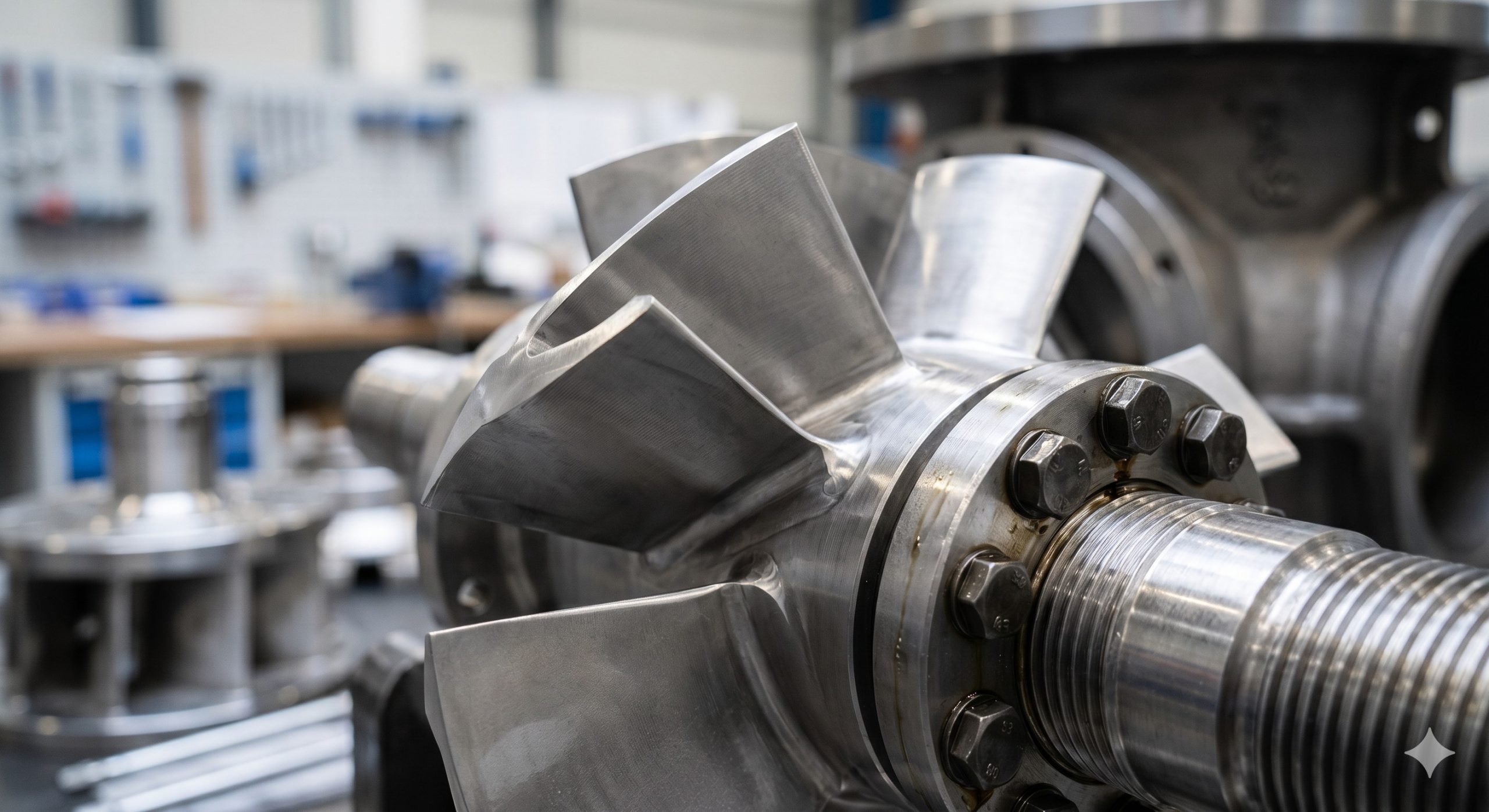

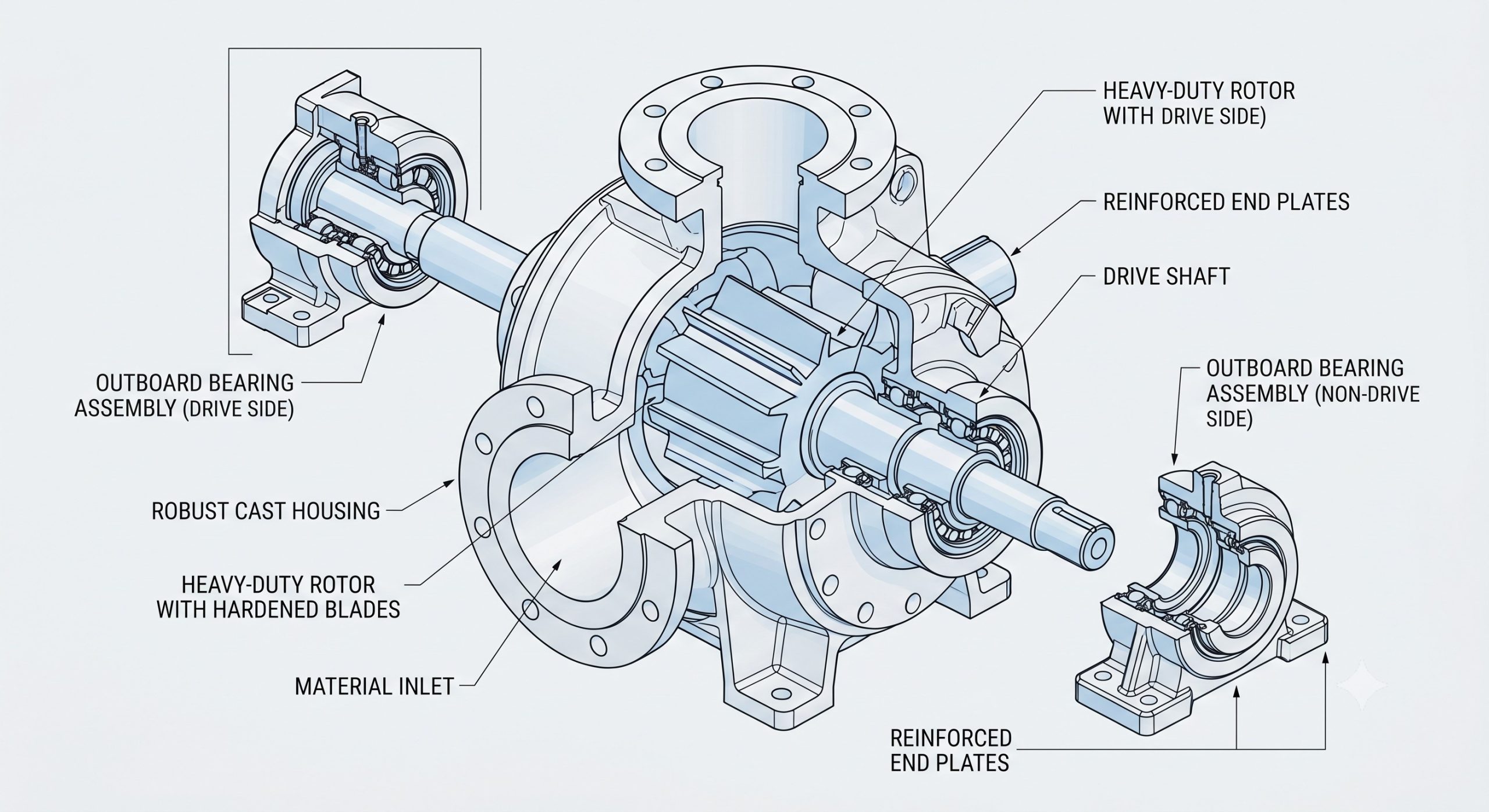

The Doebritz PA Quick-release rotary valve features a heavy-duty split housing made from SUS304, SUS316L, or carbon steel with abrasion-resistant coatings (tungsten carbide, ceramic, or polymer). The rotor design (8, 10, or 12 vanes) is dynamically balanced and precision-ground to achieve a radial gap of only 0.1–0.2mm. Outboard bearings isolate the product zone from lubricants, while lip seals with air purge prevent dust ingress. For high-temperature or sticky materials, optional water-cooled jackets and polished internal surfaces (Ra≤0.4μm) are available.
Technical Specifications
Key parameters – Doebritz PA Quick-release rotary valve:
| Specification | Detail |
|---|---|
| Body Material | SUS304 / SUS316L / Carbon steel + optional coating (tungsten carbide, ceramic, polymer) |
| Rotor Design | 8/10/12 vanes, CNC precision ground, clearance 0.1–0.2mm |
| Shaft Sealing | Lip seal + air purge / packing seal (optional) |
| Pressure Range | Positive: up to 1bar; Negative: down to -1bar |
| Temperature Range | Ambient -15°C to 60°C; Material 0°C to 120°C (water jacket optional) |
| Connection Sizes | DN50, DN100, DN150, DN200, DN300, DN350 (HG20592 / DIN / ANSI) |
| Surface Finish | Internal Ra≤0.4/0.8/1.6μm, mirror polish; external anti-fingerprint or painted |
| Cleaning Method | Quick-release manual clean / CIP / WIP + manual inspection |
| ATEX Certification | Zone 20, 21, 22 (16bar flameproof housing, anti-static, motor options) |
| Compliance | CE, TÜV, Statement of Compliance, FDA/USP Class VI (on request) |

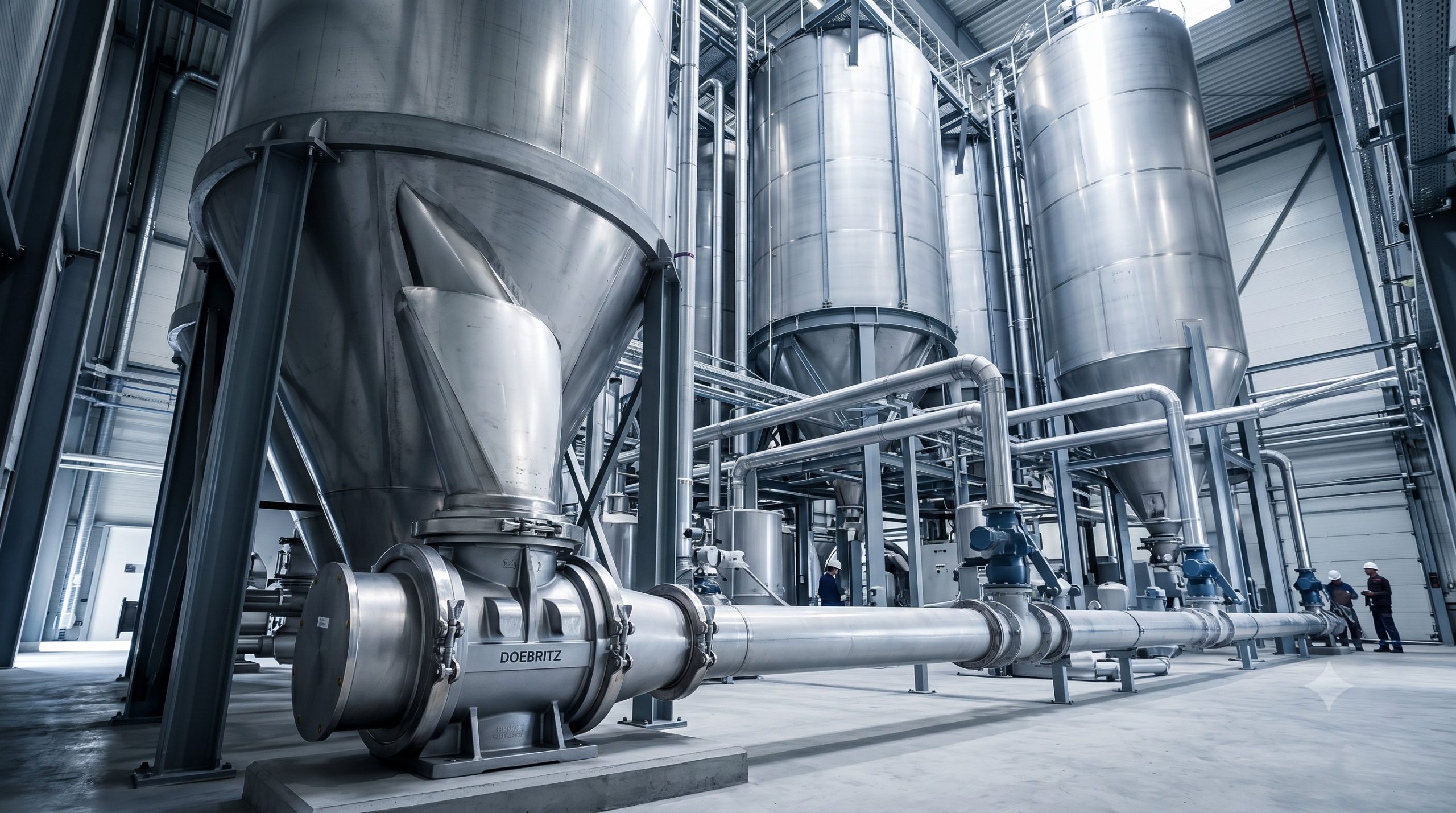

Heavy-Duty Application Scenarios
Pneumatic Conveying Systems (Positive/Negative Pressure)
Low-pressure (<0.4bar) to high-pressure (0.4–1bar) dense/dilute phase conveying. The Doebritz PA valve maintains stable airlock sealing, preventing pressure surges and material backflow.
Gravity Silo Discharging & Batch Metering
Variable frequency drive (VFD) control enables precise flow adjustment for recipe batching, loss-in-weight feeders, and continuous discharge without bridging or leakage.
ATEX-Classified Dust Collector Hopper
Zone 20/21/22 certified construction with 16bar burst resistance, suitable for explosive powders (e.g., organic dust, lithium compounds, fine chemicals).
Global OEM Assurance
Doebritz combines German engineering heritage with modern CNC machining centers and traceable material certification. Every PA Quick-release rotary valve undergoes 100% dimensional inspection, air leakage testing, and optional third-party witness. We offer direct factory pricing, short lead times for standard sizes (DN50 to DN350), and full technical documentation (CE, TÜV, Statement of Compliance).
Frequently Asked Questions
- What materials can the Doebritz PA Quick-release rotary valve handle?
- It handles powders, granules, pellets, and flakes – from food (flour,奶粉, spices) to chemicals (carbon black, PE/PP, titanium dioxide) to pharmaceuticals (lactose, vitamin blends) and battery materials (LFP, graphite).
- How do you achieve minimal air leakage?
- Precision CNC machining maintains rotor-to-housing clearance of 0.1–0.2mm, combined with optional air-purged lip seals. This reduces pressure loss and improves pneumatic conveying efficiency.
- Is the PA valve ATEX certified?
- Yes, it is available with ATEX Zone 20, 21, or 22 certification, including flameproof housing (16bar), antistatic rotor option, and certified explosion-proof motor.
- Can I get custom flanges or drives?
- Absolutely. Doebritz offers DIN, ANSI, and HG20592 flanges, direct-mounted gearmotors, VFD-ready configurations, and stainless steel or coated rotors for abrasive/corrosive service.
- How quick is the quick-release disassembly?
- One operator can disassemble, clean, and reassemble the PA valve in under 15 minutes without special tools – ideal for hygienic product changeovers or CIP/WIP validation.
