Doebritz Flour Star Discharge Valve: 8-Vane Cast Iron Body – Minimal Air Leakage 0.1-0.2mm Clearance

Product Summary: Doebritz Flour Star Discharge Valve for High-Sanitation Pneumatic Conveying

Doebritz presents the DBR-1237 Flour Star Discharge Valve, a heavy-duty quick-release rotary airlock purpose-engineered for flour milling, grain processing, and food-grade powder handling. With rotor-to-housing clearance of 0.1–0.2mm, this star discharge valve ensures minimal air leakage <0.4 bar differential, preserving pneumatic conveying efficiency while preventing dust blowback. Manufactured from SUS304, SUS316L, or cast iron with mirror-finished internal surfaces (Ra≤0.4μm), the Doebritz flour star valve meets GMP, Class 10W/100K cleanroom, and ATEX Zone 20/21/22 standards. CNC-machined rotors and outboard bearing housing deliver extended MTBF for 24/7 flour mill operations.

Why Plant Sourcing Chooses Doebritz Flour Star Discharge Valve (Minimal Air Leakage)

Flour dust is both explosive and hygroscopic. Doebritz’s precision-machined rotor-stator interface reduces air leakage to below 0.2 m³/h per bar of differential pressure, directly improving dense-phase pneumatic conveying stability and batch metering accuracy. The quick-release clamp design enables full disassembly in under 5 minutes without special tools, supporting daily CIP/WIP cleaning to prevent cross-contamination between wheat, rye, or gluten-free runs. All Doebritz flour star discharge valves are 100% hydrostatically tested and leak-checked before shipment, backed by CE, TÜV, and Statement certifications for global OEM supply.

Core Competitive Advantages

• Ultra-low Leakage: 0.1–0.2mm radial clearance, lip seal with air purge – ideal for pressure differential up to 1 bar.
• Quick-Clean Hygienic Design: Tool-free disassembly, mirror internal finish, no dead corners, compatible with CIP/WIP.
• ATEX Explosion Safety: Zone 20/21/22 certified, flameproof housing withstands 16 bar, anti-static rotor option.
• CNC Precision Manufacturing: Doebritz in-house CNC machining ensures repeatable tolerances ±0.02mm for rotor-vane geometry.
• Material Flexibility: SUS304 (food grade), SUS316L (acid-resistant), carbon steel with tungsten carbide/ceramic coating for abrasive additives.

Housing & Rotor Engineering for Flour & Powder Applications

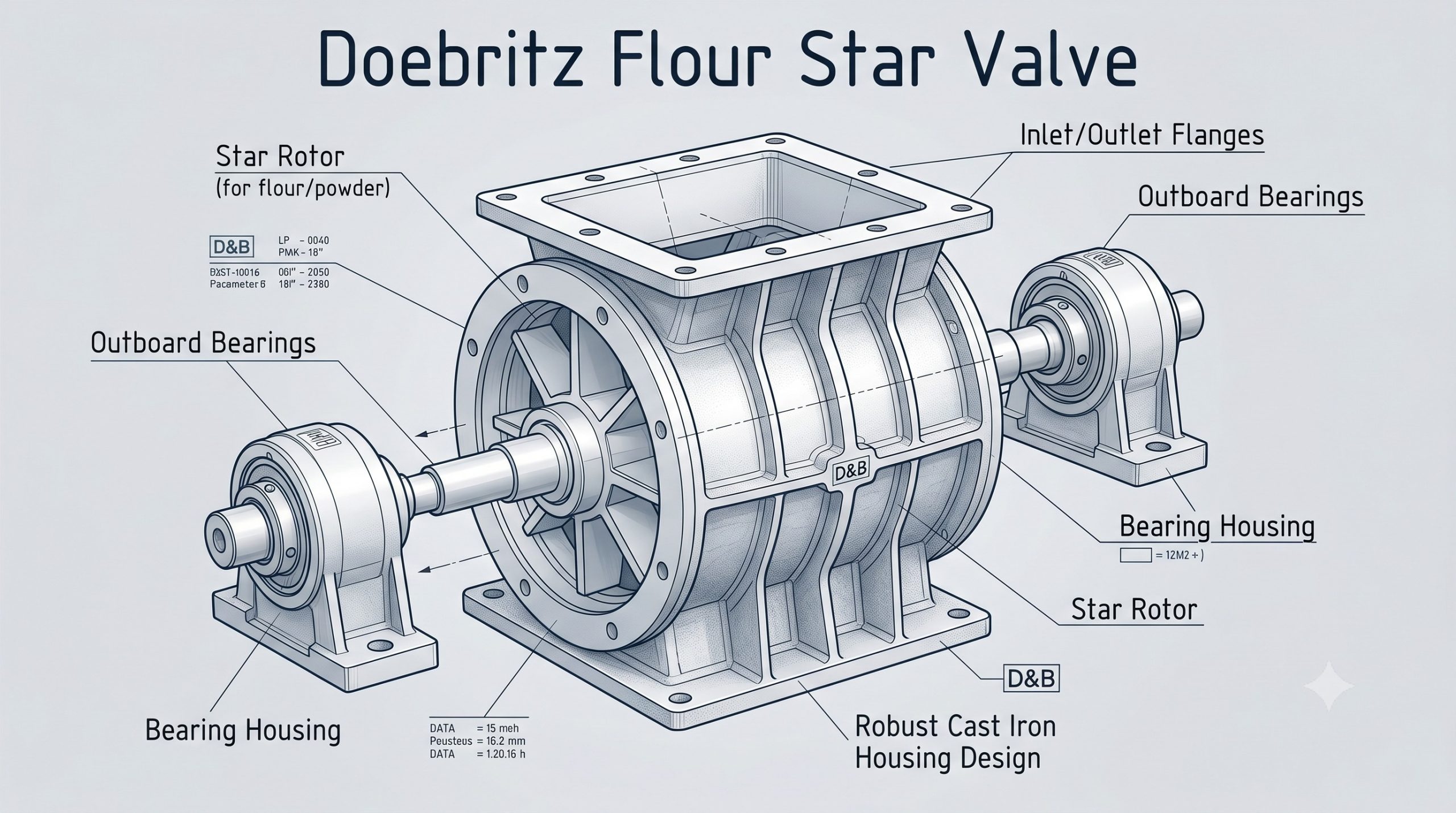

The Doebritz flour star discharge valve features a heavy-duty cast housing (EN-GJL-250 or stainless steel) with outboard bearing supports that isolate the bearing housing from the material flow zone. This eliminates flour dust contamination of lubricants and reduces shaft seal wear. The 8-vane open rotor design provides high volumetric efficiency while preventing material crushing or shearing – critical for preserving flour particle size distribution. Optional water cooling jacket maintains seal integrity when handling warm flour (up to 120°C). Shaft sealing combines PTFE lip seals + compressed air purge for zero flour leakage to atmosphere.

Technical Specifications – Doebritz DBR-1237 Flour Star Valve

Below are standard parameters. Custom flanges (DIN/ANSI/JIS) and variable frequency drive (VFD) kits are available for plant integration.

Specification	Standard Detail	Optional Upgrade
Body Material	Cast Iron EN-GJL-250	SUS304 / SUS316L Stainless Steel
Rotor Type	8-Vane Open Rotor, CNC-machined	10-Vane or Closed Rotor for ultra-fine flour
Rotor-Housing Clearance	0.1–0.2 mm (standard)	0.08 mm for high-pressure dense phase
Shaft Seal	Lip seal + Air purge (0.2 bar)	PTFE packing + double air purge
Port Size / Connection	DN150 (HG20592)	DN100 to DN350, custom ANSI/DIN flanges
Differential Pressure	0.4 bar (low pressure), 1 bar (high pressure VFD)	16 bar flameproof housing
Temperature Range	Material: 0–120°C / Ambient: -15–60°C	Water cooling jacket for >120°C
Surface Finish (Internal)	Ra≤0.8μm (standard food grade)	Ra≤0.4μm electropolished / mirror finish
ATEX Certification	Zone 22 (optional)	Zone 20/21 with anti-static rotor & earthing
Cleaning Method	Quick-release manual cleaning	Online CIP / WIP with spray ball nozzles

Heavy-Duty Application Scenarios: Flour Mills & Food Processing Lines

Flour Mill Silo Discharge

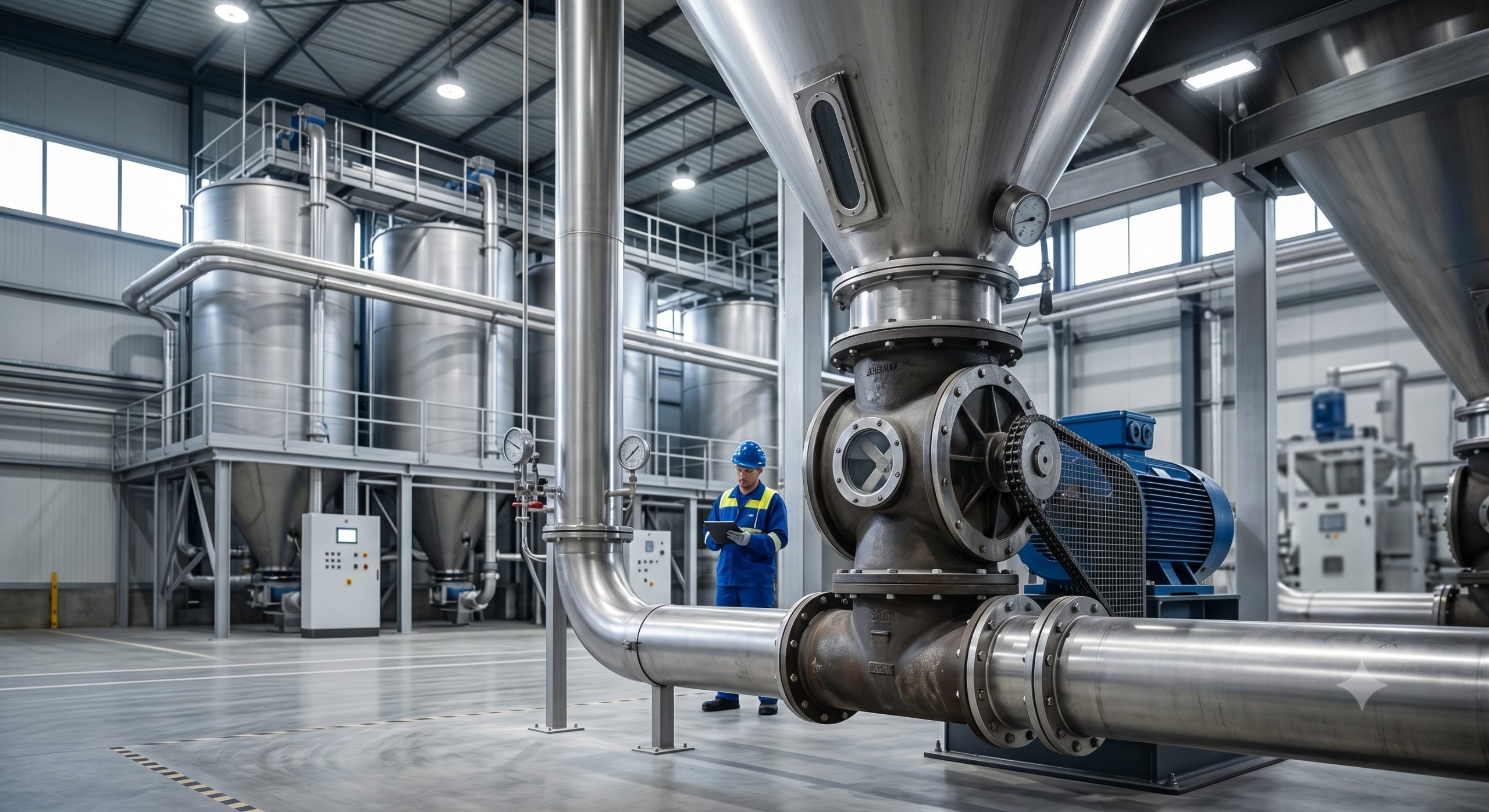

In large-scale flour mills, Doebritz star valves are installed under sifting bins, storage silos, and dust collectors. The low-leakage design prevents air short-circuiting that would blow flour dust into the mill environment, complying with ATEX 137 workplace safety directives. Variable-speed drives allow precise extraction rates for blending soft/hard wheat flours.

Pneumatic Conveying to Packaging & Mixing

For transferring flour to batch mixers, packaging hoppers, or bulk tankers, Doebritz valves maintain stable conveying pressure. The quick-release body lets operators inspect vanes for wear in 10 minutes, reducing planned downtime by up to 70% compared to traditional bolted valves. FDA-compliant elastomer seals are available for direct food contact.

Cleanroom & Pharma-Grade Applications

When processing fortified flours, protein powders, or pharmaceutical starches, the Doebritz flour star discharge valve can be supplied with Ra≤0.4μm electropolished internals, validated for Class D/C cleanrooms. CIP spray balls integrated into the valve housing enable automated sanitation without disassembly.

Frequently Asked Questions – Flour Star Discharge Valve Sourcing

What is the maximum differential pressure for Doebritz flour star valves?

Standard design handles 0.4 bar (low pressure) and up to 1 bar (high pressure with VFD speed control). For flameproof ATEX applications, the housing is rated for 16 bar burst pressure.

Can I get the valve with FDA-approved seals and polished internals?

Yes. Doebritz offers full sanitary execution with FDA silicone or PTFE seals, internal surface roughness Ra≤0.4μm, and electropolishing. Documentation includes material certificates (3.1) and surface roughness reports.

How do you ensure minimal air leakage for flour pneumatic conveying?

Doebritz CNC-machines both the housing bore and rotor vanes to a radial clearance of 0.1–0.2mm. Additionally, the lip seal with air purge creates a positive pressure barrier that reduces leakage by 30% compared to standard packing seals.

Is the flour star valve ATEX certified for Zone 20 (internal dust explosion)?

Absolutely. The Doebritz DBR-1237 series is ATEX certified for Zone 20, 21, and 22. Options include anti-static rotor coating, copper-beryllium tooling for spark prevention, and earthing straps.

What are the lead times for custom flange drilling (ANSI 150# / DIN PN10)?

Standard DN100–DN350 flanges are stocked. For custom bolt patterns, Doebritz offers 2–3 week lead time including CNC flange machining and hydrostatic testing. Global OEM supply agreements include priority production slots.
