High Differential Pressure Valve: Doebritz Driving Belt Rotary Airlock | Tested <0.15 m³/h Air Leakage

Executive Overview: Precision Conveying Under High Differential Pressure

Engineered for dense phase pneumatic conveying and high-pressure drop applications, the Doebritz Driving Belt rotary airlock valve redefines volumetric efficiency and sealing integrity. Unlike conventional feeders that suffer from blowback and material bypass, our Driving Belt series maintains a measured air leakage rate of <0.15 m³/h at 1.0 bar ΔP, ensuring maximum system pressure retention and throughput stability. Leveraging Doebritz‘s 15+ years of heavy-machinery CNC mastery, each rotor-to-housing radial clearance is held to a tolerance of <0.05 mm, eliminating material jamming while drastically extending MTBF in abrasive service.

Why Heavy Industries Source Doebritz Driving Belt

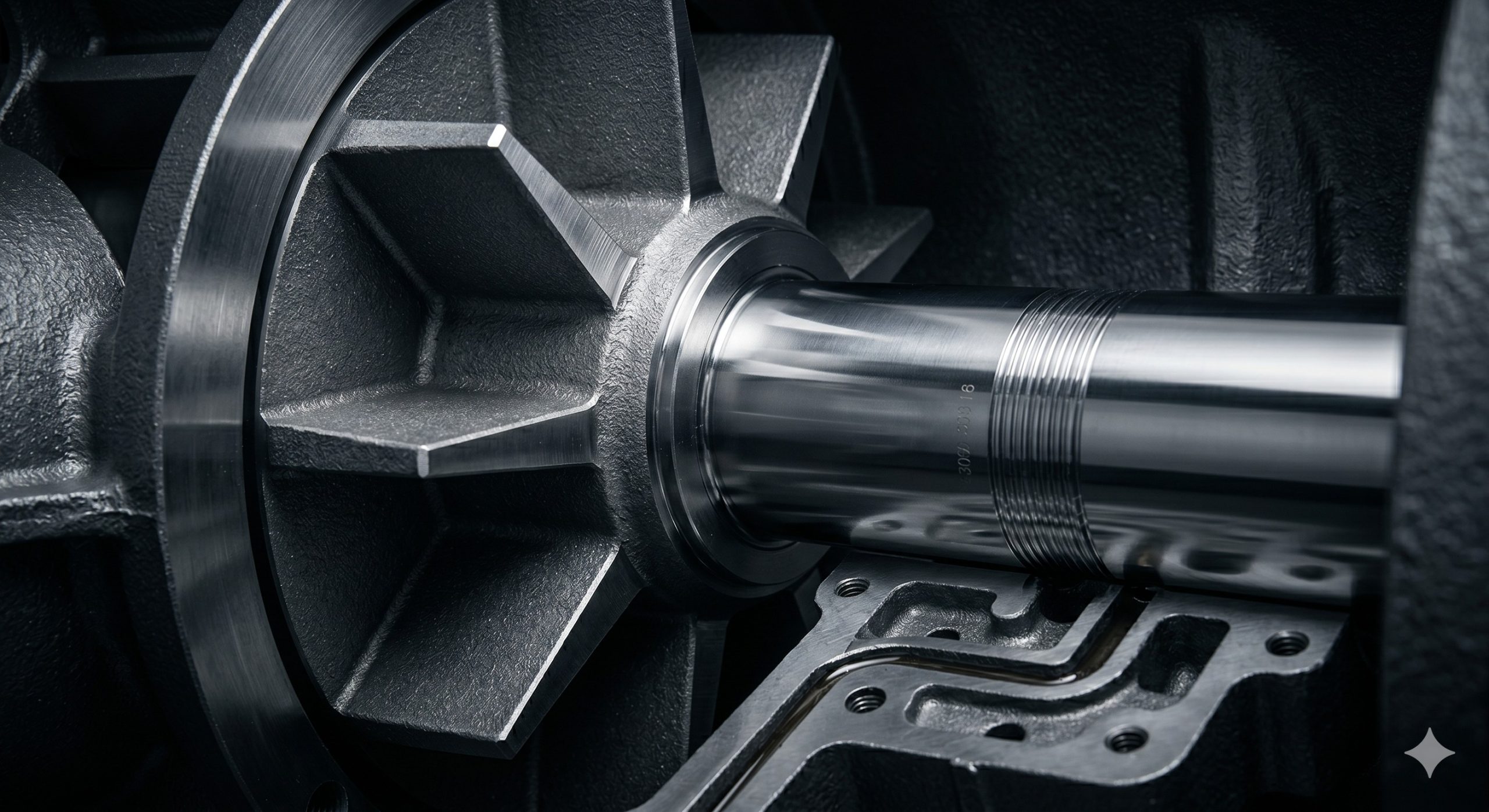

• CNC-Machined Rotor Geometry: Our 5-axis CNC machining centers produce vanes with a true mirror finish, reducing friction wear and maintaining consistent volumetric fill efficiency even with fine powders (down to 5 microns).
• ATEX Zone 20/21 Certified Explosion-Proof: Full compliance with ATEX Directive 2014/34/EU. Flame propagation paths, housing wall thickness, and grounding provisions are certified for hazardous dust atmospheres.
• Outboard Bearing & Air Purge System: Bearings are isolated from the material zone by extended shaft seals and a lantern ring air purge, preventing dust ingress and bearing washout — critical for cement, lime, and carbon black handling.
• Minimal Clearance, Maximal Pressure Holding: Doebritz‘s proprietary thermal compensation design maintains tight tip-to-bore clearances across a -20°C to +280°C operating range, guaranteeing consistent leakage control under severe temperature cycling.

<img src="https://www.doebritzgroup.com/wp-content/uploads/2026/05/image_07334355-scaled.jpg" alt="High Differential Pressure Valve: Doebritz Driving Belt Rotary Airlock | Tested

Housing & Rotor Engineering: Built for Continuous Duty

The Doebritz Driving Belt features a heavy-duty spheroidal graphite cast iron (GJS-400-15) or investment-cast 316L stainless housing, stress-relieved to eliminate distortion under flange bolt torque. The rotor is dynamically balanced and hot-dip zinc-coated (or electropolished for sanitary grades). Integrated access covers allow rapid inspection without removing the feeder from the line. For high-wear applications, Doebritz offers a Ni-Hard 4 hardened vane edge and Stellite-tipped rotor options, extending service life by 300% compared to standard carbon steel feeders.

Technical Specifications: Verified Parameters

Model Range: DN150 to DN600 (6” to 24”)
Volumetric Capacity: 1.5 to 85 liters/revolution
Max Differential Pressure: 1.5 bar (21.7 psi)
Operating Temperature: -20°C to +280°C (with high-temp seals)
Max Rotor Speed: 45 RPM (for abrasive), 75 RPM (for free-flowing)
Housing Material: Cast Iron GJS-400 / 316L Stainless Steel / Hastelloy
Seal Type: Teflon braided packing + air purge (standard), mechanical seal (optional)
Connection: DIN EN 1092-1 / ANSI B16.5 / JIS 10K

Specification	Detail
Body Material	Cast Iron GJS-400 / 316L Stainless Steel / Hastelloy
Rotor Design	8-Vane Open Rotor, CNC-ground radial clearance <0.05mm
Max Differential Pressure	1.5 bar (21.7 psi) continuous, <0.15 m³/h leakage
Temp Range	-20°C to +280°C (high-temp seal option)
ATEX Certification	II 2D Ex h IIIC T125°C Db (Zone 21/22)
Connection Standards	DIN EN 1092-1, ANSI B16.5, JIS 10K

Heavy-Duty Application Scenarios

Pneumatic Conveying Systems (Dense & Dilute Phase)

Integrate the Doebritz Driving Belt as a pressure-tight feeder under silos, hoppers, or baghouse outlets. Field data from cement plants show a 22% increase in conveying capacity after replacing standard airlocks, attributed to our anti-blowback rotor design and precision housing geometry.

Chemical & Petrochemical Feeding

For abrasive catalysts, TiO2, or carbon black, the optional hardened rotor and purgeable end-discs prevent material packing while maintaining ATEX compliance. Doebritz provides full material certs (EN 10204 3.1) and positive material identification (PMI) testing.

Minerals & Aggregates Discharging

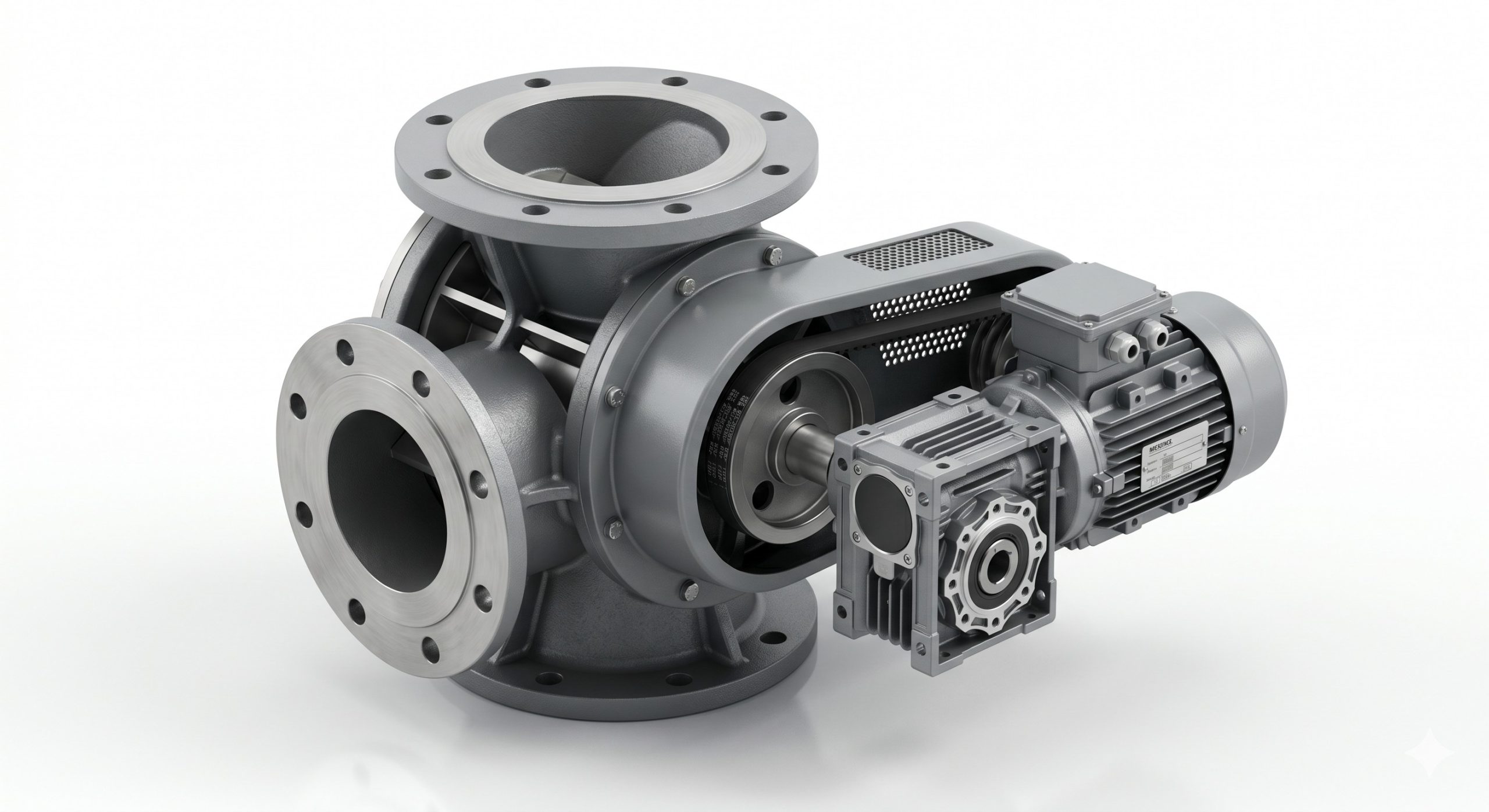

In heavy-tonnage applications (limestone, gypsum, clinker), the outboard bearing arrangement and oversized gearmotor drive handle high starting torques without seal failure. Custom flanges (DIN/ANSI) and direct drive or chain-driven options available for retrofits.

<img src="https://www.doebritzgroup.com/wp-content/uploads/2026/05/image_8ccabfe0-scaled.jpg" alt="High Differential Pressure Valve: Doebritz Driving Belt Rotary Airlock | Tested

Global OEM Assurance & Logistics

As a manufacturer-direct source (ISO 9001:2024 certified), Doebritz guarantees full traceability from raw melt to final assembly. Every Driving Belt valve is hydrostatically tested to 1.5x max working pressure and leakage-verified using a differential pressure decay method. Standard lead time: 3-5 weeks (expediting available). We supply to top-tier system integrators and EPC firms worldwide, providing CAD drawings, 3D models, and weight-load data for seamless procurement.

B2B Procurement Q&A

What is the maximum differential pressure the Doebritz Driving Belt can withstand without air leakage exceeding spec?

Our Driving Belt series is certified for continuous operation at 1.5 bar ΔP with leakage <0.15 m³/h. For short-term spikes up to 2.0 bar, the housing safety factor ensures no permanent deformation. Each valve includes a stamped leakage test certificate.

Can the rotor be customized for extremely abrasive powders like alumina or fly ash?

Yes. Doebritz offers a bi-metallic rotor with replaceable Ni-Hard 4 or tungsten carbide tips. We also provide hard chrome or ceramic coating on standard rotors. Please specify your material’s abrasion index (ASTM G65) for tailored engineering.

Do you provide ATEX certification for Zone 20/21?

Absolutely. The Doebritz Driving Belt is EC-type examined and certified for internal and external explosion risks. You will receive the full ATEX certificate, instruction manual, and marking plate attached to the housing.

What is the typical lead time for custom flange drilling (DIN/ANSI)?

Standard flanges ship in 3-5 weeks. For non-standard bolt patterns or specialized materials (Hastelloy, Monel), add 2 weeks. Doebritz maintains a semi-finished inventory for rapid CNC finishing of custom flanges.

How do I select between chain drive and direct gearmotor on the Driving Belt?

Direct gearmotor (hollow shaft) is recommended for clean, lower-torque applications requiring compact footprint. Chain drive is preferred for high-torque, high-temperature, or washdown environments where motor isolation is needed. We provide selection software to match your torque and speed requirements.
