Quick-Clean Demountable Valve: Doebritz Carbon steel painted Quick-release rotary valve | Sanitary Processing Standard

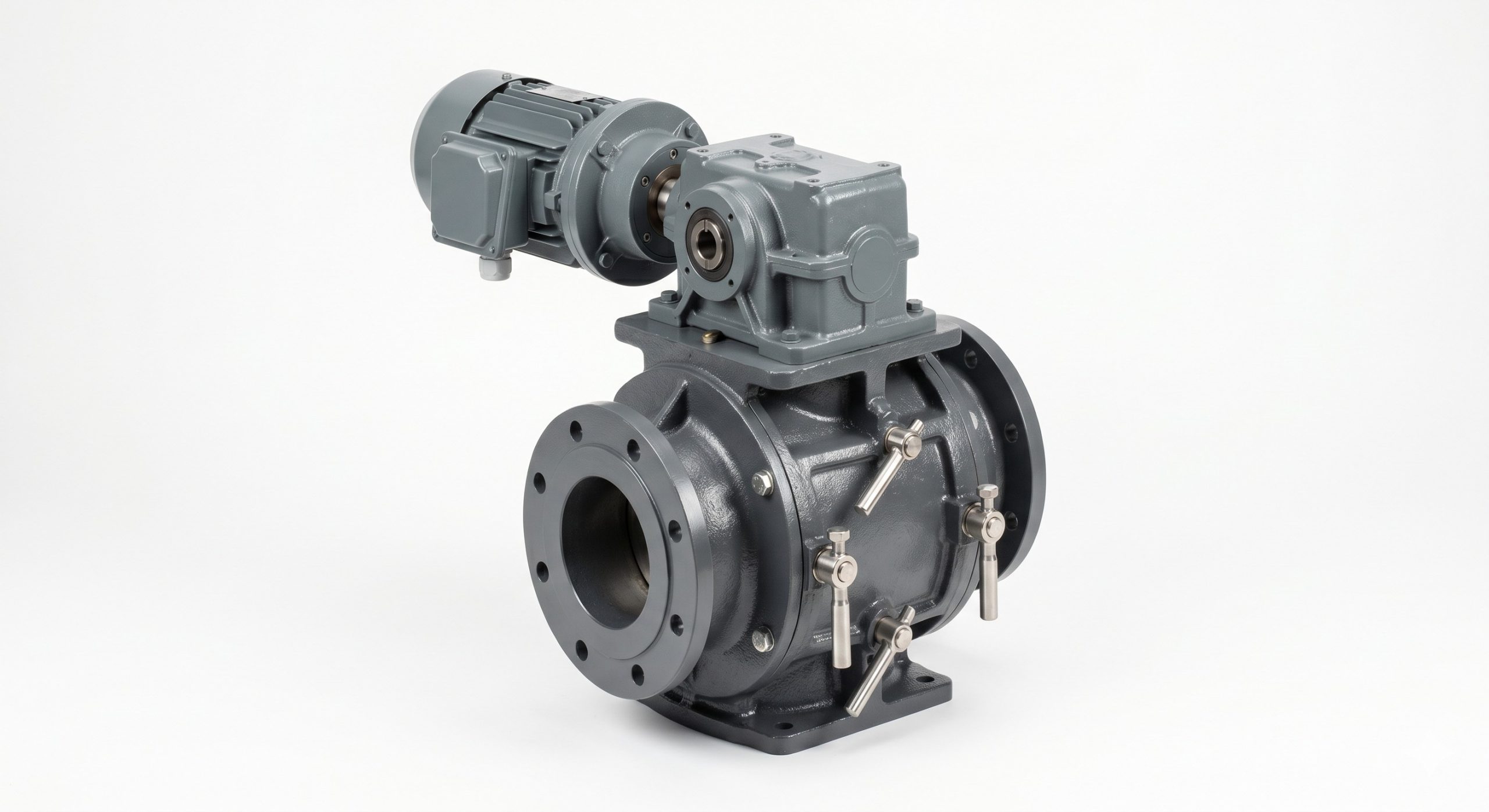

Product Summary

Engineered for high-performance bulk solids handling, the Doebritz Carbon steel painted Quick-release rotary valve (Model DBR-1237) combines rugged carbon steel construction with a fast-demount design for superior cleanability and process uptime. Ideal for gravity discharge, pneumatic conveying, and metering applications in food, chemical, and pharmaceutical environments, this valve delivers minimal air leakage (rotor-to-housing clearance: 0.1-0.2mm) and ATEX-certified safety. Doebritz precision CNC machining ensures consistent volumetric efficiency, while the painted carbon steel body provides cost-effective durability for non-corrosive bulk materials.

Why Plant Sourcing Chooses Doebritz Carbon steel painted Quick-release rotary valve

• Optimal Airlock Efficiency: Precision-ground rotors and housings achieve ≤0.2mm radial clearance, drastically reducing air bypass and preserving conveying pressure.
• Quick-Release Demountability: Tool-free access to internal components slashes cleaning and maintenance downtime by up to 70% – supports manual, CIP, and WIP protocols.
• ATEX Certified Explosion Safety: Compliant with Zone 20/21/22 (dust explosion) and 16bar pressure shock resistant construction for hazardous locations.
• Heavy-Duty Carbon Steel Body: Industrial painted finish resists corrosion and abrasion, ideal for abrasive powders, granules, and pellets in demanding process lines.
• Global OEM Supply Capacity: Doebritz’s in-house foundry and CNC centers enable full customization: flanges (DIN/ANSI/HG20592), drives, coatings, and shaft seals.

Housing & Rotor Engineering

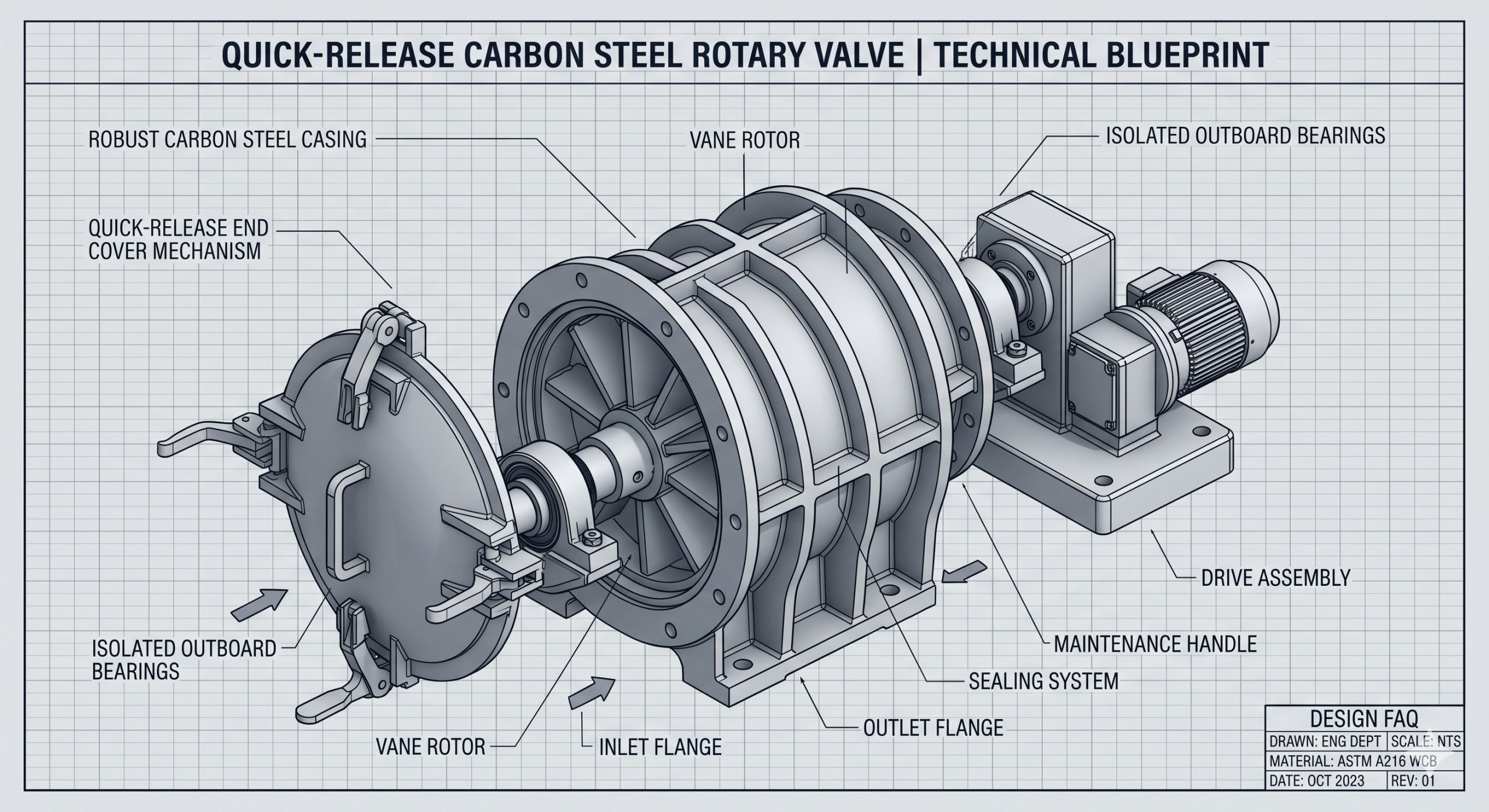

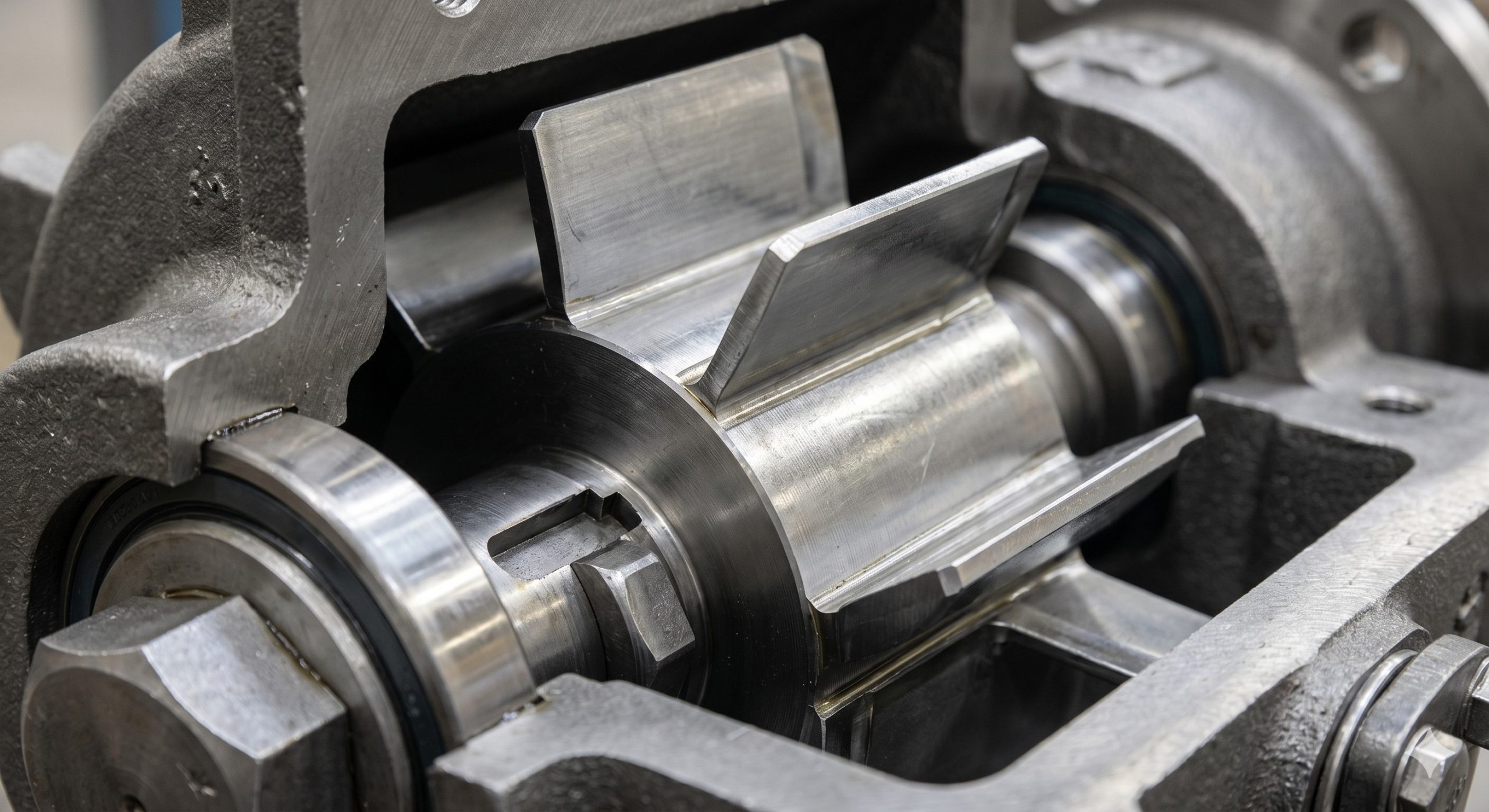

The Doebritz carbon steel quick-release rotary valve features a heavy-duty split housing precision-machined from cast carbon steel. The housing interior is treated with anti-corrosion primer and top-coated with industrial-grade paint (surface roughness Ra ≤ 1.6μm as standard, optional Ra ≤ 0.8μm for hygienic lines). The rotor is dynamically balanced and available in 6, 8, 10, or 12-vane configurations. End covers are equipped with outboard bearings isolated from the product zone, preventing contamination and enabling high-temperature operation (material temps up to 120°C / 248°F). The shaft sealing system combines lip seals with air purge connections, eliminating dust escape and preserving seal life even in fine powder applications.

Precision Machining for Minimal Leakage

Each Doebritz carbon steel valve is CNC-machined to maintain 0.1mm to 0.2mm clearance between rotor tips and housing bore. This tight tolerance significantly reduces air leakage (typically <0.2 m³/h at 0.6 bar differential), ensuring stable pneumatic conveying and accurate batch metering. All mating surfaces are lapped to ≤0.8μm finish for consistent sealing over extended service life.

Technical Specifications

Below are factory-verified parameters for the Doebritz Carbon steel painted Quick-release rotary valve (DBR-1237 series). Customization available upon request.

Specification	Detail
Body Material	Carbon steel painted (SUS304/SUS316L optional)
Rotor Design	8-vane open rotor, precision-balanced (6/10/12 vanes optional)
Rotor-to-Housing Clearance	0.1 – 0.2 mm (0.004 – 0.008 in)
Shaft Seals	Lip seals with air purge connection (packing seals optional)
Pressure Range	+1 bar to -1 bar (differential)
Temperature Range	Ambient: -15°C to +60°C; Material: 0°C to +120°C (water cooling jacket optional)
Explosion Protection	ATEX Zone 20/21/22; Pressure shock resistant 16 bar
Port Sizes (DN)	DN50, DN100, DN150, DN200, DN300, DN350
Surface Finish (Internal)	Ra ≤ 1.6μm standard (Ra ≤ 0.4/0.8μm mirror finish optional)
Drive Options	Direct gearmotor, chain drive, inverter-ready (VFD), explosion-proof motor
Certifications	CE, TÜV, ATEX, Statement (hygienic design compliant)

Heavy-Duty Application Scenarios

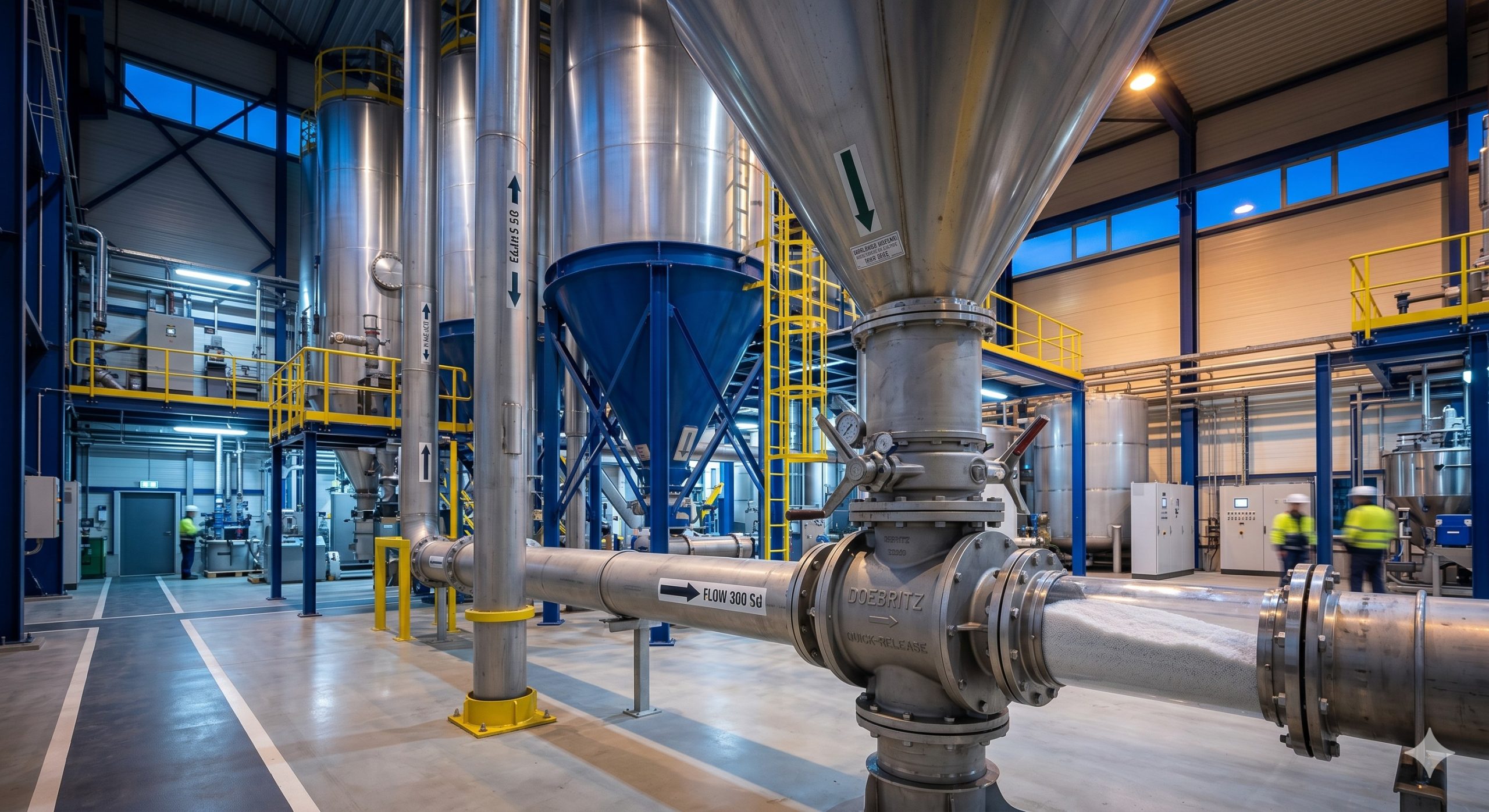

Pneumatic Conveying Systems (Dilute & Dense Phase)

Integrate seamlessly into positive or negative pressure networks. The valve’s precision clearances and robust carbon steel body maintain system pressure, reduce energy costs, and prevent blowback. Max pressure rating: 1 bar (positive), -1 bar (vacuum).

Gravity Discharge & Silo Outlet Feeding

Under hoppers, dust collectors, cyclones, and mixers, the quick-release design allows rapid access for inspection or cleaning. Optional variable frequency drive (VFD) enables adjustable material flow from 0.1 to 100% of rated capacity.

Automated Batching & Loss-in-Weight Metering

Doebritz carbon steel valves integrate with PLC-based systems for recipe-driven dosing. The low-leakage design ensures high metering accuracy (±1-2% of setpoint), critical for compounding, blending, and packaging lines.

Hazardous Dust Environments (ATEX Zone 20/21/22)

With flameproof housing construction, 16bar burst resistance, and optional anti-static rotor seals, this valve is certified for explosive powder atmospheres (e.g., grain dust, aluminum powder, pharmaceutical intermediates).

Global OEM Assurance & Compliance

Every Doebritz Carbon steel painted Quick-release rotary valve is manufactured under ISO 9001:2015 certified processes. Full material traceability (EN 10204 3.1) and NDT reports available. Certifications include CE, TÜV, ATEX, and Statement of Hygienic Design for food/pharma applications. Lead times: standard sizes (DN100-DN300) stock-ready within 15 days; custom configurations within 25-30 days. Doebritz provides complete technical support – from sizing calculations to installation supervision and spare parts supply.

Frequently Asked Questions

What is the maximum differential pressure for this carbon steel quick-release rotary valve?

The Doebritz DBR-1237 series is rated for differential pressures up to 1 bar (14.5 psi) in both positive and negative directions. For higher pressures (up to 2.5 bar), consult our engineering team for reinforced designs.

Can I use this valve for abrasive materials like silica sand or carbon black?

Yes. The carbon steel body with industrial paint provides good wear resistance. For highly abrasive powders, we recommend optional tungsten carbide or ceramic coatings on rotor and housing bore, extending service life by 3-5x compared to uncoated steel.

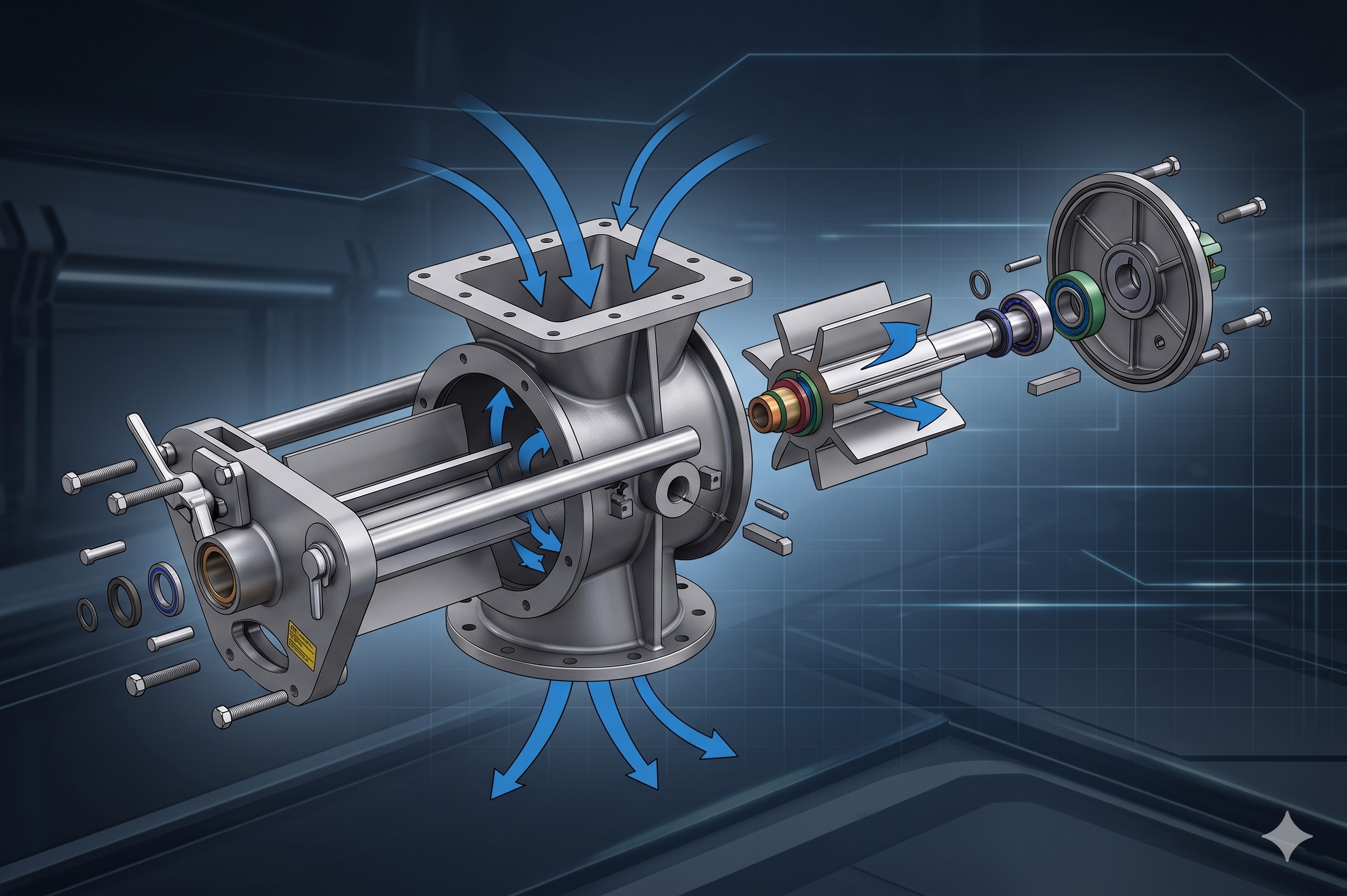

How quickly can I disassemble the quick-release mechanism for cleaning?

No special tools are required. An operator can open the end covers, remove the rotor, and access all product-contact surfaces in under 5 minutes. Reassembly typically takes 10 minutes, verified by alignment pins for consistent clearance.

What flange standards are available?

We offer DIN (EN 1092-1), ANSI/ASME B16.5, and HG20592 (Chinese standard). Custom drillings and facing finishes available on request. Standard sizes: DN50, DN100, DN150, DN200, DN300, DN350.

Do you provide VFD-ready configurations for automated batching?

Absolutely. Every Doebritz valve can be equipped with an IE3/IE4 rated motor and encoder for closed-loop speed control. We supply pre-wired junction boxes and PLC function blocks for seamless integration into your existing automation architecture.
