Introduction
The dairy and nutritional supplement industries face a persistent challenge: maintaining the stringent hygiene standards required for whey powder processing while achieving high throughput in pneumatic conveying systems. Whey powder, a high-value, fine, and often hygroscopic material, demands equipment that not only prevents cross-contamination but also ensures reliable, low-maintenance operation. This is where the Doebritz whey powder Quick-release rotary valve becomes an essential component.
With its innovative demountable structure and precision engineering, the Doebritz valve is designed to meet the rigorous demands of FDA-regulated environments. This blog will explore the critical aspects of using a dedicated rotary valve for whey powder, from its sanitary design and quick-clean capabilities to its role in maintaining product integrity and reducing total cost of ownership.
Sanitary Design and Regulatory Compliance
In the food and pharmaceutical sectors, compliance is non-negotiable. The Doebritz Quick-release rotary valve for whey powder is engineered with these standards at its core.
Materials and Surface Finish
To prevent product contamination and facilitate cleaning, the valve is manufactured from high-grade materials. The standard offering includes SUS316L stainless steel, which is renowned for its excellent corrosion resistance and non-reactive properties, making it ideal for contact with whey powder. Internal surfaces are subjected to a meticulous finish, achieving a Ra ≤ 0.4 μm mirror-like polish. This ultra-smooth surface prevents the adhesion of fine whey powder particles, eliminating potential sites for bacterial growth and ensuring full product recovery during production.
Quick-Clean and Demountable Structure
The cornerstone of its hygienic design is the Quick-release system. The Doebritz valve allows for tool-free, rapid disassembly and reassembly. This is a transformative feature for whey powder applications where production schedules demand frequent, thorough cleaning. The valve supports:
- Manual Cleaning: Quick release allows for direct access to all internal surfaces for thorough manual washing.
- Online CIP (Clean-in-Place): The design is optimized for CIP, allowing cleaning fluids to reach all wetted parts without disassembly.
- Online WIP (Wash-in-Place): For intermediate cleaning, WIP followed by a manual visual inspection ensures complete cleanliness.
This capability is crucial for maintaining the high level of sanitation required by FDA regulations and for minimizing downtime between product changeovers or production runs.
Compliance and Certifications
The Doebritz whey powder Quick-release rotary valve is designed to operate in high-grade cleanrooms, suitable for Class W, 10W, 30W, C, and D cleanroom classifications. It carries vital certifications including CE, TÜV, and Statement certification, confirming its alignment with European and international standards for safety and hygiene.

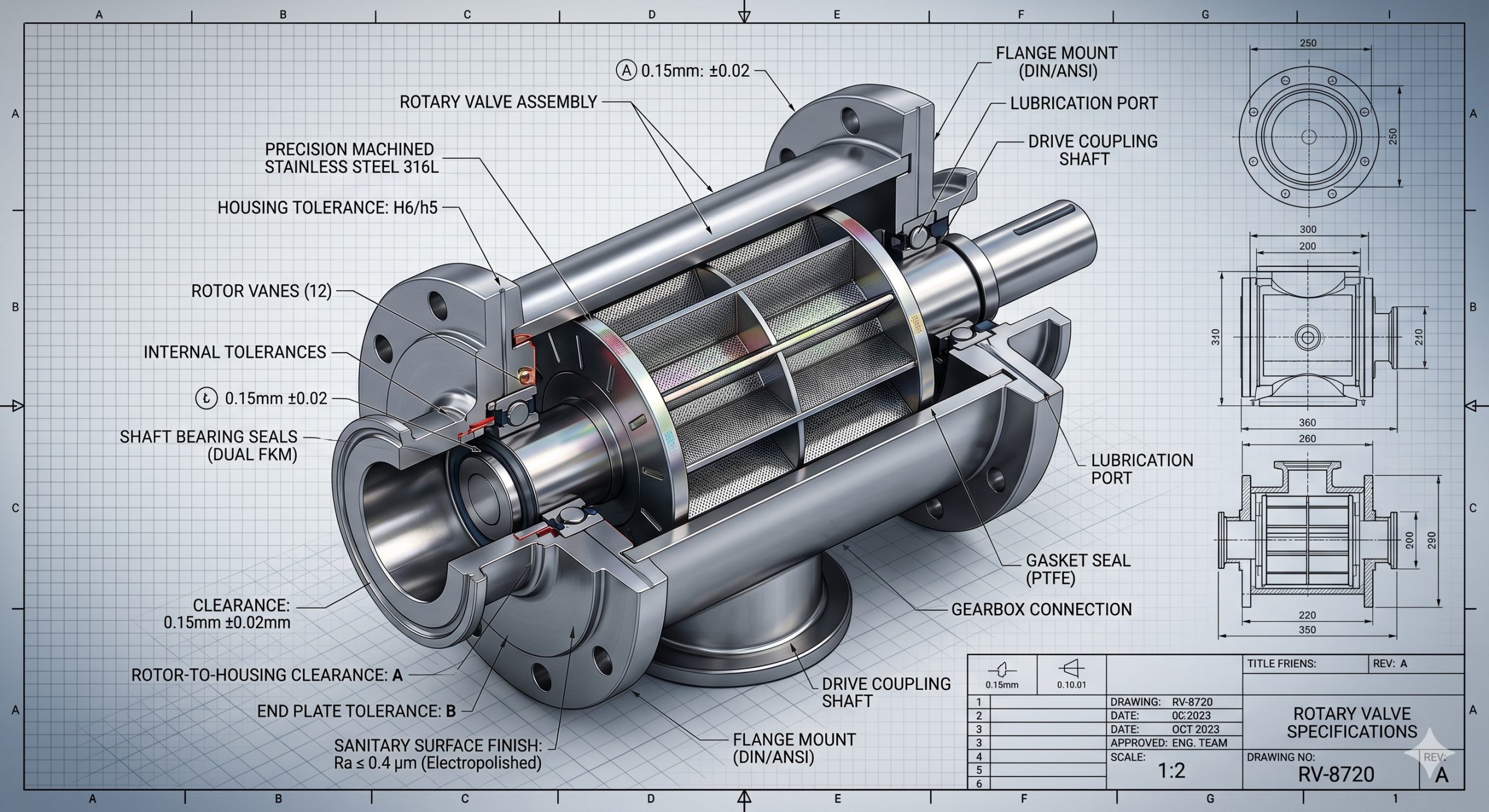

| Key Parameter | Technical Specification for Whey Powder |
|---|---|
| Materials of Construction (Product Contact) | SUS316L Stainless Steel (FDA Compliant) |
| Internal Surface Finish | Mirror Polish (Ra ≤ 0.4 μm) |
| Rotor-Housing Clearance | 0.1 – 0.2 mm for optimal airlock |
| Sanitary Design | Quick-release / Demountable, No dead-legs |
| Cleanability | Manual, CIP, WIP + Manual Inspection |
| Shaft Sealing | Lip seal with air purge / PTFE packing |
| Cleanroom Suitability | Class W, 10W, 30W, C, D |
| Certifications | CE, TÜV, FDA Compliance, Statement |
| Connection Sizes | DN50, DN100, DN150, DN200, DN300, DN350 |
Airlock Performance and Product Integrity
Beyond sanitation, the core function of the valve is to efficiently and gently handle whey powder.
Precision Locking for Low Leakage
For whey powder pneumatic conveying, maintaining system pressure is essential. The Doebritz valve excels in airlock performance, with a precisely controlled gap of 0.1 – 0.2 mm between the rotor and housing. This minimal clearance significantly reduces air leakage, which in turn:
- Stabilizes the conveying system.
- Lowers energy consumption by reducing compressor load.
- Prevents pressure fluctuations that can degrade product quality.
This precision ensures that the whey powder is conveyed gently and efficiently, minimizing particle breakage and maintaining its desired properties.
Preventing Cross-Contamination and Product Loss
The risk of cross-contamination is a major concern in food processing. The design of the Doebritz valve, with its quick-clean features and smooth internal surfaces, ensures easy verification of cleanliness. The no dead-leg design prevents powder accumulation, ensuring that all material is discharged, reducing product waste and eliminating the risk of old product contaminating a new batch.
Versatility in Speed and Control
For applications requiring precise feeding or blending, the valve offers adaptability. Its variable frequency drive (VFD) compatibility and PLC control allow for precise speed regulation. This capability enables the Doebritz valve to be used not just as an airlock, but as a metering device for batch or recipe-based whey powder formulations.
Optimizing Maintenance and Total Cost of Ownership
In a high-volume production environment, unplanned downtime is a significant cost driver. The Doebritz whey powder Quick-release rotary valve is engineered to maximize uptime.
Reduced Maintenance Time
The tool-free quick-release design is a paradigm shift in maintenance. What could be hours of work for a traditional valve is reduced to minutes. This speed allows maintenance teams to perform regular inspections, cleaning, or part replacements without lengthy production interruptions, directly contributing to a lower total cost of ownership.
Durable Components for Hygienic Service
While the primary focus is on hygiene, the mechanical integrity of the valve is paramount. The SUS316L construction, combined with FDA-compliant components like PTFE packing or Hygienic lip seals with air purge options, ensures a long service life even with the fine, powdery nature of whey. These materials are selected for their wear resistance and compatibility with the cleaning agents used in CIP processes.
Configurability for Specific Process Needs
The Doebritz valve is not a one-size-fits-all solution. It offers extensive customization to perfectly match the process:
- Connection Sizes: Available with DN50, DN100, DN150, DN200, DN300, and DN350 flanges to fit existing pipeline infrastructure.
- Sealing Options: Can be equipped with lip seal air-tight seals to provide an extra barrier against contamination.
- Temperature Control: For processes where temperature management is critical, a water cooling jacket option is available.
Conclusion
The Doebritz whey powder Quick-release rotary valve stands as a benchmark for sanitary airlock and feeding technology in the dairy processing industry. By seamlessly integrating FDA-compliant materials, industry-leading hygienic design, and robust engineering, it provides a reliable solution for handling demanding products like whey powder.
Its focus on rapid cleaning through its demountable structure, combined with precise airlock performance, ensures that production lines can maintain peak efficiency and product quality. For plant managers and engineers committed to operational excellence and regulatory compliance, the Doebritz valve is more than a component; it is a strategic investment in the integrity and efficiency of their entire processing line.
