Introduction: The Hygiene Imperative in Biscuit Production
In high-volume biscuit manufacturing, cross-contamination and unplanned downtime are primary antagonists to profitability. The transition of ingredients like flour, cocoa, sugar, and starches demands a rotary valve that not only meters precisely but also facilitates rigorous sanitation. The Doebritz Biscuits Quick-release rotary valve is engineered specifically to address these challenges. Designed for gravity-fed and pneumatic conveying systems, this airlock feeder ensures leakage rates below 0.05% differential pressure while enabling complete disassembly without specialized tools, directly supporting FDA and EHEDG guidelines for sanitary design.
Engineering the Quick-Clean Architecture

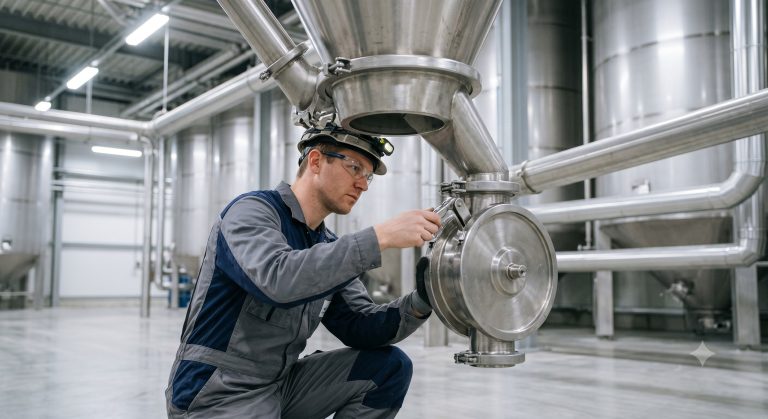

Unlike legacy star discharge valves that require hours of disassembly, the Doebritz unit leverages a patented quick-release clamping system. This design eliminates crevices and threads that can harbor bacterial growth or retained product. The demountable structure allows a single operator to access the rotor and housing interior for manual inspection or CIP (Clean-in-Place) validation in under 15 minutes, dramatically reducing Maintenance TCO (Total Cost of Ownership).
Metallurgy & Surface Finish for Food Safety
Contact parts are fabricated from SUS316L stainless steel, with Ra ≤ 0.4 μm mirror-polished internal surfaces to prevent product adhesion and biofilm formation. This surpasses standard FDA requirements for food contact, ensuring compatibility with sticky dough powders and fine sugar dust. Non-contact components can be specified with SUS304 for cost-effective solutions without compromising hygiene.
Precision Clearances & Blowback Prevention
To maintain volumetric efficiency in pneumatic conveying, the rotor-to-housing clearance is maintained at a strict 0.1 mm – 0.2 mm. This precision, achieved through CNC machining, prevents high-pressure air from blowing back into the silo discharge, which would cause flooding or bridging of biscuit meal. The result is consistent, pulse-free material flow with a volumetric efficiency exceeding 85%.
Technical Specifications & Output Performance
For biscuit applications, the Doebritz DBR-1237 series offers decisive parameters. The valve supports variable frequency drive (VFD) control for rotor speeds from 5 to 45 rpm, allowing precise metering of bulk densities ranging from 0.4 to 0.8 g/cm³ (e.g., flour, sugar, or cookie crumb). The housing is designed for a maximum differential pressure of 1.0 bar, suitable for dilute to dense phase conveying.
| Key Parameter | Technical Specification (Doebritz DBR-1237) |
|---|---|
| Rotor-to-Housing Clearance | 0.1 mm – 0.2 mm (CNC Precision) |
| Max Differential Pressure | Up to 1.0 Bar (100 kPa) |
| Operating Temperature (Material) | 0°C to +120°C (Optional Water Cooling Jacket) |
| Rotor Speed Range | 5 – 45 rpm (VFD Controlled) |
| Internal Surface Finish | Mirror polish, Ra ≤ 0.4 μm (SUS316L) |
| Industry Standards | FDA, CE, TÜV, ATEX (Zone 21/22), EHEDG-compliant design |
| Cleaning Methodology | Quick-release manual cleaning / Online CIP / WIP |
Target Applications in Biscuit & Confectionery Lines
The versatility of the Doebritz quick-release valve extends across the entire production ecosystem. In gluten-free lines, the quick-detach feature is critical to prevent cross-reactivity. The robust construction handles abrasives like salt and spices without degrading the airlock seal integrity. Furthermore, the valve is compatible with ZONE 21/22 ATEX environments, crucial when handling combustible sugar dust or starch under the NFPA 652 standard.
Integration with Batch Metering and PLC Systems
Modern biscuit plants rely on automated batching. This valve supports PLC integration for recipe metering and automated配料. With options for outboard bearings and lip seal air purging, the drive train remains isolated from the product zone, ensuring reliability during high-frequency start-stop cycles required for weighing hoppers.
Conclusion: Elevating Sanitary Rotary Valve Standards
For plant managers seeking to eliminate downtime for cleaning while guaranteeing product purity, the Doebritz Biscuits Quick-release rotary valve is a definitive upgrade. It bridges the gap between mechanical airlock performance and stringent food safety compliance. By integrating FDA-ready materials, EHEDG-compliant design, and heavy-duty conveying metrics, it ensures that biscuit manufacturers can achieve higher throughput with verifiable sanitary assurance.
