Introduction: The Critical Role of Hygiene in Starch Conveying

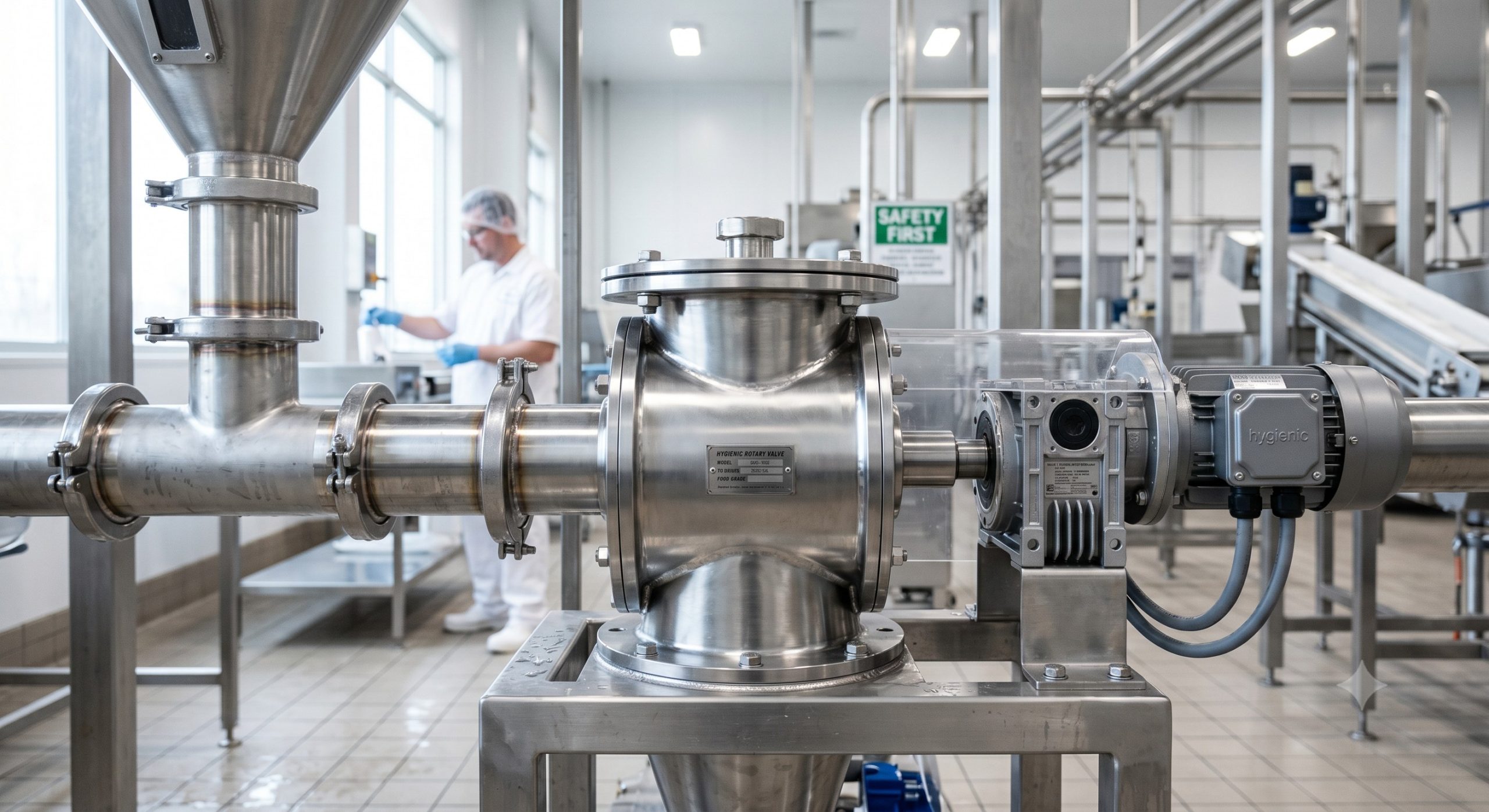

In food and pharmaceutical processing, the handling of starch—a powdery, often cohesive material—presents unique challenges. Cross-contamination, bacterial growth, and inefficient cleaning cycles can cripple productivity and violate strict FDA and GMP regulations. The Doebritz starch quick-release rotary valve has been engineered to resolve these critical pain points. Designed for the fast-paced, high-sanitation demands of the modern food industry, it provides a robust solution for airlock feeding and discharging, ensuring both product purity and operational efficiency .
Engineering for Sanitary Processing: The Quick-Release Mechanism
Traditional rotary valves often require extensive labor and specialized tools for cleaning, leading to costly downtime. The Doebritz starch quick-release rotary valve addresses this with a patented drawer-type or quick-dismounting design.
Demountable Design for Unobstructed Access

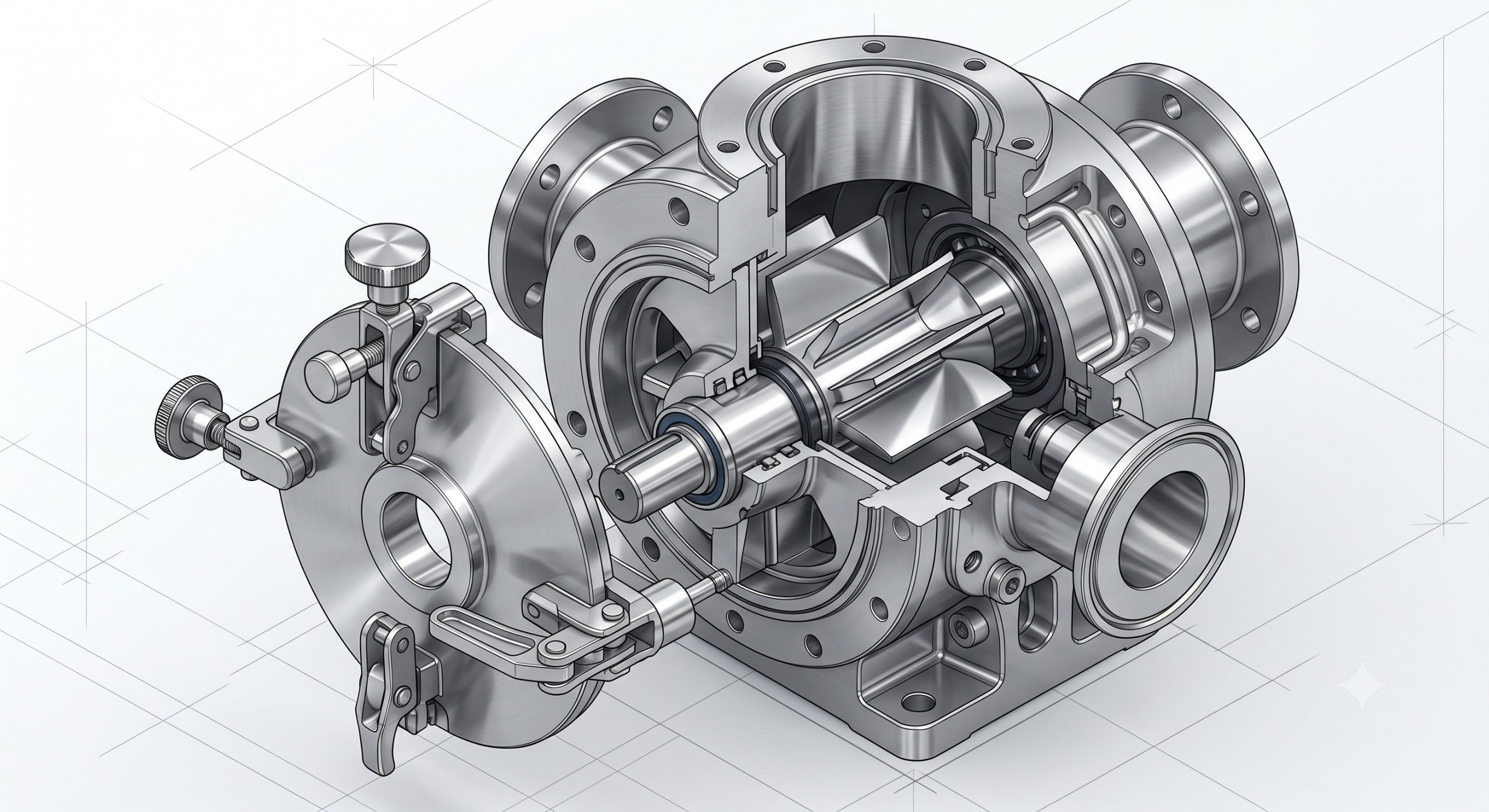

The innovative structural design allows for the rotor to be seamlessly pulled out on guide rails . This eliminates the need to dismantle the entire pipeline, reducing maintenance time to a fraction of conventional methods. Operators can achieve rapid cleaning between product batches, with some models allowing for complete breakdown and reassembly in just 10 minutes .
Material Selection and Surface Finish
To meet the stringent demands of food-grade starch handling, the valve is manufactured from high-grade stainless steel (SUS304 / SUS316L) . The internal surfaces are polished to an exceptional Ra < 0.8 μm, preventing material buildup and eliminating potential niches for bacterial growth. This design principle ensures full compliance with FDA regulations for food contact materials.
| Specification | Performance Data |
|---|---|
| Processing Capacity | Up to 634 L/min |
| Working Pressure Range | -0.5 to 2 bar |
| Working Temperature Range | -10°C to 150°C |
| Rotor-to-Housing Clearance | 0.15 – 0.2 mm |
| Material Options | SUS304 / SUS316L Stainless Steel |
| Internal Surface Finish | Ra < 0.8 μm |
| Design Type | Quick-Release / Drawer-Type |
| Certifications | CE, TÜV, Explosion Protection Statement |
Technical Specifications and Precision Engineering
The performance of the Doebritz starch quick-release rotary valve is backed by quantifiable metrics. The valve is engineered to offer not just cleanliness, but also precise airlock efficiency. Its robust construction ensures that the valve maintains structural integrity under dynamic process conditions, with pressures safely handled from -0.5 to 2 bar .
Furthermore, the valve maintains high volumetric efficiency, a critical factor when metering starch. The precision machining ensures an ultra-tight rotor-to-housing clearance of just 0.15 mm to 0.2 mm , which minimizes air leakage. This prevents blowback air from disrupting the upstream process and ensures consistent, uniform material flow.
Key Technical Data Highlights
- Processing Capacity: Up to 634 L/min .
- Working Pressure Range: -0.5 to 2 bar .
- Rotor-to-Housing Clearance: 0.15 – 0.2 mm .
- Rotor Vane Options: Designed to handle cohesive starches with scraper blade options to ensure complete discharge and prevent material build-up.
Compliance, Safety, and Cleanability
Compliance is non-negotiable in starch processing. The Doebritz valve is designed to meet the highest international standards.
Authoritative Certifications
Backed by rigorous testing, the valve holds CE and TÜV certifications, including specific explosion protection statements (Statement of Explosion Protection) that comply with stringent global safety standards such as EN 1127-1 and EN ISO 80079 .
Superior Cleaning Workflows (CIP / WIP)
The starch quick-release rotary valve is compatible with Clean-in-Place (CIP) and Wash-in-Place (WIP) systems. Its design facilitates automated cleaning cycles, reducing solvent usage and labor. For final verification, a quick manual inspection can be performed to guarantee cleanliness, making it ideal for applications requiring frequent product changeovers.
Conclusion: A Hygienic Benchmark for Food Processing
The Doebritz starch quick-release rotary valve represents the convergence of hygienic engineering and robust industrial performance. By prioritizing quick disassembly, superior cleanability, and precision air-locking, it delivers a solution that minimizes downtime, prevents cross-contamination, and ensures the absolute safety of food and pharmaceutical products. It is not just a valve; it is a safeguard for quality and productivity in the sanitary processing industry.
