Introduction: The Critical Role of Sanitary Valves in Hygienic Bulk Material Handling
In the pharmaceutical, food, and biotechnology sectors, the integrity of bulk material handling systems is non-negotiable. Cross-contamination, bacterial growth, and product degradation are ever-present risks that can lead to costly recalls and regulatory non-compliance. The core of many of these systems is the sanitary rotary valve, a component tasked with metering, sealing, and conveying sensitive powders and granules while maintaining strict hygiene standards. This technical guide explores the engineering behind the Doebritz DBR-1237 Custom Cleanroom Sanitary Lift, a solution designed to meet the most rigorous FDA and GMP requirements. We will delve into its demountable quick-clean design, material selection, and precision engineering, offering a comprehensive look at how modern rotary valves are evolving to meet the demands of high-purity processing.
For engineers and plant managers seeking to upgrade their processes, understanding the nuances of valve construction, from surface finishes to sealing technologies, is paramount. The Doebritz brand has engineered a product that addresses these concerns directly, offering a blend of operational efficiency, cleanliness, and durability that sets a new standard in the industry. This article provides a data-driven evaluation of its capabilities, focusing on the specific features that make it ideal for cleanroom applications.
The Engineering Challenge: Balancing Hygiene, Locking, and Throughput
The design of a sanitary rotary valve is a study in compromise. It must provide an effective airlock—minimizing pressure loss and preventing blowback—while ensuring that the product stream remains uncontaminated. Traditional rotary valves often feature complex internal geometries with dead zones where material can accumulate, leading to bacterial growth and cross-contamination between batches. Furthermore, the clearances between the rotor and the housing must be tight enough to maintain an effective seal but not so tight that they cause wear or binding, especially when handling abrasive materials. The Doebritz DBR-1237 addresses these challenges through its innovative quick-release, demountable design. This structure allows for complete disassembly without the need for specialized tools, enabling thorough manual cleaning, as well as seamless integration with Clean-in-Place (CIP) and Wash-in-Place (WIP) systems. The elimination of crevices and dead spots ensures that no product residue remains, a critical factor for FDA compliance and batch-to-batch integrity.
Precision Metallurgy and Surface Finishes
Material selection is the cornerstone of sanitary design. The Doebritz DBR-1237 is available in high-grade SUS304 and SUS316L stainless steel, chosen for their excellent corrosion resistance, durability, and non-reactive properties. For high-wear applications, internal surfaces can be coated with tungsten carbide (WC) or ceramic coatings to extend component life. However, for cleanroom applications, the surface finish is just as important as the base material. The valve’s internal surfaces are meticulously processed to achieve a mirror finish with a surface roughness of Ra ≤ 0.4 μm (with options for Ra ≤ 0.8 μm or Ra ≤ 1.6 μm). This ultra-smooth surface prevents product adhesion and biofilm formation, making cleaning quick and effective. The external surfaces are also treated with anti-fingerprint coatings and shot blasting to maintain a professional, hygienic appearance.
Demountable Quick-Release Mechanism

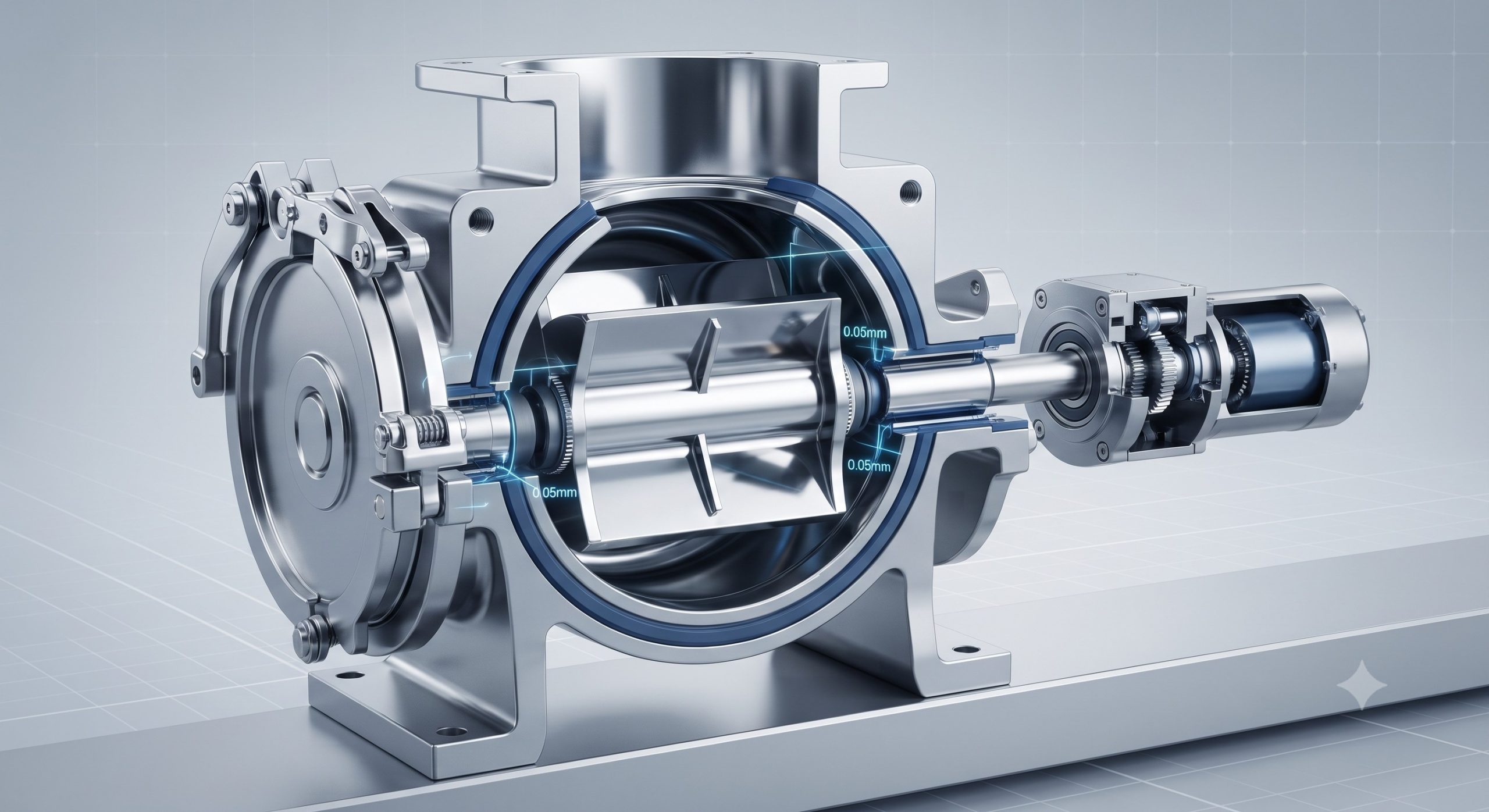

A key innovation of the Doebritz DBR-1237 is its quick-release design. The valve can be rapidly disassembled without tools, drastically reducing maintenance downtime. The design allows for easy access to the rotor and the internal housing, facilitating manual inspection and cleaning. This feature is essential for facilities operating in a Class W, 10W, 30W, C, or D cleanroom environment where validation of cleanliness is mandatory. The quick-release mechanism does not compromise the valve’s structural integrity or precision, ensuring that the tight 0.1–0.2 mm rotor-to-housing clearance is maintained after re-assembly for optimal airlock performance.
Technical Specifications and Performance Metrics
To make an informed engineering decision, quantifiable performance data is essential. The Doebritz DBR-1237 is engineered to deliver consistent, reliable performance across a wide range of conditions. Below is a summary of its key technical specifications, which are critical for system design and capacity planning.
| Key Parameter | Technical Specification |
|---|---|
| Model | DBR-1237 |
| Construction Material | SUS304, SUS316L, Carbon Steel, Coated (WC, Ceramic) |
| Internal Surface Finish | Mirror / Ra ≤ 0.4 μm, 0.8 μm, 1.6 μm |
| Rotor-to-Housing Clearance | 0.1 – 0.2 mm |
| Operation Mode | Quick-Release (Manual), CIP/SIP Ready |
| Airlock Pressure Rating | Up to 1 Bar (Differential Pressure) |
| Shaft Seal Configuration | Lip Seal with Air Purge Option |
| Cleanroom Compatibility | Class W, 10W, 30W, C, D |
| Explosion Protection | ATEX Zone 20/21/22 Compliant (Option) |
| Certifications | CE, TÜV, FDA Compliant Materials |
Application Scenarios: From Food to Pharmaceuticals
The versatility of the Doebritz DBR-1237 allows it to be deployed across a wide spectrum of industries where hygiene and precision are paramount. The quick-clean design and precision engineering make it a cornerstone component for handling a diverse range of materials.
Pharmaceutical Manufacturing

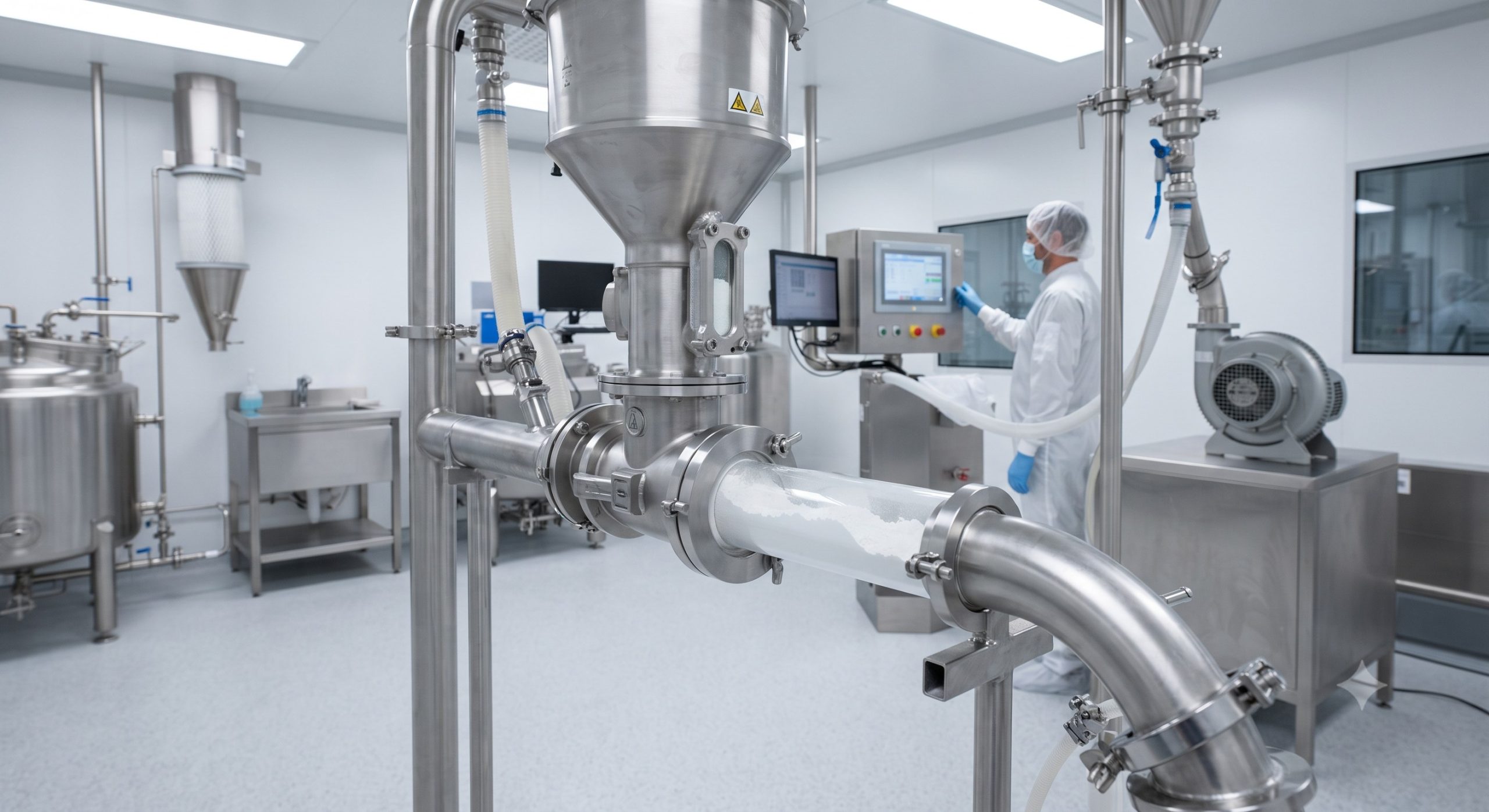

In the production of antibiotics, vitamins, hormones, and lyophilized vaccine powders, even trace contamination can be catastrophic. The Doebritz DBR-1237 ensures that these APIs are conveyed with zero risk of cross-contamination. Its ability to withstand CIP/SIP cycles and its compatibility with high-purity materials like lactose, microcrystalline cellulose, and recombinant proteins make it a vital asset in the pharmaceutical industry.
Food and Beverage Processing
Food safety regulations require stringent control over processing equipment. The Doebritz DBR-1237 is used for handling a range of food products such as milk powder, flour, cocoa, spices, coffee, protein powders, and baking ingredients. Its sanitary design prevents contamination and allows for quick product changeovers, increasing the efficiency and flexibility of production lines.
Conclusion: Defining the Future of Hygienic Conveying
The Doebritz DBR-1237 Custom Cleanroom Sanitary Lift represents a significant advancement in the field of hygienic bulk material handling. By combining precision engineering, high-grade materials, and an innovative quick-clean design, Doebritz has created a valve that not only meets but exceeds the stringent demands of the FDA and other regulatory bodies. Its quick-release mechanism, ultra-smooth surface finishes, and precise clearances ensure efficient airlock performance, reduced maintenance, and unwavering product purity. For engineers and plant managers responsible for the quality and efficiency of their production lines, this valve offers a secure, reliable, and future-proof solution.
