Quick-Clean Demountable Valve: Doebritz Soy Protein Powder Star Discharge Valve | Sanitary Processing Standard

Product Summary

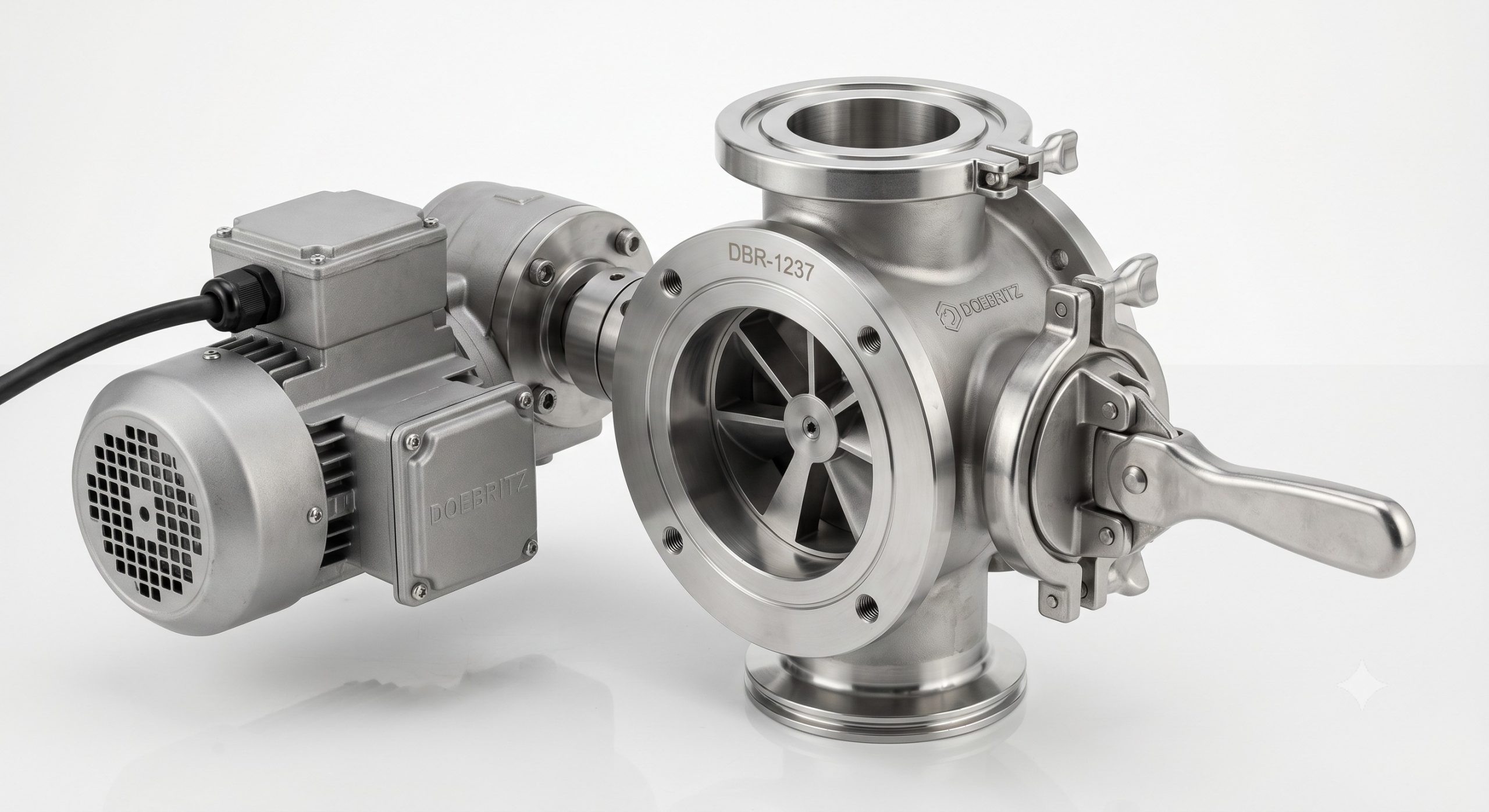

Engineered specifically for the hygienic handling of soy protein powder, the Doebritz DBR-1237 Star Discharge Valve combines rapid demountability with precision airlock sealing. Designed for food and pharmaceutical production lines, this quick-release rotary valve minimizes cross-contamination risks while maintaining volumetric efficiency. Its stainless steel 316L construction and mirror-polished internal surfaces (Ra ≤ 0.4 μm) ensure compliance with stringent sanitary standards, making it the preferred choice for plant managers seeking to reduce cleaning downtime and enhance product purity.

Why Plant Sourcing Chooses Doebritz DBR-1237 (Minimal Leakage)

The Doebritz DBR-1237 is not merely a star discharge valve; it is a precision-engineered solution for high-value powder handling. With a rotor-to-housing clearance of just 0.1-0.2mm, it achieves exceptional airlock efficiency, drastically reducing air leakage and pressure loss in pneumatic conveying systems. This precision, derived from Doebritz’s in-house CNC machining capabilities, ensures consistent feeding rates and lowers overall energy consumption. The valve’s quick-release design enables swift disassembly without special tools, supporting both manual cleaning and online CIP/WIP protocols. This combination of mechanical precision and operational hygiene provides a superior total cost of ownership (TCO) for bulk material processing lines.

Key operational benefits include:

• Airlock Efficiency: Precision-machined rotor tips maintain minimal clearances, ensuring stable differential pressure across the system.
• Hygienic Design: Quick-release clamps and crevice-free construction eliminate dead zones where product could accumulate, preventing bacterial growth.
• ATEX Compliance: Fully certified for Zone 20/21/22 environments, providing safe operation in explosive dust atmospheres.
• Material Integrity: Contact parts in SUS316L with mirror-polished finishes protect the quality of sensitive soy protein powders.

Housing & Rotor Engineering

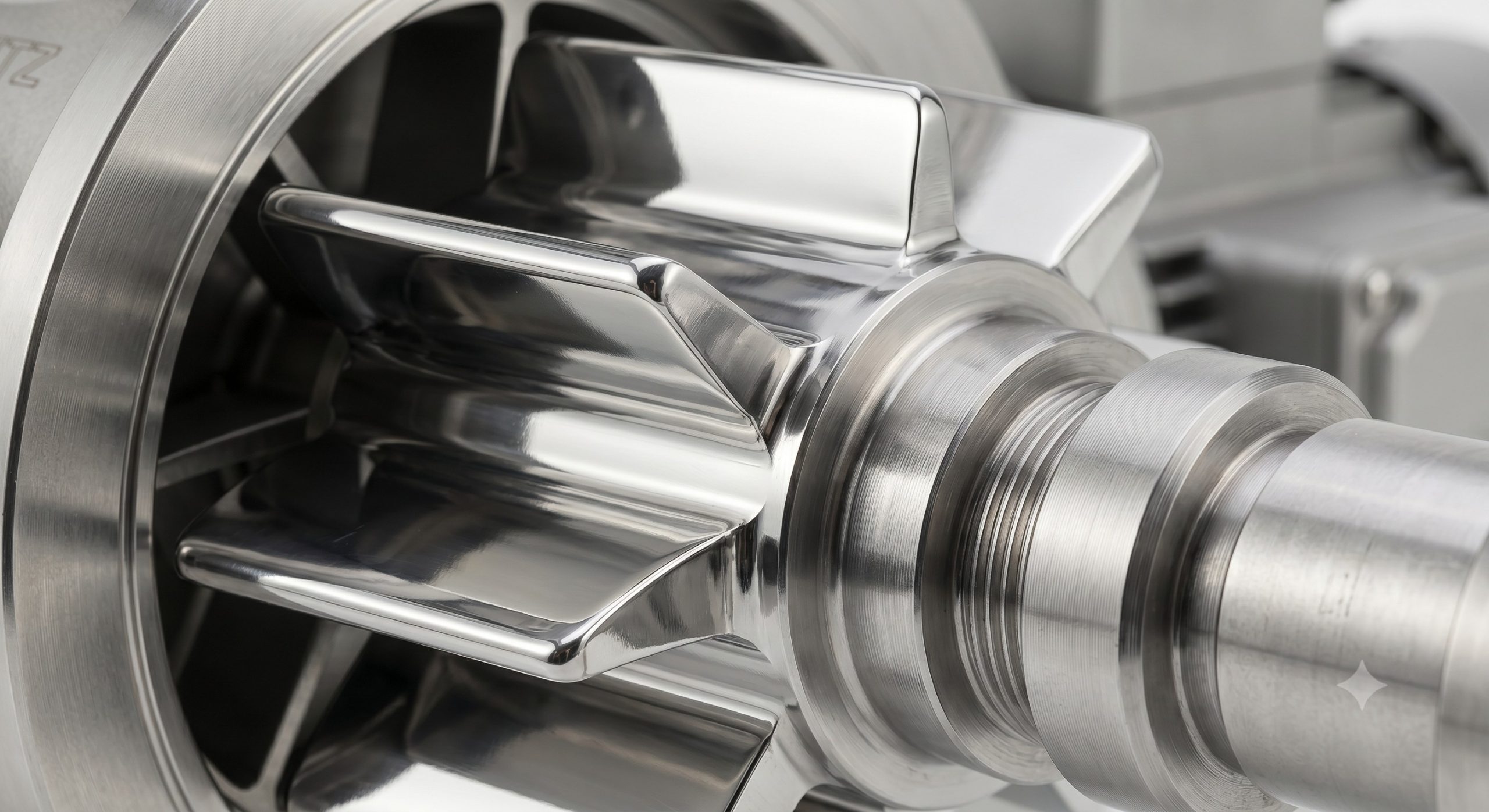

The housing of the Doebritz DBR-1237 is crafted from high-grade stainless steel (SUS304 or SUS316L), with optional wear-resistant coatings such as tungsten carbide or ceramic for abrasive applications. The rotor features a star-shaped, open-vane design, optimized for gentle handling and consistent volumetric discharge of powders like soy protein. Outboard bearing supports isolate the bearing housing from the product zone, preventing contamination and extending service life. The shaft sealing system employs a lip seal with air purging capability, providing an additional barrier against dust ingress and ensuring reliable operation in both positive and negative pressure pneumatic conveying systems.

Technical Specifications

Below are the standard technical parameters for the Doebritz DBR-1237 quick-release rotary valve. The unit is designed to meet the rigorous demands of continuous food and pharmaceutical processing.

Specification	Detail
Brand & Model	Doebritz DBR-1237 Quick-Release Rotary Valve
Body Material	SUS304 / SUS316L Stainless Steel (Optional: Carbon Steel, Tungsten Carbide Coating)
Rotor Type	Star / Open Vane Design
Rotor-Housing Clearance	0.1 – 0.2 mm
Shaft Seal	Lip Seal with Air Purge Option
Inlet/Outlet Flange	DN50 – DN350 (HG20592, DIN, ANSI available)
Pressure Range (Positive)	Low: <0.4 bar; High: 0.4 – 1 bar (VFD)
Pressure Range (Negative)	Low: >-0.4 bar; High: -1 to -0.4 bar (VFD)
Temperature Range (Ambient)	-15°C to +60°C
Temperature Range (Product)	0°C to +120°C
ATEX Certification	Zone 20, 21, 22
Surface Finish (Internal)	Mirror Finish, Ra ≤ 0.4/0.8/1.6 μm
Cleaning Options	Manual, CIP, WIP
Motor Options	Standard / Explosion-Proof with VFD Control

Heavy-Duty Application Scenarios

The Doebritz DBR-1237 is expertly suited for a variety of demanding applications involving soy protein powder and similar fine food ingredients.

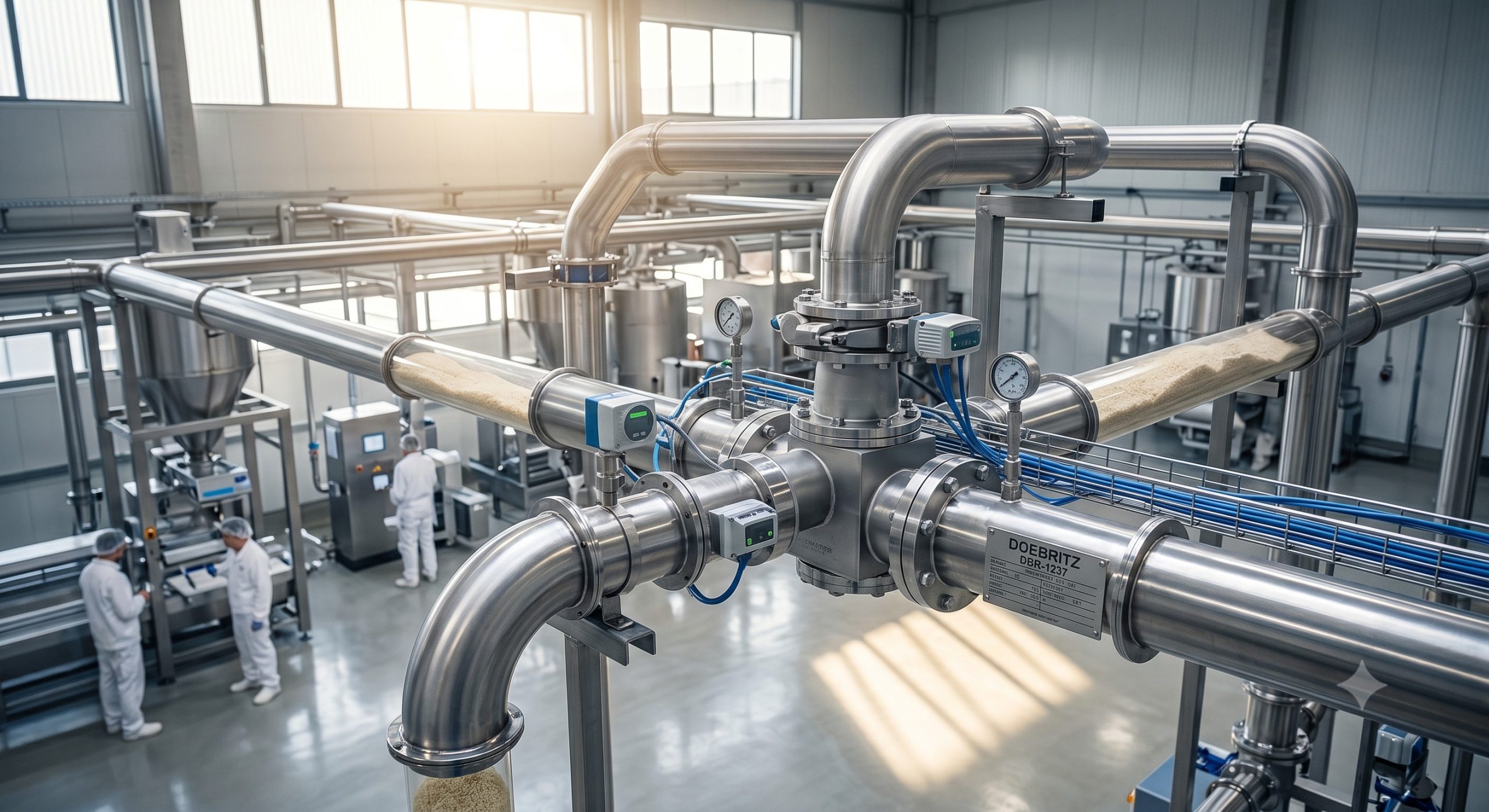

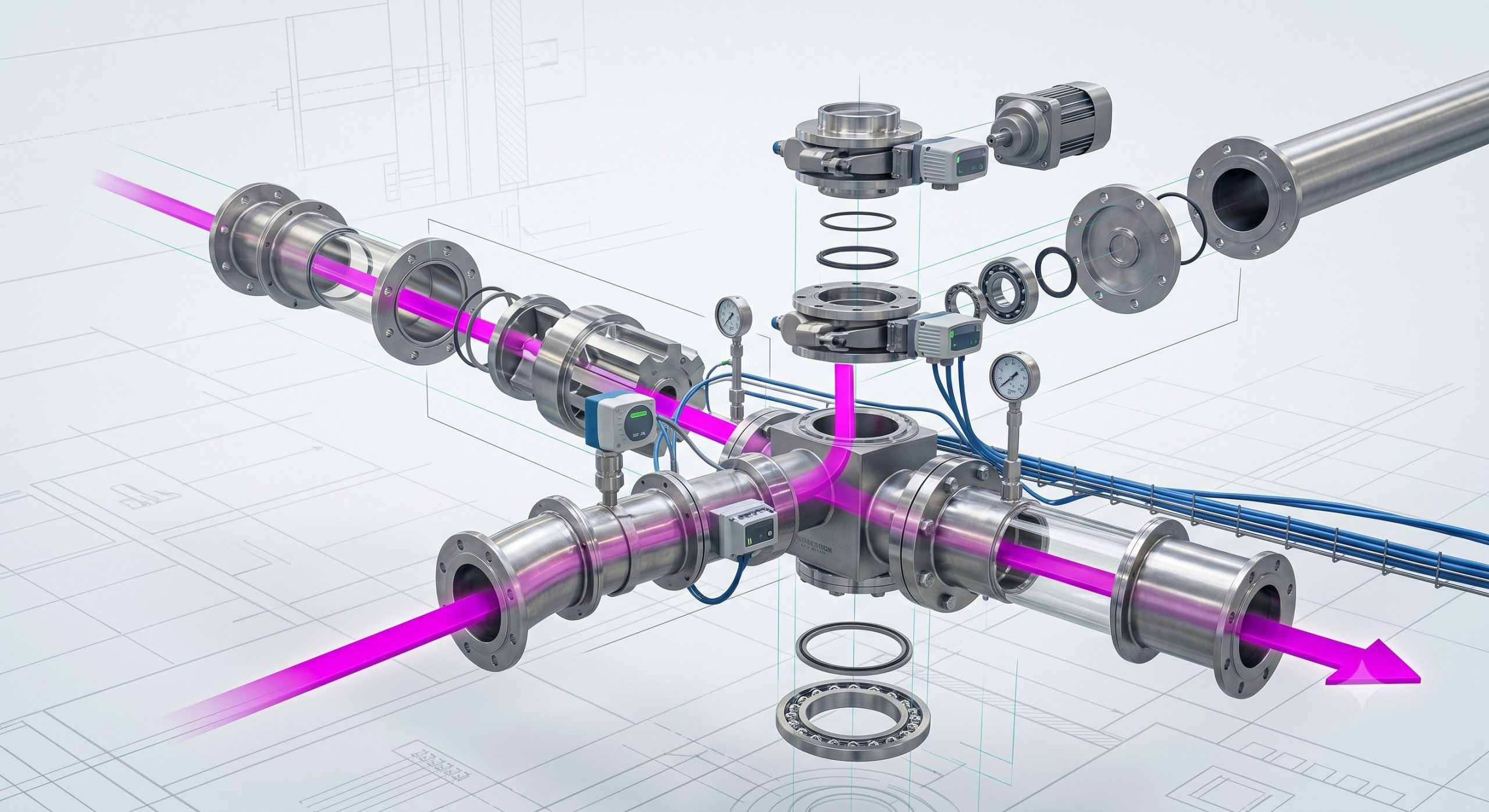

Pneumatic Conveying Systems

In both dilute and dense phase pneumatic conveying, the DBR-1237 acts as a reliable rotary feeder, ensuring a steady, metered supply of material from hoppers to conveying lines. Its low air leakage rate stabilizes system pressure, preventing line blockages and ensuring consistent material flow rates, even over long distances.

Silo Discharging & Metering

For batch weighing and recipe-based batching, the valve integrates seamlessly with PLC automation. Its ability to meter flow via variable frequency drive (VFD) allows for precise control of soy protein powder addition, ensuring recipe accuracy and reducing material waste.

Hygienic & Cleanroom Environments

With its quick-clean design and high-grade surface finishes, the DBR-1237 is ideal for installation in Class C/D cleanrooms and W/10W/30W grade areas. It supports rapid changeover between products, significantly reducing downtime in multi-product facilities.

Frequently Asked Questions

What rotor clearances are standard for the Doebritz DBR-1237?

Standard clearance is precisely maintained between 0.1 mm and 0.2 mm to ensure optimal airlock performance while accommodating thermal expansion and providing safe operation in explosive atmospheres.

What certifications does the Doebritz DBR-1237 hold?

It is fully certified with CE and TÜV, and provides Statements of Conformity for ATEX zones 20, 21, and 22, ensuring compliance with the strictest European and international safety standards.

How is the Doebritz DBR-1237 cleaned for product changeovers?

It supports multiple cleaning methods, including manual cleaning after quick disassembly without tools, as well as fully automated CIP (Clean-in-Place) and WIP (Wash-in-Place) protocols, minimizing downtime.

Which materials are compatible with this valve?

The valve is highly versatile, handling a wide range of food and chemical powders. Specific to food, it excels with soy protein powder, flour, starch, milk powder, spices, and more. Surface coatings (e.g., tungsten carbide) can be applied for abrasive materials.

Can the Doebritz DBR-1237 be customized for my system?

Yes, Doebritz offers extensive customization, including various flange standards (HG20592, DIN, ANSI), multiple drive options, variable rotor designs, and specialized coatings to perfectly match your specific process requirements.
