Quick-Clean Demountable Valve: Doebritz Chocolate Quick-release airlock valve | Sanitary Processing Standard with ATEX Ready Option

Product Summary: High-Purity Chocolate Powder & Nib Airlock Isolation

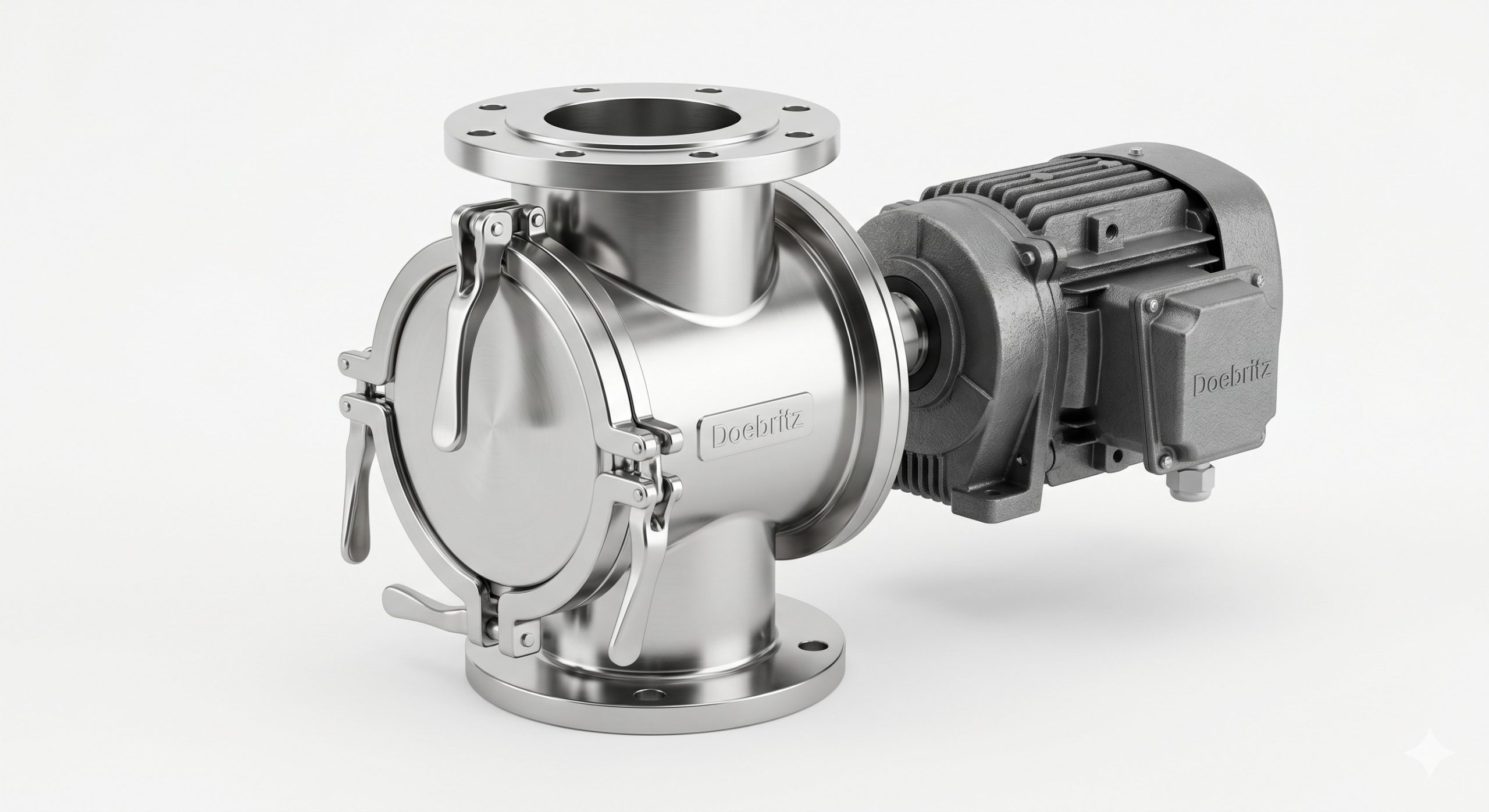

Precision-engineered for high-fat, hygroscopic cocoa-based materials, the Doebritz Chocolate Quick-release airlock valve (Model DBR-1237 series) delivers hygienic rotary feeding with minimal product degradation. Designed for gravity discharge and lean/dense phase pneumatic conveying, this ATEX-certified valve prevents chocolate dust explosions while maintaining strict GMP cleanroom compliance (Class 10W / Class C/D). The demountable stainless steel housing (SUS316L) allows tool-free strip-down in under 5 minutes, eliminating cross-contamination risks between dark, milk, and white chocolate batches.

Why Plant Sourcing Chooses Doebritz Chocolate Quick-Release Airlock Valve

• Precision Machined Clearances (0.1-0.2mm): CNC-machined rotor-to-housing gaps drastically reduce air leakage (<0.2m³/h at 0.6bar differential), preserving line pressure and preventing chocolate smear or fat bloom from oxidation.
• Direct ATEX Zone 21/22 Compliance (16bar Flameless Housing): Certified explosion-proof construction with 16bar pressure shock resistance and anti-static rotor grounding, essential for explosive cocoa dust atmospheres.
• Demountable Sanitary Design: Quick-release clamps and polished internal surfaces (Ra≤0.4μm mirror finish) support WIP/CIP cleaning protocols without tools, drastically reducing changeover downtime between recipes.
• Superior Fat & Moisture Barrier: Lip seal air-tight shaft sealing with purge ports prevents chocolate oil migration and moisture ingress, eliminating bearing contamination and lubricant leaks.

Housing & Rotor Engineering: Built for Hygienic Heavy-Duty Chocolate Handling

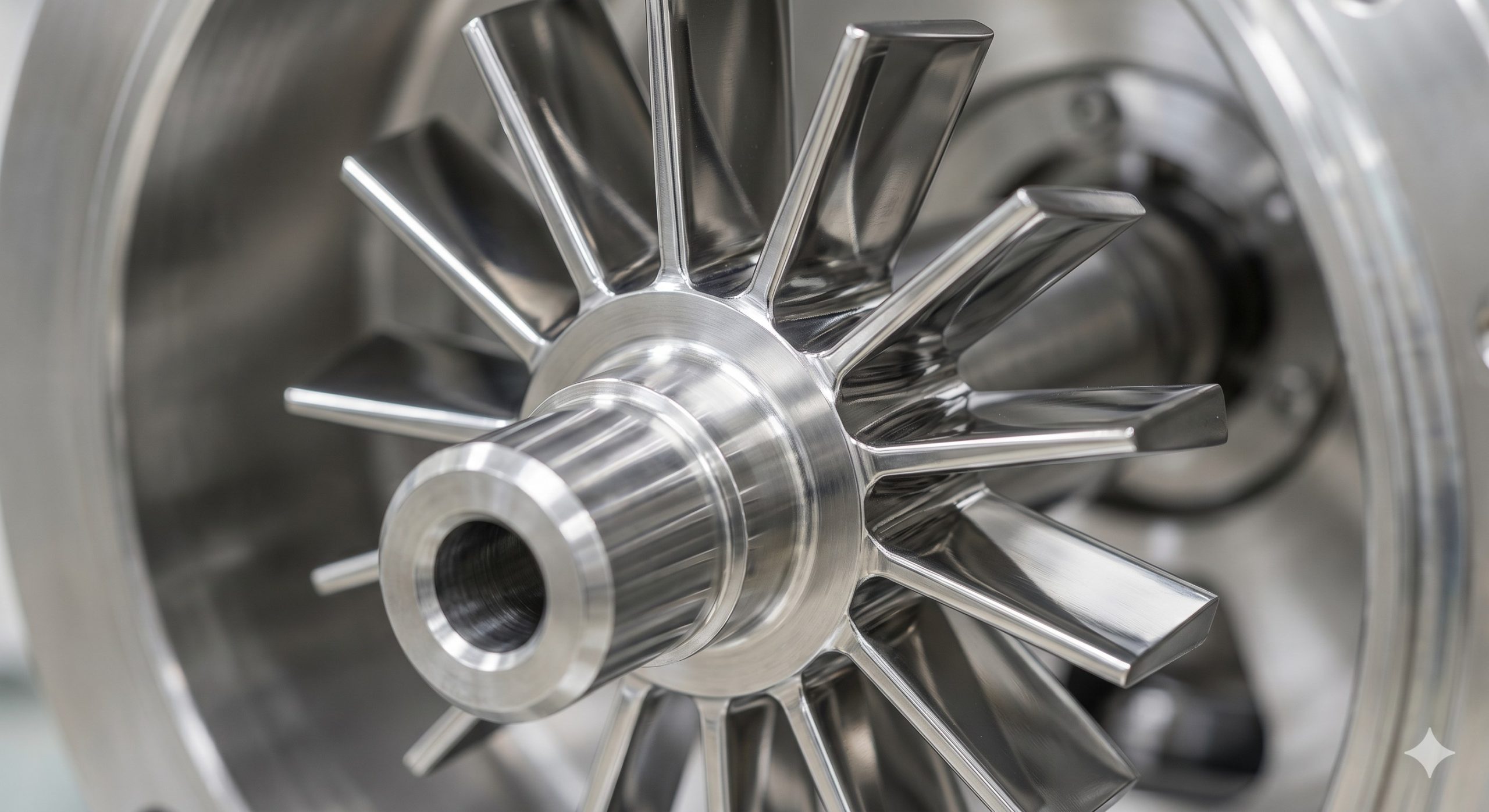

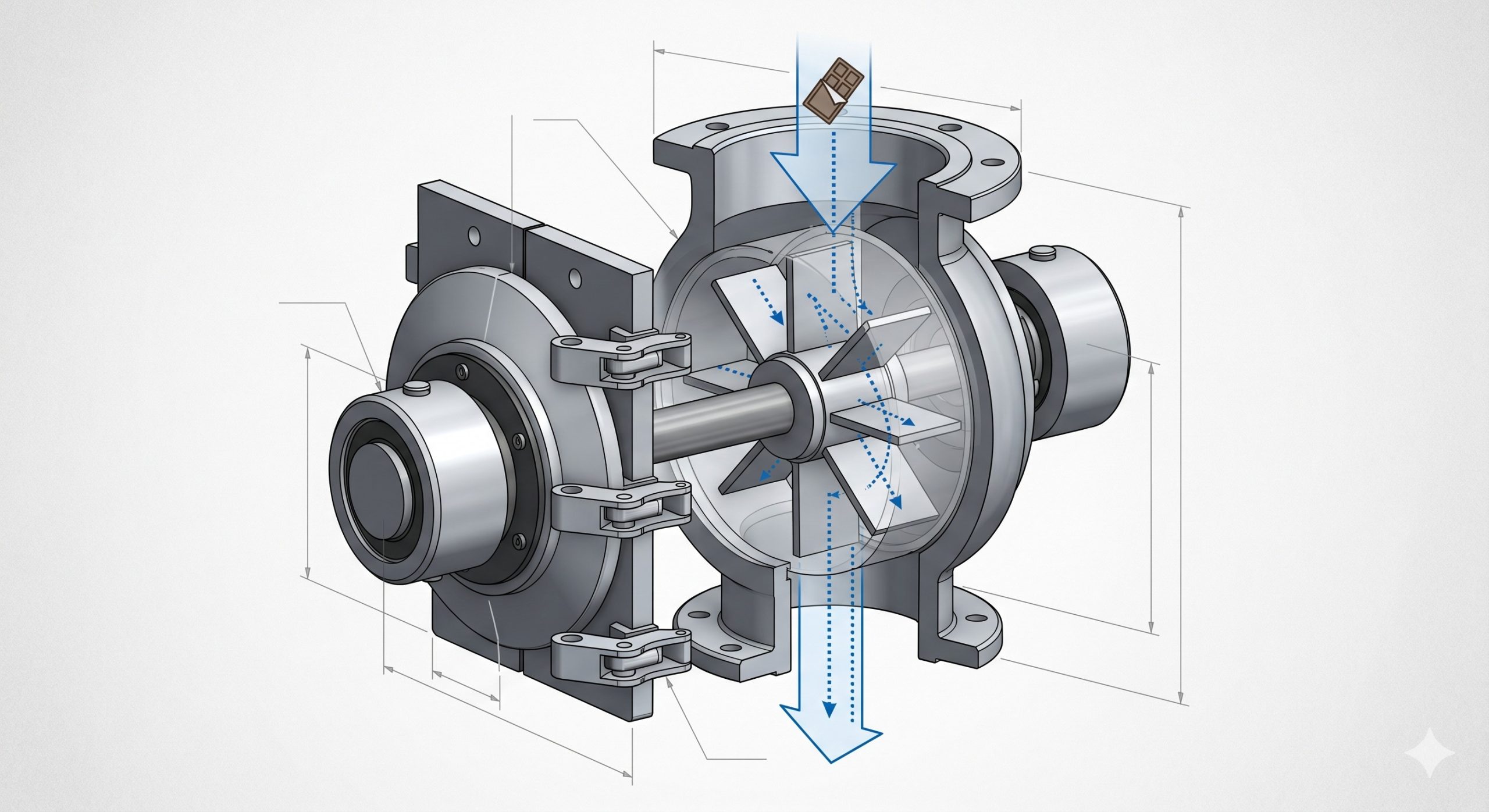

The Doebritz Chocolate Quick-release airlock valve features a fully electropolished SUS316L housing with a 3D funnel-shaped inlet to prevent arching and bridging of sticky cocoa powder. The 12-vane closed rotor design ensures positive displacement feeding, maintaining volumetric efficiency above 85% even for fine, high-fat powders. For abrasive additives (sugar, dry milk), optional tungsten carbide coating on rotor tips extends service life by 400%. The outboard bearing arrangement isolates the gearmotor from the product zone, allowing steam cleaning without component damage.

Key engineering differentiators: All contact parts are FDA-compliant and pass 3-A Sanitary Standards criteria. The optional water-cooled end cover maintains bearing temperature below 60°C even when handling hot chocolate conch discharge (up to 120°C).

Technical Specifications (Model DBR-1237 Series)

Specification	Detail
Body Material	SUS316L (Electropolished) / Optional SUS304 or Carbon Steel
Rotor Design	12-Vane Closed Rotor, Clearance 0.1-0.2mm
Inlet/Outlet Size	DN150 (6”), also DN100, DN200, DN300, DN350
Shaft Seal	Lip seal with air purge (FDA-compliant)
Pressure Rating	-1 bar to +1 bar (16bar explosion-proof housing)
Temperature Range	-15°C to +120°C (optional water cooling jacket)
Surface Finish (Internal)	Ra ≤ 0.4μm mirror / Ra ≤ 0.8μm
Motor Power	1.1 kW – 5.5 kW IE3, ATEX available
Cleanability	Tool-free quick disassembly, CIP/SIP ready
Certifications	CE, TÜV, ATEX Zone 21/22, FDA compliance

Additional Compliance: CE, TÜV, Statement certifications. Full material traceability (EN 10204 3.1) available for pharmaceutical-grade chocolate processing lines. Minimal air leakage guaranteed at 0.6 bar differential pressure.

Heavy-Duty Application Scenarios

Chocolate Dosing & Weighing Systems

Installed beneath bulk silos or day bins, the Doebritz Chocolate Quick-release airlock valve provides variable frequency drive (VFD)-controlled feeding for continuous mixing or batch weighing. PLC integration achieves ±1% feeding accuracy for chocolate crumb, nibs, or powdered cocoa mass.

Pneumatic Conveying to Coating Pans & Storage Hoppers

In lean-phase or dense-phase lines, the valve operates as a pressure-tight airlock feeder, minimizing blow-by and maintaining stable line velocity. This prevents chocolate dust settlement and line blockages typical with generic rotary valves.

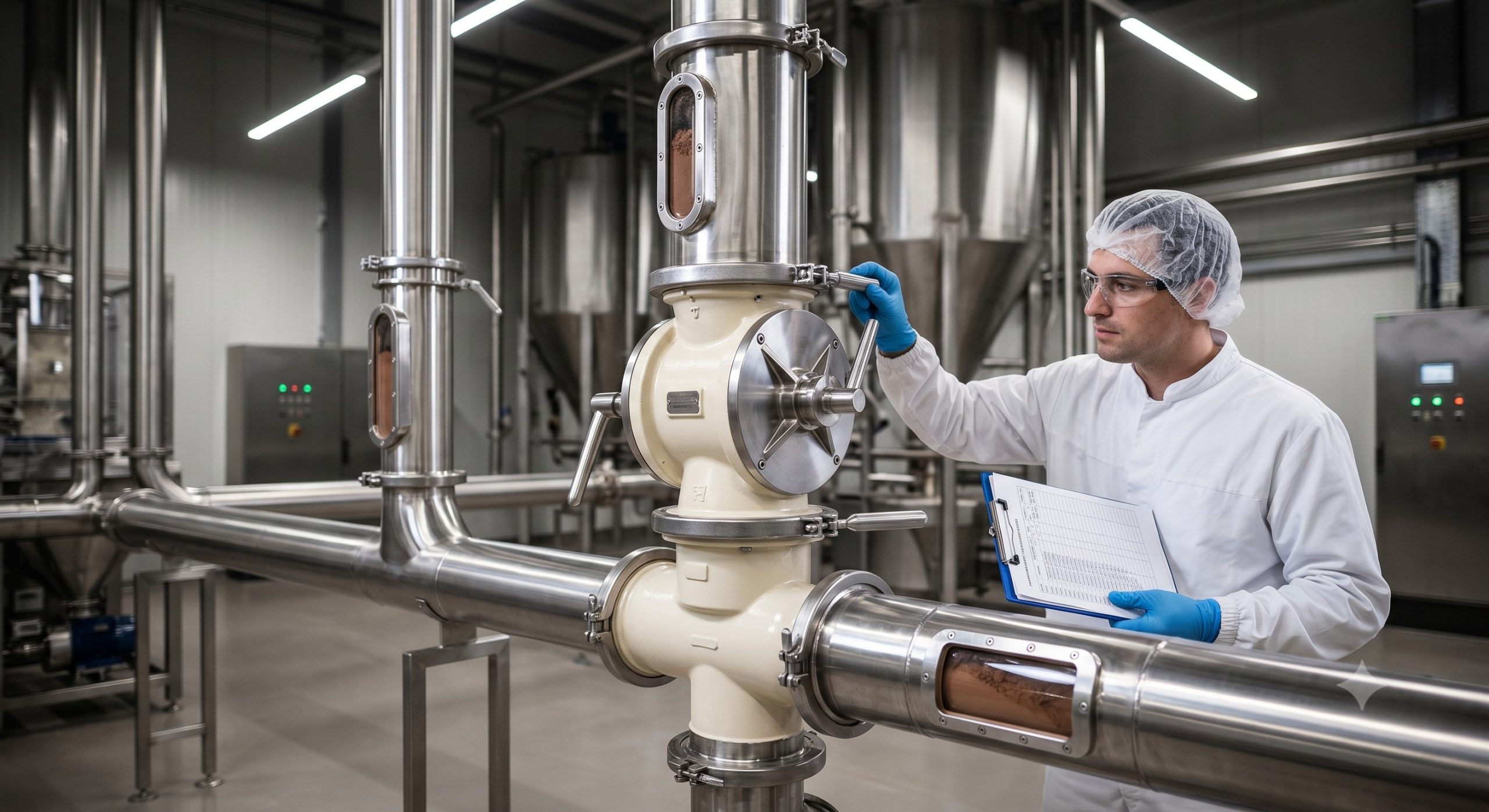

Sanitary Clean-in-Place (CIP) Integrated Lines

The quick-release clamps and crevice-free internal geometry allow fully automated CIP using hot water or caustic solutions without disassembly. For WIP lines, tool-free access permits rapid manual inspection and drying, meeting BRC and IFS food safety standards.

Global OEM Assurance: Doebritz Manufacturing Backbone

As a Tier 1 heavy-industry manufacturer, Doebritz guarantees 100% hydrostatic pressure testing and 5-micron air leakage measurement before shipping. Each Chocolate Quick-release airlock valve comes with a 24-month operational warranty and global spare parts availability. Our CNC machine park achieves rotor concentricity within 15 microns, ensuring consistent low-leakage performance throughout the valve’s lifespan.

Frequently Asked Questions (B2B Procurement)

Q1: Can the Doebritz Chocolate Quick-release airlock valve handle high-fat cocoa powder without sticking?

A: Yes. The internal surfaces are mirror-polished to Ra≤0.4μm, and we offer optional PTFE or ceramic coatings to further reduce adhesion. The 12-vane rotor design creates constant product movement, preventing fat buildup.

Q2: What ATEX certifications are available for explosive chocolate dust?

A: The DBR-1237 series is certified for Zone 21 and Zone 22 dust explosions (ATEX II 2D Ex tb IIIC Db). The housing withstands 16bar internal pressure with flame arrestor paths, and anti-static rotor options are standard for Ex environments.

Q3: How fast can I disassemble the valve for cleaning?

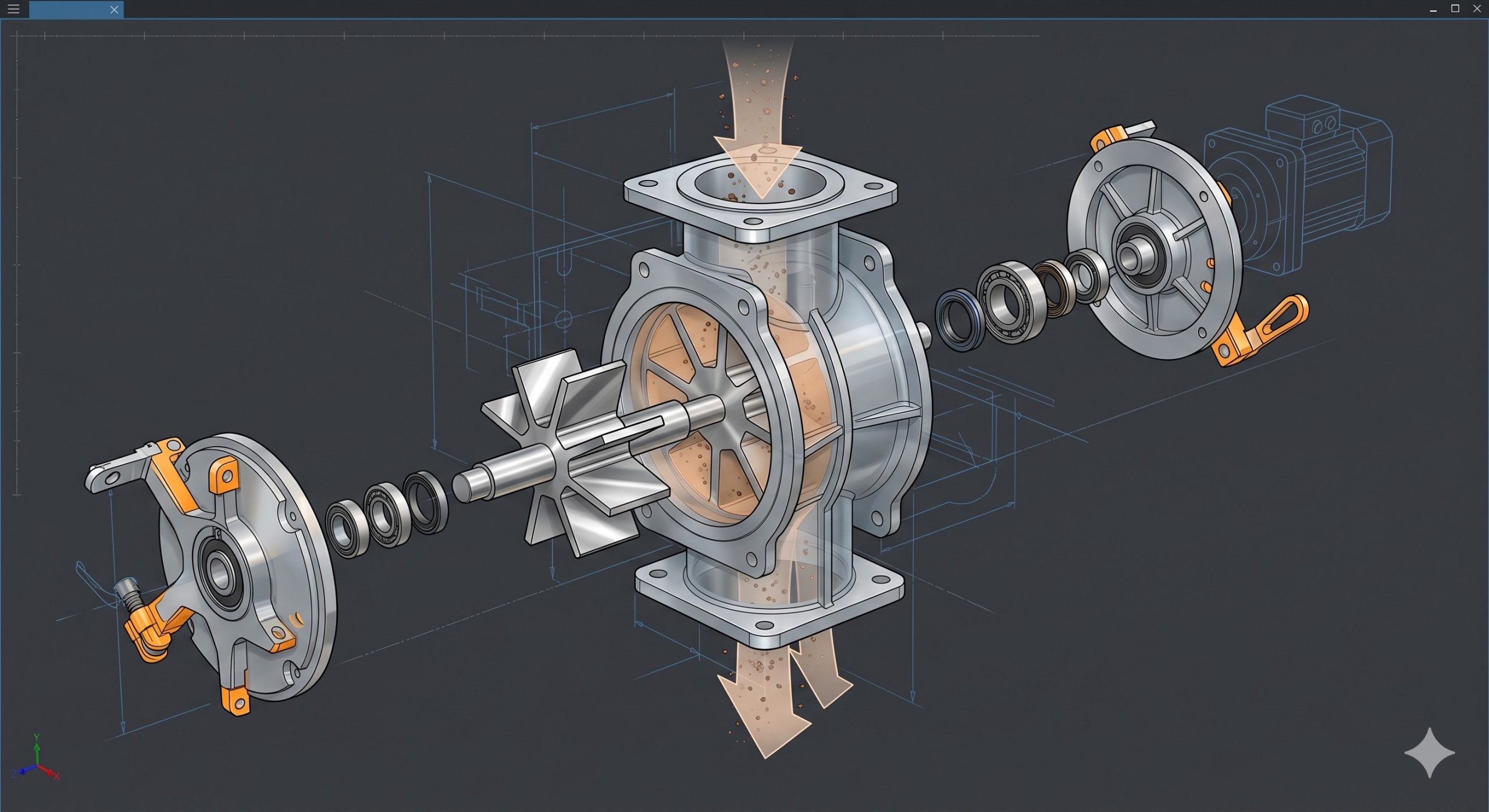

A: With the quick-release clamps and swing-away end cover, a single operator can fully strip the rotor and housing in under 5 minutes without any tools. Reassembly is equally rapid, with visual alignment guides.

Q4: What flow rates can I expect for chocolate powder (bulk density ~0.6 kg/L)?

A: For DN150 size at 20 RPM, volumetric capacity is approximately 15-20 m³/h. Actual feed rate scales linearly with VFD speed. We provide customized sizing based on your line density and differential pressure.

Q5: Do you supply custom inlet/outlet flanges?

A: Yes. Beyond standard HG20592 (DIN/ANSI equivalents), Doebritz offers custom drilling, square flanges, or sanitary tri-clamp connections to match existing hopper bolt patterns without line modification.
