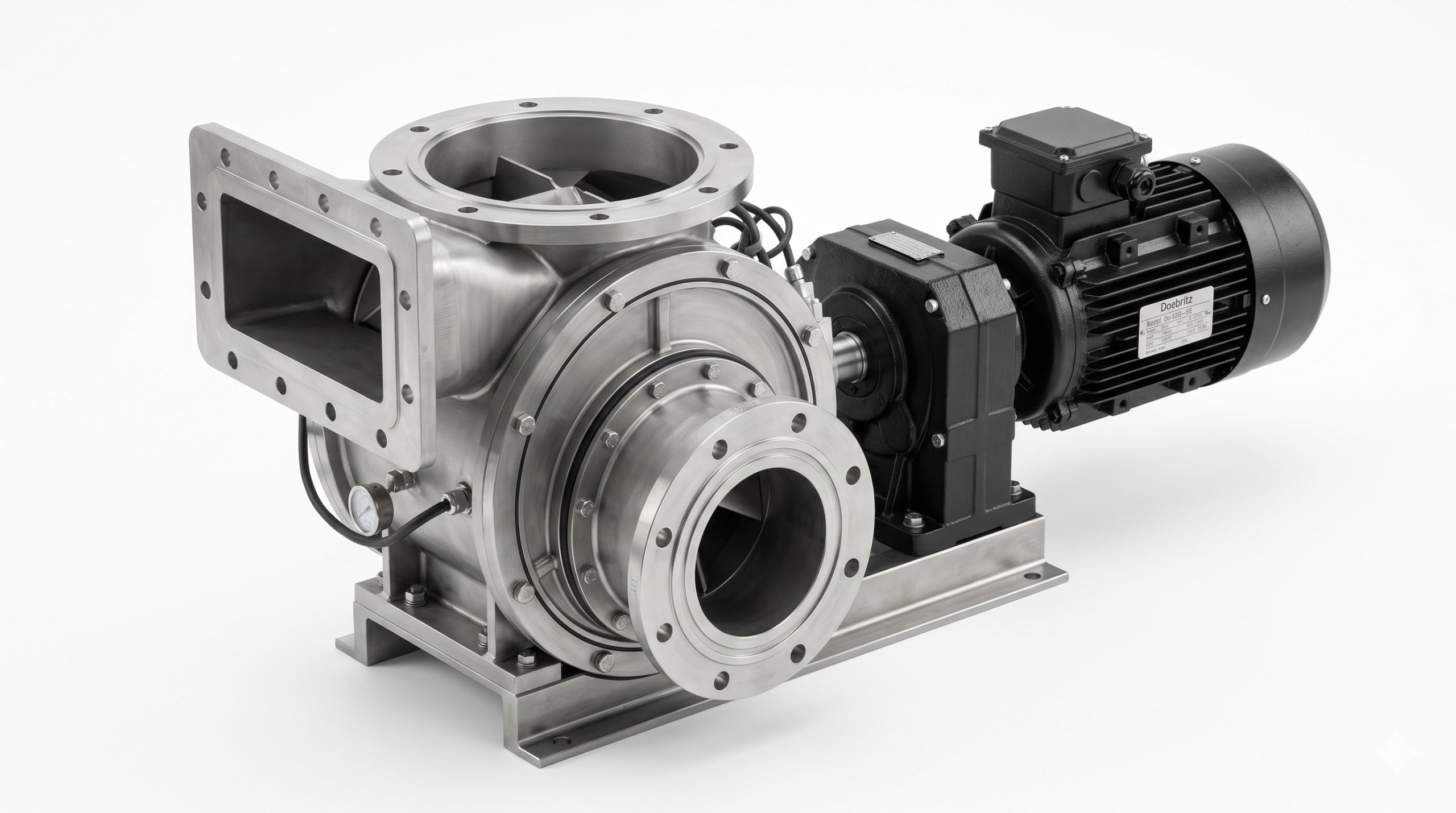

Offset Inlet Rotary Valve, Doebritz Heavy-Duty Airlock, ATEX Certified / CNC-Machined Rotor

Product Summary

Doebritz Offset Inlet Rotary Valve series delivers exceptional volumetric discharge efficiency for powdery, granular, and flaky bulk materials under differential pressures up to 2.5 bar. Designed for continuous duty in pneumatic conveying systems and dust collector applications. Available in ATEX-certified explosion-proof execution and food-grade polished finishes. Maximum capacity: 85 m³/h per unit, with zero material degradation.

Why Source Doebritz Offset Inlet Valves

As a dedicated B2B heavy equipment OEM supplier with over two decades of engineering refinement, Doebritz delivers measurable procurement advantages:

• Ultra-low leakage rate <0.005 m³/min at 1 bar – Precision clearance down to 0.10mm between rotor tips and housing ensures minimal air loss, directly reducing energy cost of your conveying blower system.
• Proven 1.5 million cycle lifespan – Hardened cast iron or stainless steel housing with outboard bearing support prevents material ingress and shaft deflection, eliminating unplanned downtime.
• Modular design for non-standard flanges – DN100 to DN600, ANSI 150#, JIS, or custom bolt patterns supported. Fast 20-day lead time for modified configurations.
• Certified for explosive dust atmospheres – Full ATEX Zone 21 and 22 approvals (II 2D c T120°C) as standard option, with grounding kit and temperature monitoring ports available.

Housing & Rotor Engineering

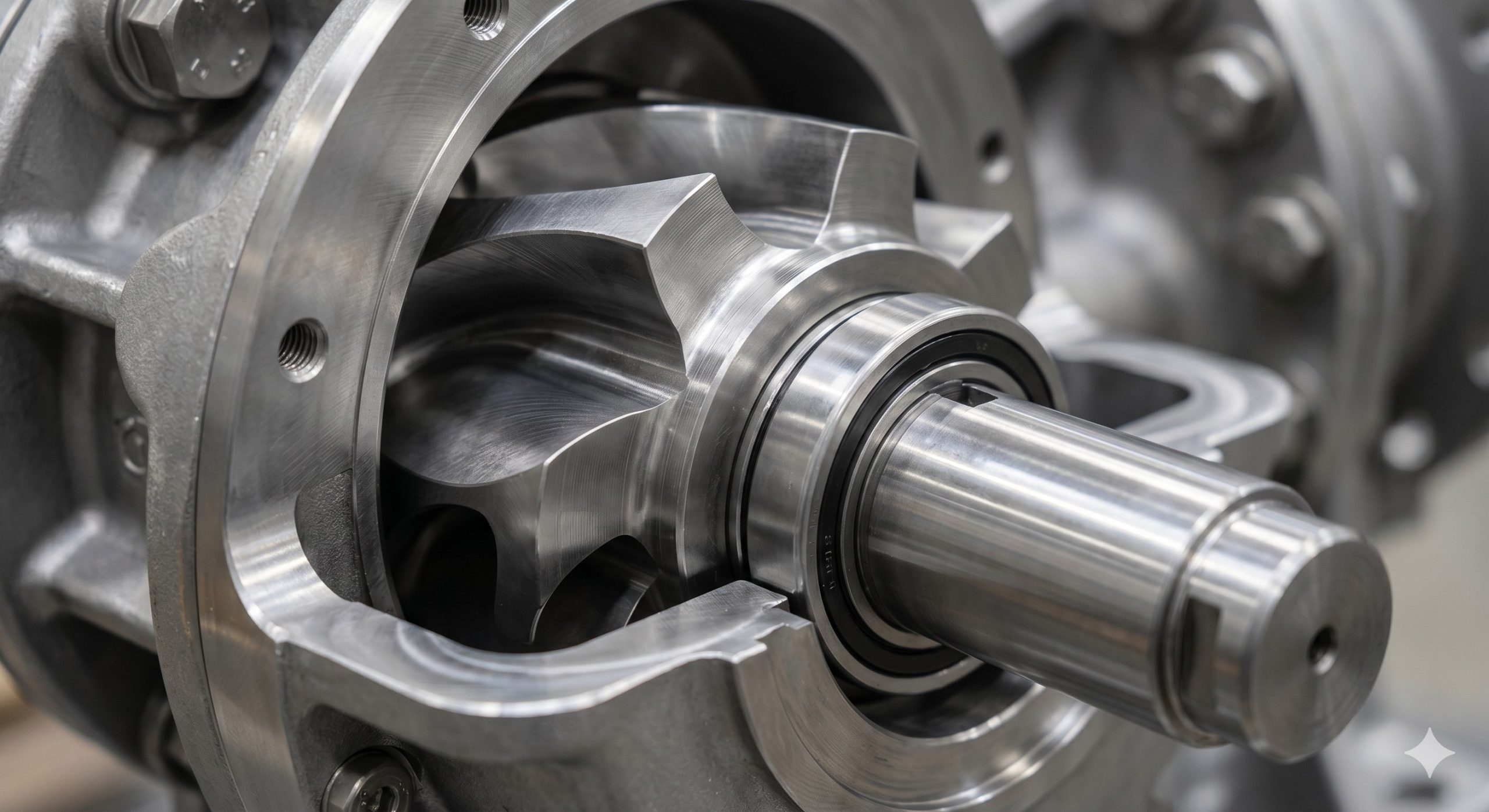

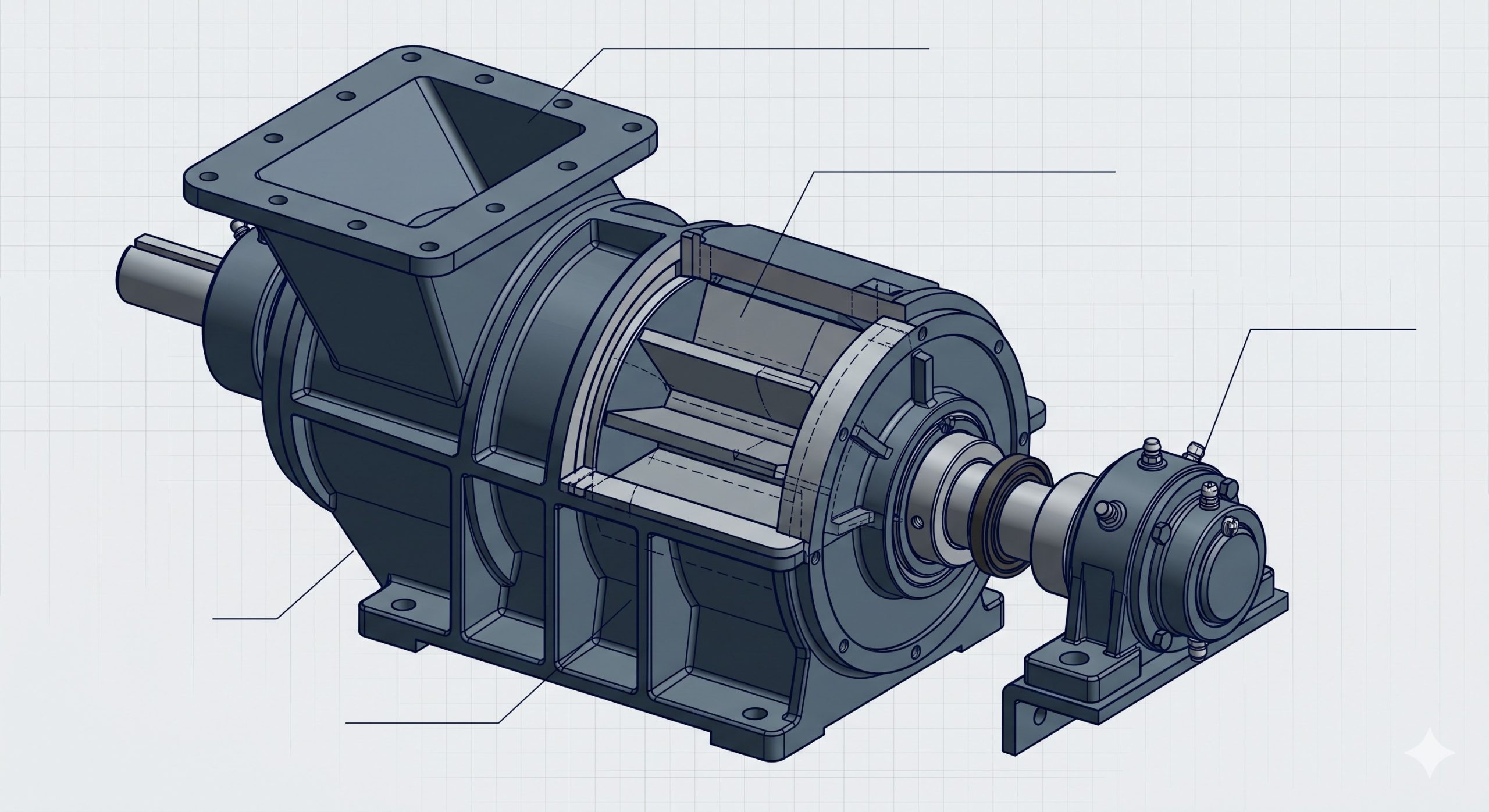

Every Doebritz offset inlet valve begins with a one-piece precision-cast housing (EN-GJL-250 cast iron or AISI 304/316L stainless steel). The offset inlet geometry creates a natural material dead zone that prevents rotor jamming from fibrous or semi-moist materials. Rotors feature CNC-machined, dynamically balanced 6, 8, or 12 vanes with polished leading edges to shear through sticky powders. The labyrinth shaft seals combined with pneumatic purge ports (optional) guarantee zero dust leakage to bearing blocks. All fasteners are grade 10.9 zinc-nickel coated, eliminating rust in washdown environments.

Technical Specifications

Standard engineering ratings for Doebritz offset inlet valves. Custom configurations available upon request.

Specification	Detail
Body Material	Cast Iron EN-GJL-250 / Stainless Steel AISI 304 / 316L
Rotor Design	6, 8 or 12 vanes, offset inlet, open end disc
Inlet/Outlet Pressure	-0.5 bar vacuum up to +2.5 bar differential
Air Leakage (1 bar dif)	< 0.005 m³/min (dry air, 0.10mm clearance)
Temperature Range	-20°C to +250°C (Viton seals)
Drive Options	Direct gear motor, chain-sprocket with inverter duty
Certifications	ATEX II 2D c T120°C, CE, FDA optional
Flange Standards	DIN, ANSI 150#, JIS 10K, or custom drilling

Heavy-Duty Application Scenarios

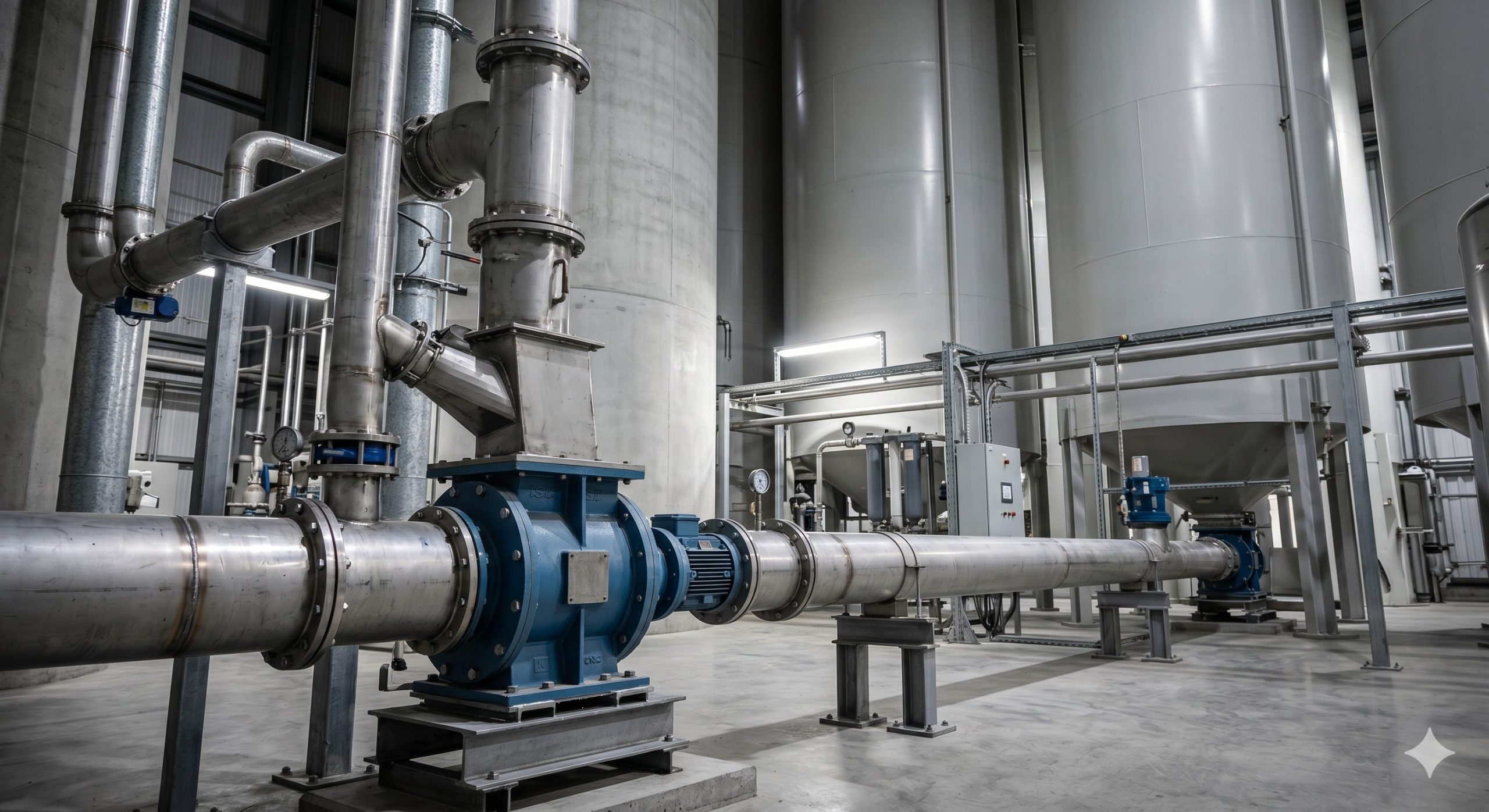

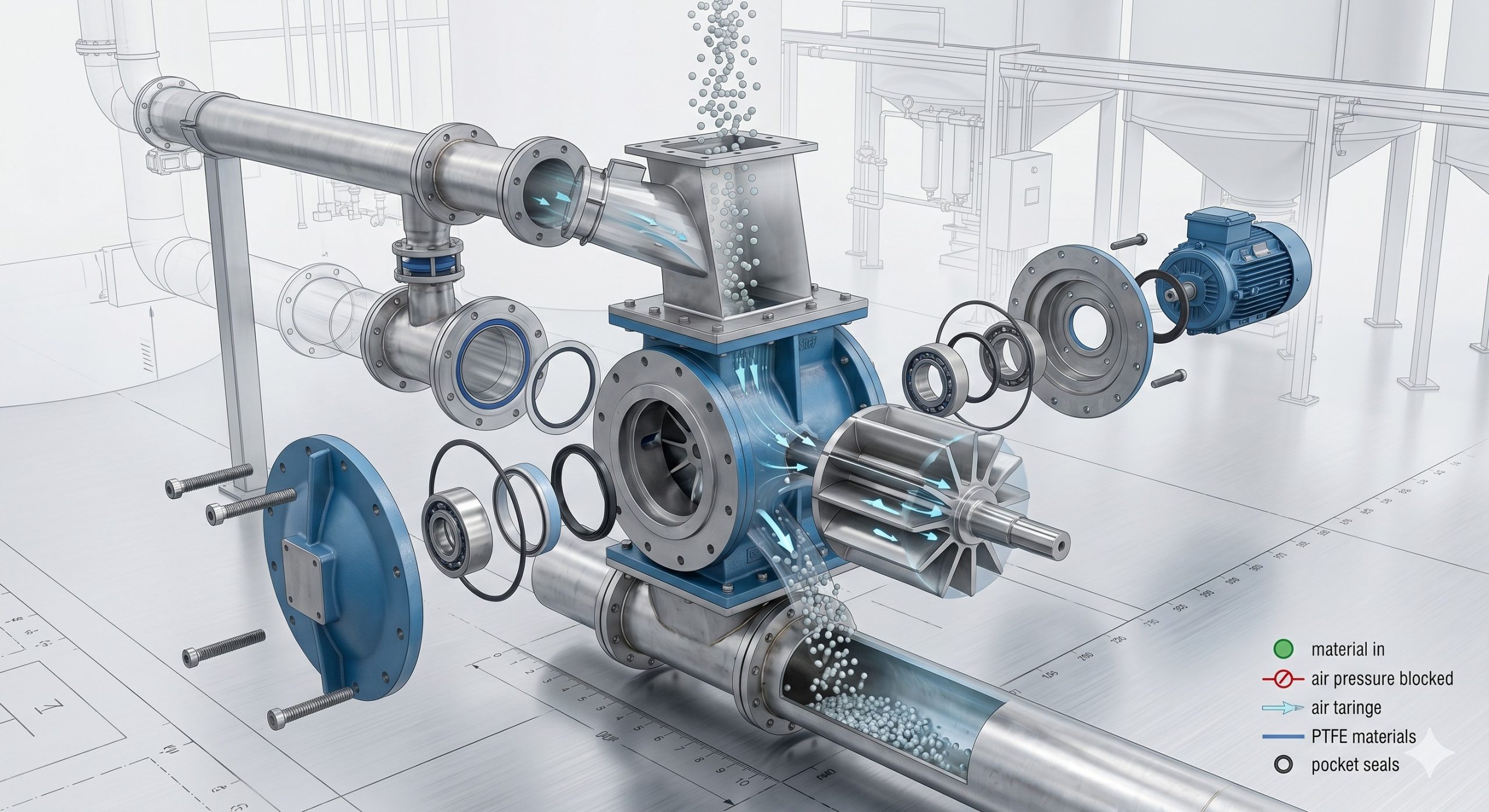

Pneumatic Conveying Systems (Dilute & Dense Phase)

Doebritz offset valves serve as reliable airlocks between hoppers and positive/displacement blower lines. The offset inlet eliminates vortex backflow, maintaining stable conveying pressure even with light bulk densities (e.g., 300 g/L carbon black).

Silo Discharge with Sticky Materials

For hygroscopic or fatty powders (whey protein, resin pellets, cement additives), the self-cleaning rotor geometry prevents bridging. Optional hard chrome or Ni-hard coated surfaces extend wear life by 3x against abrasive fillers.

Dust Filter & Cyclone Underbin

Continuous dust removal from baghouses or cartridge collectors requires a rotary valve that maintains negative pressure. Doebritz blow-through rotor end seals guarantee ≤0.2% residual dust carryover, meeting EPA/OSHA indoor air standards.

Frequently Asked Questions

What is your standard lead time for non-standard flanges?

For custom bolt patterns or ANSI/ DIN flanges on Doebritz offset inlet valves, lead time is 15 to 20 working days after drawing approval. Stock standard flanges ship within 7 days.

Can Doebritz provide ATEX documentation for global plant compliance?

Yes. Every ATEX-certified Doebritz valve includes a declaration of conformity, EC-type examination certificate (DNV or TÜV), and installation manual covering Zone 21 and 22 dust atmospheres. Also supports IECEx for non-EU projects.

What is the maximum operating temperature for this valve?

Standard 1.4301 stainless steel housing with Viton seals handles -20°C to +250°C. For high-heat applications up to 400°C, specify the Doebritz HT model with air-cooled spacer and graphite seal rings.

Do you offer spare parts kits and repair services?

Absolutely. Each Doebritz offset valve ships with a recommended spare parts list (bearing set, seal ring kit, wear plates). We stock all major components for 10 years after last order date. Exchange housing repair service available – send us your worn valve, receive a factory-reconditioned unit in 10 days.

How do I size a Doebritz offset valve for my bulk density and throughput?

Use our web-based rotary valve sizing calculator (request login) or email your material name, bulk density (kg/m³), required tph, and differential pressure. Our application engineers respond with a model recommendation within 24 hours.
