Product Summary: Doebritz DBR-1237 Quick-Clean Rotary Valve

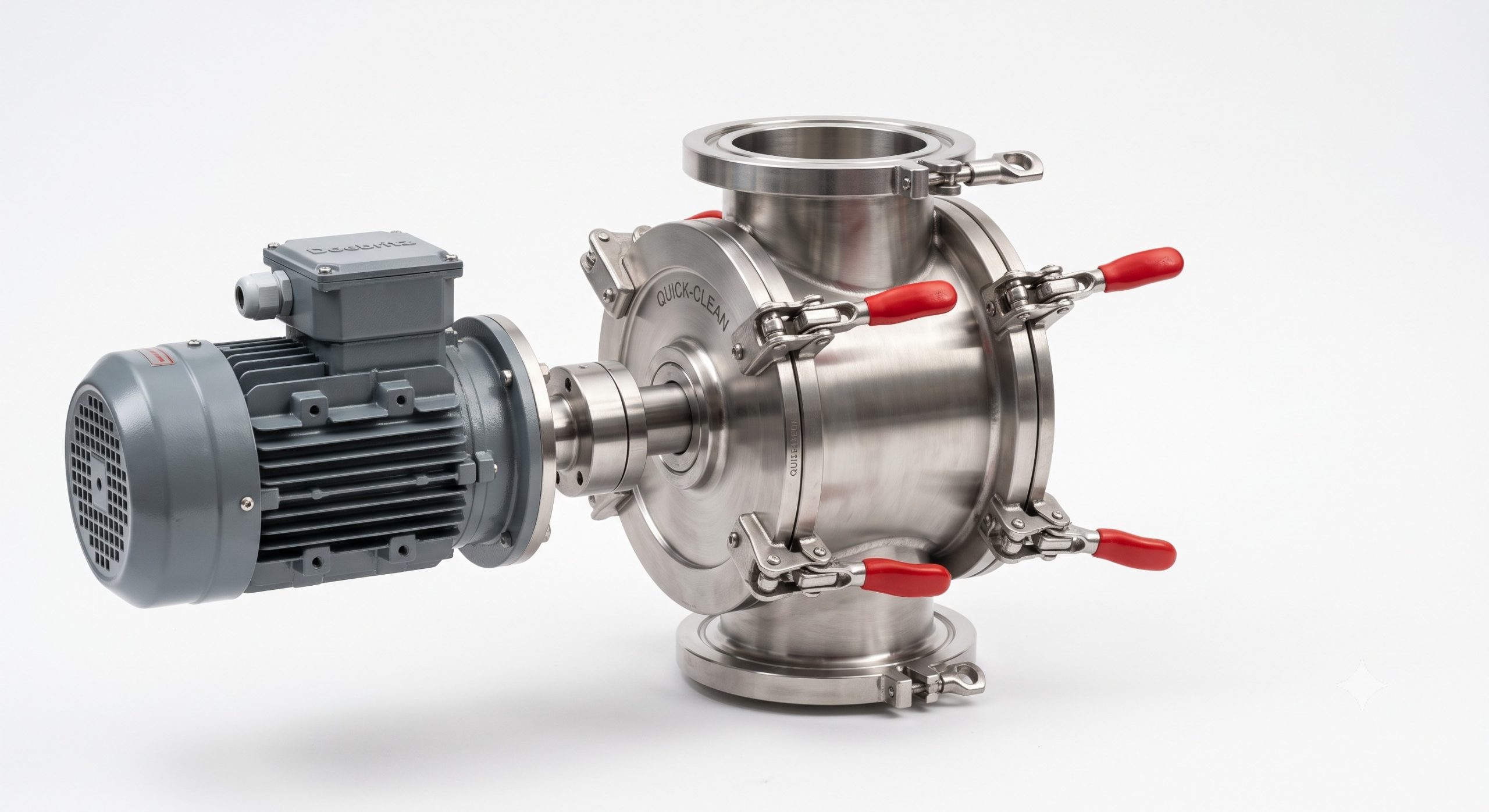

The Doebritz DBR-1237 is a stainless steel quick-clean rotary valve engineered for applications demanding rapid sanitation, process integrity, and absolute product purity. As a quick-release demountable valve, it is the definitive solution for sanitary processing lines in food, pharmaceutical, and high-value chemical industries where cross-contamination risks and cleaning downtime must be minimized. This quick-clean airlock valve offers rapid access to internal components without requiring specialized tools, slashing maintenance time and enabling swift product changeovers.

Manufactured under Doebritz’s rigorous quality regime, every quick-clean rotary valve leverages advanced CNC machining to maintain a critical rotor-to-housing clearance of 0.1–0.2 mm, ensuring exceptional airlock efficiency and minimal leakage. Whether deployed in gravity discharge, pneumatic conveying, or metering applications, the DBR-1237 provides robust, repeatable performance. Its construction from premium SUS304 or SUS316L stainless steel ensures excellent corrosion resistance and full compliance with hygienic design principles, making it the go-to choice for hygienic rotary valve applications.

Beyond its rapid cleaning capability, this sanitary rotary valve is engineered for operational precision. The DBR-1237 is available with ATEX certification for Zone 20/21/22 and can be configured with variable frequency drives and PLC controls to serve as a precise metering feeder. Whether you require manual cleaning after disassembly or full CIP/WIP capabilities, the DBR-1237 delivers the flexibility and reliability demanded by modern production lines.

Why Plant Sourcing Chooses Doebritz DBR-1237 (Minimal Leakage)

Industrial sourcing professionals and plant engineers select the Doebritz quick-clean rotary valve for its unmatched combination of hygienic design, precision engineering, and lifecycle value. The DBR-1237 is more than a component; it is a strategic investment that drives efficiency and compliance. Here are the key drivers for adoption:

• Rapid Cleaning & Sanitation: The quick-release demountable structure enables swift access for manual cleaning, while optional CIP/WIP capabilities allow for automated sanitation cycles. This reduces downtime between batches and supports compliance with the strictest hygienic standards, making it an ideal quick-clean airlock valve for multi-product facilities.
• Minimal Air Leakage & Efficient Locking: The precision-ground rotor and housing achieve a clearance of 0.1–0.2 mm. This precision fit minimizes air leakage across the valve, ensuring stable pressure in pneumatic conveying systems and accurate volumetric feeding. The sanitary rotary valve design focuses on operational efficiency.
• Advanced CNC Precision: Doebritz’s investment in state-of-the-art CNC machining centers ensures every component is manufactured to exacting tolerances. This translates to consistent performance, extended service life, and reliable operation under demanding conditions.
• Material Integrity & Compliance: Manufactured from SUS304 or SUS316L stainless steel, the DBR-1237 offers superior resistance to corrosion. It is available with electropolished or mirror-finished internal surfaces (Ra ≤ 0.4–0.8 μm) to prevent product adhesion. Full compliance with CE and TÜV standards is standard, with ATEX certification available for hazardous areas.

Housing & Rotor Engineering

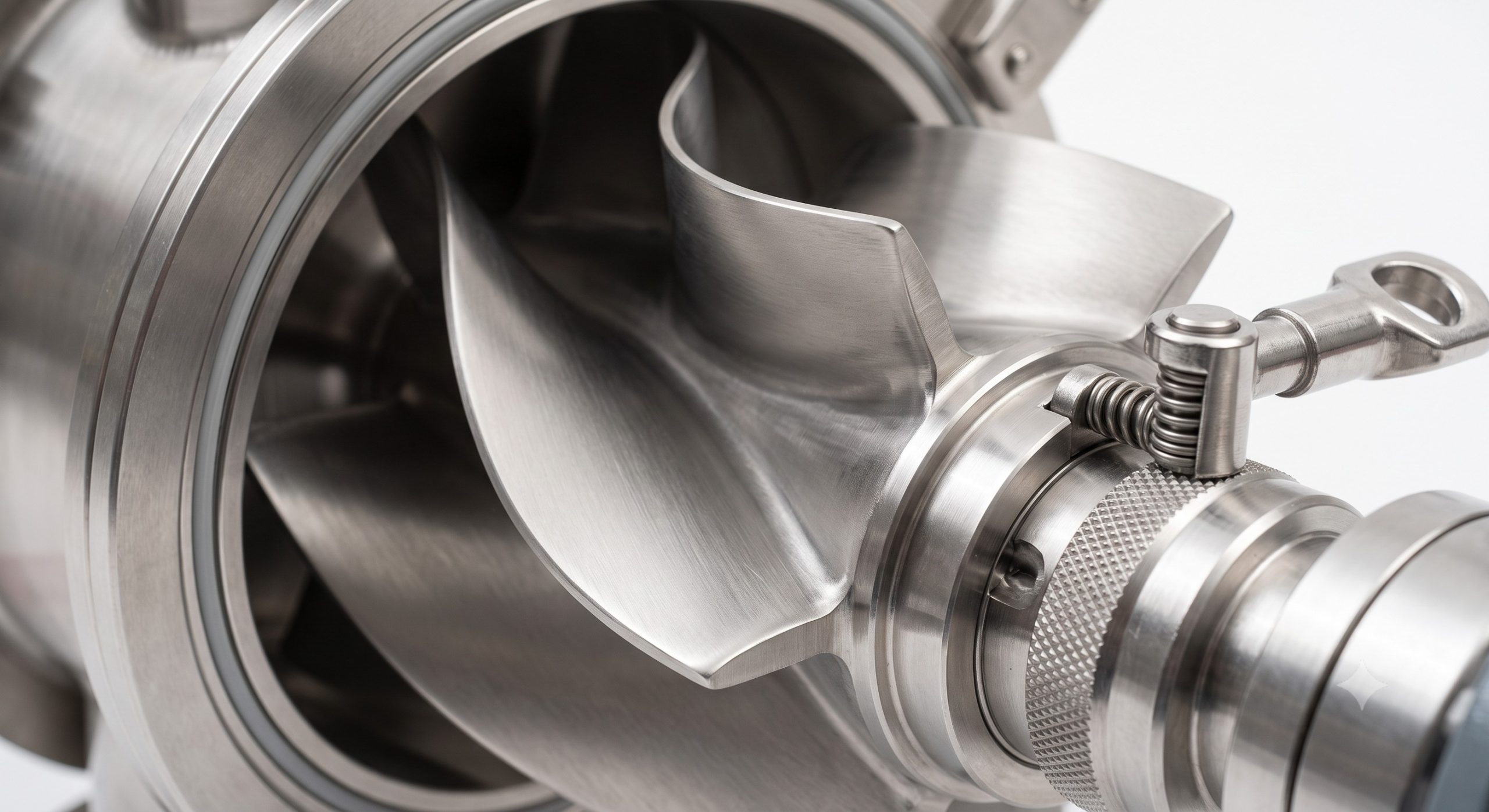

The DBR-1237’s robust engineering ensures longevity and reliable operation. The housing is precision-cast from selected stainless steel to maintain structural integrity under process pressures. The rotor is a high-precision component with a design optimized for both gentle product handling and efficient air sealing. The quick-release mechanism facilitates fast inspections and cleaning, minimizing downtime and preserving hygiene.

Specification	Detail
Product Model	DBR-1237
Body Material	SUS304 / SUS316L Stainless Steel, Carbon Steel
Rotor Design	Quick-Clean, Open/Closed Rotor Options
Rotor-to-Housing Clearance	0.1 – 0.2 mm
Shaft Seal	Lip Seal with Air Purge, Packing Seal
Flange Standard	HG20592 (DIN/ANSI compatible options)

Specification	Detail
Product Model	DBR-1237
Body Material	SUS304 / SUS316L Stainless Steel
Rotor Design	Quick-Clean, Open Rotor
Rotor-to-Housing Clearance	0.1 – 0.2 mm
Shaft Seal	Lip Seal with Air Purge
Flange Standard	HG20592

Comprehensive Technical Specifications

Detailed technical parameters are vital for accurate system engineering. The Doebritz DBR-1237 is designed to cover a broad spectrum of industrial requirements, ensuring seamless integration.

Parameter	Specification / Range
Material	SUS304, SUS316L, Carbon Steel (Painted / Nickel-Plated)
Wear Protection	Tungsten Carbide Coating, Ceramic Coating, PE, PTFE, PA
Explosion Protection	Non-Ex, Zone 20/21/22 (ATEX certified)
Pressure Rating	Up to 16 bar (Flameproof Configuration)
Pressure Range (Positive)	Low: <0.4 bar; High: 0.4 – 1 bar (VFD control)
Pressure Range (Negative)	Low: >-0.4 bar; High: -1 to -0.4 bar (VFD control)
Gravity Discharge	Adjustable speed, leak-free, no powder leakage
Metering Control	VFD speed control, PLC integration, batch/recipe metering
Temperature (Ambient)	-15°C to 60°C
Temperature (Material)	0°C to 120°C
Cooling	Optional Water Cooling Jacket
Surface Finish (Internal)	Mirror Finish, Ra ≤ 0.4/0.8/1.6 μm, Coatings
Surface Finish (External)	Machined (<0.8 μm), Sandblasting, Anti-Fingerprint
Cleaning	Manual (after quick-release), CIP, WIP + Manual Inspection
Cleanroom Compatibility	Class W, 10W, 30W, C, D
Nominal Diameters	DN50, DN100, DN150, DN200, DN300, DN350

Heavy-Duty Application Scenarios

Sanitary Processing (Food & Pharma)

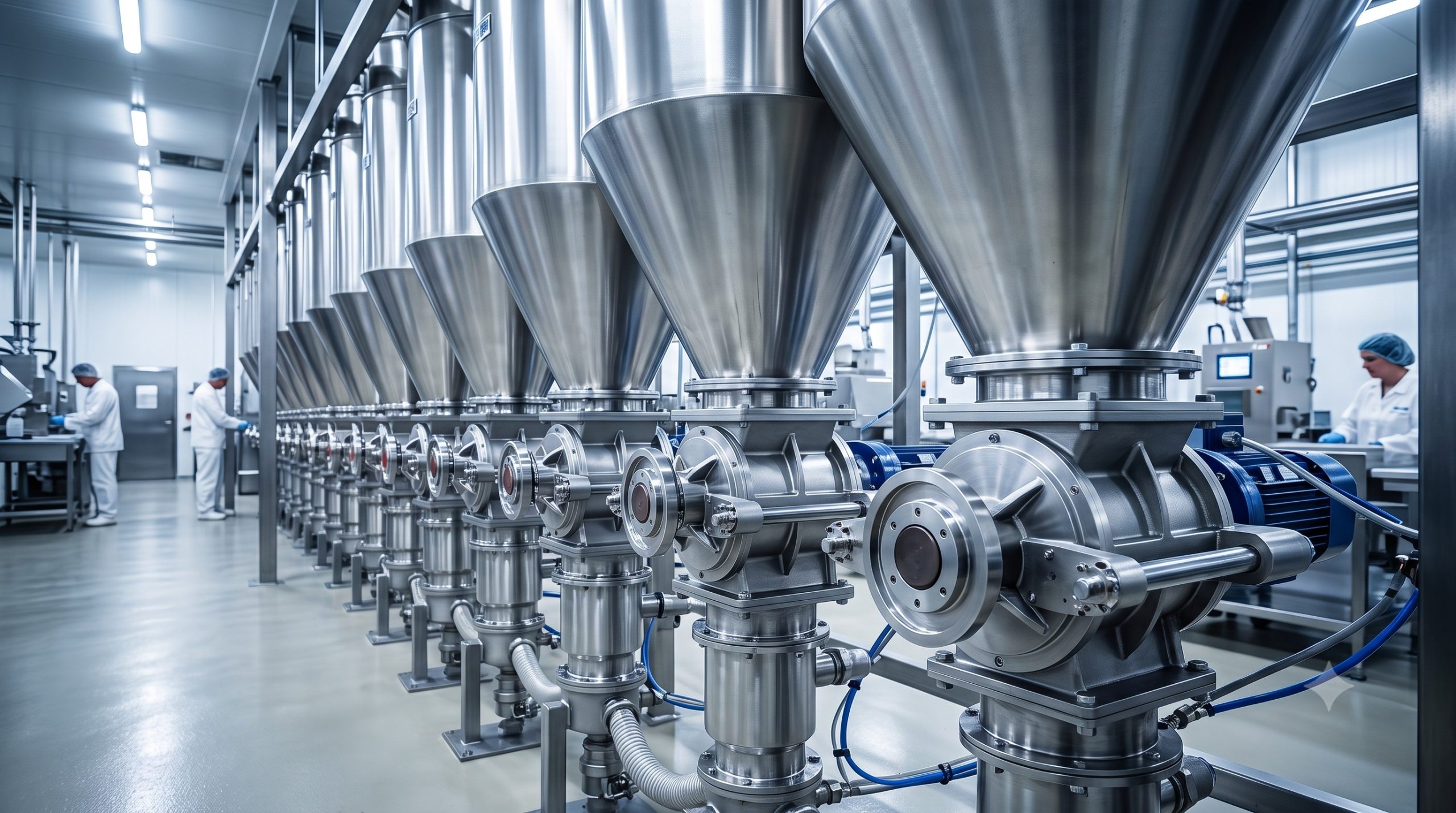

In food and pharmaceutical production, product purity is paramount. The DBR-1237’s quick-clean design and polished stainless steel finish make it ideal for handling materials like milk powder, pharmaceutical intermediates, and food additives. Its rapid cleaning capabilities and compliance with GMP standards ensure seamless validation and minimum downtime.

Hygienic Feeding and Discharging

As a sanitary rotary valve, the DBR-1237 excels in critical applications. It is used for controlled discharge from hoppers and as a precise feeder for pneumatic conveying lines. Its hygienic design prevents contamination.

Explosive Environments & Abrasive Materials

With ATEX certification and robust construction, the DBR-1237 is safe for use in zones requiring explosion protection. The optional tungsten carbide coating provides exceptional wear resistance for abrasive powders like carbon black, pigments, and battery materials, ensuring long service life.

Global OEM Assurance

Doebritz delivers a complete sourcing solution, from initial engineering consultation to after-sales support. Key aspects of our OEM assurance include:

• Full Customization: We offer bespoke configurations for material, explosion protection, surface finish, and interface dimensions to meet specific project requirements.
• Uncompromised Quality: Every valve is subject to rigorous quality control, including pressure testing and dimensional verification. We provide full material certifications and compliance documentation.
• Global Supply Chain: As a leading manufacturer, Doebritz ensures competitive lead times and reliable delivery for projects of all sizes, from single units to multi-line OEM contracts.
• Technical Support: Our team of experienced engineers provides comprehensive support, including sizing, system integration advice, and after-sales service, ensuring optimal performance throughout the equipment lifecycle.

Frequently Asked Questions

Q1: What makes the Doebritz DBR-1237 a “quick-clean” valve?

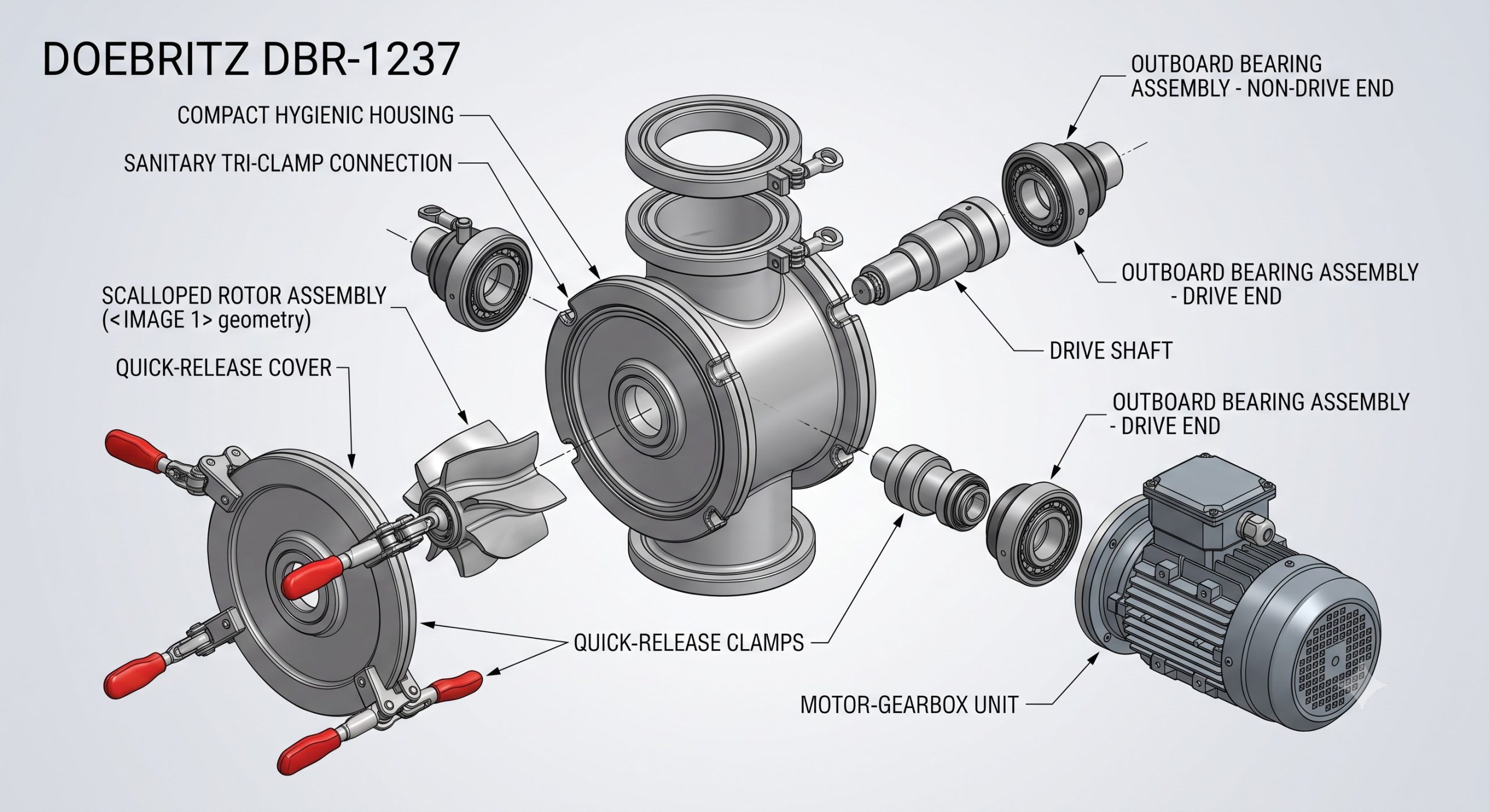

The DBR-1237 features a quick-release demountable design. It allows for rapid disassembly without specialist tools, providing instant access to the rotor and housing for thorough manual cleaning or inspection. This significantly reduces downtime compared to traditional designs.

Q2: What leakage rate can I expect from this rotary valve?

Due to its precision-machined rotor and housing, the DBR-1237 maintains a clearance of just 0.1–0.2 mm. This precision fit ensures minimal air leakage, typically less than 0.1 Nm³/min under standard differential pressure conditions, making it highly efficient for airlock applications.

Q3: Can the DBR-1237 be used for metering and dosing?

Yes. The DBR-1237 is available with a variable frequency drive (VFD) for speed control. It can be seamlessly integrated with a PLC for automated, precise batch or recipe-based metering and dosing applications.

Q4: What types of seals are available for the DBR-1237?

We offer a variety of shaft sealing options to match your process requirements, including standard lip seals, air-purged lip seals, and packing seals. These configurations prevent material leakage and protect the bearing arrangement.

Q5: Is the DBR-1237 suitable for ATEX-classified environments?

Absolutely. Doebritz supplies the DBR-1237 with ATEX certification for use in Zone 20, 21, and 22 hazardous areas. The valve is available with explosion-proof motors and can be built to a flameproof construction with a 16bar pressure rating.
