Doebritz Fine Particle Size Reduction Rotary Airlock Valve: Minimal Air Leakage & ATEX Certified (Model FPSR-200)

Executive Overview: Precision Engineered for Ultra-Fine Particle Control

The Doebritz Fine Particle Size Reduction (Model FPSR-200) represents a paradigm shift in rotary airlock technology for demanding powder handling applications. Engineered specifically for abrasive, friable, and ultra-fine materials (down to 5 microns), this valve integrates heavy-duty metallurgy with CNC precision machining to achieve radial tolerances as low as 0.08mm, drastically minimizing air leakage and particle degradation. Built upon Doebritz’s 15+ years of German-engineered manufacturing excellence, the FPSR-200 delivers a volumetric efficiency of up to 85% while maintaining ATEX Zone 20/21 certification for explosive dust atmospheres.

Why Global Plant Sourcing Chooses Doebritz FPSR-200

When specifying a size reduction valve for fine powders, plant engineers demand uncompromised airlock integrity and mechanical longevity. The Doebritz FPSR-200 excels through:

• Minimal Air Leakage (< 0.5 m³/h at 0.5 bar differential): Proprietary rotor-to-housing clearances achieved via 5-axis CNC machining reduce blowback and maintain differential pressure.
• Superior Wear Resistance: Standard Ni-Hard or Stellite-coated vanes, with optional ceramic lining for handling fumed silica or titanium dioxide.
• ATEX Certified Explosion-Proof: Certified for Zone 20 (gas)/21 (dust) with flameproof housing and grounding shaft.
• Global OEM Supply Readiness: Customizable flanges (DIN/ANSI/JIS), direct gearmotor mounts, and outboard bearing housings for high-temperature service up to 300°C.

Housing & Rotor Engineering: Built for Continual Heavy-Duty Service

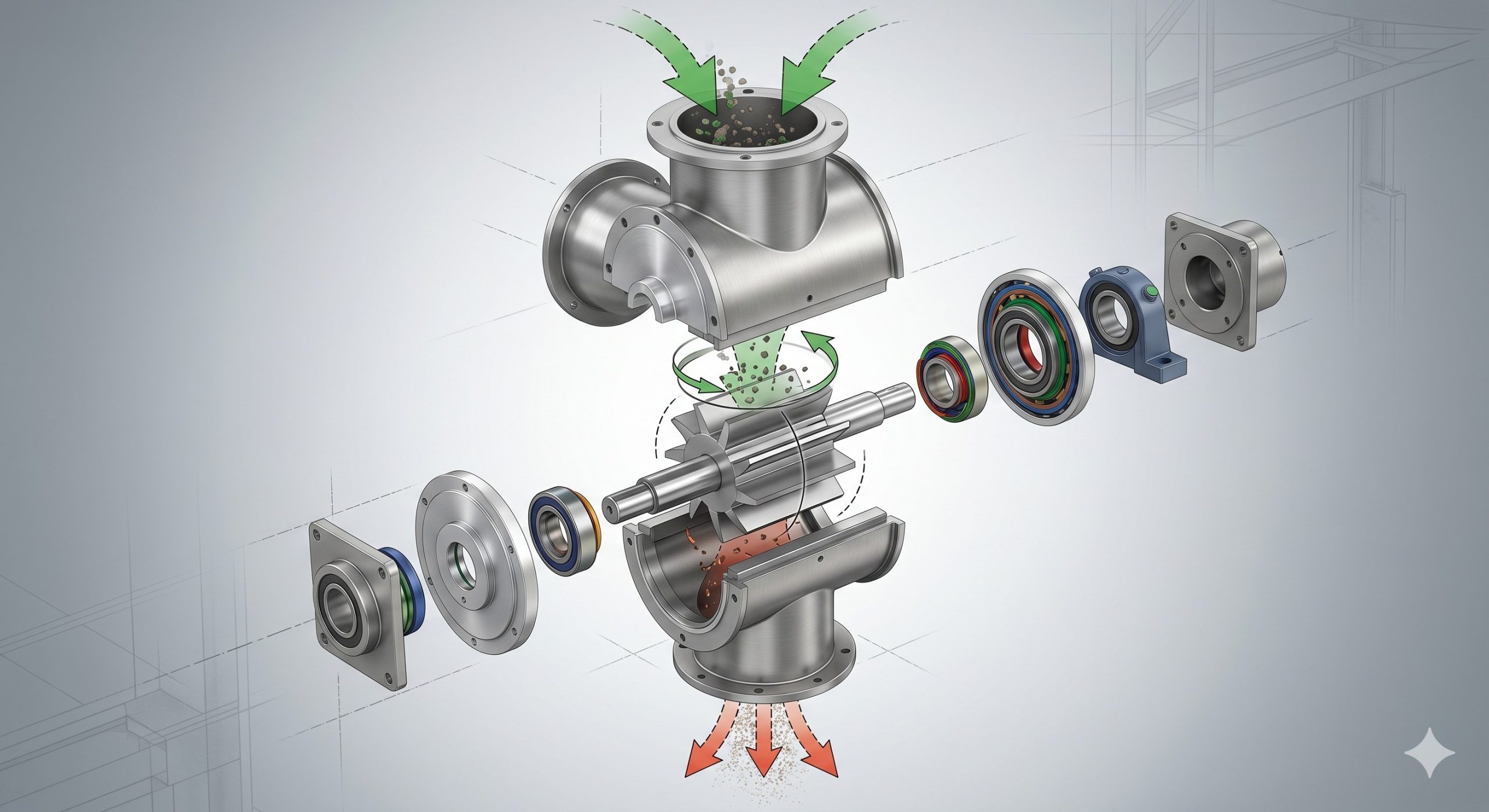

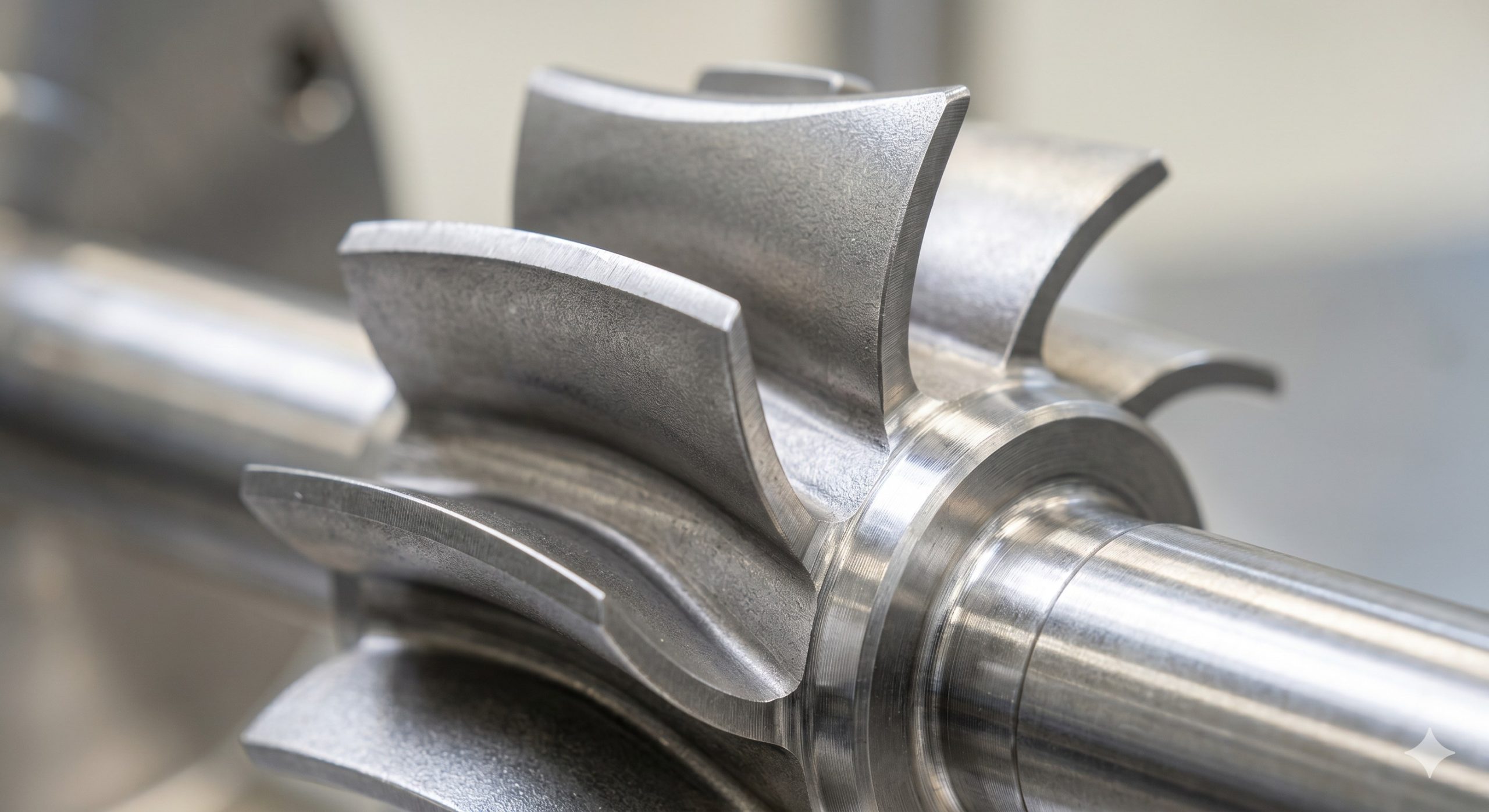

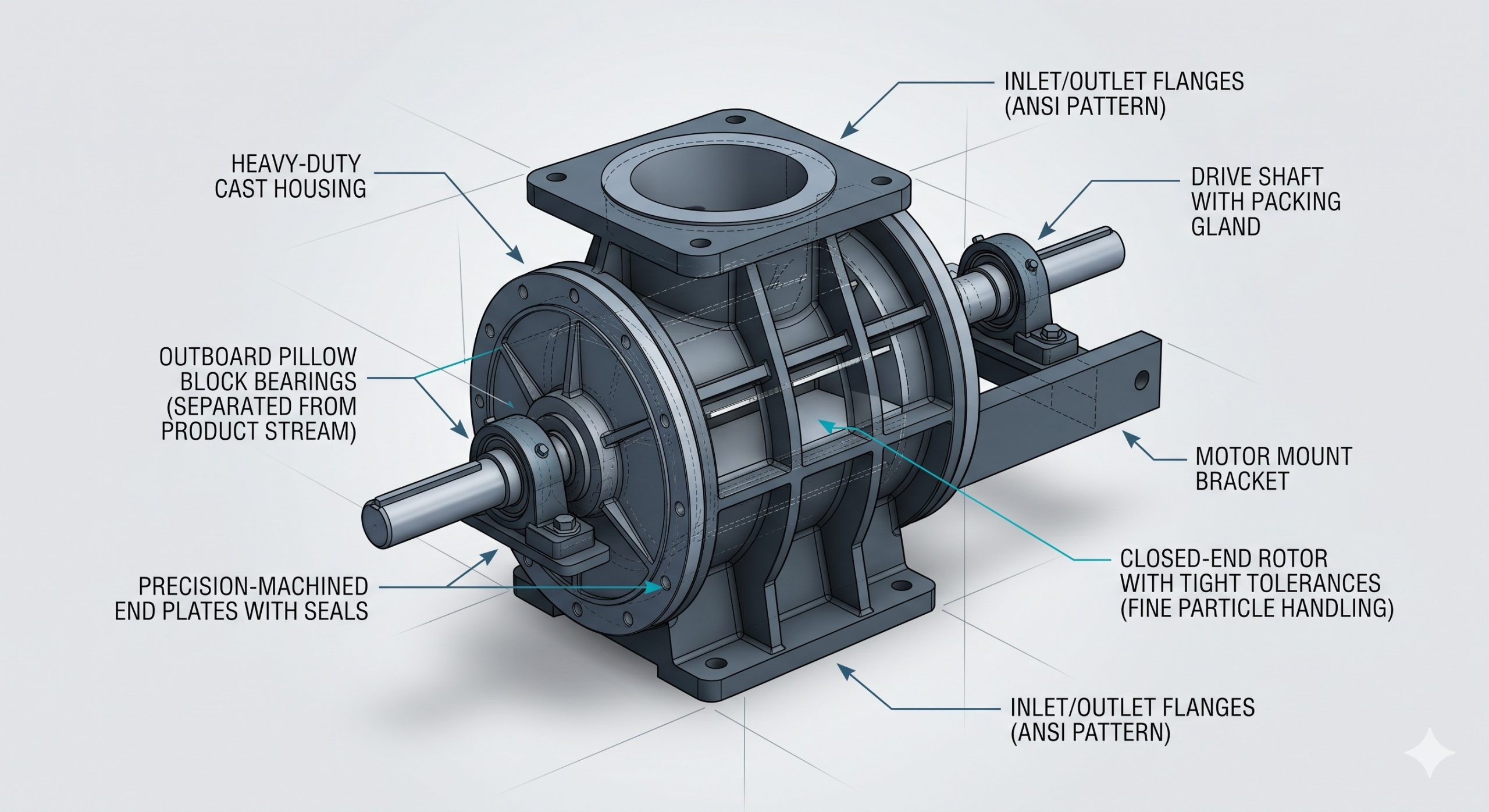

The Doebritz FPSR-200 features a one-piece cast iron or 304/316L stainless steel housing with thickened wall sections (min. 12mm) to withstand high differential pressures up to 1.5 bar. The 8-vane closed-end rotor is dynamically balanced and precision-ground, ensuring consistent pocket filling and complete discharge. For extreme abrasion, we offer a replaceable wear sleeve design. The outboard bearing arrangement isolates the drive train from the product zone, allowing air-purge lantern rings to prevent fine particle migration into the bearing housing. Each unit undergoes a 100% helium leak test and high-pressure blowback simulation prior to shipment.

Technical Specifications

All Doebritz FPSR-200 valves are backed by full material traceability (EN 10204 3.1) and serialized quality reports.

Specification	Detail
Model	Doebritz FPSR-200
Body Material	Cast Iron (GGG-40) / Stainless Steel 304 / 316L
Rotor Design	8-Vane Closed-End, Precision Machined Clearance 0.08-0.12mm
Inlet/Outlet Size	DN200 (8″) – DN400 (16″), Customizable
Differential Pressure Max	1.5 bar (21.7 psi)
Operating Temperature	-20°C to +300°C (High-Temp Option up to 450°C)
Volumetric Capacity	Up to 85% efficiency at 40 RPM
ATEX Certification	II 2/1 D c T4 (Zone 20/21) – Optional
Leakage Rate	< 0.5 m³/h at 0.5 bar (N2 test)
Bearings	Outboard, sealed-for-life with purge option
Shaft Sealing	PTFE lip seal + air purge lantern ring (std) / graphite packing (HT)

Heavy-Duty Application Scenarios

Pneumatic Conveying (Dense & Dilute Phase)

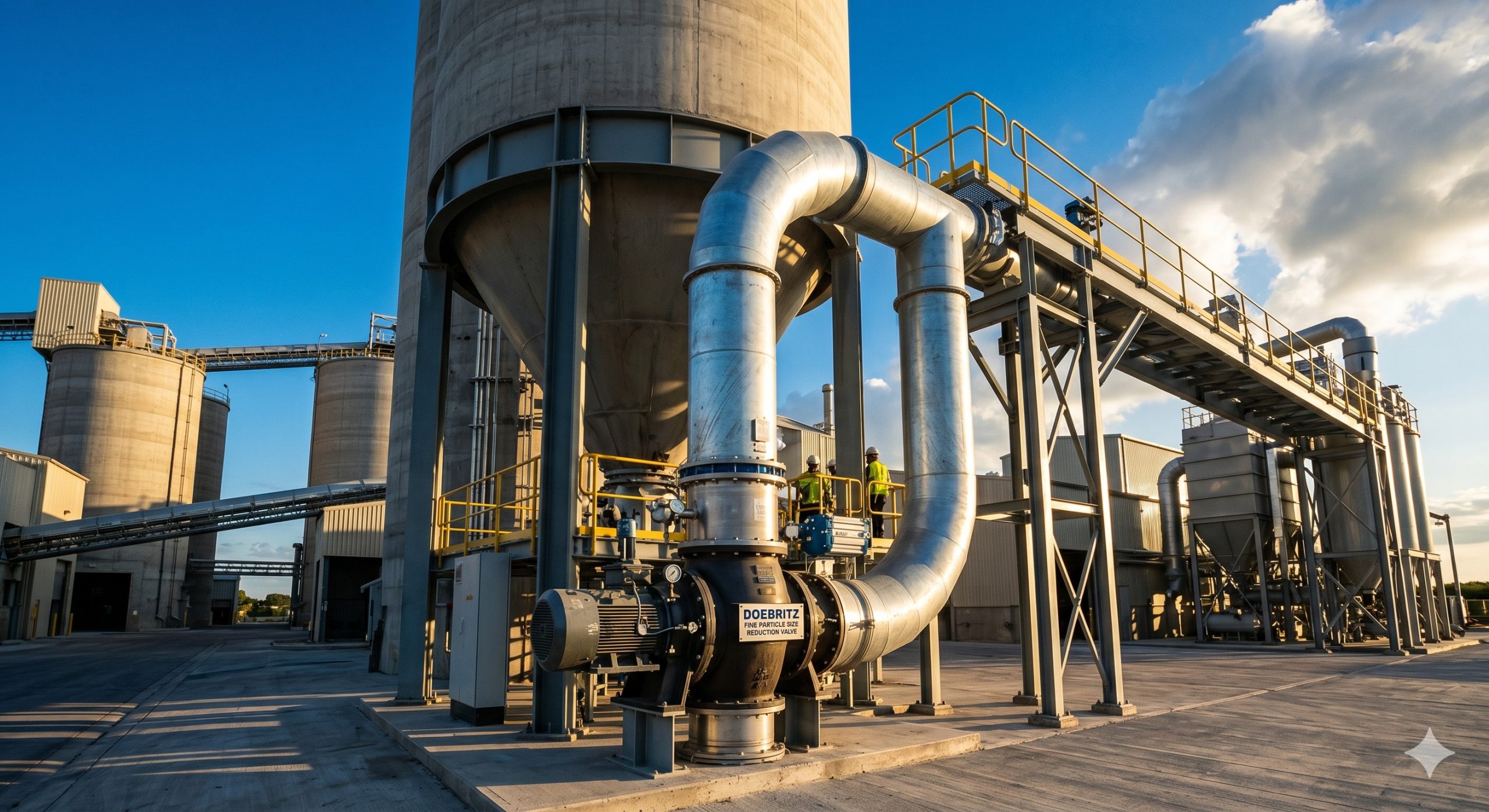

Optimized for feeding lime powder, cement, fly ash, and carbon black into dense phase conveying lines. The FPSR-200 maintains stable material drop while preventing pressure blowback that disrupts conveying velocity. A global cement plant reported 40% reduction in air loss after retrofitting from a standard rotary valve.

Dust Collector Hopper Discharging

Ideal for dust collector hoppers under negative pressure. The FPSR-200’s minimal clearance design prevents bridging of sticky fines like hydrated lime or pharmaceutical ingredients, ensuring continuous discharge without bridging. ATEX certification provides essential safety for coal dust or metal powder recovery.

Fine Chemical & API Processing

For sanitary or corrosive applications, the 316L stainless steel version with mirror-polished pockets and quick-clean demountable design enables rapid CIP/SIP validation. Used by top-tier pharmaceutical API manufacturers for size reduction of micronized active ingredients.

Doebritz Global OEM Assurance: The Supply Chain Advantage

As a Tier 1 manufacturer with 150,000+ units delivered worldwide, Doebritz provides project-specific engineering support, including CFD modeling of material flow, torque calculations, and CAD integration files. Our ISO 9001:2025-certified factory in Germany maintains 5-day expedited lead times for standard sizes and 15 days for custom flanges. Every valve includes a 3-year MTBF guarantee on rotor vanes when handling abrasive powders up to 200 Mohs hardness. Request your factory direct quotation today to lower your total cost of ownership.

Frequently Asked Questions

What makes the Fine Particle Size Reduction (FPSR-200) different from a standard rotary valve?

Standard rotary valves often allow particle jamming and pressure leakage with sub-50 micron powders. The FPSR-200 features CNC-machined clearances under 0.1mm, a specialized vane geometry to minimize shear degradation, and optional ATEX certification. It is purpose-built for fine powders where air retention and dust explosions are critical risks.

Can the Doebritz FPSR-200 handle high-temperature materials?

Yes. With the optional high-temperature configuration (graphite packing, expanded rotor clearance, and cast iron housing), the FPSR-200 reliably operates at continuous temperatures up to 300°C (572°F). For peak excursions up to 350°C, we recommend our FPSR-HT series.

What drive options are available for OEM integration?

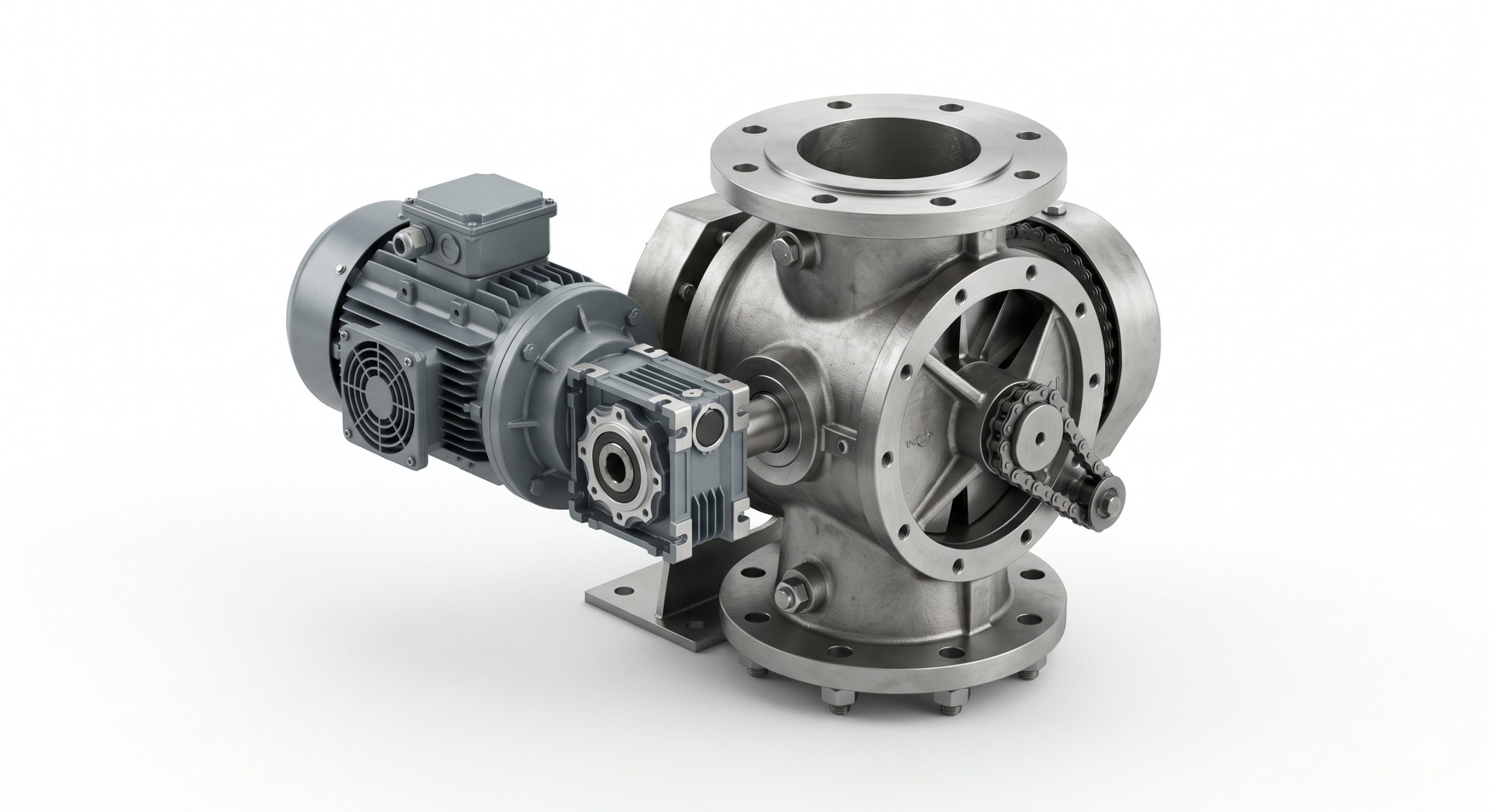

Doebritz offers direct-mounted gearmotors (Siemens, Nord, or SEW), inverter-ready motors for variable frequency drive (VFD) control, and hydraulic drive adapters for hazardous environments. We also provide torque arms and flanged adapters to match your existing screw conveyor or silo outlet.

What is the lead time for a custom flange pattern?

For DIN/ANSI/JIS flanges in standard sizes (DN150 to DN400), we maintain CNC programs for same-day machining. Expedited custom flanges ship within 10 working days. Non-standard bore diameters require engineering approval but typically add only 3 days.

How do I verify ATEX compliance for my Zone 20 installation?

Each ATEX-certified Doebritz valve includes a declaration of conformity (EC-type examination certificate) from an EU-notified body. The certificate number is engraved on the housing nameplate, along with the specific equipment category (II 1/2 D c). We also provide installation guidelines for explosion isolation.
