Doebritz Clamp Ring for Screen: Precision-Machined Retainer | ATEX-Ready Screen Changeover

Heavy-Duty Screen Retention: Engineered for Zero Bypass

The Doebritz Clamp Ring for Screen is not a commodity casting. It is a precision-engineered retainer system designed to secure vibratory or rotary sifting screens under extreme continuous vibration, pressure differentials, and abrasive bulk solids. Unlike generic stamped rings that warp or leak fines, the Doebritz Clamp Ring delivers a uniform clamping force profile, eliminating material bypass and reducing plant fugitive dust. Manufactured from ductile iron or stainless steel 316L, every unit is CNC-machined to match your specific screen deck geometry, ensuring ATEX Zone 22/21 compliance and sub-0.1% leakage rates in closed-loop systems.

Why Plant Engineers Choose Doebritz Clamp Ring for Screen

• Minimal Material Bypass: Precision-ground mating face achieves <0.1mm flatness tolerance, preventing fines from escaping screen edges.
• ATEX Certified Explosion-Safe: Full ATEX II 2D c T120°C certification for dust explosion environments; non-sparking design.
• CNC-Machined Reliability: Each Clamp Ring for Screen is machined on Doebritz 5-axis CNC centers with traceable inspection reports.
• Global OEM Supply Backbone: Over 15 years of supplying tier-1 heavy industries – cement, chemicals, food, and mining.

Housing & Precision Machining Excellence

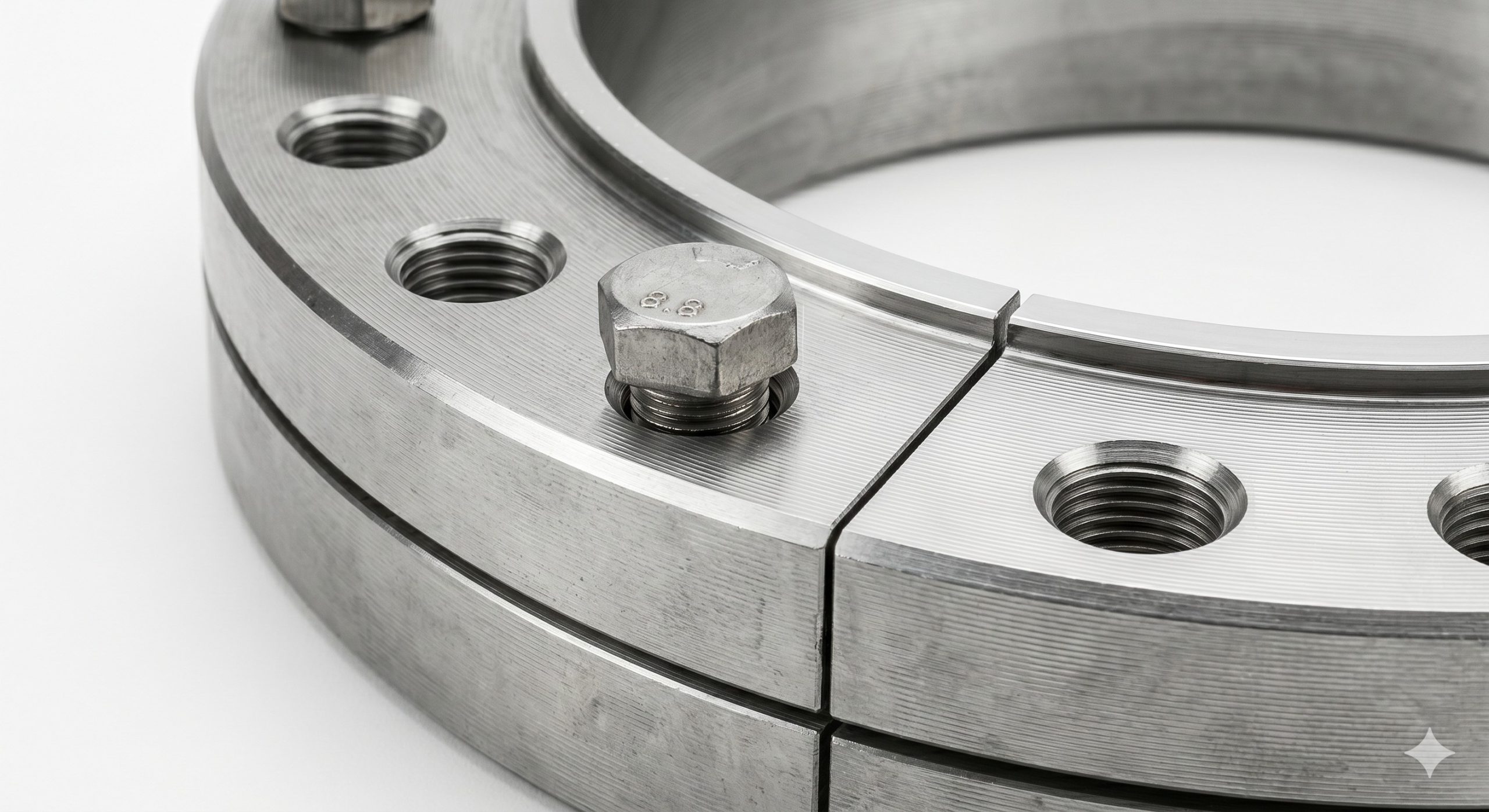

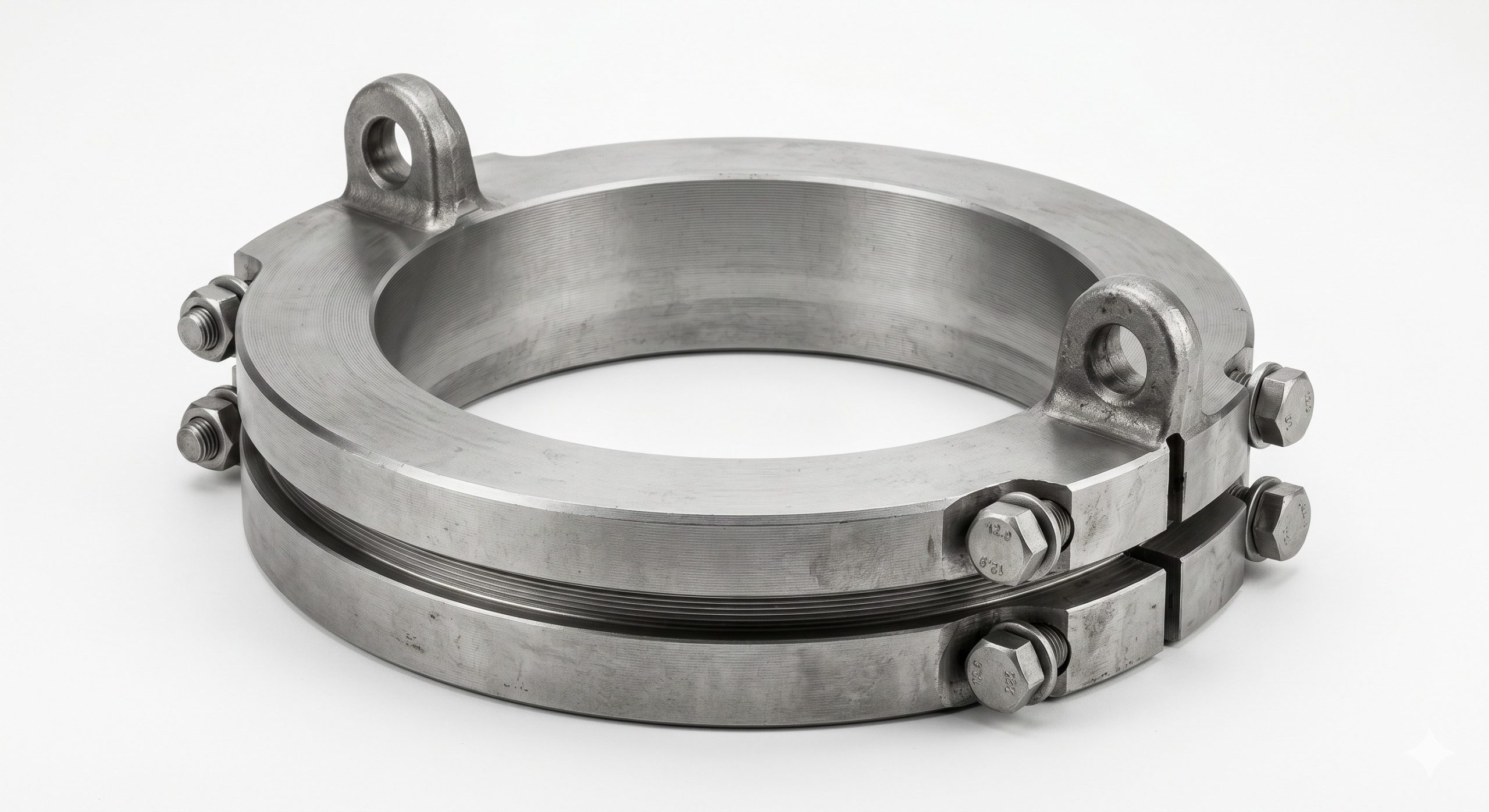

The Doebritz Clamp Ring for Screen starts as a high-grade ductile iron (GGG40) or 316L stainless steel casting, then undergoes a proprietary 3-step machining process: rough turning, stress-relieving thermal cycle, and final diamond boring. The result is a perfectly flat clamp face with a surface finish of Ra ≤ 1.6µm, ensuring even pressure distribution across the entire screen frame. Multi-stud configurations with integrated lifting lugs allow rapid screen changeover without special tools, reducing maintenance downtime by up to 40% in continuous-duty plants.

Superior Sealing & Containment

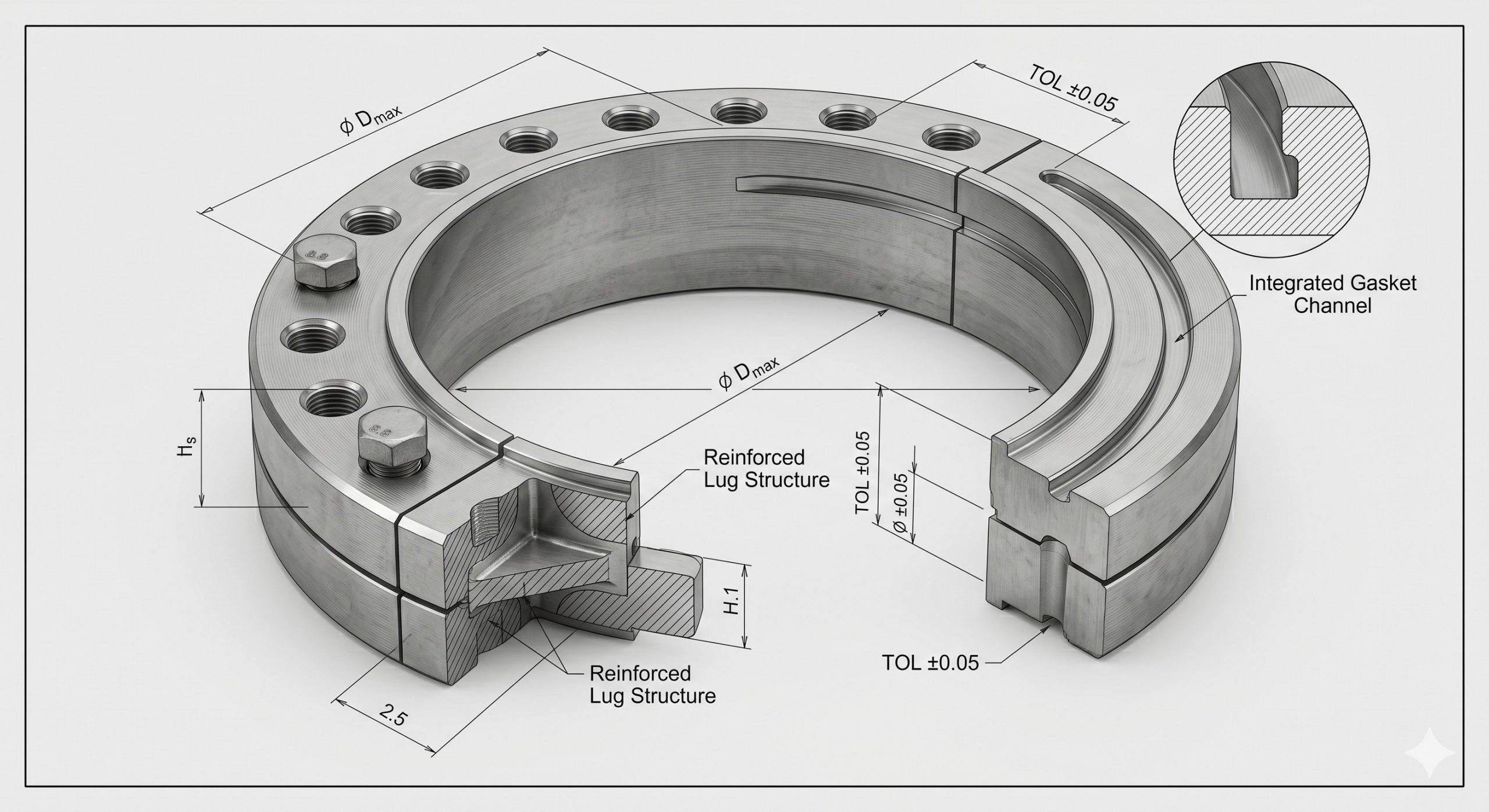

An integrated silicone or Viton® gasket channel retains the sealing element securely during vibration. For high-temperature applications (up to 250°C), optional graphite-impregnated gaskets are available. The clamping mechanism uses high-tensile class 10.9 bolts with Belleville washers to maintain preload under thermal cycling – a critical feature for pneumatic conveying systems and silo dischargers where pressure spikes occur.

Technical Specifications – Doebritz Clamp Ring for Screen

All specifications are verified per ISO 9001:2015 and traceable to material certificates EN 10204 3.1.

Specification	Detail
Body Material	Ductile Iron GGG40 / Stainless Steel 316L / Duplex 2205 (on request)
Available Diameters	200mm, 300mm, 400mm, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm
Flatness Tolerance	≤ 0.1mm over entire mating face
Surface Finish (Ra)	≤ 1.6µm (ground finish)
Temperature Range (Standard)	-20°C to +200°C (silicone gasket)
Temperature Range (High-Temp)	-40°C to +450°C (graphite/Inconel)
ATEX Certification	II 2D c T120°C (cast iron) / II 1D c T120°C (316L)
Max Clamping Force	Up to 50 kN/m (depending on bolt torque & diameter)
Gasket Options	Silicone, Viton®, EPDM, Graphite/PTFE composite
Bolt Torque Specification	80 N·m (M12) / 150 N·m (M16) – class 10.9

Heavy-Duty Application Scenarios

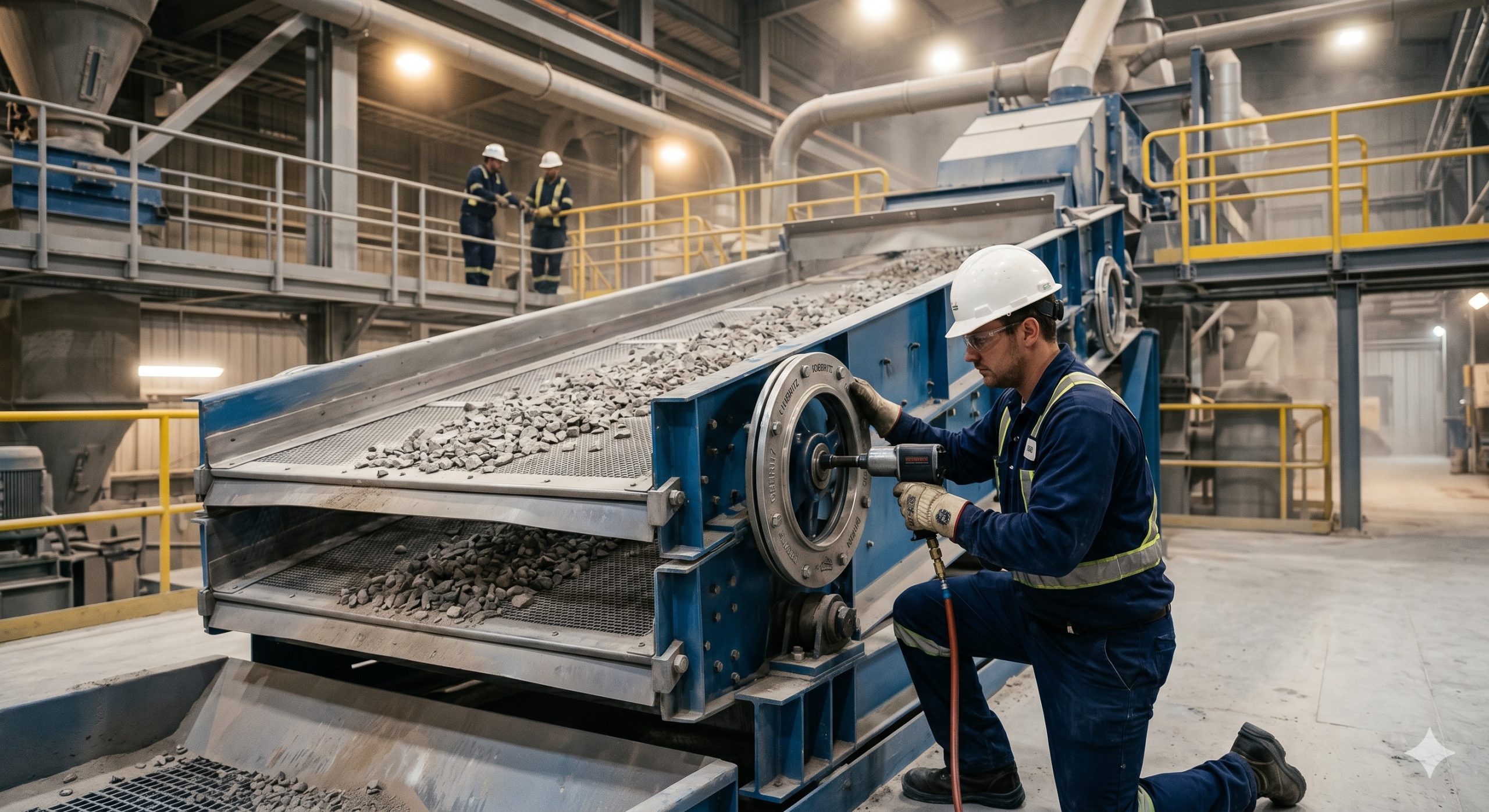

Vibratory Sifters for Abrasive Powders

In silica sand, cement raw meal, or recycled plastic flake screening, the Doebritz Clamp Ring for Screen withstands continuous G-forces up to 5G without loosening. The reinforced lug design prevents stress fractures common in cast aluminum rings.

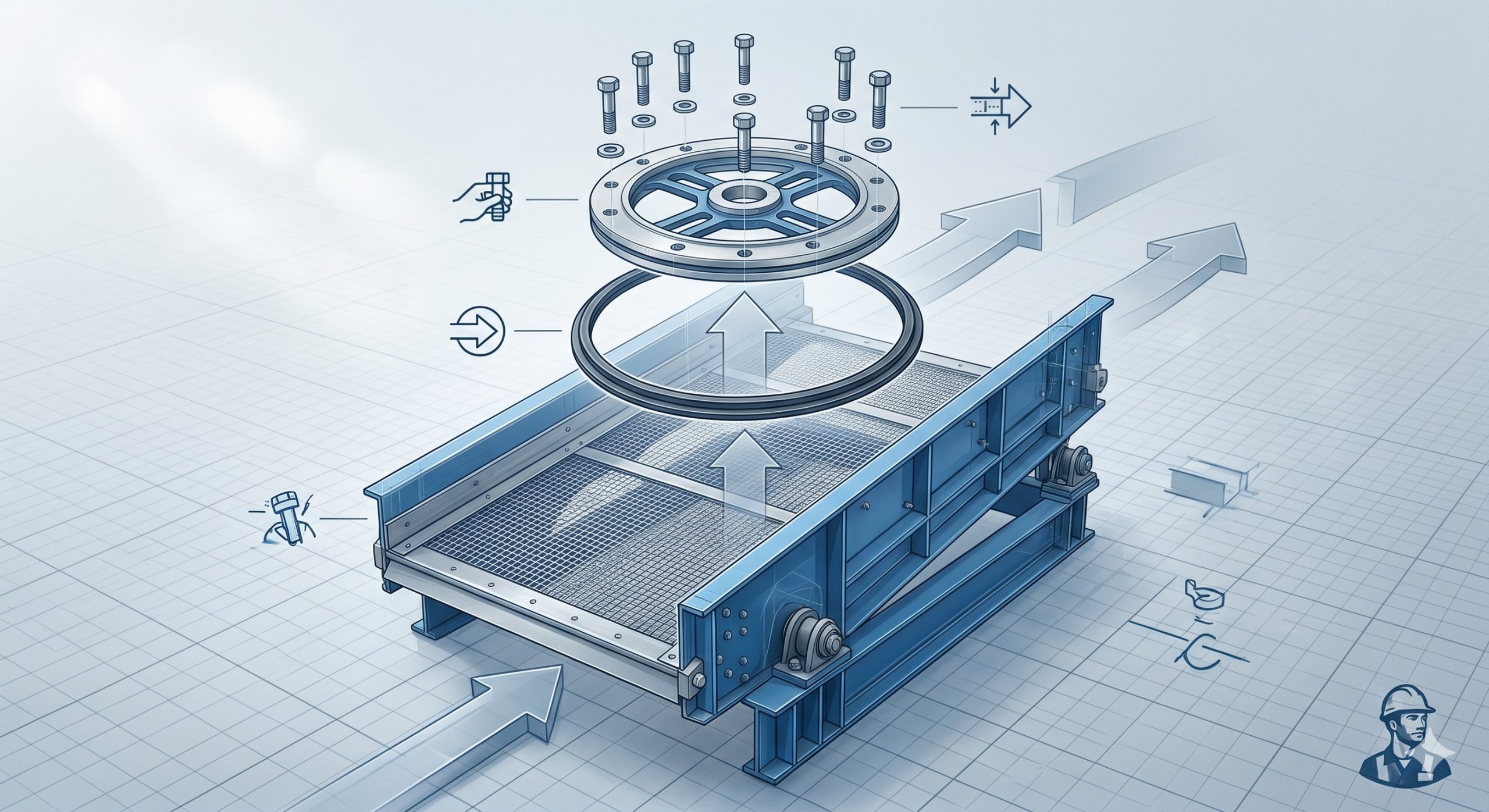

Rotary Valve Integration & Airlock Protection

When installed as a screen retainer above a rotary airlock, the Clamp Ring for Screen prevents tramp metal or screen mesh fragments from entering the valve, protecting rotor tips and housing bores from catastrophic damage. This extends MTBF by over 300% in many recycling plants.

Global OEM Assurance & Doebritz Supply Chain

As a heavy-industry-focused manufacturer, Doebritz maintains finished goods inventory of standard Clamp Ring for Screen sizes (200mm to 1500mm diameter). Custom bore patterns, stud circle diameters, and material grades (including duplex and Hastelloy) are available with a 15-day lead time for prototype quantities. Full CAD support (STEP, IGES) is provided for system integrators. Every shipment includes a dimensional inspection report and, upon request, positive material identification (PMI) test results.

Frequently Asked Questions – Clamp Ring for Screen

What is the maximum temperature rating for your Clamp Ring for Screen?

Standard silicone gasket rated to 200°C continuous. For high-temperature applications (up to 450°C), we recommend the graphite-sealed version with Inconel bolts. Contact Doebritz engineering for thermal cycling data.

Can Doebritz supply non-standard bolt hole patterns?

Yes. We have CNC programs for over 50 legacy screen deck patterns from major OEMs. Provide your existing screen frame drawing, and we will match the pattern exactly, including countersunk or threaded holes.

Is the Clamp Ring for Screen ATEX certified for Zone 20?

Yes. The Doebritz stainless steel version is ATEX II 1D c T120°C certified for Zone 20 (continuous dust explosive atmospheres). Cast iron version is certified for Zone 21/22. Certificates are available upon request.

How do I prevent material accumulation under the clamp ring?

Our optional purge port allows connection of low-pressure compressed air (0.5 bar) to create a positive pressure barrier, preventing dust ingress into the clamp channel. Ideal for sticky or hygroscopic materials.

What is the typical lead time for a custom-sized Clamp Ring for Screen?

For diameters under 1000mm with standard material (cast iron or 304SS), lead time is 10-12 working days after drawing approval. Express service (5 days) is available for a 15% surcharge.
