Designed for the harshest chemical and pharmaceutical environments, the Doebritz PTFE Airlock Feeder (Model DBR-1237) eliminates cross-contamination and corrosion risks associated with metal-to-metal contact. Unlike standard rotary valves, this PTFE heavy-duty airlock feeder features a fully machined polymer rotor and housing liner, delivering optimal sealing while preventing material build-up. Doebritz CNC precision machining ensures a radial clearance of only 0.1–0.2 mm, achieving minimal air leakage even under high differential pressure (up to 1 bar).

Why Plant Sourcing Chooses Doebritz PTFE Rotary Valve

• Superior Corrosion Resistance: The PTFE contact surface is inert to aggressive acids, solvents, and high-purity pharmaceuticals, extending service life beyond stainless steel alternatives.
• Minimal Air Leakage & Locking Efficiency: Precision-ground rotor-to-housing clearance reduces blow-by, ensuring stable pressure gradients in dense or dilute phase pneumatic conveying systems.
• ATEX Certified Explosion Safety: Compliant with Zone 20/21/22 (ATEX 2014/34/EU), with flameproof construction and optional 16bar pressure shock resistance for dust explosion isolation.
• Global OEM Supply with Full Traceability: Doebritz provides EN 10204 3.1 material certificates, full dimensional reports, and 100% hydrostatic testing prior to shipment.

Robust PTFE Liner & Rotor Engineering

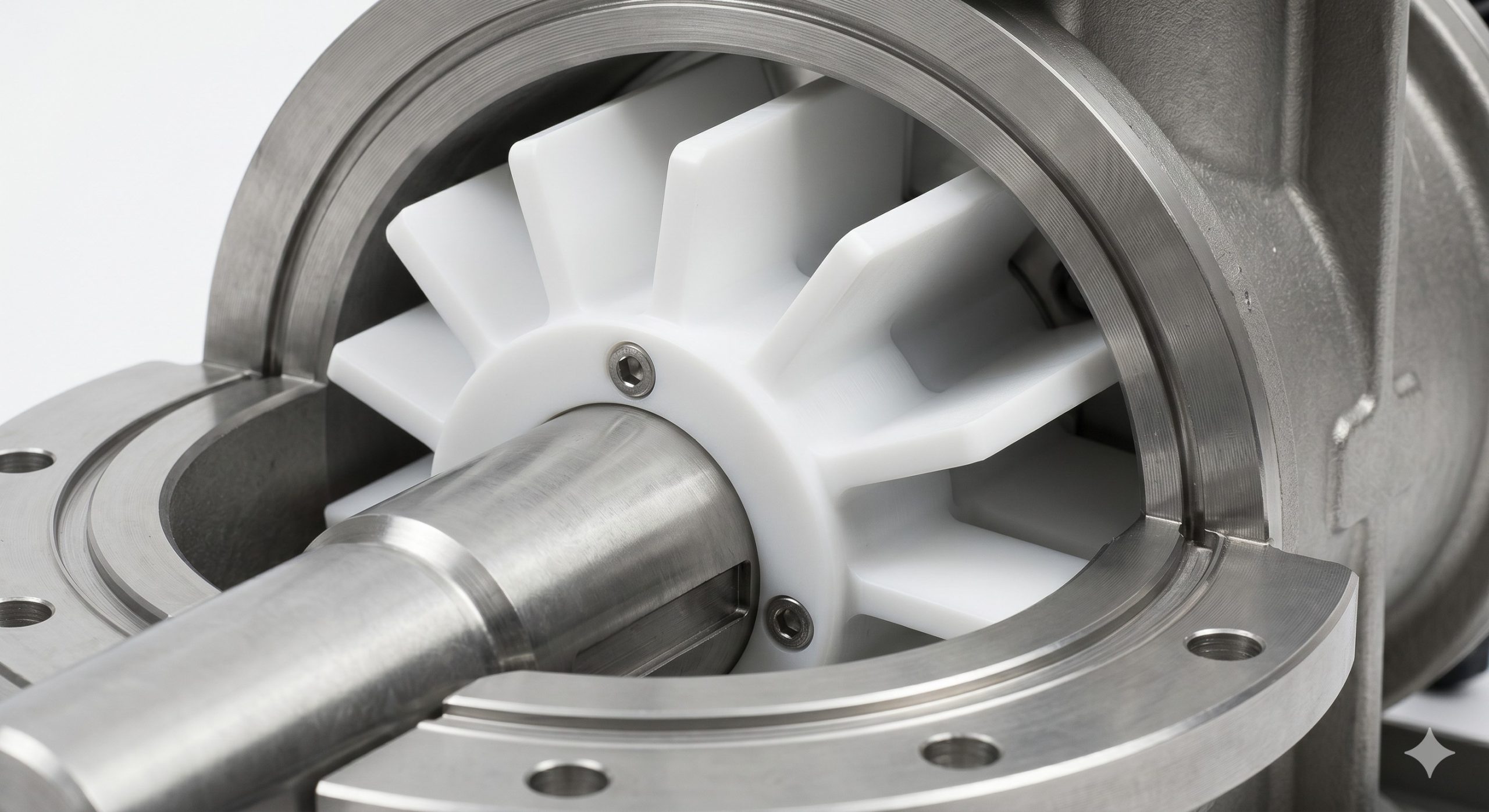

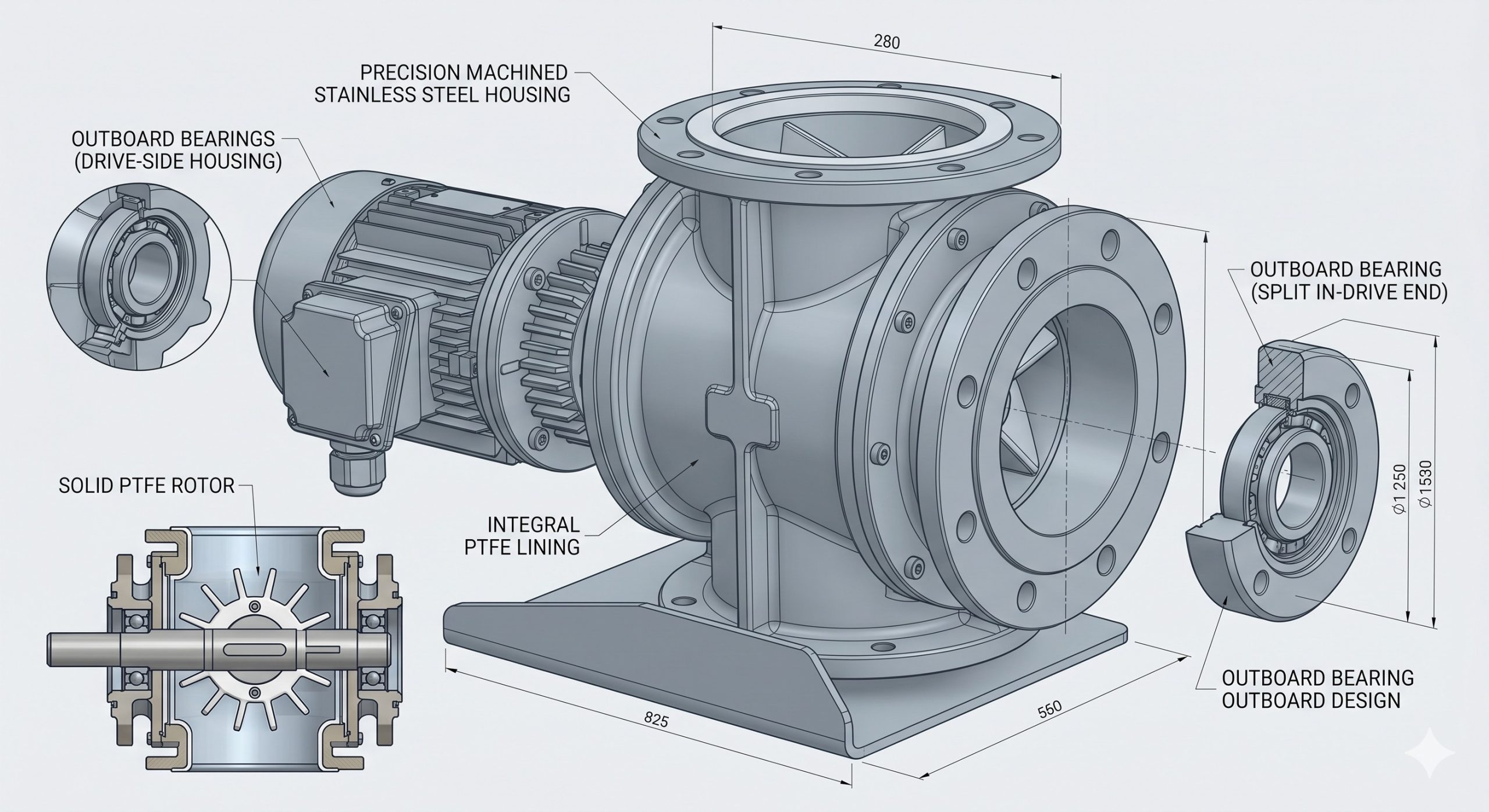

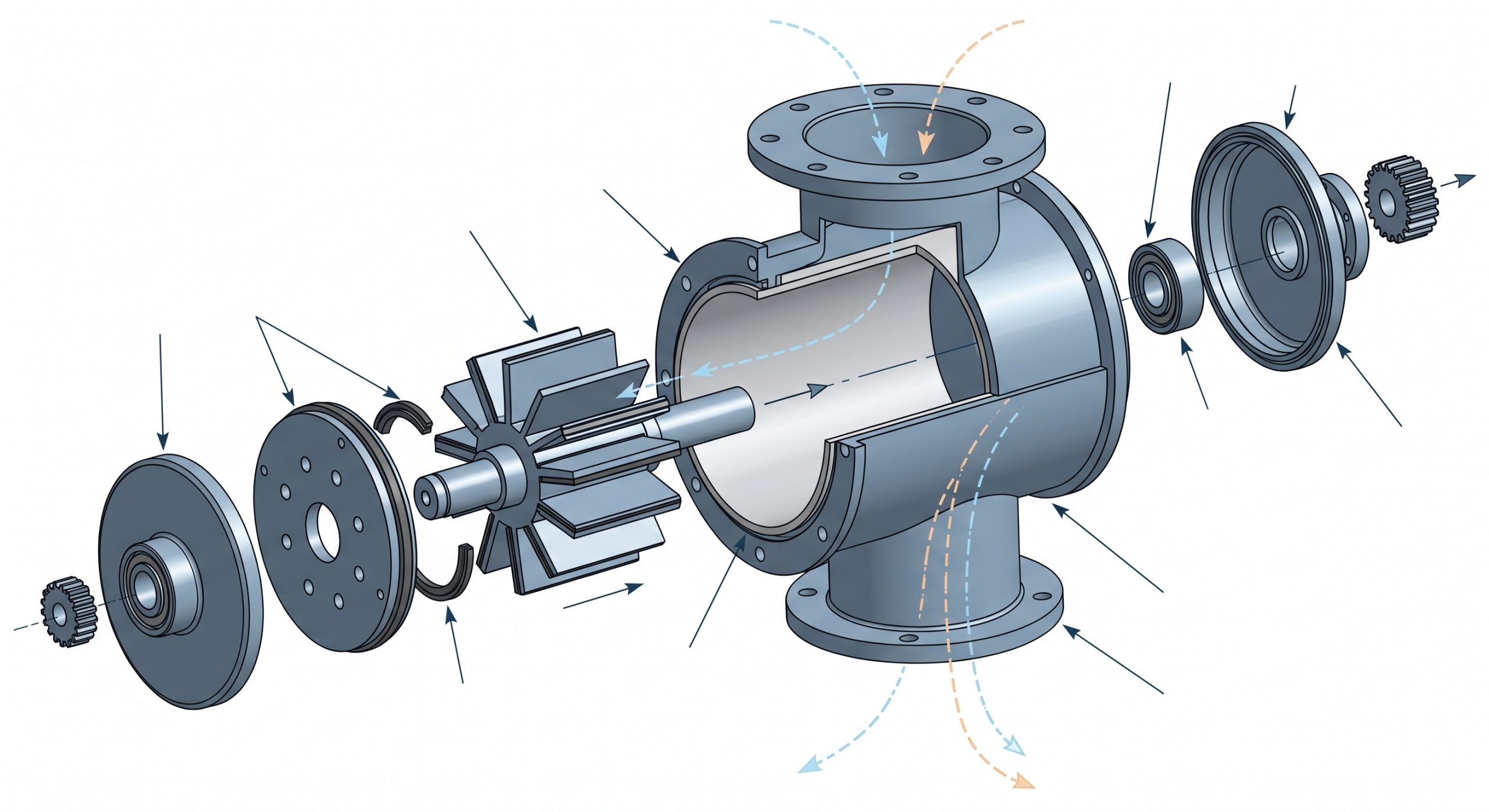

The Doebritz PTFE Airlock Feeder utilizes a field-replaceable PTFE liner and a precision-machined PTFE rotor, eliminating metal contamination risks for food and pharmaceutical lines. The housing is manufactured from SUS316L stainless steel (or carbon steel with PTFE coating), featuring an outboard bearing support that isolates the drive train from the product zone. This design prevents dust ingress into bearings, significantly extending MTBF (Mean Time Between Failures). Axial seals are configured with lip seals and optional air purge connections, ensuring zero leakage past the shaft.

Technical Specifications: Doebritz PTFE Airlock Feeder

Below are the certified parameters based on Doebritz factory test reports. All values are verified under real pneumatic conveying loads.

Specification	Detail

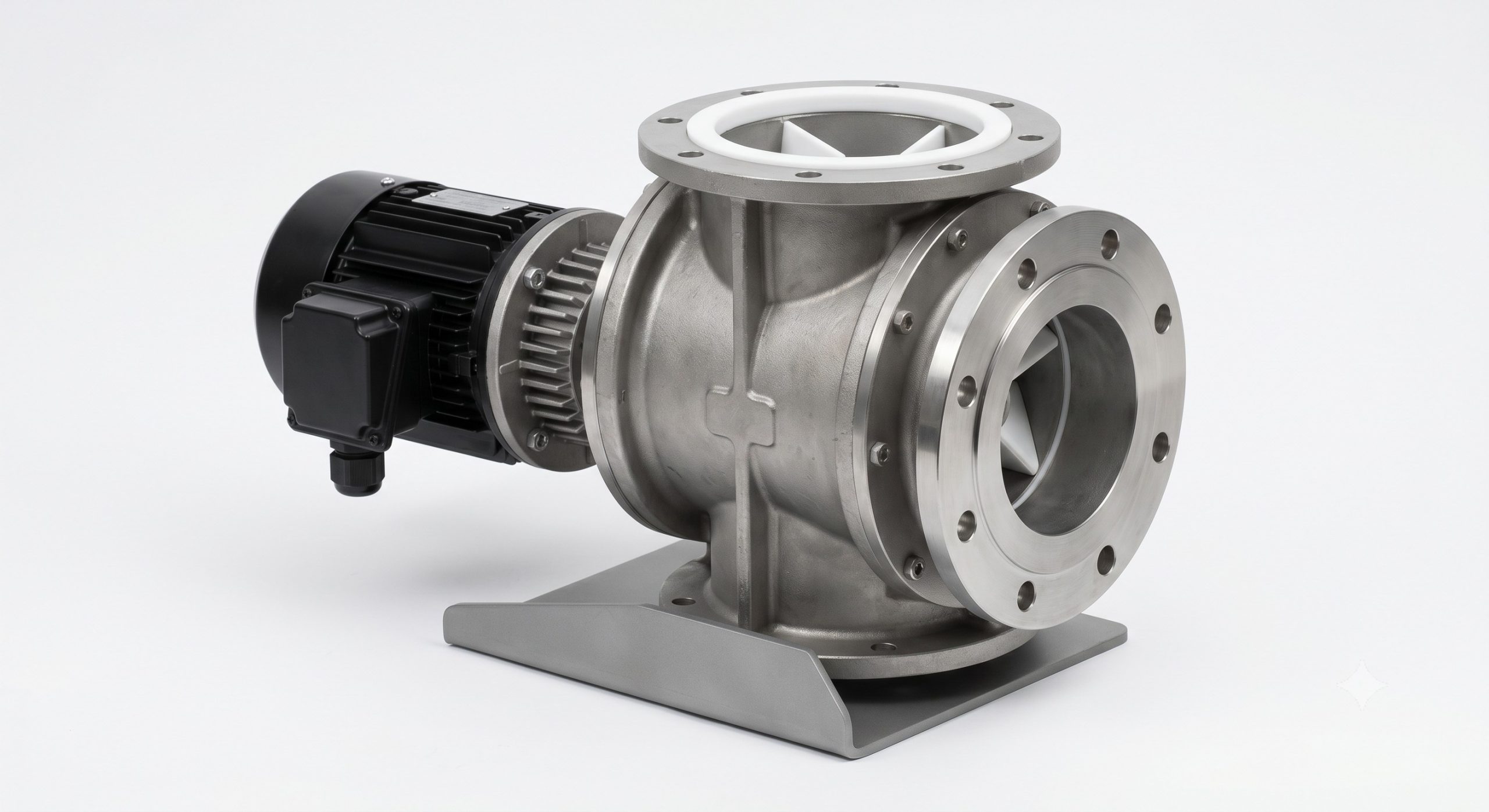

Model	Doebritz DBR-1237 PTFE Airlock Feeder
Body Material	SUS316L / Carbon steel with PTFE liner
Rotor Material	Precision-machined PTFE (virgin / anti-static)
Rotor Design	8 / 10 vane, closed or open rotor options
Radial Clearance	0.1–0.2 mm (CNC matched)
Inlet/Outlet Sizes	DN50, DN100, DN150, DN200, DN300, DN350
Max Differential Pressure	1 bar (positive) / -1 bar (vacuum)
ATEX Certification	Zone 20/21/22 (Category 1D/2D)
Surface Finish (internal)	Ra ≤ 0.8 μm (mirror polish optional)
Seal Type	Lip seal with air purge (PTFE) or packing gland

Operational Limits

• Temperature Range: Ambient -15°C to 60°C; Material 0°C to 120°C (higher with water cooling jacket).
• Pressure Range: Positive: up to 1 bar (VFD speed control); Negative: down to -1 bar.
• Cleanability: Quick-release disassembly for manual cleaning, CIP (Clean-in-Place) compatible for hygienic lines.

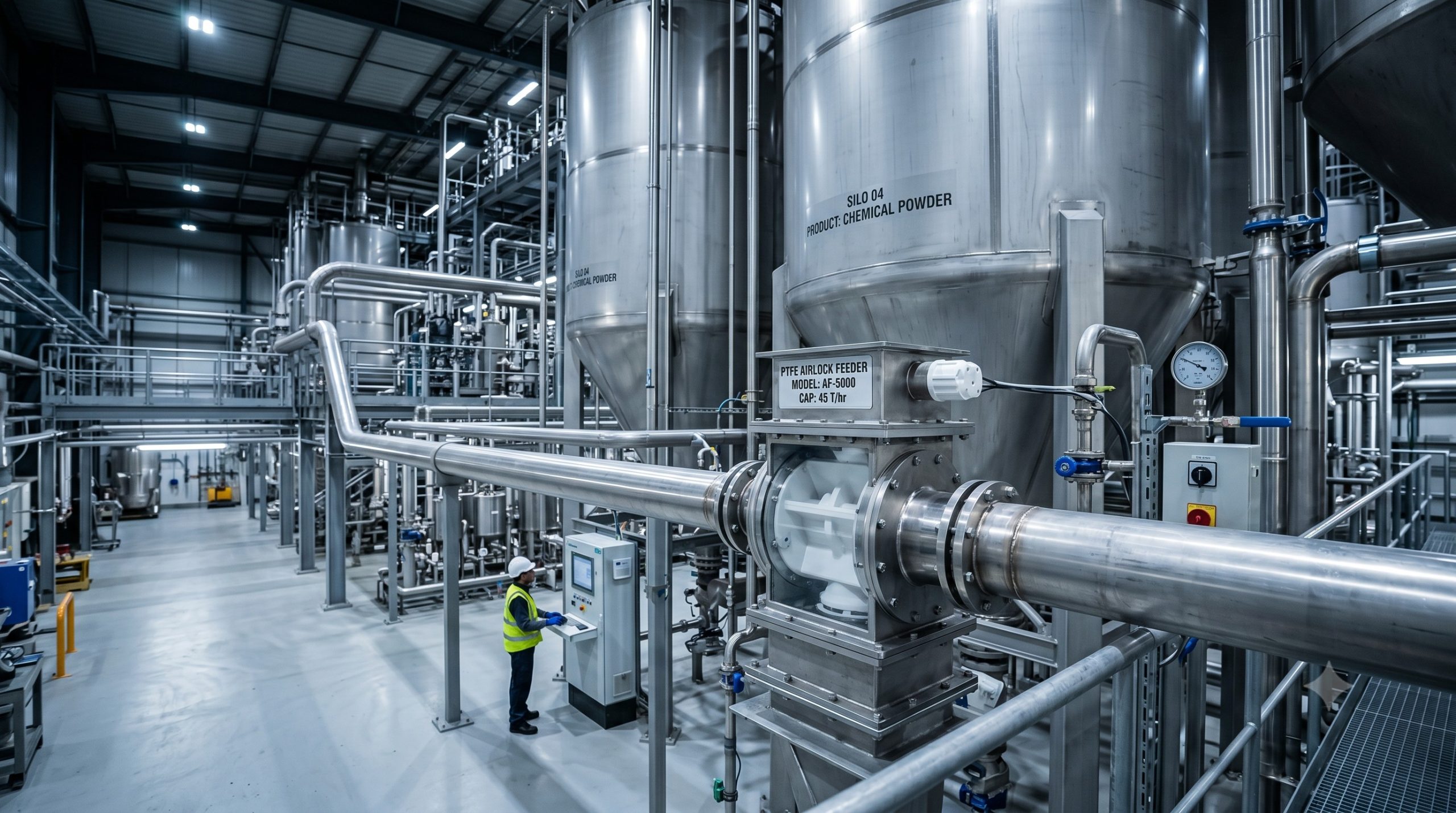

Target Industrial Pipelines & Corrosive Material Handling

The Doebritz PTFE Airlock Feeder is the standard choice for dosing and airlocking highly aggressive or sticky powders that would otherwise jam or corrode metal rotors.

Chemical Processing

PTA, titanium dioxide, carbon black, fluoropolymer powders, pigment concentrates, and catalyst carriers.

Pharmaceutical & Food

Antibiotic powders, vitamin premixes, lactose, microcrystalline cellulose, probiotic powders, and freeze-dried vaccine powders where metal contact is prohibited.

Battery Materials

Lithium cathode/anode powders, silicon powder, and solid-state electrolytes requiring ultra-low moisture ingress and zero metallic contamination.

Frequently Asked Questions: Doebritz PTFE Rotary Valve

Q: How does the PTFE rotor compare to stainless steel for abrasive powders?

A: For highly abrasive products (e.g., silica, titanium dioxide), a coated stainless steel rotor (tungsten carbide or ceramic) is recommended. PTFE excels in corrosive, sticky, or ultra-pure applications where metal friction is unacceptable and abrasion is low-to-moderate. Doebritz offers material selection guidance based on actual powder samples.

Q: What is the guaranteed air leakage rate for the Doebritz PTFE airlock?

A: At a differential pressure of 0.6 bar (positive), the leakage is ≤0.2 m³/h per 100mm DN when using a 10-vane rotor configuration. This is verified by Doebritz in-house air leakage test rigs prior to dispatch.

Q: Is the PTFE liner replaceable in the field?

A: Yes. The modular housing design allows rapid removal of the worn PTFE liner without replacing the entire valve body, reducing long-term maintenance costs by up to 60% compared to disposable valve units.

Q: Can I get an ATEX-certified version for Zone 20?

A: Absolutely. Doebritz supplies ATEX Zone 20/21/22 certified valves with flameproof enclosure, anti-static PTFE coating (surface resistance <10⁹ Ω), and grounding provisions. Full certification documents are included.

Q: What flange standards do you support for OEM projects?

A: Standard HG20592 (DIN/EN) or ANSI B16.5 150#. Custom drilling patterns and NPT/CAMLOCK connections are available for global OEM supply agreements.

Doebritz Direct Supply Advantages

All Doebritz PTFE Airlock Feeders are machined and assembled in our ISO 9001:2015 certified facility. We provide 18-month warranty, lifetime technical support, and emergency spare parts dispatch within 48 hours. Request your factory quote today.
