Doebritz Oat Flakes Star Discharge Valve: Cast Iron / Stainless Steel – Minimal Air Leakage

Product Summary

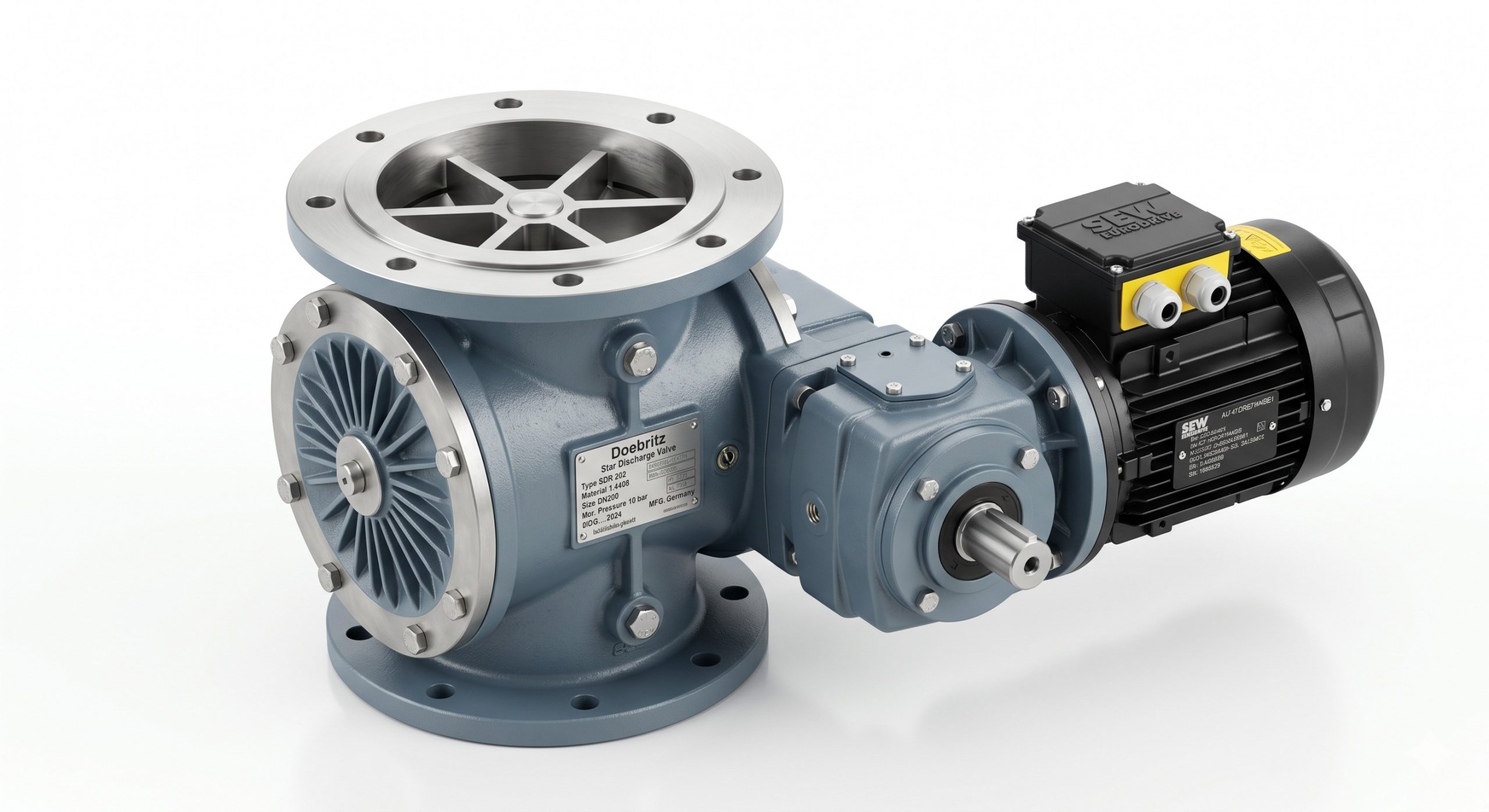

Doebritz presents the heavy-duty star discharge valve, specifically engineered for handling oat flakes and similar bulk materials. This rotary airlock valve is a critical component in pneumatic conveying and gravity discharge systems, ensuring efficient material flow while maintaining minimal air leakage. Manufactured to the highest standards, the Doebritz oat flakes discharge valve combines robust construction with precision engineering, offering unparalleled reliability in demanding industrial environments. With options in cast iron and stainless steel, this valve is designed to meet the stringent requirements of the food processing and chemical industries, providing a durable, hygienic, and cost-effective solution for your material handling needs.

Why Source Doebritz Oat Flakes Discharge Valve

Choosing Doebritz for your oat flake handling system ensures you are investing in a product that delivers exceptional airlock efficiency and long service life. The key to the Doebritz valve’s superior performance lies in its precision CNC machined components, which guarantee a tight seal and reduce cross-contamination risks, a crucial factor in food-grade applications like oat processing. Our valves are designed to handle the unique challenges of oat flakes, which can be abrasive and prone to bridging. The robust rotor and housing design, coupled with optional hard-wearing coatings, ensures consistent, reliable operation even in the most demanding 24/7 production lines.

• Optimal Airlock Efficiency: Precision-engineered rotor-to-housing clearances (0.1-0.2mm) significantly reduce air leakage, ensuring stable pressure differentials in your pneumatic conveying system and lowering energy consumption.
• Heavy-Duty Construction: Built from high-grade cast iron or stainless steel (SUS304/SUS316L), the Doebritz discharge valve is designed to withstand the rigors of continuous heavy-duty operation. The outboard bearing design isolates the bearings from the product zone, extending the valve’s MTBF.
• ATEX Certified for Safety: Available in ATEX Zone 20, 21, and 22 configurations, the valve is certified for use in potentially explosive atmospheres. The robust housing and precision clearances are designed to contain any potential ignition source, ensuring maximum plant safety.
• Global OEM Supply Capability: As a leading manufacturer, Doebritz provides global OEM supply with full traceability. We offer complete customization, from material selection (cast iron, stainless steel) to custom flanges (DIN/ANSI) and drive options (gearmotor, VFD-ready), making it an ideal choice for system integrators and plant engineers worldwide.

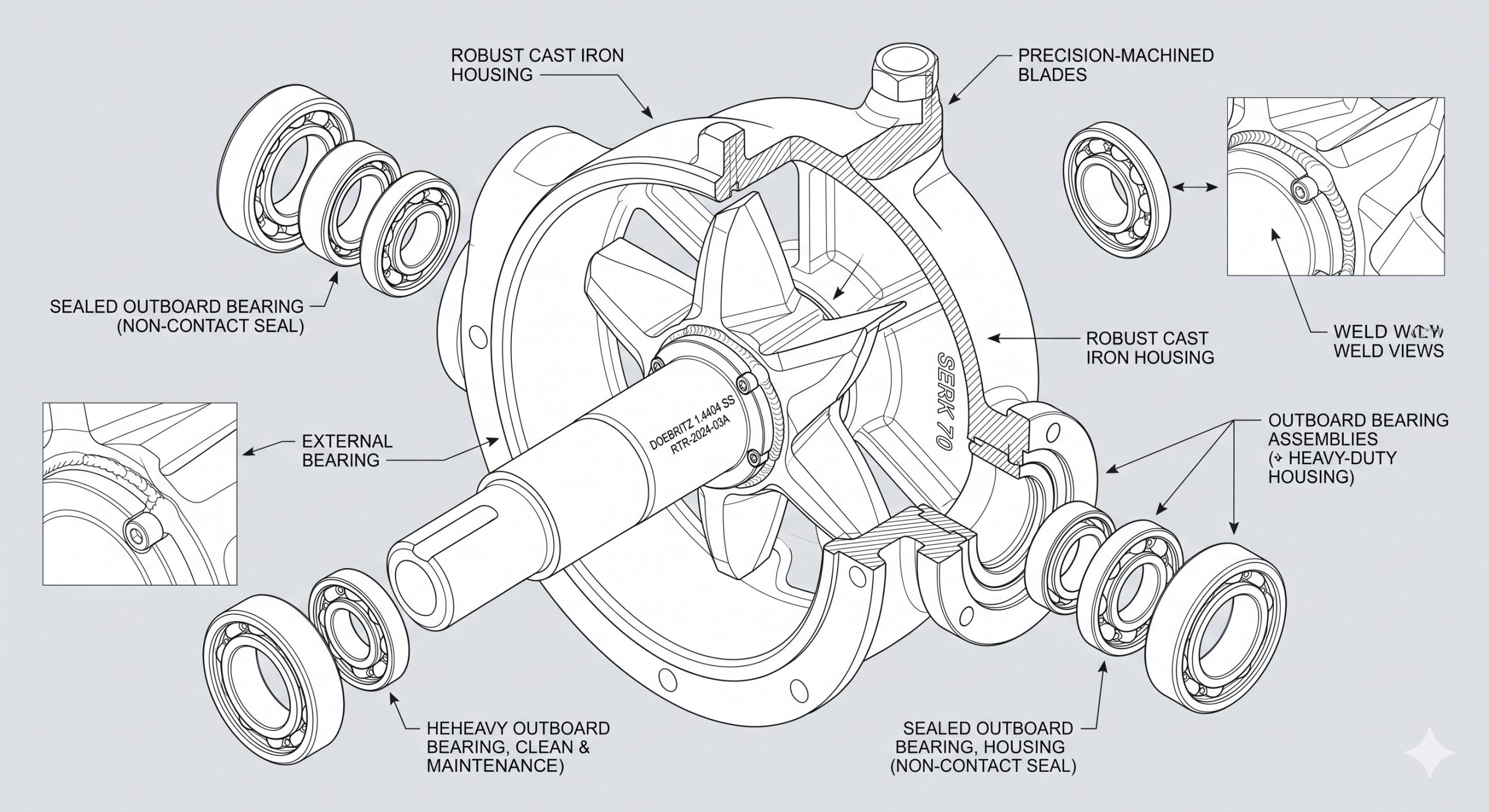

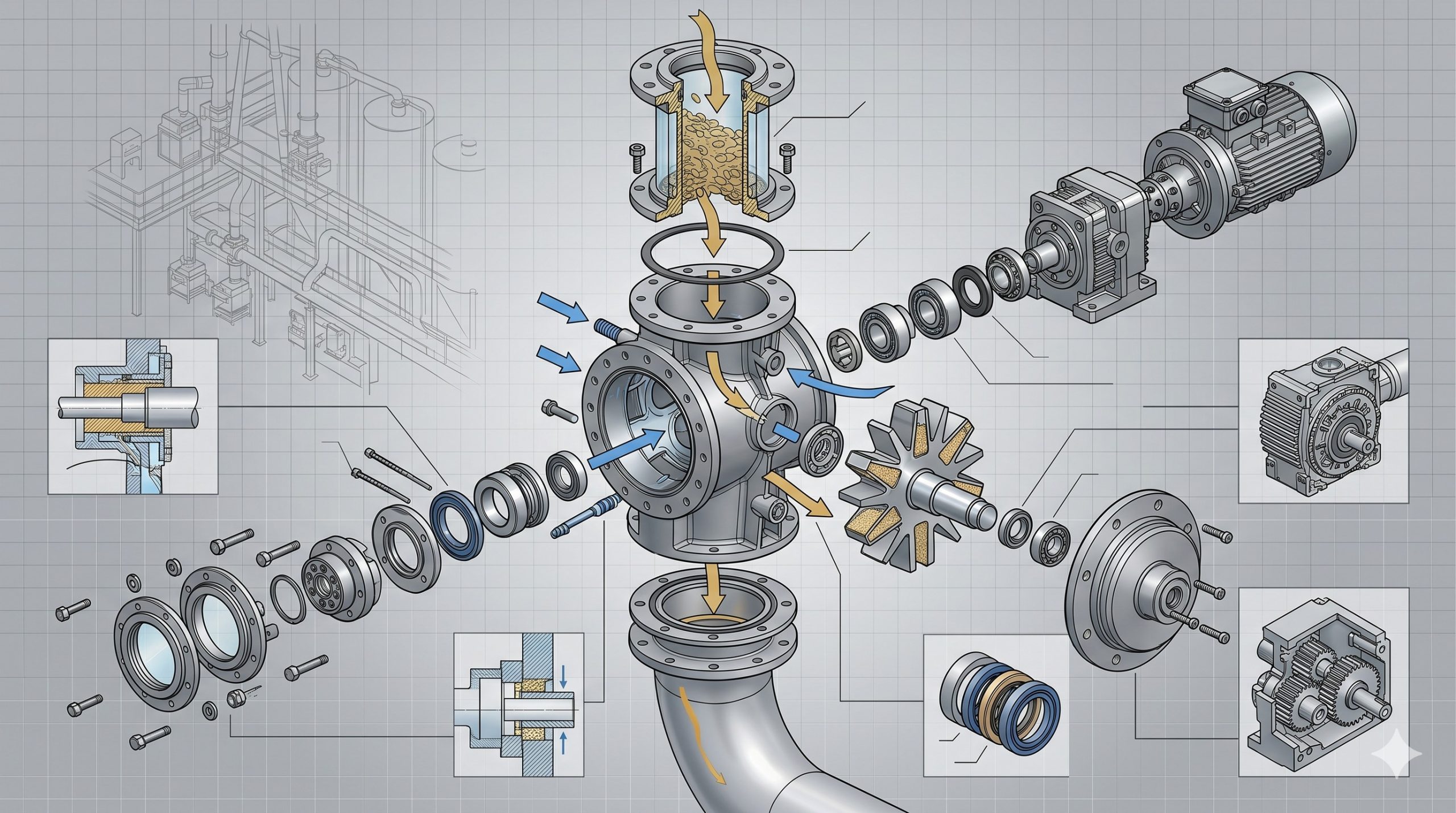

Housing & Rotor Engineering

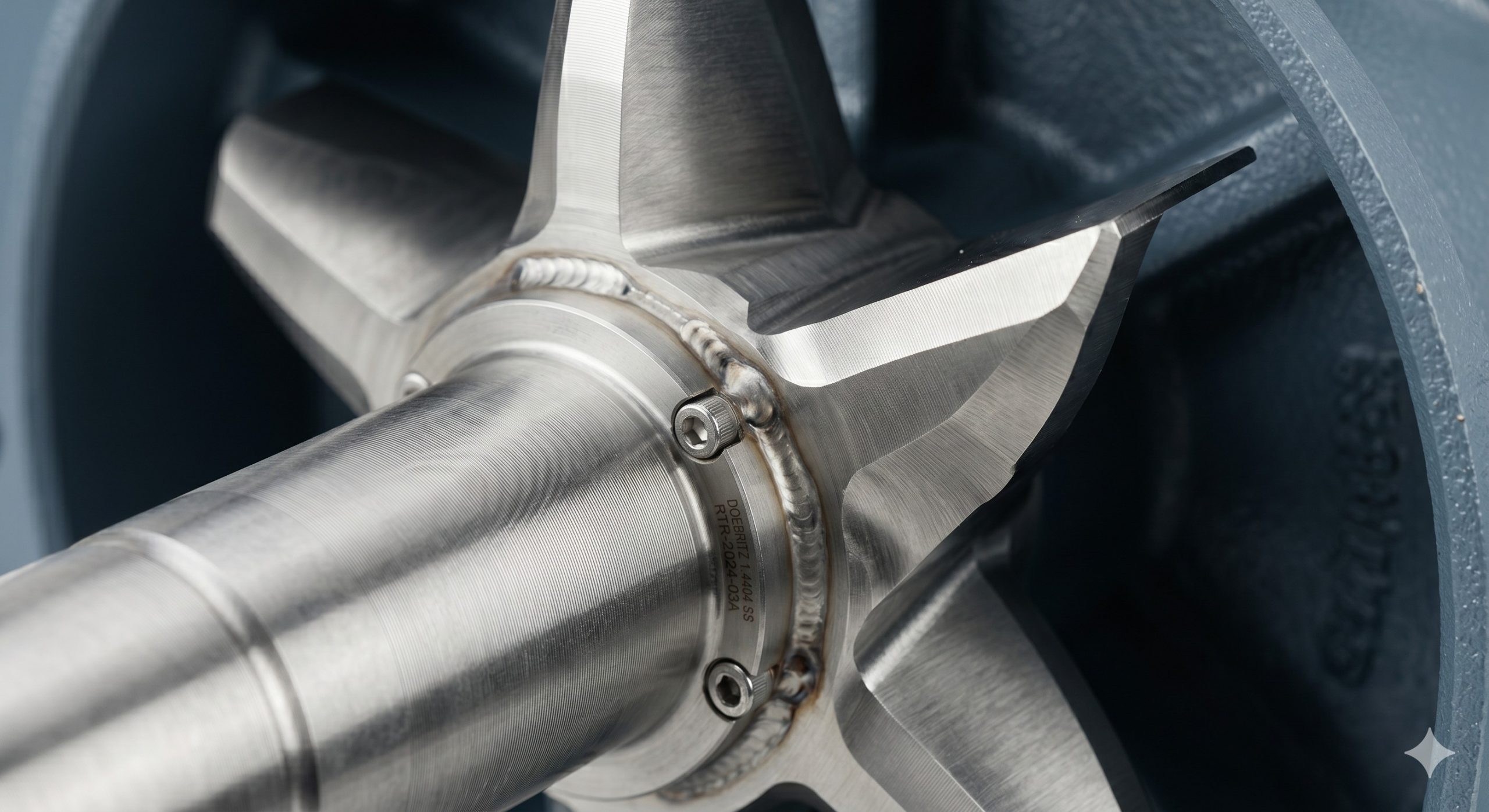

The engineering behind the Doebritz oat flakes discharge valve focuses on durability and hygiene. The housing is available in various materials including cast iron for general-purpose applications and stainless steel for food and sanitary applications. The internal surfaces can be finished to a high standard (Ra ≤ 0.8μm) to prevent material build-up and facilitate easy cleaning. The rotor is precision-machined to guarantee the critical clearance with the housing, maximizing volumetric efficiency and minimizing wear. For handling abrasive materials like oat hulls or similar, the rotor and housing can be protected with tungsten carbide or ceramic coatings. The shaft sealing system, featuring air-purged lip seals, provides an additional barrier against dust leakage, making this valve an excellent choice for high-sanitary and dust-sensitive processes.

Technical Specifications

This table outlines the standard technical specifications for the Doebritz oat flakes star discharge valve. Custom configurations are available based on your specific application requirements.

Specification	Detail
Body Material	Cast Iron / Stainless Steel (SUS304, SUS316L)
Rotor Design	10-Vane Open Rotor, Precision Machined
Rotor-to-Housing Clearance	0.1 – 0.2 mm
Shaft Seal	Air-Purged Lip Seal / Packing Seal
Flange Standard	DIN / ANSI / HG20592
Inlet/Outlet Size	DN100, DN150, DN200, DN300, DN350
Pressure Range	Up to 1.0 bar (Positive) / -1.0 bar (Negative)
Temperature Range	Ambient -15°C to 60°C / Material up to 120°C
ATEX Certification	Zone 20, 21, 22
Surface Finish (Internal)	Ra ≤ 0.8 μm (Stainless Steel)
Drive Options	Direct Drive / Gearmotor / VFD-Ready
Optional Coatings	Tungsten Carbide, Ceramic, PTFE, PA

Heavy-Duty Application Scenarios

The Doebritz oat flakes discharge valve is versatile and can be integrated into a wide range of material handling systems.

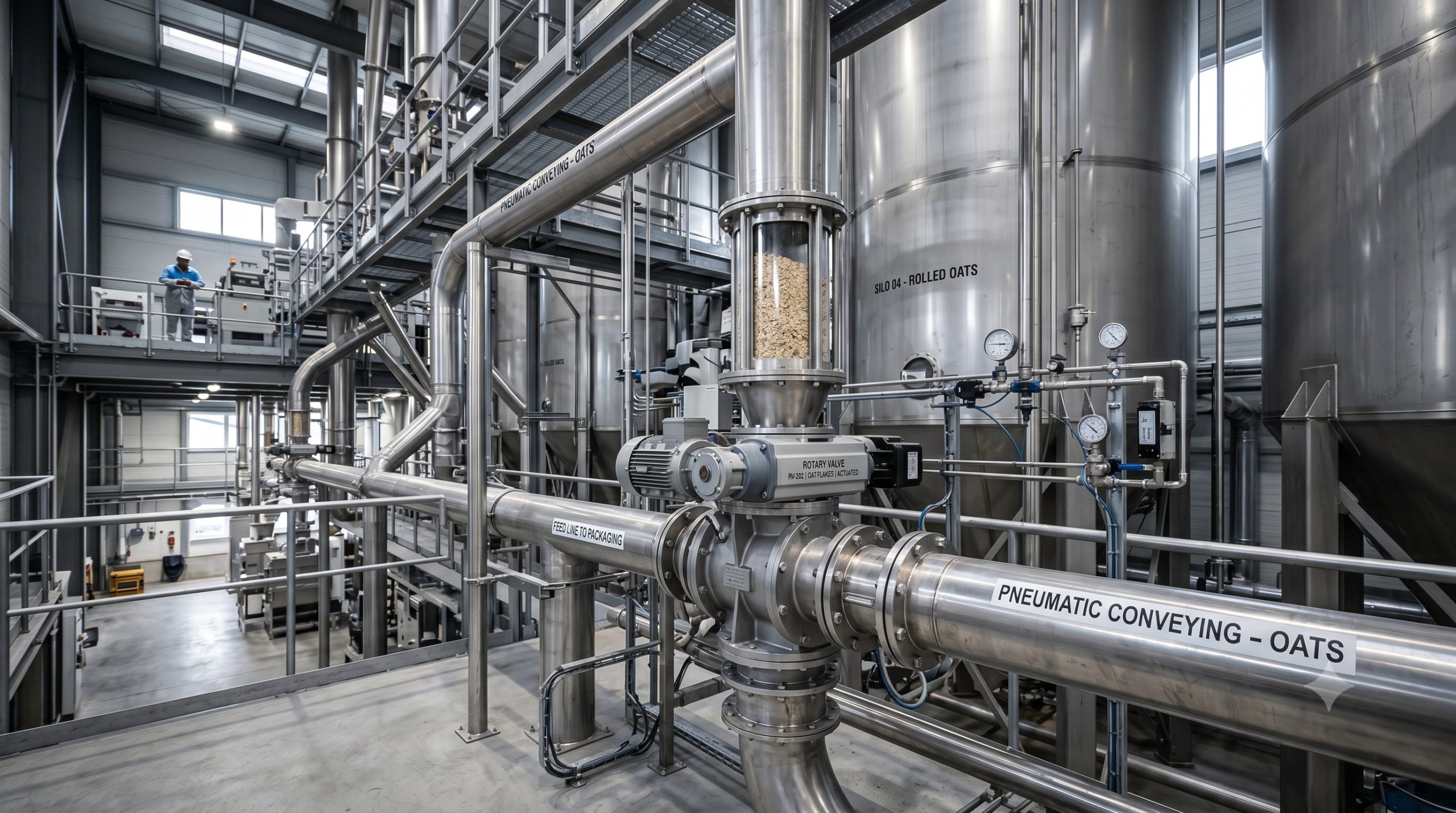

Pneumatic Conveying Systems

In dilute and dense phase pneumatic conveying, the valve serves as a reliable feeder, metering oat flakes into the conveying line while maintaining system pressure. Its low leakage design ensures efficient conveying with minimal energy loss. The valve’s robust construction ensures it can handle the pressure differentials required in these systems.

Silo Discharging & Gravity Feed

For gravity discharge applications, the Doebritz valve provides a consistent, regulated flow of oat flakes from silos and hoppers. The variable frequency drive (VFD) option allows for precise flow control, enabling accurate batching and blending operations. The valve’s design prevents bridging and ensures a steady, uninterrupted flow of material.

Frequently Asked Questions

What are the primary benefits of using the Doebritz star discharge valve for oat flakes?

The Doebritz star discharge valve offers minimal air leakage, which is critical for maintaining pressure in pneumatic conveying systems. It is built with heavy-duty components for long life and is available in sanitary designs for food-grade applications. Its precise metering capability also makes it ideal for batching and blending processes.

How does the Doebritz valve prevent contamination in food-grade oat processing?

The valve is available in stainless steel (SUS304/SUS316L) with a hygienic, crevice-free design and polished internal surfaces (Ra ≤ 0.8 μm). This design prevents material buildup and is easy to clean, either manually or via a CIP (Clean-in-Place) system, ensuring compliance with strict food safety standards.

Is the Doebritz oat flakes discharge valve suitable for ATEX-rated environments?

Yes. The Doebritz valve is available in ATEX-certified configurations for Zones 20, 21, and 22. The valve features a flameproof construction and precision clearances to minimize the risk of ignition, making it a safe choice for potentially explosive dust atmospheres.

What drive and control options are available for this valve?

The valve can be supplied with a direct drive or a gearmotor. It is designed for variable frequency drive (VFD) integration, allowing for precise speed control and metering. This makes it suitable for use with PLC control systems for automated batching and recipe management.

Can the Doebritz valve be customized for unique system requirements?

Absolutely. As a Doebritz product, this valve can be fully customized. We offer a wide range of material options, coating choices, flange standards (DIN/ANSI/HG20592), and inlet/outlet sizes (DN50 to DN350) to meet the exact specifications of your project.
