doebritz Automatic Powder Sampler

Overview

The Automated Powder Sampler features an air-driven sampling shovel, a sample bottle diverter (for dual-bottle configurations), and a bottle adapter customized to fit the customer’s sample bottle design. During operation , a pneumatic cylinder extends the shovel into the product to collect the sample. Once the desired amount is collected, the shovel retracts, allowing the sample to fall into the bottle by gravity. In dual-bottle mode, a pneu-matically controlled diverter directs the sample to either bottle based on the preset sampling program.

Appliance

Automated Powder Sampler is a hygienic solution for quality inspection in powder or granule conveying, process-ing, and packaging systems. Its fully air-driven design prevents sample damage or compaction, ensuring that the powder particles in the sample consistently reflect the quality of the product being tested.

Highlights

• Ideal for mounting on silos, drop tubes or batch hoppers
• Specifically designed for use in aseptic environments
• Samples retain all physical properties of the powder
• Powder samplers can be integrated into existing PLCs or controlled by stand-alone PLCs.
• Minimized component count, simple design and easy installation.

Hygienic design features

• Fully automatic circulation, operated by pneumatic columns
• Stainless steel body
• No metal-to-metal contact
• Sealed and insulated from dust due to double sealing design
• Complete isolation of the sample storage area from the collection point

Technical parameters

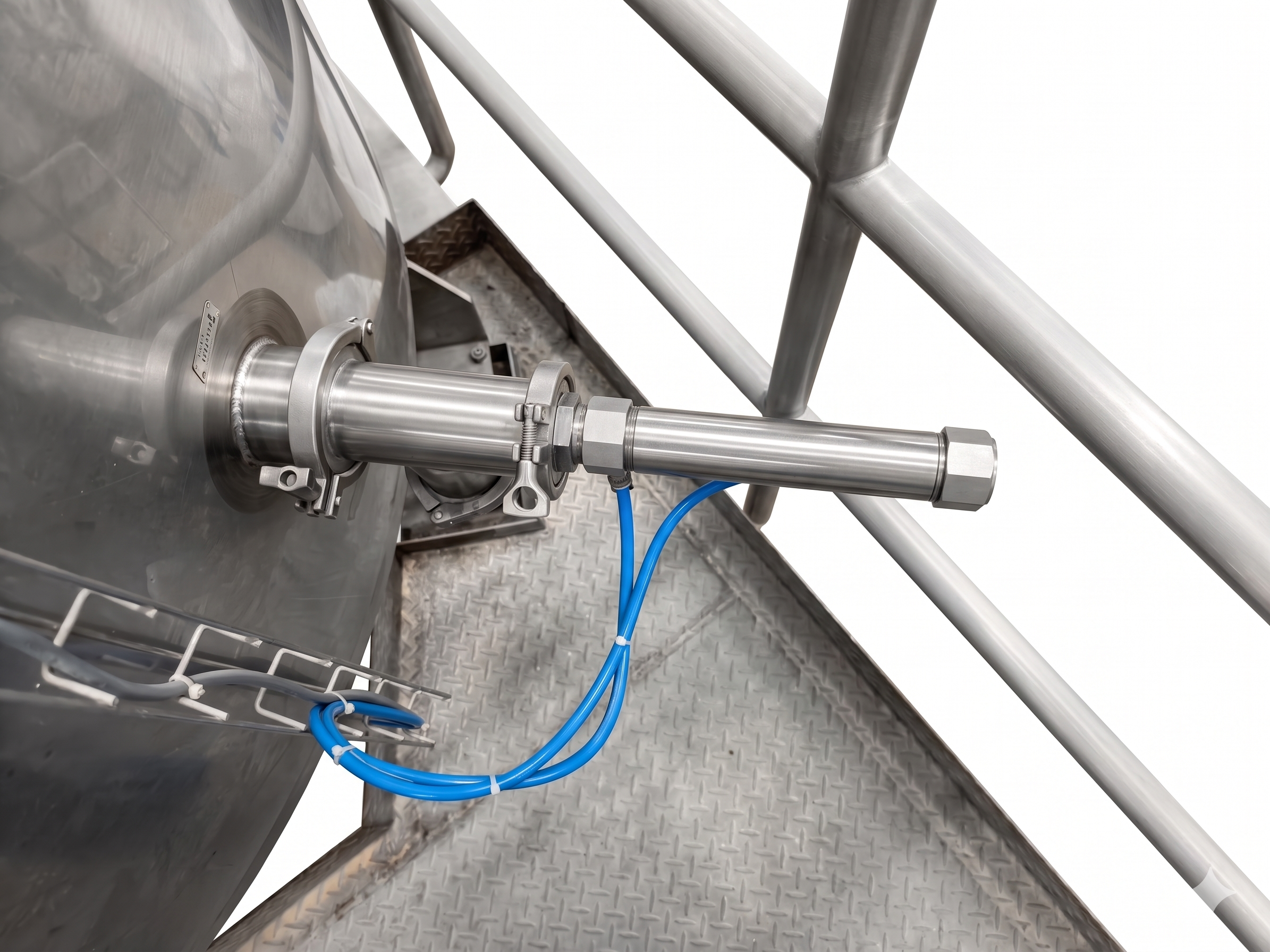

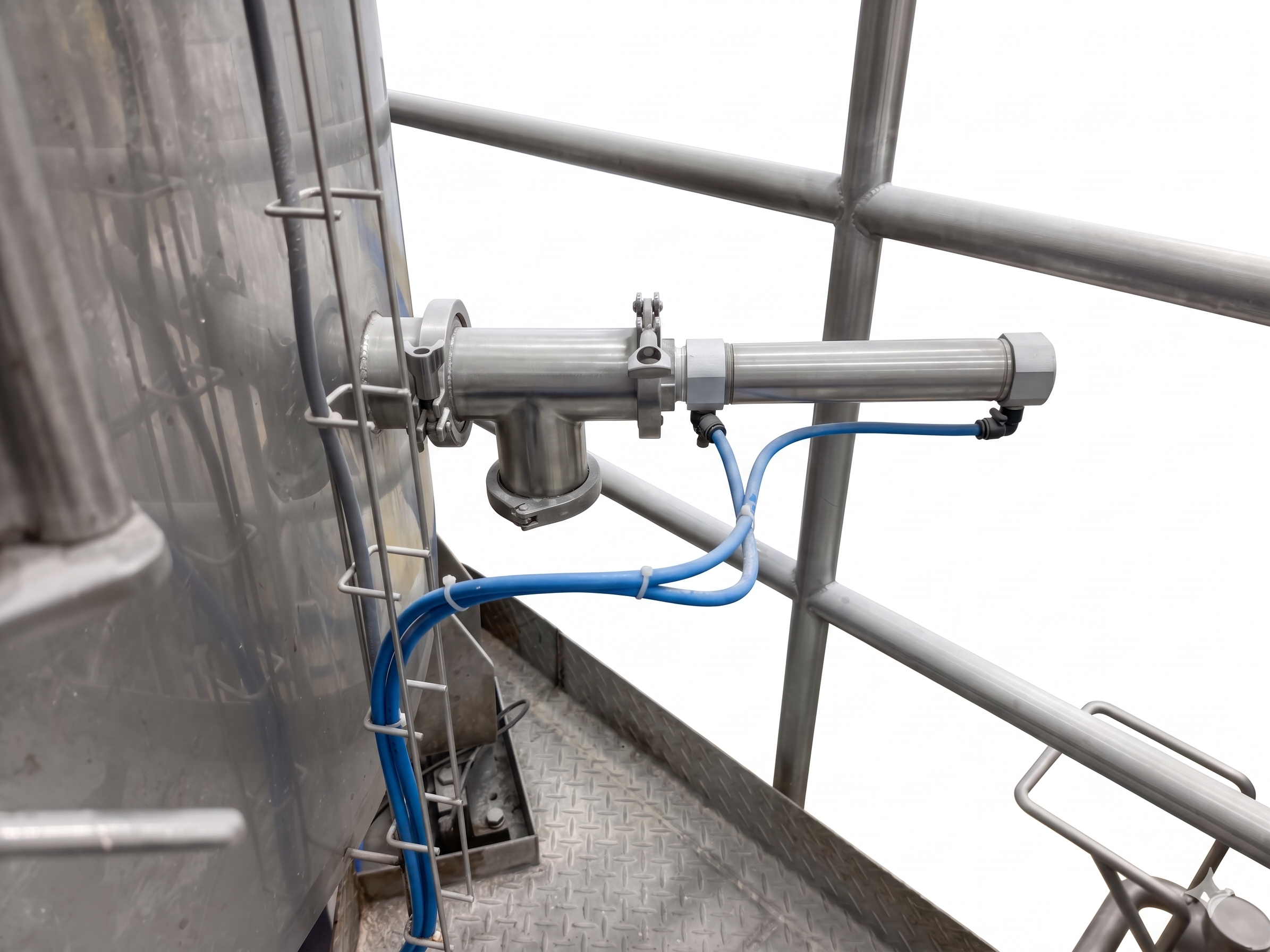

Mounted on hopper wall

Connector：Tri-Clover™ 4

Service requirements

Food grade air：6 bar
Power supply：24 VDC

Sampling Bottle

Both single and double bottle versions are supplied with a standard sampling bottle. Customized adapters for the sampling bottle are available.

• Capacity: 0.5
• Material: Plastic
• Threads: 75 (diameter) x 16.5 (offset trapezoidal thread, ISO 4 mm pitch)

Cleaning and Maintenance

The Tri-Clover™ mounting fittings allow for simple disassembly and easy access to the sampler components for servicing and replacement.

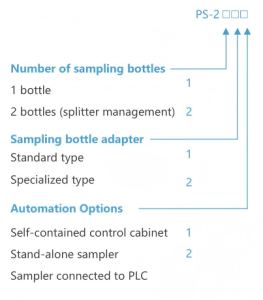

Model Selection

Automatic Powder Sampler,Mechanical Options

Product Description

Automation Options

The automatic powder sampler can be integrated into a PLC system, allowing powder testing to be controlled via the HMI interface and operator panel. The standalone version comes with a pre-configured control box, enabling inde-pendent operation of powder testing.

Dual Sampling Bottle Design

If required by process quality and hygiene control standards, a dual-sampling bottle design can be adopted, allowing collected samples to be directed to either of the two bottles. For instance, one bottle can be used to monitor product performance on a daily or per-shift basis, while the other can be reserved for quality control over a longer period, such as for an entire product batch.
