DOEBRITZ PLUG DIVERTER,AISI 304/316L/TWO CHANNEL DESIGN

Doebritz PLUG DIVERTER Full Industry Brochure

HIGHLIGHTS

• Pressure shock resistant up to 10 bar*
• Two channel design
• Minimal maintenance
• Quick clean version available compact form
• User friendly design
• No moving parts on the outside pressure up to 3 bar with static seals
• Sizes 100-200 up to 6 bar with inflatable seals
• Versions with electrical drive available
• Wear resistant pipes are optionally available

PRODUCT INFORMATION

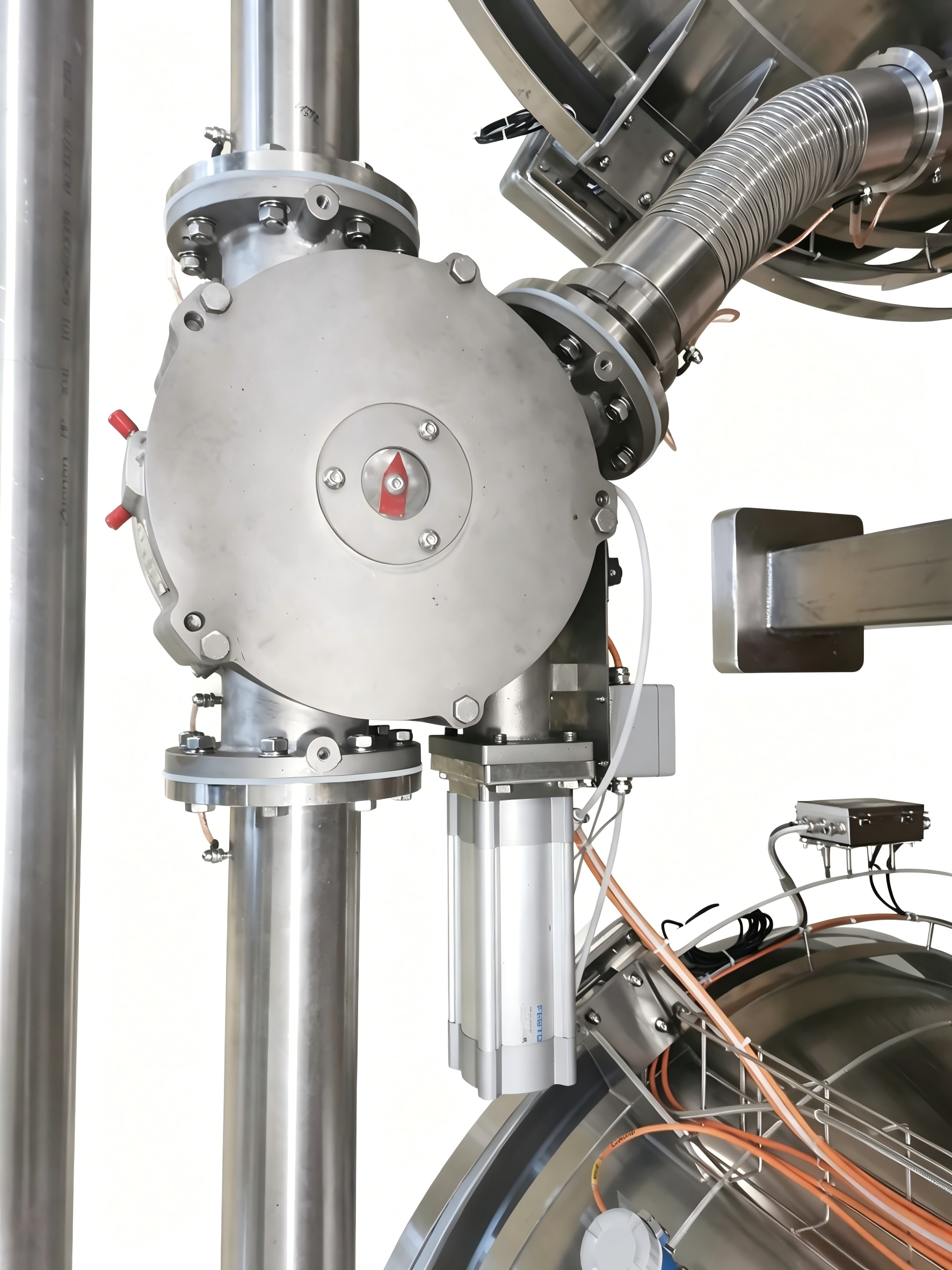

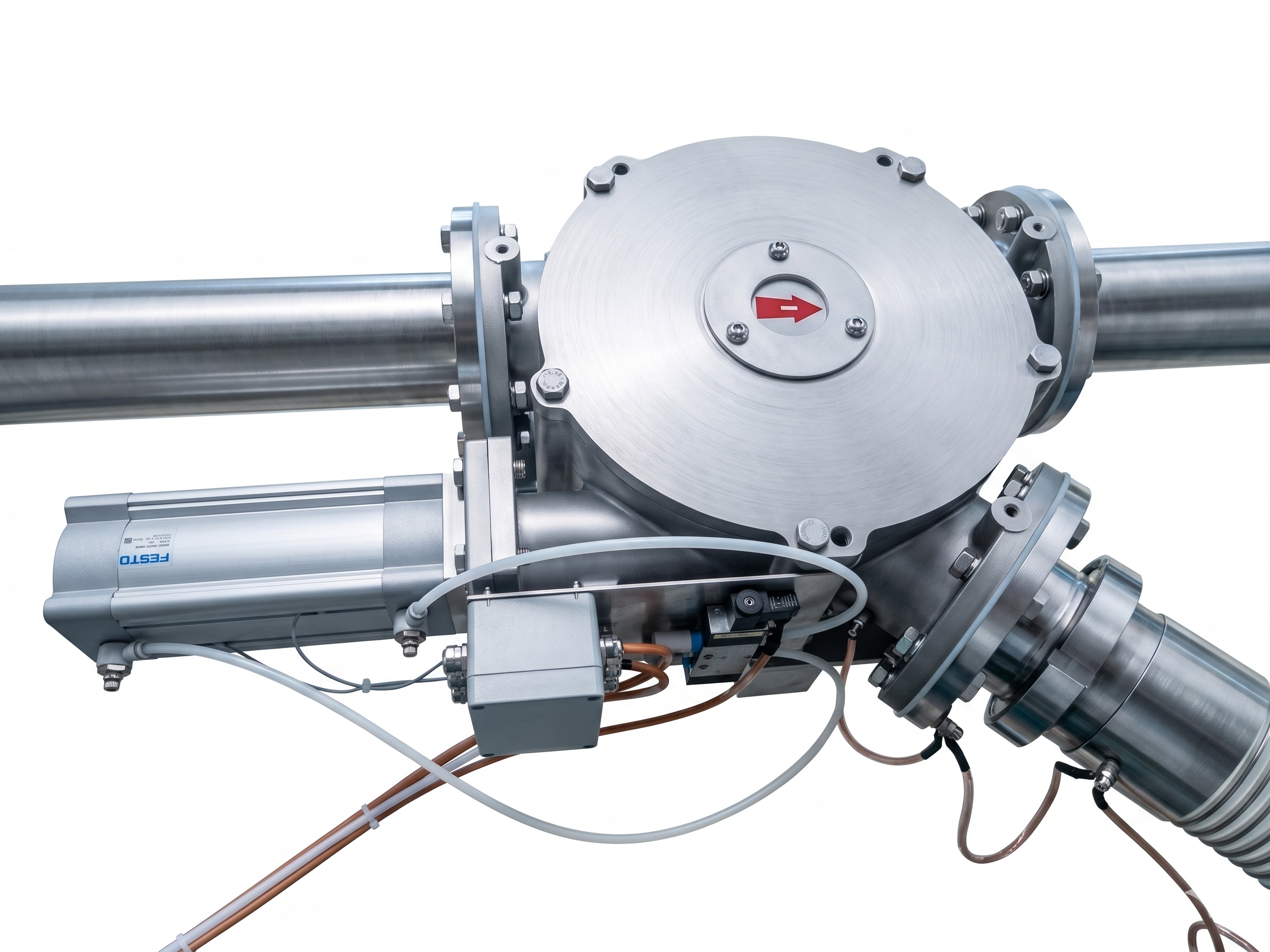

The plug type dive er consists of a stainless housing and end covers in which a plug with two pipes is installed.

All product contact su aces are made from stainless steel AISI 304/316L. Three silicone seals guarantee the sealing between housing and plug.The body is pressure tight, so ensuring no leakage to atmosphere. The standard dive er can be used in systems with positive pressures up to 3 bar (static seals). The sizes 100-200 are optionally available for pressures up to 6 bar (inatable seals).

The dive er is supplied with a complete electro pneumatic control system, including solenoids and inductive position sensors. The standard dive er can be used for product temperatures ranging from –25 °C up to +80 °C at ambient temperatures of –10 °C up to +40 °C. Versions for higher dive er can be used for product temperatures ranging from –25 °C up to +80 °C at ambient temperatures of –10 °C up to +40 °C. Versions for higher temperatures are available on request.

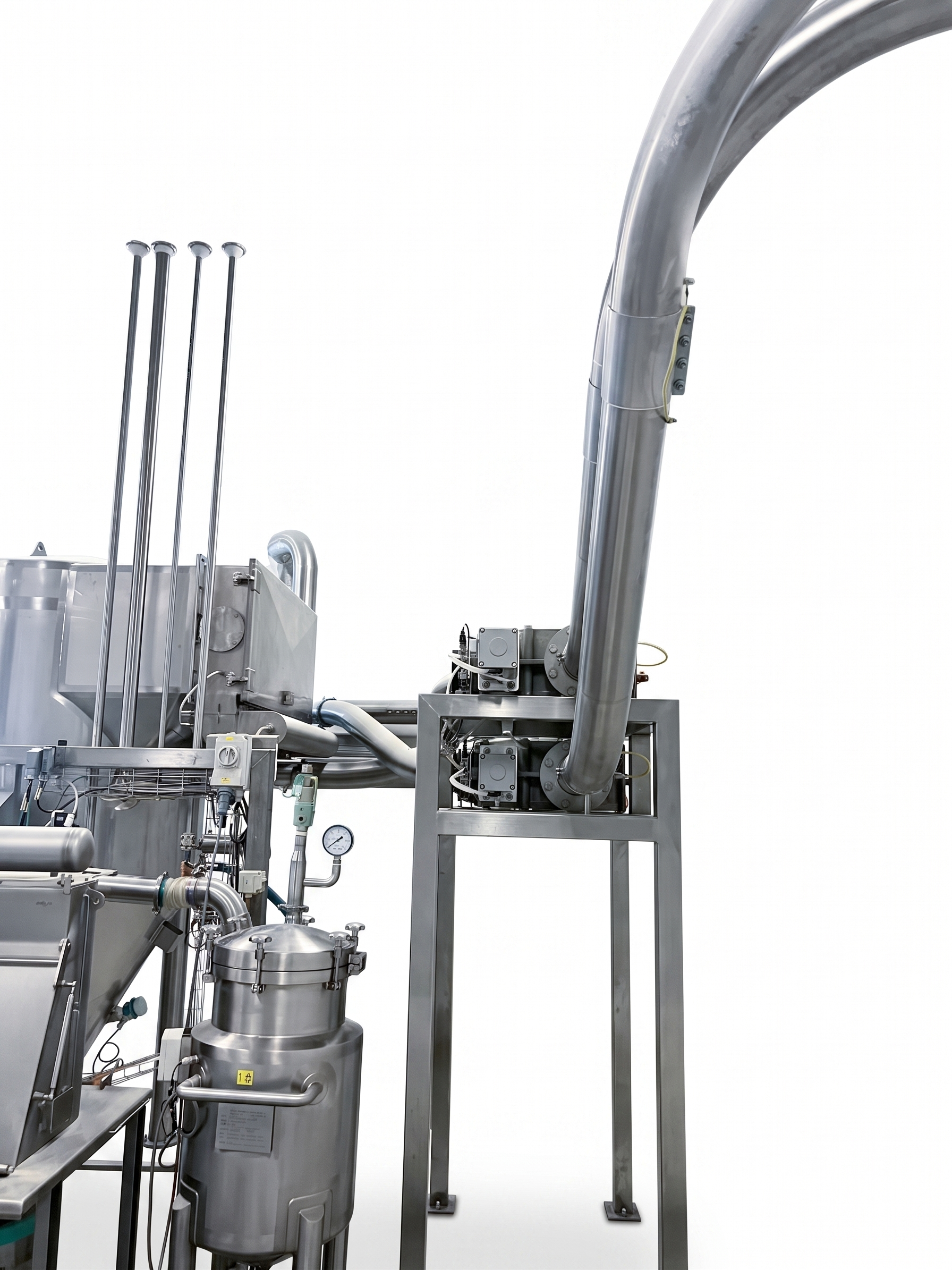

The Doebritz plug type dive ers have been specially designed to route powders and pellets with minimum degradation in pneumatic conveying systems. The plug type dive er is applied in the chemical, pharmaceutical, plastic, food and other related industries.

A smooth passage of products is guaranteed by precision machining, a good sealing and a complete obstruction free passage. The user friendly fool proof design enables fast in situ internal examination, cleaning and, if necessa , replacement of seals.The design conforms to all current legislation regarding safety in the workplace. Consequently there are no moving pa s on the outside.The Doebritz plug type dive ers is available in 4 di erent pipe sizes: : Φ 100, 125, 150, and 200 mm.
