Doebritz Quick-Release Rotary Valve – Official Technical Overview & Datasheet

EXECUTIVE SUMMARY

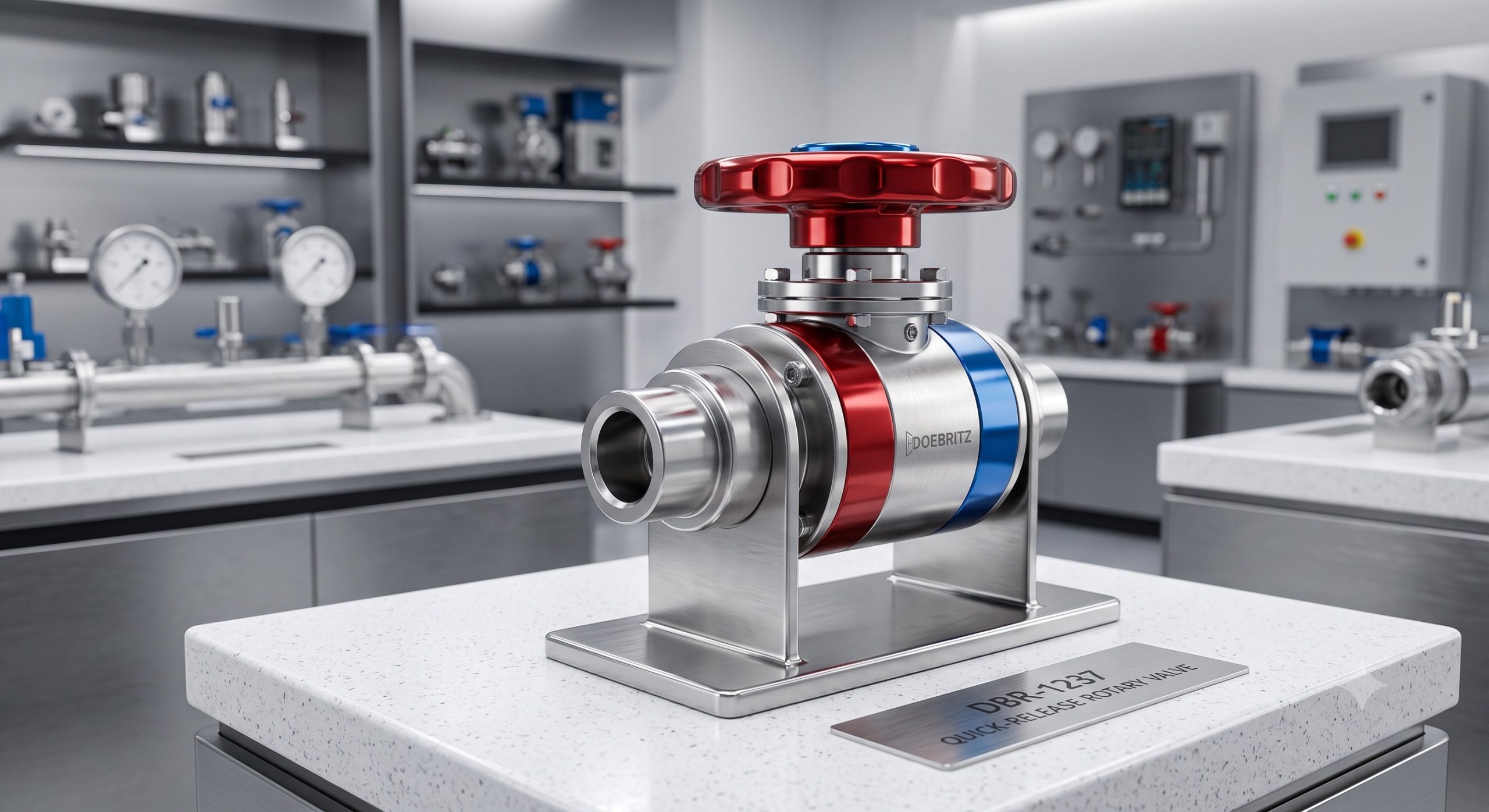

Doebritz presents the DBR-1237 Quick-Release Rotary Valve, a precision-engineered bulk solids handling component designed for superior airlock sealing, rapid maintenance, and uncompromising hygienic operation. This platform integrates a patented quick-release clamping mechanism with精密 rotor-to-housing clearances to deliver exceptional volumetric efficiency, reduced pressure leakage, and full traceability for regulated industries. As a cornerstone of modern pneumatic conveying and gravity discharge systems, the DBR-1237 series offers a modular architecture that accommodates diverse metallurgies, surface finishes, and ATEX-certified safety configurations, ensuring seamless integration into food, pharmaceutical, chemical, and energy storage production lines.

HOUSING & ROTOR METALLURGY

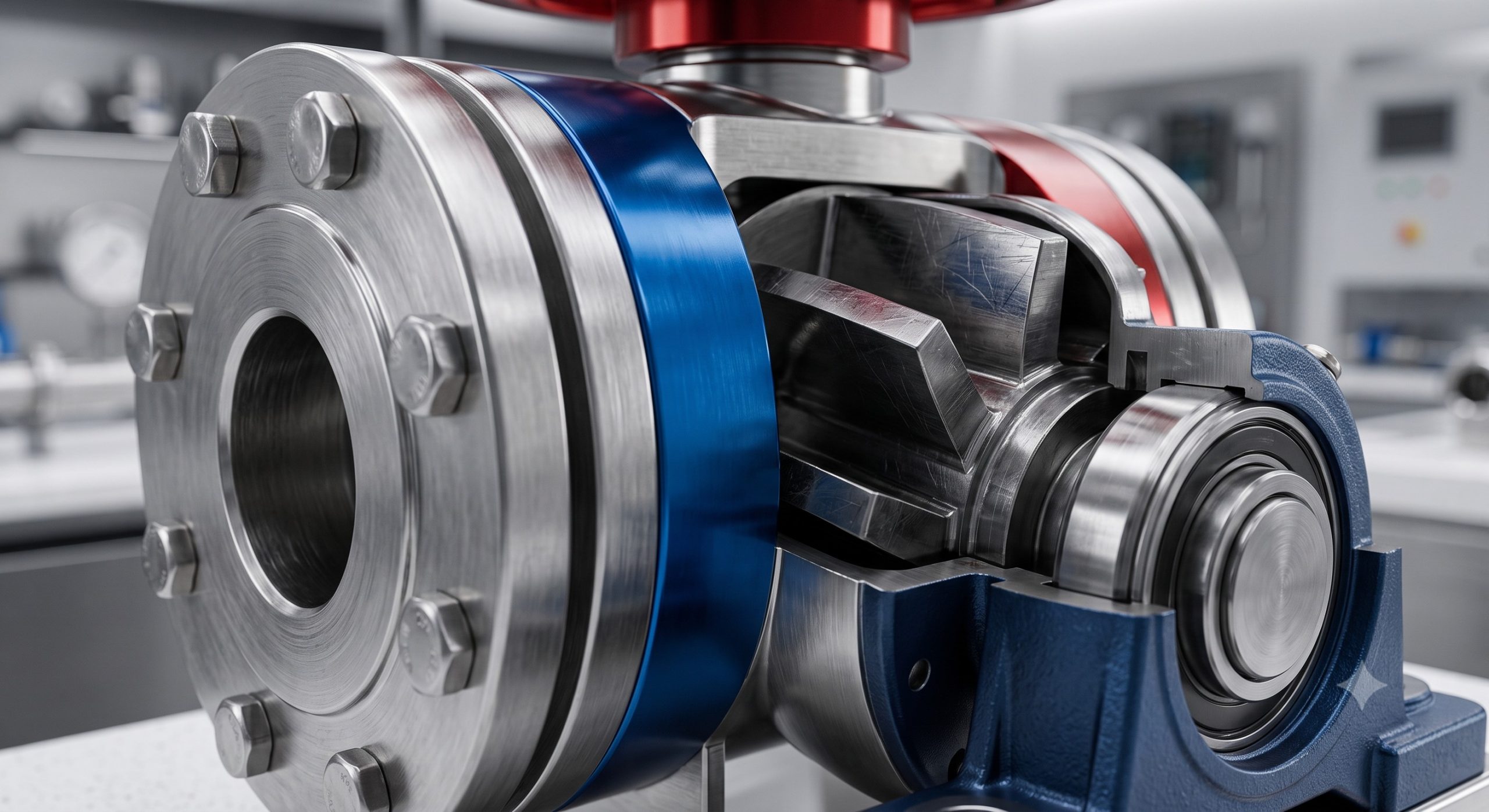

The DBR-1237 valve body and rotor are manufactured from a choice of high-grade stainless steel (SUS304, SUS316L) or carbon steel, with optional advanced wear-resistant coatings including tungsten carbide, ceramic, and high-performance polymers (PE, PTFE, PA). The one-piece investment-cast housing provides dimensional stability and structural integrity under differential pressures up to 1.0 bar (positive) and -1.0 bar (negative). All wetted surfaces are machined to precise tolerances, with internal finishes available from Ra ≤ 0.4 μm mirror polish to Ra ≤ 1.6 μm for abrasive service, ensuring optimal flow characteristics and cleanability.

KEY FEATURES
– Quick-Release Clamping: Tool-free disassembly and assembly in under two minutes, enabling rapid manual cleaning, CIP/WIP cycles, and minimizing production downtime. The clamping mechanism ensures consistent, repeatable sealing force without specialized tools.
– Precision Rotor-to-Housing Clearance: Maintained at 0.1–0.2 mm (radial and axial) to minimize air leakage (typically < 0.5 Nm³/h at 0.6 bar differential), ensuring stable pneumatic conveying pressure and accurate volumetric metering. - Versatile Shaft Sealing: Features a double lip seal with air purge connection for positive sealing against dust ingress and product escape. Optional packing gland seals available for high-temperature or abrasive applications. - Hygienic & CIP-Ready Design: All internal surfaces are free of crevices and dead zones. The valve is fully drainable and supports CIP (Clean-in-Place) and WIP (Wash-in-Place) protocols, meeting the strict hygiene requirements of GMP and FDA-regulated environments. - ATEX & NFPA Compliance: Certified for operation in Zone 20/21/22 dust explosion hazard areas. The valve is available with flameproof construction, pressure shock-resistant housing (up to 16 bar), and anti-static rotor options. COMPLIANCE & SAFETY STANDARDS The Doebritz DBR-1237 series is designed and manufactured in accordance with international standards: - Machinery Directive 2006/42/EC (CE Marking) - ATEX Directive 2014/34/EU (Equipment for Potentially Explosive Atmospheres) - NFPA 69 (Standard on Explosion Prevention Systems) - FDA Title 21 CFR (for food-contact materials, upon material selection) - EHEDG (European Hygienic Engineering & Design Group) guidelines for hygienic design Each unit is supplied with a comprehensive compliance declaration, including material certificates (EN 10204 3.1) and inspection reports. TECHNICAL SPECIFICATIONS General - Brand: Doebritz - Model: DBR-1237 - Type: Quick-Release Rotary Valve / Airlock Feeder - Functional Principle: Rotary vane feeder with precision-machined rotor - Mounting: Flanged connection (top and bottom) - Orientation: Vertical (inlet top, outlet bottom) Construction & Materials - Housing Material: SUS304, SUS316L, Carbon Steel (painted or nickel-plated) - Rotor Material: Matches housing; optional coatings: Tungsten Carbide, Ceramic, PE, PTFE, PA - Shaft Seals: Lip seal with air purge (standard) / Packing gland (optional) - Bearing Housing: Outboard, sealed, with grease lubrication points Performance - Pressure Range (Positive): Low pressure: < 0.4 bar; High pressure: 0.4 to 1.0 bar (VFD ready) - Pressure Range (Negative): Low pressure: > -0.4 bar; High pressure: -1.0 to -0.4 bar (VFD ready)
– Operating Temperature (Ambient): -15°C to +60°C
– Operating Temperature (Product): 0°C to +120°C (higher with cooling jacket option)
– Rotor Clearance: 0.1–0.2 mm
– Capacity: Volumetric displacement per revolution: 2.5 to 100 liters (depending on size)

Sizes & Connections
– Flange Standard: HG20592 (DIN/ANSI compatible options available)
– Nominal Diameters (DN): DN50, DN100, DN150, DN200, DN300, DN350
– Drive: Direct drive or chain drive; IEC motor flange mount (B5/B14)
– Motor: Standard or ATEX-certified; available with inverter-duty rating for VFD control

Surface Finishes (Internal / External)
– External: Painted carbon steel, shot-blasted, machined (Ra < 0.8 μm), anti-fingerprint coating - Internal: Mirror polish (Ra ≤ 0.4 μm), standard (Ra ≤ 0.8 μm), or (Ra ≤ 1.6 μm); optional wear-resistant coatings Optional Features - Water Cooling Jacket (for product temperatures > 80°C)
– ATEX/Flameproof Construction (Pressure shock-resistant up to 16 bar)
– Inlet/Outlet adapters for specific process connections
– Speed monitoring and position sensors (for PLC integration)

Parameter	Specification (DBR-1237 Series)
Capacity (Volumetric per rev.)	2.5 to 100 Liters/rev (depending on DN size)
Flange Standard	HG20592 (DN50, DN100, DN150, DN200, DN300, DN350) – DIN/ANSI compatible
Drive Configuration	Direct Drive / Chain Drive; IEC motor flange B5/B14
Material (Standard)	SUS304, SUS316L, Carbon Steel (painted/nickel-plated)
Rotor Clearance (Radial & Axial)	0.1–0.2 mm
Operating Temperature (Product)	0°C to +120°C (with optional water cooling jacket)
Max Differential Pressure	1.0 bar (positive) / -1.0 bar (negative)
Shaft Seal (Standard)	Lip seal with air purge connection
Surface Finish (Internal)	Ra ≤ 0.4 μm (mirror) / Ra ≤ 0.8 μm / Ra ≤ 1.6 μm; optional coatings
ATEX Classification	Zone 20/21/22 (option: flameproof, pressure shock-resistant up to 16 bar)
Cleanability	Quick-release disassembly for manual cleaning; CIP/WIP ready
Certifications	CE, TÜV, ATEX, FDA-compliant materials (on request)

INDUSTRIAL DEPLOYMENT

The Doebritz DBR-1237 Quick-Release Rotary Valve is engineered for heavy-duty continuous operation across a broad spectrum of bulk solids applications. Typical installation contexts include:
– Pneumatic Conveying (Dilute & Dense Phase): Serving as an airlock feeder or discharge valve in positive or negative pressure systems for powders, granules, and pellets.
– Gravity Discharge: Mounted beneath silos, hoppers, and mixers for controlled volumetric feeding with minimal product degradation.
– Metering & Batching: Integrated with variable frequency drives (VFD) and PLC controls for precise, repeatable batch or continuous weight-loss feeding.
– Hygienic Processing: Ideal for food, dairy, and pharmaceutical production lines requiring frequent washdown and contamination-free operation.

Notable application examples include:
– Food: Flour, starch, sugar, cocoa powder, spices, protein powders, and coffee grounds.
– Pharmaceutical: APIs, excipients, lactose, microcrystalline cellulose, and freeze-dried vaccine powders.
– Chemical & Petrochemical: Carbon black, pigments, PTA, PE/PP pellets, and catalysts.
– Energy & New Materials: Lithium battery cathode/anode materials, silicon powder, and graphite.

With its robust construction, high-precision clearances, and rapid-cleaning capability, the DBR-1237 series delivers measurable operational advantages: reduced product loss, lower energy consumption per ton conveyed, and minimized downtime for maintenance, ultimately contributing to a lower total cost of ownership (TCO).

For comprehensive engineering support, including sizing calculations, pressure drop analysis, and customized nozzle configurations, please consult the Doebritz application engineering team.
