Precision Sanitary Airlock for Dairy Powder Lines

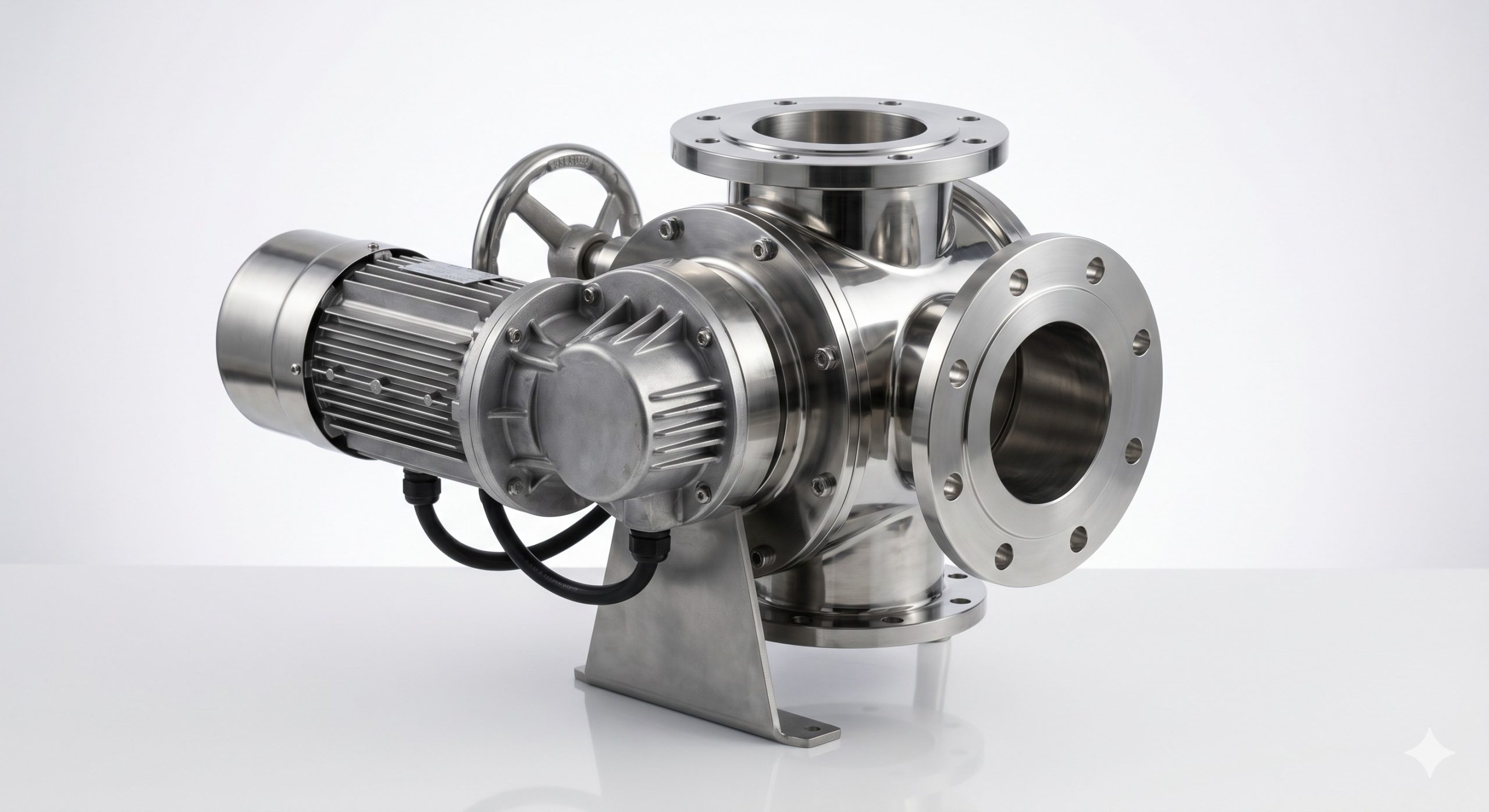

Process engineers and plant operators in the whey powder, dairy, and food ingredient sectors demand equipment that eliminates cross-contamination risks while maintaining uninterrupted production. The Doebritz Whey Powder Quick-release rotary valve (DBR-1237) is engineered specifically for these rigorous sanitary and explosive environments. This is not a generic rotary valve; it is a purpose-built, quick-clean demountable airlock that sets a new benchmark for hygiene, safety, and operational efficiency in powder processing.

Engineered from high-grade SUS316L stainless steel with a mirror-finished internal surface (Ra ≤ 0.4μm), this valve is the definitive solution for handling sticky, hygroscopic, and potentially explosive whey powder. The quick-release, tool-free demountable design reduces cleaning downtime from hours to minutes, supporting both manual wash-down and fully automated CIP (Clean-in-Place) and WIP (Wash-in-Place) protocols. This ensures absolute product integrity, meeting the most stringent requirements of the food and pharmaceutical industries. With its ATEX Zone 20/21/22 certification and a precision-machined rotor-to-housing clearance of just 0.1-0.2mm, the Doebritz valve guarantees minimal air leakage, maximum explosion safety, and unparalleled product yield.

Why Plant Sourcing Chooses Doebritz Whey Powder Quick-release rotary valve

Choosing the right rotary valve for your whey powder line is a critical decision that impacts product quality, safety, and the bottom line. Here is why global food processors and system integrators consistently select the Doebritz solution over conventional alternatives.

• Minimal Air Leakage & Optimum Airlock Efficiency: The precisely controlled clearance of 0.1–0.2mm between the rotor and the housing is the cornerstone of our design. This critical tolerance drastically reduces air leakage, ensuring stable pressure conditions in your pneumatic conveying system and preventing costly product degradation or moisture ingress.
• Explosion-Proof & ATEX Certified Compliance: Whey powder, like many organic food dusts, poses a significant explosion risk. The Doebritz valve is built to contain and isolate potential ignition sources. It offers full ATEX Zone 20/21/22 certification and includes explosion-proof motors and a robust housing that can withstand a pressure shock of up to 16 bar, ensuring total safety in hazardous areas.
• Superior Hygienic & Sanitary Design: The quick-release structure allows for fast, tool-free disassembly, enabling thorough manual or automated cleaning. The electropolished internal surfaces (Ra ≤ 0.4μm) are free from crevices and dead zones, preventing bacterial growth and eliminating the risk of cross-contamination—a critical requirement for food and pharmaceutical-grade operations.
• Precision CNC Machined from Premium Materials: Leveraging Doebritz’s decades of experience and state-of-the-art CNC machining capabilities, every component of the valve is manufactured to the tightest tolerances. Constructed from SUS316L stainless steel, the valve offers superior corrosion resistance against the mildly acidic and hygroscopic nature of whey powder, ensuring a long service life even in demanding wash-down environments.
• Global OEM Supply & Custom Engineering: We work with major OEMs and system integrators worldwide. Our engineering team can provide custom flange options (DIN/ANSI), variable frequency drives (VFD) for precise speed control, and customized hopper configurations to perfectly integrate with your existing process line.

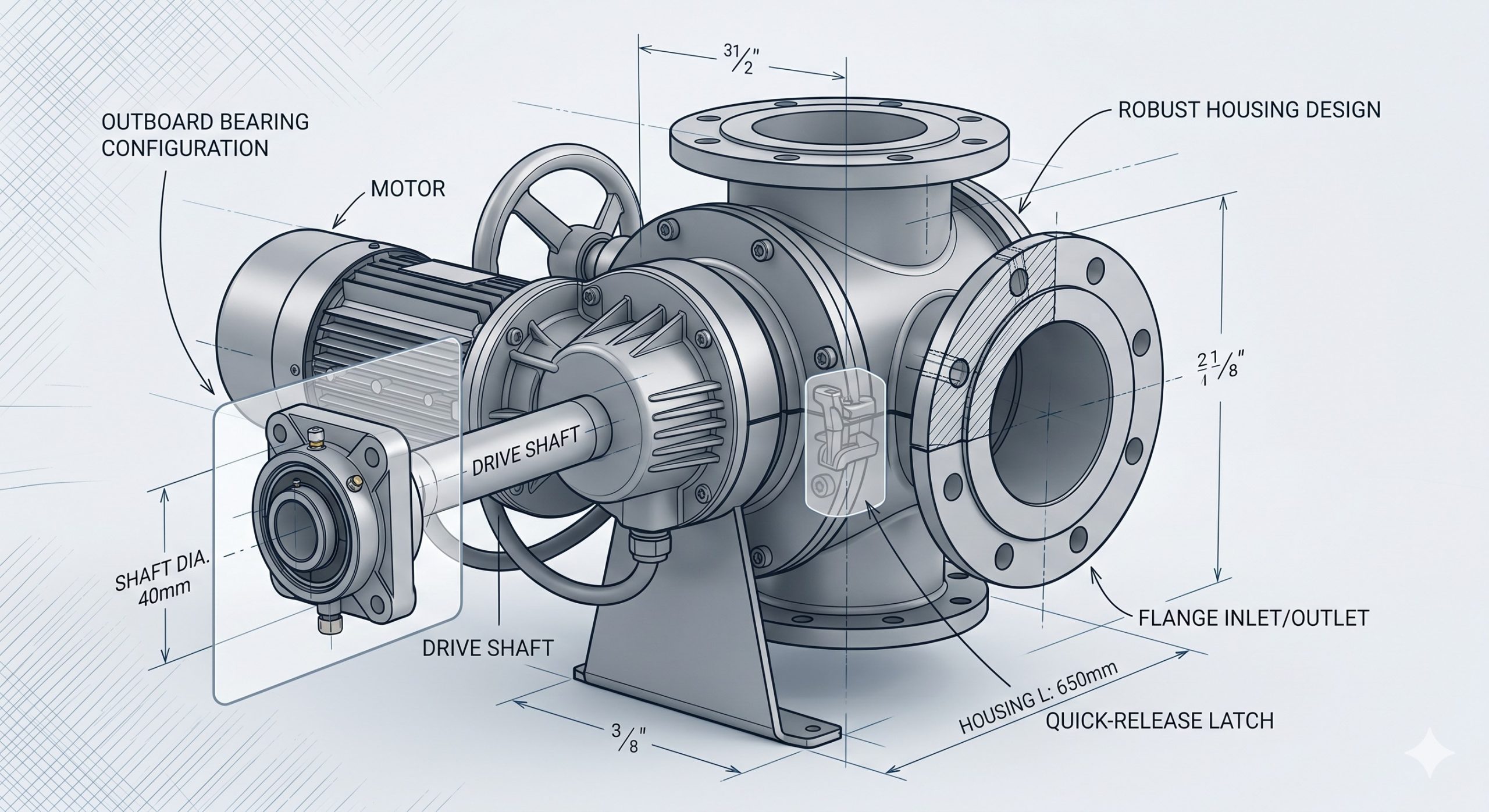

Housing & Rotor Engineering

The core of the Doebritz Whey Powder Quick-release rotary valve lies in its heavy-duty yet hygienic engineering. The housing is investment-cast from high-quality SUS316L, offering exceptional dimensional stability and a superior surface finish compared to fabricated alternatives. The internal geometry is optimized to facilitate a smooth, unobstructed material flow, minimizing the risk of product compaction and build-up.

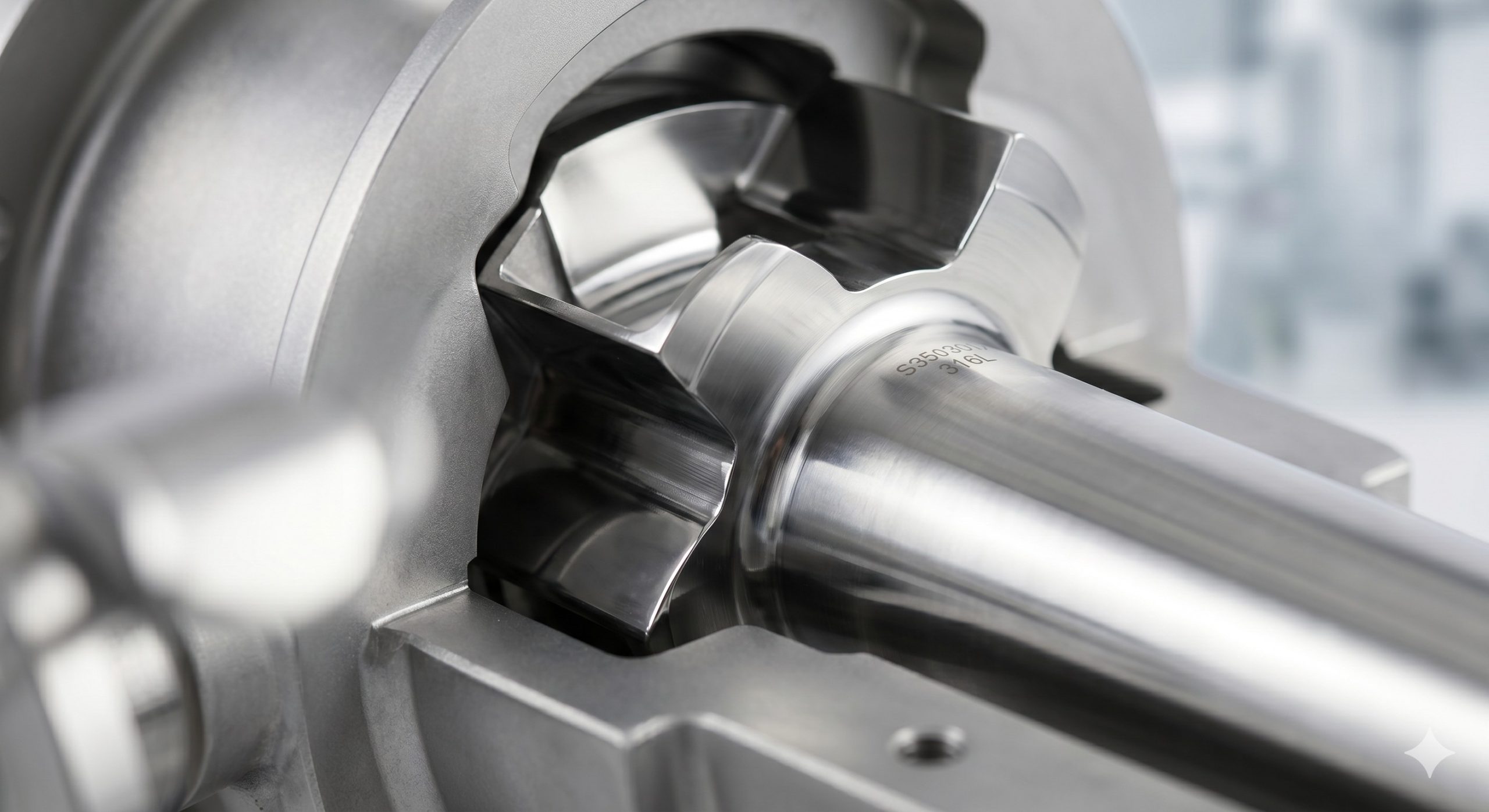

The rotor itself is a marvel of precision machining. Featuring an open, multi-vane design, it is dynamically balanced to reduce vibration and wear. The 0.1–0.2mm radial clearance is maintained through advanced manufacturing techniques, ensuring consistent volumetric filling and efficient air sealing across the valve’s entire service life. The robust, outboard-mounted bearings are isolated from the product zone, preventing any potential contamination of the whey powder and extending the bearing life significantly.

A key differentiator is the valve’s quick-release mechanism, which allows the entire rotor assembly to be removed for cleaning or inspection in minutes without the need for specialized tools. This design is supported by a precise shaft sealing system, typically incorporating lip seals with an air purge option, which further prevents dust ingress into the bearing area and maintains a clean, hygienic processing environment.

Technical Specifications

Below are the key technical parameters for the Doebritz DBR-1237 Quick-release rotary valve. For custom requirements or specific sizing, please contact our engineering team.

Specification	Detail
Product Model	DBR-1237
Valve Type	Quick-release / Demountable Rotary Valve
Body Material	SUS316L Stainless Steel (Food Grade)
Rotor Material	SUS316L Stainless Steel
Rotor Design	Open, Multi-Vane
Rotor-to-Housing Clearance	0.1 – 0.2 mm
Shaft Seal	Lip Seal with Air Purge (Optional)
Connections	HG20592 / Custom DIN/ANSI Flanges
Inlet/Outlet Sizes	DN50, DN100, DN150, DN200, DN300, DN350
Internal Surface Finish	Mirror Polish, Ra ≤ 0.4 μm
External Surface Finish	Machine Finish, Anti-Fingerprint
ATEX Certification	Zone 20/21/22 (Optional)
Explosion Pressure Shock Resistance	Up to 16 bar (with ATEX config)
Drive Option	Direct Drive / Gearmotor with VFD
Control	VFD for Speed Control, PLC Integration
Ambient Temperature Range	-15°C to +60°C
Material Temperature Range	0°C to +120°C
Cleaning Options	Quick-release for Manual Clean, Online CIP, Online WIP
Applications	Whey Powder, Milk Powder, Lactose, Food Powders
Certifications	CE, TÜV

Heavy-Duty Application Scenarios

The Doebritz Whey Powder Quick-release rotary valve is not a one-size-fits-all solution; it is a versatile component designed for excellence in a variety of critical applications. Here are three primary scenarios where its unique capabilities provide a distinct advantage.

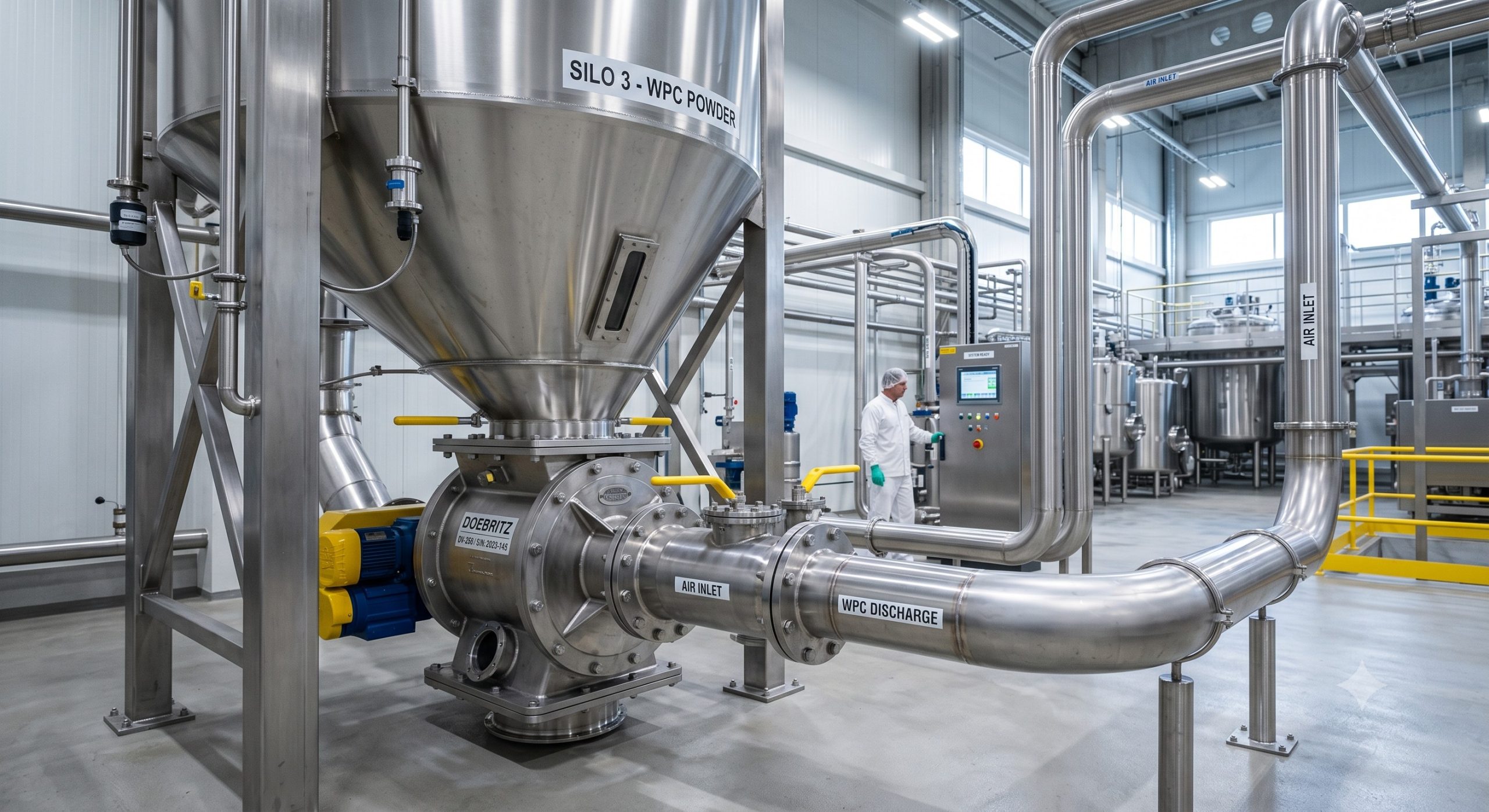

1. Sanitary Pneumatic Conveying of Whey Powder

In a typical dairy processing plant, whey powder is transferred from the spray dryer to storage silos or packing lines using a dilute or dense phase pneumatic conveying system. The Doebritz valve acts as an efficient and hygienic airlock, feeding the powder into the conveying line under positive or negative pressure. Its low leakage rate ensures that the air supply is used effectively, reducing overall energy consumption. The quick-clean design facilitates rapid product changeovers or the execution of mandatory sanitation protocols without lengthy downtime.

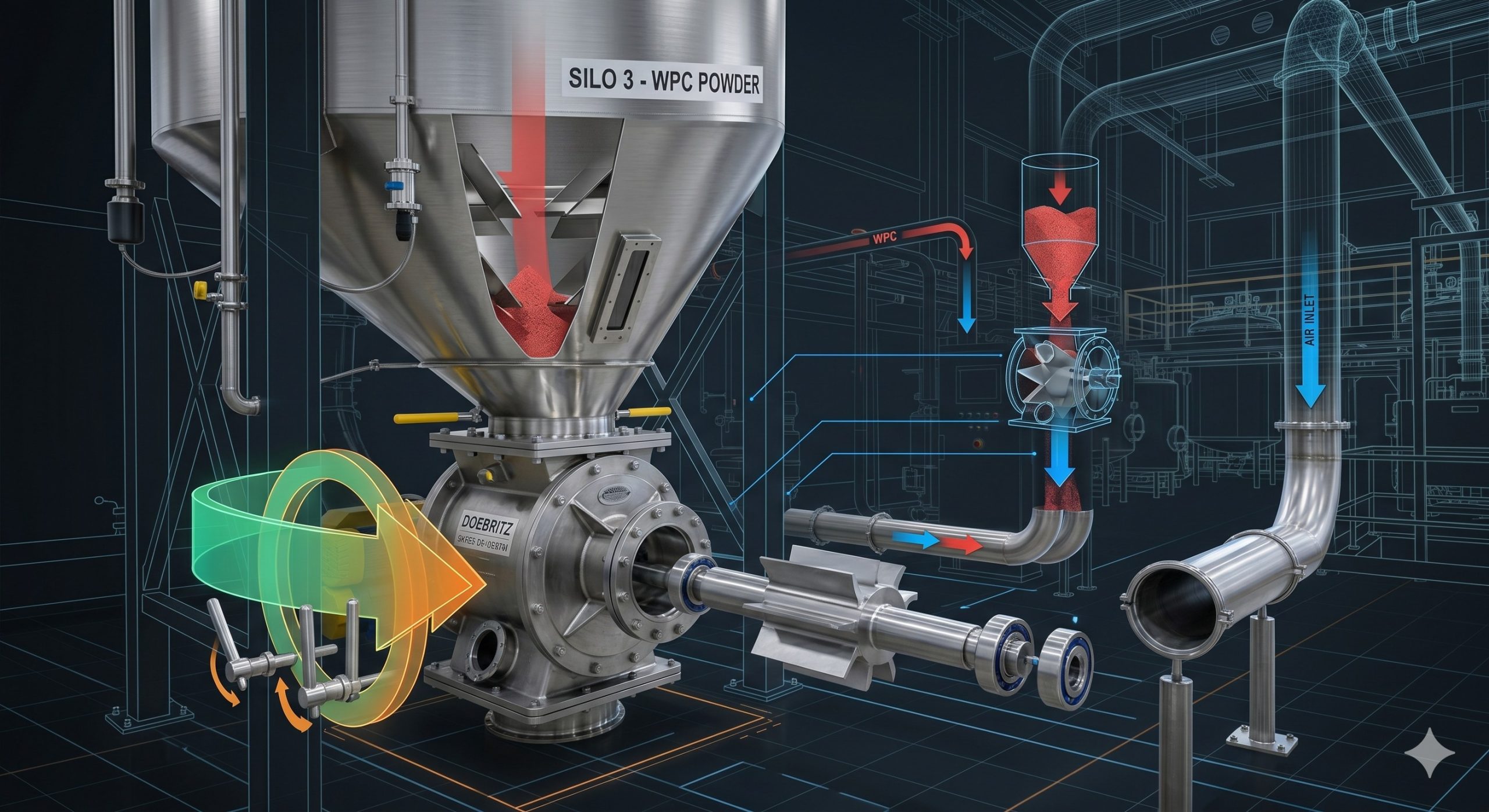

2. Explosion-Protected Silos & Dust Collection Systems

Whey powder storage silos and downstream dust collectors are designated ATEX zones. The Doebritz valve is installed at the outlet of these vessels to control the discharge of powder while maintaining an inert or safe atmosphere within. Its robust construction and flameproof design prevent any internal explosion from propagating to other parts of the plant. The precision clearance is critical here, as it minimizes the amount of air (and thus oxygen) that can infiltrate the silo, enhancing the overall safety of the storage system.

3. Precise Metering & Batching for Formulation

For manufacturers producing specialized protein blends or infant formula, precise batching is crucial. The Doebritz valve, when integrated with a VFD and PLC control, provides highly accurate volumetric metering of whey powder. The consistent fill factor afforded by the precision-machined rotor and housing clearance ensures that the flow rate can be reliably controlled, enabling precise recipe formulation and automated ingredient dosing.

Frequently Asked Questions

What makes the Doebritz valve ideal for sticky whey powder?

The combination of a mirror-polished internal surface (Ra ≤ 0.4μm) and the quick-release design ensures that whey powder does not build up and compact. The hygienic design also facilitates thorough cleaning to remove any residue that could lead to bacterial growth or product contamination, which is critical for dairy applications.

Is this valve ATEX certified for use with flammable food dust?

Yes, the Doebritz DBR-1237 is available with full ATEX certification for zones 20, 21, and 22. The design includes an explosion-proof motor and a housing that is pressure-shock resistant up to 16 bar, ensuring safe operation in areas where explosive whey powder dust atmospheres may be present.

How does the air leakage rate compare to standard valves?

The 0.1-0.2mm rotor-to-housing clearance is among the tightest in the industry, leading to significantly reduced air leakage compared to standard valves with larger clearances. This translates to lower energy consumption in your pneumatic conveying system and a more consistent, stable process.

Can the valve be integrated into an existing CIP system?

Absolutely. The Doebritz valve is designed to be fully compatible with automated CIP and WIP cleaning protocols. The quick-release design allows for both in-place cleaning and easy disassembly for manual inspection and deep cleaning, providing a comprehensive hygiene solution.

What are the lead times for custom flange configurations?

As a manufacturer with a global supply chain, Doebritz offers competitive lead times. Custom flange configurations, such as DIN or ANSI standards, can be accommodated. For specific delivery requirements, please consult our sales team for a tailored quote.

By choosing the Doebritz Whey Powder Quick-release rotary valve, you are not just purchasing a piece of equipment; you are investing in a partnership with a world-class manufacturer dedicated to the highest standards of safety, hygiene, and process reliability. Elevate your dairy powder production to a new level of efficiency and compliance.
