Quick-Clean Demountable Valve: Doebritz Starch Quick-release rotary valve | Sanitary Processing Standard

Product Summary

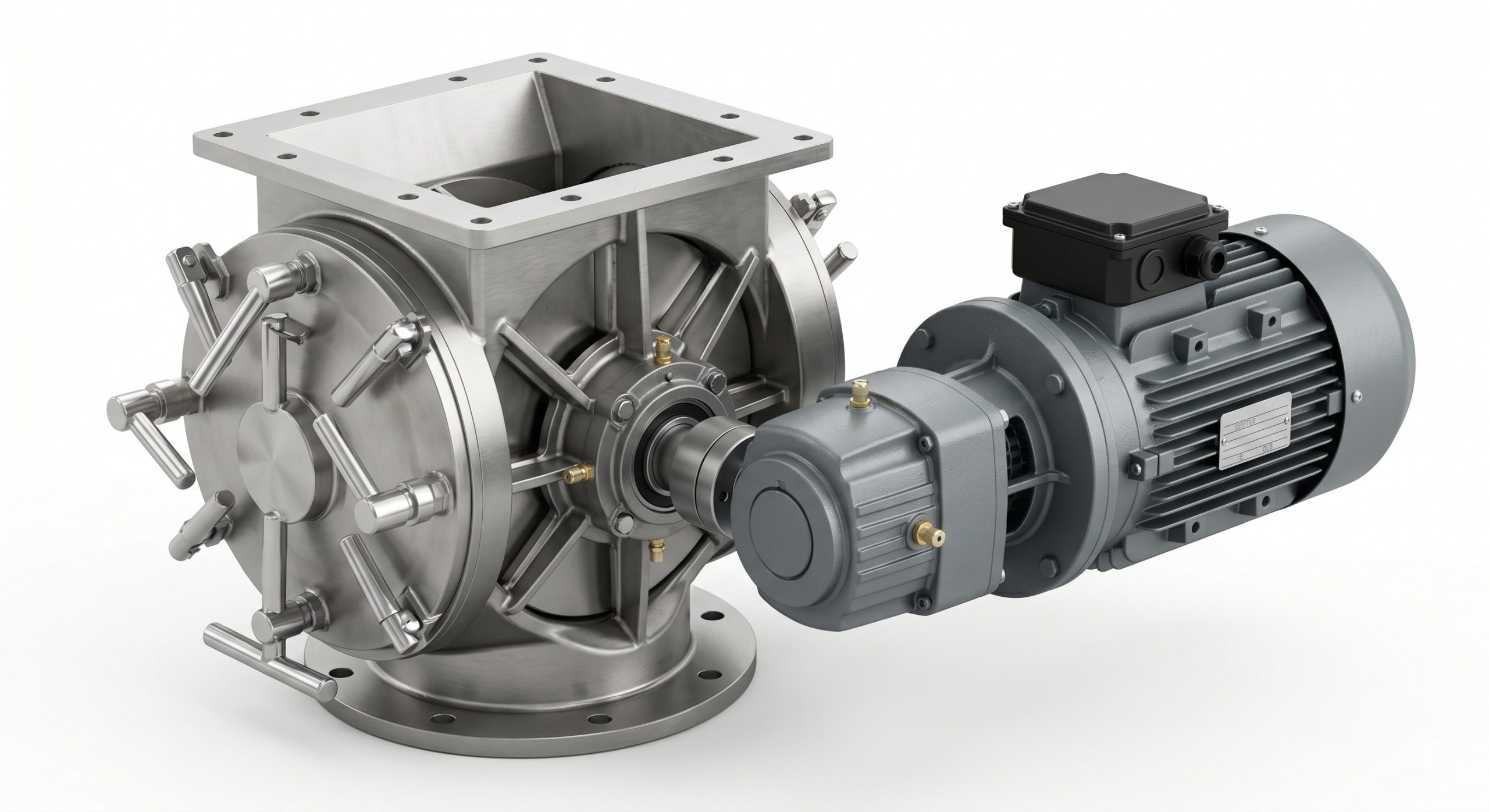

Engineered for the most demanding sanitary and explosive environments, the Doebritz Starch Quick-release rotary valve sets the global benchmark for starch, food, and pharmaceutical powder handling. As a heavy-duty airlock feeder, it integrates quick-release demountable design, precision CNC-machined rotors, and ATEX-certified explosion-proof construction to ensure zero contamination, minimal air leakage, and continuous high-volume throughput. This valve is not just a component; it is a strategic investment in plant efficiency and safety, backed by Doebritz’s decades of heavy-industry manufacturing excellence and global OEM supply chain capabilities.

Why Plant Sourcing Chooses Doebritz Starch Quick-release rotary valve

Procurement and plant managers across the globe select the Doebritz Starch Quick-release rotary valve for its unparalleled combination of hygienic design and robust industrial performance. This valve delivers significant operational advantages that directly impact your bottom line:

• Sanitary Quick-Release Demountability: The tool-less quick-release design facilitates rapid disassembly and assembly, enabling thorough manual cleaning, CIP (Clean-in-Place), and WIP (Wash-in-Place) procedures. This eliminates material cross-contamination and drastically reduces downtime associated with product changeovers, making it ideal for food and pharmaceutical lines with strict GMP and cleanroom requirements (Class 10W/30W/C/D).
• Precision Airlock Sealing with Minimal Leakage: Through ultra-precise CNC machining, the rotor-to-housing clearance is maintained at a stringent 0.1-0.2mm. This precision engineering, combined with a robust lip seal air-tight sealing system, significantly reduces air leakage, ensuring stable pneumatic conveying pressure, lower energy consumption, and accurate volumetric metering.
• Superior Material Integrity and Finish: Constructed from high-grade SUS316L or SUS304 stainless steel, the product contact surfaces are mirror-polished to a Ra ≤ 0.4μm finish. This not only prevents bacterial growth but also ensures superior wear and corrosion resistance. For abrasive starch or sugar applications, optional tungsten carbide or ceramic coatings are available to extend service life dramatically.
• ATEX-Certified Explosion Safety: Fully compliant with ATEX Zone 20/21/22 requirements, the Doebritz Starch Quick-release rotary valve features an explosion-proof motor, flameproof housing, and a pressure rating of up to 16 bar. This makes it the trusted choice for plants handling combustible organic powders like starch, flour, and sugar, ensuring operator and facility safety.
• Integrated Metering and Automation: Equipped with variable frequency drive (VFD) and PLC control capabilities, this valve functions as a precise dosing feeder. It supports batch metering, recipe management, and automated batching, offering complete scalability and flexibility for modern, automated production lines.
• Global OEM Supply with Reduced Lead Times: As a Doebritz product, you benefit from a robust global supply chain and manufacturing network. This ensures competitive pricing, rapid customization (DIN/ANSI flanges, various drive options), and predictable delivery schedules, reducing project timelines and capital lock-up.

Housing & Rotor Engineering

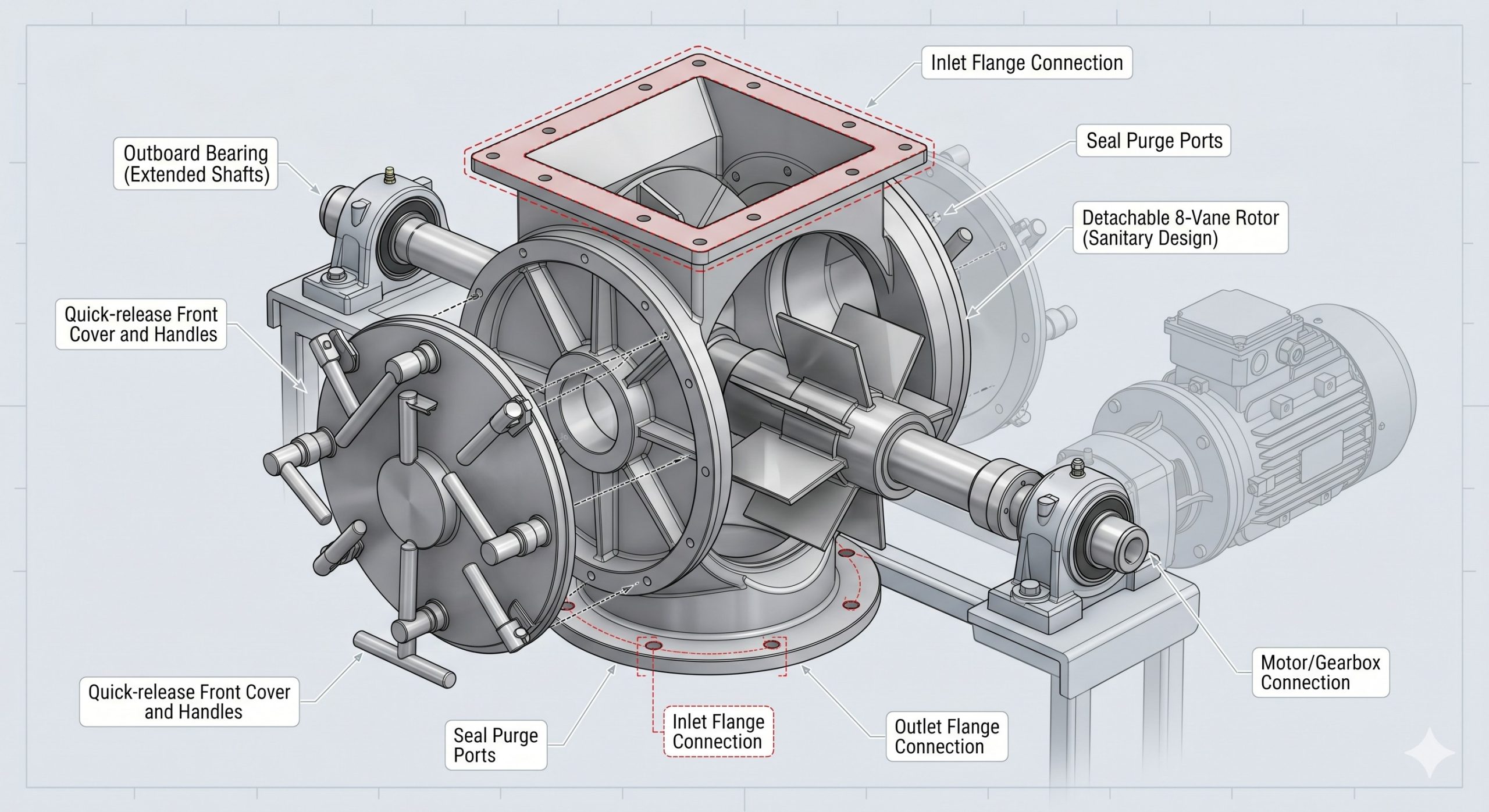

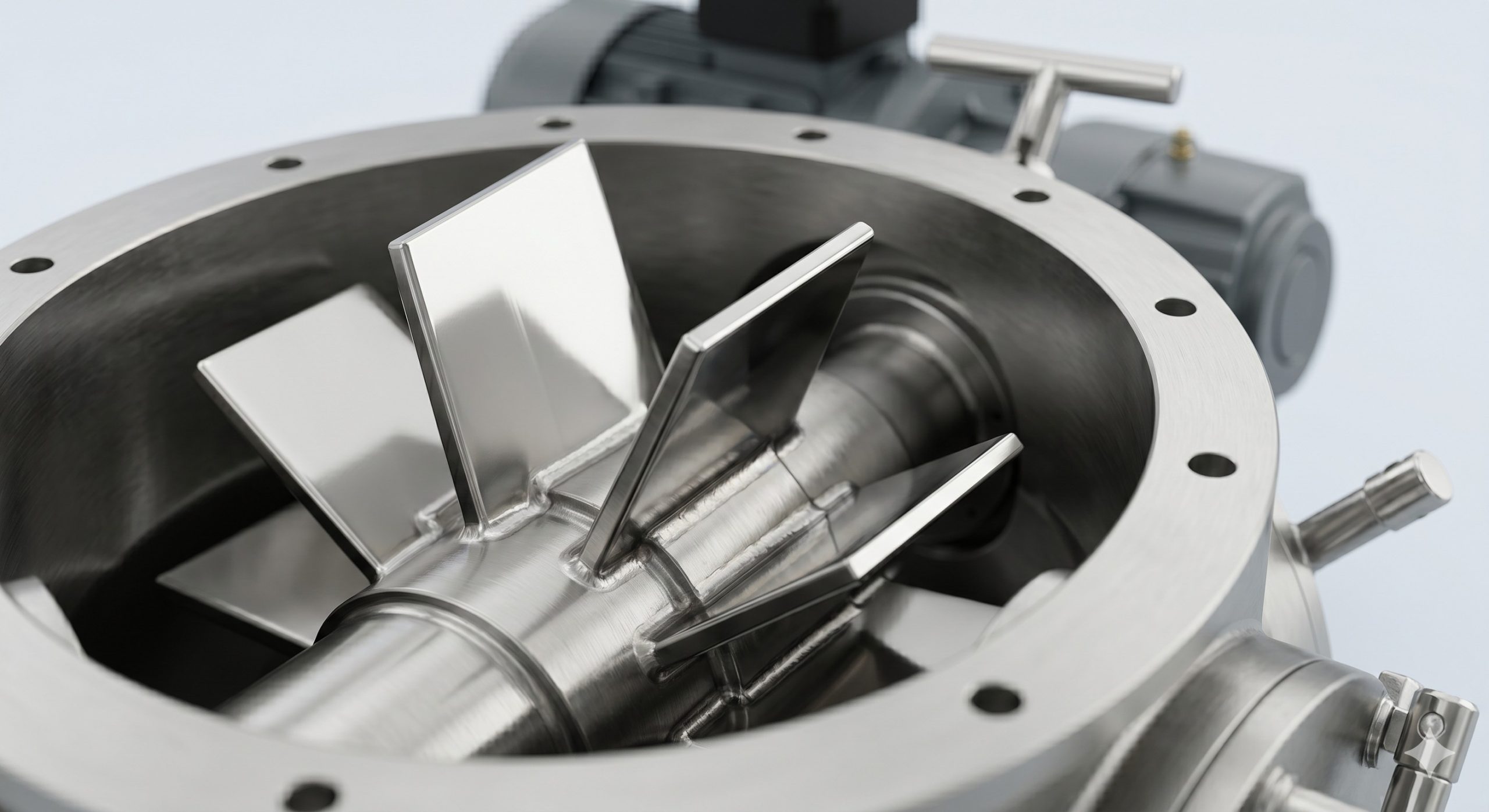

The mechanical architecture of the Doebritz Starch Quick-release rotary valve is designed for high endurance and consistent performance. The heavy-duty housing is available in various metallurgies to match application demands, from sanitary 316L for food contact to robust cast iron or carbon steel for structural integrity. The internally polished stainless steel rotor features a precision-machined profile to facilitate a gentle, yet positive, material displacement cycle, preventing starch degradation or packing. The integration of outboard bearings isolates the bearing assembly from the product zone, ensuring that bearings are not contaminated by fine starch dust, thereby extending Mean Time Between Failures (MTBF). The multi-lip seal arrangement, optionally with air purge capability, creates a robust barrier against dust ingress and maintains process pressure differentials with minimal gas leakage, safeguarding both the product and the downstream equipment.

Technical Specifications

Below are the key performance and construction parameters for the Doebritz Starch Quick-release rotary valve series. For detailed dimensions and custom configurations, please contact our engineering team.

Specification	Detail
Body Material	SUS304 / SUS316L Stainless Steel, Carbon Steel (Coated)
Rotor Design	Precision-CNC Machined, Open Rotor (8-vane)
Rotor-to-Housing Clearance	0.1 – 0.2 mm
Shaft Seal Type	Lip Seal with Air Purge Option, Packing Seal
Pressure Rating (Standard)	Up to 1 bar (Differential)
Pressure Rating (ATEX)	Up to 16 bar (Explosion-Proof)
Operating Temperature (Ambient)	-15°C to 60°C
Operating Temperature (Material)	0°C to 120°C (Cooling Jacket Optional)
Surface Finish (Internal)	Mirror Polish, Ra ≤ 0.4 μm / 0.8 μm / 1.6 μm
Connection Flange	HG20592 (DIN/ANSI available on request)
Drive Options	Direct Drive, Gearmotor with VFD
ATEX Certification	Zone 20, 21, 22
Cleaning Design	Quick-Release, CIP & WIP Compatible

Heavy-Duty Application Scenarios

The versatility of the Doebritz Starch Quick-release rotary valve makes it the preferred solution for a wide spectrum of challenging industrial applications:

Sanitary Food & Pharmaceutical Handling

In lines dedicated to starch, sugar, flour, cocoa, milk powder, and pharmaceutical powders, the valve’s hygienic quick-release design and mirror-polished finish ensure compliance with the strictest sanitary regulations. It enables rapid changeover between products, eliminating allergen cross-contamination and validating cleaning protocols with CIP and WIP systems.

Explosion-Protected Pneumatic Conveying

For dense phase and dilute phase pneumatic conveying systems, particularly in facilities with combustible dust hazards, the ATEX-certified Doebritz valve provides secure rotary feeding and airlocking. The precision clearance minimizes air slip, ensuring consistent conveying velocity and preventing pipeline blockages while maintaining a safe, inert environment.

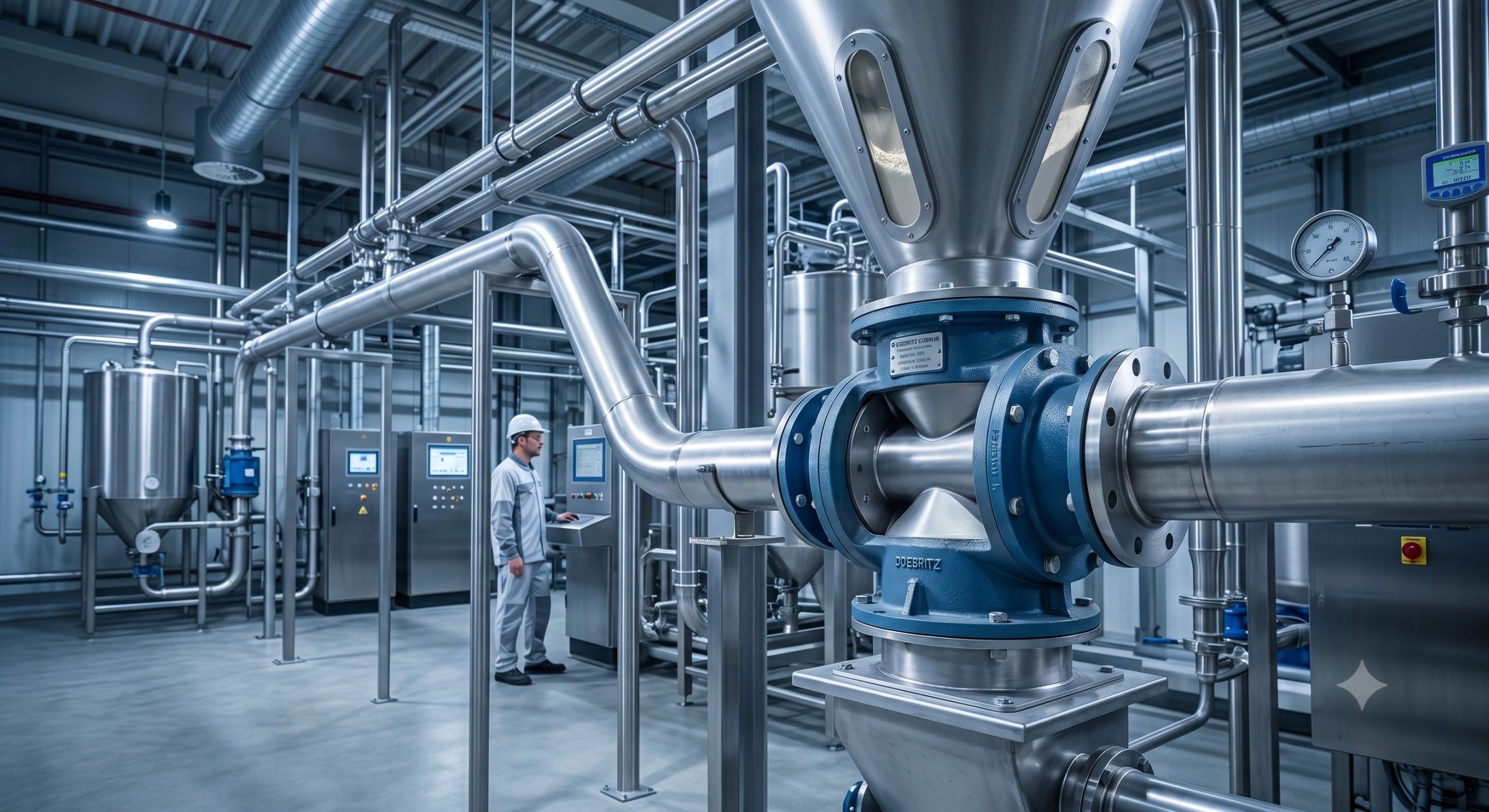

High-Capacity Silo Discharging & Metering

Positioned under storage silos, this valve reliably regulates the flow of bulk starch into downstream processes. When integrated with a VFD and PLC, it provides accurate, repeatable metering for batch recipes, contributing to product consistency and yield optimization. The durable construction stands up to the high column pressures and abrasive nature of some bulk powders.

Global OEM Assurance

Choosing the Doebritz Starch Quick-release rotary valve is a commitment to quality and long-term partnership. Doebritz combines decades of heavy-engineering expertise with a modern, globally-integrated manufacturing footprint. Every unit is subject to rigorous quality control, including 100% pre-shipment pressure testing, dimensional verification, and material certification. Our engineering team provides comprehensive support, from application sizing and design optimization to on-site installation and after-sales service. We provide a fully transparent supply chain, with full material traceability and certification (CE, TÜV) to meet the expectations of global EPCs and plant owners. This commitment ensures that the Doebritz valve is not just a purchase, but a long-term, reliable asset in your production line.

Frequently Asked Questions

What are the primary material options for the Doebritz Starch Quick-release rotary valve?

The valve is available in SUS304, SUS316L stainless steel, and carbon steel (with paint or nickel plating). For highly abrasive applications, wear-resistant coatings like tungsten carbide, ceramic, or polymer materials can be applied to contact surfaces.

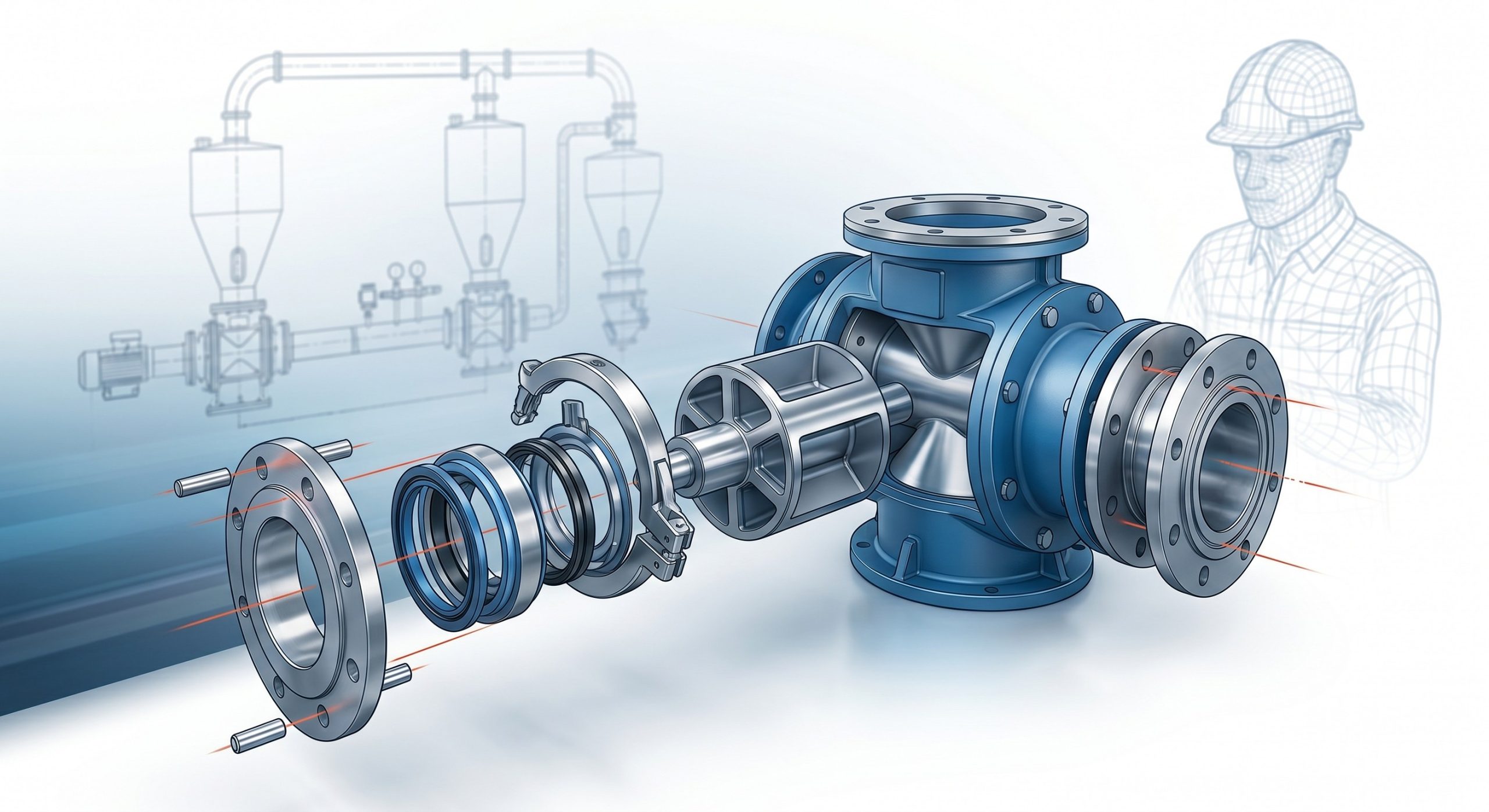

How does the quick-release feature work, and how does it impact cleaning?

The unique demountable design allows for tool-less disassembly of the rotor and housing, providing direct access to all product contact areas. This facilitates fast manual cleaning, online CIP (Clean-in-Place), and WIP (Wash-in-Place) processes, significantly reducing cleaning validation time and preventing cross-contamination.

What is the pressure rating and leakage rate for this valve?

Thanks to precision machining, the rotor-to-housing clearance is kept at 0.1-0.2mm. The valve is designed for differential pressure up to 1 bar for standard applications and up to 16 bar for explosion-proof versions, with minimal air leakage that protects system efficiency.

Is the valve suitable for ATEX environments? What certifications does it hold?

Yes, it is fully ATEX certified for Zones 20, 21, and 22, featuring explosion-proof motors, flameproof construction, and static-conductive components. The valve also holds CE and TÜV certifications, complying with international safety and health standards.

What application-specific customizations are available?

We offer extensive customization, including flange types (DIN/ANSI/HG20592), drive options (gear motor, direct drive), VFD integration, material coatings, and specific cleanroom finishes. Our engineers work with you to size and specify the valve for your exact process parameters and environmental conditions.
