Quick-Clean Demountable Valve: Doebritz Sanitary Quick-Release Rotary Airlock | ATEX & GMP Standard

Product Summary

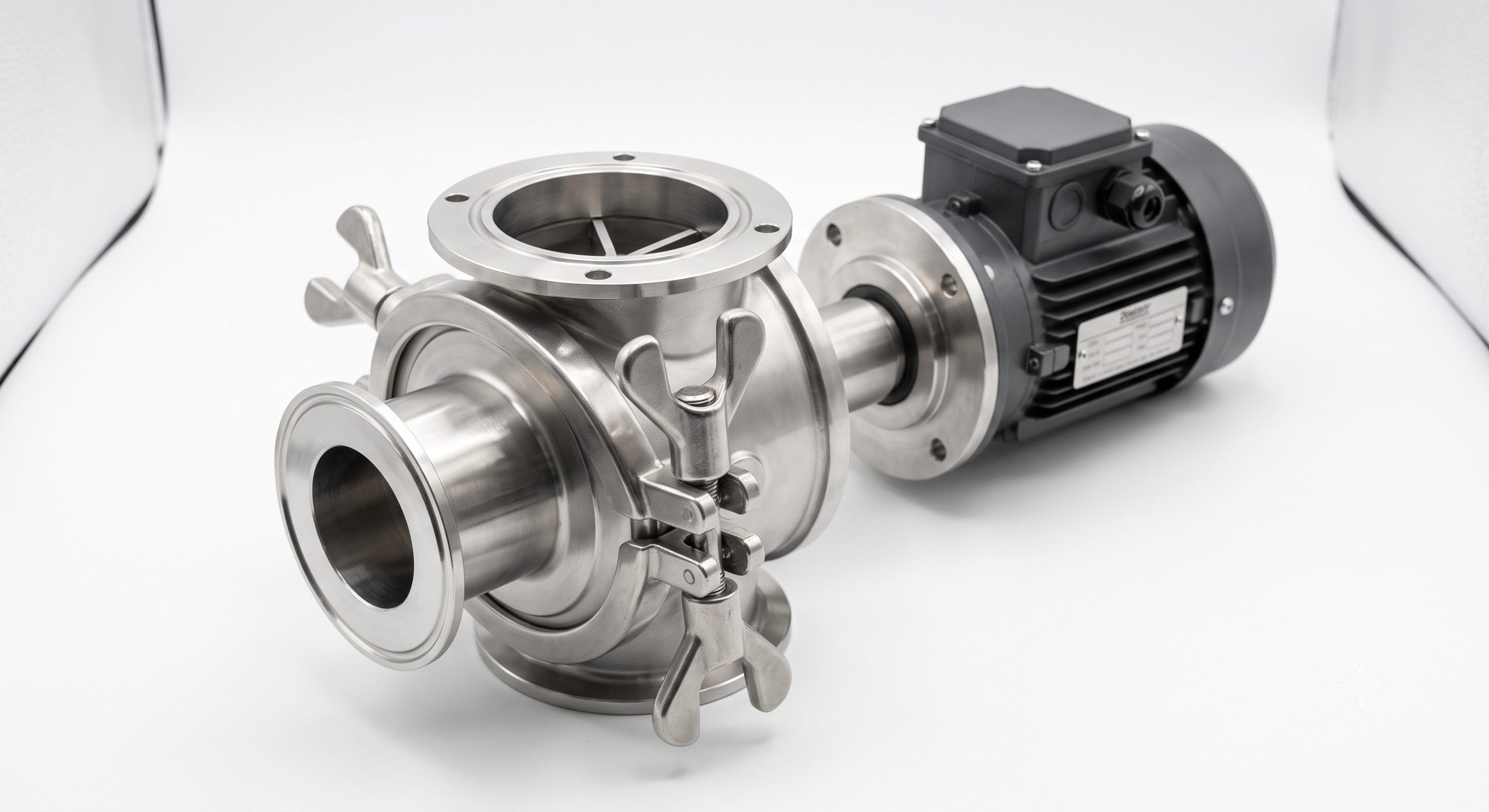

Doebritz presents the DBR-1237 sanitary quick-release rotary airlock, a high-performance star discharge valve engineered for superior airlock efficiency, precision metering, and rapid cleaning in critical hygiene applications. Manufactured from premium SUS316L stainless steel with a mirror-polished internal finish (Ra≤0.4μm), this hygienic rotary valve is designed to meet the most stringent GMP and FDA requirements for food, pharmaceutical, and biotech powder handling. The innovative quick-release demountable structure enables effortless tool-free disassembly, facilitating thorough manual cleaning, CIP, and WIP procedures, drastically reducing downtime and eliminating cross-contamination risks. With rotor-to-housing clearances meticulously held between 0.1 and 0.2mm through Doebritz’s advanced CNC machining, this sanitary airlock guarantees minimal air leakage, stable pneumatic conveying, and precise volumetric feeding, making it the definitive choice for high-value, sensitive material processing.

Why Source Doebritz Sanitary Quick-Release Rotary Airlock

Plant operators and engineering procurement specialists choose the Doebritz sanitary quick-release rotary airlock for its unparalleled combination of hygienic design, operational reliability, and process security. This valve is more than a component; it is a strategic investment in product purity and production efficiency.

• Optimal Airlock Efficiency: The precision-ground 8-vane rotor operates with a minimal radial clearance of 0.1-0.2mm, significantly reducing air leakage (blow-by) and ensuring stable differential pressure in pneumatic conveying systems. This translates to lower energy consumption and consistent material flow.
• Sanitary Quick-Release Design: The tool-free, quick-release housing allows for rapid, thorough cleaning. This demountable valve supports CIP (Clean-in-Place) and WIP (Wash-in-Place) protocols, ensuring no dead zones or product residue, critical for preventing cross-contamination in multi-product lines.
• ATEX & GMP Compliance: Certified for ATEX Zones 20, 21, and 22, this valve is safe for use in explosive dust atmospheres. The hygienic construction meets Class C/D cleanroom standards, fully complying with GMP guidelines for pharmaceutical and food production.
• Superior Material & Finish: Crafted from corrosion-resistant SUS316L stainless steel with a mirror-polished internal surface, the valve prevents product adhesion and is resistant to aggressive cleaning agents and high temperatures up to 120°C.
• CNC Precision & Heavy-Duty Build: Manufactured with Doebritz’s proprietary CNC machining, the valve’s critical components are produced to ultra-tight tolerances. This ensures a long, reliable service life, even under continuous heavy-duty operation.
• Global OEM Supply: As a leading manufacturer, Doebritz provides robust supply chains, custom OEM configurations (including flange standards and gearmotors), and comprehensive technical support for projects worldwide.

Housing & Rotor Engineering

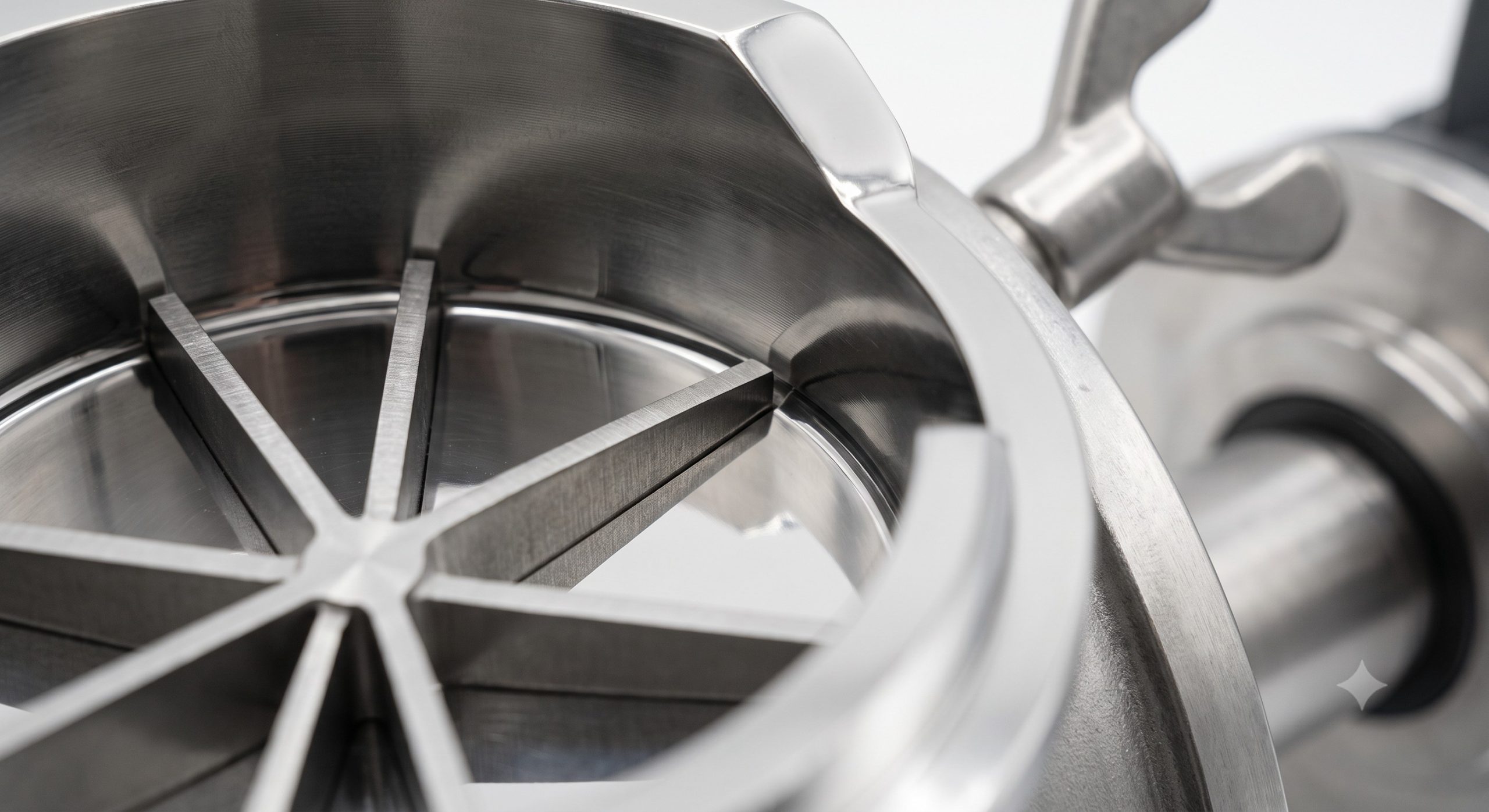

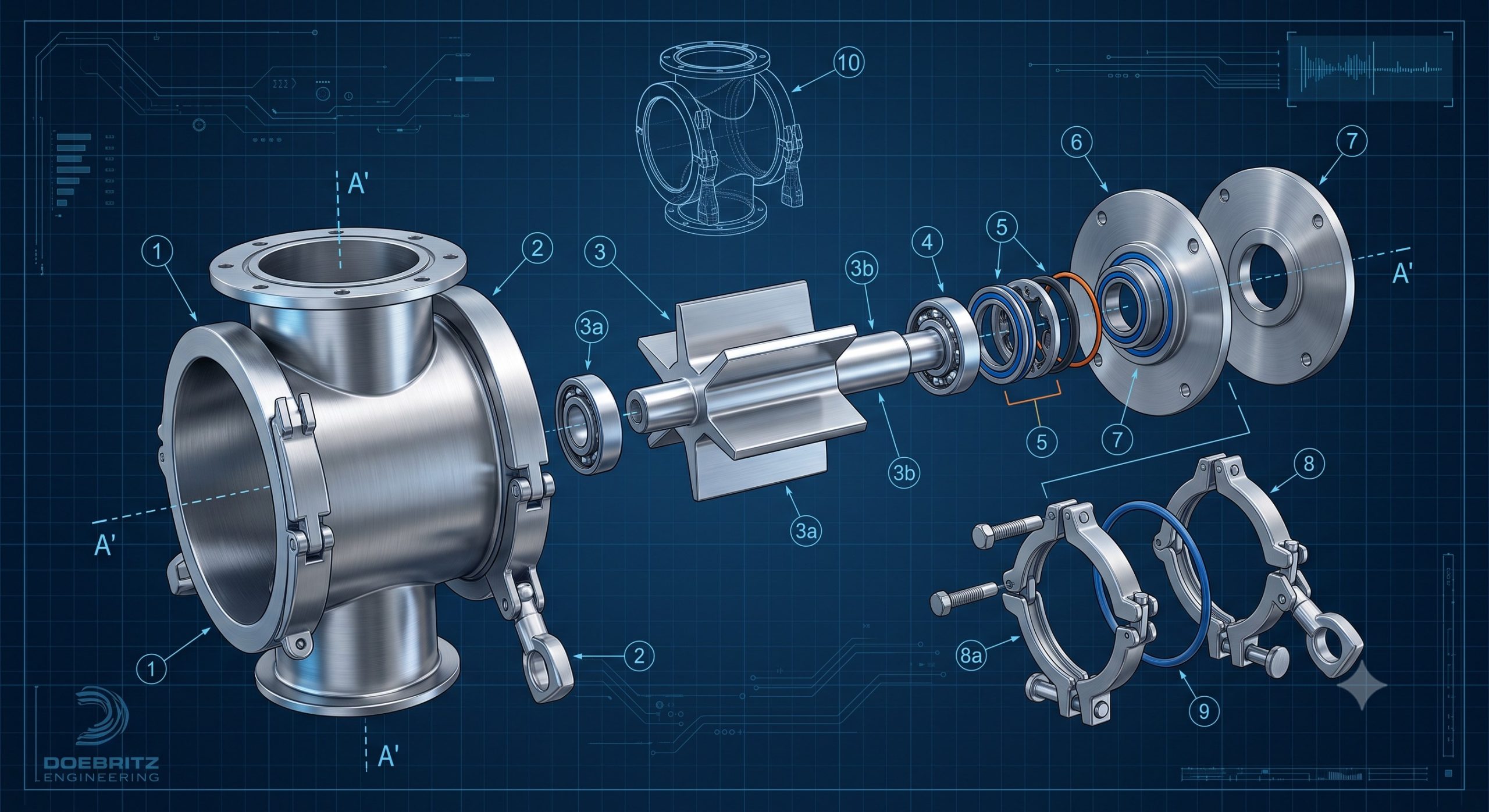

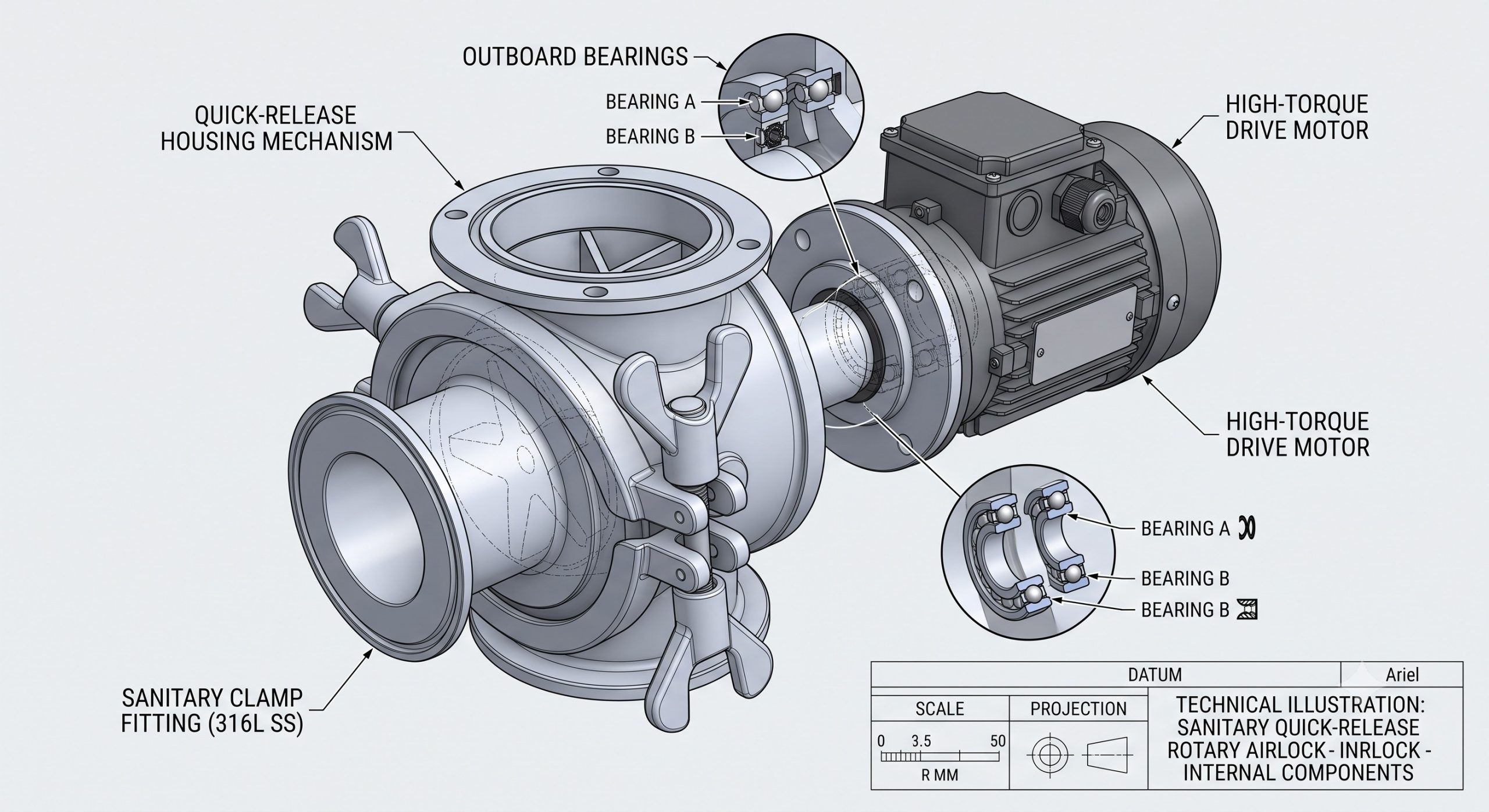

The Doebritz sanitary quick-release rotary airlock is built around a heavy-duty, split or quick-release housing. The modular design allows for easy access to the rotor and internal components without disconnecting the pipeline. The innovative clamp band or swing-bolt mechanism ensures a secure seal while enabling swift disassembly. The precision-engineered rotor features a multi-vane design (typically 6, 8, or 10 vanes) that is dynamically balanced to minimize vibration and wear. The rotor’s leading edges are hardened to resist abrasion, and the shaft is supported by outboard-mounted bearings, which are isolated from the material path by multiple lip seals and an air purge system. This arrangement prevents product contamination of the bearing lubricants and vice-versa, ensuring a long maintenance interval. The ultra-tight clearance between the rotor tips and the valve housing is a hallmark of Doebritz’s manufacturing excellence, creating an effective air seal while eliminating metal-to-metal contact.

Technical Specifications

Below are the core engineering parameters for the Doebritz DBR-1237 sanitary quick-release rotary airlock series. For custom requirements, including specific flange standards or drive configurations, please contact our technical sales team.

Specification	Detail
Body Material	SUS316L Stainless Steel (Standard) / SUS304 / Carbon Steel
Internal Surface Finish	Mirror Polish Ra≤0.4μm (Standard) / Ra≤0.8μm / Ra≤1.6μm
Rotor Design	8-Vane Open Rotor (Customizable)
Rotor-to-Housing Clearance	0.1 – 0.2 mm (Precision CNC Machined)
Shaft Seal	Multi-lip Seal with Air Purge Connection
Flange Standards	HG20592 (Standard) / DIN / ANSI
Size Range	DN100, DN150, DN200, DN250, DN300
Temperature Range	Ambient: -15°C to 60°C; Material: 0°C to 120°C
Pressure Rating	Up to 16 bar (Flameproof/Explosion-proof Version)
ATEX Certification	Zone 20, 21, 22
Motor Options	Explosion-proof Motor, VFD-ready, Gearmotor
Cleaning Methods	Manual Cleaning after Quick-Release Disassembly / Online CIP / Online WIP
Certifications	CE, TÜV, ATEX, GMP Compliant (Class C/D Cleanroom)

Heavy-Duty Application Scenarios

Food & Pharmaceutical Hygienic Lines

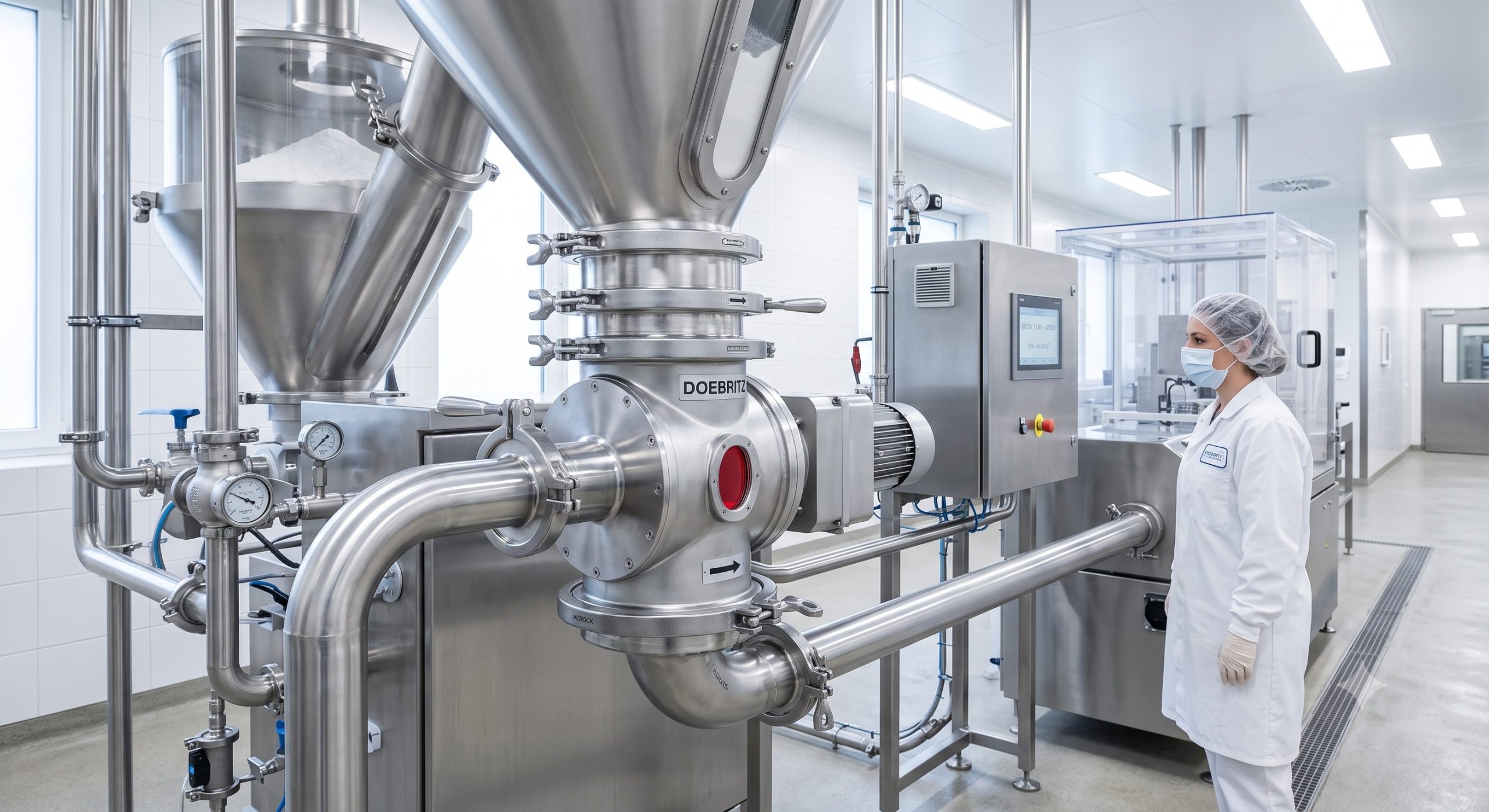

In the food and pharmaceutical industries, the Doebritz sanitary quick-release rotary airlock is the standard for handling powders and granules. It is used for discharging ingredients like flour, milk powder, lactose, vitamins, and APIs from silos and hoppers into pneumatic conveying systems or downstream processing equipment. Its hygienic, quick-release design facilitates frequent cleaning and quick product changeovers, meeting the rigorous standards of GMP, FDA, and EHEDG. The valve is available with optional water-cooled jackets to manage the temperature of heat-sensitive materials.

Chemical & Fine Chemical Processing

Doebritz rotary airlocks are also deployed in demanding chemical applications, handling a wide range of materials from titanium dioxide, carbon black, pigments, and fine chemical powders. They ensure reliable, dust-tight feeding and discharge, preventing product loss and protecting plant personnel from hazardous substances. The ATEX-certified design makes them safe for handling combustible dusts. The robust construction and option for coated internals (e.g., tungsten carbide, ceramic) provide exceptional resistance to abrasive and corrosive materials, extending service life and reducing total cost of ownership.

Frequently Asked Questions

What does ‘Quick-Release’ mean for this rotary airlock?

The ‘Quick-Release’ feature refers to the innovative tool-free clamping mechanism on the housing. It allows the valve to be disassembled, cleaned, and reassembled in minutes without the need for specialized tools, significantly reducing downtime during product changeovers or cleaning cycles.

How does the Doebritz rotary airlock prevent product contamination?

Contamination prevention is achieved through multiple design features: a sanitary, crevice-free internal surface finish; the use of food-grade SUS316L stainless steel; an outboard bearing design that separates the product zone from lubricants; and the ability to perform CIP/SIP cleaning without disassembly.

Is the Doebritz sanitary airlock suitable for handling abrasive materials?

Yes, the standard SUS316L construction offers good corrosion resistance. For highly abrasive materials, the internal surfaces of the housing and the rotor can be coated with advanced wear-resistant materials such as tungsten carbide, ceramic, or polymer coatings (e.g., PE, PTFE).

What certifications does this valve hold?

The Doebritz DBR-1237 series is certified to meet international standards, including CE, TÜV and is ATEX compliant for use in Zones 20, 21, and 22. Materials are provided with full traceability documentation upon request.

Can the valve be customized for my specific project?

Absolutely. As a leading OEM manufacturer, Doebritz offers comprehensive customization. We can tailor the valve’s material (SUS304, SUS316L, Carbon Steel), flange standard (DIN, ANSI, HG20592), drive (motor, gearmotor, hydraulic motor), and surface finish to precisely match your application’s requirements and site conditions.
