Product Overview

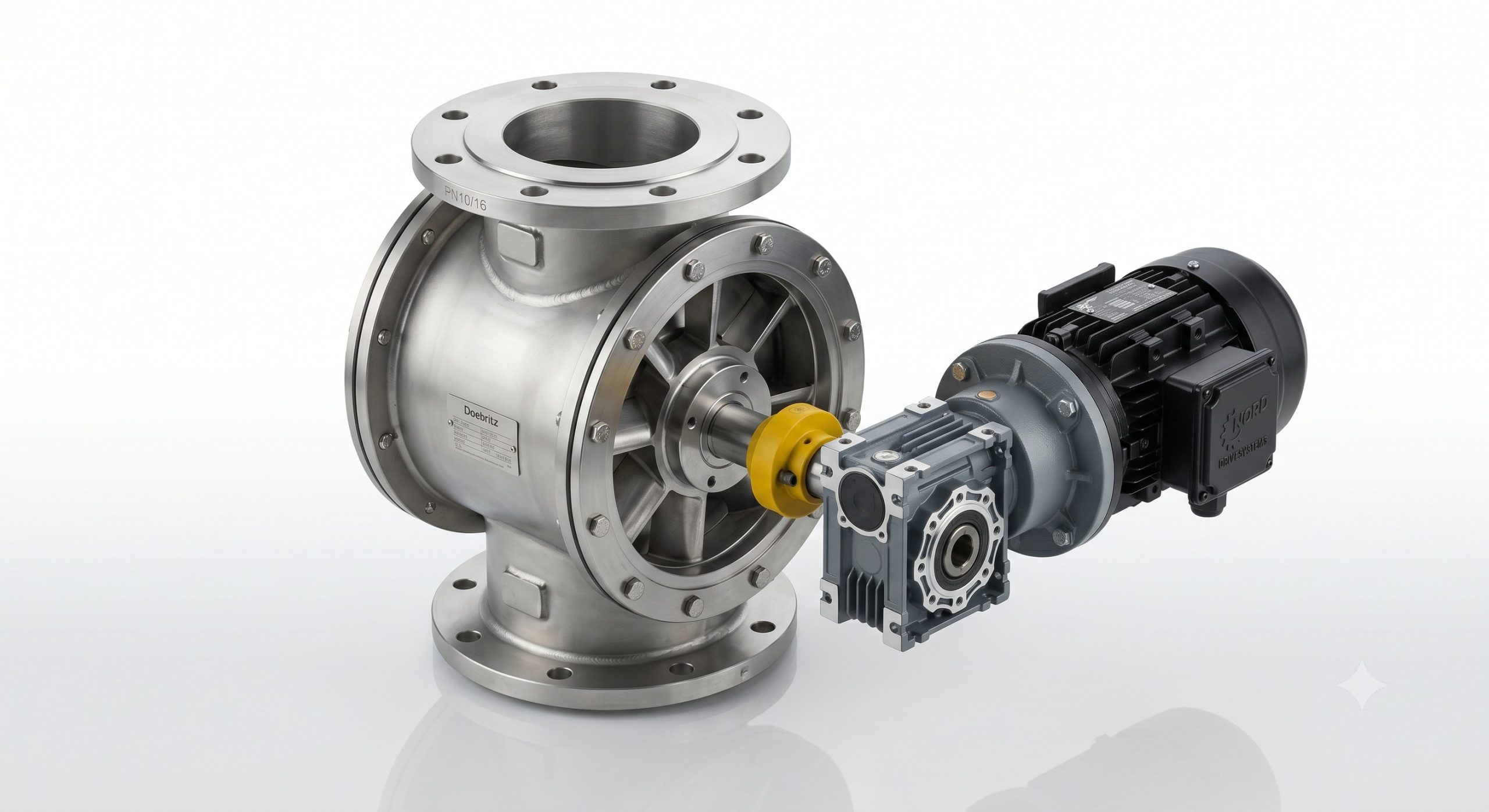

Doebritz presents the DBR-1237 series Milk Powder Airlock Feeder, a high-performance quick-release rotary valve engineered specifically for sanitary powder handling in dairy, food, and pharmaceutical processing lines. This gravity-fed rotary airlock delivers precision metering, minimal cross-contamination risk, and rapid disassembly without specialized tools. Designed to meet strict GMP and cleanroom standards (Class 10W/30W, Class C/D), the Doebritz Milk Powder Airlock Feeder ensures product integrity, traceability, and operational efficiency. Built upon Doebritz’s heavy-duty manufacturing foundation with CNC-machined clearances of 0.1–0.2mm, this valve guarantees exceptional airlock sealing and volumetric consistency.

Why Plant Engineers Choose Doebritz Milk Powder Airlock Feeder

• Minimal Air Leakage: Precision rotor-to-housing clearance (0.1–0.2mm) reduces pneumatic system energy loss by up to 30% compared to industry averages.

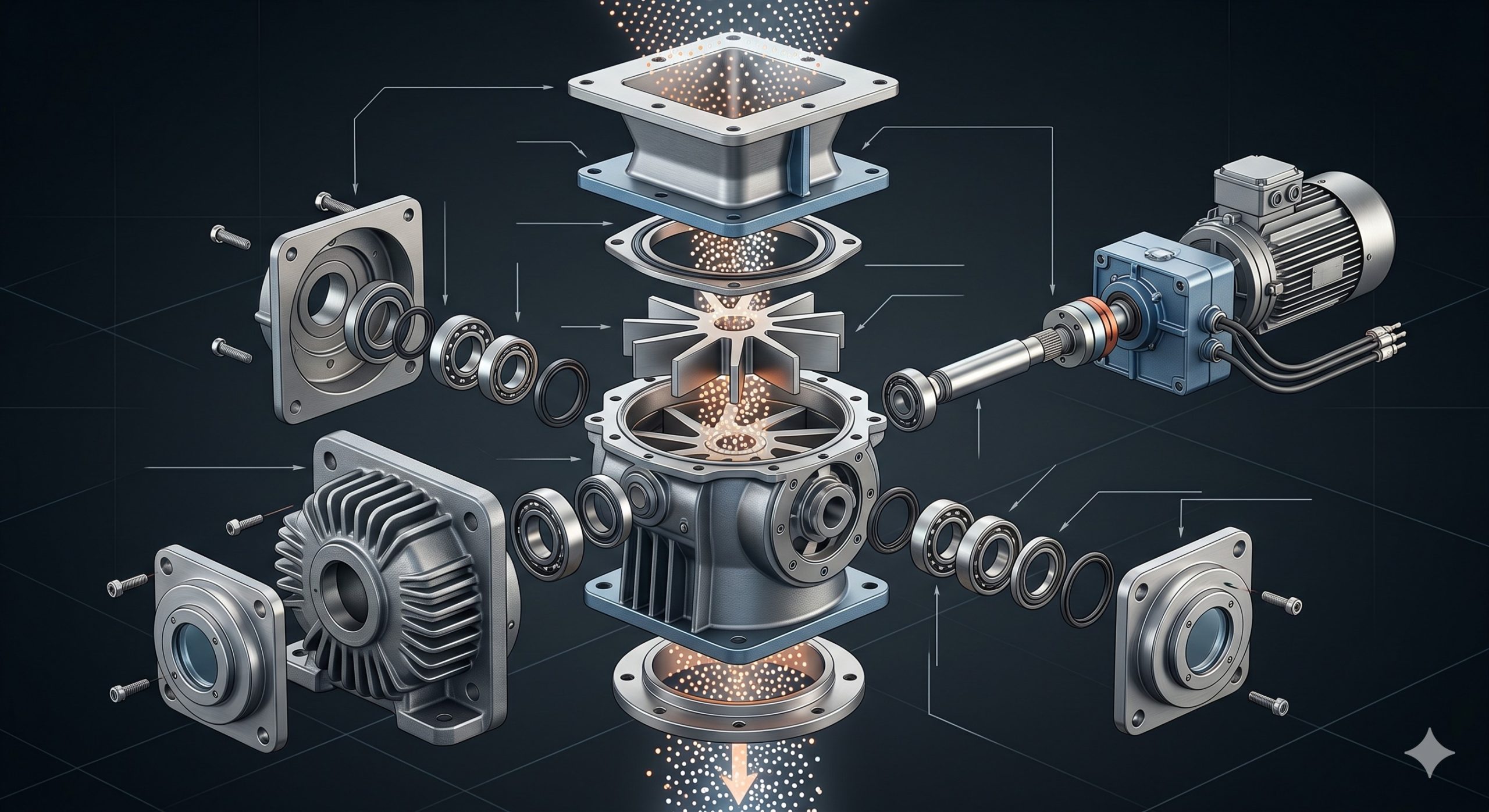

• Quick-Clean Demountable Design: Tool-free disassembly in under 5 minutes. Supports manual cleaning, online CIP, or WIP protocols. No dead zones, no cross-contamination.
• Sanitary Material & Finish: SUS316L contact parts with mirror polish (Ra≤0.4μm). FDA-compliant seals. Optional electropolished surfaces.
• ATEX-Ready Explosion Protection: Certified for Zone 20/21/22 dust environments. Flameproof housing rated to 16 bar. Explosion-proof motor optional.
• Global OEM Supply Capability: Doebritz provides full material traceability, 3.1 certification, and custom flange drilling (DIN/ANSI/JIS).

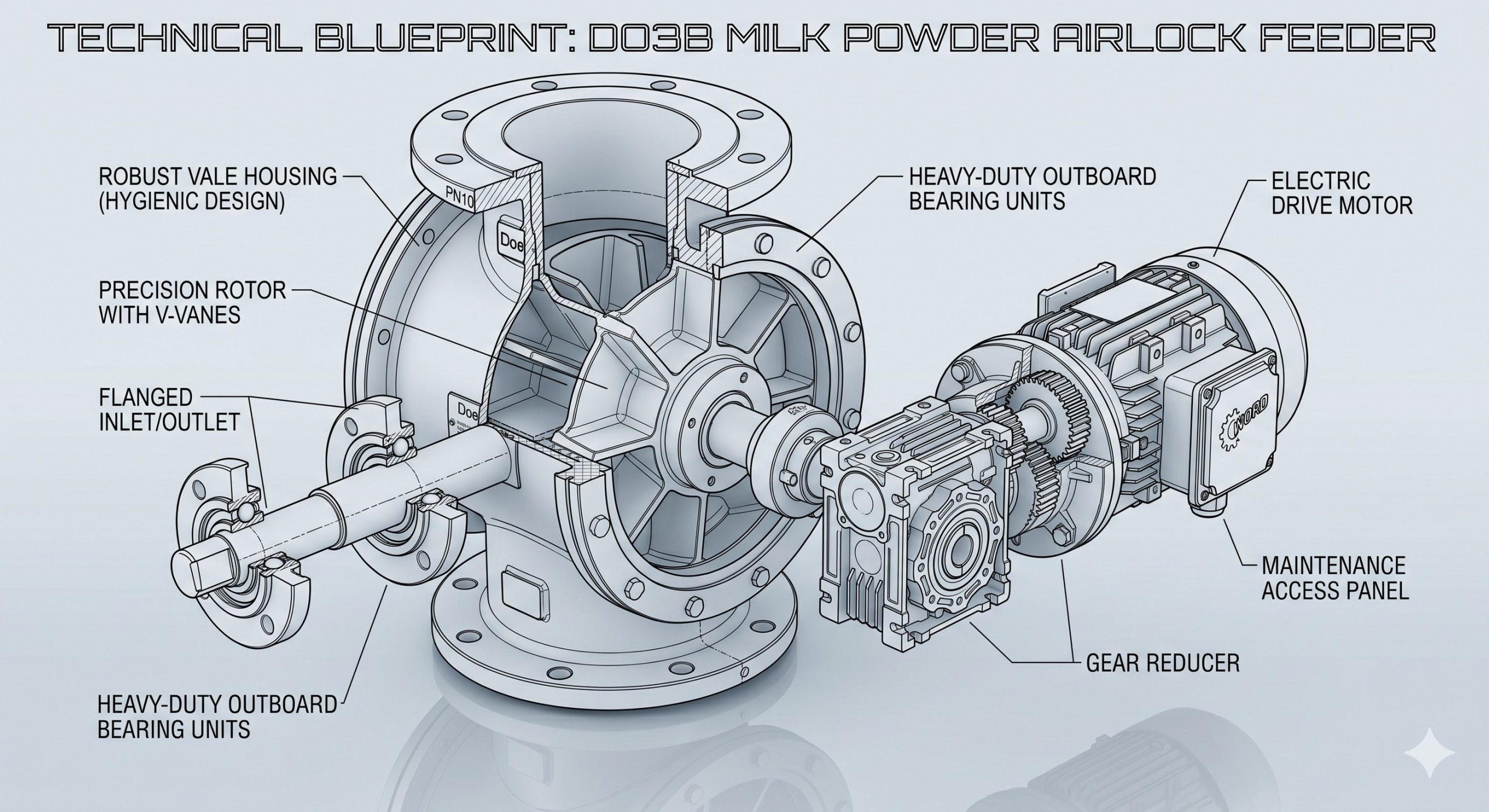

Housing & Rotor Engineering

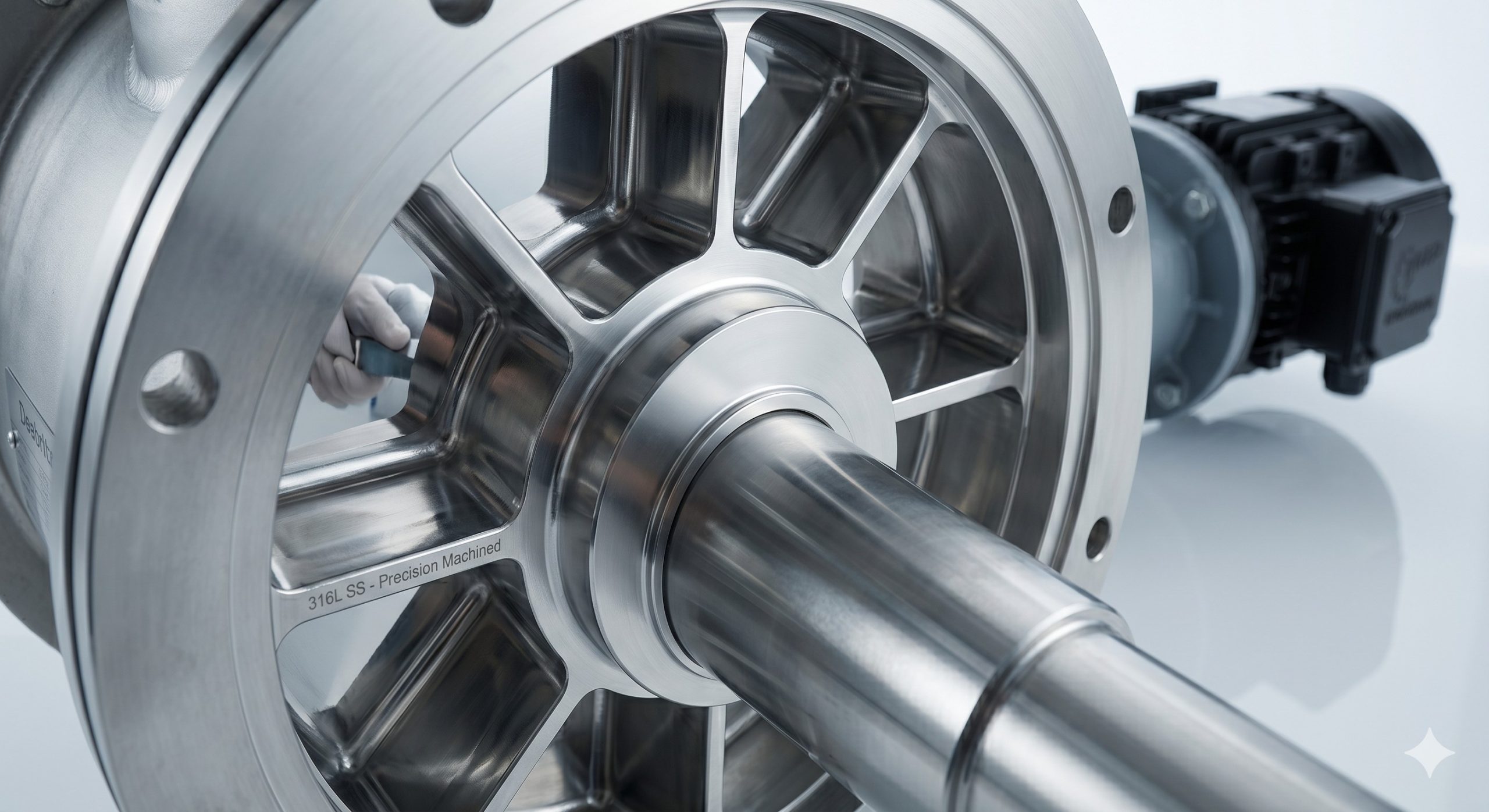

The Doebritz Milk Powder Airlock Feeder features a one-piece cast housing from SUS316L or SUS304 stainless steel, fully machined on CNC machining centers to maintain radial and axial tolerances within ±0.05mm. The rotor is an open-end or closed-end design with 6, 8, or 10 vanes, dynamically balanced to reduce vibration and noise. Outboard bearing housings isolate the bearing blocks from the product zone, preventing lubricant contamination. The shaft seal system combines lip seals with air purging option, ensuring zero powder migration to the atmosphere. For sticky or humid milk powder applications, a polished rotor and housing interior with Ra≤0.4μm mirror finish prevents material build-up and facilitates cleaning.

Technical Specifications

Below are factory-verified parameters for the Doebritz Milk Powder Airlock Feeder series. Custom configurations available upon request.

Specification	Detail
Brand & Model	Doebritz DBR-1237 Milk Powder Airlock Feeder
Body Material	SUS316L stainless steel (SUS304 / carbon steel optional)
Rotor Design	8-vane open rotor, precision machined, dynamically balanced
Rotor-to-Housing Clearance	0.1–0.2 mm (tighter tolerances on request)
Shaft Seal Type	Lip seal with air purge option
Inlet/Outlet Flange	DN150 (DN50 to DN350 available), HG20592 / DIN / ANSI / JIS
Pressure Range	Positive: up to 1 bar; Negative: down to -0.5 bar
Operating Temperature	Ambient: -15°C to 60°C; Material: 0°C to 120°C
Surface Finish (Internal)	Mirror polish Ra≤0.4μm (Ra≤0.8/1.6μm optional)
Explosion Protection	ATEX Zone 20/21/22 ready, flameproof to 16 bar
Cleanability	Quick-release disassembly, CIP / WIP compatible
Certifications	CE, TÜV, ATEX Statement
Typical Applications	Milk powder, whey powder, lactose, protein powder, starch

Heavy-Duty Application Scenarios

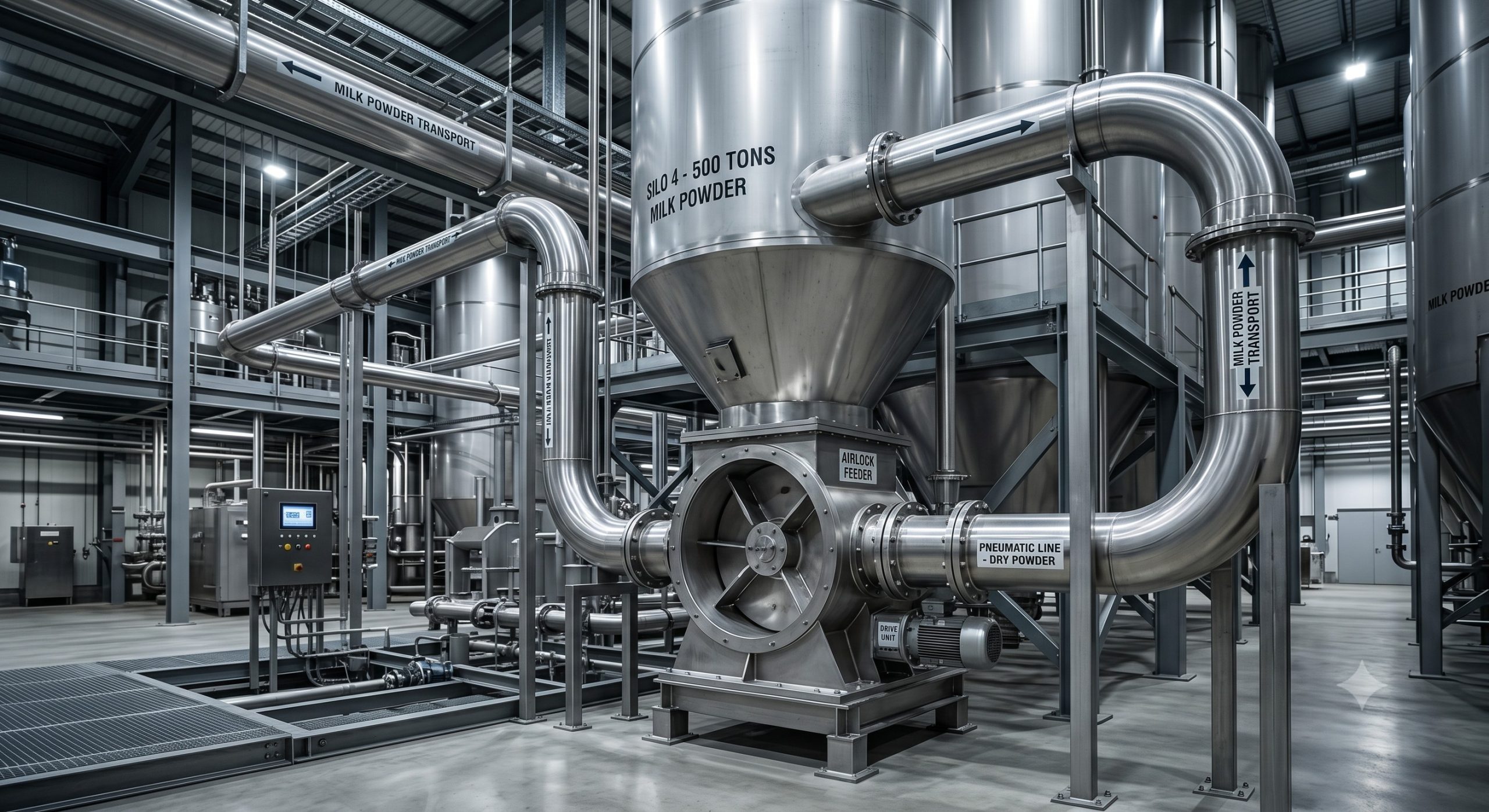

Sanitary Pneumatic Conveying Lines

Integrate the Doebritz Milk Powder Airlock Feeder into dilute or dense phase pneumatic conveying systems for奶粉, whey powder, protein powder, lactose, and starch. The low leakage design maintains stable differential pressure up to 1 bar (positive) or -0.5 bar (negative), preventing blowback and ensuring consistent material flow.

Gravity Discharge from Silos & Hoppers

Install directly under storage silos, day bins, or dust collectors. The quick-release cover allows rapid access for inspection or recipe changeover. Variable frequency drive (VFD) control enables precise metering for batching and blending operations.

Explosion-Protected Environments

For spray-drying towers or milling operations generating explosive milk powder dust, Doebritz offers ATEX Zone 20 certified airlock feeders with reinforced housing, earthing provisions, and temperature monitoring.

Global OEM Assurance & Supply Chain Advantages

Doebritz operates ISO 9001:2015 certified manufacturing with in-house CNC machining, robotic welding, and metrology labs. Every Milk Powder Airlock Feeder is hydrostatically tested and leak-checked before shipment. We provide:

• Material certificates EN 10204 3.1
• Surface roughness reports (Ra measurements)
• Factory acceptance test (FAT) protocols
• Custom branding and serialization
• Competitive lead times: 4–6 weeks for standard units, 2 weeks for emergency spares

Frequently Asked Questions

Q: What gap tolerance does the Doebritz Milk Powder Airlock Feeder maintain?

A: Standard rotor-to-housing radial clearance is 0.1–0.2mm, verified by go/no-go gauges on each assembled unit. Tighter clearances down to 0.08mm available for specialized low-leakage applications.

Q: Is the valve suitable for CIP cleaning?

A: Yes. The Doebritz sanitary design supports online CIP (Clean-in-Place) with smooth internal surfaces and no crevices. For full disassembly, the quick-release clamps enable tool-free access in minutes.

Q: Can I get ATEX certification?

A: Absolutely. Doebritz offers ATEX Zone 20/21/22 versions with flameproof construction (16 bar withstand), antistatic rotor, and certified motor. All ATEX valves include EC-type examination certificate.

Q: What flange standards are available?

A: Standard flanges per HG20592 (GB), optional DIN EN 1092-1 (PN10/PN16), ANSI B16.5 (150#), or JIS 10K. Custom drilling patterns accepted.

Q: What is the maximum operating temperature?

A: Standard configuration handles bulk material temperatures from 0°C to 120°C. For higher temperatures (up to 250°C), specify high-temperature seals and optional water-cooled end covers.
