Doebritz Direct-drive Rotary Valve: Cast Iron / Stainless Steel – Minimal Air Leakage
Doebritz Direct-drive Rotary Valve: Precision CNC machined housing, minimal air leakage (<0.5m³/h), ATEX certified. Cast iron/SS304 for heavy-duty silo discharging & pneumatic conveying. Request factory quote.

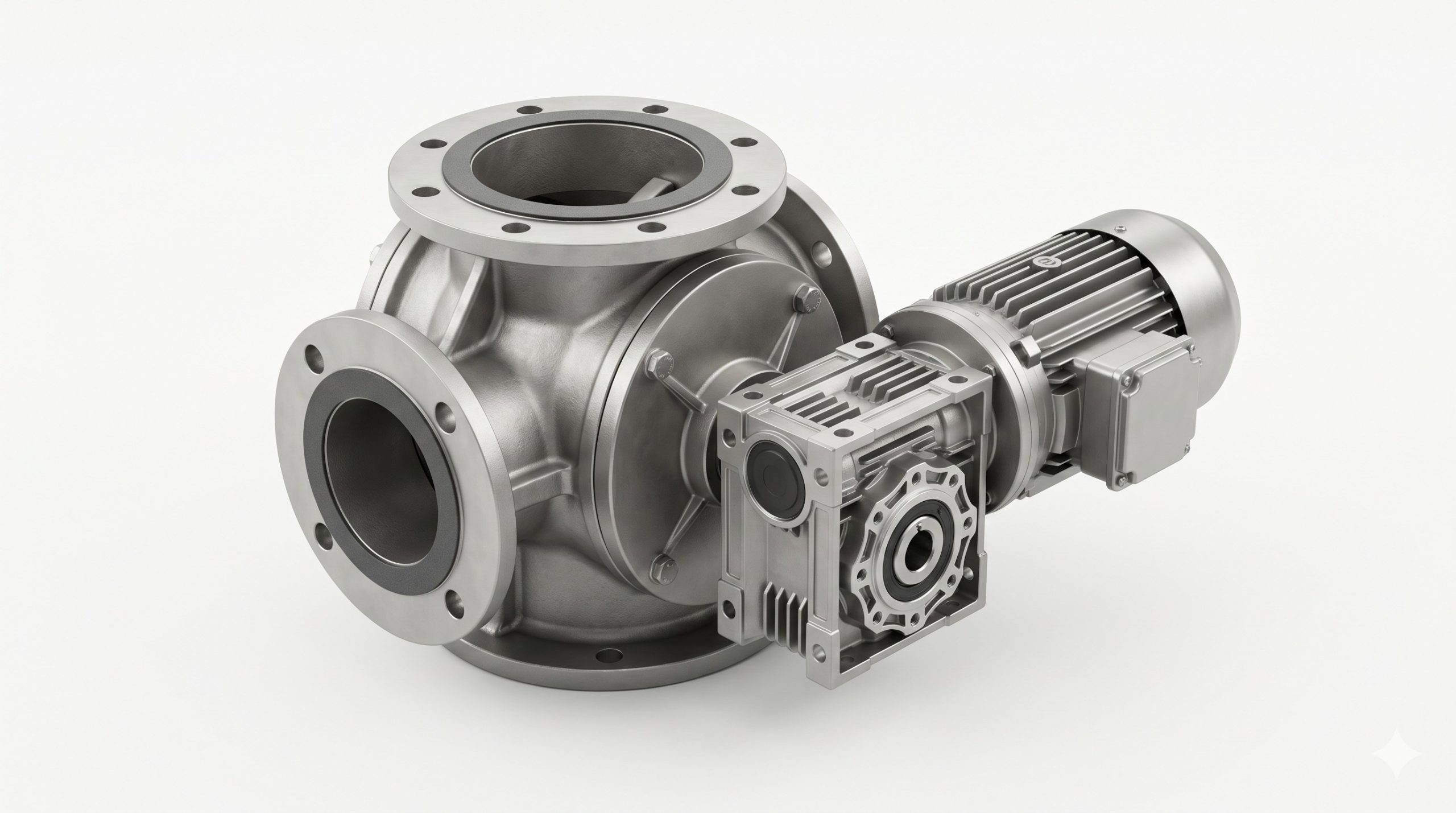

Executive Overview: Precision Metering & Robust Airlock Sealing
The Doebritz Direct-drive Rotary Valve is engineered as the critical airlock interface between material silos and high-speed pneumatic conveying lines. Designed for 24/7 heavy industrial throughput, this rotary feeder delivers superior volumetric efficiency with minimal rotor-to-housing clearances, a direct result of our 5-axis CNC machining and rigid Cast Iron / Stainless Steel 304 castings. Unlike chain-driven alternatives, the direct-drive configuration eliminates backlash and reduces maintenance points, ensuring consistent material feed in cement, chemical, and food processing plants.
Competitive Edge: Doebritz CNC Machining & Zero-Leakage Tolerance
Plant operators choose Doebritz for a singular reason: unmatched airlock integrity. Our in-house machining centers hold radial clearances as tight as ±0.05mm, drastically reducing system blow-by. This precision translates to lower pressure drop, higher conveying capacity, and reduced power consumption on your blower package. Every housing and rotor undergoes 100% CMM inspection, backed by full material traceability (EN 10204 3.1).
- Direct-Drive Efficiency: Helical-gear motor mounts directly to the rotor shaft, achieving >95% mechanical efficiency.
- Minimal Air Leakage: Tested leakage rates as low as 0.2 m³/h at 1 bar differential pressure (model dependent).
- ATEX Certified Option: Full compliance for Zone 20 (dust) and Zone 21/22, with flameproof housing and grounding kit.
- Global OEM Supply: Available with DIN/ANSI flanges, FDA-grade seals, and wear liners for abrasive materials.

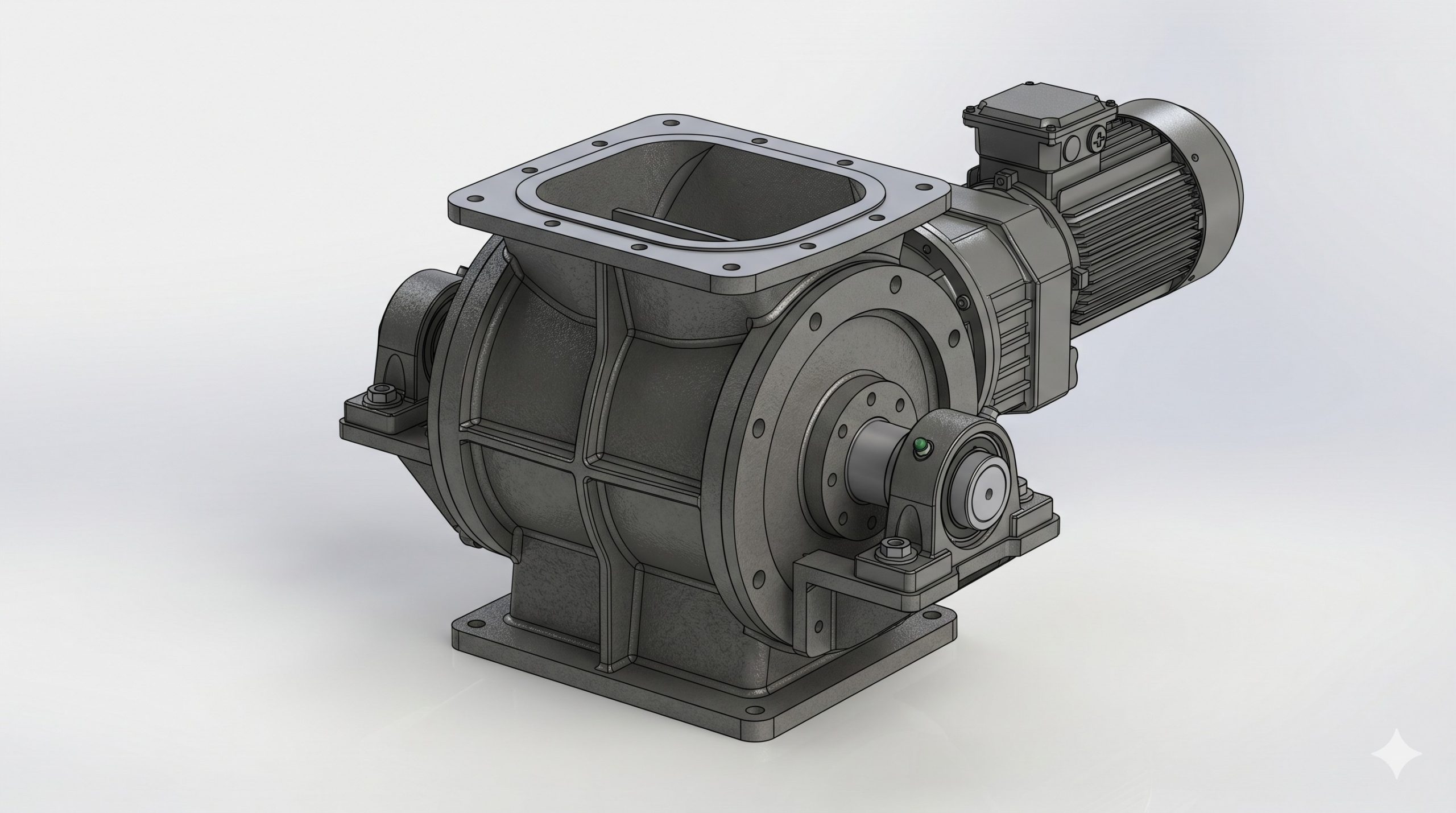

Housing & Rotor Engineering: Built for Abrasive & Corrosive Media

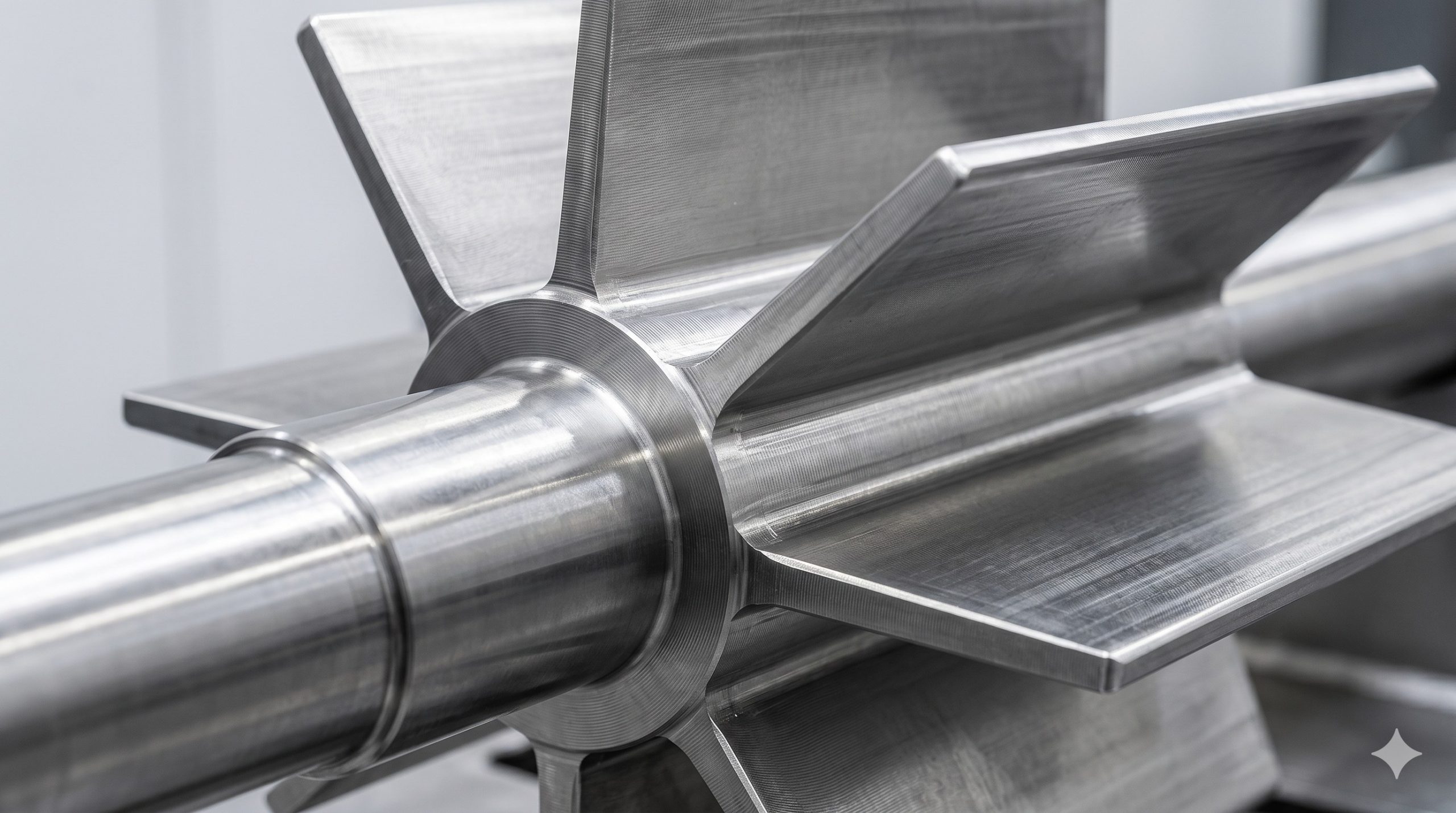

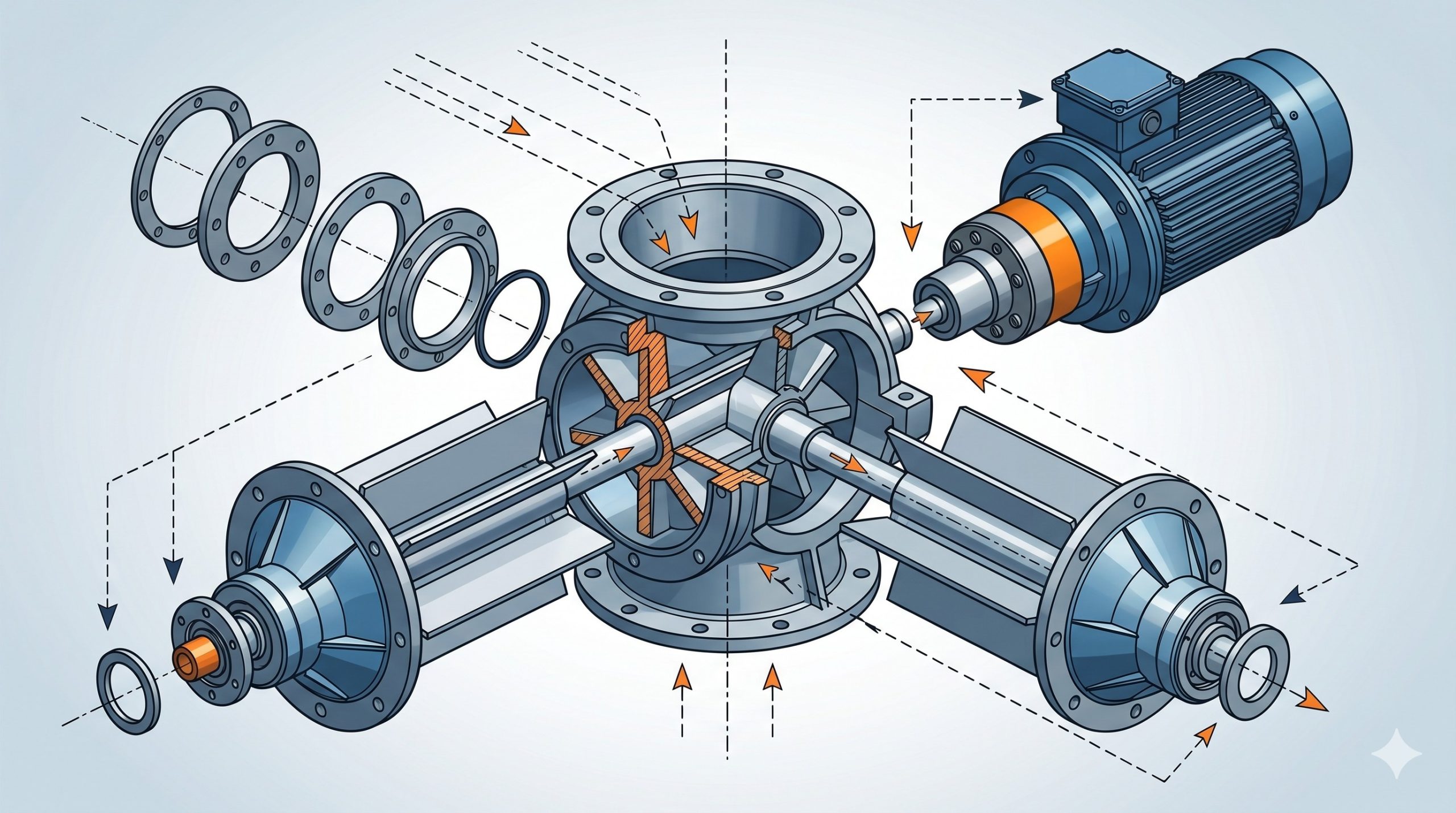

The Doebritz Direct-drive Rotary Valve starts with a one-piece cast housing (GGG40 ductile iron or AISI 316L stainless steel) featuring a thick-walled inlet and outlet to withstand flange bolt torque. The outboard bearing arrangement isolates the bearings from the product zone, preventing dust contamination and enabling high-temperature operations up to 250°C. Rotor options include 6, 8, 10, or 12 vanes, with an open-end or closed-end design for sticky powders. For extreme abrasion (e.g., fly ash, alumina), we fit Ni-Hard or Stellite-tipped vanes with replaceable wear plates.
Technical Specifications
Below are standard parameters for the Doebritz Direct-drive series. Custom bore sizes, gearmotor brands (SEW, Nord, Bonfiglioli), and explosion-proof motors are available upon request.
| Specification | Detail |
|---|---|
| Body Material | Cast Iron GGG40 / Stainless Steel 304 / Stainless Steel 316L |
| Rotor Design | 6, 8, 10, or 12-vane, open-end or closed-end |
| Inlet/Outlet Size | DN150, DN200, DN250, DN300, DN400 (DIN PN10 / ANSI 150#) |
| Max Differential Pressure | 1.5 bar (standard), 3.5 bar (HP series) |
| Operating Temperature | -20°C to +250°C (with high-temp seals) |
| Air Leakage (1 bar ΔP) | ≤ 0.5 m³/h (DN200, 8-vane, new condition) |
| Drive Type | Direct helical gearmotor, 380-460V, 50/60Hz, IE3 |
| ATEX Certification | II 2D Ex h IIIC T130°C Db (Zone 21/22), optional Zone 20 |
| Surface Finish | Machined raw casting or 240-grit polished (food/pharma grade) |
Target Industrial Pipelines: From Silo Discharge to Dense Phase
Pneumatic Conveying (Lean & Dense Phase)
The valve’s direct-drive setup provides instant torque response, critical for starting under load in dense-phase systems. With our optional pressure relief ports and purge connections, the Doebritz valve prevents material packing on the rotor tips, ensuring consistent blow cycles.

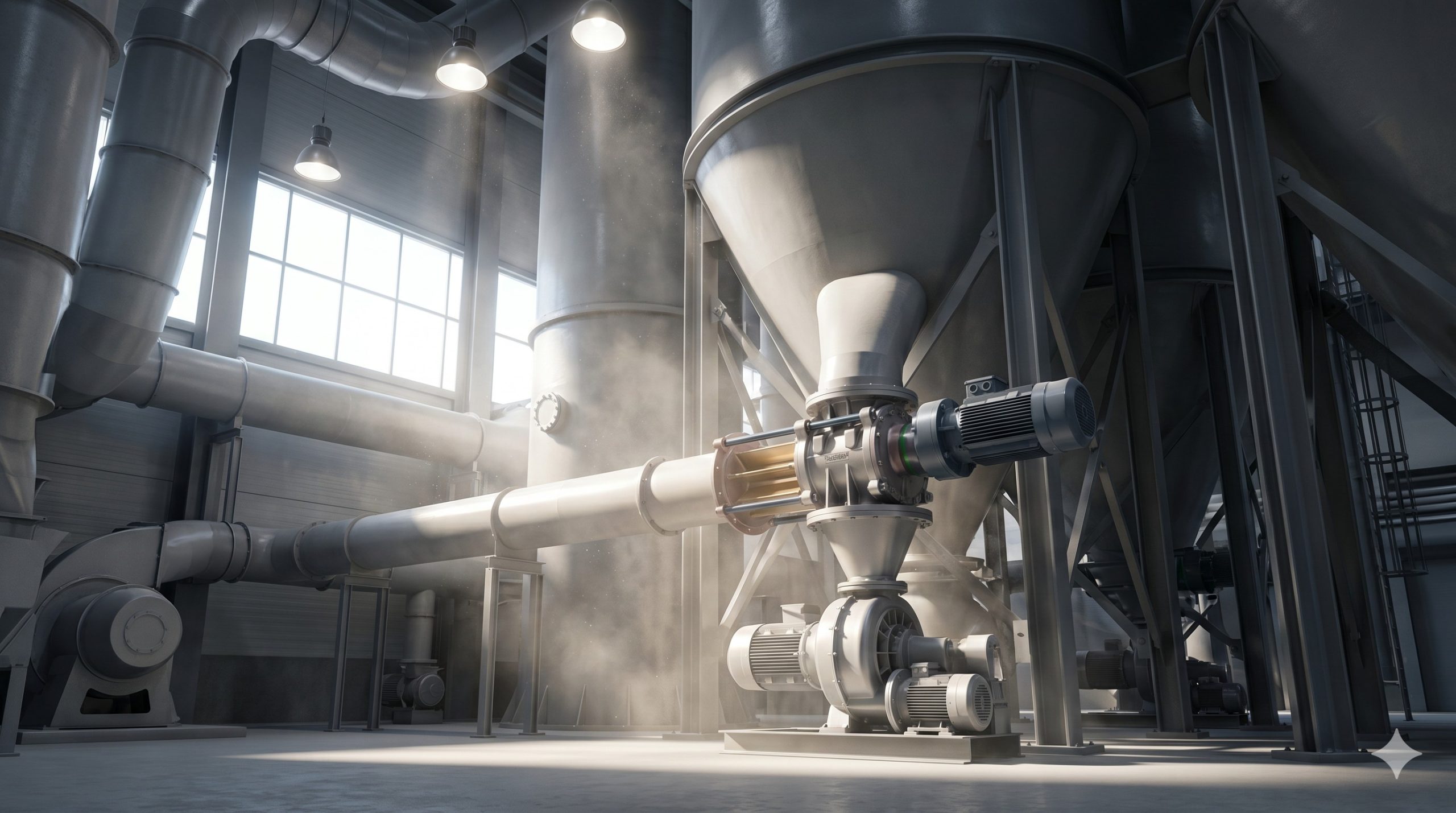

Silo Discharging & Dust Collector Airlocks
Mount the Doebritz Direct-drive Rotary Valve directly to your silo cone or dust collector hopper. The low-profile drive head minimizes headroom requirements, while the abrasion-resistant rotor maintains seal integrity even with Portland cement, plastic pellets, or lime powder.
Doebritz OEM Assurance & Global Logistics
As a top-tier heavy equipment manufacturer, Doebritz provides not just a component but a performance guarantee. Each valve is hydrostatically tested and dry-run on our test bench for leakage and vibration. We maintain a stock of common sizes (DN150 to DN400) for 5-day emergency shipment and offer full CAD models (STEP, IGES) for plant integration. Our technical team provides free sizing calculations based on your bulk density and conveying rate.
Frequently Asked Questions (B2B Procurement)
- What is the maximum differential pressure for the Doebritz Direct-drive Rotary Valve?
- Our standard housing withstands up to 1.5 bar differential. For high-pressure pneumatic conveying up to 3.5 bar, specify the ‘HP’ series with reinforced endplates and PTFE lip seals.
- Can I replace an existing chain-driven valve with this direct-drive unit?
- Yes. The Doebritz direct-drive has the same flange footprint as common European and Asian rotary valves (DIN/ANSI). However, we recommend sharing your existing bolt pattern drawing for guaranteed fitment.
- How do you achieve minimal air leakage with abrasive powders?
- We combine CNC-machined rotor tips with a replaceable housing liner. The liner creates a sacrificial wear surface, maintaining tight clearance even after extended abrasive service. No seal strips to replace.
- What certifications do you provide for global projects?
- Doebritz provides EN 10204 3.1 material certs, ATEX Ex h IIIC T130°C Db, CE marking, and CRN registration for Canada. Third-party inspection (SGS, BV) is available at cost.
- What is the lead time for a custom stainless steel unit with ATEX?
- Standard non-ATEX cast iron: 2-3 weeks. ATEX SS304 with special rotor: 5-6 weeks. Air freight is optional for urgent mining or chemical plant shutdowns.
