Doebritz Adjustable Blade Rotary Valve: Cast Iron / Stainless Steel – Minimal Air Leakage & ATEX Ready

Executive Overview: Next-Generation Rotary Valve Technology

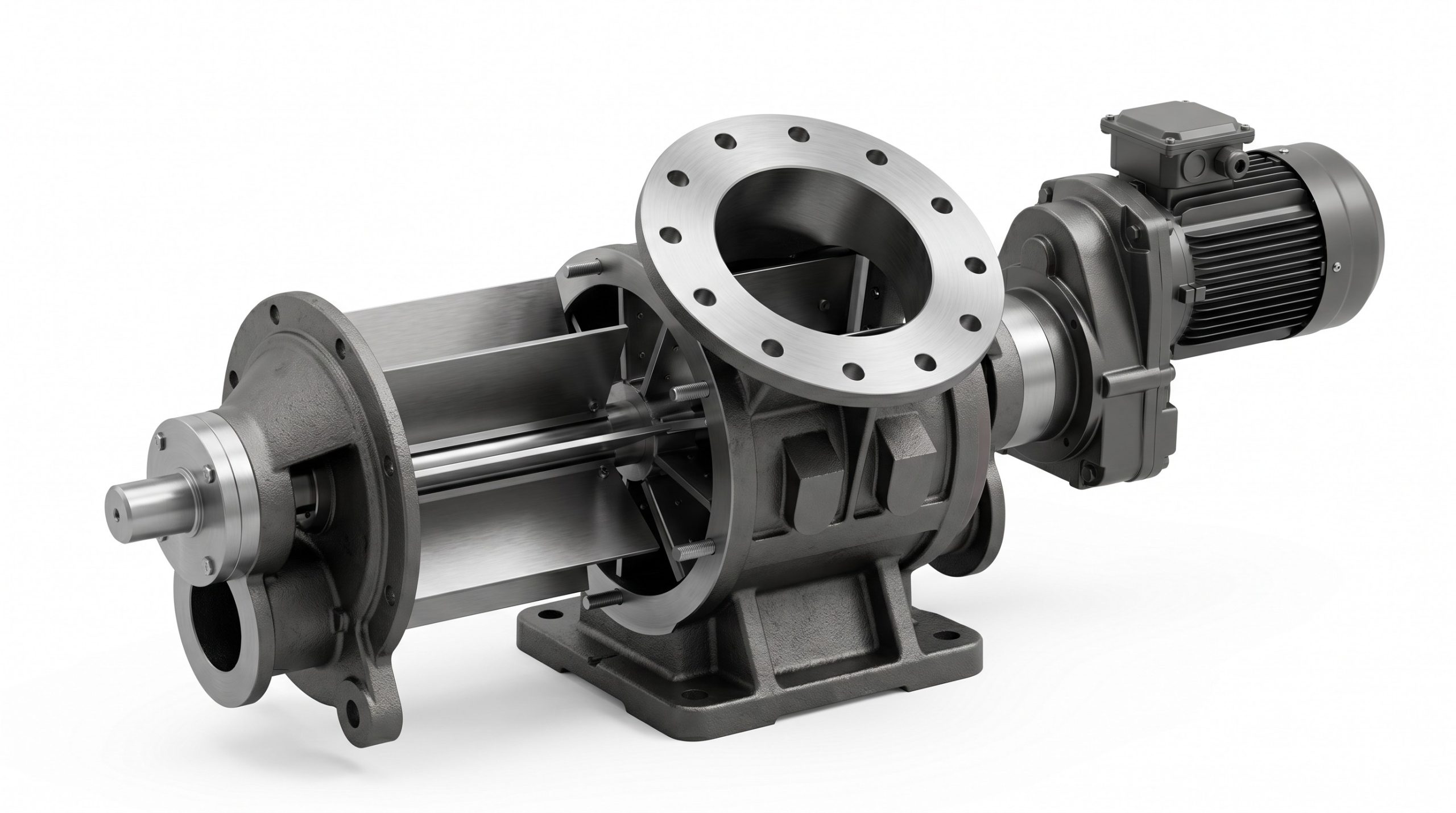

The Doebritz Adjustable Blade Rotary Valve is engineered for plant operators who demand uncompromising airlock efficiency, extreme wear resistance, and process safety. Unlike conventional fixed-blade designs, the adjustable blade mechanism allows field calibration of tip-to-housing clearance, ensuring sustained volumetric efficiency even after prolonged abrasive service. Built on Doebritz‘s heavy-duty manufacturing legacy—featuring 5-axis CNC machined housings, outboard bearing supports, and ATEX Zone 20/21 certification—this valve delivers the lowest total cost of ownership in severe-duty pneumatic conveying, silo discharging, and dust collector applications.

Competitive Edge: Doebritz CNC Machining & Ultra-Low Leakage

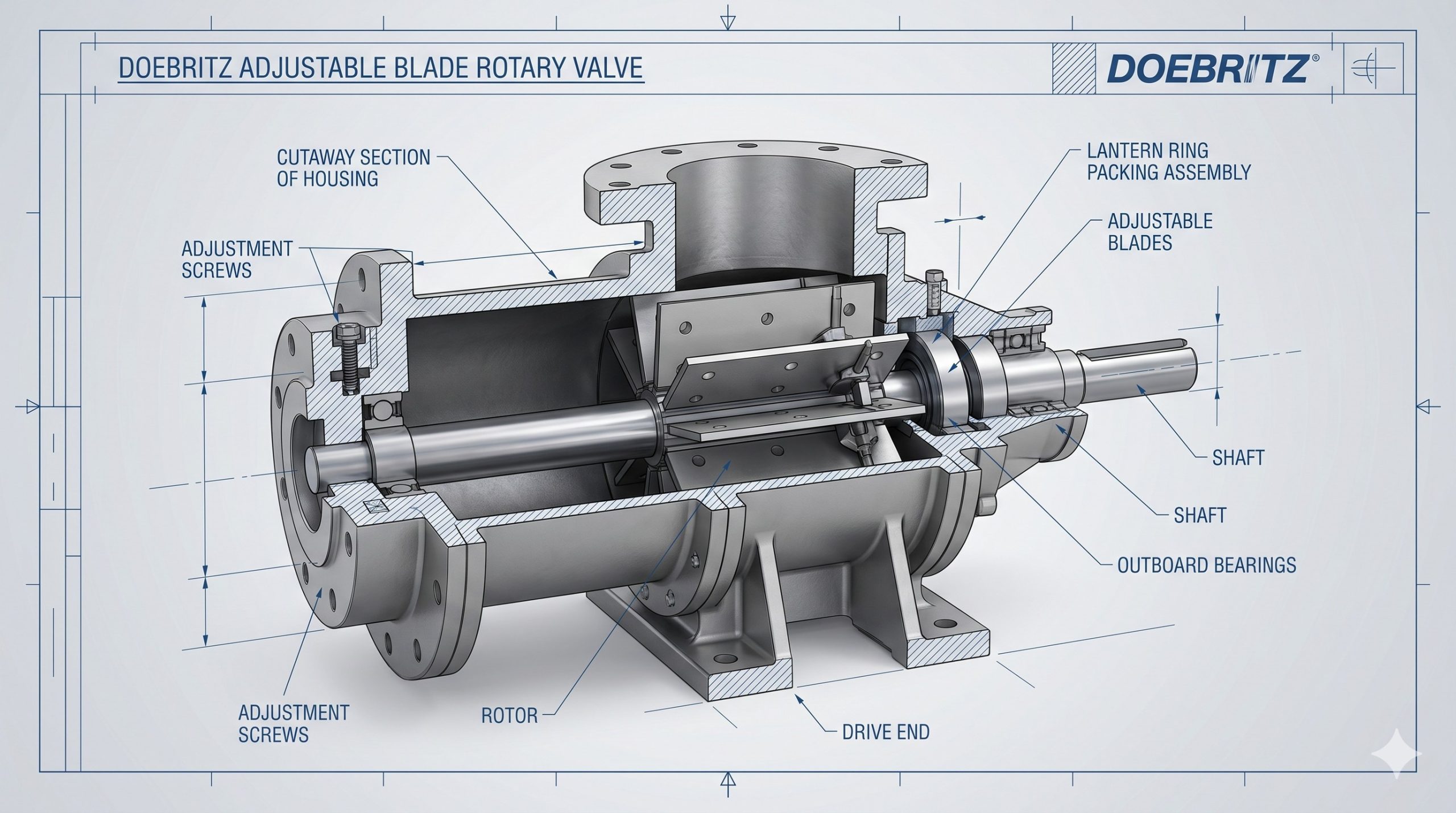

Every Doebritz Adjustable Blade Rotary Valve begins as a precision-cast or billet housing, machined on Doebritz‘s owned DMG MORI 5-axis machining centers. This ensures roundness tolerances within H8 and surface finishes down to Ra 0.8 μm. The adjustable blade rotor, manufactured from wear-resistant cast iron or stainless steel 316L, features radially adjustable tips that achieve a consistent gap of ≤0.10 mm to the housing bore. The result is documented pressure leakage of less than 0.25 m3/h at 0.5 bar differential—critical for maintaining system pressure and preventing blowback. All units undergo 100% helium leak testing before shipment.

Superior Housing Metallurgy & Shaft Sealing Subsystem

The valve housing is available in heavy-duty cast iron (GG25 / ASTM A48 Class 35) or investment-cast 316L stainless steel for food, chemical, and corrosion-prone environments. For extreme abrasives—such as cement, fly ash, or alumina—Doebritz offers Ni-Hard 4 housings with chromium carbide overlay. The shaft sealing system is fully customizable: standard packing with lantern ring and air purge, mechanical seals for high differential pressure (up to 2.5 bar), or double lip seals for sanitary applications. Outboard bearing supports isolate the bearings from the material flow, extending MTBF beyond 30,000 hours in continuous duty.

Verified Technical Parameters

Below specifications represent the standard Adjustable Blade model. For custom flange configurations (DIN, ANSI 150/300, JIS), higher temperature ratings (up to 450°C), or explosion-proof gearmotors, consult Doebritz factory application engineering.

Specification	Detail
Body Material	Cast Iron GG25 / 316L Stainless Steel / Ni-Hard 4
Rotor Design	Adjustable Blade, 8-Vane or 12-Vane, H8 tolerance
Inlet/Outlet Size	DN150 to DN500 (6‘’ to 20‘’) round or square
Volumetric Capacity	0.5 – 80 m³/h (at 20 rpm typical)
Max Differential Pressure	0.5 bar standard, 2.5 bar with mechanical seal
Temperature Range	-20°C to +250°C (standard) / +450°C (high-temp version)
Leakage Rate	<0.25 m³/h at 0.5 bar differential (helium tested)
Certifications	ATEX II 1/2 D c T4, CE, FDA compliant (SS316L version)
Bearing Type	Outboard-mounted, sealed for life, ISO L10 >50,000 hrs

Target Industrial Pipelines & Heavy-Duty Applications

Pneumatic Conveying (Dilute & Dense Phase)

The Adjustable Blade rotor geometry minimizes particle degradation while maintaining consistent feed rates from 0.5 to 80 m3/h. Suitable for polyethylene pellets, limestone powder, carbon black, and sugar.

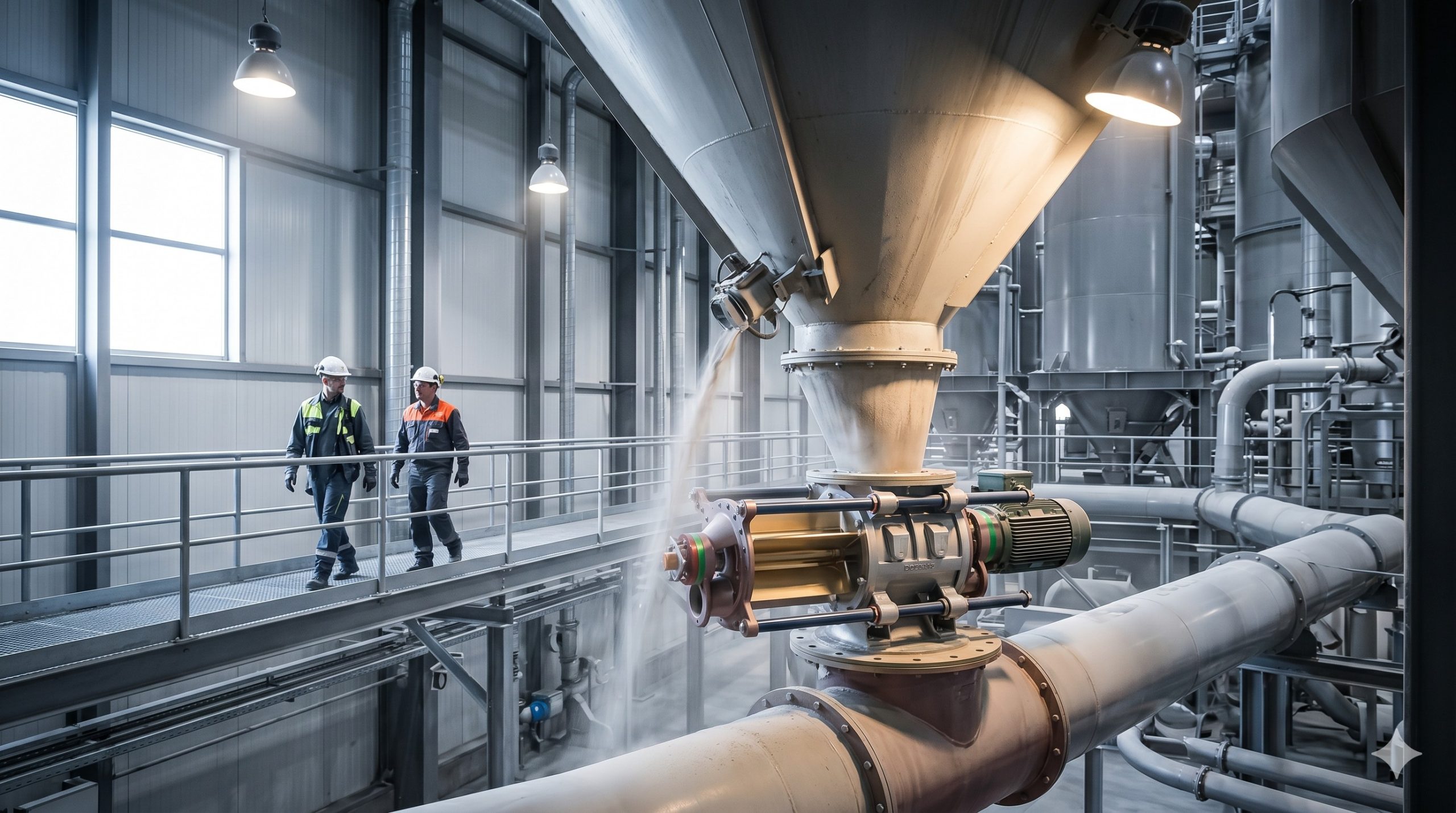

Silo Discharging & Dust Collector Airlocks

Prevent bridging and rat-holing with the swept-back blade design. ATEX certified construction (II 1/2 D c T4) allows installation in Zone 20/21 hazardous dust atmospheres.

Doebritz Global OEM Assurance

Doebritz combines German engineering discipline with agile global supply chain advantages. All valves are machined and assembled in Doebritz-owned ISO 9001:2015 certified facilities. Typical lead time for standard materials (cast iron / 316L) is 15 working days; express 7-day service available for plant shutdown emergencies. Every unit includes a 24-month warranty against manufacturing defects. Doebritz provides full material test reports (EN 10204 3.1), NDT reports (dye penetrant or radiography as required), and CAD models (STEP, IGES) for system integration.

B2B Procurement Q&A

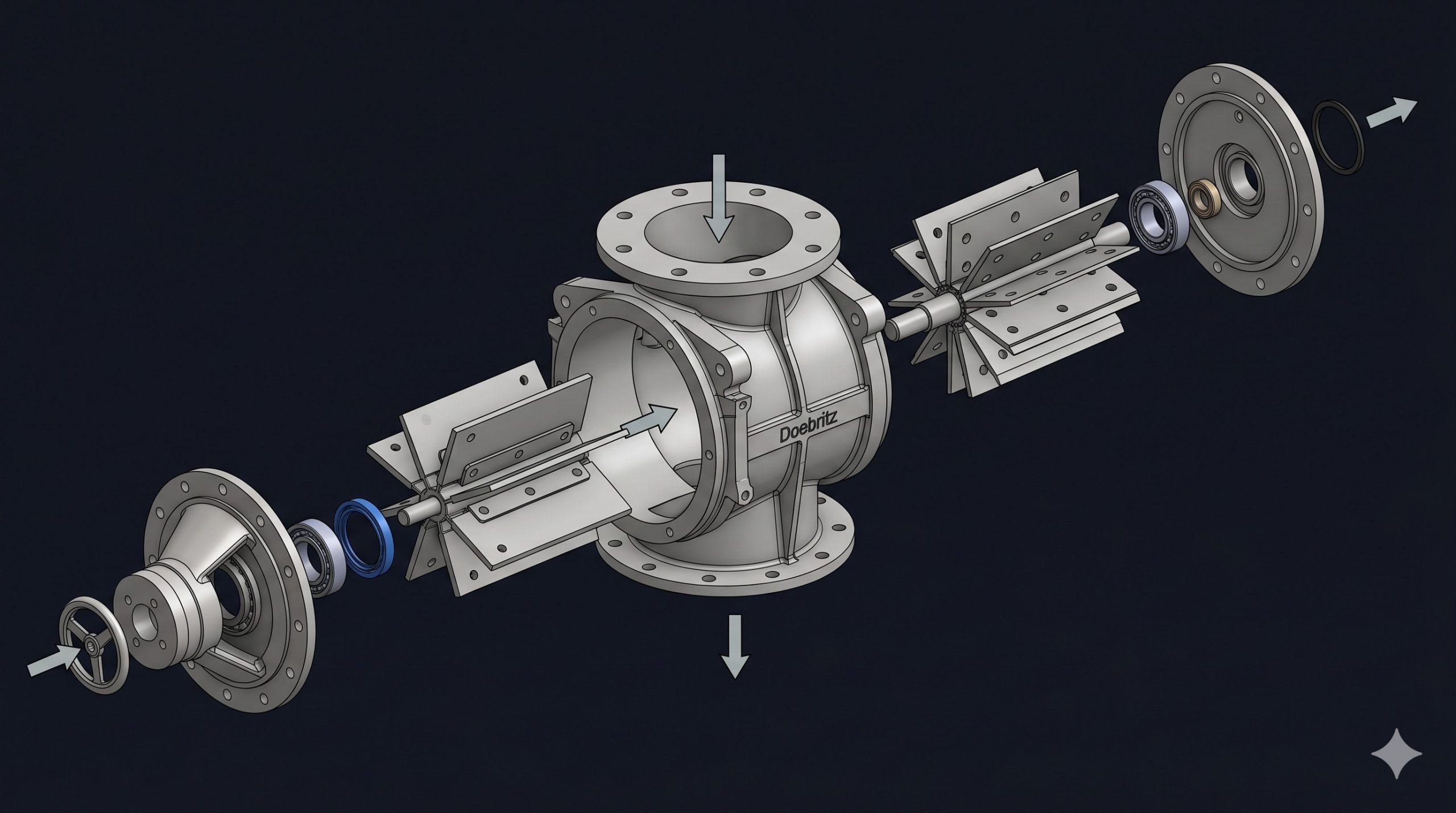

What is the adjustable blade advantage over standard rotary valves?

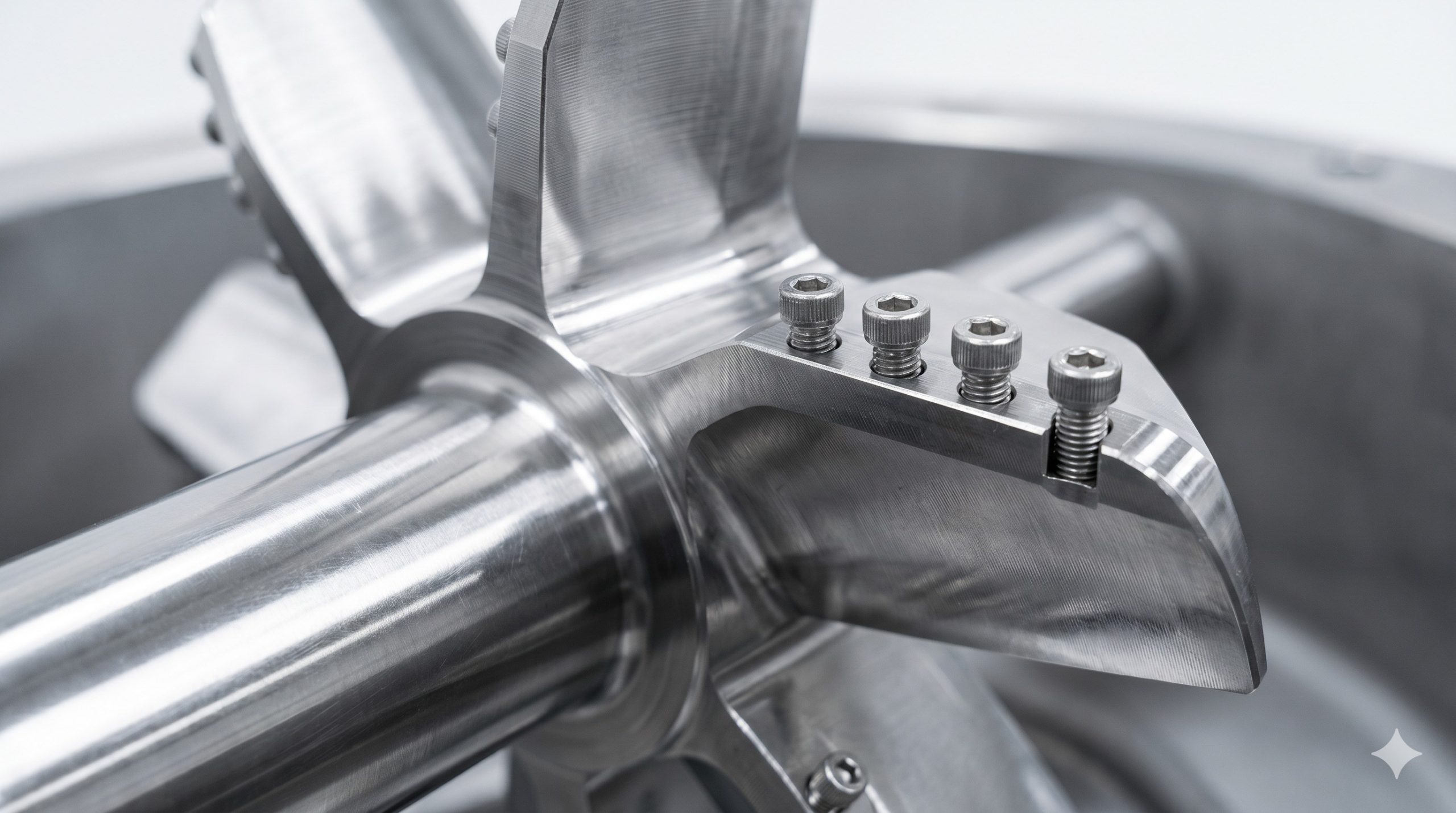

Over time, abrasive materials erode fixed-blade edges, increasing leakage and reducing throughput. Doebritz’s adjustable blades allow on-site re-calibration to restore factory clearance (≤0.10 mm), prolonging efficient service life by up to 300% before replacement.

Is the Adjustable Blade Rotary Valve ATEX certified?

Yes. Doebritz offers ATEX Zone 20/21 (dust) and Zone 1/2 (gas) certified versions, with flameproof construction and documented temperature class T4 (135°C). Certification includes full documentation for plant safety compliance.

What materials are available for abrasive applications?

For cement, fly ash, or alumina, Doebritz recommends Ni-Hard 4 housing with through-hardened stainless steel adjustable blades. Hardfacing (Stellite or tungsten carbide) can be applied to blade edges for extreme wear life exceeding 10,000 hours.

Can flanges be customized to existing piping?

Absolutely. Doebritz machines flanges to DIN, ANSI 150/300, JIS, or custom bolt hole patterns. Round or square inlet/outlet configurations available. Provide your drawing or existing valve dimensions for rapid match.

What drive options are supported?

Doebritz offers direct-mounted gearmotors (SEW, Nord, or equivalent), IEC flanged motors with chain drive, or hydraulic drive inputs. Variable frequency drive ready with encoder mounting provisions.
