Doebritz DBR-1237 Heavy-Duty Powder Metering Valve | ATEX Zone 20/21 Certified Rotary Airlock with Minimal Leakage

Industrial-Grade Feeding & Metering Solutions: The Doebritz DBR-1237

For heavy-duty processing environments where precision, durability, and safety are non-negotiable, the Doebritz DBR-1237 heavy-duty powder metering valve delivers an unparalleled combination of robust engineering and operational excellence. Engineered to withstand the punishing demands of continuous abrasive and corrosive material handling, this star discharge valve ensures highly accurate volumetric metering, minimal air leakage, and seamless integration into both pneumatic conveying and gravity discharge systems. Backed by Doebritz’s stringent quality assurance and global OEM supply chain, the DBR-1237 is the definitive solution for plant managers seeking to optimize throughput and reduce total cost of ownership.

Why Plant Sourcing Chooses Doebritz DBR-1237 (Minimal Leakage)

• Precision Locking & Minimal Leakage: Our advanced CNC machining processes achieve an exceptionally tight rotor-to-housing clearance of 0.1–0.2mm. This extreme precision drastically reduces air bypass, ensuring stable system pressure in both positive and negative pressure conveying lines and delivering highly efficient, consistent meter outputs.
• Built for Extreme Wear & Corrosion: The DBR-1237 series is manufactured with a wide range of robust materials, including premium SUS304 and SUS316L stainless steel, hard-wearing carbon steel, and is available with highly durable surface coatings. These include tungsten carbide, ceramic, and specialized polymer layers, providing exceptional resistance to abrasive powders like carbon black, lithium battery materials, and fine chemicals, thus extending operational lifespan and preserving the integrity of your production.
• Comprehensive ATEX & Safety Compliance: Doebritz prioritizes operational safety with the DBR-1237. The valve is fully certified for ATEX Zones 20, 21, and 22. For explosion-proof and flameproof applications, it features a robust 16bar pressure-resistant design, an explosion-proof motor, and precision-engineered spark-resistant internal clearances, ensuring maximum safety in potentially explosive dust atmospheres.
• Accurate Metering & Intelligent Control: Engineered for versatility, this metering valve supports variable frequency drives (VFD) and integrates seamlessly with PLC-based automation systems. This allows for exacting flow rate control, precise batch and recipe metering, and fully automated配料, enhancing process efficiency and product consistency.

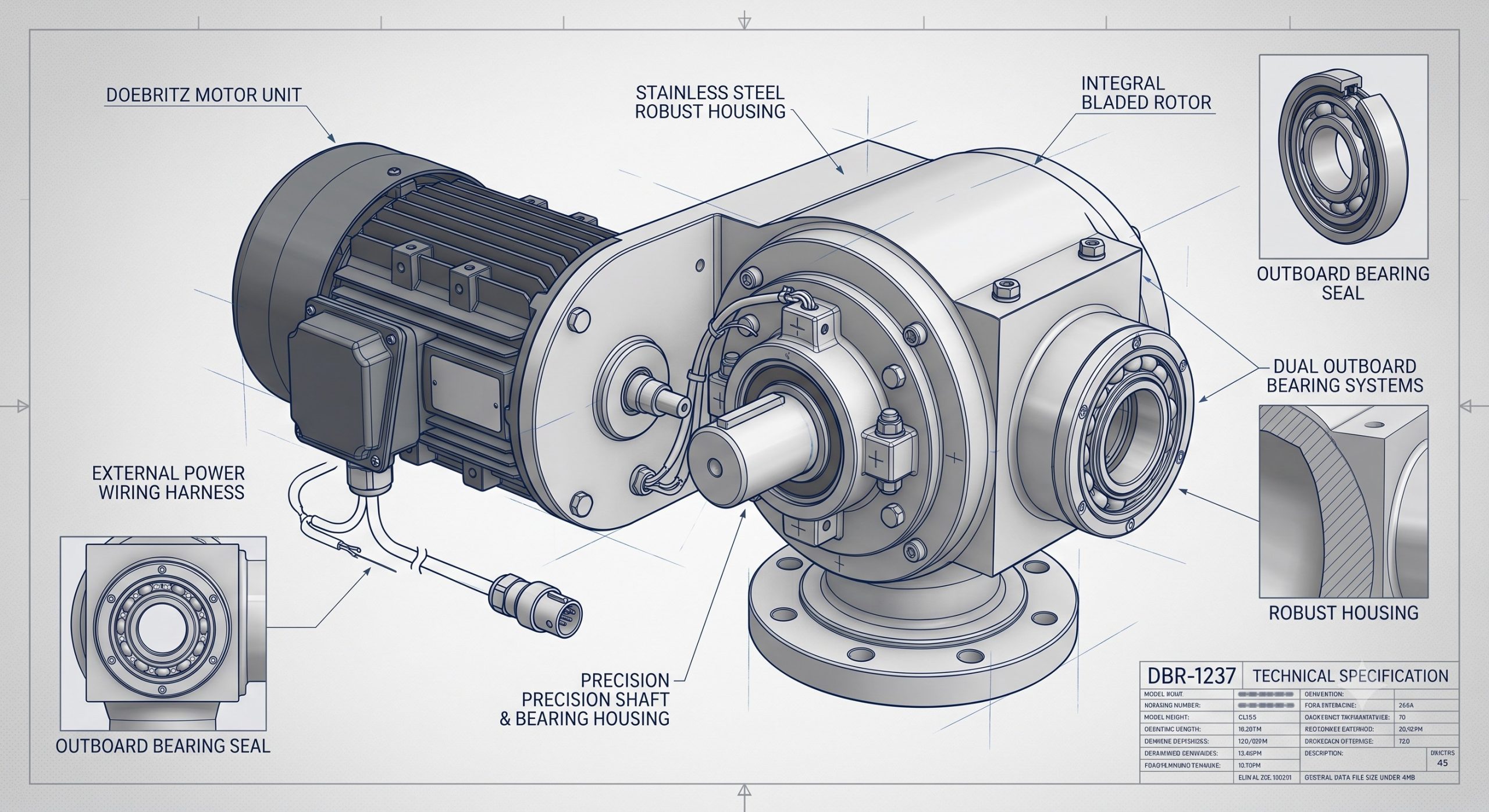

Housing & Rotor Engineering: The Doebritz Quality Benchmark

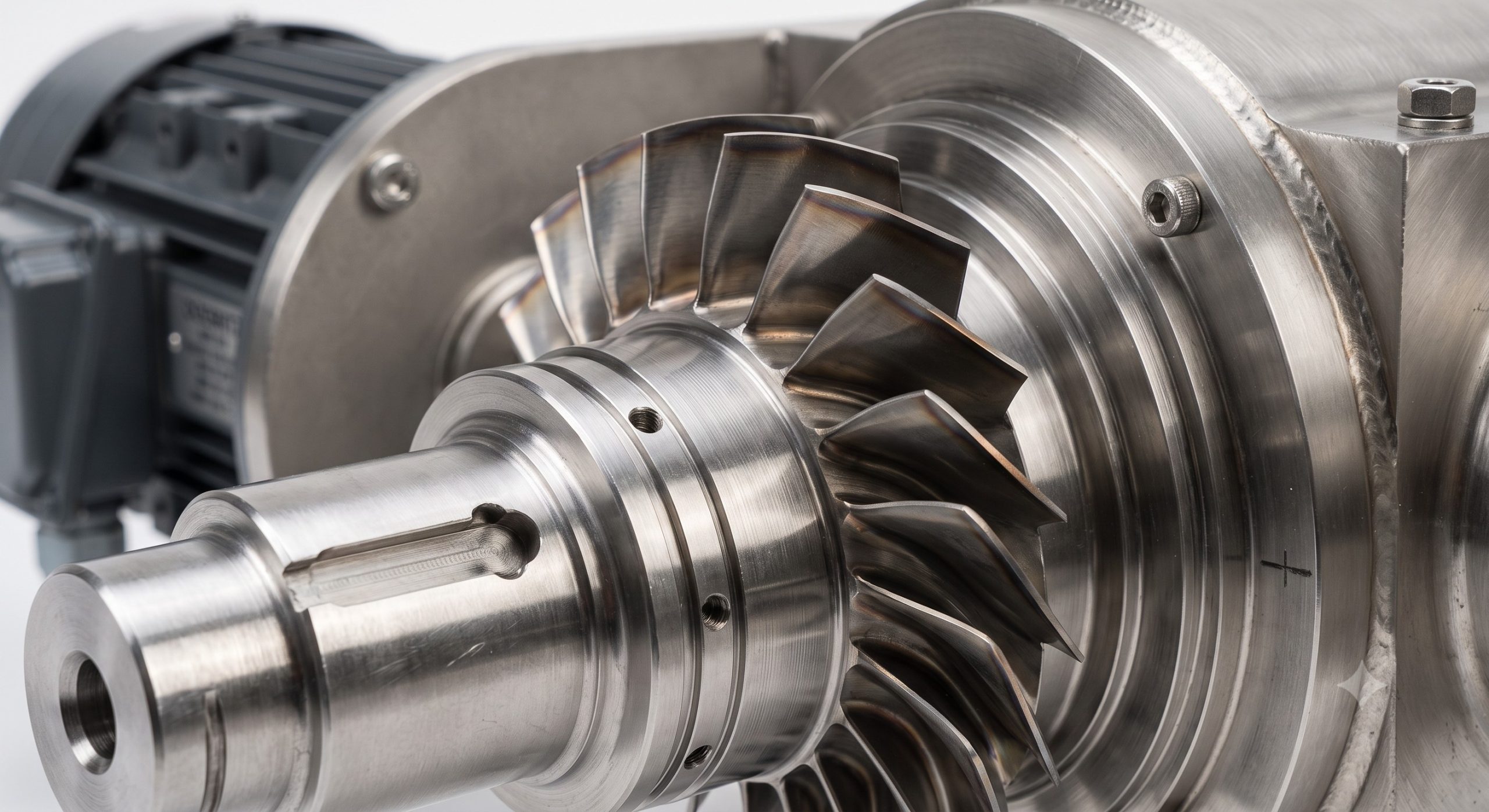

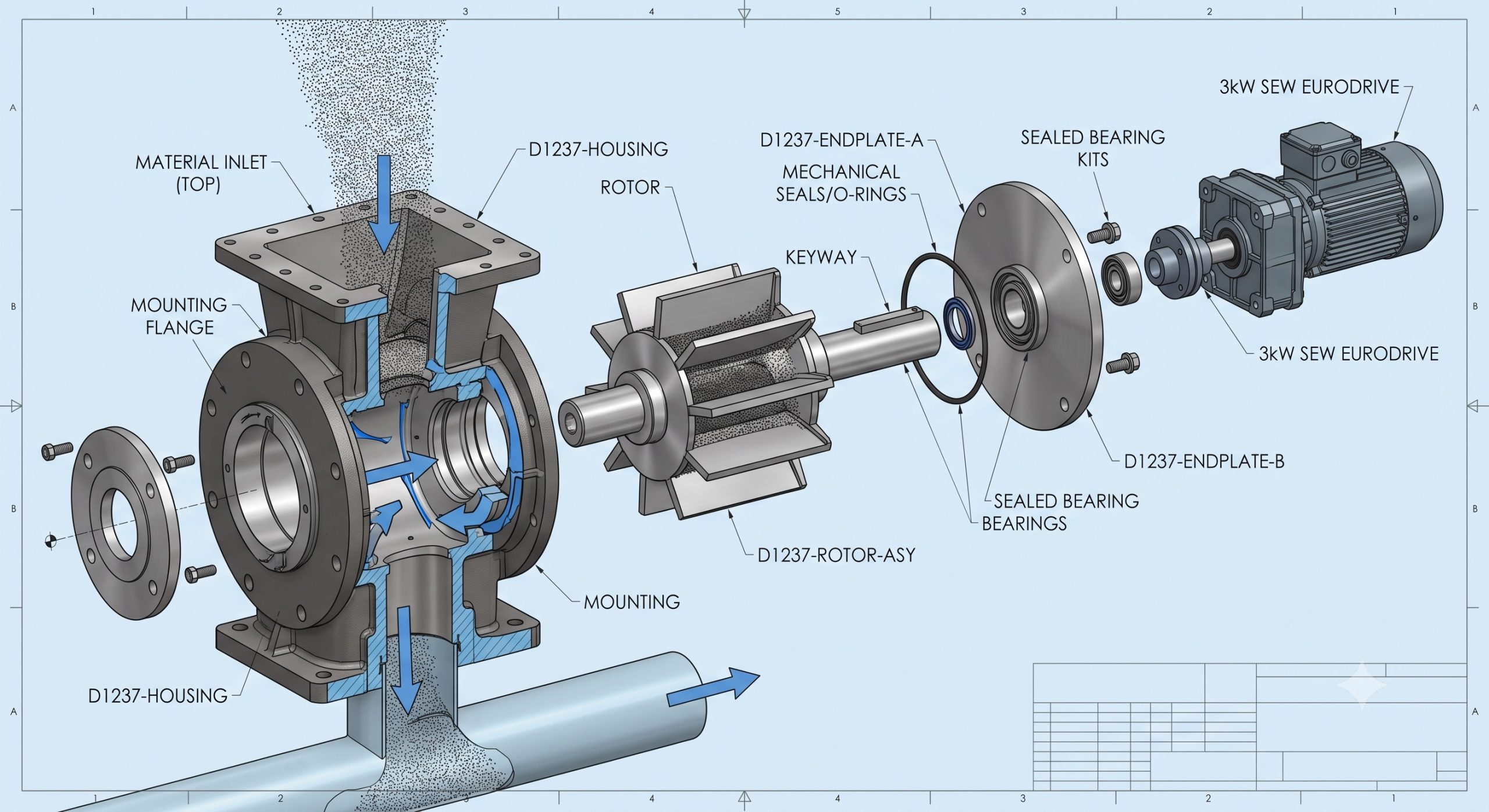

The DBR-1237’s superior performance stems from its sophisticated design and the use of premium materials. The housing is manufactured from high-grade castings or fabricated from solid material plates, offering superior rigidity, vibration damping, and dimensional stability. The rotor features robust, precision-machined vanes designed to handle high volumetric capacities while maintaining consistent clearance and minimal leakage. For the most demanding applications, optional water-cooled jackets can be integrated to manage high material temperatures up to 120°C, ensuring reliable operation even under extreme thermal stress.

With a comprehensive selection of flange standards, including the widely accepted HG20592, and customization options for DIN and ANSI flanges, the DBR-1237 is engineered for seamless integration into any existing industrial pipeline infrastructure. Its highly durable outboard bearing design and advanced shaft sealing options, including air-purged lip seals, provide enhanced reliability and significantly extend maintenance intervals.

Technical Specifications

Below are the key engineering parameters for the Doebritz DBR-1237 Heavy-Duty Metering Valve. These values represent the precision and capability of a premium manufacturing process.

Specification	Detail
Model	Doebritz DBR-1237
Valve Type	Heavy-Duty Powder Metering Valve / Quick-Release Rotary Valve
Body Material	SUS304, SUS316L, Carbon Steel Painted / Nickel-Plated
Rotor Design	High-Efficiency Enclosed / Open Rotor
Coating Options	Tungsten Carbide, Ceramic, Polymer (PE/PTFE/PA)
Rotor-to-Housing Clearance	0.1 – 0.2 mm (Precision CNC Machined)
Shaft Seal	Air-Purged Lip Seal / Packing Seal
Flange Standard	HG20592 (DIN/ANSI Customizable)
Pressure Rating	16 bar (Explosion-Proof Version)
Operating Temperature	Ambient: -15°C to 60°C; Material: 0°C to 120°C
Cooling	Optional Water-Cooled Jacket
Explosion Protection	ATEX Certified for Zones 20, 21, 22
Certifications	CE, TÜV, Statement Certification
Inlet / Outlet Sizes	DN50, DN100, DN150, DN200, DN300, DN350
Surface Finish	Internal: Mirror, Ra≤0.4/0.8/1.6μm; External: Machined <0.8μm, Anti-Fingerprint

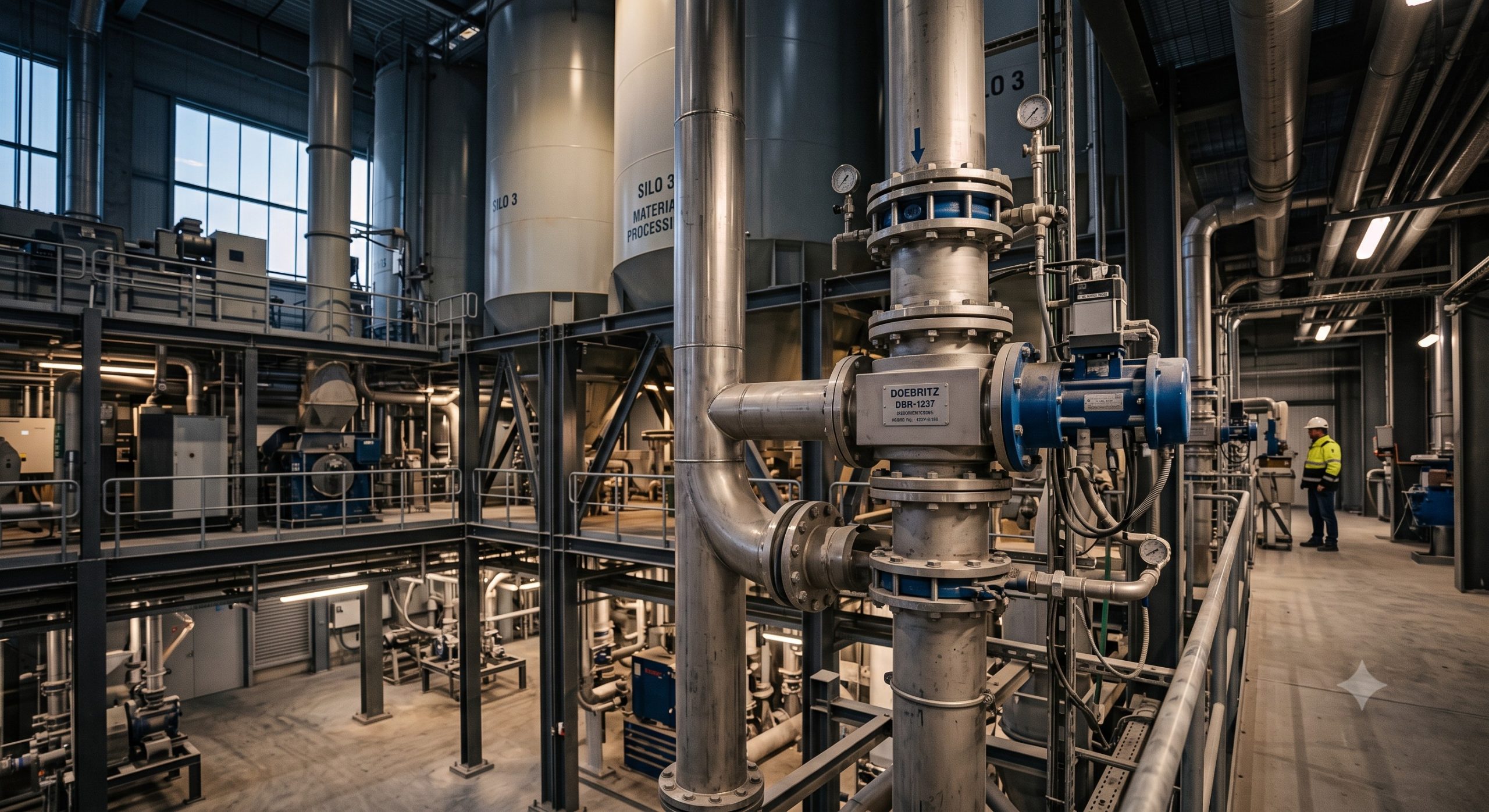

Heavy-Duty Application Scenarios

The unparalleled design and material flexibility of the Doebritz DBR-1237 make it the ideal choice for a vast spectrum of heavy processing industries and applications.

Pneumatic & Gravity Conveying Systems

Optimize your dilute and dense phase conveying lines with the DBR-1237, designed for pressures ranging from -1 bar to 1 bar. Its precise clearance and robust construction ensure superior lock-up against air or gas flow, eliminating blowback and ensuring stable, efficient material transfer from silos, hoppers, and cyclones.

Chemical & Petrochemical Processing

Reliably handle abrasive and corrosive substances such as carbon black, PE/PP pellets, titanium dioxide, and a host of fine chemical powders, including PTA and petroleum coke. The valve’s compatibility with tungsten carbide and ceramic coatings provides a robust barrier against wear, ensuring continuous, uninterrupted production in this demanding sector.

Battery Material & New Energy Production

In the rapidly expanding new energy sector, the precision and contamination-free handling of lithium battery cathode and anode materials, graphite, and silicon powders are paramount. The DBR-1237, with its 316L stainless steel construction and ultra-smooth internal finishes (Ra ≤ 0.4μm), prevents cross-contamination and guarantees accurate, consistent feeding for critical battery material processes.

Food & Pharmaceutical Industries

Meeting the most stringent sanitary requirements, the quick-release, hygienic design of the DBR-1237 is ideal for processing food ingredients, pharmaceuticals, and nutraceuticals. With full CIP/WIP compatibility and options for mirror-polished surfaces, it eliminates contamination risks and simplifies validation, aligning perfectly with GMP and cleanroom standards (Class W, 10W, 30W, C/D).

Global OEM Assurance & Supply Chain Excellence

Doebritz stands as a global leader in the design and supply of premium heavy-duty valves, distinguished by our relentless commitment to quality and operational excellence. Our manufacturing facilities utilize the latest in CNC machining technology, ensuring that every DBR-1237 valve adheres to the strictest precision and quality control standards. We offer complete material certifications, rigorous pressure and leakage testing, and a flexible OEM supply model. This enables us to customize every aspect of the valve—from material choice and surface treatment to flange connections and control interfaces—to meet your precise engineering specifications. With efficient production schedules and a robust global logistics network, we offer rapid deployment and reliable delivery for projects worldwide.

Frequently Asked Questions

What materials of construction are available for the DBR-1237 to handle abrasive powders?

The Doebritz DBR-1237 can be manufactured from a wide range of materials including SUS304, SUS316L, and carbon steel. For extreme abrasion, we apply durable coatings such as tungsten carbide or ceramic, and we also offer linings in PE, PTFE, and other high-performance polymers. This flexibility ensures optimum wear resistance tailored to your specific material properties.

How is the DBR-1237 certified for use in potentially explosive environments?

The Doebritz DBR-1237 is fully ATEX-certified for Zones 20, 21, and 22. Our explosion-proof variant includes a 16bar pressure-resistant housing, an explosion-proof motor, and precision-managed rotor-to-housing clearances to prevent ignition sources. This design ensures reliable and safe operation in hazardous dust environments.

What is the typical air leakage for a high-quality rotary valve like the DBR-1237?

Thanks to our advanced CNC manufacturing, the DBR-1237 achieves a remarkably tight rotor-to-housing clearance of 0.1 to 0.2mm. This significantly minimizes air leakage, ensuring high volumetric efficiency and stable system pressure across various operating conditions, which is essential for both efficient pneumatic conveying and accurate metering.

Can the DBR-1237 be integrated into a fully automated batching system?

Yes, the DBR-1237 is engineered for integration into sophisticated automation networks. It supports variable frequency drives (VFD) for dynamic flow control, and its design includes provisions for PLC connectivity, enabling precise flow rate control, batch metering, and recipe management, thus streamlining your production workflow.

What are the cleaning and maintenance options available for the DBR-1237?

Doebritz provides a range of cleaning options to suit your operational requirements. For sanitary applications, the DBR-1237 is available with a quick-release mechanism for rapid, tool-free disassembly and manual cleaning. It also supports automated online CIP and WIP cleaning, which can be followed by a manual inspection, minimizing downtime and ensuring the highest levels of hygiene.
