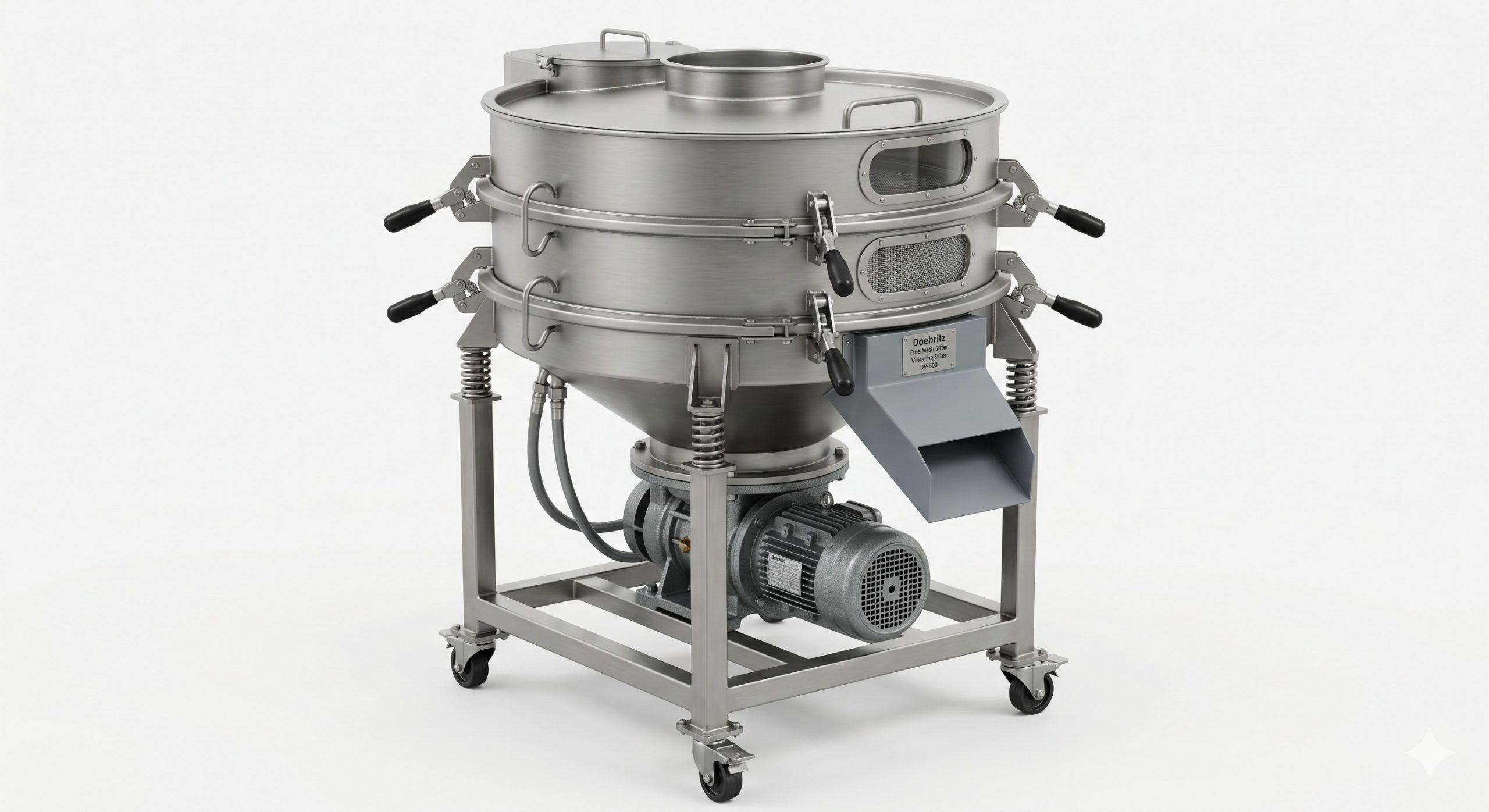

Precision Screening for Ultra-Fine Powders: Doebritz Fine Mesh Vibration Sifter

The Doebritz Fine Mesh Vibration Sifter sets the global benchmark for high-accuracy separation of powders, granules, and slurries in the 10 to 500 micron range. Engineered for continuous heavy-duty industrial processing, this sifter integrates proprietary vibration dynamics with a robust, sealed housing to prevent dust leakage and cross-contamination. Unlike conventional sifters, the Doebritz unit features a precision-machined screen frame and a balanced gyratory motor assembly, delivering up to 30% higher throughput per square meter of screen area. Designed for global OEM integrators and plant operators demanding ATEX Zone 20/21 compliance, this unit is backed by Doebritz‘s 15-year heritage in heavy engineering and CNC manufacturing excellence.

Why Plant Engineers Globally Source Doebritz Fine Mesh Vibration Sifter

Procurement decisions in bulk solids handling hinge on three metrics: throughput accuracy, operational uptime, and total cost of ownership. The Doebritz Fine Mesh Vibration Sifter excels in all three domains. Our in-house CNC machining centers produce screen frames with radial tolerances of <0.1mm, ensuring absolute screen tensioning and eliminating particle bypass. The housing is cast from either GG25 cast iron or SS316L stainless steel, followed by a multi-stage shot-blasting and epoxy coating process that withstands corrosive chemical environments. Each unit undergoes a 100% pre-shipment vibration test and air leakage verification (guaranteed <0.5 m³/h at 50 mbar), ensuring plug-and-play reliability for your pneumatic conveying or gravity-fed lines.

• ATEX Certified Explosion Safety: Certified for Zone 20 (dust) and Zone 21 (gas) with anti-static screen mesh and earthing continuity.

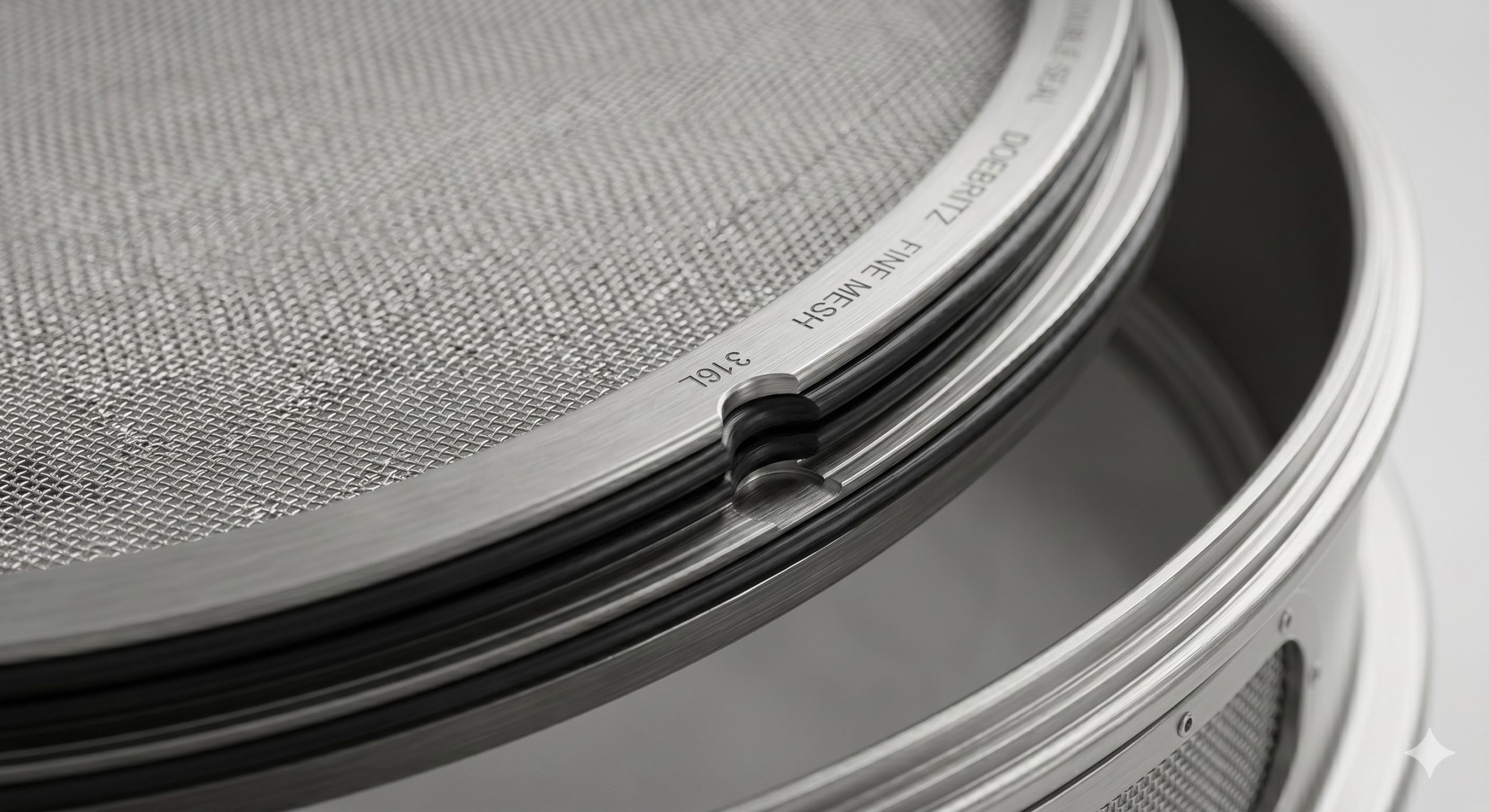

• CNC-Precision Machined Frame: Guarantees consistent screen tension and eliminates premature blinding or tearing.
• Minimal Air Leakage Design: Patented dual-seal lip ring and clamping system reduce dust emissions to below regulatory limits.
• Global OEM Supply Ready: Available with DIN, ANSI, or JIS flanges, plus direct-mount gearmotor options from SEW, Nord, or Bonfiglioli.

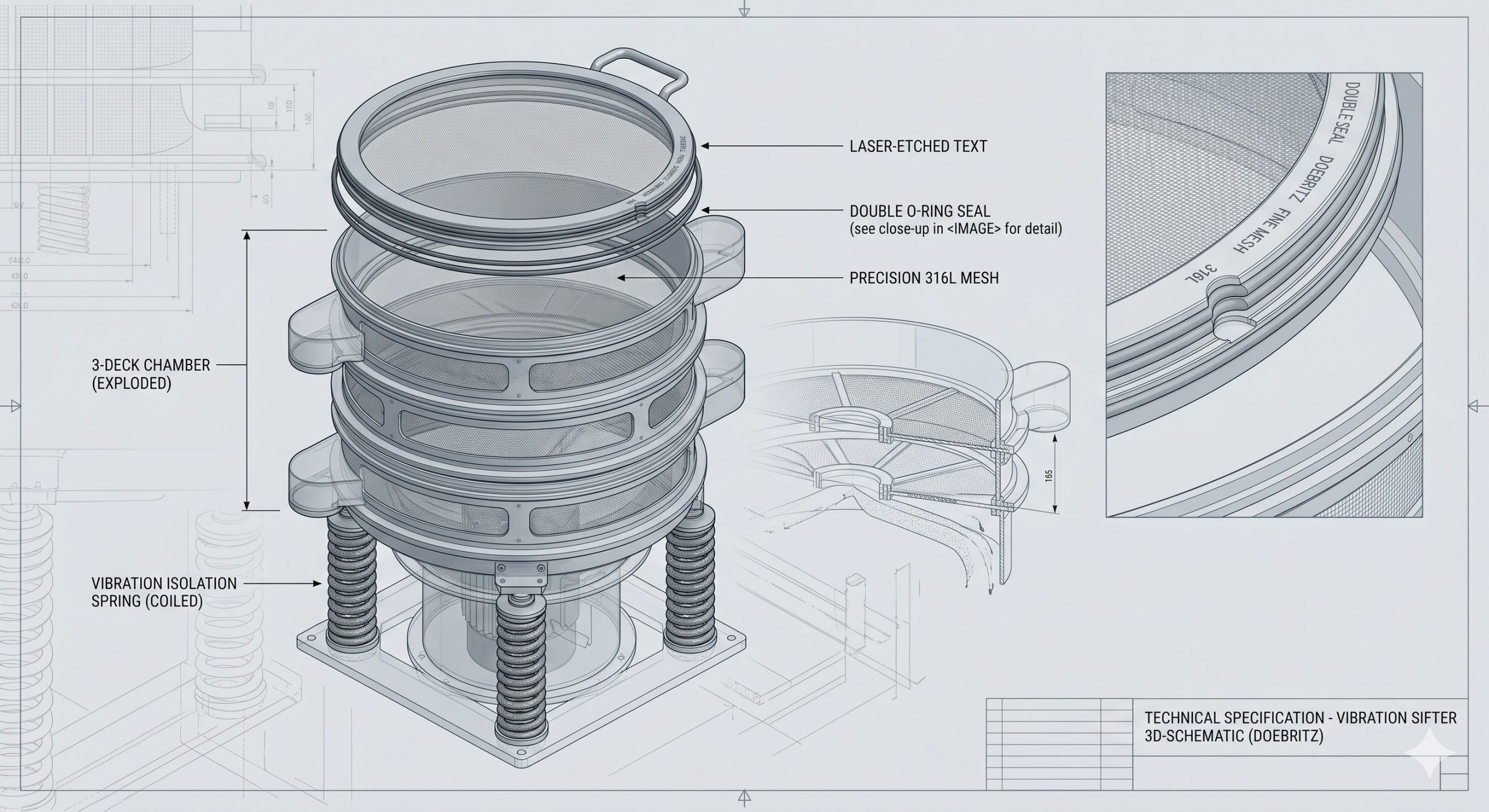

Heavy-Duty Engineering: Vibration Motor & Screen Deck Architecture

The Doebritz Fine Mesh Vibration Sifter diverges from flimsy designs by incorporating an outboard-mounted, industrial-grade gyratory vibrator motor. This motor features oversized spherical roller bearings rated for 50,000 hours L10 life under full load. The eccentric weights are infinitely adjustable between 0 to 10mm amplitude, allowing operators to fine-tune material flow acceleration from 2G to 5G. Below the motor, the screen deck is partitioned into three integrated zones: a distribution zone, a sizing zone, and a tail-over discharge zone. All weld seams are ground smooth and polished to Ra < 0.8µm for sanitary applications. The quick-release clamp bands (made from heat-treated 6061 aluminum) enable screen changes in under 5 minutes without tools, drastically reducing changeover downtime for multi-product plants.

Technical Specifications — Doebritz Fine Mesh Vibration Sifter

Below are the certified engineering parameters for the standard model range. Custom configurations (higher capacities, special alloys, or cryogenic-ready seals) are available through our OEM project desk.

Specification	Detail	Value Range
Model Designation	VibraDoeb-30	VibraDoeb-60	VibraDoeb-90
Screen Diameter	760 mm (30″)	1524 mm (60″)	2286 mm (90″)
Active Screen Area	0.45 m²	1.82 m²	4.10 m²
Motor Power (Standard)	0.75 kW / 1 HP	2.2 kW / 3 HP	5.5 kW / 7.5 HP
Max Throughput (Powder, 50 micron)	500 kg/h	2500 kg/h	6000 kg/h
Body Material	Cast Iron / SS304 / SS316L	Cast Iron / SS304 / SS316L	Cast Iron / SS304 / SS316L
Max Operating Temperature	200°C (VitON)	200°C (VitON)	200°C (VitON)
ATEX Certification	II 2D Ex h IIIC T120°C Db	II 2D Ex h IIIC T120°C Db	II 2D Ex h IIIC T120°C Db

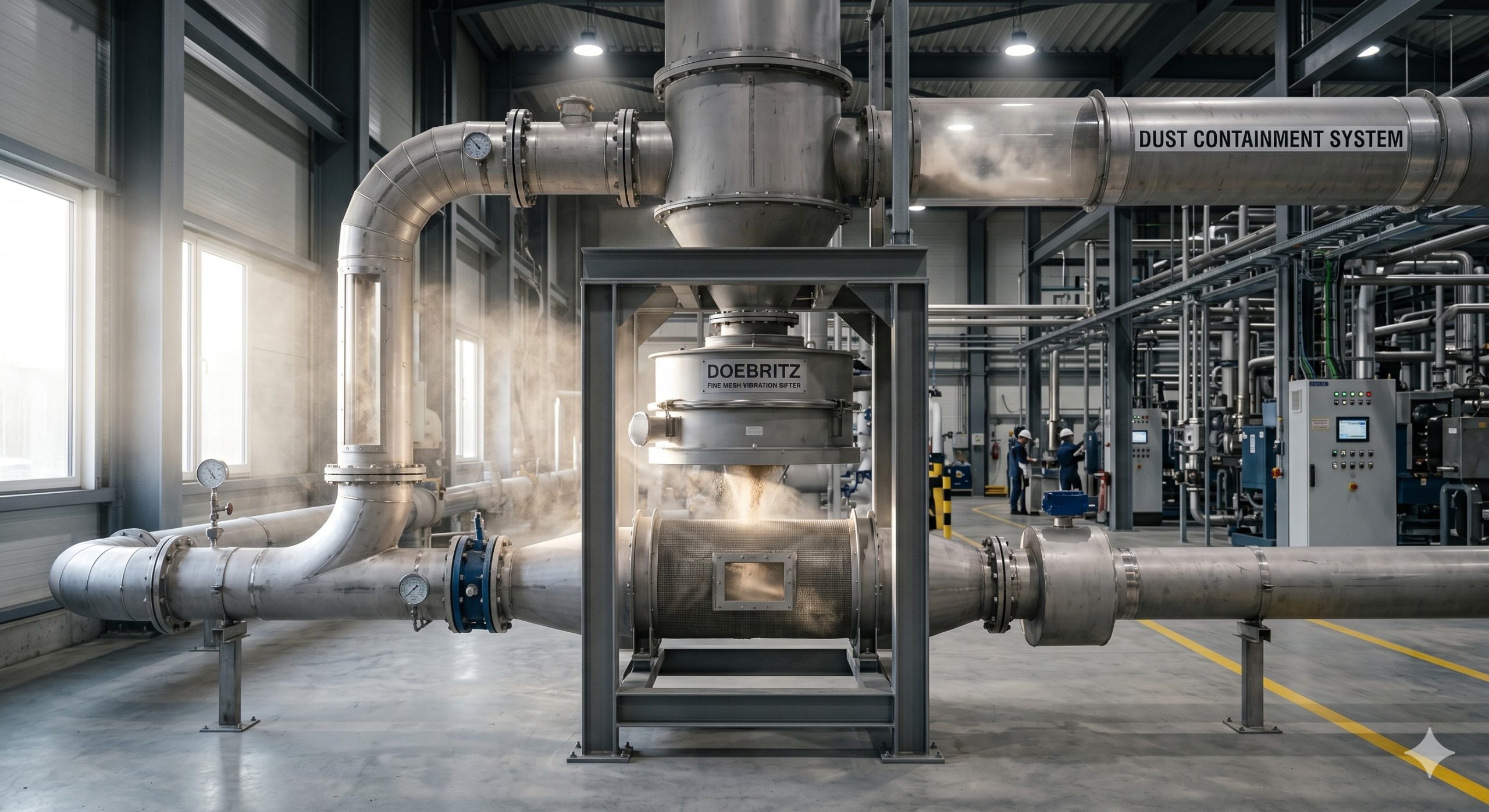

Deployed Across Critical Powder Processing Lines

The robust construction and precision dynamics of the Doebritz Fine Mesh Vibration Sifter make it the preferred solution for mission-critical applications where contamination or downtime is not an option.

Pharmaceutical & Nutraceutical Powder Screening

With 316L stainless steel contact parts and electropolished finishes, the Doebritz sifter meets cGMP and FDA standards for tablet compression powders and capsule fills. The dust-tight design prevents cross-batch contamination.

Chemical & Plastic Pyrolysis Feedstock

For abrasive or heat-sensitive materials (PVC, PET, advanced ceramics), the optional wear-resistant polyurethane screen frame and nitrile rubber seals extend service life by 3x compared to standard units.

Mineral & Metal Powder Classification

Handling high-density materials like iron oxide, copper powder, or silica fume? The reinforced cast iron housing with Hardox 400 discharge spouts withstands impact abrasion, while the ATEX-certified motor ensures safe operation in explosive dust atmospheres.

Global OEM Assurance: Doebritz Factory Direct Sourcing Power

As a vertically integrated manufacturer, Doebritz maintains full control over every production stage — from sand casting and CNC machining to powder coating and final assembly. Our 50,000 m² ISO 9001:2025 certified facility in Germany operates a lean JIT production line, achieving standard lead times of 10-15 working days for non-stock units. For urgent plant shutdowns, we maintain a $5M spare parts inventory, including pre-tensioned screen meshes, seal rings, and vibrator motors, shippable globally within 24 hours. All units come with a 36-month conditional warranty and lifetime technical support. When you specify Doebritz, you eliminate intermediary markups and gain direct access to our engineering team for custom flange drilling, motor voltage alterations (208V to 690V, 50/60Hz), or third-party witnessing (TÜV, DNV, Bureau Veritas).

B2B Technical Sourcing Q&A

What is the maximum feed temperature the Doebritz Fine Mesh Vibration Sifter can handle?

Standard Viton seals support up to 200°C (392°F). For applications up to 400°C (752°F), we offer a high-temperature configuration with ceramic-coated screen frames and graphite-impregnated seals. Please consult our engineering team for thermal expansion compensation.

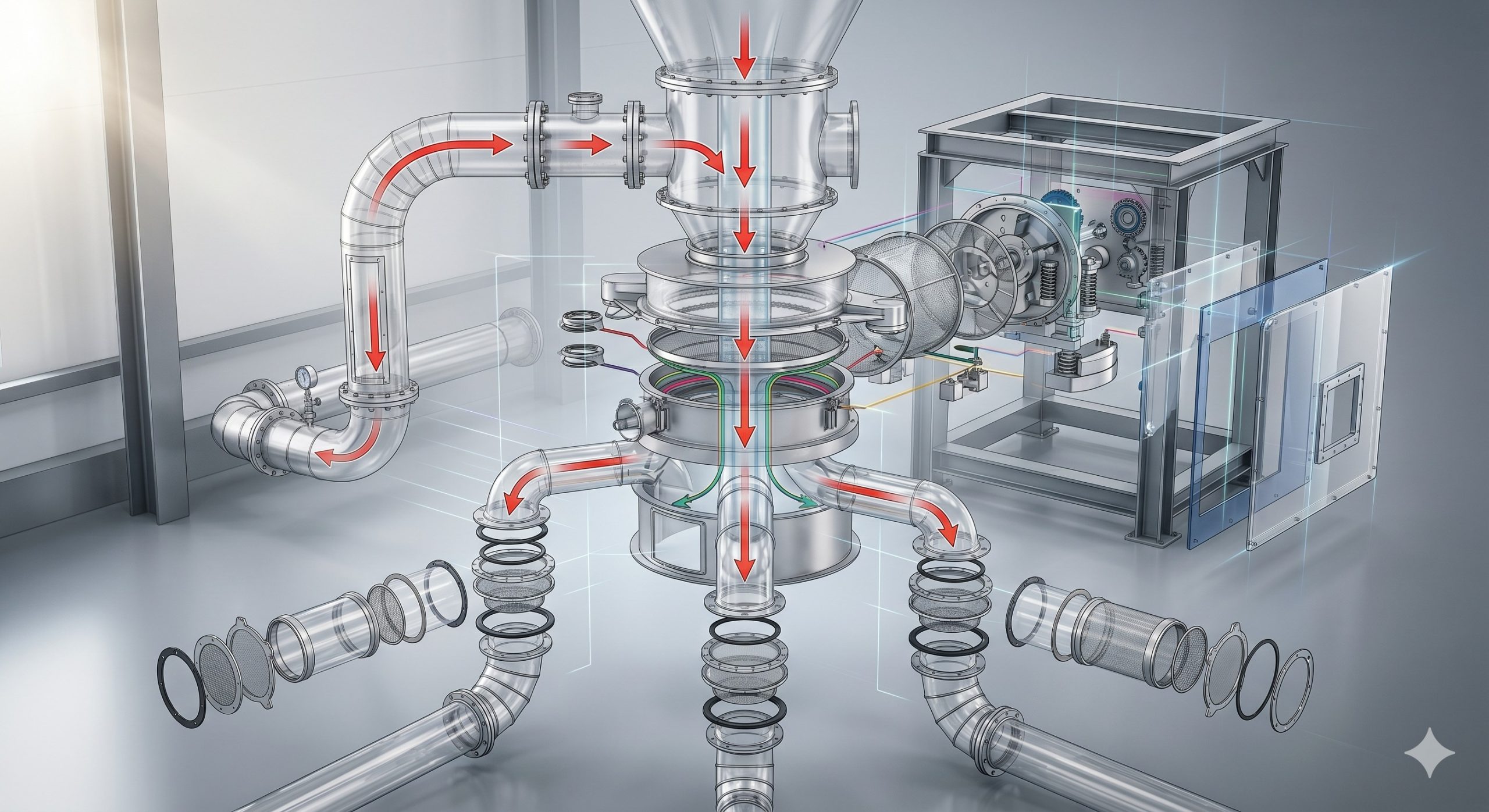

Can the sifter be integrated into an existing pneumatic dense-phase conveying system?

Absolutely. The Doebritz Fine Mesh Vibration Sifter is designed with a pressure-tight housing rated for ±50 mbar differential pressure. For closed-loop systems requiring up to 1 bar, we offer a reinforced model with bolted clamp rings and dual-purge lantern seals. Provide your system P&ID, and our engineers will recommend the correct integration kit.

How do I select the correct mesh size for my powder?

Doebritz supplies woven wire mesh from 20 to 500 mesh (850 to 25 microns) in stainless steel or nylon. We also offer laser-drilled plates for ultra-abrasive materials. Send us a 500g sample of your product, and our in-house lab will provide a free particle size analysis and recommend the optimal mesh opening and vibratory amplitude.

What certifications are provided with each unit?

Every Doebritz sifter ships with a EN 10204 3.1 material certificate for all contact parts, a pressure test certificate, a vibration test report, and an ATEX compliance declaration (if ordered). For additional fees, we can provide NACE MR0175, DNV marine approval, or FDA/USP Class VI certificates.

What is your warranty and returns policy for OEM project purchases?

We provide a 36-month warranty covering manufacturing defects and premature bearing failure. For OEMs incorporating our sifter into a system, we offer a 12-month conditional warranty on mesh and seals. Defective units are cross-shipped immediately from our German or Houston distribution centers. Custom-built units (non-standard flanges, special alloys) are non-returnable but qualify for our extended 48-month warranty.
