ATEX Zone 20/21 Compliant Valve: Doebritz Stainless Steel Venting Filter | Certified Explosion Safety for Powder Processing

Product Summary: Doebritz Stainless Steel Venting Filter for Critical Powder Processing

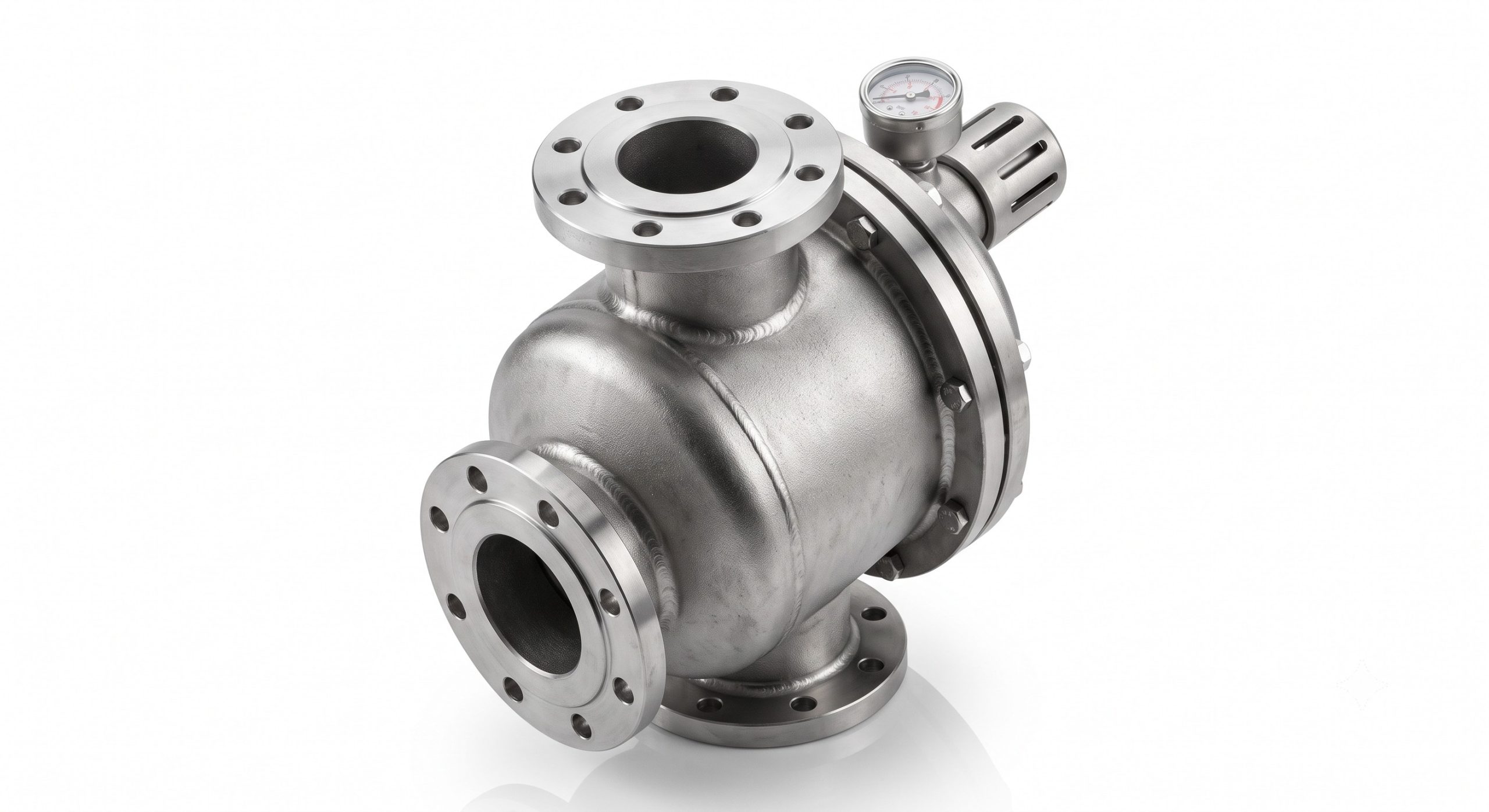

Designed for heavy-duty industrial filtration, the Doebritz Stainless Steel Venting Filter stands as a robust safety and emissions control solution for silos, hoppers, and pneumatic conveying systems. Engineered with high-grade 304 or 316L stainless steel, this filter is purpose-built to manage extreme differential pressures, capture sub-micron dust particles, and guarantee process stability. Its core design emphasizes exceptional filtration efficiency and durability, featuring a large filter area and a rugged, sanitary housing that ensures longevity in abrasive or corrosive applications. The Doebritz venting filter is the definitive choice for global engineers seeking uncompromising safety and operational compliance, backed by our rigorous CNC machining capabilities and ISO-certified quality control.

Why Plant Sourcing Chooses Doebritz Stainless Steel Venting Filter: Minimal Leakage & Maximum Safety

• ATEX Zone 20/21 Certified Explosion Safety: Certified for operation in explosive dust atmospheres, the Doebritz filter features integrated flame arrestor technology and static-conductive elements that eliminate ignition risks.
• Ultra-Low Emissions & Differential Pressure Control: The filter achieves near-zero dust emissions, with a maximum residual dust concentration of < 5 mg/Nm³. Its optimized construction ensures stable differential pressure, preventing material bridging and filter blinding.
• Sanitary & Corrosion-Resistant Design: Constructed from high-grade 1.4301 (304) or 1.4404 (316L) stainless steel, the filter is ideal for stringent hygienic processing, clean-in-place (CIP) protocols, and highly corrosive bulk materials.

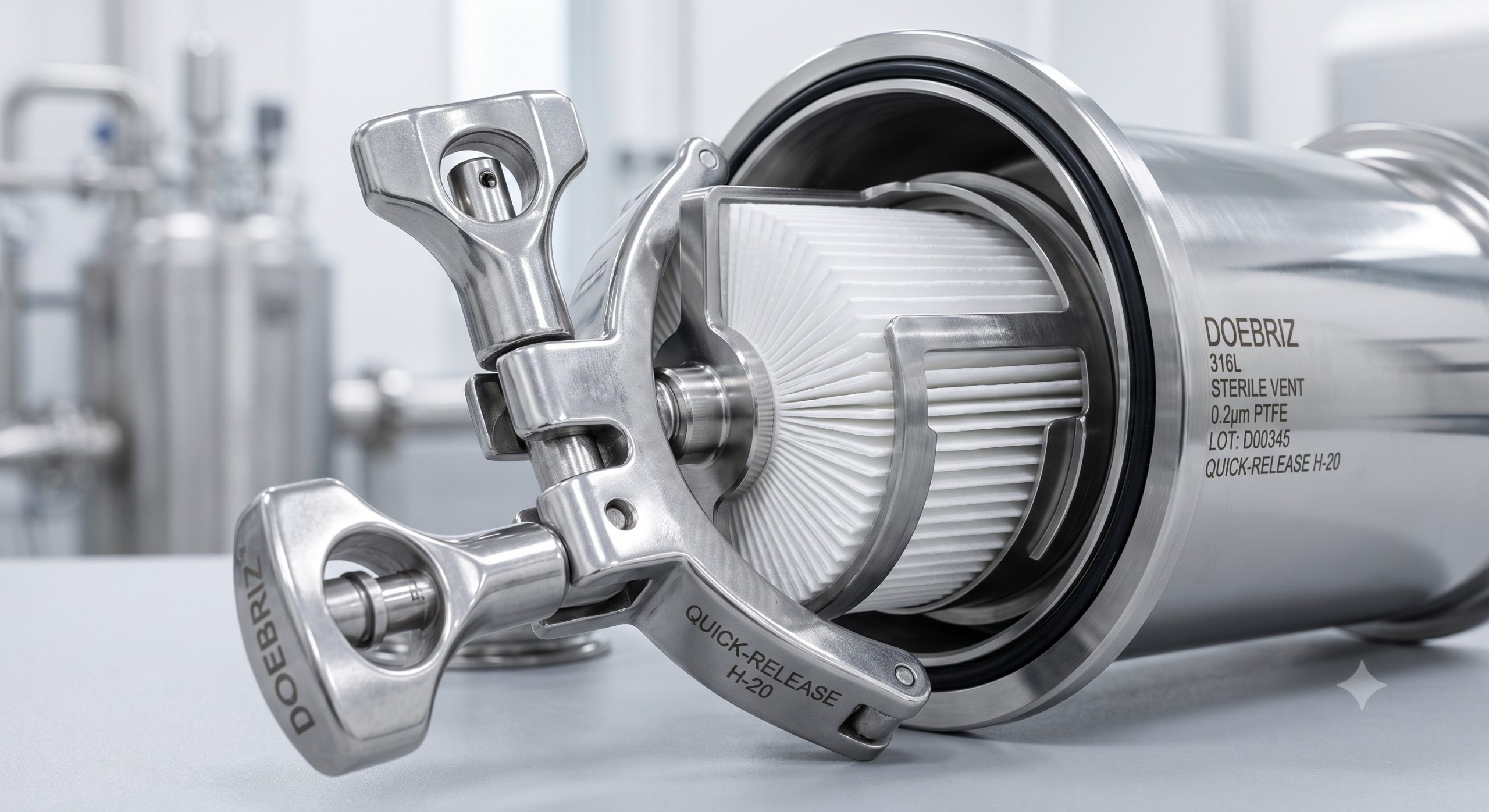

• Heavy-Duty, Maintenance-Friendly Construction: Features a quick-release clamp system for rapid filter element inspection and replacement, drastically reducing plant downtime. The robust, fully-welded housing design ensures process integrity and a long service life.

Housing & Rotor Engineering: Precision for Demanding Applications

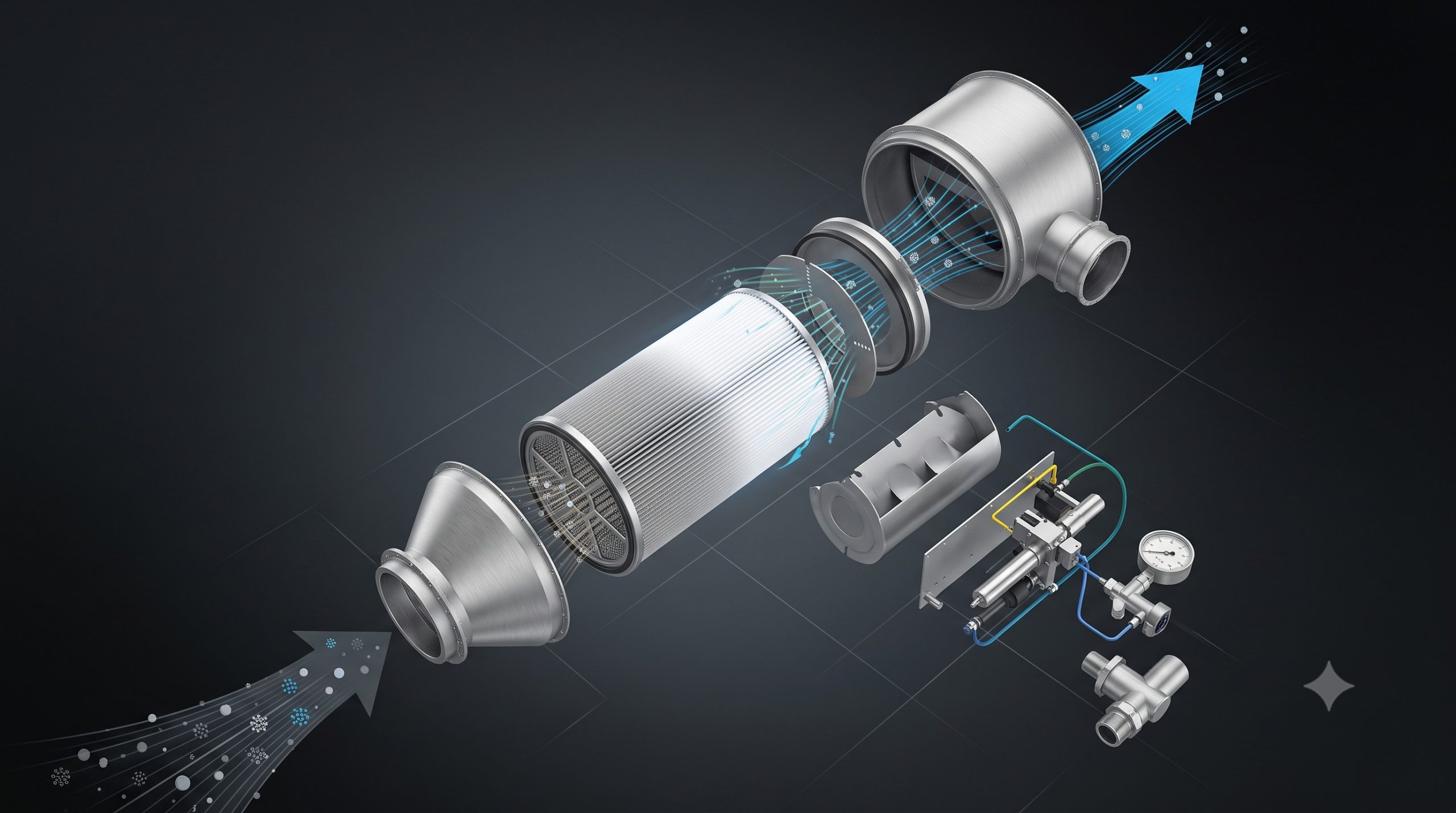

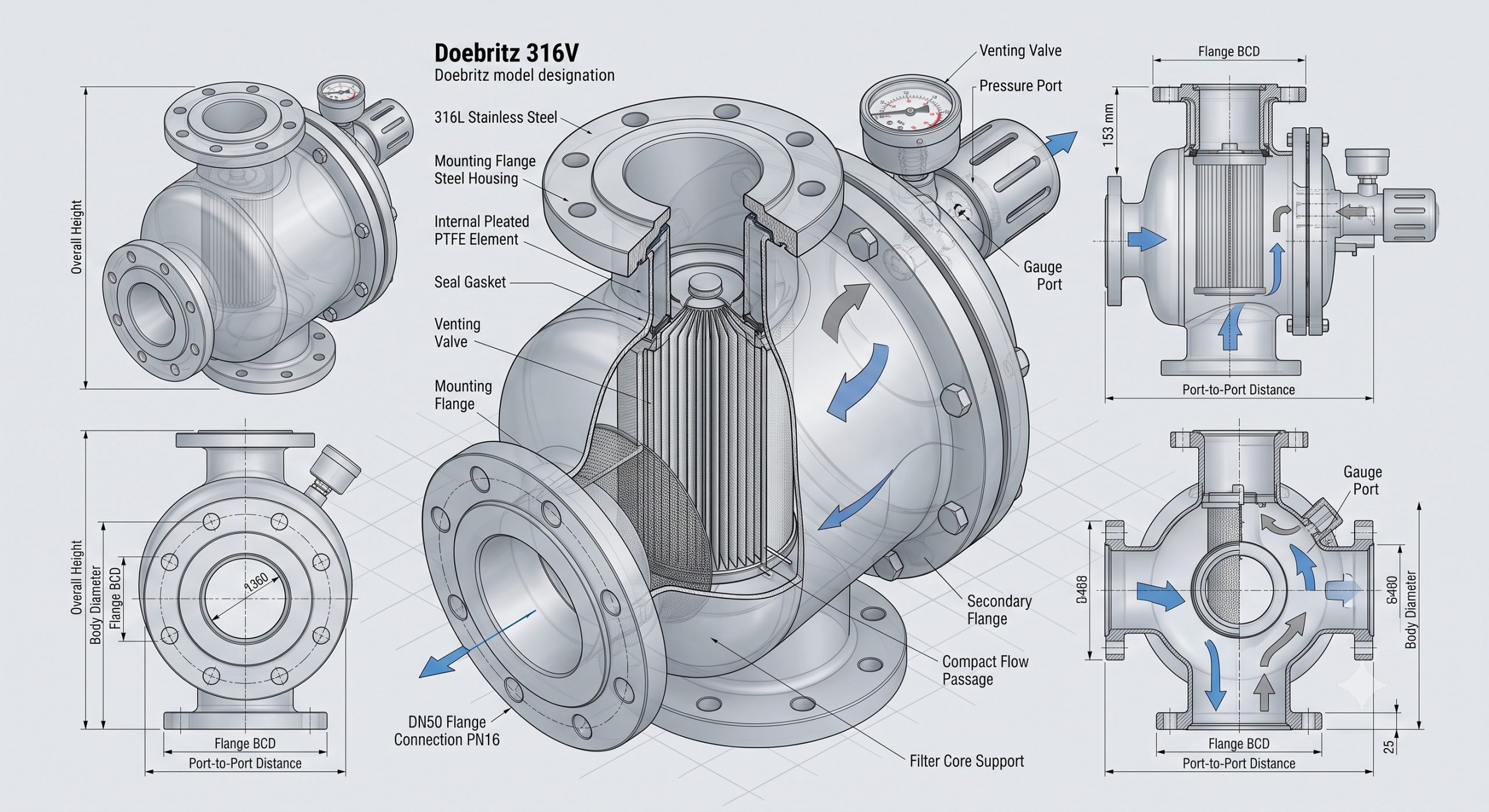

The Doebritz Stainless Steel Venting Filter is a testament to precision German engineering, combining a meticulously crafted stainless steel housing with advanced filter technology. The filter housing features a thick, robust wall design capable of withstanding pressures up to 16 bar. Internal flow dynamics are optimized to reduce pressure drop across the filter element, enhancing pneumatic conveying efficiency. All internal surfaces are precision ground to Ra ≤ 0.8 μm to prevent material adherence and facilitate thorough cleaning. The integrated venting valve mechanism ensures positive lock-in of filtered dust, allowing for controlled and efficient product recovery and minimizing product loss.

Technical Specifications: Guaranteed Performance Data

Every Doebritz filter is engineered to deliver consistent, reliable performance under the most challenging conditions. Our testing protocols exceed industry standards to ensure product integrity.

Specification	Detail
Body Material	Stainless Steel 1.4301 (304) / 1.4404 (316L)
Filter Element	Woven Polyester Felt, PTFE-coated optional
Filter Area	Up to 50 m²
Max. Operating Pressure	16 bar
Operating Temperature	-15°C to +120°C
Surface Finish	Internal Ra ≤ 0.8 μm
ATEX Certification	Zone 20, 21, 22
Flange Connection	DIN / ANSI / JIS (Customizable)

• Construction Materials: Stainless Steel 1.4301 (304) / 1.4404 (316L), anti-static seals.
• Filter Media: Woven polyester felt, PTFE-coated membrane available for enhanced release.
• Filtration Area: Configurable from 5 m² to 50 m² per unit.
• Operating Temperature: -15 °C to +120 °C (continuous).
• Explosion Protection: ATEX certified for Zone 20, 21, and 22 (dust).

Heavy-Duty Application Scenarios: Engineered for Global Production Lines

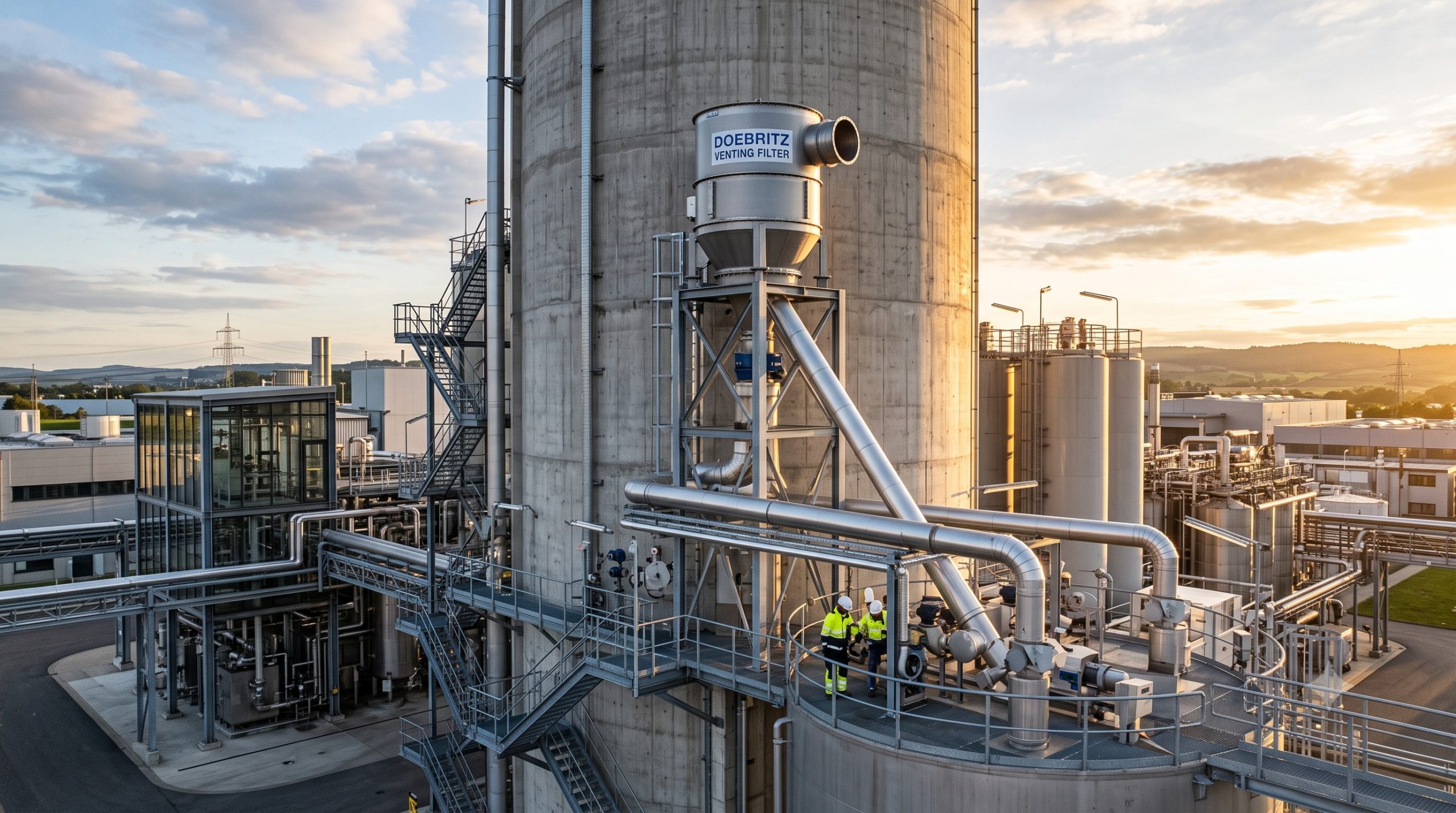

Silo Venting & Dust Collection

Protecting silos and storage vessels from overpressure while recovering valuable product, the Doebritz filter ensures regulatory compliance and reduces material loss in industries such as cement, food, and chemical processing.

Pneumatic Conveying System Filtration

Efficiently separates conveyed air from product at receiver points, ensuring a clean air discharge to the atmosphere or return to the compressor. Designed to handle the high air volumes and velocities characteristic of pneumatic conveying systems.

Global OEM Assurance: Doebritz Quality & Supply Chain Expertise

Doebritz stands as a premier global supplier to top-tier OEMs and system integrators. Our global sourcing power allows us to provide competitive lead times, from our extensive inventory of standard materials. We support customer requests for bespoke flanges, custom connection sizes, and specialized coatings. With decades of CNC machining experience and a dedicated engineering team, Doebritz offers unparalleled application support and quality assurance that directly contributes to a superior total cost of ownership for our clients.

Frequently Asked Questions

What is the maximum operating pressure for the Doebritz stainless steel venting filter?

The standard housing is designed for a maximum pressure of 16 bar. Higher pressure designs are available upon request for specific applications.

Is the Doebritz venting filter certified for use in explosive atmospheres?

Yes, it is fully ATEX certified for dust explosion protection in Zones 20, 21, and 22. The filter incorporates necessary anti-static and flame-quenching elements.

What maintenance is required for the Doebritz venting filter?

Routine maintenance primarily consists of periodic filter element inspection, replacement based on differential pressure readings, and housing cleaning. The quick-release design facilitates fast access.

Can the filter be made in 316L stainless steel for corrosion resistance?

Absolutely. We offer the filter in both 304 and 316L stainless steel variants. 316L is highly recommended for applications involving chlorides or other highly corrosive materials.

Can you supply a filter with custom flanges or connection sizes?

Yes, Doebritz specializes in custom solutions. We can provide filters with a wide range of connection types including DIN, ANSI, and JIS standards, as well as bespoke sizes to fit your existing process.
