ATEX Zone 20/21 Compliant Valve: Doebritz DBR-1237 Gravity Quick-Release Rotary Valve | Certified Explosion Safety for Bulk Solids

Product Summary

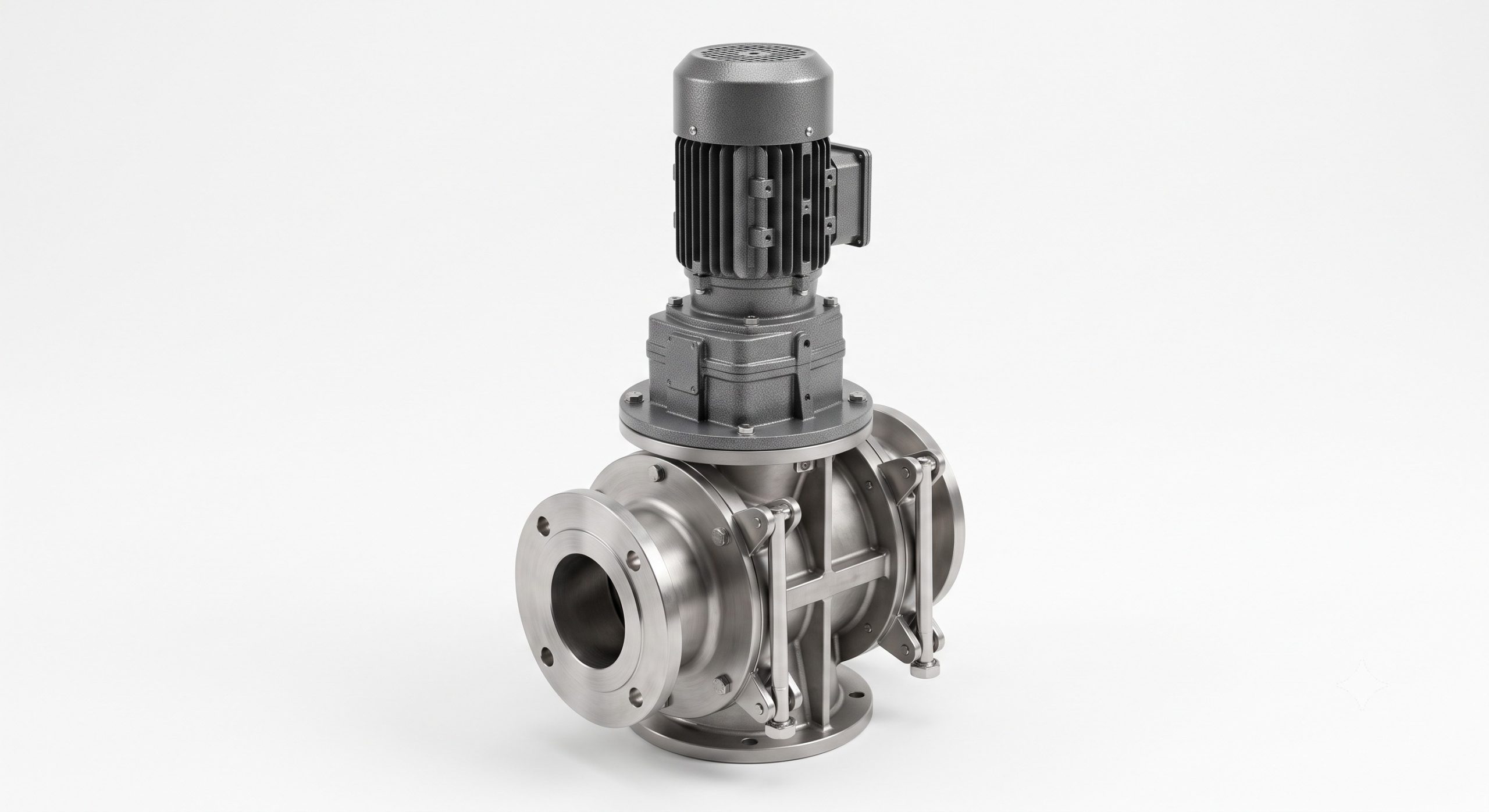

The Doebritz DBR-1237 Quick-Release Rotary Valve represents the pinnacle of heavy-duty airlock and metering technology for bulk solids handling. Engineered for gravity discharge and pneumatic conveying systems, this star discharge valve combines a rapid-demount design with exceptional sealing precision. With a rotor-to-housing clearance of 0.1–0.2mm, the DBR-1237 minimizes air leakage, ensuring stable pressure gradients in both positive and negative pressure systems. Built on Doebritz’s legacy of precision CNC machining and robust metallurgy, this valve delivers reliable service in the most demanding industrial environments, from food-grade hygienic lines to ATEX-classified explosive dust atmospheres.

Why Plant Sourcing Chooses Doebritz DBR-1237 Quick-Release Rotary Valve

Industrial procurement managers and plant engineers select the Doebritz DBR-1237 for its unmatched combination of quick-maintenance access, certified safety, and volumetric efficiency. This quick-release airlock valve addresses critical operational pain points: costly downtime, product contamination risks, and energy-wasting air bypass.

• Rapid Demount & Sanitary Compliance: The DBR-1237 features a tool-less quick-release clamp system, enabling full disassembly in minutes. This supports manual cleaning, online CIP (Clean-in-Place), and WIP (Wash-in-Place) procedures, reducing maintenance downtime by up to 70% compared to traditional bolted designs. The sanitary execution, with internal surface finishes down to Ra ≤ 0.4μm, eliminates product entrapment and meets stringent GMP and FDA standards.
• Precision Airtight Sealing: Achieved through 0.1-0.2mm radial clearances and advanced lip seal air-tight packing. This precision drastically reduces gas bypass in dense-phase conveying, translating to lower energy costs and consistent product flow. The design is tested for pressure differentials up to 16 bar in explosion-proof configurations.
• ATEX Certified Explosion Safety: The DBR-1237 is fully ATEX certified for Zone 20, 21, and 22 hazardous areas. The certified explosion-proof variant includes a 16 bar pressure shock-resistant housing, anti-static rotor options, and spark-resistant clearances, providing absolute safety in dust-laden environments.
• Superior Abrasion & Corrosion Resistance: Available in materials from SUS304 and SUS316L to specialized abrasion-resistant coatings, including Tungsten Carbide, Ceramic, and PTFE. This ensures a long service life even when handling highly abrasive materials like carbon black, lithium battery powders, or corrosive chemical compounds.
• Global OEM Supply & Customization: As a direct manufacturer, Doebritz offers full customization of flanges (DIN/ANSI/HG20592), motor mounts (IEC/NEMA), and drive controls (VFD, servo). This provides seamless integration into any existing plant infrastructure.

Housing & Rotor Engineering

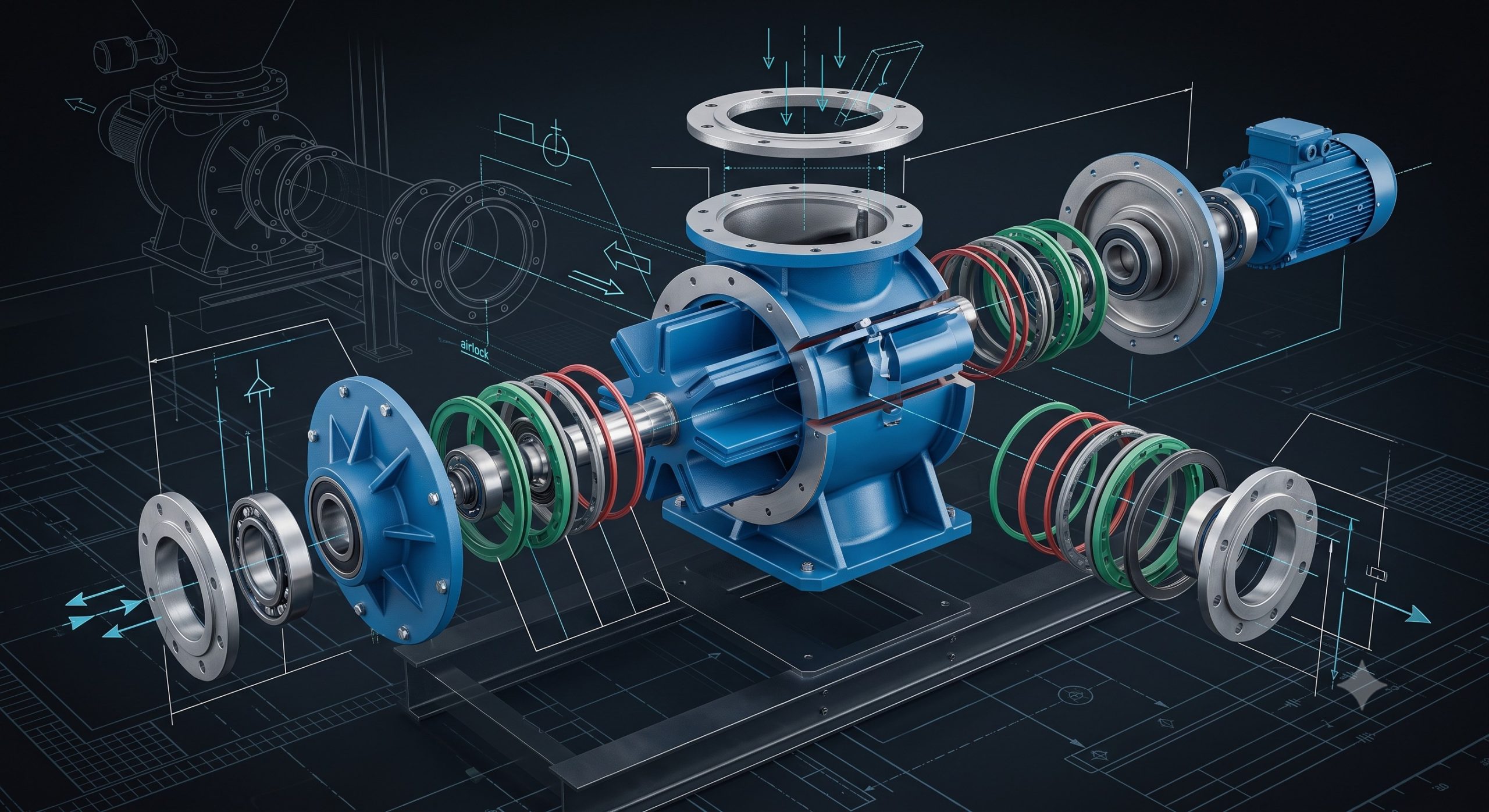

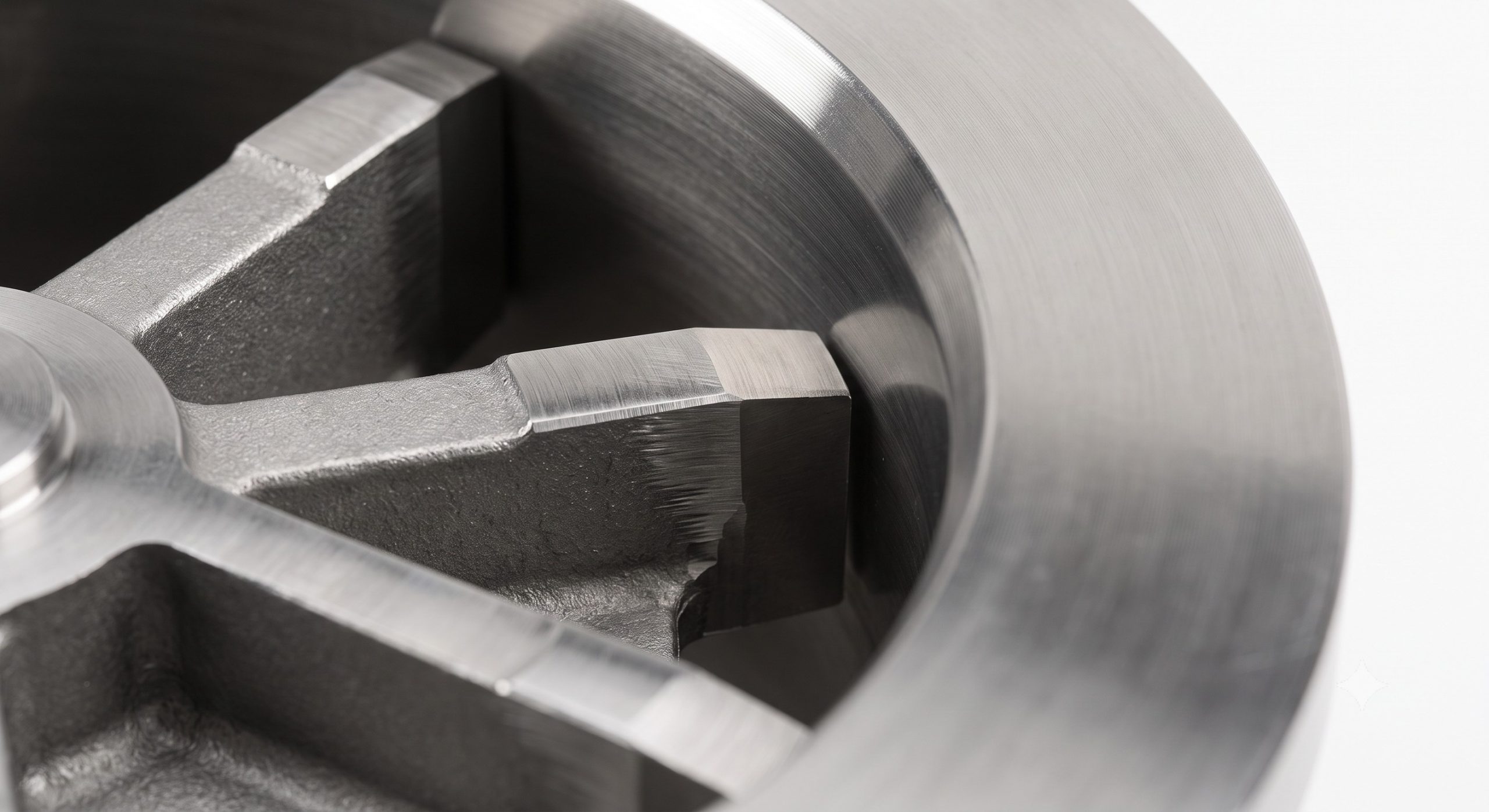

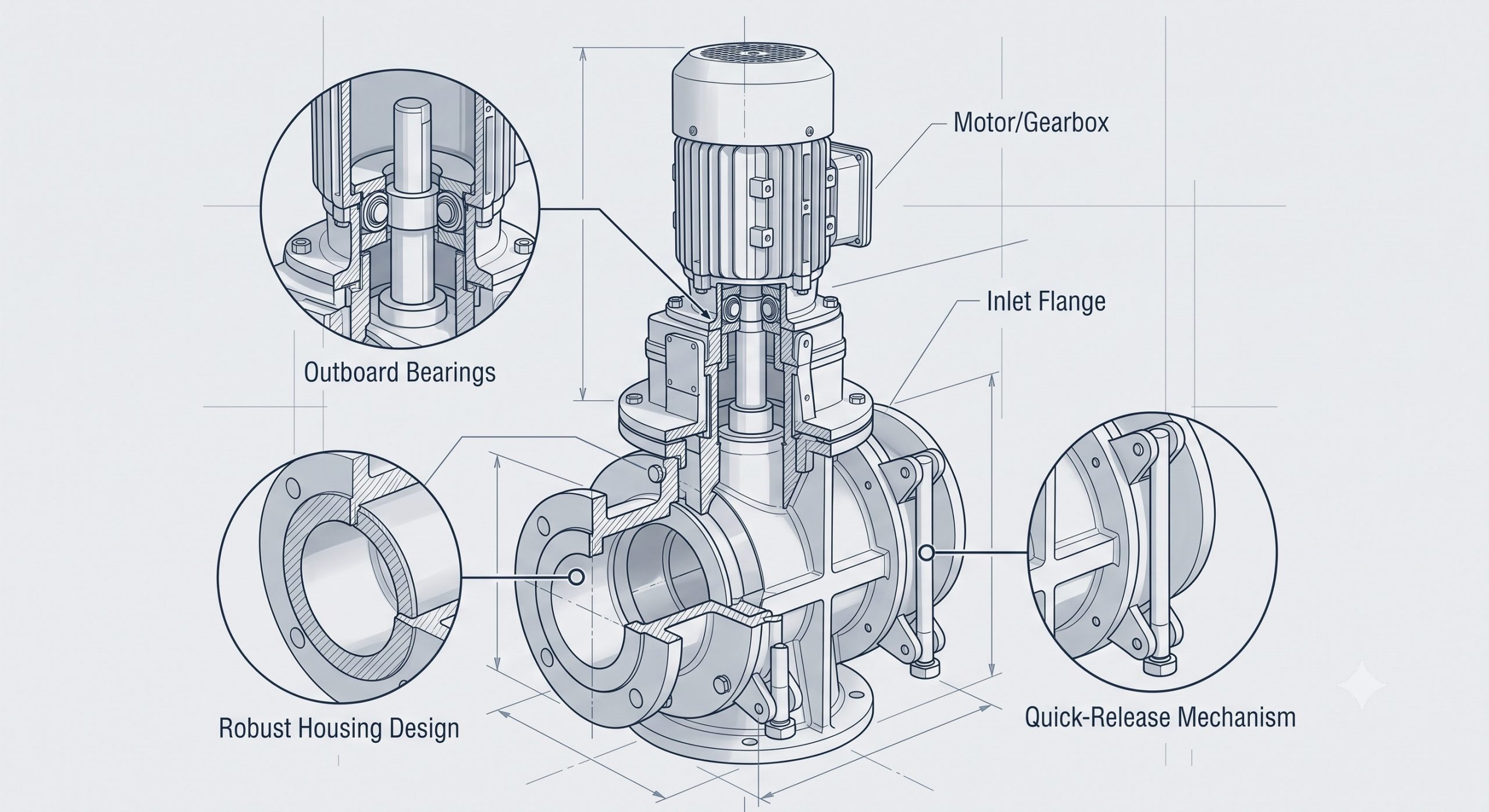

The DBR-1237 is built on a foundation of heavy-duty cast or fabricated housing. The valve body is constructed from high-grade cast iron or stainless steel (SUS304/SUS316L), designed to withstand continuous operational loads and high thermal stresses. Internally, the precision-machined rotor features a multi-vane design (typically 6, 8, or 10 vanes) optimized for the specific bulk density and flow characteristics of the product. The rotor blades are CNC-machined to exacting tolerances, ensuring uniform clearance across the entire face. This precision is key to the valve’s low leakage performance. The shaft is supported by outboard bearings with a dual-sealing arrangement, isolating the bearing housing from the product zone and preventing contamination. For high-temperature applications up to 120°C (material), an optional water-cooled jacket is available to maintain bearing integrity and prevent product degradation. Every component is manufactured under strict quality controls, including 100% dimensional inspection and pressure testing, embodying the Doebritz commitment to superior engineering.

Technical Specifications

The Doebritz DBR-1237 is designed for diverse applications, offering a wide range of materials, finishes, and sizes. All parameters are factory-tested to guarantee performance.

Specification	Detail
Body Material	Cast Iron / SUS304 / SUS316L (Optional: Carbon Steel Painted/Nickel-Plated)
Rotor Design	6, 8, or 10-Vane Open/Closed Rotor (Precision CNC Machined)
Rotor-to-Housing Clearance	0.1mm – 0.2mm (Standard)
Shaft Seal	Lip Seal with Air Purge (Optional: Packing Seal)
Pressure Rating (Standard)	Positive: < 0.4 bar (LP) / 0.4–1 bar (HP, VFD)
Pressure Rating (ATEX)	Explosion-proof: 16 bar (Static) / 10 bar (Dynamic)
Operating Temperature	Ambient: -15°C to 60°C; Material: 0°C to 120°C (with optional cooling jacket)
Surface Finish (Internal)	Mirror Finish / Ra ≤ 0.4μm, 0.8μm, 1.6μm (Electropolished optional)
Surface Finish (External)	Machined < 0.8μm / Sandblasted / Anti-Fingerprint Coating
Connection Flanges	DN50, DN100, DN150, DN200, DN300, DN350 (HG20592, DIN, ANSI available)
Motor Options	Standard / Explosion-Proof (VFD-ready, IEC/NEMA frames)
Certification	CE, TÜV, ATEX (Zone 20/21/22), FDA Compliant (Sanitary Models)

Heavy-Duty Application Scenarios

The versatility of the DBR-1237 makes it an indispensable component across multiple heavy industries.

Pneumatic Conveying Systems

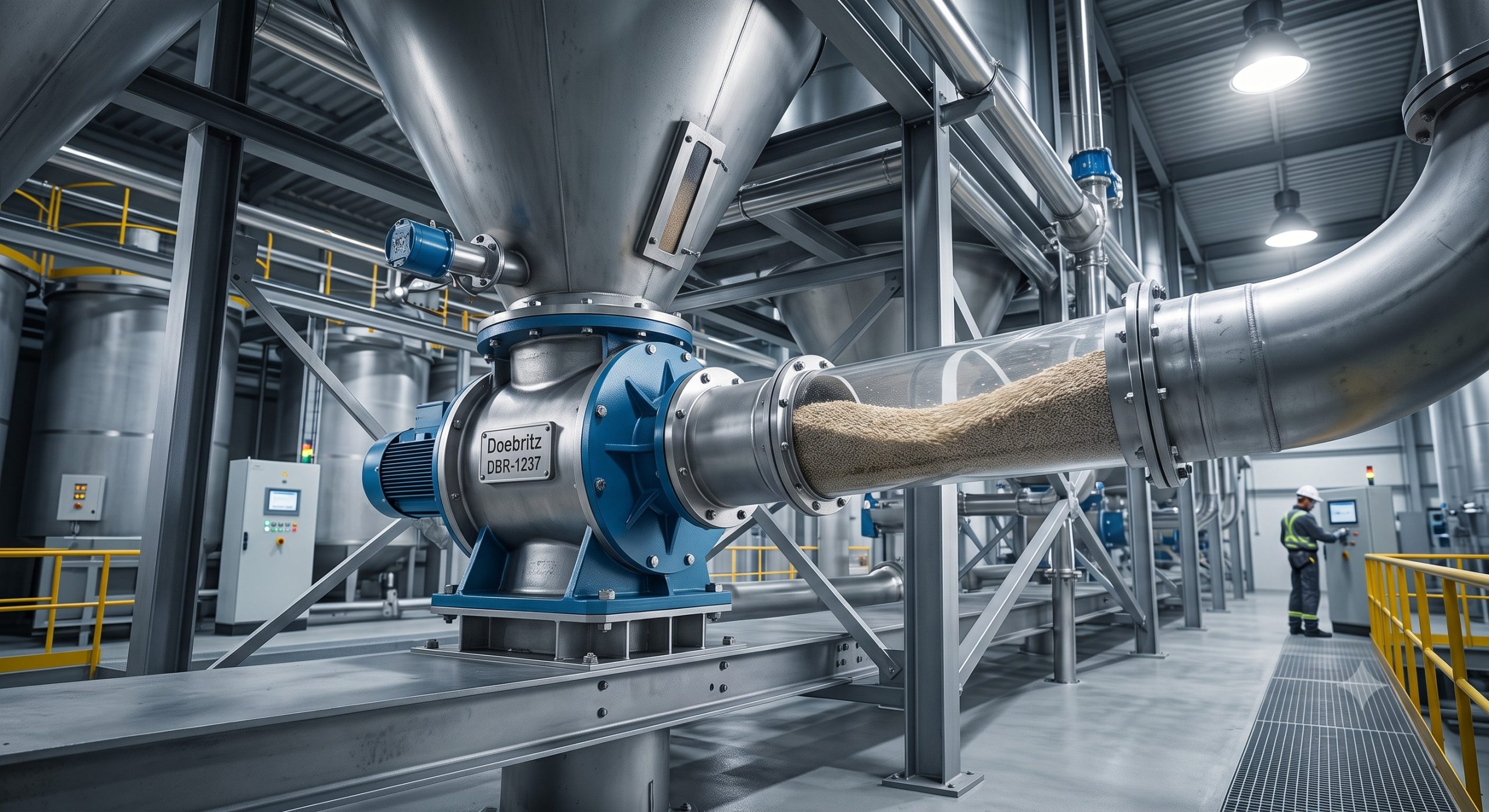

Used as a feeder and airlock in dilute and dense phase pneumatic conveying. Its precision clearances maintain system pressure, preventing blowback and ensuring efficient transport of materials from silos to processing lines. Ideal for low-pressure (<0.4 bar) and high-pressure (0.4–1 bar) systems with VFD speed control.

Hygienic Processing (Food & Pharma)

The quick-release, sanitary design makes the DBR-1237 a top choice for handling sensitive products like奶粉、咖啡粉、维生素粉、and probiotic powders. The 316L mirror finish and CIP capability eliminate contamination risks, ensuring batch integrity and compliance with food safety standards.

Metering & Batching Lines

Integrated with PLC control systems, the DBR-1237 provides high-precision volumetric feeding and batch metering. Its adjustable speed and reliable sealing allow for precise recipe formulation and automated batching in chemical and mineral processing plants.

Explosive Dust Environments

Certified for Zone 20/21/22, the DBR-1237 is the preferred solution for handling combustible dusts like metal powders, organic pigments, and coal dust. Its explosion-proof design ensures safe operation in high-risk areas.

Global OEM Assurance

Choosing Doebritz means partnering with a global leader in bulk solids handling technology. Our manufacturing facilities are equipped with the latest CNC machining centers and robotic welding systems, ensuring component accuracy and consistency. Every DBR-1237 valve is subjected to rigorous quality assurance protocols, including material traceability (EN 10204 3.1), pressure testing, and air leakage tests. Our global service network provides on-site support, spare parts availability, and engineering consultancy to ensure your plant operates at peak efficiency throughout the valve’s lifecycle. Doebritz stands behind its products with industry-leading warranties and a commitment to continuous improvement.

Frequently Asked Questions

What are the standard flange connections available for the DBR-1237?

The DBR-1237 is available with a wide range of flange standards, including HG20592 (PN6/PN10/PN16), DIN (EN 1092-1), ANSI/ASME (B16.5), and JIS. We can also manufacture custom flanges to match existing piping systems.

How does the quick-release mechanism work and how much time does it save?

The quick-release system uses heavy-duty sanitary clamps or a specialized hinge mechanism that allows the valve to be fully disassembled in under 5 minutes without tools. This reduces maintenance downtime by at least 50-70% compared to traditional bolted valves, enabling rapid product changeovers and deep cleaning cycles.

What materials are recommended for highly abrasive applications?

For abrasive materials, we offer a range of hardened options. The most common solutions are Tungsten Carbide coatings on the rotor and housing. We also supply valves constructed with Ceramic-coated vanes, Ni-Hard castings, and construction from high-performance PA or PTFE for less severe applications.

Is the Doebritz DBR-1237 suitable for integration with an existing automated plant control system?

Yes, the DBR-1237 is designed for Industry 4.0 integration. It can be supplied with VFD (Variable Frequency Drives), servo motors, and integrated PLC control interfaces. We can also provide feedback sensors, including speed monitors and proximity switches, for complete process automation and condition monitoring.

What certifications does Doebritz provide with the DBR-1237?

All Doebritz rotary valves are supplied with comprehensive certification packages, including CE and TÜV certifications. Depending on the specification, we also provide ATEX certificates for explosion-proof models, FDA compliance declarations for sanitary models, and material test reports (EN 10204 3.1).
