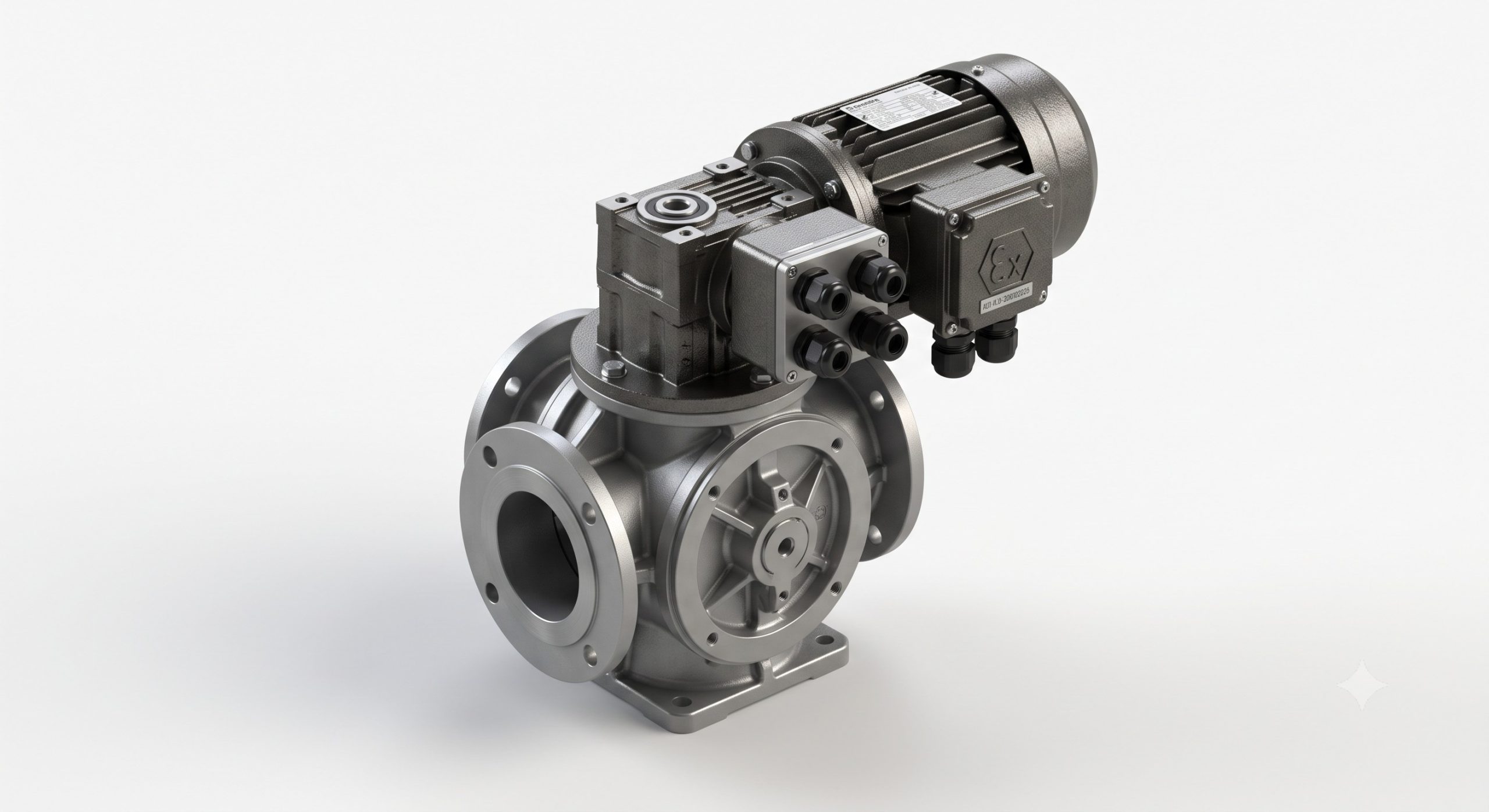

Explosion-Proof Rotary Valve: Doebritz DBR-1237 Heavy-Duty Airlock
The Doebritz DBR-1237 ATEX rotary valve is engineered for the most demanding hazardous environments, providing certified explosion protection, precision airlock sealing, and robust construction to ensure the safety and efficiency of your bulk material handling operations.
Why Source Doebritz DBR-1237 as Your ATEX Rotary Valve
In industries where combustible dusts are present, equipment certification is non-negotiable. The Doebritz DBR-1237 delivers uncompromising safety and performance:
- ATEX Zone 20/21/22 Compliance: Fully certified for explosive dust atmospheres, ensuring operational safety in high-risk areas and reducing liability for plant operators.

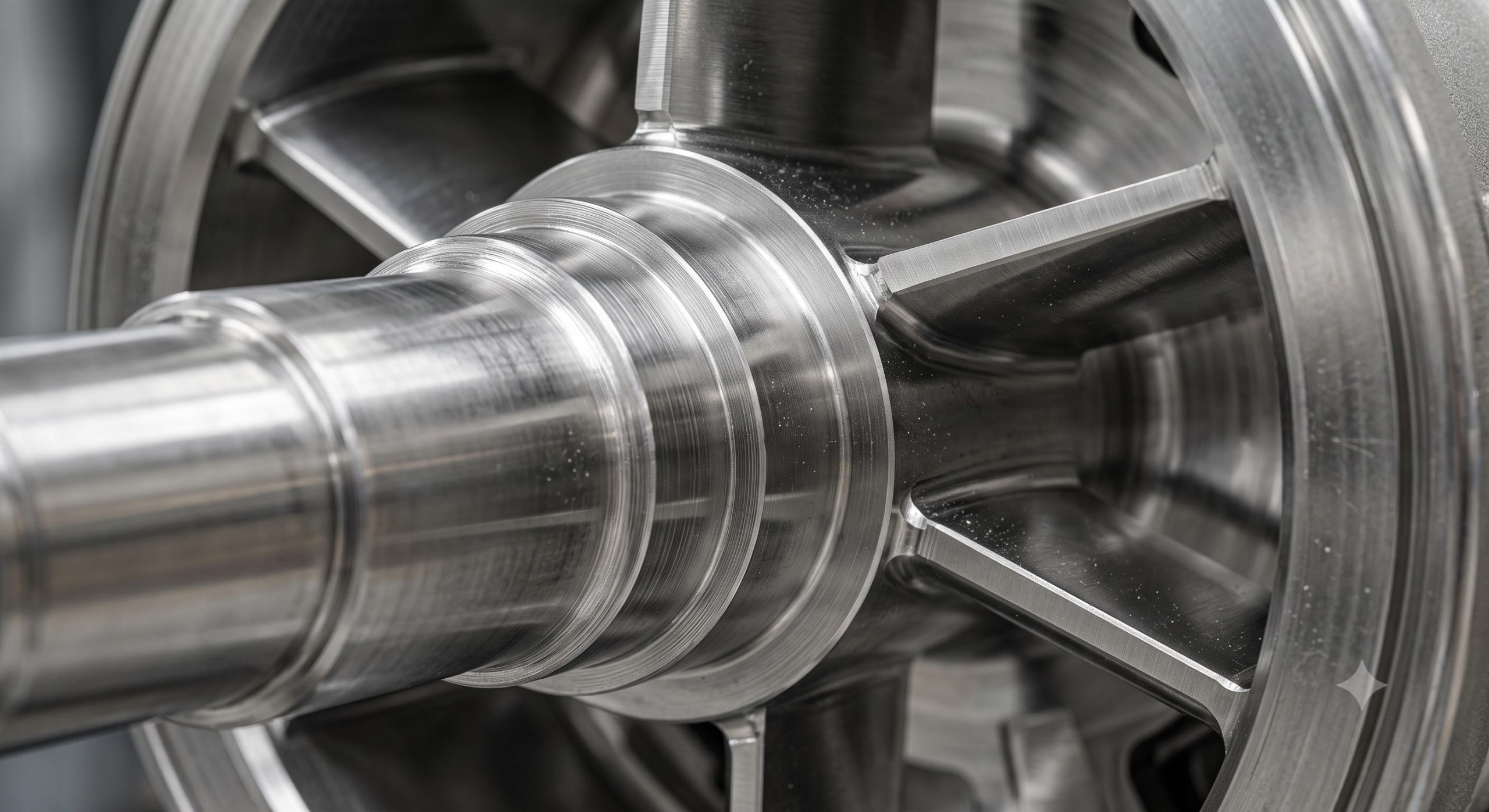

- Precision Machined for Low Leakage: With a rotor-to-housing clearance of just 0.1-0.2mm, this valve minimizes air leakage, optimizing pneumatic conveying efficiency and reducing energy costs.
- Heavy-Duty OEM Construction: Built on Doebritz’s legacy of precision engineering, the DBR-1237 features a robust housing and precision-machined rotor for extended service life in abrasive applications.
- Quick-Release for Ease of Maintenance: The DBR-1237’s quick-release design allows for rapid disassembly without special tools, slashing downtime for cleaning and maintenance in hygienic and industrial processes.

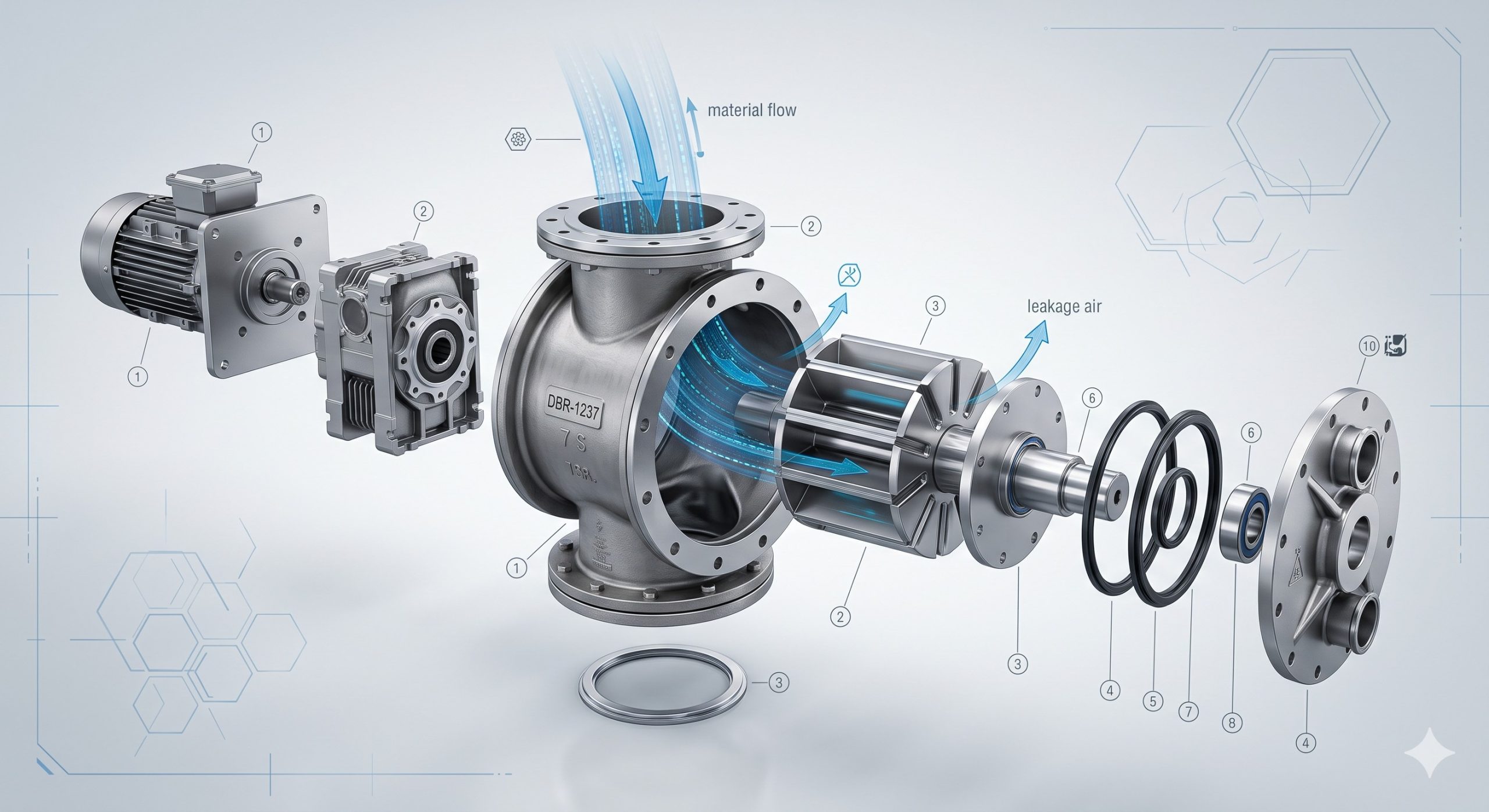

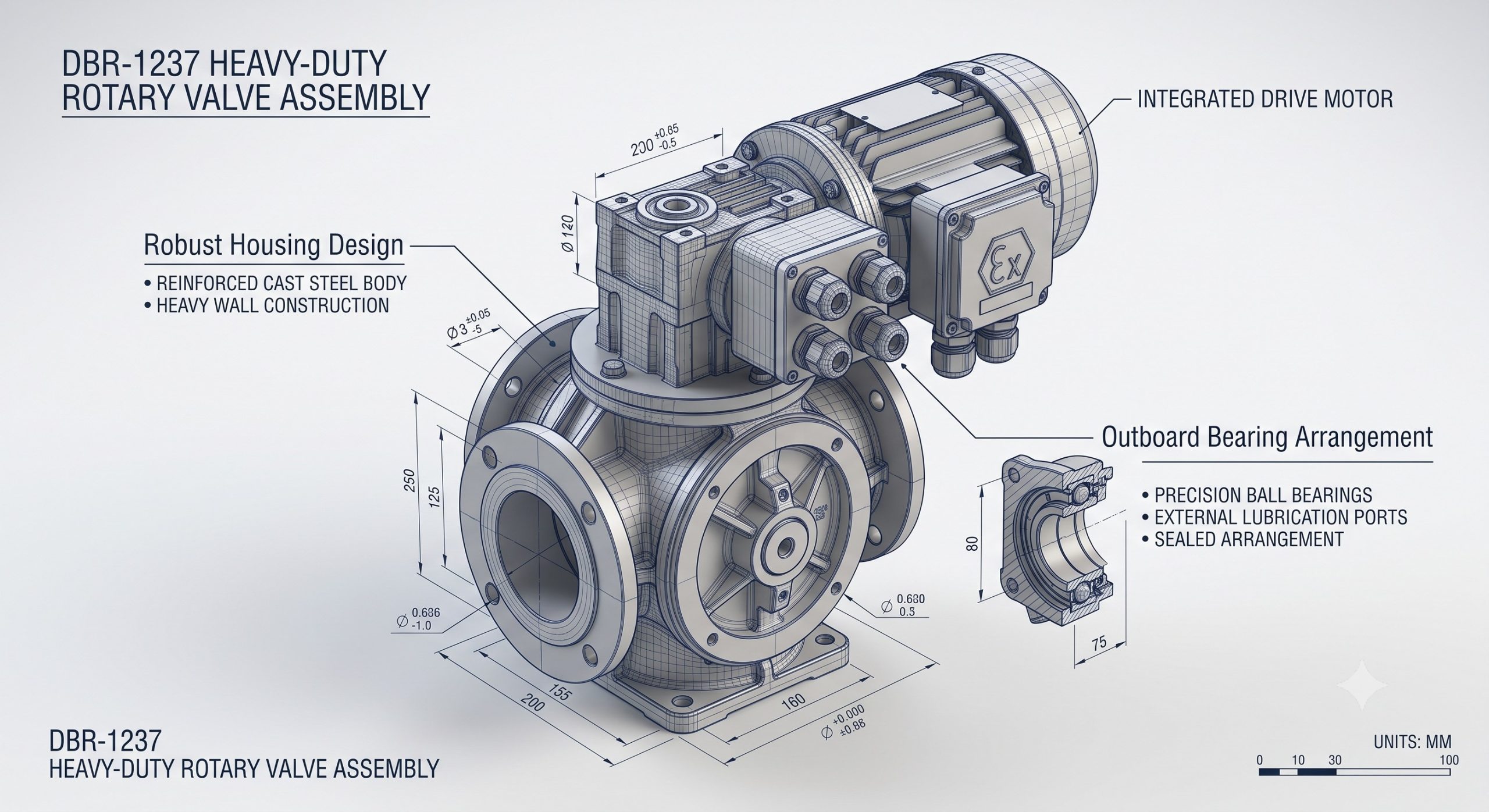

Housing, Rotor & Sealing Engineering
The DBR-1237’s robust design is the result of decades of engineering expertise. Body and rotor options include SUS304, SUS316L, and carbon steel with a range of wear-resistant coatings like tungsten carbide and ceramics to combat abrasion. For ATEX compliance, the valve is fitted with an explosion-proof motor and features a pressure rating of up to 16 bar. Advanced shaft sealing, including lip seal air-tight seals, prevents dust leakage and maintains process integrity. The unit also features HG20592 flanges for seamless integration into your existing pipeline systems.
Doebritz DBR-1237 Technical Specifications
These specifications detail the DBR-1237’s capabilities, offering a complete engineering solution for your application.
| Specification | Detail |
|---|---|
| Model | DBR-1237 |
| Body Material | SUS304 / SUS316L / Carbon Steel (with optional coatings) |
| Rotor Design | Precision-Machined, Quick-Release |
| Rotor-to-Housing Clearance | 0.1 – 0.2 mm |
| Explosion Protection | ATEX Zone 20/21/22, 16 bar Pressure Rating |
| Shaft Seal | Lip Seal Air-Tight Seal |
| Inlet/Outlet | DN50, DN100, DN150, DN200, DN300, DN350 (HG20592) |
| Temperature Range | Ambient: -15°C to 60°C; Material: 0°C to 120°C |
| Motor Options | Explosion-Proof, VFD-Ready |
| Cleaning | Quick-Release, CIP / WIP Compatible |
| Certifications | CE, TÜV, ATEX |
Heavy-Duty Application Scenarios for the Doebritz ATEX Valve
The Doebritz DBR-1237 is ideally suited for several critical industrial applications, providing reliable service in both conveying and metering roles.

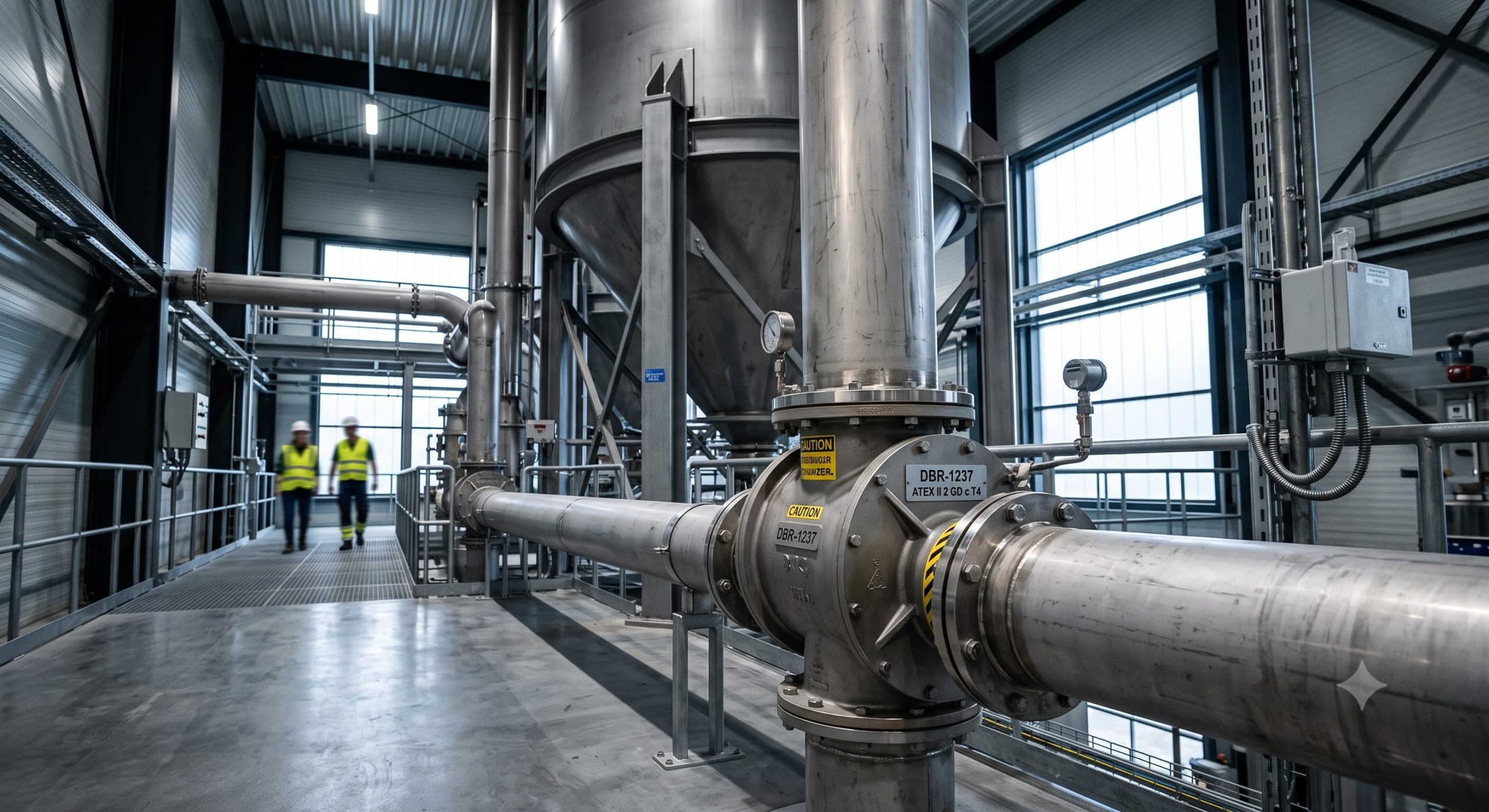

Explosive Dust Hazard Areas
Deployed in ATEX Zone 20, 21, or 22 environments, the DBR-1237 serves as a critical safety component. It acts as a flameproof barrier in pneumatic conveying lines while feeding materials like pharmaceutical powders, fine chemicals, and carbon black.
Hygienic Food & Pharmaceutical Processing
With sanitary 316L construction and a quick-clean design, the DBR-1237 is ideal for food and pharmaceutical applications, such as handling milk powder, vitamins, and active pharmaceutical ingredients, where it meets stringent hygiene standards while maintaining ATEX safety.
Automated Metering and Batching Systems
Integrated with a variable frequency drive and PLC controls, the DBR-1237 provides precise batch metering and recipe formulation. This ensures high accuracy in material throughput, reducing waste and improving product consistency in automated production lines.
Global OEM Assurance & Supply Chain Reliability
Choosing Doebritz means partnering with a global leader in industrial valve manufacturing. Our stringent quality control, use of premium materials, and adherence to international standards like CE and TÜV ensure every ATEX rotary valve meets the highest performance and safety benchmarks. We offer flexible customization options and reliable global delivery, ensuring your plant operations run without interruption.
Frequently Asked Questions
- Q: What ATEX zones is the Doebritz DBR-1237 certified for?
- A: The DBR-1237 is certified for use in ATEX Zone 20, 21, and 22 environments, suitable for handling combustible dusts in both continuous and occasional hazardous conditions.
- Q: What materials can the DBR-1237 handle?
- A: This valve is designed to handle a wide range of bulk materials, including fine powders (pharmaceuticals, flour), granules (plastics, grains), and abrasive materials (carbon black, minerals). Material contact parts can be fabricated from SUS304, SUS316L, or coated with tungsten carbide for enhanced wear resistance.
- Q: How does the DBR-1237 achieve low air leakage?
- A: The valve achieves its low leakage rate primarily through a precision machined rotor and housing with an extremely tight clearance of just 0.1-0.2mm, which significantly reduces air bypass, improving system efficiency and energy savings.
- Q: Can the DBR-1237 be customized for my specific system?
- A: Absolutely. Doebritz offers full customization, including material selection, flange types (DIN/ANSI/HG20592), drive motors, and optional features like water cooling jackets to meet the unique demands of your process.
- Q: How is the DBR-1237 designed for maintenance?
- A: The DBR-1237 features a pioneering quick-release design that allows for rapid disassembly without special tools. This significantly reduces downtime for cleaning, inspection, and maintenance compared to traditional rotary valves.
