Wet Granulation Mill, Doebritz Rotary Processing Mill, 0.5-5 t/h / ATEX Certified / Inline Wet Milling

Product Summary

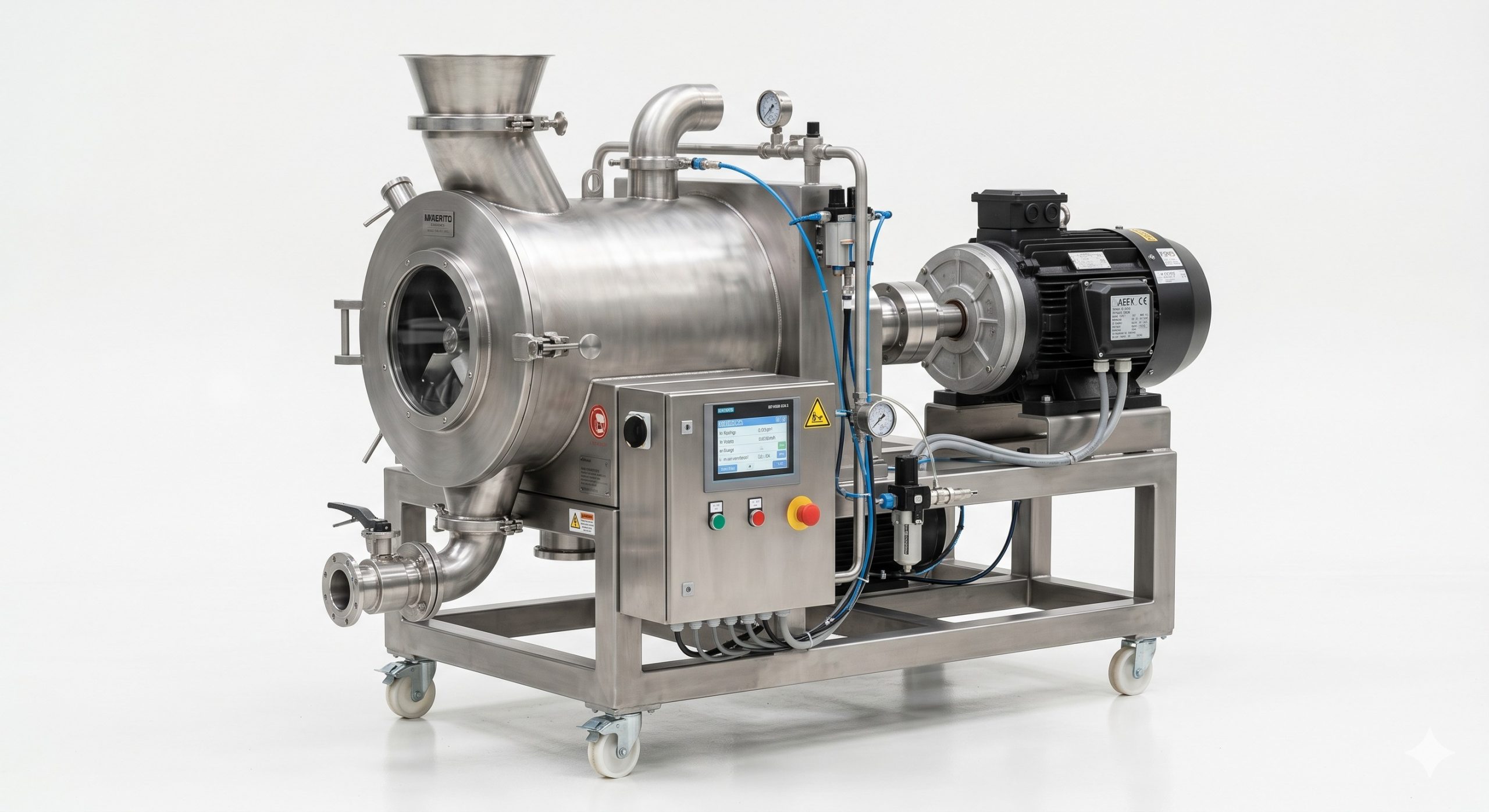

Doebritz introduces the high-performance Wet Granulation Mill – a compact inline rotor-stator system engineered for continuous wet milling, granulation, and de-agglomeration of powders, pastes, and crystalline slurries. Achieve uniform particle size distribution from 0.2 to 2.5 mm with production capacities ranging from 0.5 t/h to 5 t/h (scalable to 15 t/h). Complete with ATEX 22/2GD certified explosion-proof protection, IP66 motor enclosures, and cartridge mechanical seals for zero fugitive emissions. Designed for pharmaceutical, chemical, and food-grade wet processes requiring CIP/SIP readiness.

Why Source Doebritz Wet Granulation Mill

Global procurement managers and process engineers choose Doebritz for ISO 9001:2025 certified manufacturing, CNC precision machining centres, and OEM supply flexibility. Our competitive advantages include:

• Ultra-Low Residual Seal Leakage: Double-acting mechanical seal with buffer fluid circulation keeps leakage below 0.5 ml/hr, guaranteeing contamination-free wet product.
• Rapid Changeover Design: Swing-away housing and quick-release stator cartridges reduce cleaning and screen change time by 70% compared to conventional wet mills.
• Explosion-Proof Drivetrain: ATEX Ex II 2GD c T4 certified motor with integrated thermal protection, suitable for ethanol, acetone, and IPA-based wet granulations.
• Global OEM Capability: Custom flanges (DIN/ANSI/JIS), FDA-compliant 316L wetted parts, and full traceability documentation – delivered with 4-6 week lead time.

Housing & Rotor-Stator Engineering

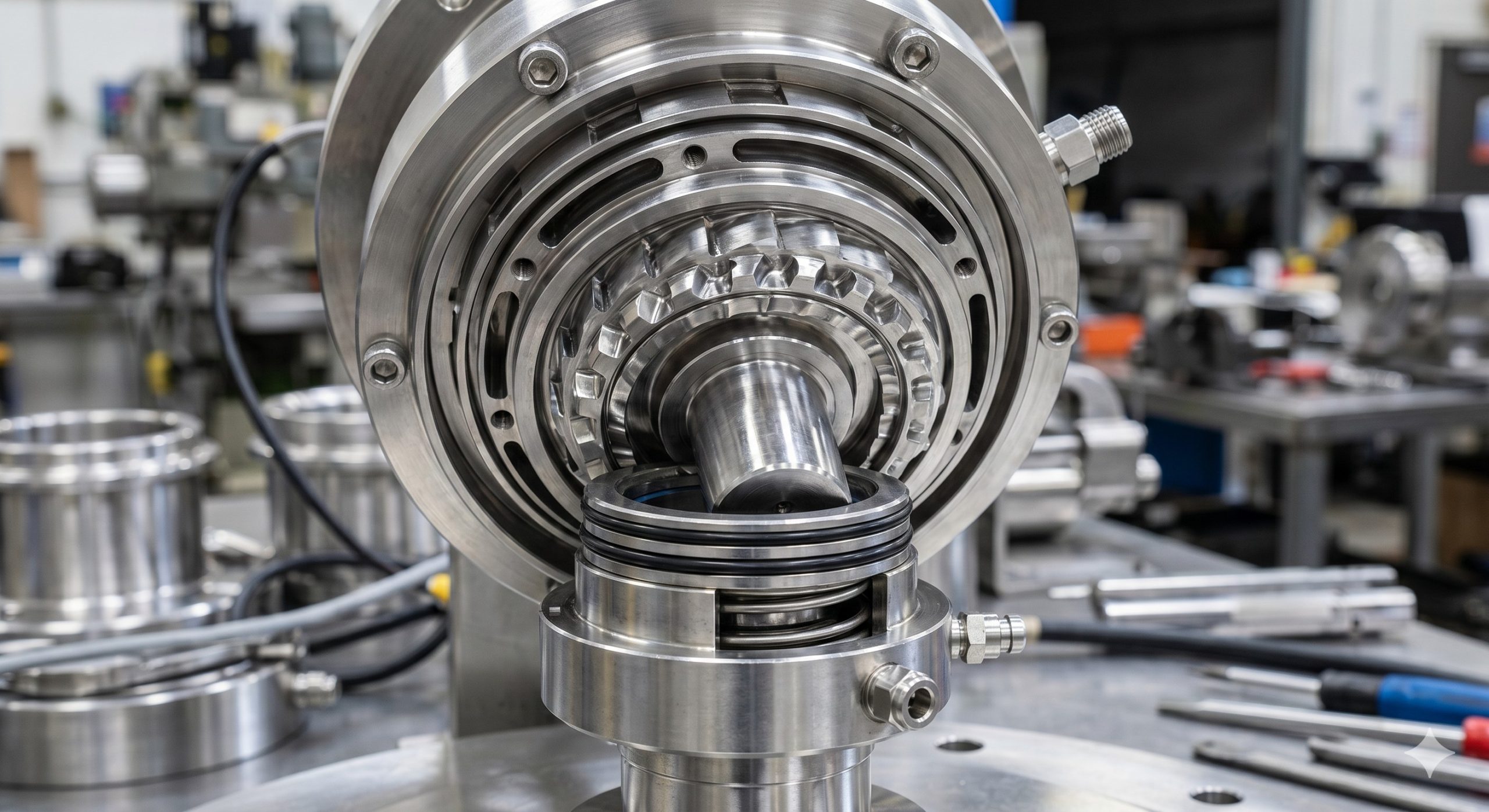

The Doebritz Wet Granulation Mill features a fully split 316L stainless steel housing with no dead zones, polished to Ra ≤ 0.4 μm for rapid cleaning. The 4-stage rotor-stator arrangement comprises a coarse feeding impeller, medium-shear granulating rotor, high-shear milling stage, and final discharge stator. Rotors are CNC-machined from Duplex 2205 or Hastelloy C22 upon request. Outboard mounted heavy-duty bearings with labyrinth seals isolate the product zone from lubricants, while the cartridge single/double mechanical seal (DIN EN 12756) operates water-flushed or product-lubricated. Operating pressure up to 6 bar(g) and temperature range from -20°C to +150°C.

Technical Specifications

All Doebritz mill performance data verified on our in-house test loop. Standard configurations listed below; custom sizes and metallurgies available for high-wear applications.

Specification	Standard Detail	Custom Option
Model / Throughput (max)	DR-WGM-5: 5 t/h (wet granule)	DR-WGM-15: 15 t/h
Wetted Material	AISI 316L (Ra ≤ 0.4 μm)	Hastelloy C22 / Duplex 2205
Rotor-Stator Stages	4-stage (feed impeller + 3 milling stages)	5-stage shear stack
Motor Rating/Protection	11 kW, 4-pole, ATEX Ex II 2GD	22 kW, 2-pole, IP66
Max Pressure / Temp	6 bar(g) / 120°C	10 bar(g) / 200°C (with cooling jacket)
Mechanical Seal Type	Double cartridge, SiC/SiC, water flush	Single seal, tungsten carbide/Teflon
Outlet Connection	DIN DN100 PN16 / ANSI 4″ 150#	JIS 100A 10K / SMS (hygienic)

Heavy-Duty Application Scenarios

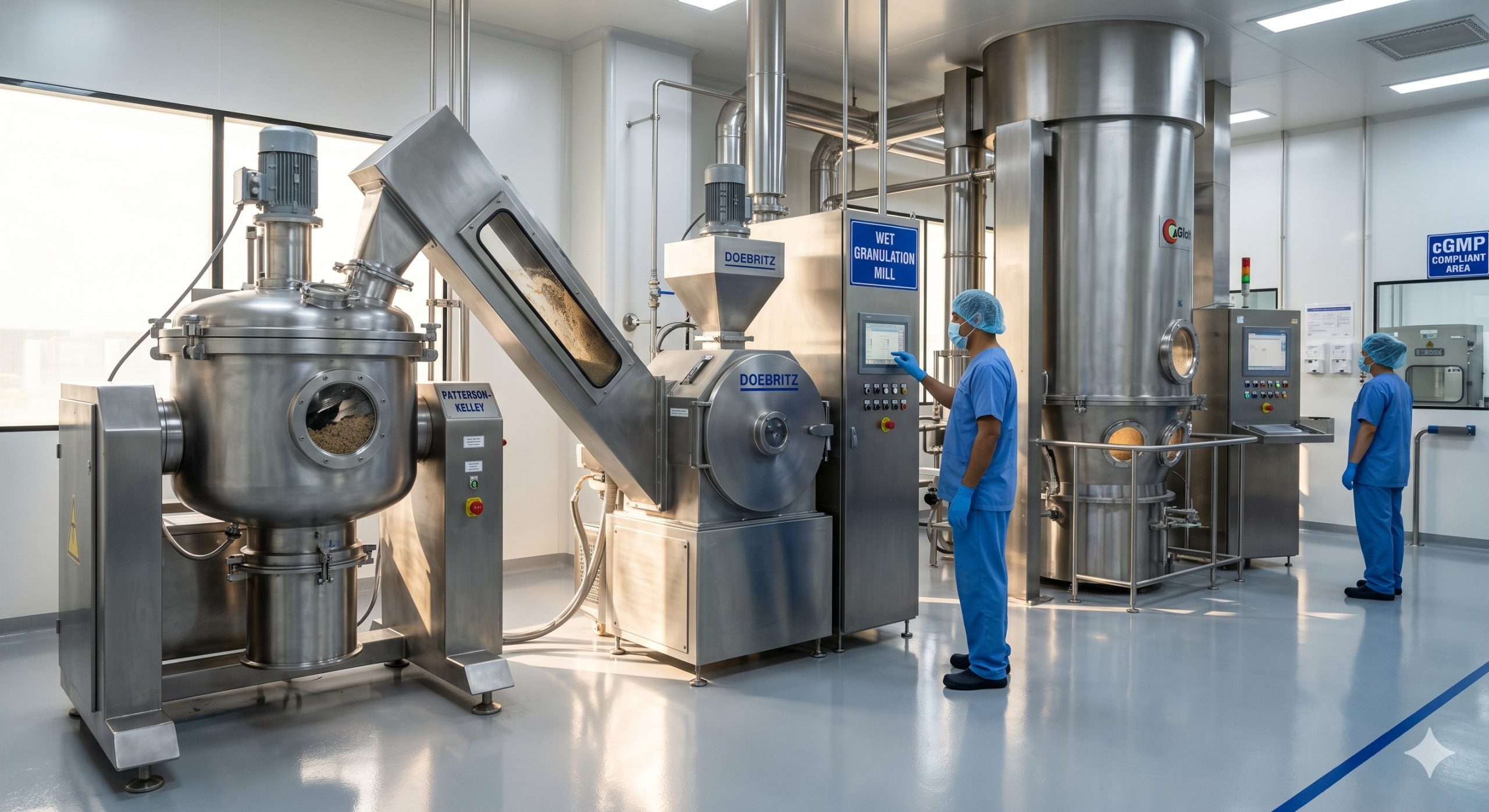

Continuous Wet Granulation – API & Excipient Blends

Pharmaceutical manufacturers integrate Doebritz mills directly after high-shear mixers to convert wet powder mass into uniform granules (0.8-1.2 mm) for fluid bed drying. Our rotor tip speeds from 8 to 23 m/s enable precise control over granule density and friability.

Slurry De-Agglomeration – Pigments & Catalysts

In chemical plants, the Doebritz mill breaks down hard agglomerates in 40-60% solid slurries without temperature rise. The self-pumping rotor design eliminates the need for an upstream feed pump when viscosity ≤ 50,000 cP.

Food & Confectionery Wet Milling

Use the mill inline after crystallization tanks for sugar-alcohol based masses, chocolate premixes, and fruit concentrate slurries. CIP system compatibility with 90°C alkaline and acid cleaning cycles ensures full microbiological control.

Frequently Asked Questions

1. What is the minimum order quantity (MOQ) for Doebritz OEM wet granulation mills?

The Doebritz MOQ is 1 unit for standard ATEX mills. For non-standard metallurgy (Hastelloy, SMO 254) or custom stator screens, MOQ starts at 2 units. We also offer a rental test mill for 30-day validation at your facility.

2. Can you supply the mill with different flange standards and inlet/outlet orientations?

Absolutely. Doebritz provides DIN PN10/16, ANSI 150#, and JIS 10K flanges as standard. Inlet/outlet orientation can be 180° inline, 90° right-angle, or custom angles – no engineering surcharge for OEM partners.

3. Is the mill suitable for ATEX Zone 0 (gas) and Zone 20 (dust) simultaneously?

Yes, our Ex II 2GD c T4 rating covers Zone 1 gas and Zone 21 dust environments. For Zone 0/20 we recommend the Doebritz Ex II 1/2D c T4 certified mill with double mechanical seal and inert gas purge.

4. What is the typical lead time and do you provide FAT witnessing?

Standard lead time is 4 weeks for cast 316L models, 6 weeks for Hastelloy. We welcome customers to witness the Factory Acceptance Test (FAT) at our CNC machining and assembly facility (Germany/Shanghai). Full test report with particle size analysis is supplied.

5. Can the mill handle high-temperature (+120°C) and viscous (80,000 cP) wet masses?

Yes, the Doebritz mill is jacketed for heating/cooling media up to 150°C. For viscosity > 50,000 cP we recommend the DR-Feeder auger attachment to positively feed the rotor entry. Standard mechanical seals are silicon carbide with EPDM/FKM/Viton options.
