Sanitary Processing Star Discharge Valve: Doebritz Protein Powder Airlock | Quick-Clean Demountable Standard

Precision Sanitary Discharge Solution

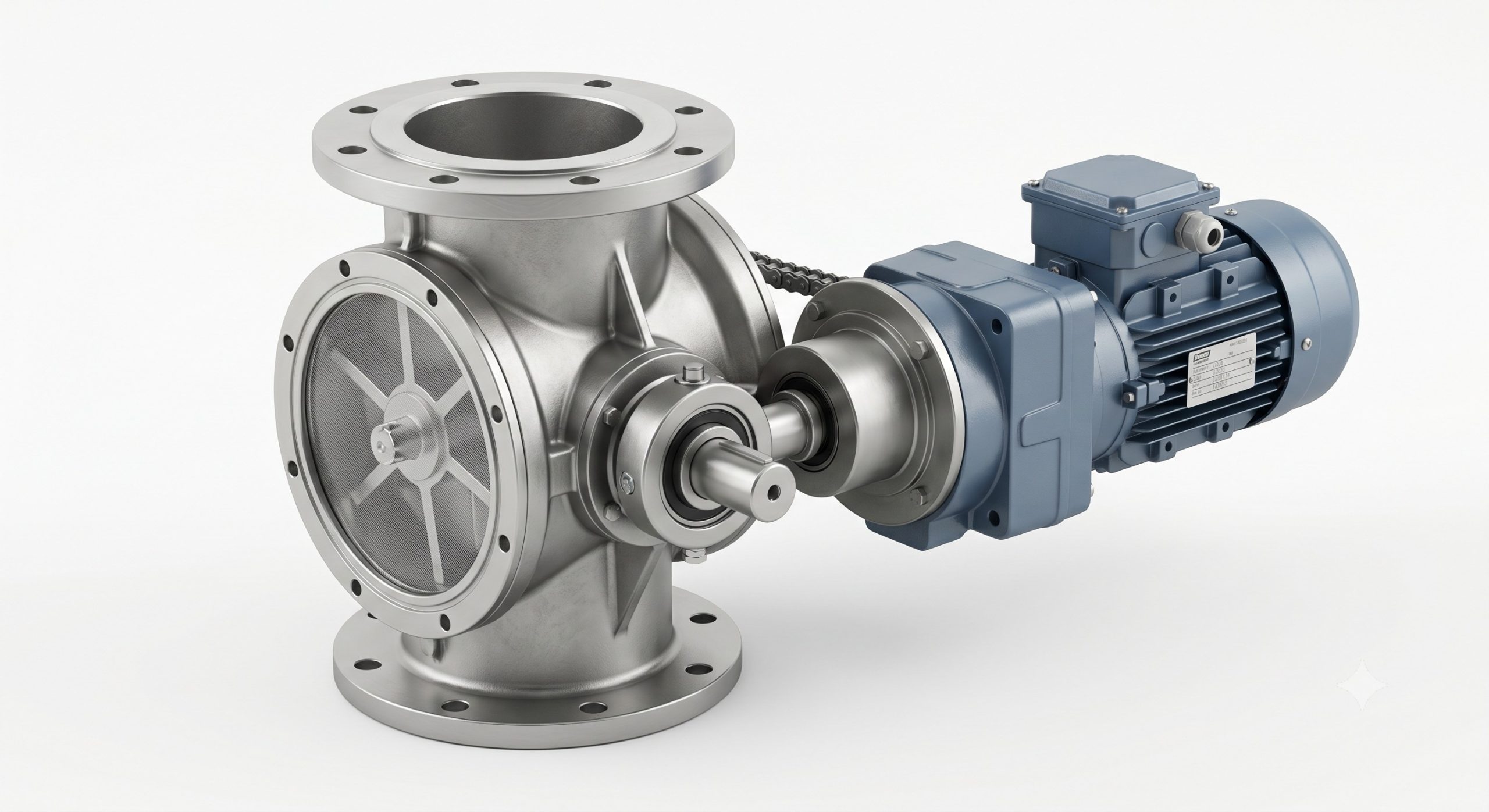

Doebritz introduces the DBR-1237 Protein Powder Star Discharge Valve, a pinnacle of hygienic rotary valve engineering for the most demanding protein powder processing applications. Designed as a quick-release demountable airlock, this valve seamlessly integrates into food and pharmaceutical production lines where product purity, rapid cleaning, and absolute batch integrity are non-negotiable. Engineered with a focus on preventing cross-contamination and ensuring optimal flow, the Doebritz star discharge valve delivers consistent, contaminant-free discharge of fine, cohesive protein powders, from whey and soy to specialized peptide blends.

Leveraging Doebritz’s deep expertise in heavy-duty industrial manufacturing, this airlock feeder is not just a component; it’s a strategic investment in operational excellence. Our CNC precision machining ensures rotor-to-housing clearances of just 0.1–0.2mm, drastically reducing air leakage and preserving pneumatic conveying efficiency. This translates directly to lower energy consumption and more accurate volumetric filling, a critical factor for high-value protein products. The DBR-1237 is built to the highest standards, offering a superior total cost of ownership (TCO) through reduced downtime and extended service intervals.

Why Source Doebritz Protein Powder Star Discharge Valve

Choosing the Doebritz star discharge valve for your protein powder line means selecting a partner committed to your process efficiency and product safety. Our valves are engineered to address the unique challenges of handling hygroscopic and cohesive protein powders, ensuring reliable performance and compliance with global food safety standards. Here’s why leading plant managers and process engineers prefer Doebritz:

• Minimal Air Leakage & Maximum Efficiency: The precision-ground rotor and housing create an exceptional airlock seal, minimizing blowback and pressure loss in pneumatic conveying systems. This ensures stable material flow and reduces overall system energy costs.
• Quick-Release Demountable Design for Sanitary Processing: The DBR-1237 features a tool-free, quick-release mechanism that allows for rapid disassembly and reassembly. This facilitates thorough manual cleaning, CIP, or WIP cleaning protocols, drastically reducing downtime and eliminating dead zones where protein powder could accumulate, ensuring batch-to-batch purity.
• Superior Hygiene & Material Compatibility: Constructed from premium SUS316L stainless steel with a mirror or Ra≤0.4μm internal finish, the valve is exceptionally smooth and non-porous. This prevents product adhesion and bacterial growth, making it perfect for high-purity applications. The contact parts can be coated with FDA-compliant polymer materials for enhanced wear resistance and to prevent galling with sticky powders.
• ATEX Certified Explosion Safety: Protein powders are combustible. The DBR-1237 is available with ATEX Zone 20/21/22 certification, featuring a flameproof construction and a pressure-resistant housing rated up to 16 bar. This guarantees safe operation in potentially explosive atmospheres.
• Global OEM Supply & Full Traceability: As a premier manufacturer, Doebritz provides complete material certifications, including 3.1 inspection certificates. Every valve undergoes rigorous testing to ensure it meets our exacting standards, offering you unparalleled quality assurance for your critical process.

Housing & Rotor Engineering for Protein Powders

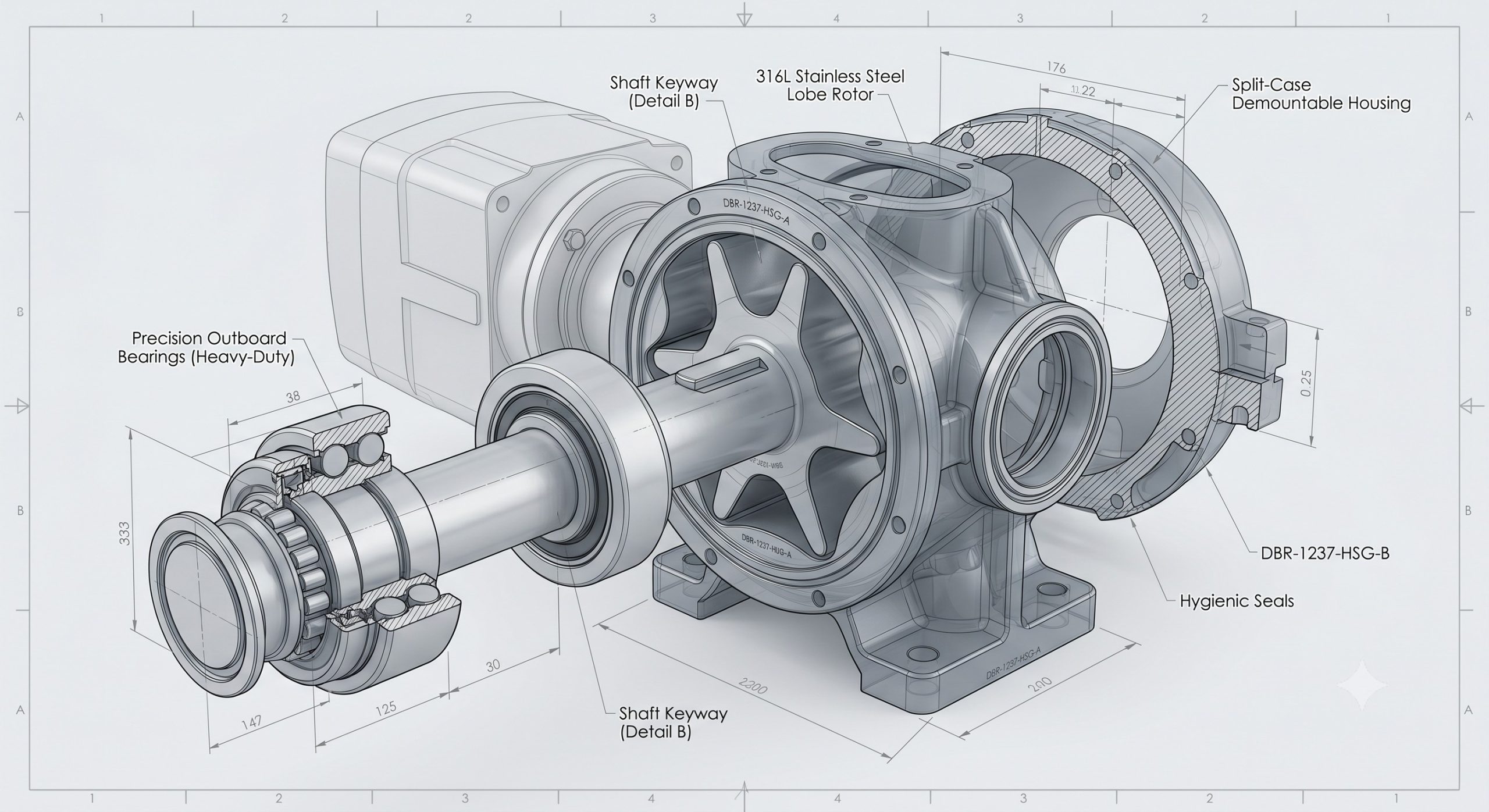

The robust construction of the Doebritz DBR-1237 star discharge valve is the key to its superior performance and long service life. The housing, available in investment cast or fabricated stainless steel, is designed to withstand the rigors of continuous operation in industrial food plants. The internal geometry is optimized to prevent material compression and degradation, ensuring the delicate structure of protein powders is maintained.

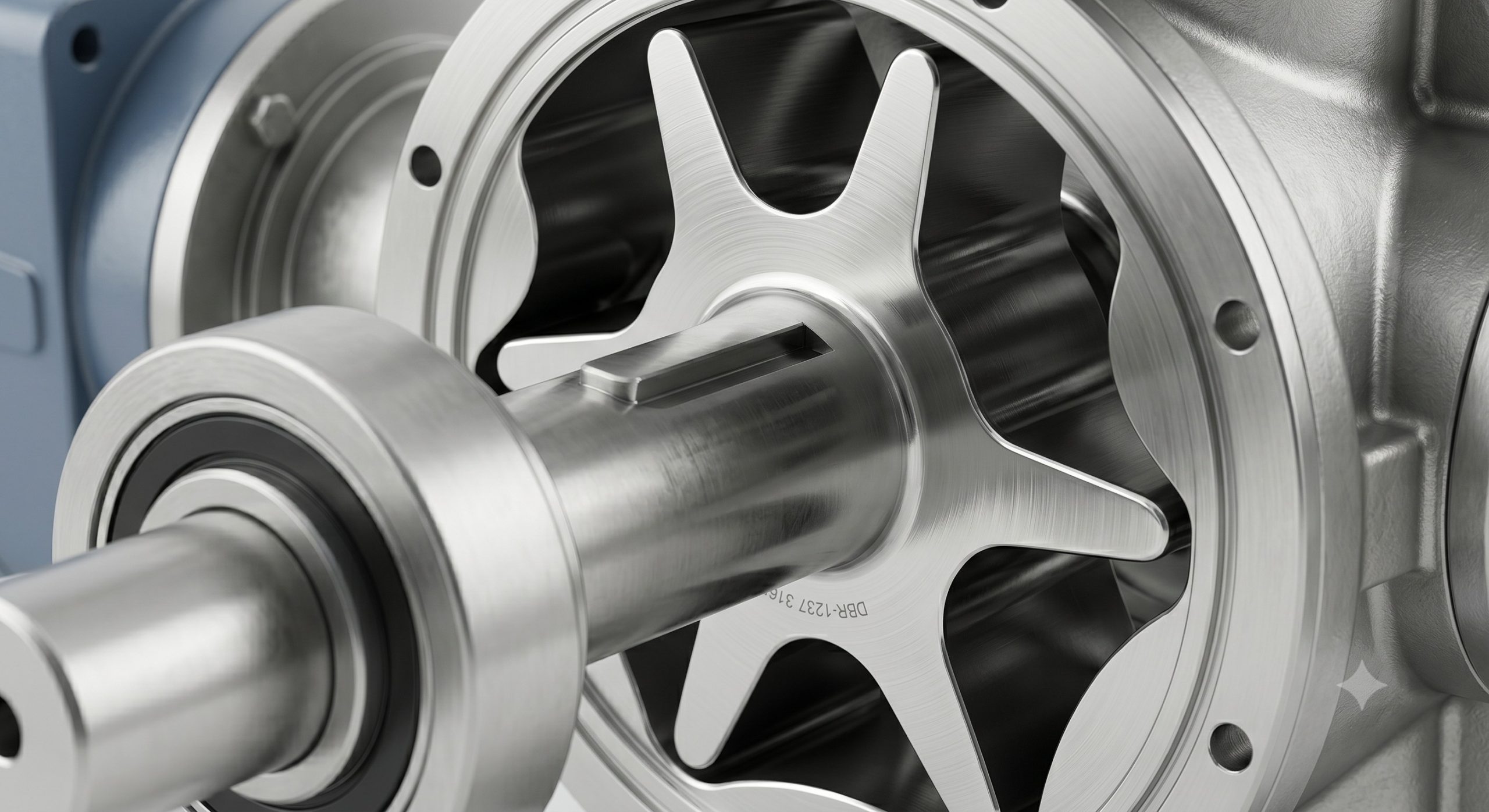

The heart of the valve is its precision-engineered rotor. Doebritz utilizes state-of-the-art 5-axis CNC machining centers to produce rotors with unparalleled accuracy. The 8-vane or 10-vane open rotor configuration is specifically designed to gently handle powder while providing a consistent volumetric displacement. The rotor vanes can be equipped with replaceable tips made from wear-resistant materials like tungsten carbide or engineered polymers to handle abrasive additives often found in protein blends, ensuring a long service life even under severe duty cycles.

Advanced shaft sealing is another hallmark of the Doebritz design. The standard configuration includes a lip seal air-tight system, which can be complemented with a pressurized air purge to prevent fine protein powder from entering the bearing housing. For the most sensitive applications, outboard bearings with a lantern ring are available, offering an absolute barrier and protecting the gearbox from contamination. These engineering features work in concert to minimize maintenance and maximize uptime, allowing your protein production line to operate at peak efficiency.

Technical Specifications

The DBR-1237 Doebritz protein powder star discharge valve is engineered to perform across a wide range of processing conditions. The following table outlines the key parameters and available options, demonstrating the valve’s adaptability to your specific process requirements.

Specification	Detail
Model	DBR-1237
Product Type	Protein Powder Star Discharge Valve / Quick-Release Demountable Airlock
Construction Material	SUS304, SUS316L (Standard), Carbon Steel (Optional)
Rotor Design	Open Rotor, 8-Vane or 10-Vane (Customizable)
Rotor-to-Housing Clearance	0.1 – 0.2 mm
Shaft Seal	Lip Seal Air-Tight Seal, Optional Air Purge / Outboard Bearings
Housing Finish (Internal)	Mirror Finish, Ra≤0.4μm / 0.8μm / 1.6μm (Customizable)
Housing Finish (External)	Anti-Fingerprint, Machined Surface <0.8μm, Glass Bead Blasted
Operating Temperature (Ambient)	-15°C to +60°C
Operating Temperature (Material)	0°C to +120°C
Maximum Differential Pressure	1 bar (Standard), 3.5 bar (High Pressure Option)
Drive Options	Direct Gearmotor, VFD / PLC Control Ready
Safety & Compliance	ATEX Zone 20/21/22 (Optional), CE, TÜV, FDA-Compliant Materials
Connection Standard	HG20592, DIN, ANSI (Custom Flanges Available)
Inlet / Outlet Sizes	DN100, DN150, DN200, DN300, DN350 (Customizable)

Heavy-Duty Application Scenarios

The versatility of the Doebritz DBR-1237 protein powder star discharge valve makes it an ideal solution for a variety of critical applications within the food and pharmaceutical industries. It is a proven component in high-care areas where hygiene and product integrity are paramount.

Dairy & Nutritional Powder Processing

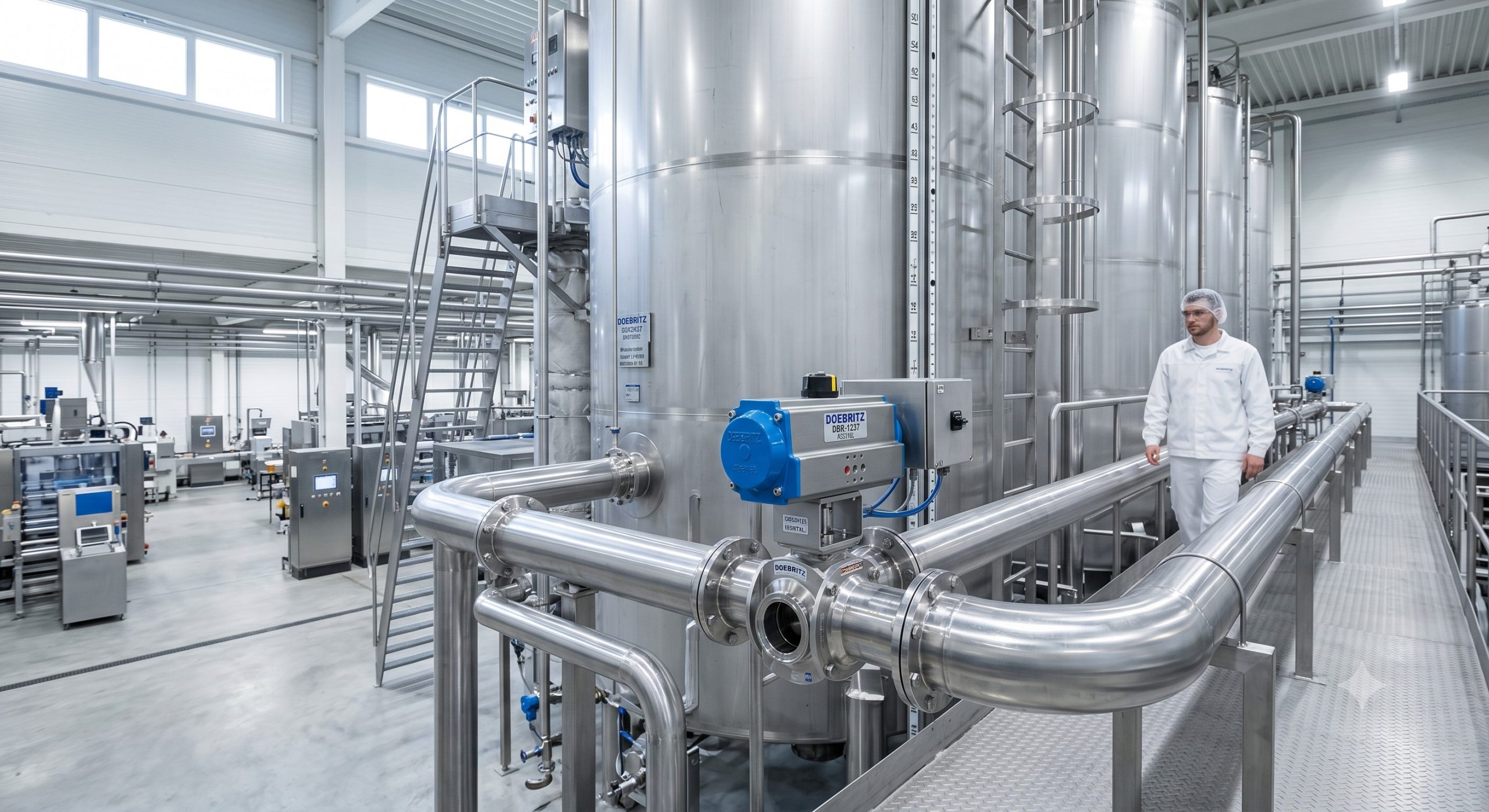

In the production of whey protein concentrate (WPC), whey protein isolate (WPI), and milk protein concentrate (MPC), the Doebritz star discharge valve excels in discharging from spray dryers, cyclones, and bag filters. Its sanitary design and gentle handling prevent the degradation of these heat-sensitive and expensive ingredients. The quick-release feature allows for swift changeovers between different protein types (e.g., soy to dairy) and facilitates comprehensive cleaning to prevent allergen cross-contamination. The valve’s ability to provide a reliable airlock also ensures stable negative pressure in the drying system, optimizing yield and powder quality.

Pharmaceutical API & Excipient Handling

For pharmaceutical applications, the DBR-1237 is the preferred choice for discharging active pharmaceutical ingredients (APIs) and excipients like microcrystalline cellulose or lactose. The mirror-finished 316L stainless steel surfaces and optional electropolishing eliminate crevices where product could lodge, making the valve fully compliant with cGMP and FDA regulations. The ATEX certification is critical for applications involving alcohol-based granulations or other explosive organic powders, ensuring operator safety and regulatory compliance. The valve’s precision metering capability is vital for accurate tablet compression and capsule filling lines.

Specialty Protein & Ingredient Blending

In facilities dedicated to producing custom protein blends (e.g., for sports nutrition or medical foods), the Doebritz star discharge valve is a key component in the automated batching line. Its compatibility with Variable Frequency Drives (VFD) and PLC control systems allows for precise, metered feeding of individual protein sources and minor ingredients into a blending system. The valve’s low air leakage ensures that the mass flow is purely gravity-fed, enhancing the accuracy of the batch recipe. The robust construction also handles the inclusion of dense or fibrous materials like pea protein or collagen, maintaining a consistent and reliable feed rate.

Frequently Asked Questions

What makes the Doebritz star discharge valve ideal for protein powders?

The Doebritz DBR-1237 is specifically designed for sticky and cohesive powders. Its sanitary 316L construction with a mirror finish prevents material build-up, while the precision clearances and optional polymer-coated rotors ensure consistent discharge without product degradation or packing. The quick-release design allows for rapid and thorough cleaning between batches.

How does the DBR-1237 minimize air leakage?

The valve achieves minimal air leakage through the extremely tight, CNC-machined clearances of 0.1–0.2mm between the rotor and the housing. This precise fit, combined with the optional high-efficiency shaft seals and air purge systems, creates an effective airlock. This is critical for maintaining differential pressure in pneumatic conveying systems and ensuring the accuracy of volumetric metering.

Can I get an ATEX-certified version of this valve for my plant?

Absolutely. The Doebritz DBR-1237 star discharge valve is available with full ATEX certification for Zone 20, 21, and 22 dust explosive atmospheres. This includes a heavy-duty, pressure-resistant housing rated up to 16 bar, an ATEX-certified motor, and grounding provisions, ensuring the highest level of safety in hazardous areas.

What customization options are available for the DBR-1237?

Doebritz offers extensive customization for the DBR-1237. You can choose from various materials (SUS304, SUS316L, carbon steel with coatings), internal surface finishes (Ra≤0.4μm, mirror polish), drive options (gearmotor, VFD), and sealing systems (lip seal, air purge, outboard bearings). We also provide custom inlet and outlet flange sizes and configurations (DIN, ANSI, etc.) to match your existing process piping.

What is the typical lead time for a Doebritz protein powder star discharge valve?

As a global manufacturer with a robust supply chain, Doebritz offers competitive lead times. For standard configurations with common materials and sizes, we often have stock available for rapid deployment. Custom-engineered solutions typically have a lead time that reflects the complexity of the design and the availability of materials. Contact our sales team for a specific quote and delivery schedule for your project.
