Quick-Clean Demountable Valve: Doebritz Whole/Skim Milk Powder Quick-release Airlock Valve | Sanitary Processing Standard

Sanitary Operations Summary

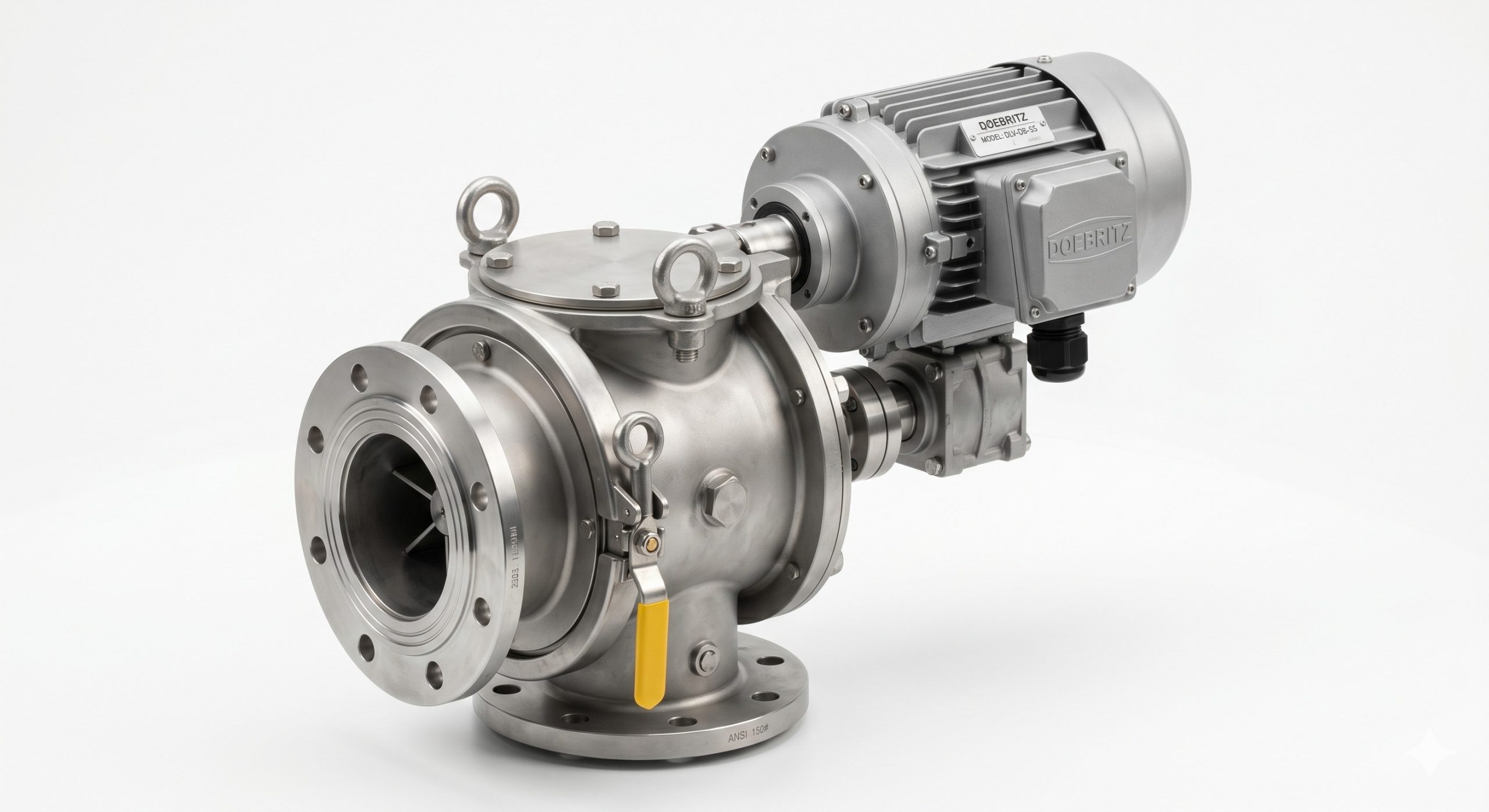

Doebritz introduces a new benchmark for dairy and food processing with its Whole/Skim Milk Powder Quick-release Airlock Valve. Designed specifically for hygienic pneumatic conveying and gravity discharge, this rotary valve is the centerpiece of any high-care production line.

With a focus on minimizing cleaning downtime and eliminating cross-contamination risks, the Doebritz sanitary valve is engineered from premium SUS316L or SUS304 stainless steel, featuring a mirror-polished internal finish (Ra ≤ 0.4μm). The quick-release demountable structure allows for complete disassembly without specialized tools, drastically reducing maintenance intervals and validating GMP compliance.

As a global OEM supplier, Doebritz integrates advanced CNC precision machining to maintain a rotor-to-housing clearance of just 0.1–0.2mm. This ensures minimal air leakage, maximizing the efficiency of your dilute or dense phase pneumatic conveying system while safeguarding the integrity of sensitive milk powders.

Minimizing Cleaning Downtime

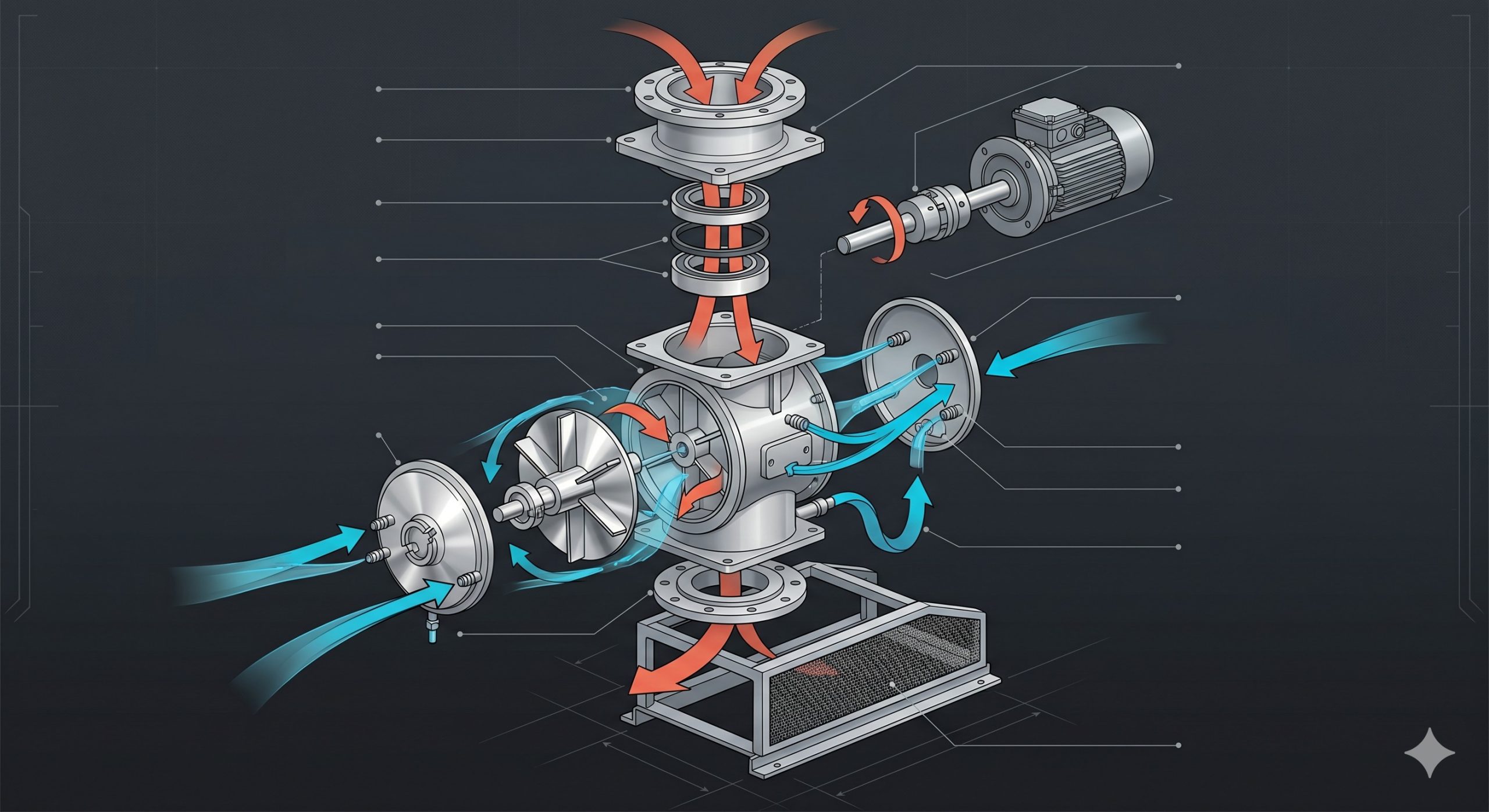

The core engineering advantage of the Doebritz Whole Milk Powder Airlock is its Quick-Release (Demountable) configuration. Unlike traditional valves requiring hours of disassembly, this unit features a tool-less access design that enables complete strip-down in minutes. This facilitates not only manual cleaning but also supports fully automated Online CIP (Clean-in-Place) and WIP (Wash-in-Place) systems.

This design philosophy is critical for dairy applications where product changeovers are frequent. The absence of dead zones and the sanitary surface finish prevent bacterial growth and powder build-up, ensuring every batch meets stringent food safety standards (GMP) and maintains a Class C/D cleanroom environment.

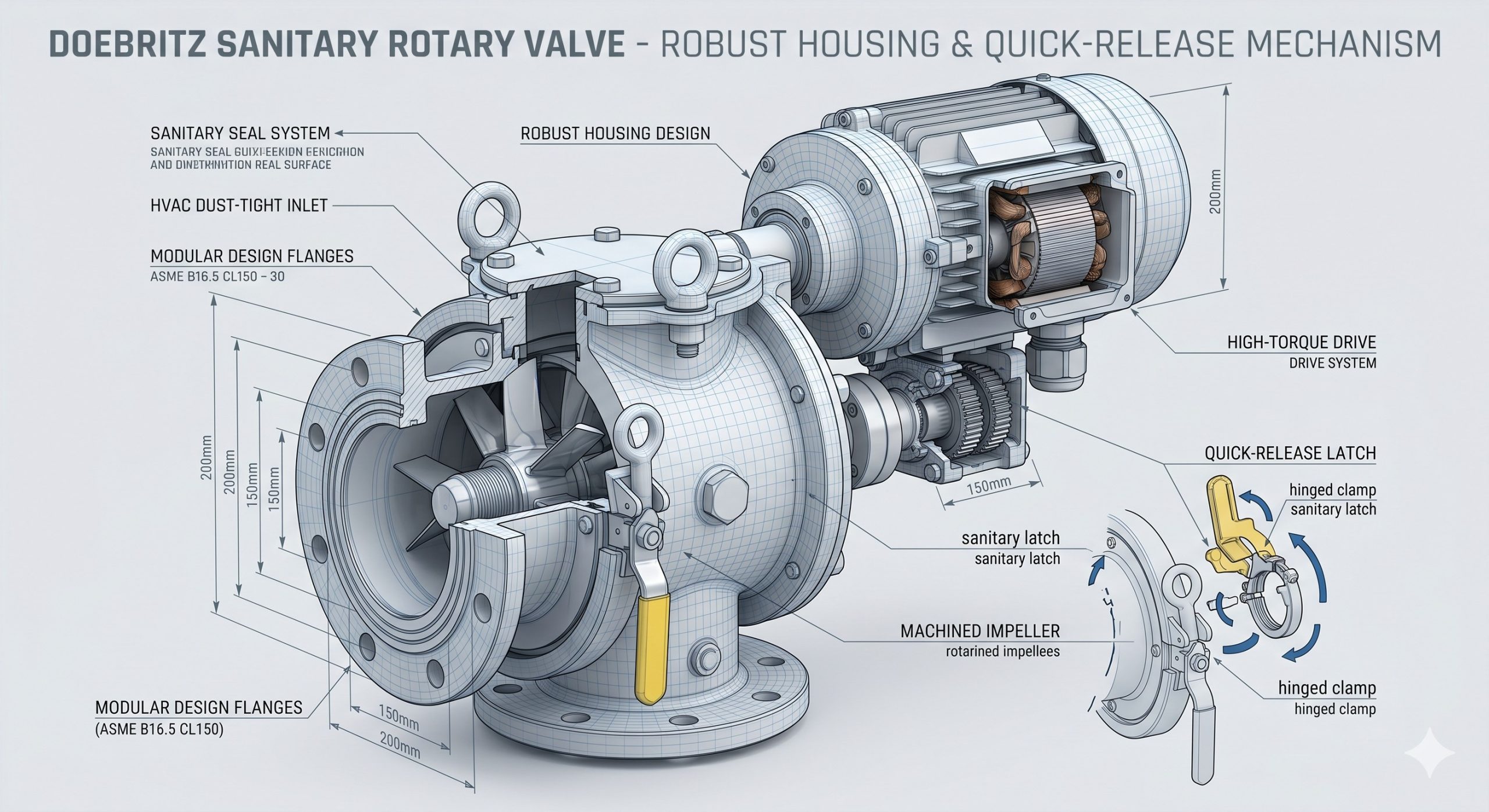

Precision Locking & Hygienic Design

The heart of the Doebritz system lies in its proprietary low-leakage rotor design. Precision-machined to a tight tolerance of 0.1mm–0.2mm, the rotor minimizes gas bypass across the valve body. This is essential for milk powder conveying, as it prevents pressure drop and ensures accurate batch metering and recipe formulation via variable frequency drives (VFD) and PLC control.

Key hygienic features include:

• Material Integrity: Constructed with SUS316L stainless steel, offering excellent corrosion resistance against fatty acids and cleaning agents.
• Surface Finish: Internal surfaces are polished to a mirror finish (Ra ≤ 0.4μm) to prevent material adhesion and facilitate easy cleaning.
• Shaft Sealing: Equipped with lip seal air-tight sealing and optional air purging to prevent dust ingress into bearing housings.
• Explosion Safety: Fully configurable for ATEX Zone 20/21 environments, ensuring safe operation in potentially explosive dust atmospheres.

Technical Specifications

These parameters are derived directly from Doebritz engineering datasheets for the Whole/Skim Milk Powder model DBR-1237. All values are certified and guaranteed for production-grade performance.

Specification	Detail
Product Code	DBR-1237
Core Function	Powder Discharging / Airlock / Metering
Body Material	SUS304 / SUS316L (Standard), Carbon Steel (Optional)
Rotor Design	12-Vane Open Rotor (Variable)
Rotor-to-Housing Clearance	0.1 – 0.2 mm
Shaft Seal Type	Lip Seal with Air Purge (Optional)
Connection Standard	HG20592, DN100 to DN300 (Custom DIN/ANSI available)
Surface Finish (Internal)	Mirror Polish, Ra ≤ 0.4μm
Surface Finish (External)	Anti-fingerprint treatment / Sandblasting
Cleaning Method	Quick Disassembly, Online CIP, Online WIP
Pneumatic Pressure Range	-1.0 to 1.0 bar
Explosion Protection	ATEX Zone 20/21/22 (Certified), Pressure resistance up to 16 bar (flameproof)
Ambient Temperature	-15°C to 60°C
Material Temperature	0°C to 120°C
Optional Cooling	Water Cooling Jacket

Technical Datasheet: Doebritz Quick-Release Airlock Valve (DBR-1237)

Specification	Detail
Product Code	DBR-1237
Core Function	Powder Discharging / Airlock / Metering
Body Material	SUS304 / SUS316L (Standard), Carbon Steel (Optional)
Rotor Design	12-Vane Open Rotor (Variable)
Rotor-to-Housing Clearance	0.1 – 0.2 mm
Shaft Seal Type	Lip Seal with Air Purge (Optional)
Connection Standard	HG20592, DN100 to DN300 (Custom DIN/ANSI available)
Surface Finish (Internal)	Mirror Polish, Ra ≤ 0.4μm
Surface Finish (External)	Anti-fingerprint treatment / Sandblasting
Cleaning Method	Quick Disassembly, Online CIP, Online WIP
Pneumatic Pressure Range	-1.0 to 1.0 bar
Explosion Protection	ATEX Zone 20/21/22 (Certified), Pressure resistance up to 16 bar (flameproof)
Ambient Temperature	-15°C to 60°C
Material Temperature	0°C to 120°C
Optional Cooling	Water Cooling Jacket

Heavy-Duty Application Scenarios

The Doebritz Whole Milk Powder Quick-release Airlock Valve is versatile and suited for multiple critical points in the production chain:

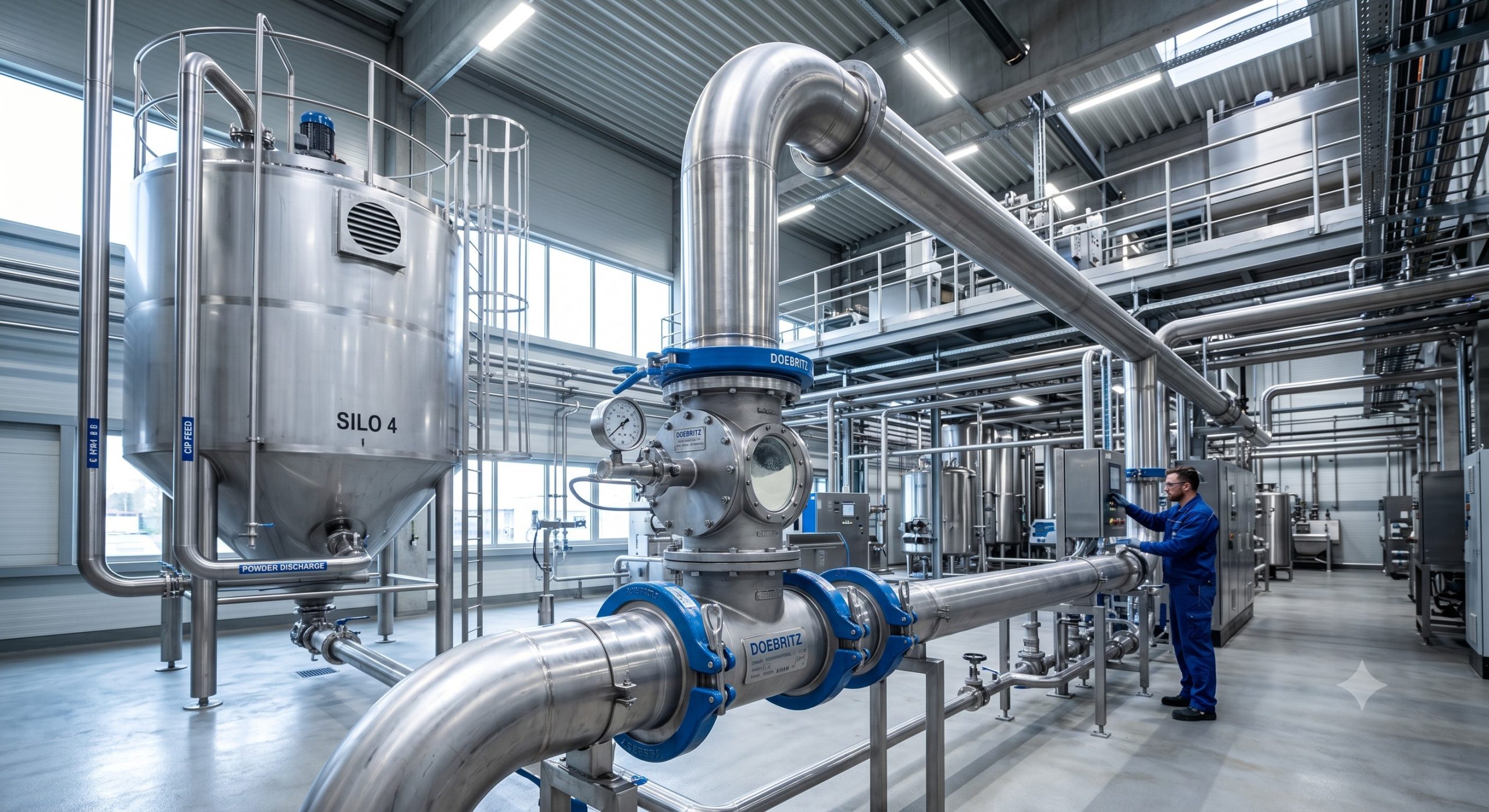

Pneumatic Conveying Systems

Used for conveying milk powder from storage silos to mixing blenders. The ultra-low leakage rate (0.1mm precision clearance) maintains stable line pressure, reducing energy consumption by up to 15% compared to standard valves.

Sanitary Discharge & Bagging

Installed at the discharge of hoppers or silos for bagging lines. The quick-clean feature ensures rapid switchovers between whole milk, skim milk, and buttermilk products without the risk of allergen cross-contact.

Automated Metering & Batching

Integrated with VFD and PLC controls, this valve functions as an accurate loss-in-weight feeder, ensuring precise recipe metering and batch consistency with minimal product degradation.

Global OEM Assurance

As a Doebritz flagship product, this valve embodies the principles of German engineering and global manufacturing excellence. The entire manufacturing process—from precision casting to CNC machining and final assembly—is conducted under strict quality control procedures.

• Precision Manufacturing: Doebritz employs high-speed CNC machining centers to achieve the exacting tolerances required for minimal leakage and long service life.
• Material Certs: All material grades are traceable, with full 3.1 certification (EN 10204) supplied for stainless steel parts.
• Factory Testing: Every valve undergoes a rigorous pre-shipment inspection, including pressure tests and leakage tests, ensuring the product meets the specifications listed.
• Global Logistics: As a tier-1 supplier, Doebritz offers competitive lead times with expedited shipping options to meet demanding project schedules.

Frequently Asked Questions

What makes the Doebritz valve suitable for skim milk powder versus whole milk powder?

The valve’s design handles both equally well. However, whole milk powder has a higher fat content, making it stickier. The mirror polish (Ra ≤ 0.4μm) and tight clearances of the Doebritz valve are specifically designed to prevent sticking, ensuring consistent flow and clean discharge.

Can this valve be adapted to existing CIP systems?

Yes, the Doebritz Quick-Release Airlock Valve is fully compatible with CIP and WIP protocols. Its smooth internal geometry allows cleaning fluids to reach all surfaces effectively, and the demountable design allows for visual inspection post-cleaning to guarantee hygiene.

What ATEX certification does this valve hold?

The valve base design is certified for ATEX Zones 20, 21, and 22 for dust. The flameproof version is built to withstand an internal explosion pressure of up to 16 bar, incorporating an explosion-proof motor and precision-grounded rotor to prevent ignition sources.

What is the standard lead time for a custom DN250 valve with a water jacket?

As a heavy OEM manufacturer, Doebritz typically quotes a lead time of 4-6 weeks for standard configurations. Custom solutions involving water jackets or specific coatings like Tungsten Carbide may require 8-10 weeks, subject to engineering approval.

How does the pressure drop compare to a standard non-precision valve?

The Doebritz valve’s precision clearance of 0.1-0.2mm is significantly tighter than standard industrial valves (often 0.5mm+). This reduces the air leakage across the rotor to a minimum, meaning a pressure drop reduction of up to 30% in a pneumatic system, leading to substantial energy savings and stable conveying flow.
