In modern food and pharmaceutical processing, starch is a universally critical yet notoriously challenging bulk solid. Its fine particle size, tendency to pack, and susceptibility to contamination demand a rotary airlock valve that exceeds standard expectations. The Doebritz Starch Quick-Release Airlock Valve (DBR-1237) has been meticulously engineered to set a new benchmark for sanitary, efficient, and safe starch handling.

Manufactured in Doebritz’s ISO-certified facilities, this valve integrates a patented quick-release demountable design with a sanitary-grade, mirror-polished flow path. This ensures that the high hygiene standards required for starch in food, nutraceutical, and pharmaceutical applications are met, while simultaneously minimizing cleaning downtime and maximizing production line efficiency.

Minimizing Cleaning Downtime: The Quick-Release Edge

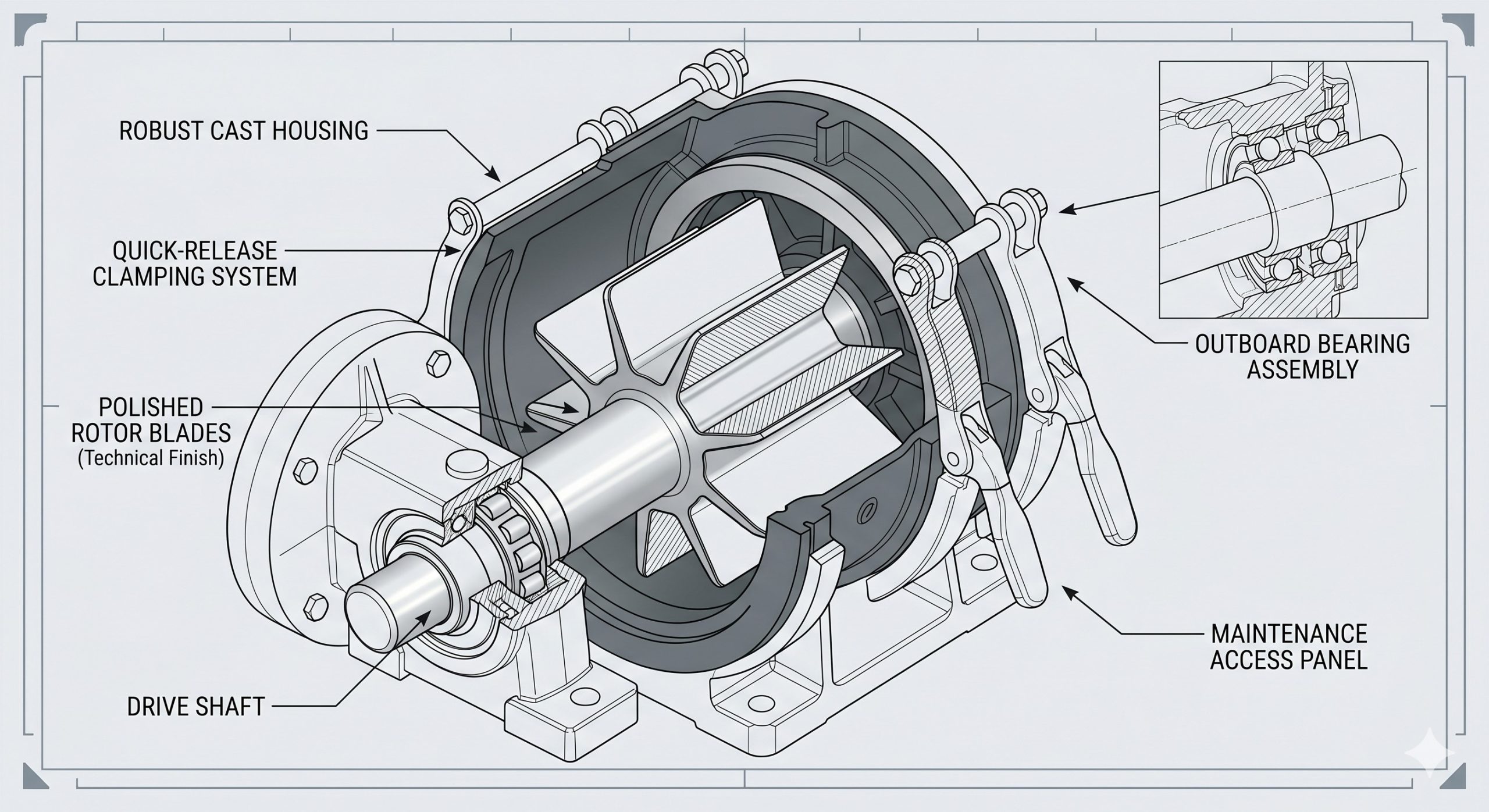

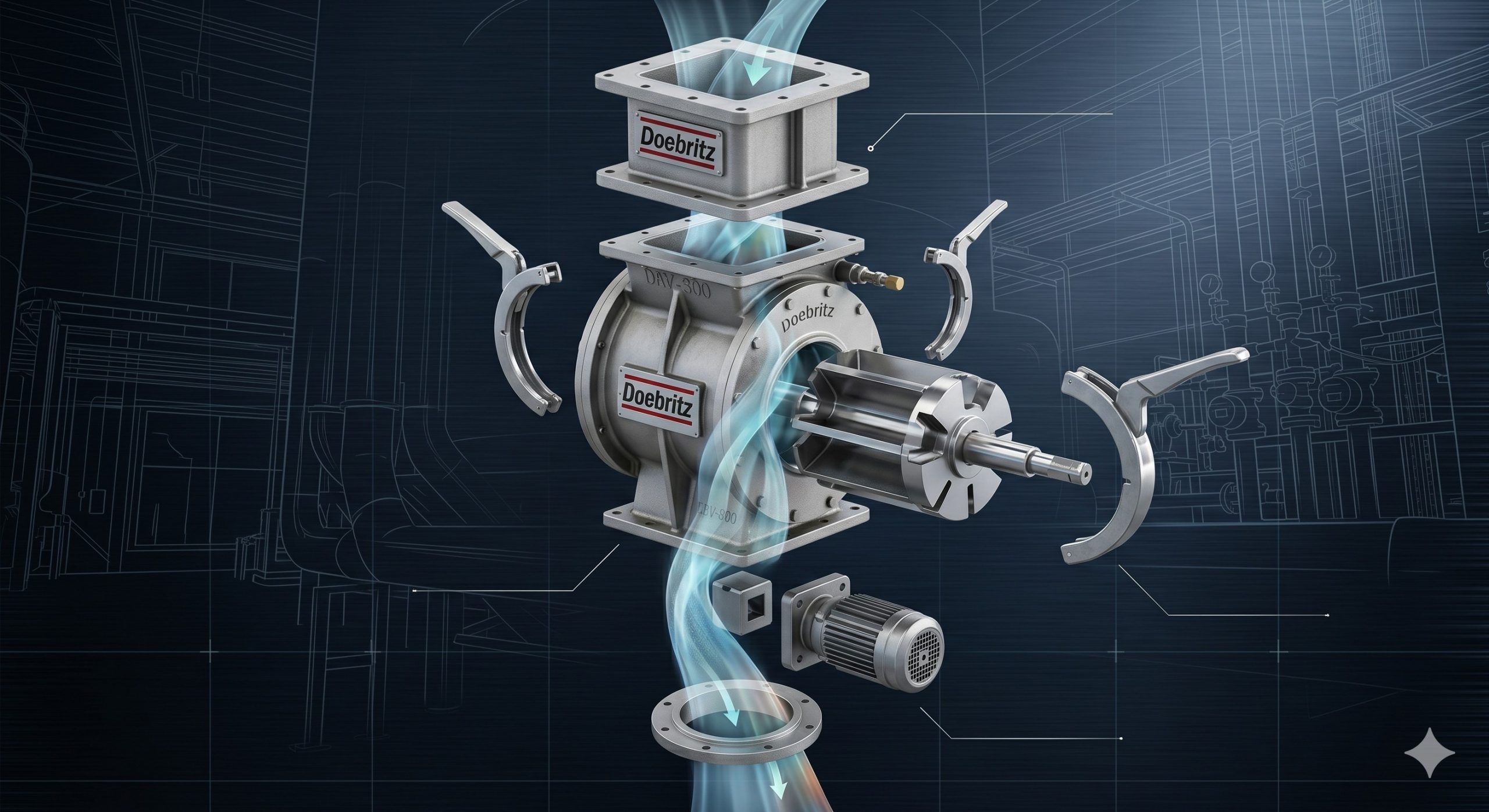

The core of this valve’s value proposition lies in its rapid dismantling capability. Traditional rotary valves are notorious for being maintenance bottlenecks, requiring extensive tooling and labor hours for cleaning and inspection. The Doebritz Starch Quick-Release Airlock Valve completely redefines this process:

• Tool-Free Disassembly: The innovative quick-release mechanism allows a single operator to disassemble and reassemble the valve in minutes, without the need for specialized tools. This drastically reduces Mean Time To Repair (MTTR) and increases overall equipment effectiveness (OEE).
• Sanitary & CIP-Ready Design: Designed with Clean-In-Place (CIP) and Wash-In-Place (WIP) protocols in mind, the valve’s interior is free of crevices and dead zones where starch could accumulate. The smooth, mirror-finished surfaces (Ra≤0.4μm) prevent bacterial growth and are easy to validate, fully compliant with GMP and FDA standards for food contact.

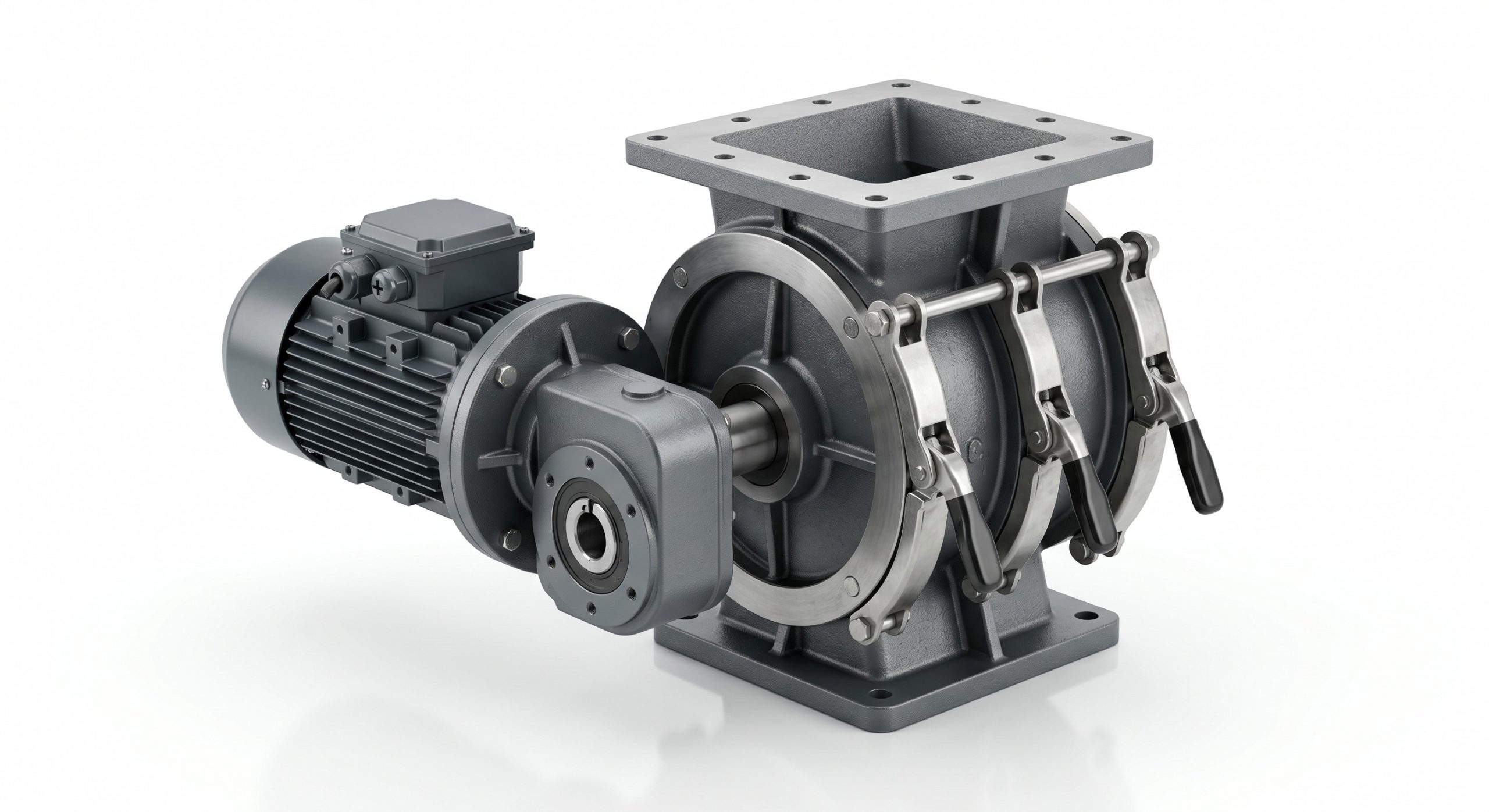

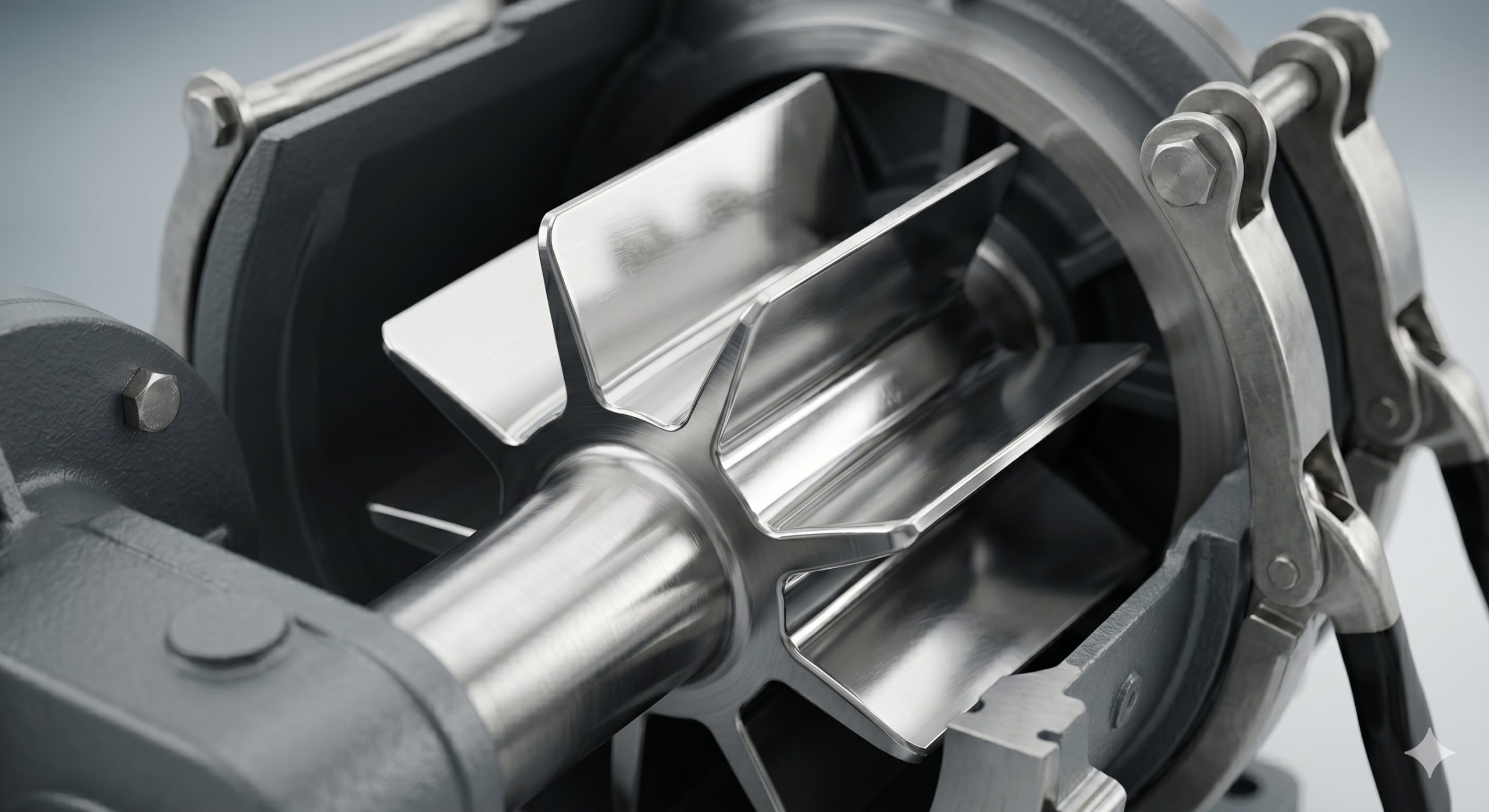

• Hygienic Polishing Standards: The valve’s internal surfaces are electro-polished to a mirror finish, significantly reducing particle adhesion and making manual inspection after WIP cycles straightforward and reliable.

Direct Drive Gearmotor Logic & Configuration

Reliability in starch conveying is non-negotiable. The Doebritz Starch Quick-Release Airlock Valve features a robust, top-mounted direct drive gearmotor. This configuration eliminates the need for chains or belts, reducing maintenance points and enhancing operational safety. Key features include:

• ATEX-Certified Drive Options: For environments with combustible starch dust, the entire drive train is available in ATEX-certified configurations, ensuring compliance with Zone 20/21/22 requirements.
• Variable Frequency Drive (VFD) Ready: The valve is designed for seamless integration with VFD and PLC control systems, allowing for precise metering and flow rate adjustment to match production demands.
• Outboard Bearing Support: To prevent contamination of the bearing housing from fine starch dust, the valve is equipped with a long bearing span and outboard bearings, isolating the lubrication from the product zone.

Comprehensive Specification Matrix

Every Doebritz valve is built to precise specifications, ensuring a perfect fit for your unique process requirements.

Specification	Detail
Product Model	DBR-1237
Body Material	SUS304 / SUS316L Stainless Steel (Mirror Polish Ra≤0.4μm)
Rotor Design	8-Vane Open Rotor, Precision Machined
Rotor-to-Housing Clearance	0.1 – 0.2 mm
Shaft Seal	Lip Seal with Air Purge, Optional Packing Seal
Inlet/Outlet Connections	DN100, DN150, DN200 (DIN/ANSI/HG20592)
Drive	Direct Drive Gearmotor, ATEX Certified
Control	VFD Ready for PLC Integration
Pressure Rating	Up to 1 bar (Positive) / Down to -1 bar (Negative)
Operating Temperature	Ambient: -15°C to 60°C, Material: 0°C to 120°C
Cleanability	Quick-Release, CIP/WIP Ready
Certifications	CE, TÜV, ATEX Zone 20/21/22, cGMP Compliant

High-Sensitivity Food & Pharma Lines

The Doebritz Starch Quick-Release Airlock Valve is not a one-size-fits-all solution; it is engineered to excel in the most demanding, high-sensitivity applications. The combination of its sanitary design, rugged construction, and precise engineering makes it the preferred choice for critical starch processing lines.

Starch Processing & Packaging

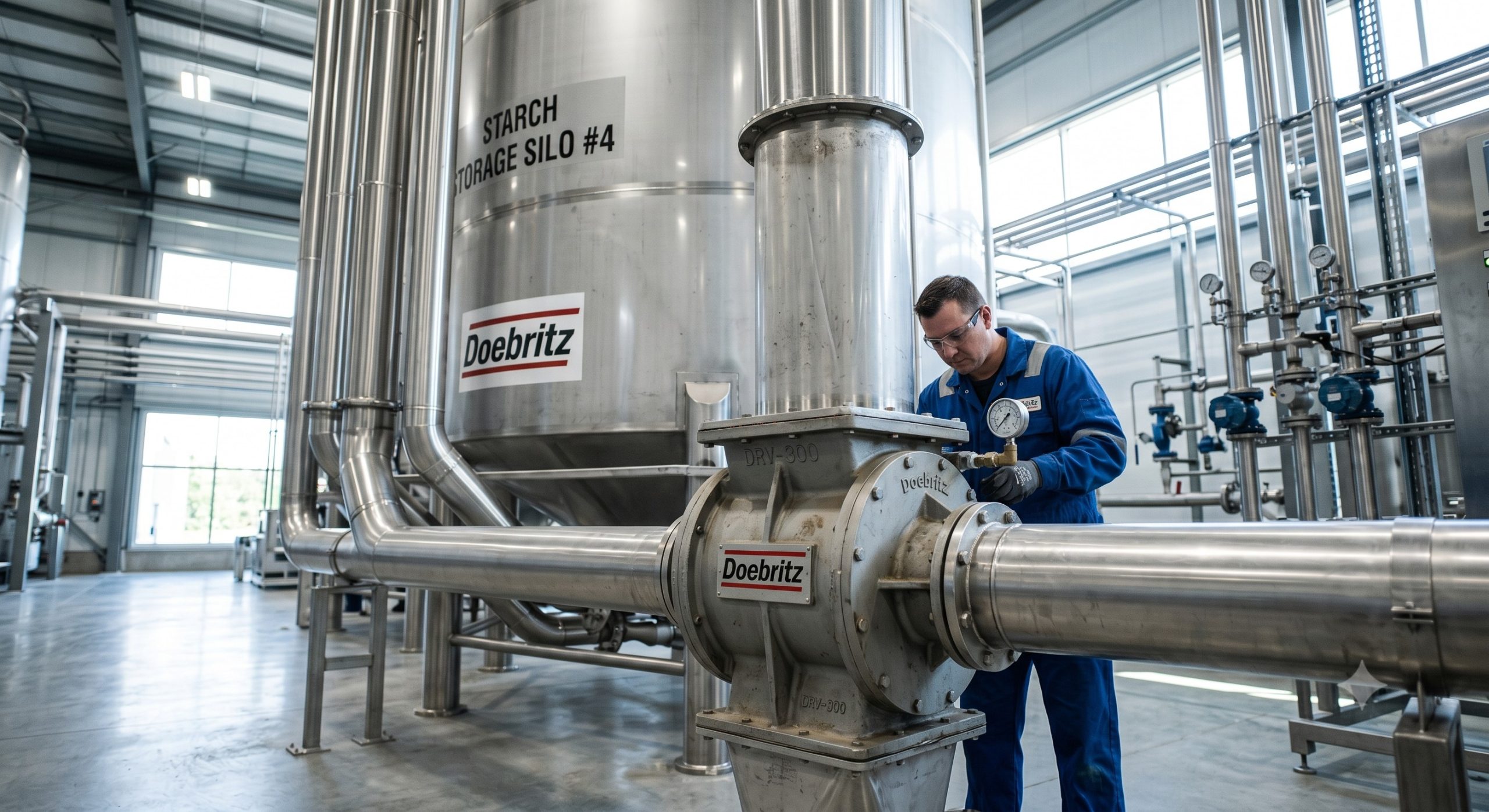

In starch refineries and packaging plants, the valve ensures consistent, high-volume discharge from silos and hoppers. Its minimal air leakage (rotor-to-housing clearance of 0.1-0.2mm) prevents blowback and dust emissions, maintaining a clean and safe plant environment.

Pharmaceutical Excipient Handling

For pharmaceutical-grade starch and lactose, the hygienic quick-release design allows for swift product changeovers, eliminating the risk of cross-contamination between batches of active pharmaceutical ingredients (APIs). The valve’s compliance with cGMP and its availability in 316L stainless steel provide the highest level of material traceability and safety.

Component Polishing Accreditations & Material Traceability

Doebritz provides full material certifications and surface finish reports (Ra values) for all product-contact parts. This commitment to traceability and quality documentation is essential for plant engineers and quality assurance managers responsible for audit compliance.

TCO & Maintenance Protocols Q&A

What is the typical service life of the rotor blades in starch service?

In standard starch applications, the precision-machined 316L stainless steel rotor blades offer an exceptionally long service life. Our heavy-duty design, coupled with a tight clearance, minimizes wear. Replacement intervals are significantly extended compared to standard airlocks.

How does the quick-release mechanism affect the valve’s sealing integrity over time?

The quick-release clamps are engineered for repeatable, high-integrity sealing. They are manufactured from high-grade materials and designed to maintain consistent clamping force over thousands of cycles, ensuring the valve’s leak-tight performance is not compromised by frequent cleaning.

Can the Doebritz Starch Quick-Release Airlock Valve handle both positive and negative pressure pneumatic conveying systems?

Yes, the valve is designed for universal application. It can operate effectively in both positive pressure (up to 1 bar) and negative pressure (down to -1 bar) pneumatic conveying systems, making it a versatile solution for any starch handling line.

What documentation is provided with the valve for regulatory compliance?

Every valve is accompanied by a comprehensive documentation package, including material test certificates (3.1), surface finish reports, dimensional inspection reports, and, where applicable, ATEX and CE declarations of conformity, facilitating seamless plant acceptance and regulatory audits.

Is the valve suitable for CIP cleaning with aggressive chemicals?

Absolutely. The valve is constructed from materials with high resistance to the chemicals commonly used in food and pharmaceutical CIP cycles, including caustic soda and nitric acid. The design ensures no liquid entrapment, guaranteeing complete and effective cleaning.
