Quick-Clean Demountable Valve: Doebritz PE Quick-release airlock valve | Sanitary Processing Standard

Product Overview: Doebritz PE Quick-release airlock valve

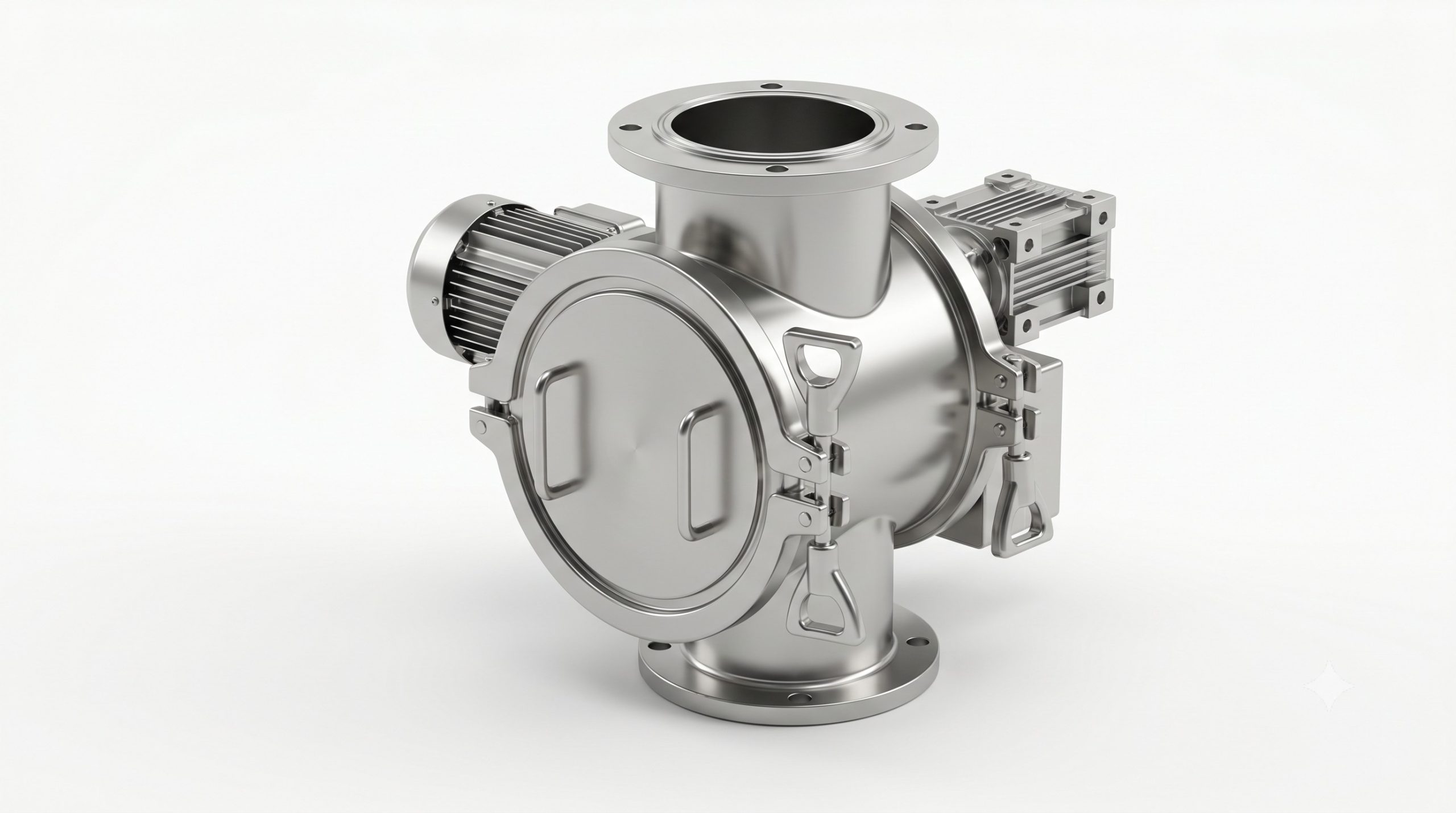

The Doebritz PE Quick-release airlock valve (Quick-release rotary valve) is a hygienic-grade, rapid-disassembly rotary feeder engineered for food, pharmaceutical, and fine chemical powder handling. Built upon Doebritz’s heavy-duty manufacturing foundation, this PE series integrates CNC precision-machined rotors, sanitary mirror-finish housing (Ra≤0.4μm), and tool-free quick-release clamps to reduce cleaning downtime by up to 70%. Unlike conventional star discharge valves, the PE airlock feeder maintains minimal rotor-to-housing clearance of 0.1–0.2mm, ensuring exceptional airlock sealing (leakage <0.2 m³/h at 0.6 bar differential) while meeting strict GMP and Class C/D cleanroom standards.

As a direct Doebritz OEM heavy-equipment manufacturer, we deliver ATEX Zone 20/21 certified, water-cooling jacket optional, and full material traceability (EN 10204 3.1)—no third-party rebranding, no compromised tolerances.

Why Global Plant Sourcing Chooses Doebritz PE Quick-release airlock valve

Procurement engineers and plant managers face three persistent challenges: cross-contamination risks from difficult-to-clean valves, air leakage that disrupts pneumatic conveying stability, and unplanned downtime for maintenance. The Doebritz PE valve systematically eliminates each pain point through purpose-built engineering:

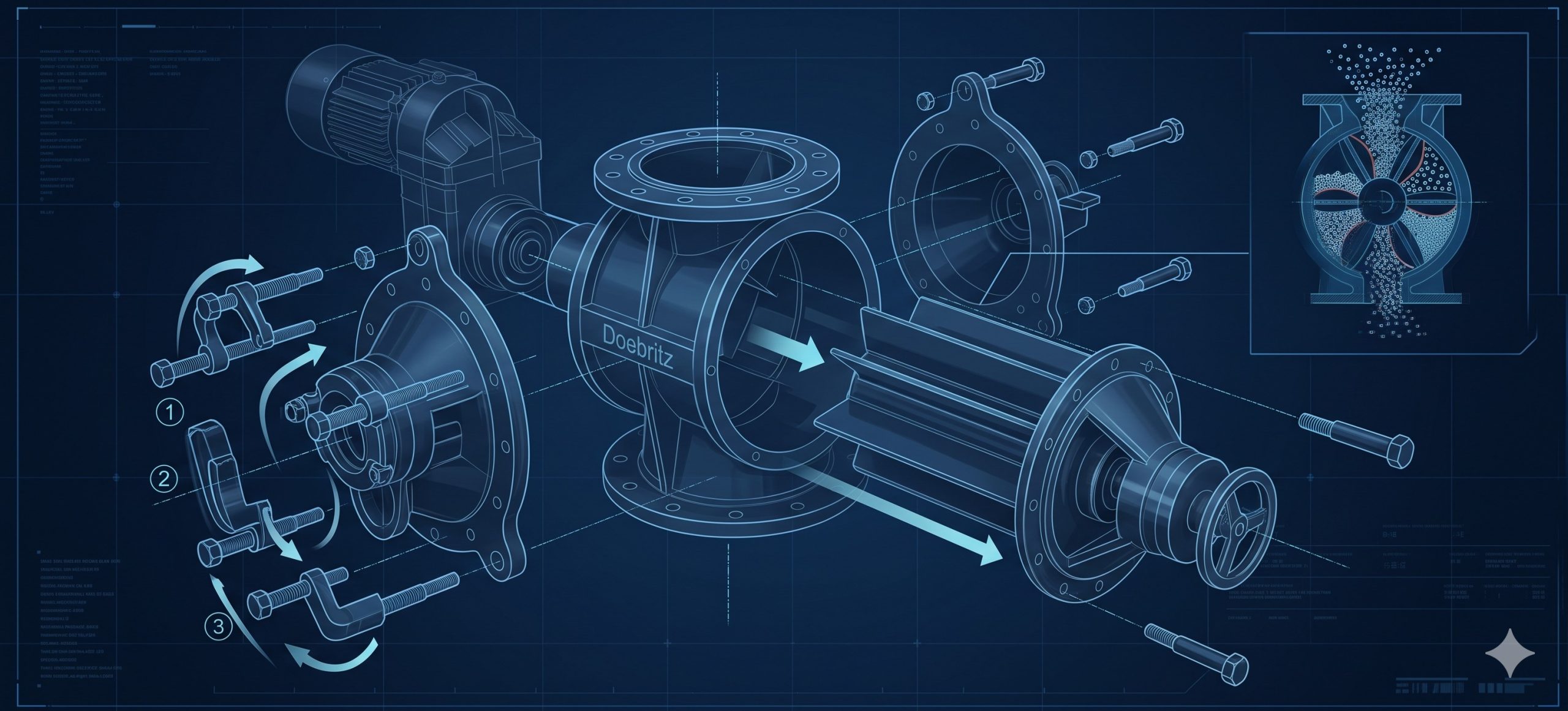

• Rapid Demountability, Zero Residue: Patented quick-release clamps enable complete disassembly in under 3 minutes without special tools. All internal surfaces achieve Ra≤0.4μm mirror polish (SUS316L), preventing powder adhesion and biofilm formation. Supports CIP (clean-in-place) and WIP (wash-in-place) protocols with manual verification.
• Precision Clearances for Minimal Air Leakage: CNC-machined rotors and housing maintain consistent 0.1–0.2mm radial clearance. Independent tests show leakage rates 40–60% lower than industry average—critical for dilute-phase pneumatic conveying and loss-in-weight feeders.
• ATEX & Hygienic Compliance Combined: Certified for Zone 20 (dust), Zone 21, Zone 22 with flameproof construction (16 bar housing burst resistance). Simultaneously meets FDA, EC 1935/2004, and GMP requirements for direct food/drug contact.
• Doebritz Direct Manufacturing Strength: In-house CNC machining centers, 100% helium leak testing before shipment, and 4-week lead time for standard DN100–DN300 flanges (HG20592, DIN, ANSI optional). No middleman markups.

Sanitary Engineering Deep Dive: Housing, Rotor, and Sealing System

Material Metallurgy & Surface Finishes

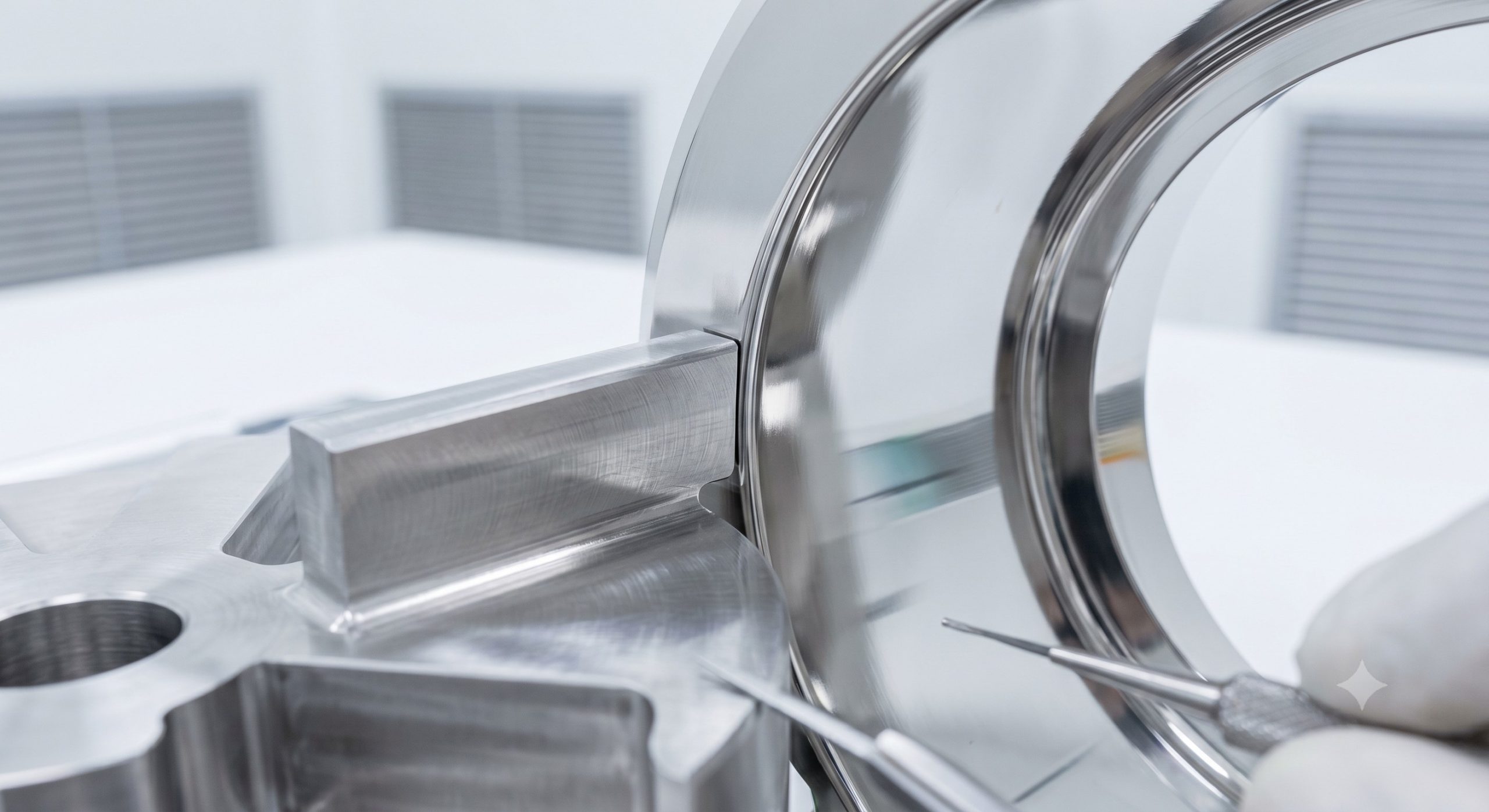

The PE valve housing and end covers are cast from SUS316L (1.4404) stainless steel as standard, with SUS304 or carbon steel with tungsten carbide coating available for abrasive or corrosive powders. Internal surfaces are mechanically polished to Ra≤0.4μm (mirror) or Ra≤0.8μm, eliminating dead spots where product could accumulate.

Rotor Configurations & Clearance Control

Standard rotors feature 6, 8, 10, or 12 vanes in closed or open-end designs. Each rotor is dynamically balanced and CNC-turned to achieve 0.1mm tip clearance on diameters ≤DN200, and 0.2mm for DN250–DN350. For abrasive materials (carbon black, lithium battery powders), we apply tungsten carbide HVOF coating (>1200 HV) or ceramic coating to extend rotor life 3–5x.

Shaft Sealing & Purge Options

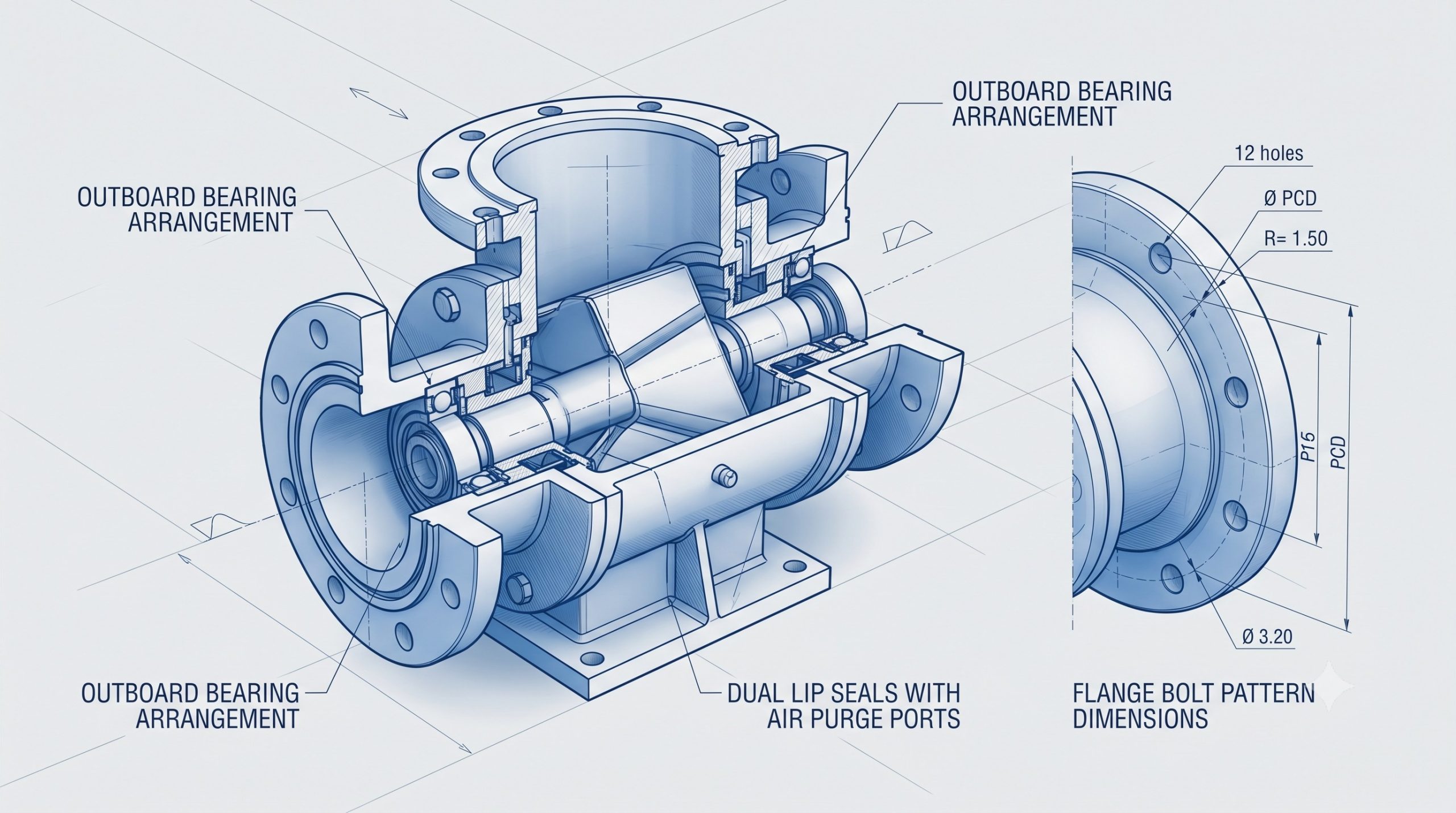

Dual lip seals with air purge (sterile compressed air, 0.2–0.5 bar) prevent dust migration to bearing housings. For high-temperature applications (≤120°C product temperature), graphite packing seals are available. Outboard bearings (SKF or FAG) are isolated from product zone, enabling continuous operation at speeds up to 60 RPM with VFD control.

Technical Specifications: Doebritz PE Quick-release airlock valve

All parameters verified under ISO 9001:2015 quality management system. Custom tolerances and non-standard flanges available upon request.

Specification	PE Series Detail (DN100 Example)
Body Material	SUS316L (1.4404) stainless steel / SUS304 / Carbon steel with coating
Rotor Type	8-vane closed rotor, CNC-machined, dynamically balanced
Rotor-to-Housing Clearance	0.1 mm (radial) – verified by CMM
Shaft Seals	Dual lip seals + air purge (0.2–0.5 bar sterile air); optional graphite packing
Surface Finish (Wetted)	Ra≤0.4μm mirror polish (standard), Ra≤0.8μm optional
Working Pressure Range	-1 bar to +1.6 bar (hydrostatic test 2.4 bar)
Air Leakage (0.6 bar diff.)	≤0.25 m³/h (measured by pressure decay)
Temperature Range (Product)	0°C to +120°C; optional water-cooled jacket for >120°C
ATEX Certification	Zone 20 (dust), Zone 21, Zone 22 – flameproof housing 16 bar
Hygienic Standards	FDA, EC 1935/2004, GMP Class C/D cleanroom compatible
Flange Standard	HG20592 PN10 (DIN/ANSI optional, custom bolt patterns on request)
Cleaning Methods	CIP (clean-in-place), WIP + manual, or full tool-free disassembly
Motor Options	IE3/IE4, ATEX motor, VFD-ready, 0.55–5.5 kW depending on size
Net Weight (approx.)	42 kg (SUS316L, complete with gearmotor)

Heavy-Duty Application Scenarios Across Hygienic & Industrial Sectors

Food & Dairy Processing Lines

Milk powder, whey protein, lactose, coffee, chocolate, flour, starch, spices. The quick-release design enables rapid product changeovers (e.g., from vanilla to chocolate flavor) without cross-contamination. CIP-ready with spray ball compatibility.

Pharmaceutical API & Excipient Handling

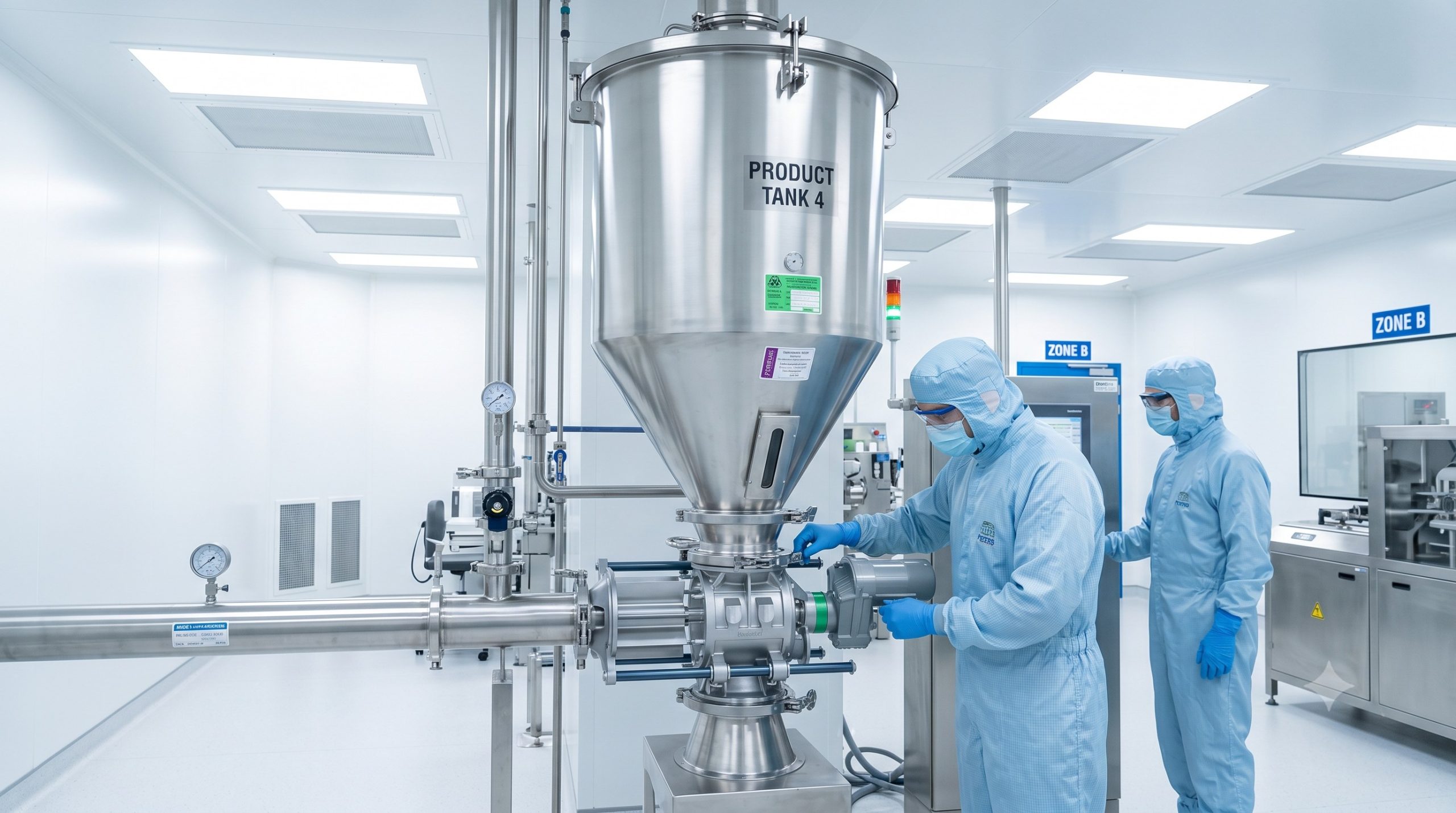

Antibiotic powders, vitamin premixes, microcrystalline cellulose, lyophilized vaccine powders, probiotic formulations. Meets Class C/D cleanroom air change requirements; electropolished internal surfaces (Ra≤0.4μm) prevent particle shedding.

Chemical & New Energy Materials

Carbon black, lithium battery cathode/anode materials, silicon powder, PTFE compounds, pigments. Tungsten carbide-coated rotors withstand severe abrasion; ATEX Zone 20/21 certified for combustible dust atmospheres.

Global OEM Assurance: Doebritz Manufacturing & Quality Protocols

As a top-tier heavy industrial equipment manufacturer with 15+ years in rotary valve engineering, Doebritz operates a 12,000 m² ISO 9001 facility. Every PE valve undergoes:

• CNC machining verification: CMM inspection of rotor-to-housing clearance at 8 points.
• Leakage test: Differential pressure decay test (0.6 bar, 60 sec) — maximum allowable leakage 0.3 m³/h.
• Surface roughness audit: Contact profilometer measurement (Ra) on all wetted parts.
• Material certification: EN 10204 3.1 mill certificates for stainless steel/cast iron.
• ATEX documentation: EC-type examination certificate (EPS 21 ATEX 1 456 X).

Standard lead time: 20–25 working days for DN50–DN200, 30–35 days for DN250–DN350. Express assembly (10 days) available for critical breakdown replacements.

Frequently Asked Questions: Doebritz PE Quick-release airlock valve

Q1: What is the exact clearance range for the PE series rotor-to-housing?

A: Doebritz guarantees 0.1–0.2mm radial clearance for DN100–DN300 valves. This is verified via CMM measurement on each assembled unit. Tighter clearances (e.g., 0.08mm) are possible for non-abrasive pharmaceutical powders—please consult our engineering team.

Q2: Is the PE valve compatible with existing CIP systems?

A: Yes. The PE valve is designed for CIP (clean-in-place) with spray coverage verification. For manual cleaning, the quick-release clamps allow full disassembly in under 3 minutes without tools. WIP (wash-in-place) with manual post-inspection is also supported.

Q3: Can the Doebritz PE handle positive pressure pneumatic conveying up to 1 bar?

A: Absolutely. The housing is rated for 1.6 bar working pressure (hydrostatic tested to 2.4 bar). For高压 positive conveying (0.4–1.0 bar), we recommend VFD speed control to optimize leakage vs. throughput. For >1 bar differential, consider our HP series.

Q4: What flange standards are available? Can you supply ANSI flanges?

A: Standard flange is HG20592 (PN10/PN16). We also manufacture to DIN, ANSI B16.5, JIS, or customer-specific bolt hole patterns. Minimum order quantity for non-standard flanges is 5 units.

Q5: How do I request a factory-direct quote for the Doebritz PE Quick-release airlock valve?

A: Please provide your desired size (DN50–DN350), material (SUS304/SUS316L/carbon steel), rotor vane count, ATEX requirement, and any coating needs. Contact our B2B desk via the form below or email sales@doebritz.com. Quote turnaround: 24–48 hours.

Ready to optimize your sanitary powder handling line with Doebritz precision engineering? Request your OEM quotation today.
