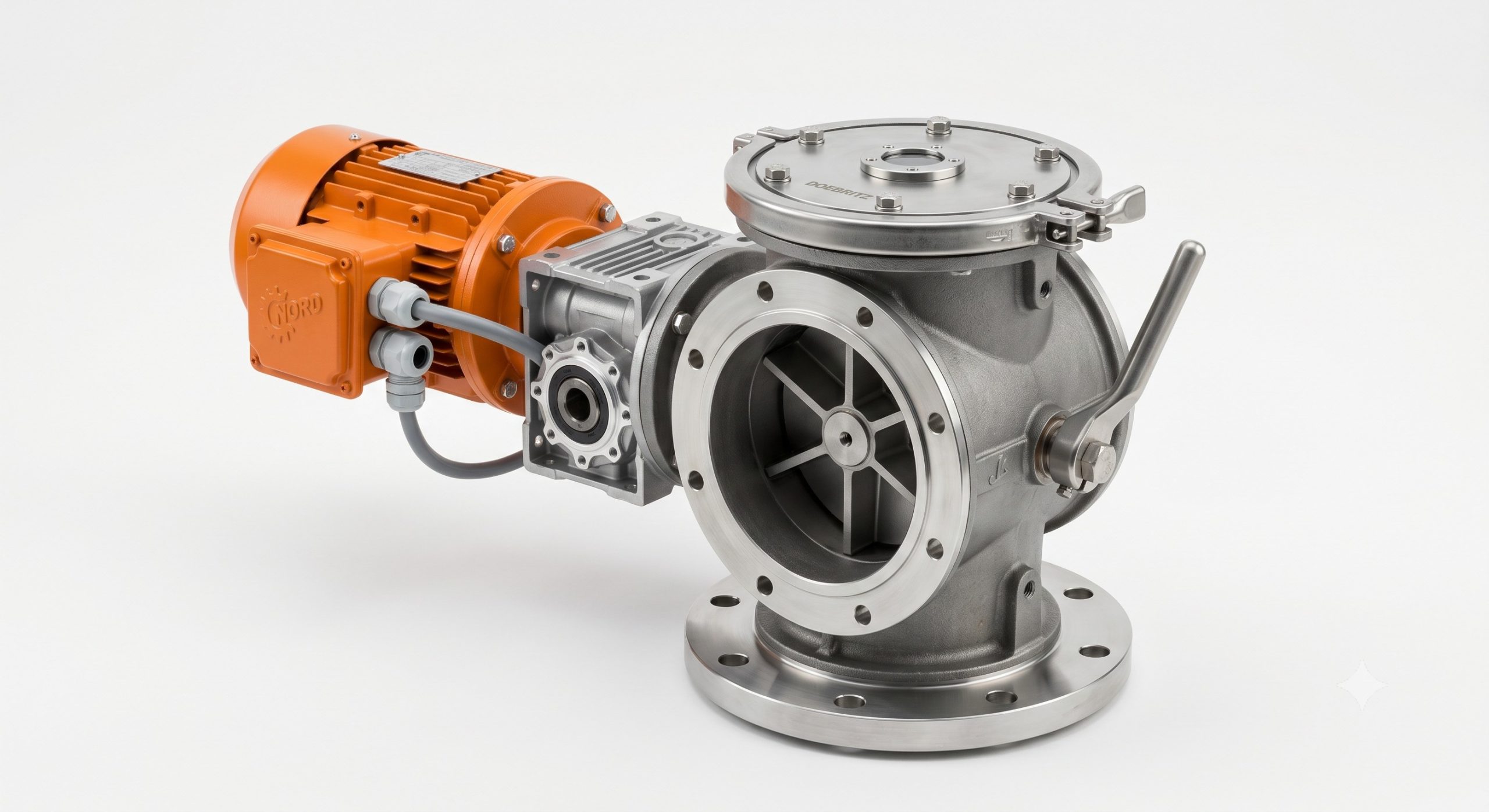

The Doebritz Grains Quick-release airlock valve (Model series DBR-1237) is a hygienic, high-performance rotary valve engineered specifically for the food, grain, and animal feed industries. Designed to handle abrasive and adhesive powdered materials such as flour, wheat, corn starch, milk powder, and coffee, this valve combines precision CNC machined clearances (0.1-0.2mm) with a patented quick-release demountable structure. It ensures minimal air leakage (<0.4bar differential), complete traceability, and rapid onsite cleaning without special tools. The Doebritz Grains Quick-release airlock valve meets global sanitary standards (GMP, Class C/D cleanroom), supports ATEX Zone 20/21/22 for dust explosion safety, and is available in FDA-compliant SUS316L or food-grade SUS304.

Why Processing Plants Choose Doebritz Grains Quick-release airlock valve

In grain handling and food processing, downtime for cleaning and risk of cross-contamination are critical cost drivers. The Doebritz Grains Quick-release airlock valve directly addresses these pain points with its heavy-duty yet hygienic design.

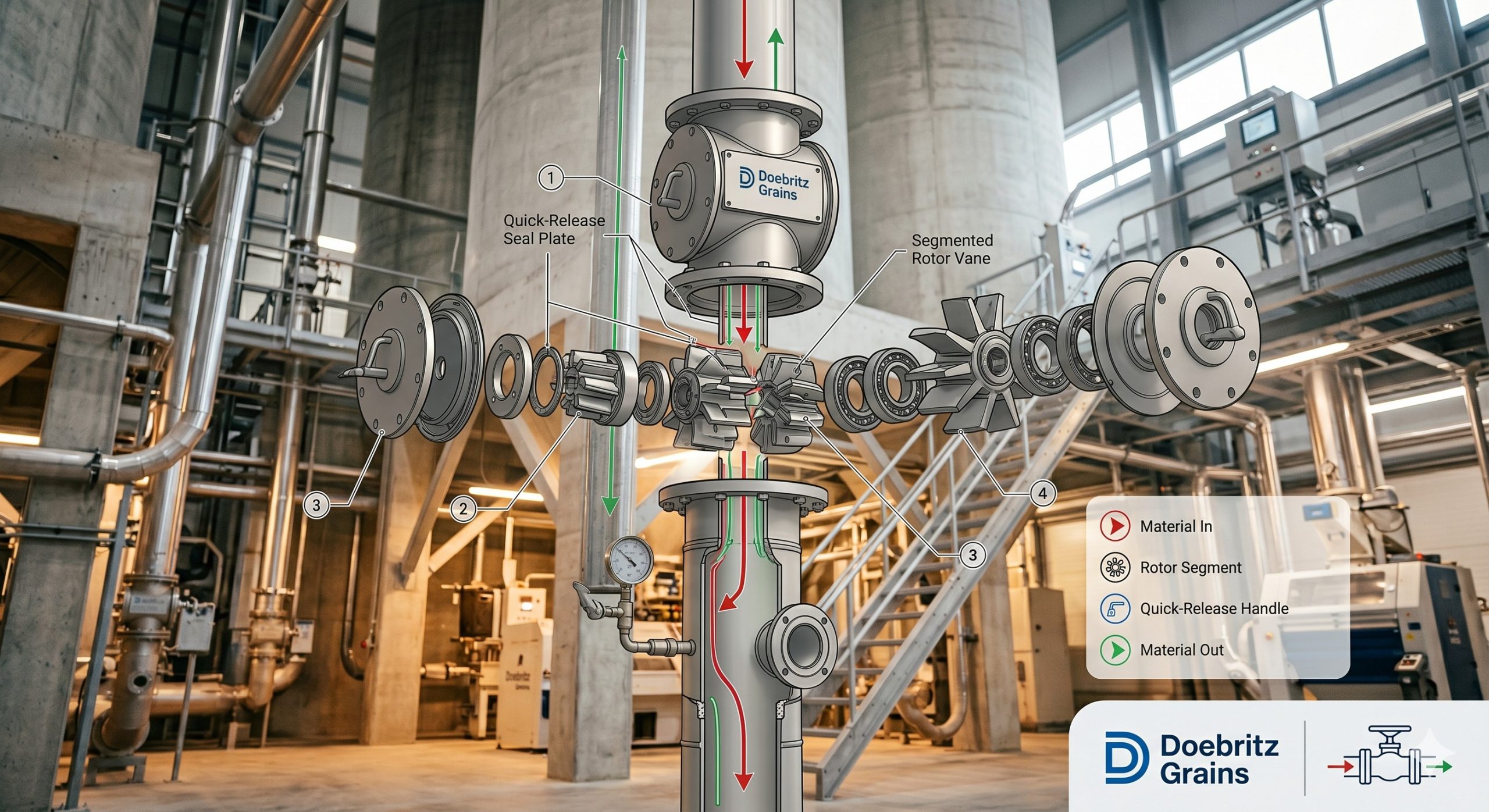

• Hygienic Quick-Release Demounting: The tool-less clamping system allows full disassembly in under 5 minutes, enabling thorough manual cleaning, CIP (Clean-in-Place), or WIP (Wash-in-Place) procedures. All internal surfaces are polished to Ra≤0.4μm (mirror finish), preventing bacterial adhesion and material build-up.
• Precision CNC Clearances for Superior Airlock Efficiency: With rotor-to-housing clearances held to 0.1-0.2mm through Doebritz’s in-house 5-axis CNC machining, air leakage is drastically reduced. This maintains stable pressure in pneumatic conveying lines (positive or negative) and ensures accurate gravimetric or volumetric metering.
• Material Versatility & Wear Protection: Contact parts are available in SUS304, SUS316L, or carbon steel with optional tungsten carbide (TC) or ceramic coatings. For highly abrasive grains (e.g., corn gluten, rice bran), the Doebritz Grains Quick-release airlock valve can be lined with PE, PTFE, or PA to extend service life by 3-5x.
• ATEX & Sanitary Compliance Ready: Factory-certified for Zone 20/21/22 (dust explosion), with an optional flameproof housing rated to 16bar. Also suitable for Class W, 10W, 30W, C/D cleanrooms, meeting EU and FDA requirements for direct food contact.

Precision Engineering: Housing, Rotor & Shaft Sealing

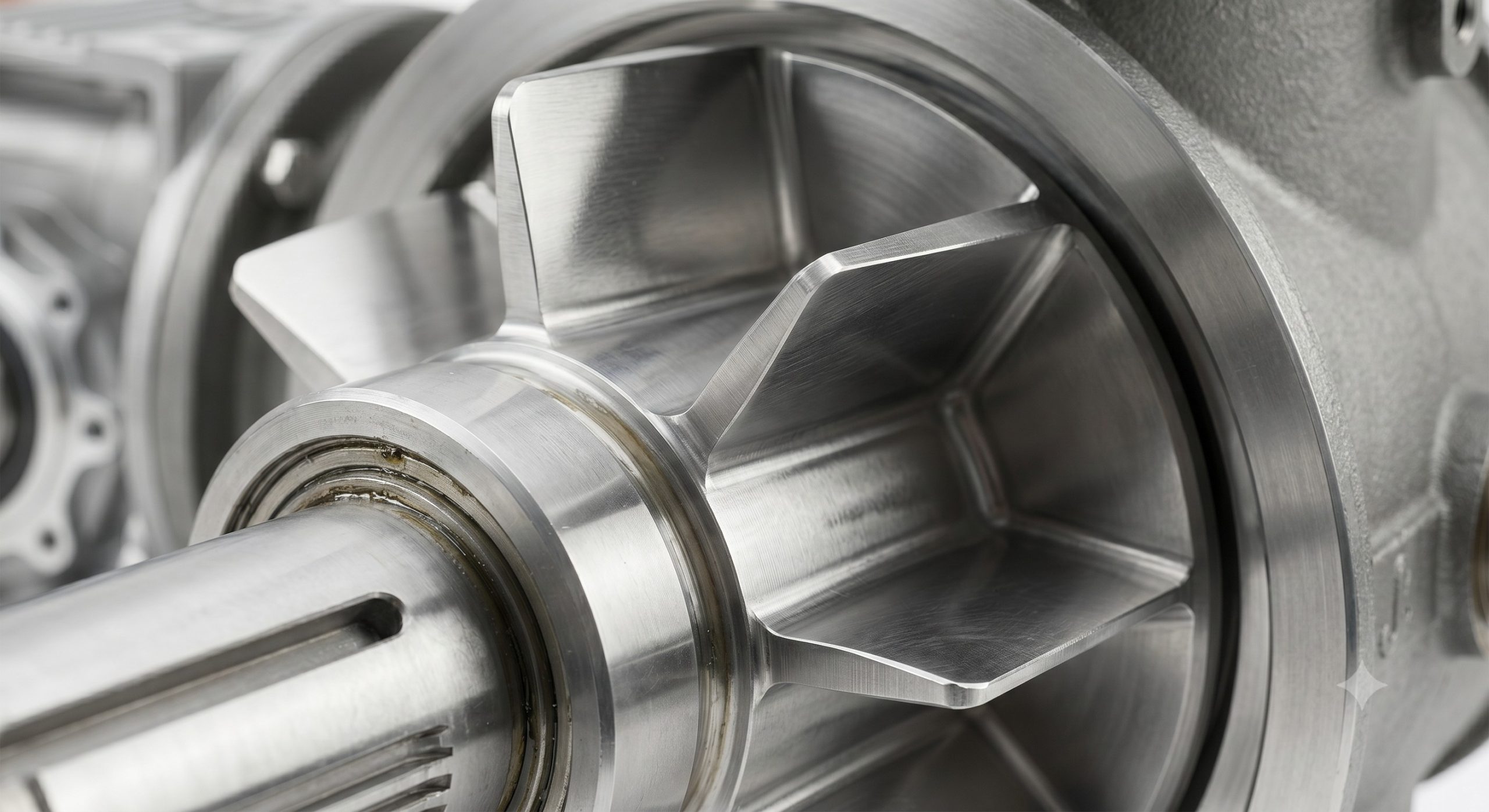

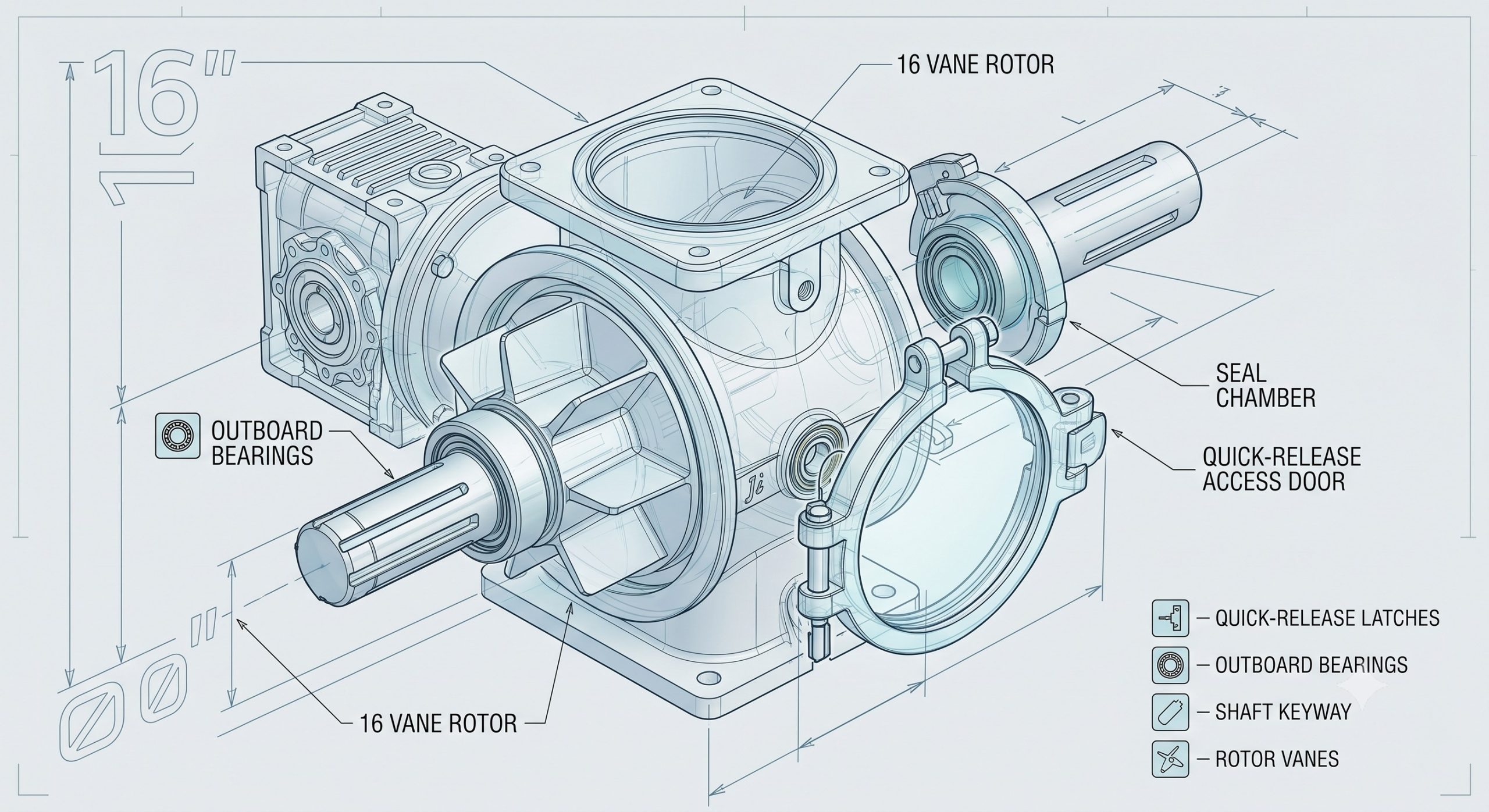

The Doebritz Grains Quick-release airlock valve features a split or monobloc cast housing (SUS304/316L) with outboard bearings to isolate the material zone from lubricants. The 6, 8, or 10-vane open rotor is dynamically balanced to reduce pulsation. Shaft sealing is achieved via a lip seal with air purge (standard) or a packing seal for high-temperature applications (up to 120°C). For flour mills and grain elevators operating in -15°C to 60°C ambient conditions, an optional water-cooled jacket maintains seal integrity. All flanges are machined to HG20592, DIN, or ANSI standards.

Technical Specifications: Doebritz Grains Quick-release airlock valve

Below are the verified parameters for the DBR-1237 series. All values are factory-tested and guaranteed.

Specification	Detail (Doebritz DBR-1237 Grains Quick-release airlock valve)
Body / Rotor Material	SUS304, SUS316L, Carbon steel (coated); optional TC, ceramic, PE, PTFE, PA lining
Rotor Type	6, 8, or 10-vane open rotor, precision machined
Rotor-to-Housing Clearance	0.1 – 0.2 mm (CNC guaranteed)
Shaft Seal	Lip seal with air purge (standard); packing seal (optional)
Pressure Range	Positive: up to 1bar; Negative: down to -1bar (VFD speed control)
Air Leakage	≤0.2 m³/h per bar differential
Temperature	Ambient: -15°C to 60°C; Material: 0°C to 120°C (water cooling jacket optional)
Connection Sizes (DN)	DN50, DN100, DN150, DN200, DN300, DN350 (HG20592, DIN, ANSI, JIS)
Surface Finish (Internal)	Mirror finish Ra≤0.4μm / 0.8μm / 1.6μm; electropolished option
ATEX Certification	Zone 20, 21, 22; Flameproof housing rated to 16bar
Cleanability	Quick-release tool-less disassembly; CIP / WIP ready
Certifications	CE, TÜV, Statement, FDA compliant materials

Typical Grain & Food Processing Applications

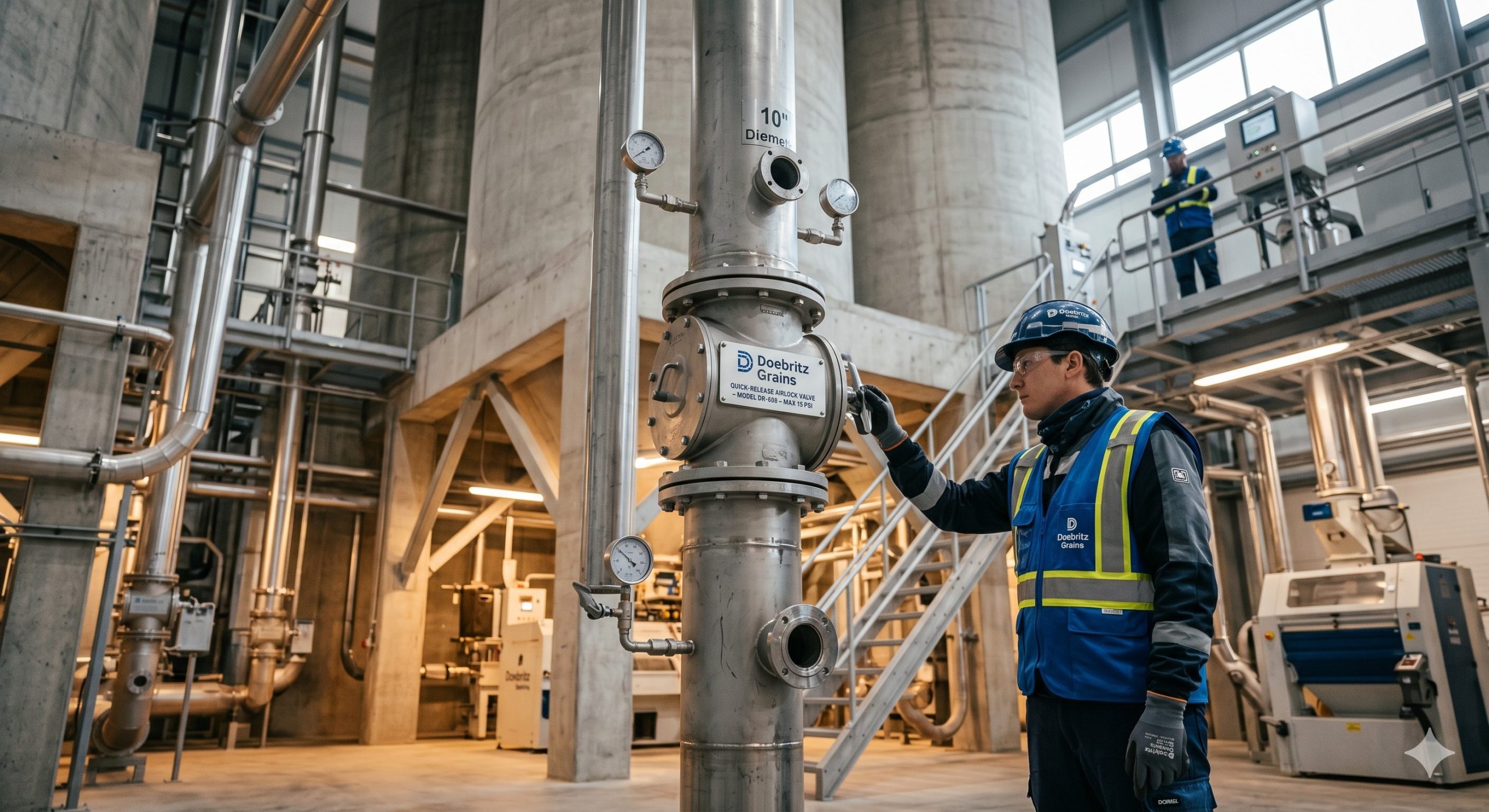

The Doebritz Grains Quick-release airlock valve is deployed across multiple stages of the food supply chain, from intake to packing.

1. Pneumatic Conveying (Dilute & Dense Phase)

Used as a feeder or discharge valve for positive pressure (up to 1bar) or negative pressure (down to -1bar) systems. Common in moving wheat flour, starch, and protein powders from silos to sifters or mixers.

2. Gravimetric & Batch Metering

Integrated with PLC and VFD drives, the Doebritz Grains Quick-release airlock valve provides ±1-2% feeding accuracy for recipe management in bakeries, cereal production, and infant formula plants.

3. Sanitary Discharge of Dust Collectors

Installed under cyclones or bag filters to recover high-value materials like milk powder, whey, or cocoa powder without contamination.

Global OEM Assurance & Doebritz’s Manufacturing Backbone

Doebritz operates a fully integrated foundry and CNC machining center certified to ISO 9001:2015. Each Grains Quick-release airlock valve undergoes 100% hydrostatic pressure testing, air leakage measurement (≤0.2m³/h per bar of differential), and surface roughness verification (Ra≤0.4μm). With a global supply chain and stocking locations in EU, NA, and SEA, we offer 5-15 day lead times for standard sizes (DN50 to DN350). All units carry CE, TÜV, and Statement certifications, with full material traceability (EN 10204 3.1).

B2B Procurement & Sizing Q&A

What is the maximum differential pressure for the Grains Quick-release airlock valve?

The standard design handles up to 1bar (positive or negative) with leakage <0.2m³/h/bar. For ATEX flameproof applications, it is rated to 16bar explosion containment.

Can you customize the inlet/outlet flanges to DIN or ANSI standards?

Yes. Standard is HG20592, but we offer DIN, ANSI 150#, JIS, or customer-specific drilling patterns at no extra cost for bulk OEM orders.

How do you prevent cross-contamination when switching between grain types?

The quick-release demountable design allows full access to all material-contact surfaces. Combined with a 0.4μm mirror finish and optional CIP spray balls, it meets strict allergen separation requirements (e.g., gluten-free lines).

What rotor coatings are recommended for abrasive grain like rice bran?

For highly abrasive dry powders, we specify a tungsten carbide (HVOF) coating on the rotor and housing bore, or a replaceable PTFE/PE liner. Both options extend service life beyond 20,000 operating hours.

Is the Doebritz Grains Quick-release airlock valve suitable for sticky or moist materials?

Yes. With a polished internal surface and optional heated or water-cooled jacket (to control condensation or stickiness), the valve prevents build-up. For extremely sticky doughs or wet grains, we recommend the 10-vane rotor with scraper blade option.
