Manufacturer Supply: Doebritz Volumetric Powder Metering Valve | Heavy-Duty Rotary Airlock

Product Summary

Engineered for the world’s most demanding powder processing and pneumatic conveying lines, the Doebritz volumetric powder metering valve is a heavy-duty rotary airlock that provides superior feeding accuracy, airlock efficiency, and operational reliability. As a direct manufacturer, Doebritz combines state-of-the-art CNC machining with rigorous quality control to deliver a valve that sets the benchmark for metering and sealing performance. Whether you are handling abrasive minerals, hygroscopic food powders, or explosive dusts in a chemical plant, the Doebritz volumetric metering valve is built to optimize your material flow and minimize total cost of ownership.

Why Plant Sourcing Chooses Doebritz Volumetric Powder Metering Valve

The Doebritz volumetric powder metering valve stands apart in heavy industrial applications due to its uncompromising approach to precision engineering and leak-tight operation. Plant managers and procurement specialists choose Doebritz for several critical advantages:

• Optimal Airlock Efficiency: The valve features a meticulously controlled rotor-to-housing clearance of 0.1–0.2 mm. This precision fit significantly reduces air leakage, ensuring stable pressure in pneumatic conveying systems and accurate volumetric metering, which directly translates to energy savings and consistent product quality.
• Superior CNC Machining & Metallurgy: Every rotor and housing is machined on Doebritz’s in-house CNC centers, guaranteeing geometric tolerances that match the original engineering specs. Combined with a choice of robust materials, including SUS304, SUS316L, carbon steel, and specialized wear-resistant coatings (tungsten carbide, ceramic), these valves offer an extended service life even in highly abrasive or corrosive environments.
• Global OEM Supply Chain & Customization: As a premier OEM supplier, Doebritz provides fully customizable solutions. We offer a wide array of options, including ATEX-certified explosion-proof configurations for Zone 20/21/22, various shaft sealing systems (lip seal air-tight seal, packing seal), multiple flange standards (HG20592, DIN, ANSI), and direct gearmotor options with VFD control for precise flow rate adjustment. This flexibility allows seamless integration into any existing plant layout.
• Built-in Safety & Compliance: The Doebritz volumetric metering valve is designed with safety as a priority. Our explosion-proof models are pressure-rated up to 16 bar and come with certified components, including explosion-proof motors. The valve meets stringent international standards with CE, TÜV, and Statement certifications, making it a reliable choice for high-risk and regulated industries.

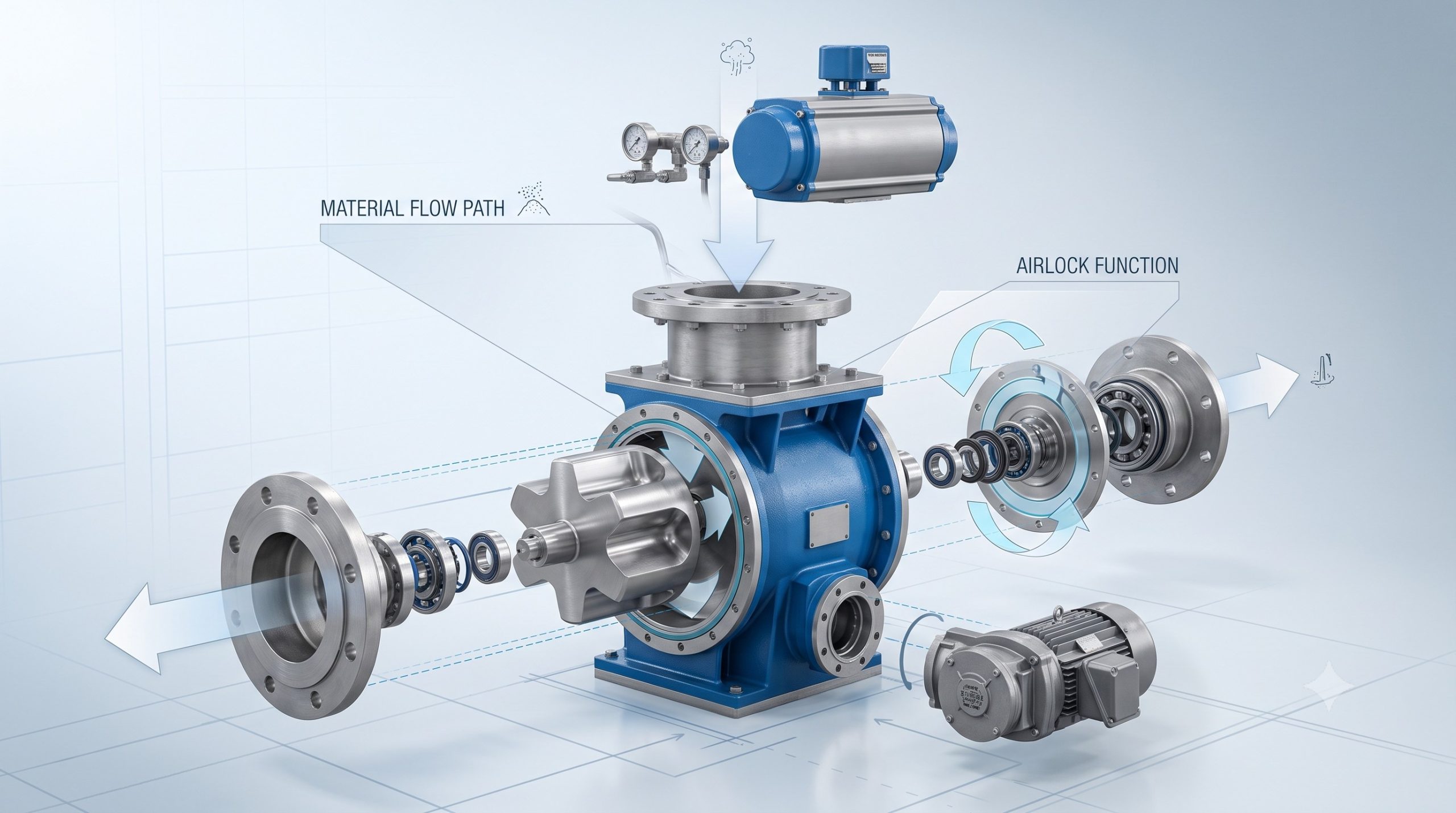

Housing & Rotor Engineering

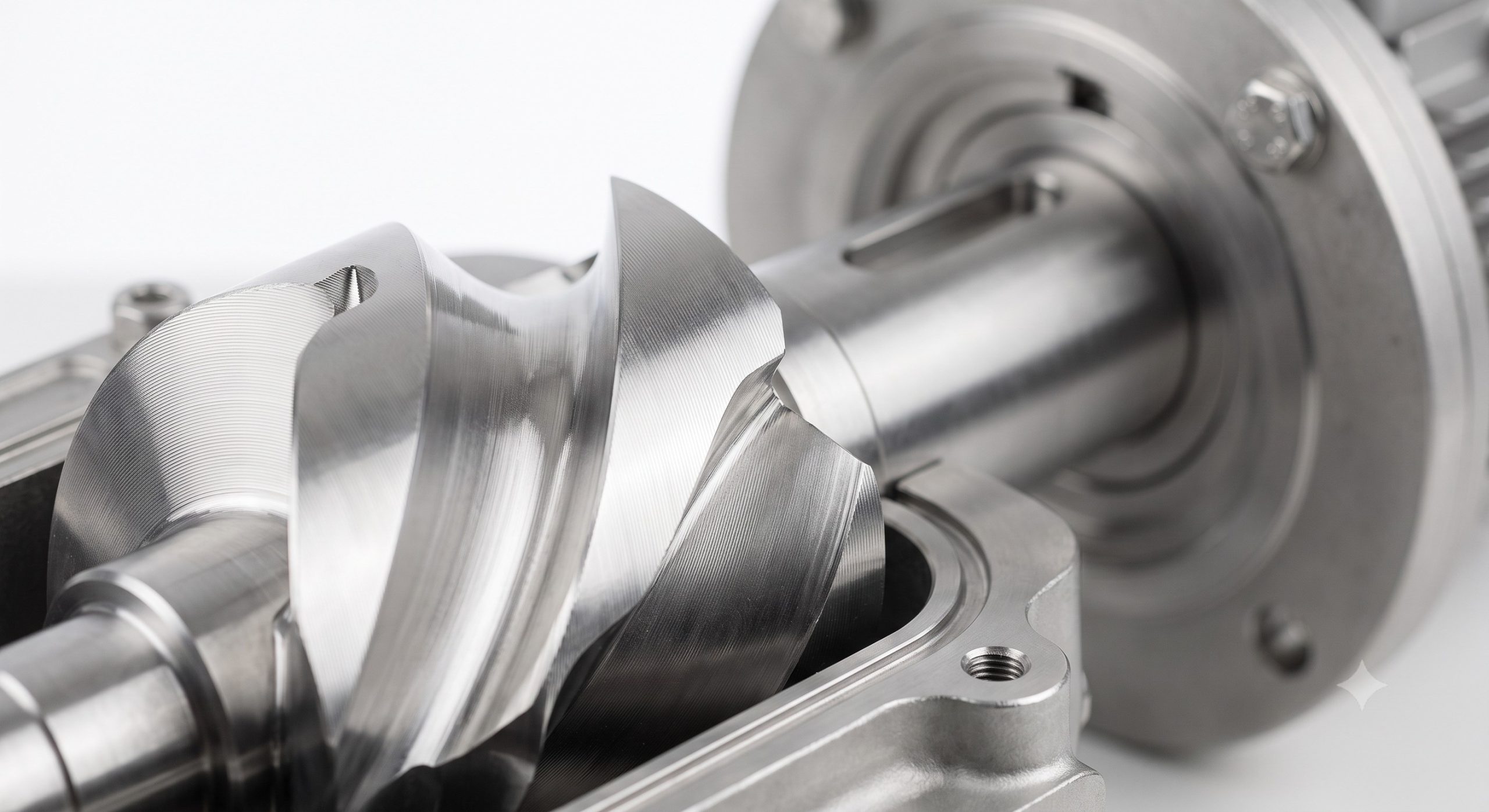

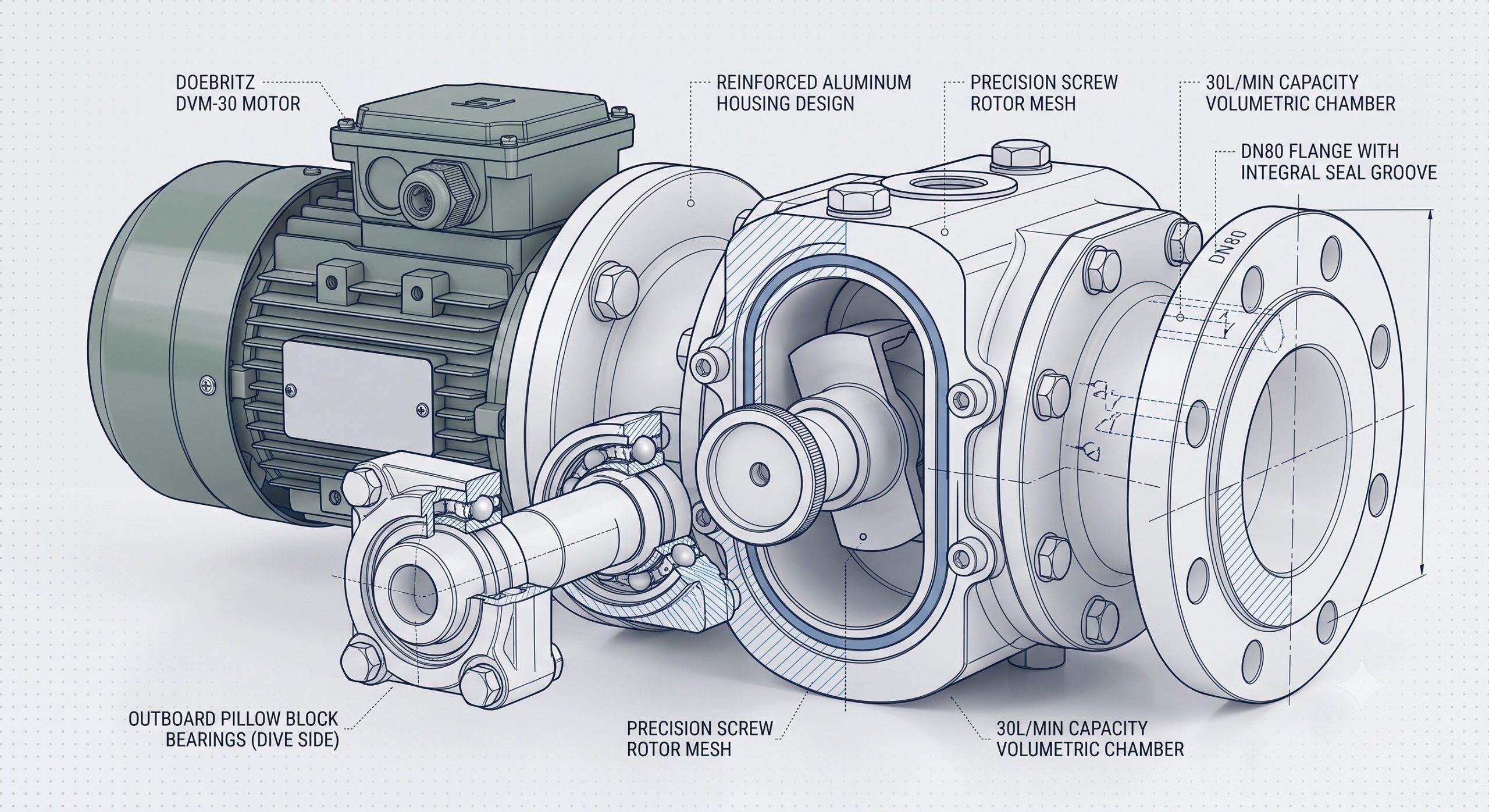

The core of the Doebritz volumetric powder metering valve is its advanced rotor and housing design. Manufactured using a combination of heavy-duty castings and precision-machined components, the valve is engineered for continuous, heavy-duty operation. The rotor configuration is available in various styles, such as the open rotor or fixed-blade design, to suit different material characteristics. The valve’s robust outboard bearing configuration isolates the bearings from the product zone, preventing contamination and extending bearing life. This design, coupled with a high-integrity shaft sealing system, ensures zero product leakage and minimal fugitive dust emissions, creating a cleaner, safer work environment.

Technical Specifications

Below are the core specifications for the Doebritz volumetric powder metering valve. Doebritz’s engineering team can offer detailed data sheets based on your specific model and selected options.

Specification	Detail
Body Material	SUS304 / SUS316L / Carbon Steel (painted or nickel-plated)
Rotor Design	8-Vane open rotor (customizable vane count)
Shaft Seal Type	Lip seal air-tight seal / Packing seal
Explosion Protection	ATEX Zone 20/21/22, Pressure rating up to 16 bar
Flange Standard	HG20592 (DIN/ANSI/Custom available)
Surface Finish (Internal)	Mirror (Ra≤0.4μm) / Coated (Tungsten Carbide, Ceramic)

Key Operational Parameters

• Pressure Range: Suitable for both positive pressure (up to 1 bar) and negative pressure (down to -1 bar) pneumatic conveying.
• Temperature Range: Designed to handle ambient temperatures from -15°C to 60°C and material temperatures from 0°C to 120°C.
• Flow Rate: Volumetric capacity is determined by rotor size, speed (VFD controlled), and material density. The valve supports adjustable speed for precise metering and batch control.
• Surface Finishes: Internal surfaces can be finished to a mirror polish (Ra ≤ 0.4 μm) for hygienic applications, or coated with tungsten carbide or ceramic for maximum abrasion resistance. External finishes include painted carbon steel, shot blasting, and anti-fingerprint treatments.
• Connection Sizes: Standard flange sizes include DN50, DN100, DN150, DN200, DN300, and DN350, with custom sizes available upon request.

Heavy-Duty Application Scenarios

The Doebritz volumetric powder metering valve is a versatile solution that excels across a spectrum of industries and applications:

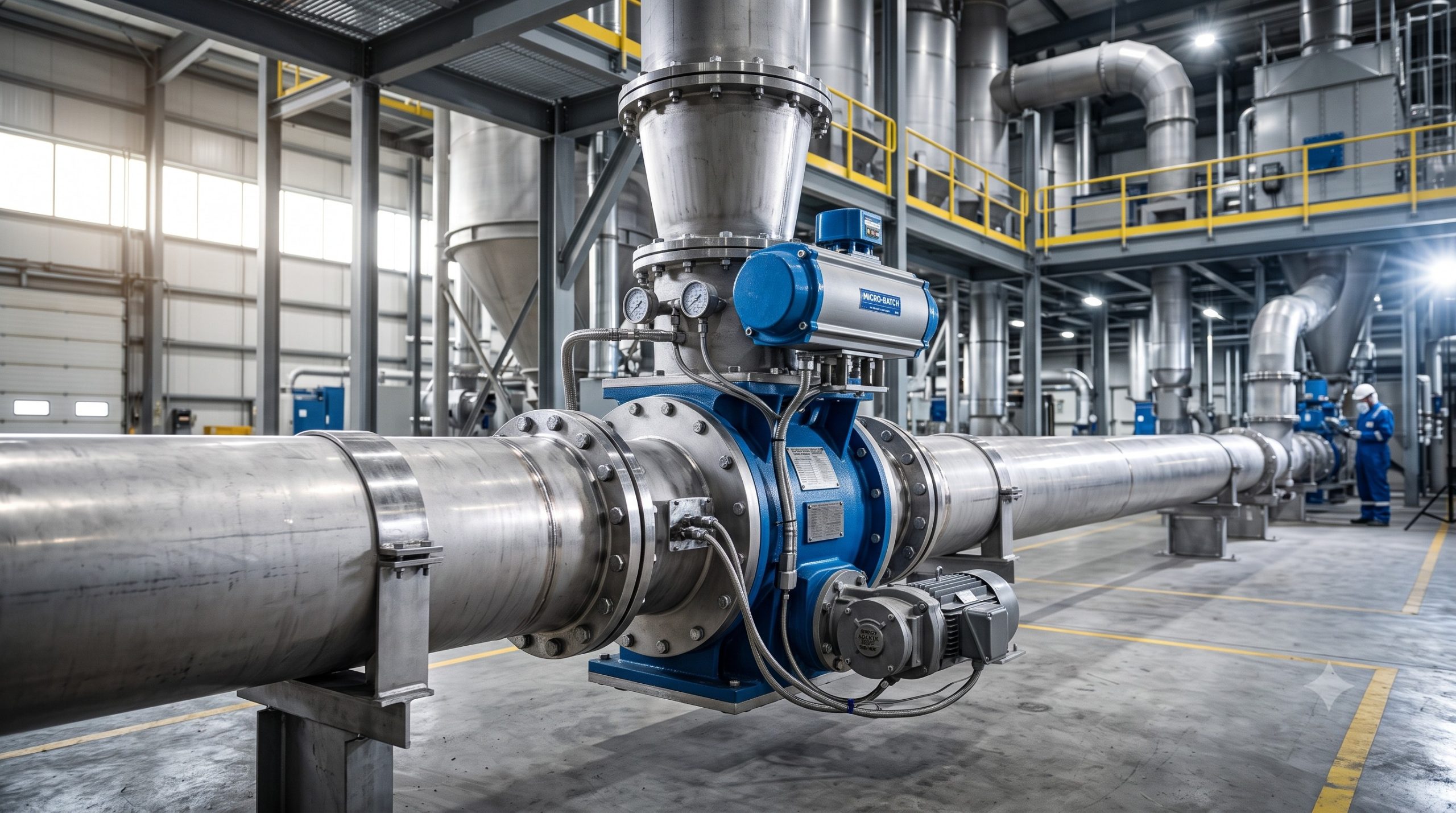

Pneumatic Conveying Systems

Whether as a feeder in a dilute phase or dense phase pneumatic conveying line, the valve’s superior airlock capabilities ensure a stable and efficient conveying process. It is an ideal choice for conveying a wide range of materials, from plastic pellets (PE/PP) and resins to fine powders like flour, cement, and carbon black.

Automated Metering & Batching Lines

When integrated with a VFD and PLC control system, the Doebritz volumetric metering valve becomes a precise metering device for batch and recipe processes. Its consistent volumetric output makes it perfect for industries requiring high accuracy, such as in the production of pharmaceuticals, compounded feeds, and specialty chemicals.

Dust Collector Discharge

Installed at the outlet of dust collectors or baghouses, the valve effectively discharges collected dust and fines while maintaining the negative pressure within the collector, preventing dust re-entrainment and ensuring continuous operation.

Silo Discharging

Under gravity, the valve controls the flow of material from silos and hoppers, preventing flooding and ensuring a controlled, metered discharge to downstream processes. The quick-release design also facilitates easy cleaning and inspection during product changeovers, especially critical in food and pharmaceutical applications.

Global OEM Assurance

Doebritz is a globally recognized manufacturer of high-performance industrial valves and components. By choosing Doebritz, you are partnering with a company that provides end-to-end support, from initial material selection and engineering consultation to reliable after-sales service and spare parts availability. Our global supply chain ensures competitive lead times, while our commitment to quality is reflected in our compliance with ISO standards and industry certifications. With thousands of units deployed worldwide, the Doebritz volumetric powder metering valve is a proven solution for maximizing plant efficiency and profitability.

Frequently Asked Questions

What is the typical air leakage rate for the Doebritz volumetric powder metering valve?

The Doebritz valve is designed for minimal air leakage, thanks to its precision-machined clearances (0.1-0.2 mm) between the rotor and the housing. This ensures efficient airlock performance and is critical for maintaining stable pressures in pneumatic conveying systems.

Can the valve be used with highly abrasive materials?

Yes. The Doebritz valve can be equipped with wear-resistant coatings such as tungsten carbide or ceramics on the rotor, housing, and other contact surfaces. This, combined with heavy-duty construction, makes it ideal for handling abrasive materials like carbon black, minerals, and certain chemical powders.

Is the Doebritz volumetric powder metering valve available with ATEX certification?

Absolutely. Doebritz offers fully ATEX-certified models suitable for use in Zone 20, 21, and 22. These units include features like explosion-proof motors, pressure-rated housings (up to 16 bar), and specific material/design selections to prevent ignition sources. All certifications are available upon request.

What flange standards are available for this valve?

The Doebritz valve is manufactured with HG20592 standard flanges as a base. However, to facilitate global integration, we can also supply units with DIN, ANSI, or other custom flanges based on your specific project requirements. Customization is a core part of our OEM service.

What is the lead time for a custom-engineered Doebritz volumetric powder metering valve?

Lead times depend on the complexity of the customization and the current production schedule. For standard models and popular custom configurations, we can often provide competitive lead times. As a direct manufacturer, we are able to be flexible with our production schedule to meet your deadlines. Please contact our sales team for a specific quote based on your needs.
