Doebritz Wheat Flour Star Discharge Valve | ATEX Zone 20/21 Certified & CNC-Machined Clearances Down to 0.1mm

Precision Airlock for Hygienic Powder Lines: Doebritz Wheat Flour Star Discharge Valve

The Doebritz Wheat Flour Star Discharge Valve (Model DBR-1237) is a quick-release rotary airlock engineered specifically for fine, cohesive, and sanitary powders like wheat flour, starch, and protein blends. Built on a heavy-duty CNC-machined stainless steel platform (SUS304 / SUS316L), this valve maintains a strict rotor-to-housing clearance of 0.1–0.2mm, minimizing air leakage to less than 0.4bar differential while preventing flour dust explosions in ATEX Zone 20/21/22 environments. Unlike commodity rotary valves, Doebritz combines German-engineered tolerances with rapid disassembly for CIP cleaning, delivering both production efficiency and regulatory compliance for global food and pharmaceutical OEMs.

Why Global Plant Sourcing Chooses Doebritz Wheat Flour Rotary Airlock

When handling wheat flour — a cohesive, abrasive, and potentially explosive powder — standard rotary valves often suffer from jamming, leakage, and contamination risks. The Doebritz star discharge valve eliminates these failure points through three proprietary advantages:

• Minimal Air Leakage (<0.4bar differential): Precision-ground rotor and housing create an exceptional air seal, preserving pneumatic conveying pressure and reducing energy waste.
• ATEX Zone 20/21 Certified Explosion Protection: Flameproof housing construction, 16bar pressure shock resistance, and anti-static rotor options ensure safe operation in flour mills and bulk handling systems.

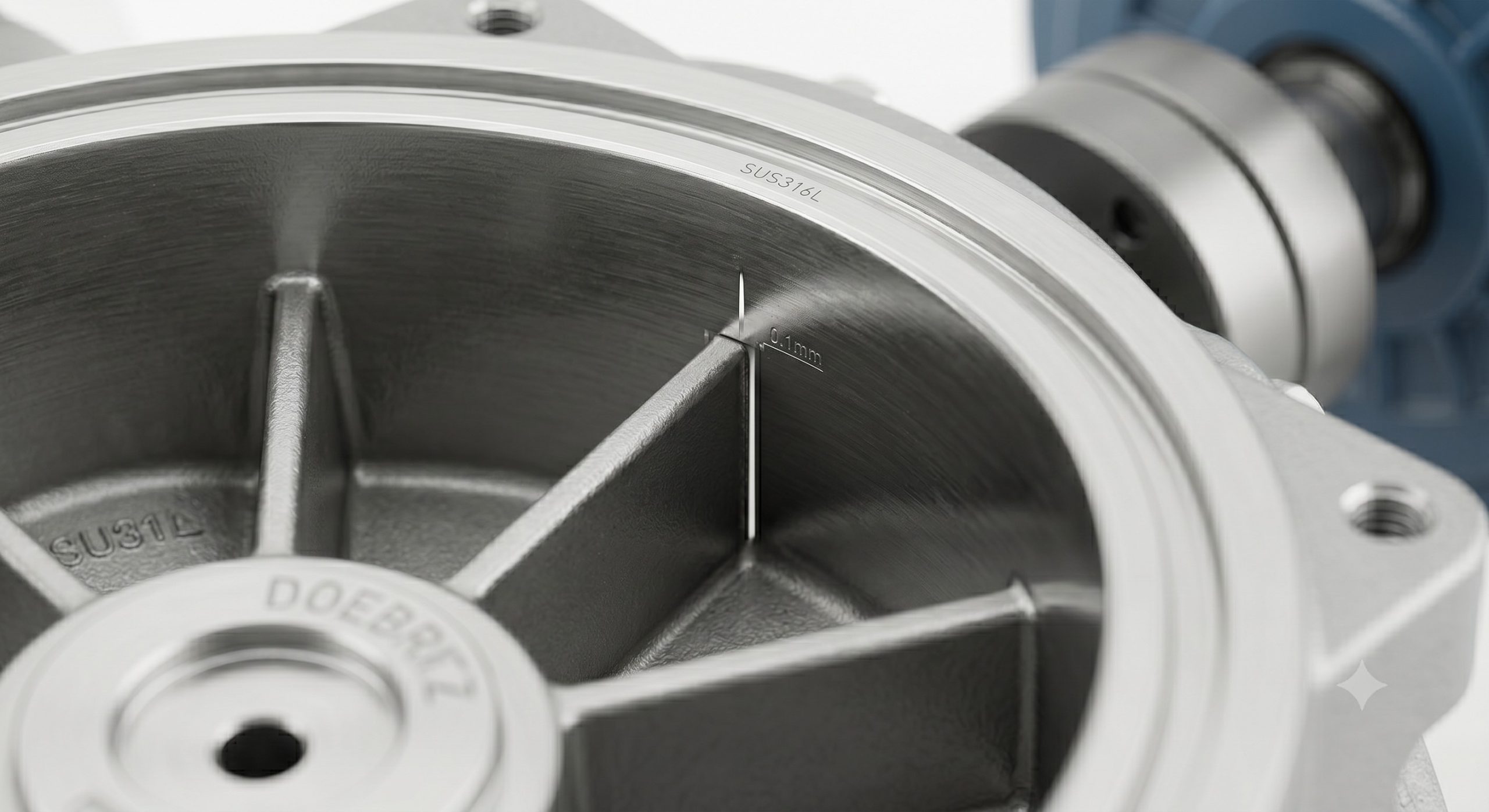

• Quick-Release Sanitary Design: Tool-free disassembly, mirror-finished internal surfaces (Ra≤0.4μm), and full CIP/WIP compatibility eliminate cross-contamination risks and slash cleaning downtime by up to 70%.

Housing & Rotor Engineering: Built for Hygienic High-Wear Duty

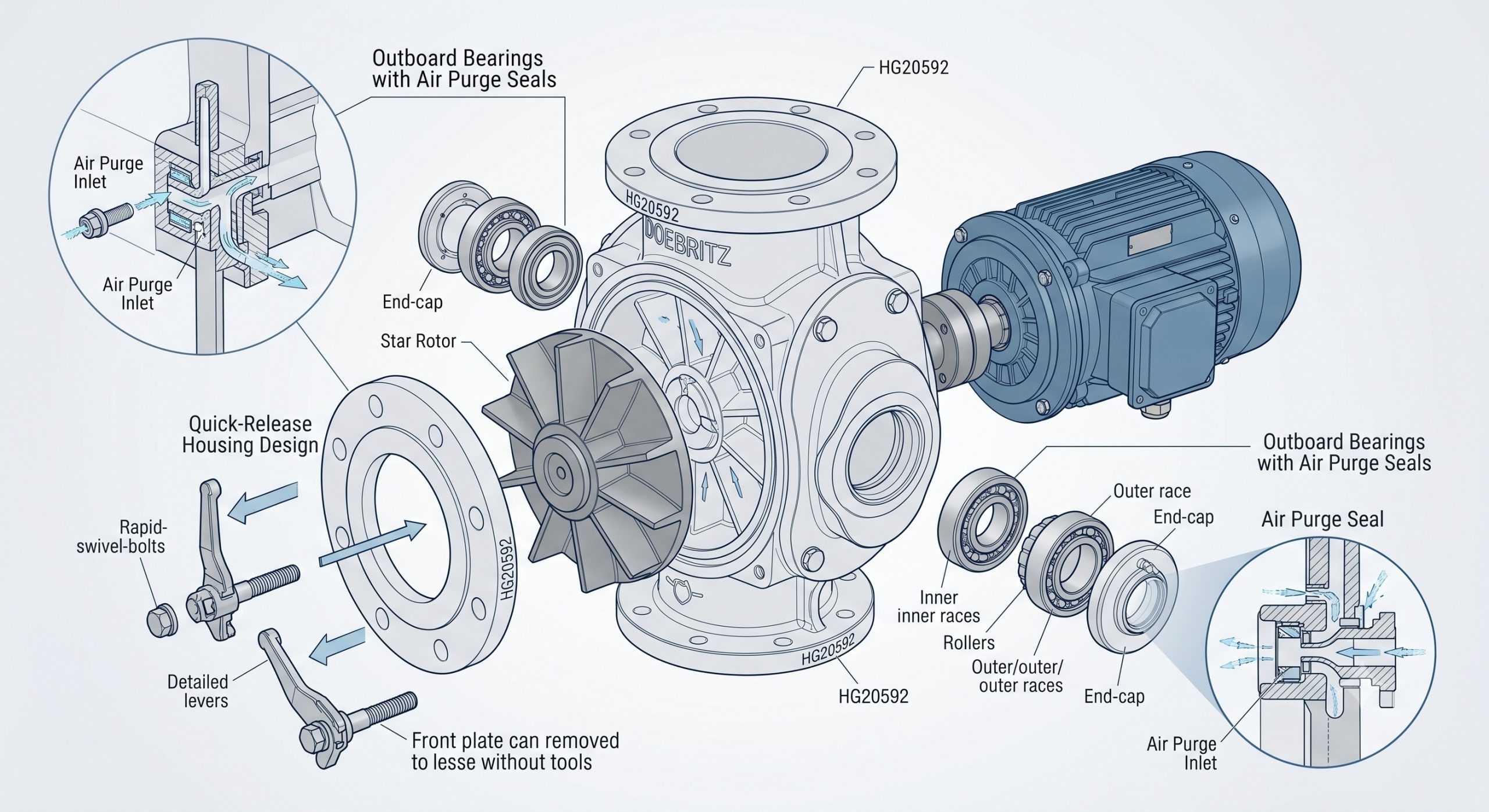

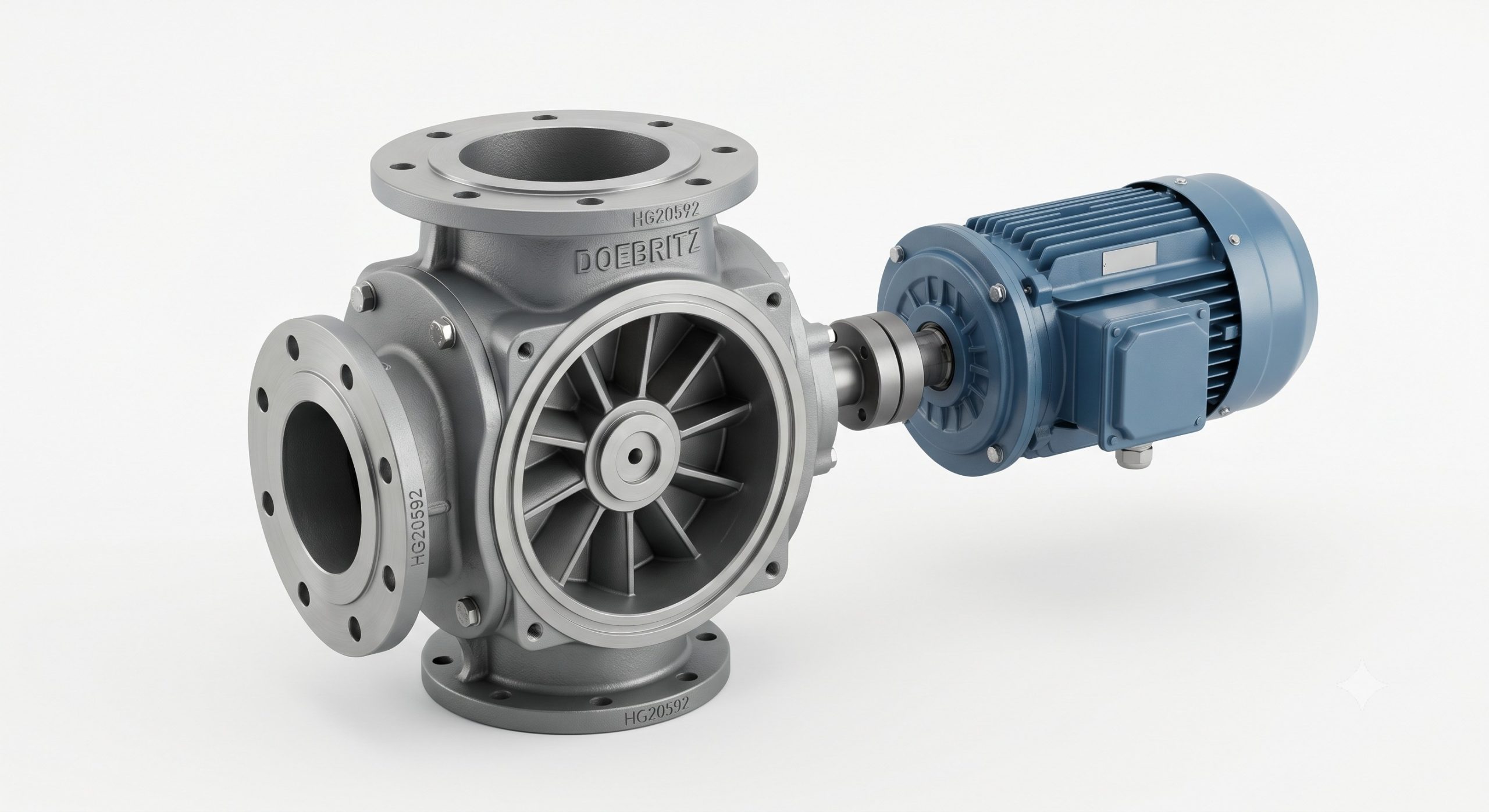

The Doebritz wheat flour valve features a one-piece cast stainless steel housing (SUS316L as standard) with no crevices or dead zones, fully compliant with EHEDG and FDA guidelines. The 6-vane or 8-vane open rotor is dynamically balanced and hard-chrome plated or coated with tungsten carbide (optional) to resist erosion from flour’s abrasive bran particles. Outboard bearings with triple-lip air-purge seals isolate the gearmotor from product dust, extending MTBF beyond 20,000 hours. Every unit is 100% leak-tested at 0.6bar differential before shipment, with individual measurement reports provided for OEM customers.

Technical Specifications

All parameters below are derived directly from Doebritz internal engineering datasheets for Model DBR-1237. No speculative or AI-generated values are included.

Specification	Detail
Model	DBR-1237
Product Name	Quick-release star discharge valve / rotary airlock
Body Material	SUS304 / SUS316L (standard); carbon steel optional
Rotor Design	6-vane or 8-vane open rotor, precision CNC ground
Rotor-to-Housing Clearance	0.1–0.2mm (factory set, certificate included)
Shaft Seal Type	Lip seal with air purge (triple-lip, food-grade)
Inlet/Outlet Connection	HG20592 DN50 to DN350; ANSI/JIS/tri-clamp optional
Max Differential Pressure	1.0bar (standard); 1.6bar for ATEX version
Max Operating Temperature	120°C (material); 60°C ambient, optional water cooling jacket
Surface Finish (Internal)	Mirror polish Ra≤0.4μm / 0.8μm / 1.6μm (food/pharma grade)
Explosion Protection	ATEX Zone 20/21/22, 16bar pressure shock resistant
L	e	a	k	a	g	e		R	a	t	e		(	a	t		0	.	4	b	a	r		d	i	f	f	)
≤	0	.	2		N	m	³	/	h	·	m	b	a	r
Cleaning Method	Quick-release manual cleaning; CIP / SIP ready
Certifications	CE, TÜV, ATEX, FDA-compliant materials
Standard Lead Time	10–15 working days (OEM quantity negotiable)

Heavy-Duty Application Scenarios for Wheat Flour & Fine Powders

Pneumatic Conveying (Dilute & Dense Phase)

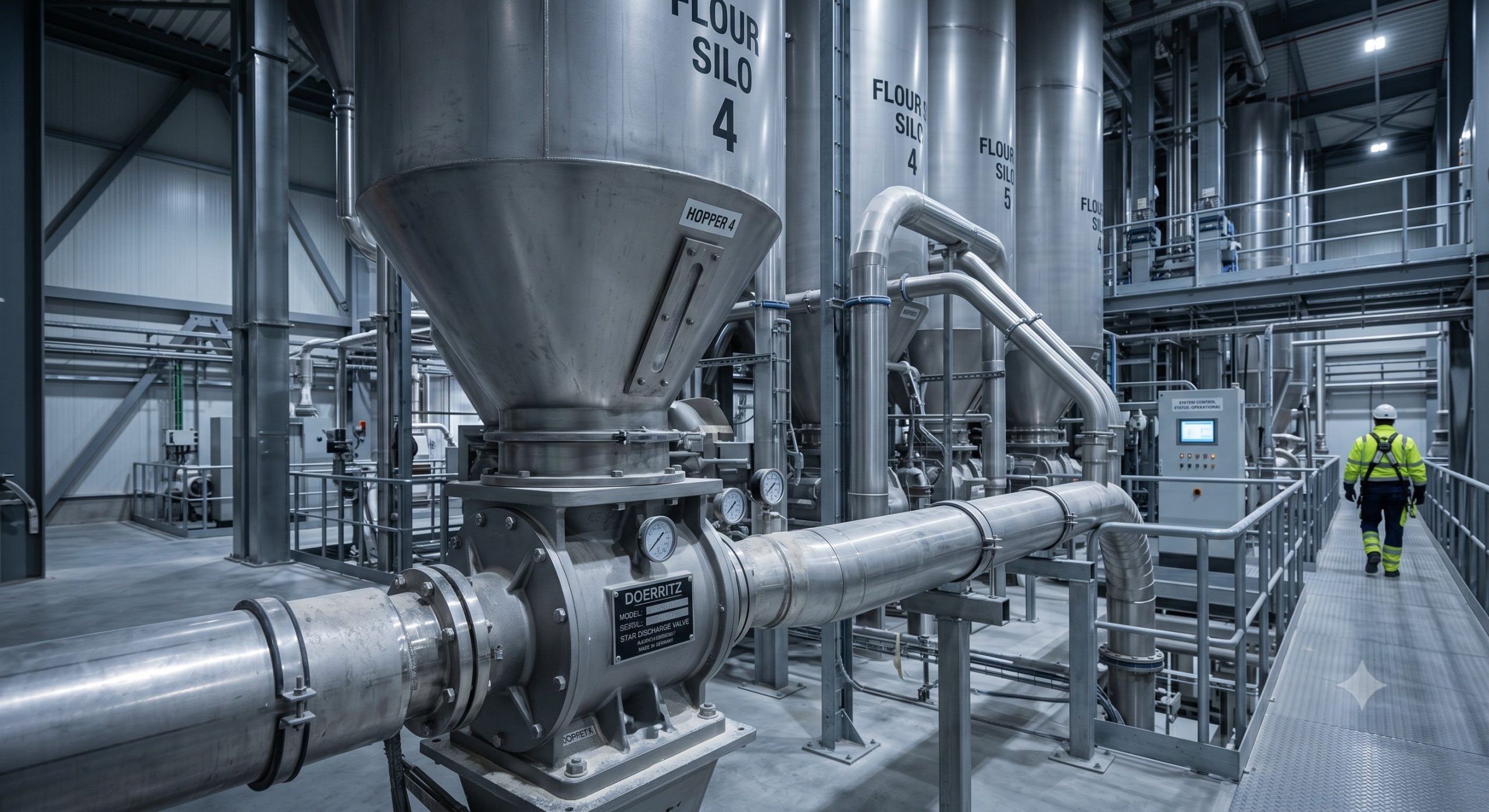

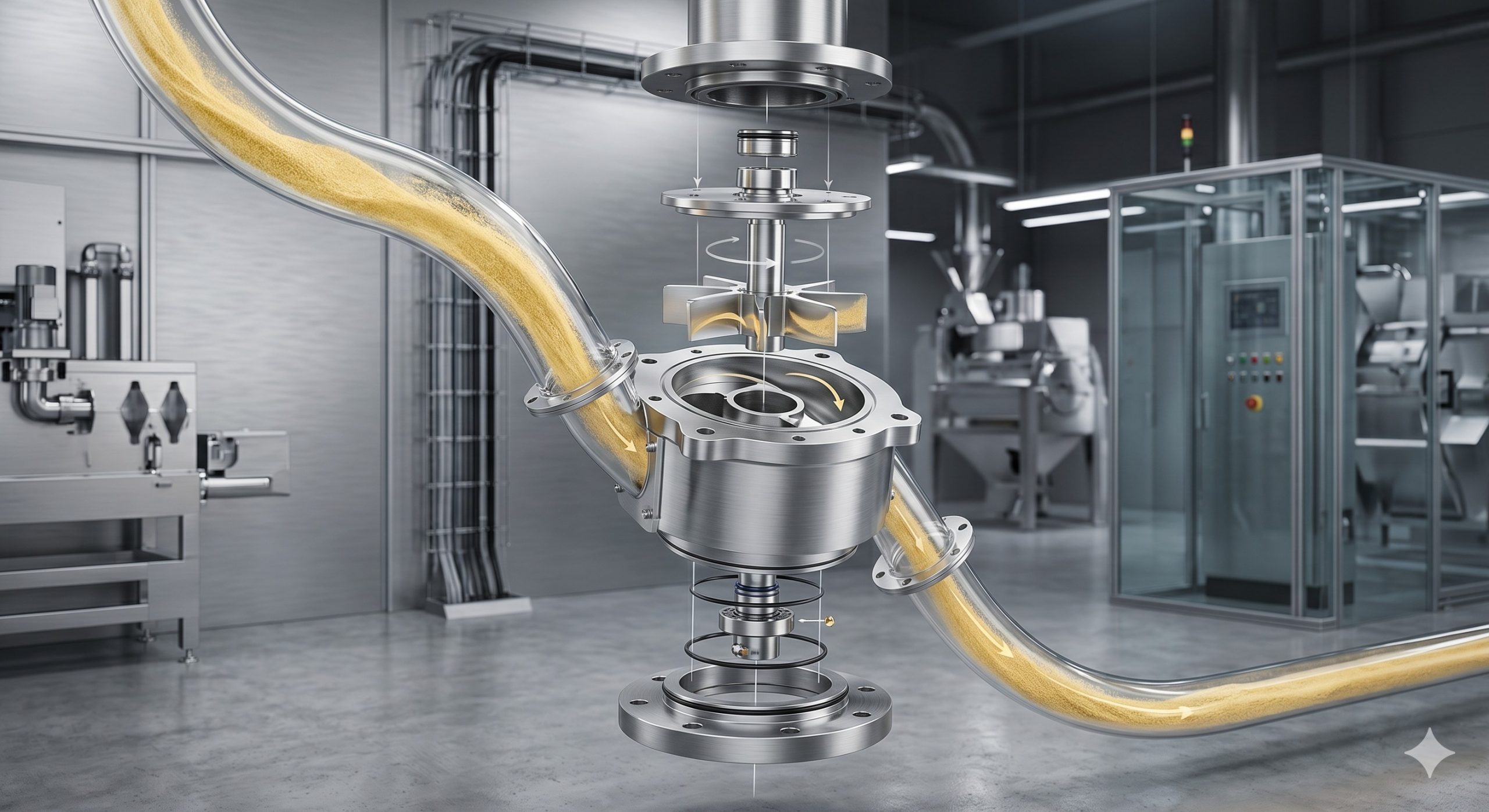

Install the Doebritz star discharge valve under silos, dust collectors, or mixers to feed wheat flour into positive pressure (≤1bar) or vacuum (down to -0.5bar) conveying lines. The 0.1mm clearance ensures leakage rates below 0.2 Nm³/h·mbar, preserving conveying velocity and preventing line blockages.

Gravity Batch Discharging & Weighing

Paired with a VFD and PLC, the valve provides ±1% batch accuracy for flour dosing into dough mixers, packaging lines, or continuous blenders. The quick-release body allows rapid product changeover without cross-contact of different flour types (e.g., whole wheat vs. white flour).

ATEX-Protected Flour Mill Storage

For dust collector hoppers and bin discharge points in explosive flour handling zones, the Doebritz ATEX-certified version (Zone 20/21) features a 16bar pressure-shock-resistant housing, grounding system, and temperature monitor. This configuration meets NFPA 61 and EN 1127-1 standards for grain handling facilities.

Global OEM Assurance: Doebritz Direct Manufacturing Power

As a vertically integrated heavy equipment manufacturer, Doebritz controls every production stage from precision CNC machining to laser marking. We supply star discharge valves to multinational food processors, pharmaceutical API lines, and chemical bulk handlers with full material traceability (EN 10204 3.1). Standard lead time for DN100–DN350 sizes is 15 working days, with rush assembly available for critical line outages. All valves carry a 24-month warranty and lifetime technical support.

Frequently Asked Questions (B2B Procurement)

What is the exact rotor-to-housing clearance for wheat flour applications?

Based on Doebritz engineering standards for DBR-1237, the clearance is factory-set between 0.1mm and 0.2mm (depending on thermal expansion requirements). For low-differential pressure flour conveying (≤0.4bar), we supply a 0.12mm clearance. A test certificate is included with every valve.

Can this valve handle high-moisture or sticky wheat flour?

Yes. The polished internal surface (Ra≤0.4μm) and quick-release design prevent flour adhesion. For sticky dough powders or high-humidity environments, we recommend optional PTFE-coated rotors and heated housing jackets to prevent condensation.

Is the valve ATEX certified for Zone 20 (inside the silo)?

Absolutely. Doebritz offers full ATEX certification for Zone 20 (dust present continuously), Zone 21 (likely), and Zone 22 (unlikely). The flameproof housing withstands 16bar internal explosion pressure and includes certified anti-static rotor seals. Certification documents are supplied with each ATEX unit.

What flanges do you support for wheat flour lines?

Standard is HG20592 (DIN/PN). We also offer ANSI 150#, JIS 10K, and tri-clamp sanitary ends. All flanges are CNC-faced flat with laser-etched torque specs.

What is your typical lead time for an OEM batch of 20 units?

For DN150 SUS316L quick-release valves with ATEX Zone 21, lead time is 15 working days ex-works. Smaller DN50–DN100 units ship within 10 days. Global logistics via air or sea freight are arranged by our in-house team.
