Doebritz Stainless Steel Feeding Screw: Quick-Release Rotary Valve for Hygienic & ATEX Zones

Product Overview: Doebritz Stainless Steel Feeding Screw as a Precision Rotary Airlock

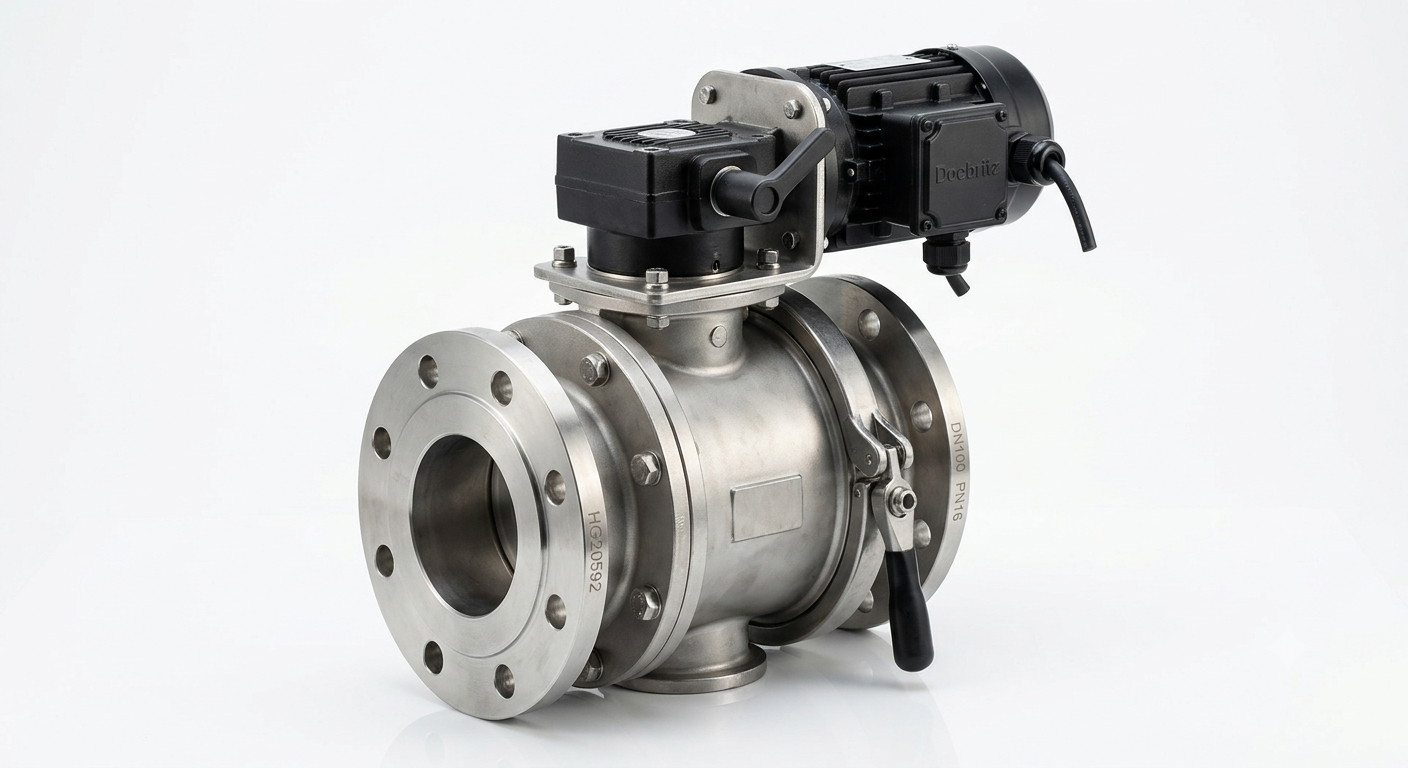

Doebritz introduces the DBR-1237 gravity-style quick-release rotary valve—a stainless steel feeding screw system engineered for exacting metering, airlock sealing, and rapid sanitization. This is not a generic star feeder; it is a CNC-machined, ATEX-certified rotary valve designed to perform in positive/negative pressure pneumatic conveying, gravity discharge, and automated batching lines. With a rotor-to-housing clearance of 0.1–0.2mm, the Doebritz DBR-1237 minimizes air leakage, stabilizes differential pressure, and ensures reproducible volumetric feed rates—essential for food, pharmaceutical, and chemical processes that demand both hygiene and explosion safety.

Why Global Plant Sourcing Chooses Doebritz Stainless Steel Feeding Screw Valves

As an OEM supplier with deep experience in heavy-duty bulk solids handling, Doebritz builds each DBR-1237 rotary valve with SUS304 or SUS316L stainless steel as standard, with optional tungsten carbide, ceramic, or polymer coatings for abrasive service. The quick-release demountable design eliminates the need for specialized tools, reducing cleaning downtime by up to 70% compared to conventional bolt-on valves. Key advantages that drive procurement decisions:

• Minimal air leakage & stable lock-up: Precise clearances reduce gas bypass, lowering energy costs and improving conveying efficiency.
• ATEX Zone 20/21/22 compliance: Flameproof construction with 16bar pressure rating, available with explosion-proof motors and purge systems.
• Hygienic engineering: Internal surfaces achieve Ra≤0.4–0.8μm mirror finish, supporting CIP/WIP cleaning and GMP-compliant manufacturing.
• Flexible integration: DN50 to DN350 flanges, VFD-ready, and PLC-compatible for recipe-based batching or continuous metering.

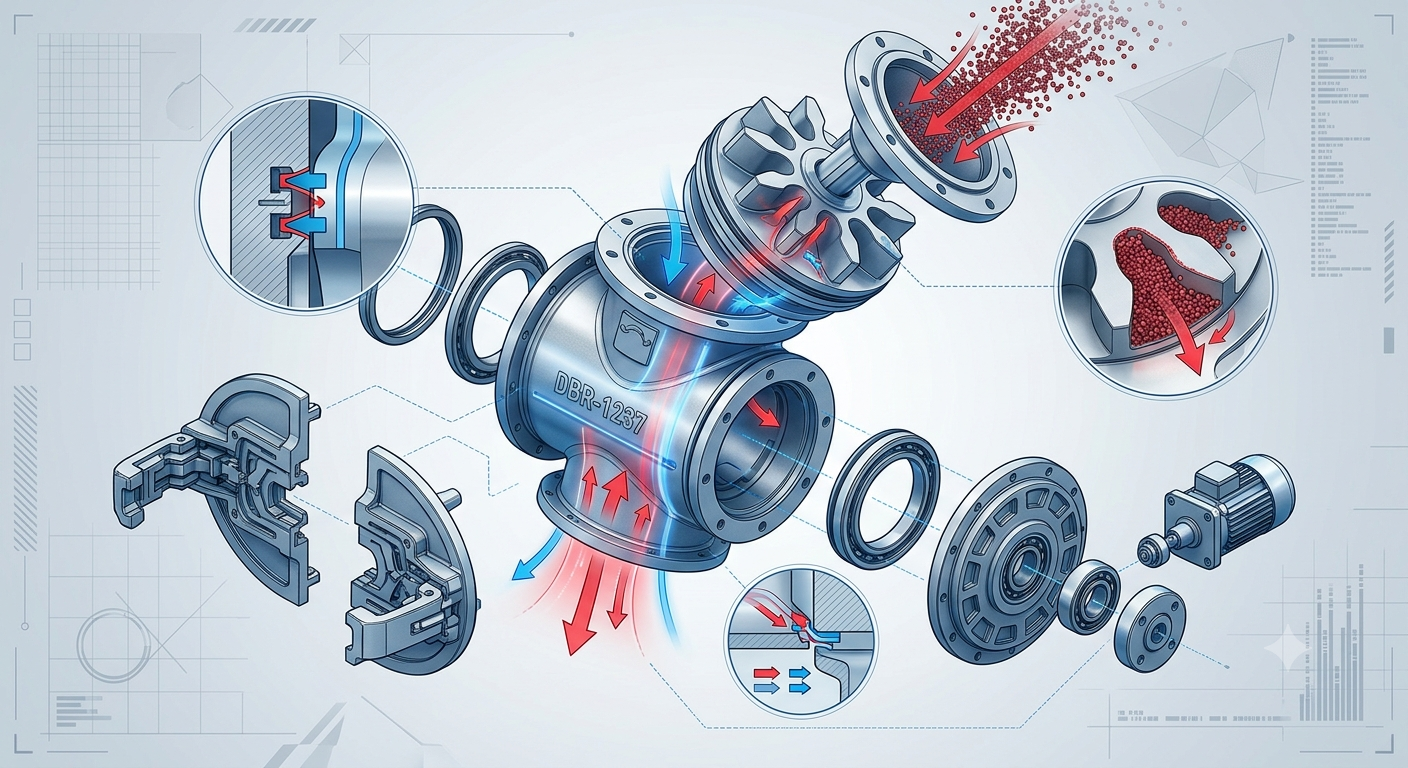

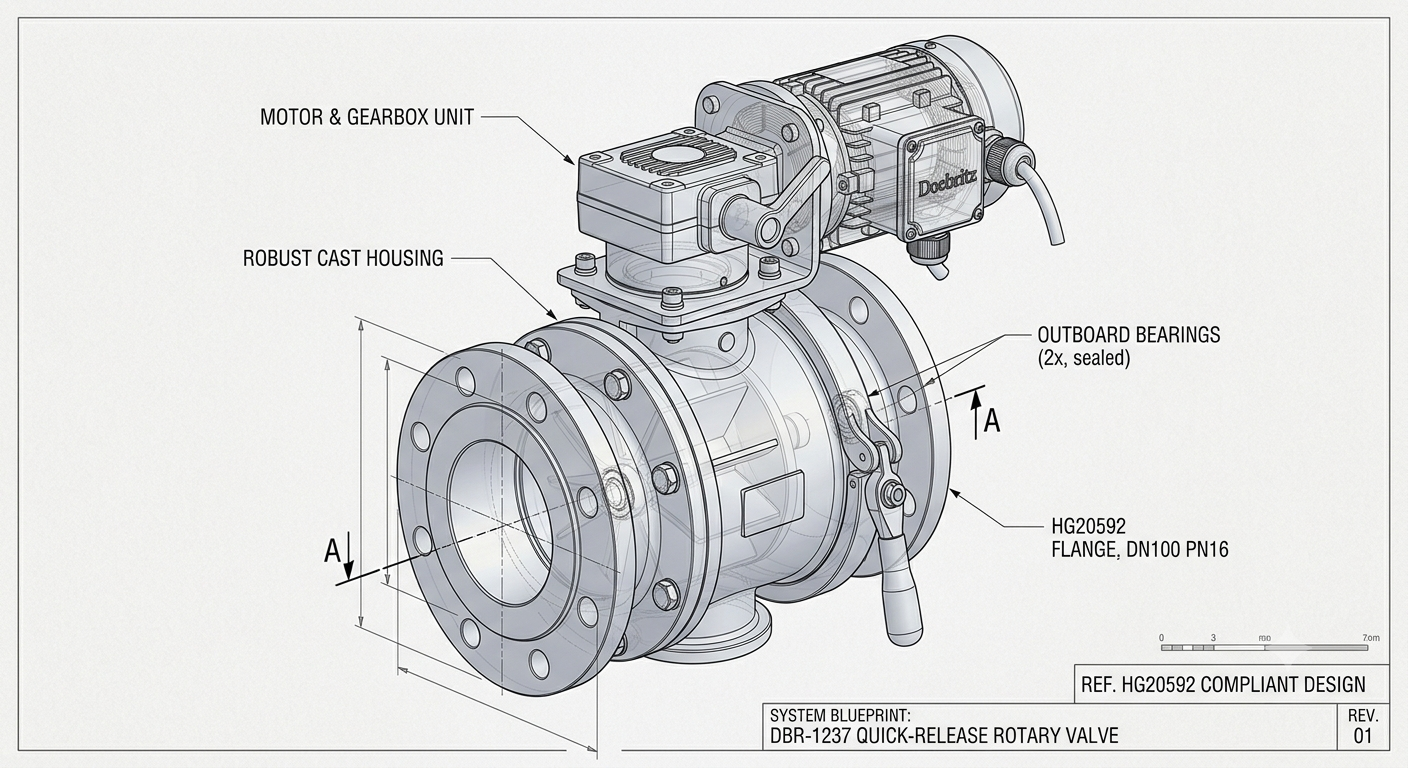

Housing, Rotor & Sealing Engineering

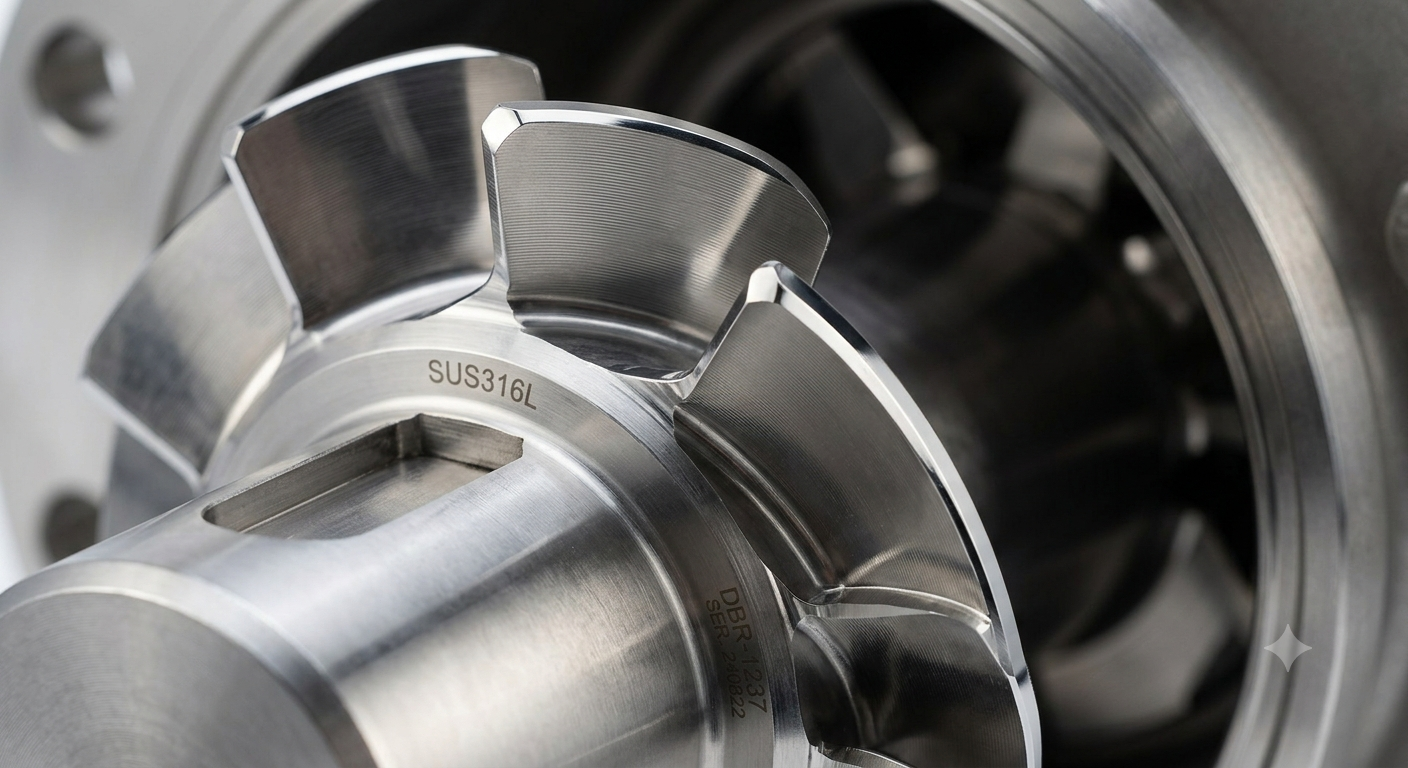

The DBR-1237 housing is precision-cast or fabricated from stainless steel (SUS304/316L) with heavy-section walls to withstand differential pressures up to 1 bar (positive) and –1 bar (negative). Rotor pockets are CNC-machined to exacting tolerances, and the shaft sealing system features lip-type air-tight seals with optional purge ports for abrasive or sticky materials. For high-temperature applications, a water-cooled jacket is available to maintain seal integrity when handling products up to 120°C. The outboard bearing arrangement isolates bearings from the product zone, extending service life and facilitating easy maintenance without full disassembly.

Technical Specifications – Doebritz DBR-1237 Quick-Release Rotary Valve

Specification	Detail
Body Material	SUS304 / SUS316L Stainless Steel (Carbon steel with coating optional)
Rotor Design	8-Vane closed or open rotor, CNC-machined
Rotor-to-Housing Clearance	0.1–0.2 mm (precision ground)
Pressure Rating	Positive: up to 1 bar; Negative: down to –1 bar
Temperature Range	Ambient –15°C to 60°C; Material 0°C to 120°C (with water cooling jacket option)
Shaft Sealing	Lip-type air-tight seals with optional purge
Flange Standard	HG20592 (DIN/EN); ANSI/JIS available on request
ATEX Certification	Zone 20/21/22, flameproof housing 16 bar
Surface Finish (Internal)	Ra≤0.4μm / 0.8μm / 1.6μm, mirror electropolish
Cleaning Compatibility	CIP, WIP, and manual tool-free disassembly
Drive Options	VFD-ready, explosion-proof motor, gearmotor packages

Heavy-Duty Application Scenarios for Stainless Steel Feeding Screw Valves

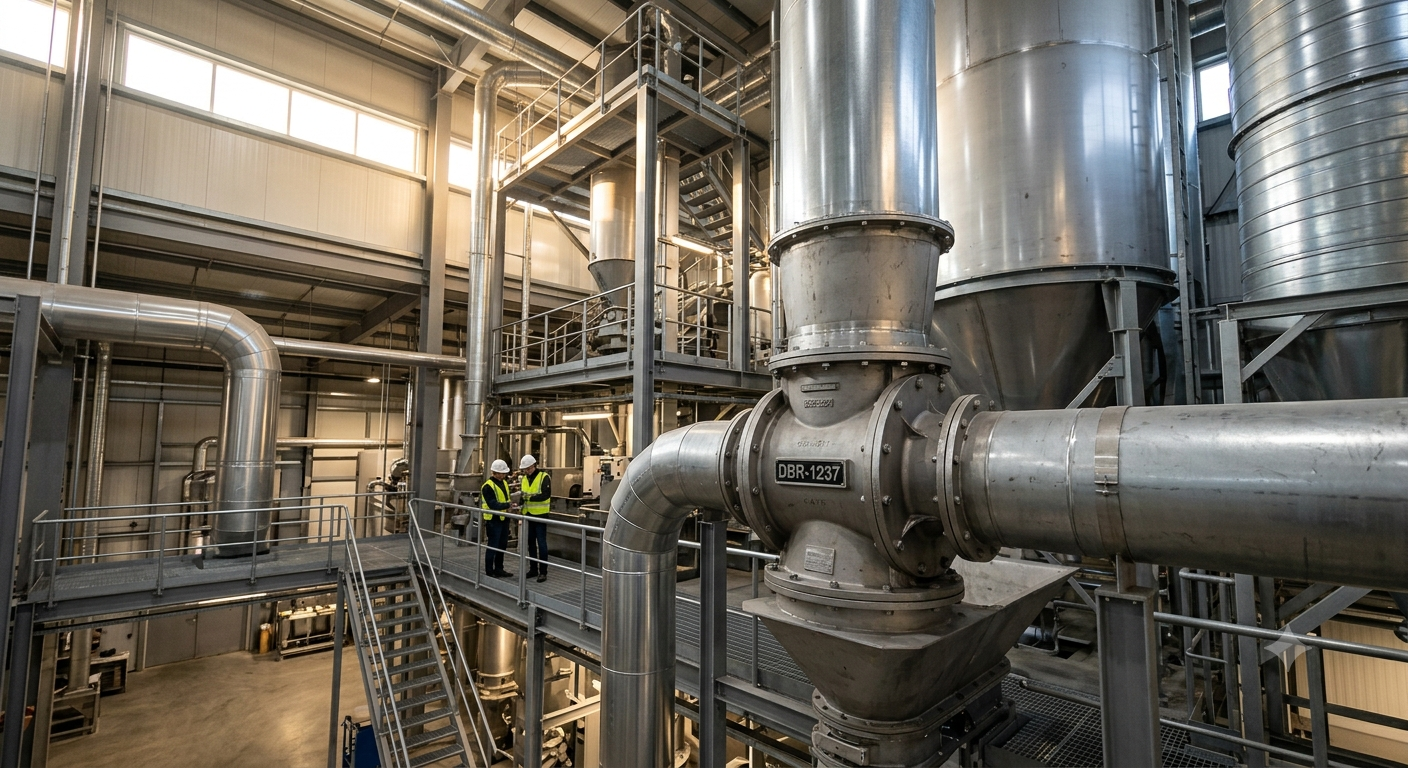

Pneumatic Conveying & Gravity Discharge

In dilute or dense-phase pneumatic systems, the DBR-1237 functions as both a feeder and an airlock, maintaining system pressure while delivering a consistent material flow. Its ability to handle pressures up to 1 bar and temperatures up to 120°C makes it suitable for resin pellets, flour, milk powder, carbon black, and lithium battery precursors.

Sanitary Food & Pharmaceutical Lines

The 316L version with electropolished internals and CIP-ready design is ideal for protein powders, vitamin blends, probiotic formulations, and API intermediates. Quick-release clamps allow rapid tear-down for manual inspection and validation, reducing changeover times between batches.

Explosive Environment & Abrasive Service

For applications involving combustible dusts (e.g., starch, sulfur, or organic pigments), the ATEX-certified DBR-1237 provides flameproof containment. Tungsten carbide-coated rotors and housings extend wear life when processing fumed silica, titanium dioxide, or pet coke, delivering a lower total cost of ownership over conventional valves.

Global OEM Assurance & Supply Chain Advantages

Doebritz operates ISO 9001 and ATEX-certified production facilities, ensuring each DBR-1237 rotary valve is fully traceable from raw material to final test. We provide material certificates (EN 10204 3.1), NDT reports, and dimensional inspection logs with every shipment. Whether you require custom flange drilling, special rotor geometries, or integrated gearmotor packages, Doebritz offers engineering support and rapid prototyping to meet project-specific timelines.

Frequently Asked Questions About Doebritz Stainless Steel Feeding Screw Rotary Valves

What is the standard clearance between rotor and housing, and why does it matter?

The DBR-1237 is manufactured with a 0.1–0.2mm clearance. This tight tolerance reduces air leakage, improves pressure stability, and enhances metering accuracy, especially in low-pressure pneumatic systems.

Can the valve be cleaned in place without disassembly?

Yes. The DBR-1237 supports online CIP (clean-in-place) and WIP (wash-in-place) procedures. For full visual inspection, the quick-release clamps allow tool-free disassembly within minutes.

Is the Doebritz DBR-1237 suitable for ATEX Zone 20?

Absolutely. We offer ATEX-certified configurations for Zone 20, 21, and 22, with explosion-proof motors, earth bonding, and pressure shock-resistant housings rated to 16 bar.

Which flange standards are available?

Standard configuration uses HG20592 (DIN/EN) flanges. We can also supply ANSI, JIS, or custom drilling upon request, ensuring seamless integration into existing pipework.

What materials can be handled by this stainless steel feeding screw valve?

The DBR-1237 processes powders, granules, flakes, and pellets—from food-grade flour and sugar to abrasive carbon black, battery materials, and pharmaceutical intermediates. Coating options (tungsten carbide, ceramic, PTFE) expand compatibility with corrosive or high-wear products.
