Doebritz Quick-Release Rotary Valve: Stainless Steel / Cast Iron – Minimal Air Leakage | Heavy-Duty Industrial Feeder

High-Performance Doebritz Quick-Release Rotary Valve for Demanding Bulk Solids Handling

Designed for heavy-duty industrial applications, the Doebritz DBR-1237 Quick-Release Rotary Valve (also known as a star discharge valve or airlock feeder) sets the benchmark for reliable, low-maintenance material discharge. Engineered with ultra-tight rotor-to-housing clearances (0.1–0.2 mm) and precision-machined components, it minimizes air leakage and ensures stable pneumatic conveying, gravity flow, or metering duties. Available in SUS304, SUS316L, and carbon steel with optional wear-resistant coatings, this valve delivers superior performance across food, pharmaceutical, chemical, and new energy industries.

Backed by Doebritz’s robust manufacturing capabilities and stringent quality control (CE, TÜV, ATEX Zone 20/21/22 certifications), the DBR-1237 offers a quick-release, easy-clean design that slashes maintenance downtime while maintaining the highest sanitary and safety standards.

Why Choose Doebritz Quick-Release Rotary Valve for Your Plant

Minimal Air Leakage & Precise Locking

The DBR-1237’s precision engineering ensures a consistent rotor-to-housing gap, achieving less than 0.2 mm clearance. This drastically reduces air bypass in pneumatic systems, boosting energy efficiency, maintaining stable material flow, and enabling accurate metering for batching or continuous processes. The valve is available with a lip seal air-tight shaft seal to further prevent leakage and contamination.

Heavy-Duty Construction & Superior Metallurgy

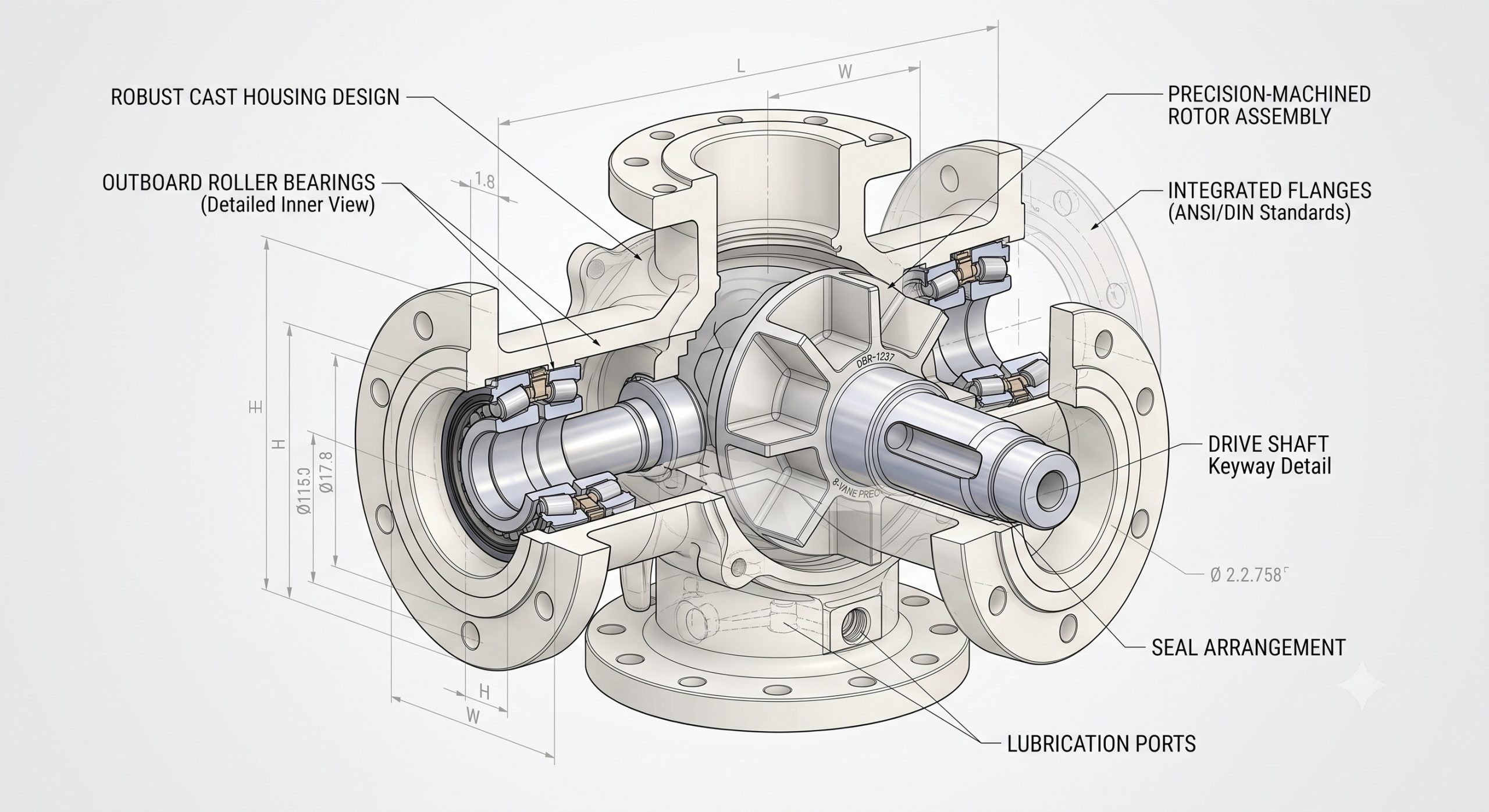

Doebritz employs advanced CNC machining and casting techniques to produce robust housings and rotors. Base materials include stainless steel (SUS304, SUS316L) and carbon steel (painted or nickel-plated). For highly abrasive or corrosive applications, options include tungsten carbide, ceramic, PE, PTFE, and PA coatings for extended operational life. The valve supports ambient temperatures from -15°C to 60°C and material temperatures up to 120°C, with an optional water-cooling jacket for high-heat processes.

Quick-Release & In-Place Cleaning

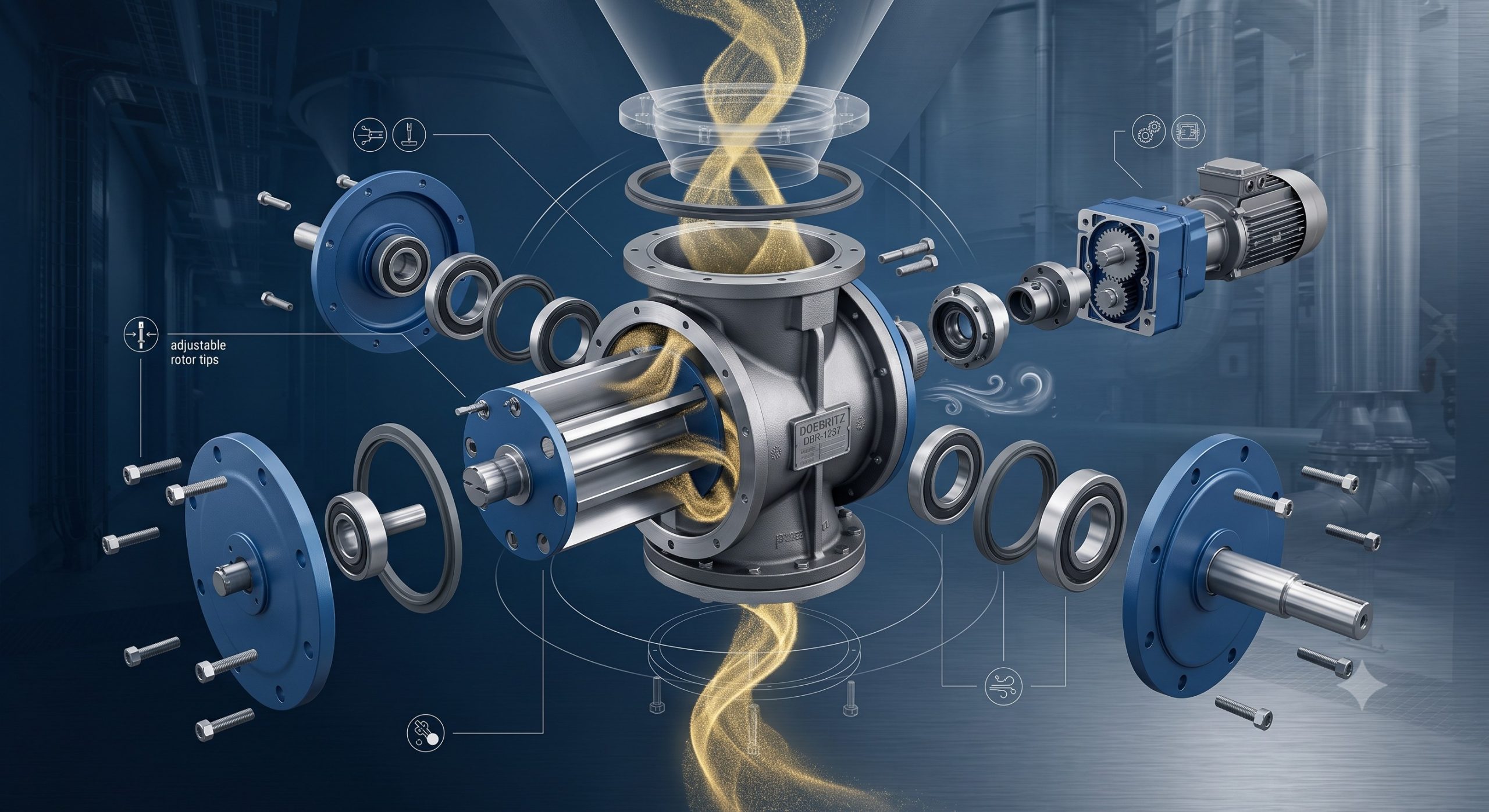

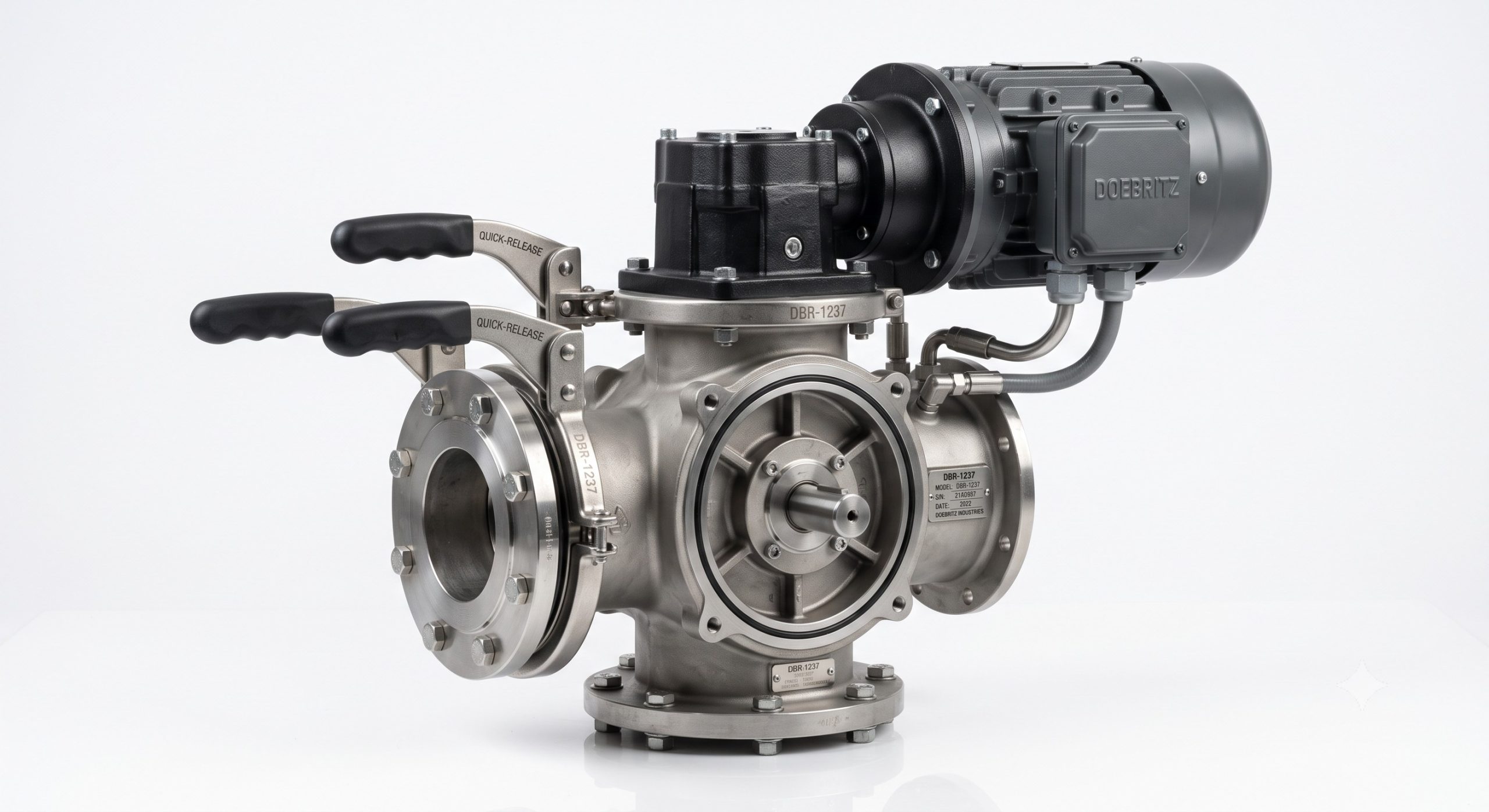

Designed for maximum uptime, the DBR-1237 features a tool-free quick-release disassembly for easy access and manual cleaning. It also supports online CIP (Clean-in-Place) and WIP (Wash-in-Place) cleaning protocols, making it ideal for hygienic and GMP-compliant production lines in food, dairy, and pharmaceutical plants.

Internal surfaces can be finished to mirror, Ra ≤ 0.4 μm, Ra ≤ 0.8 μm, or Ra ≤ 1.6 μm, while external finishes include sandblasting, shot blasting, anti-fingerprint treatments, or machined surfaces < 0.8 μm.

Technical Specifications

The Doebritz DBR-1237 is engineered to excel in diverse pneumatic conveying and gravity discharge configurations. Below are the key performance parameters.

Specification	Detail
Body Material	SUS304, SUS316L, Carbon Steel (painted/nickel-plated)

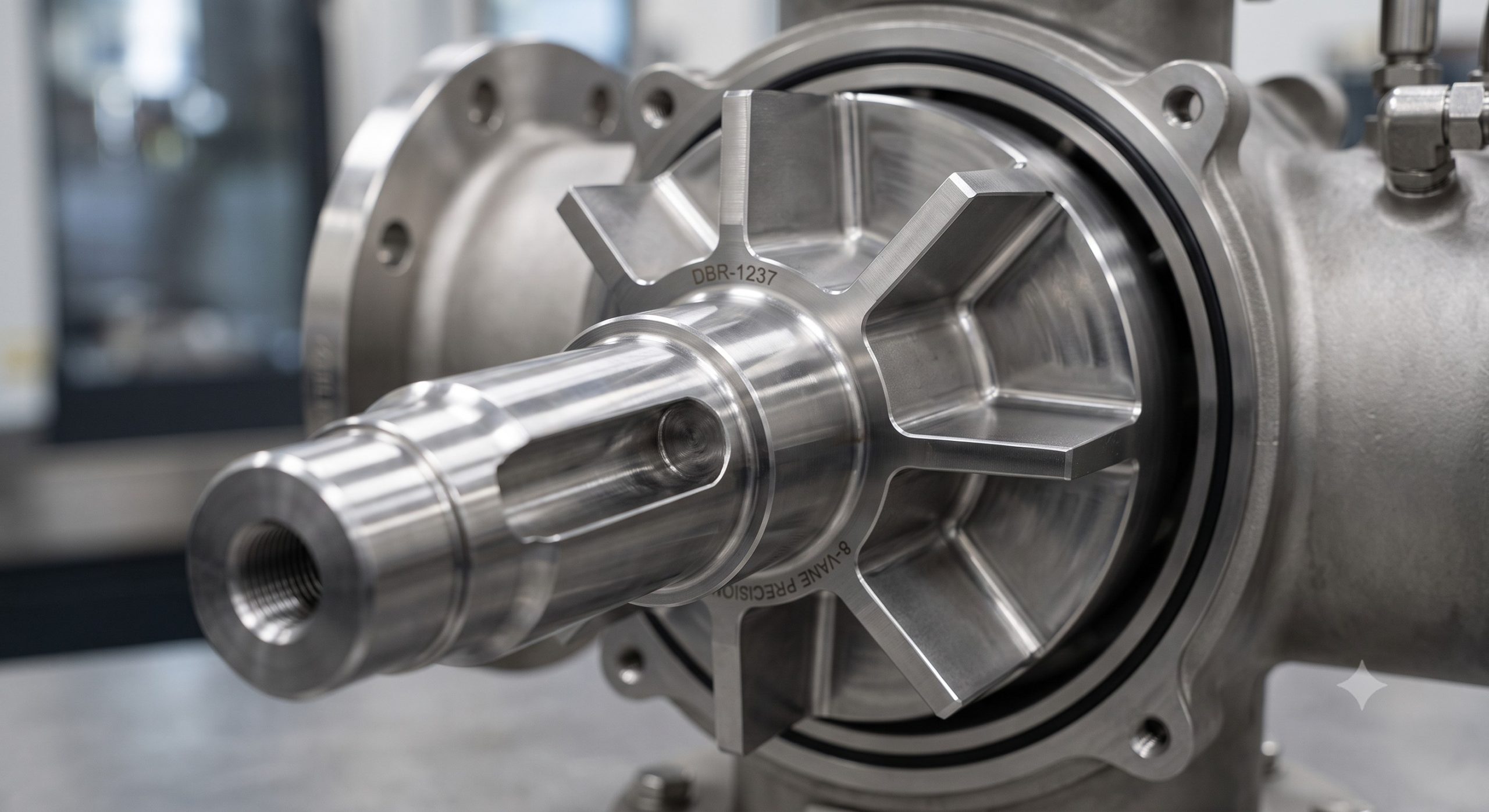

Rotor Design	8-Vane (or custom), Open/Closed Rotor Options
Rotor-to-Housing Clearance	0.1 – 0.2 mm (precision ground)
Shaft Seal	Lip seal air-tight seal (packing seal optional)
Positive Pressure Range	Low: <0.4 bar; High: 0.4 to 1 bar (VFD)
Vacuum Pressure Range	Low: >-0.4 bar; High: -1 to -0.4 bar (VFD)
Ambient Temperature	-15°C to 60°C
Material Temperature	0°C to 120°C (optional water-cooling jacket)
Flange Standards	HG20592 (customizable DIN/ANSI)
Surface Finishes	Internal: Mirror, Ra≤0.4/0.8/1.6 μm; External: Machined <0.8 μm, sandblasted, etc.
Cleaning	Manual after disassembly, Online CIP, Online WIP + manual check
ATEX Certification	Zone 20/21/22, Pressure rating 16 bar, Explosion-proof motor

Comprehensive System Integration

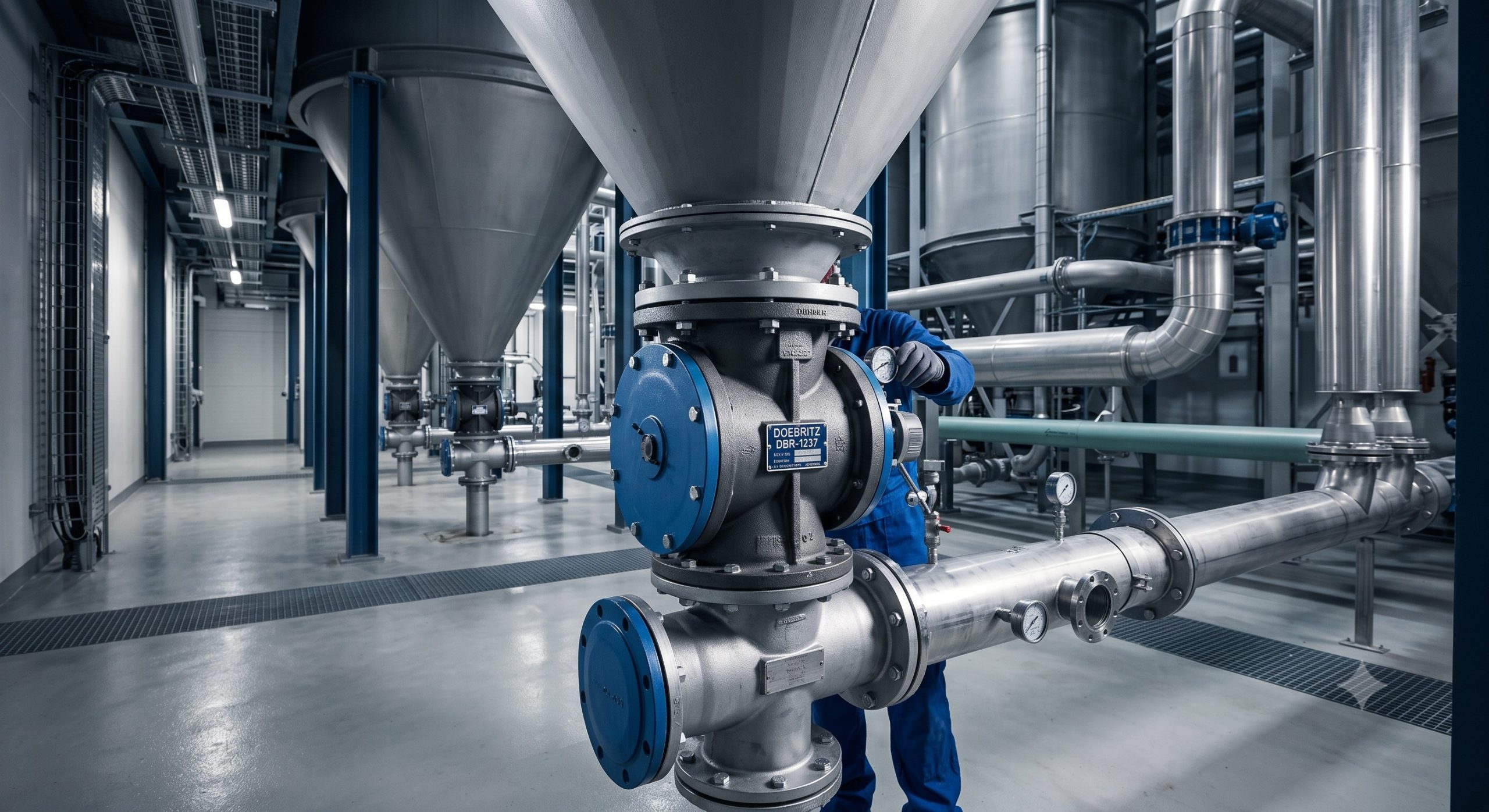

Pressure & Vacuum Conveying

The DBR-1237 seamlessly integrates into both positive and negative pressure systems. For positive pressure, it handles low-pressure (< 0.4 bar) and high-pressure (0.4 to 1 bar) applications with variable frequency drive (VFD) control. For vacuum conveying, it supports low-pressure (> -0.4 bar) and high-pressure (-1 to -0.4 bar) scenarios.

Gravity Discharge & Metering

As a star feeder, it provides reliable, leak-free gravity discharge with adjustable speed via VFD. When integrated with PLC control, it enables precise batch metering, recipe formulation, and automated batching for consistent product quality.

Explosion Safety & Hygiene

Fully certified for ATEX Zone 20, 21, and 22, the DBR-1237 is built with flameproof construction and pressure rating up to 16 bar. It meets Class W, 10W, 30W, Class C, and Class D cleanroom standards, ensuring compliance in sensitive environments.

Industry Applications & Target Materials

Food & Beverage

Coffee, chocolate, flour, milk powder, grains, starch, spices, salt, protein powders, and bakery ingredients.

Pharmaceutical & Nutraceutical

Antibiotic powders, vitamins, hormones, fermentation products, medical starch, lactose, microcrystalline cellulose, lyophilized vaccine powders, and probiotics.

Chemical, New Energy & Advanced Materials

Carbon black, PE/PP pellets, PTA, titanium dioxide, lithium battery cathode/anode materials, silicon powder, graphite, fertilizers, pigments, and fine chemical powders.

Frequently Asked Questions

What are the standard flange connections for the Doebritz DBR-1237?

The valve is supplied with HG20592 standard flanges, and can be customized with DIN or ANSI flanges upon request.

Is the DBR-1237 suitable for ATEX Zone 20 applications?

Yes. It is available with ATEX Zone 20/21/22 certifications, featuring an explosion-proof motor, 16 bar pressure rating, and precision clearances to prevent ignition.

Can I get the rotor and housing coated for abrasive materials?

Absolutely. Doebritz offers tungsten carbide, ceramic, and polymer coatings on stainless steel or carbon steel bases to withstand high wear.

What cleaning options are available?

The DBR-1237 supports tool-free disassembly for manual cleaning, online CIP, and online WIP with manual inspection to meet stringent hygiene requirements.

How does Doebritz ensure quality and precision?

Every valve is manufactured with CNC precision machining and undergoes 100% pre-shipment clearance verification. Doebritz holds CE, TÜV, and Statement certifications, guaranteeing compliance with international standards.
