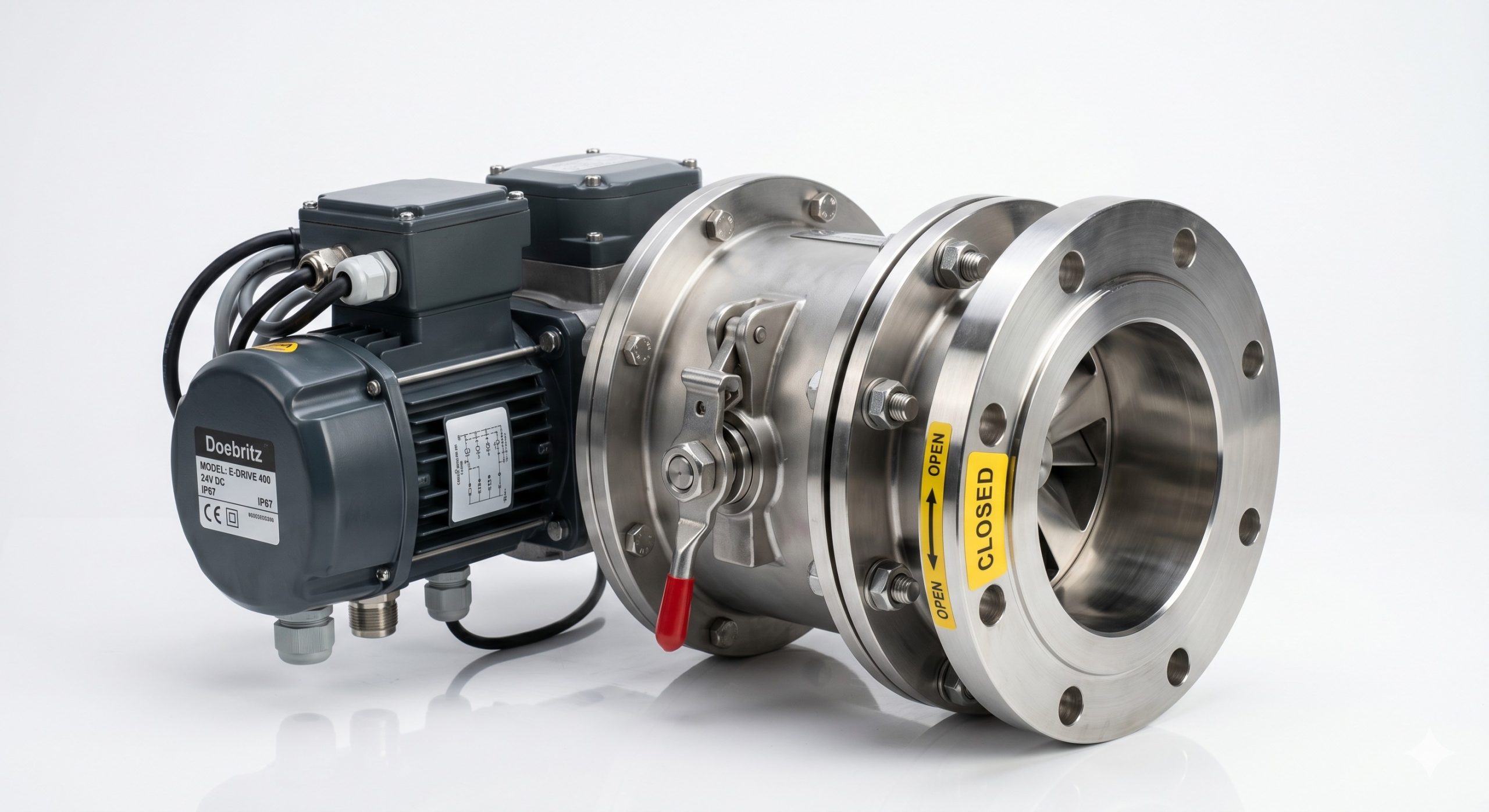

The Doebritz DBR-1237 Oat Flakes Quick-Release Airlock Valve is a high-performance, heavy-duty rotary feeder engineered specifically for the sanitary handling of flaked grains, cereals, and powdered food ingredients. Combining a quick-release demountable design with precision-engineered clearances of 0.1-0.2mm, this airlock valve delivers minimal air leakage, reliable dust-tight sealing, and rapid cleaning – critical for food production lines where hygiene and uptime are paramount. Manufactured with SUS316L stainless steel and optional ATEX Zone 20/21/22 certification, the Doebritz airlock provides a robust, compliant solution for pneumatic conveying, gravity discharge, and metering applications in the food, cereal, and plant-based ingredient industries.

Why Plant Sourcing Chooses Doebritz Oat Flakes Airlock Valve (Minimal Leakage & Quick-Clean)

In high-volume food processing, every minute of downtime and every gram of product loss impacts your bottom line. The Doebritz quick-release airlock valve is built to address these challenges directly, offering tangible operational advantages that translate to superior total cost of ownership (TCO).

• Minimal Air Leakage for Stable Conveying: Precision-machined rotor-to-housing clearances of 0.1–0.2 mm dramatically reduce air bypass. This ensures stable pneumatic conveying pressure, lower energy consumption, and prevents product degradation or segregation in the line.
• Quick-Release, Demountable Sanitary Design: The tool-less quick-release mechanism enables rapid disassembly and reassembly without specialized tools. This facilitates thorough manual cleaning, as well as compatibility with online CIP (Clean-in-Place) and WIP (Wash-in-Place) protocols, minimizing downtime for product changeovers.
• Superior Hygiene & Corrosion Resistance: Constructed with SUS316L stainless steel and featuring a mirror-polished internal surface (Ra ≤ 0.4 µm), the valve eliminates product adhesion and bacterial growth points. It is fully compliant with GMP and Class 10W/30W, C/D cleanroom standards for the pharmaceutical and high-care food sectors.
• Precision Metering & Process Control: Equipped with a variable frequency drive (VFD) and fully compatible with PLC automation, the Doebritz airlock functions as a precise metering feeder. It supports batch metering, recipe-based dosing, and automated batching for consistent product quality.
• ATEX-Certified Safety for Dust-Handling: Available with full ATEX Zone 20/21/22 certification, the valve incorporates explosion-proof motors, pressure-resistant housings (up to 16 bar), and a flameproof construction for safe operation in potentially explosive dust atmospheres common in grain and cereal processing.
• Heavy-Duty, Long-Life Engineering: Doebritz’s CNC precision machining ensures perfect concentricity and durability. The valve is available with optional tungsten carbide or ceramic coatings to extend service life against abrasive oat flakes and other cereals.

Housing & Rotor Engineering

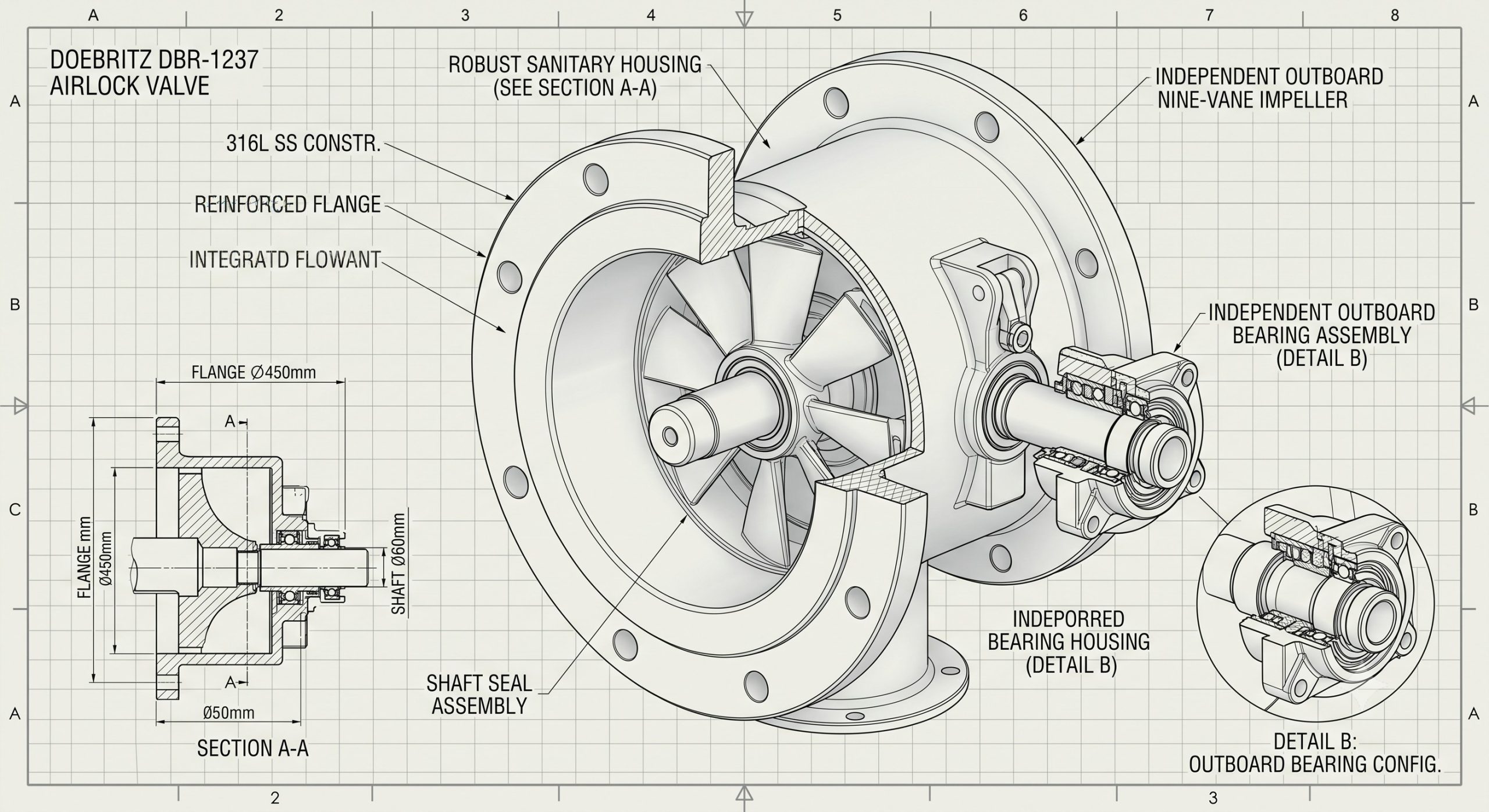

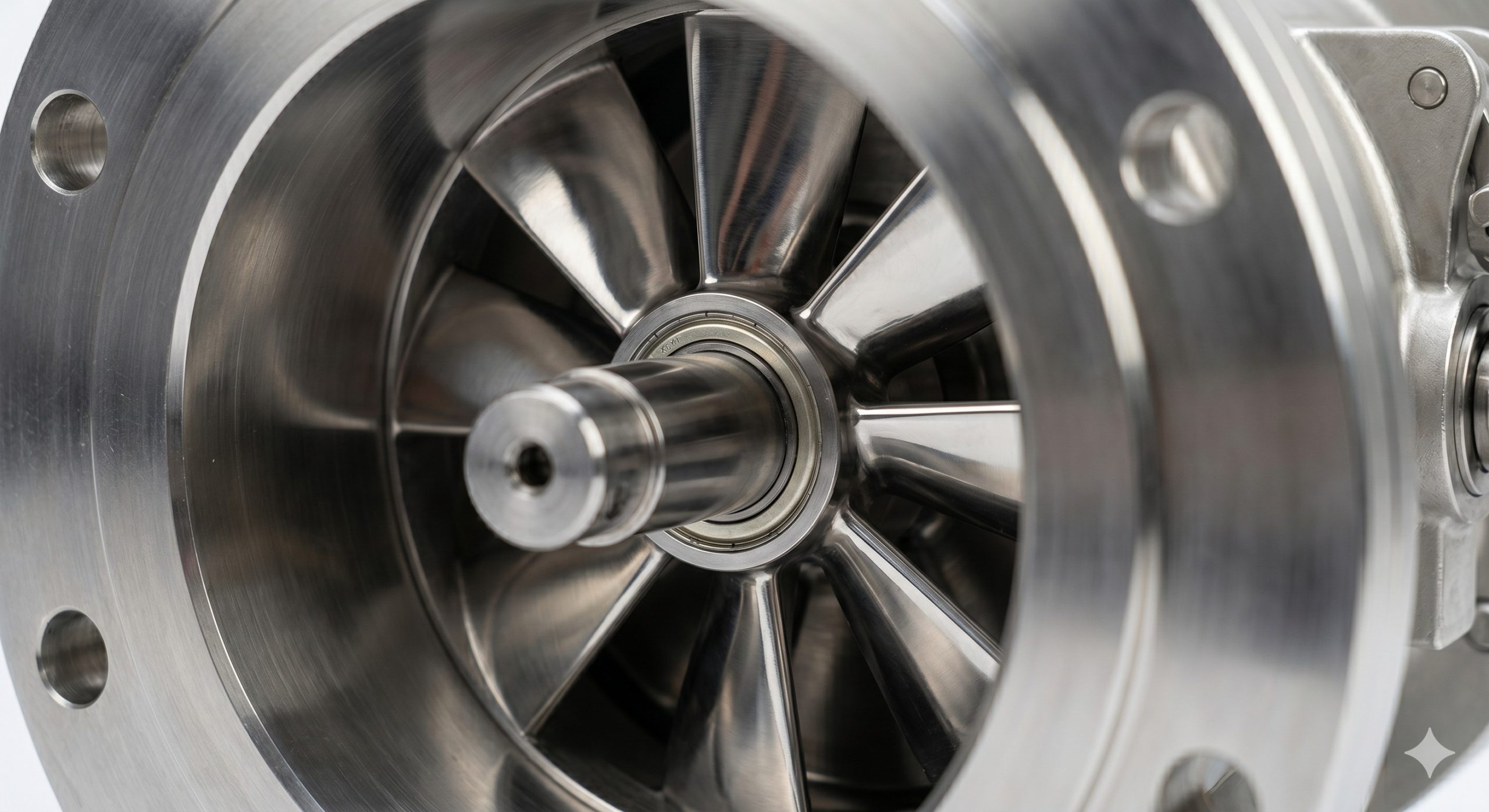

The Doebritz oat flakes airlock valve is designed for continuous heavy-duty service. The stainless steel housing is precision-cast and machined to exacting tolerances, ensuring a long-lasting seal between the rotor and the housing bore. The open rotor design features precisely machined vanes that gently yet positively displace the flaked product without crushing or degradation. The rotor-to-housing clearance, maintained at 0.1-0.2 mm, is the result of Doebritz’s advanced CNC machining capabilities. This tight tolerance acts as an effective air seal by creating a material bed that blocks air passage, while the low clearance itself directly reduces gas bypass.

The shaft sealing system is another area of engineering excellence. Available with lip seals with an air purge option, it prevents product leakage into the bearing area and keeps contaminants out. The bearings are outboard-mounted, isolating them from the product zone and extending their operational life, especially in high-temperature or abrasive conditions. The valve is available with water-cooled jackets for handling heat-sensitive products or for use in high-temperature environments.

Technical Specifications – Doebritz DBR-1237 Oat Flakes Airlock Valve

Below are the core technical parameters for the Doebritz oat flakes quick-release rotary valve. Full customization is available for specific process requirements.

Specification	Detail
Body Material	SUS304, SUS316L (Standard), Carbon Steel (Optional)
Rotor Design	8-Vane Open Rotor, Quick-Release Design
Rotor-to-Housing Clearance	0.1 – 0.2 mm (Precision CNC Machined)
Shaft Seal Type	Lip Seal with Air Purge / Packing Seal
Internal Surface Finish	Mirror Polish (Ra ≤ 0.4 µm) / Ra ≤ 0.8 / 1.6 µm
Inlet/Outlet Connection	DN50, DN100, DN150, DN200, DN300, DN350 (HG20592, DIN, ANSI)
Pressure Range (Positive)	Low < 0.4 bar; High 0.4 – 1.0 bar (VFD)
Pressure Range (Negative)	Low > -0.4 bar; High -1.0 to -0.4 bar (VFD)
Ambient Temperature Range	-15°C to +60°C
Product Temperature Range	0°C to +120°C (Higher with optional cooling)
Drive Motor	Explosion-proof / Standard, VFD-ready
ATEX Certification	Zone 20 / 21 / 22 (Compliant)
Compliance	CE, TÜV, GMP, Food-Grade
Optional Cooling	Water-Cooled Jacket
Optional Coatings	Tungsten Carbide (WC), Ceramic, PE, PTFE, PA, Polymer

Heavy-Duty Application Scenarios for Doebritz Oat Flakes Airlock Valve

The Doebritz quick-release airlock valve is a versatile solution deployed across various stages of oat flakes and cereal processing, from intake to finished product packaging. Its robust construction and sanitary design make it ideal for the following applications.

Pneumatic Conveying Systems

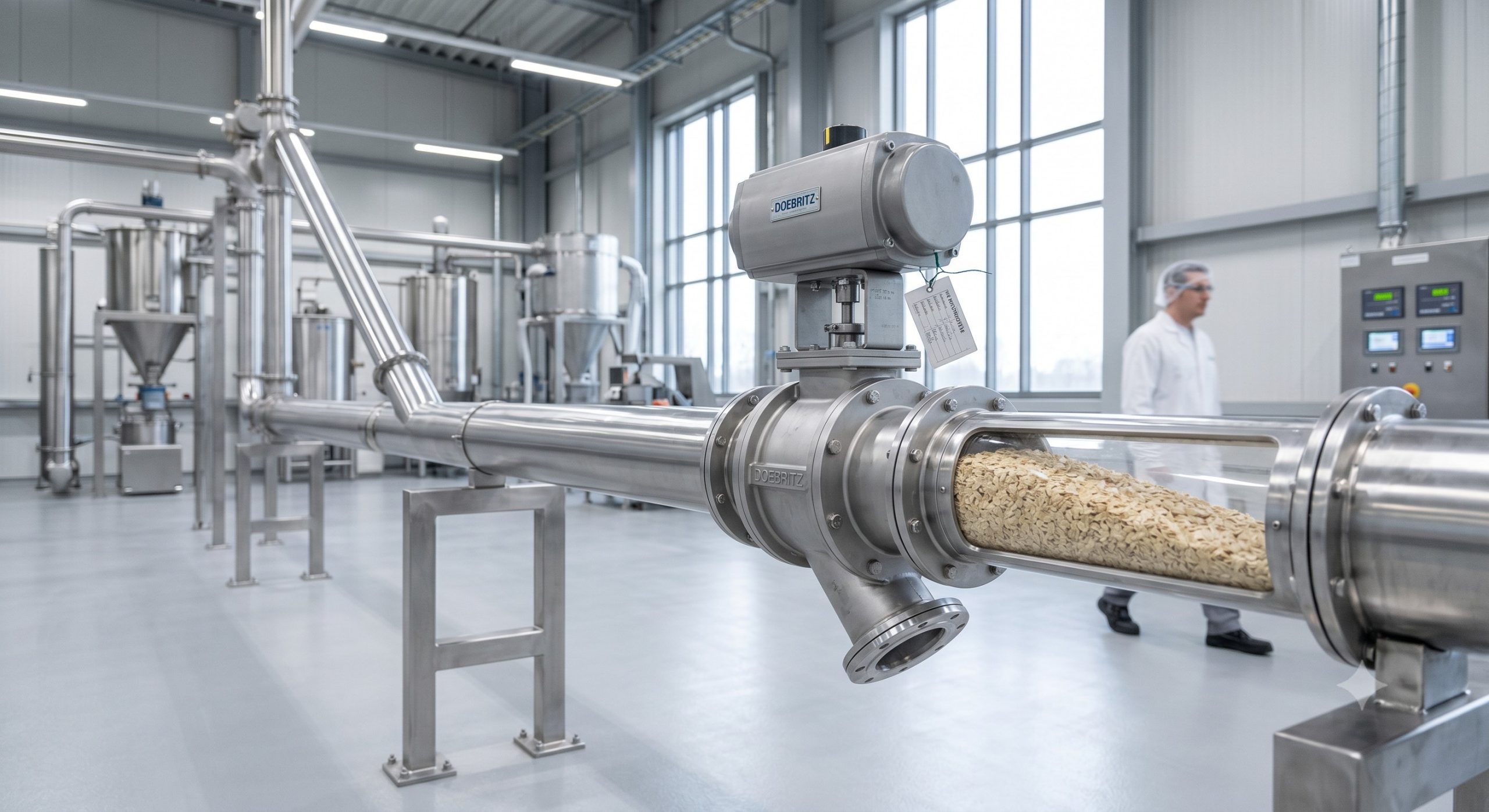

In positive or negative pressure pneumatic conveying lines, the Doebritz airlock serves as a reliable feeder and airlock. It introduces oat flakes from a hopper or silo into the conveying line while minimizing air loss. The tight clearances and robust rotor design prevent blowback and ensure stable conveying velocity, even in dense phase applications, reducing product breakage and line wear.

Gravity Discharge & Silo Unloading

Installed under storage silos or hoppers, the valve provides a controlled, dust-free gravity discharge of flaked products. The variable frequency drive allows for precise flow rate adjustment, ensuring consistent material feed to downstream processes like milling, flaking, or packaging lines. The quick-release design makes it easy to inspect and clean the valve during product grade changes.

Sanitary Metering & Batching

Integrated into a PLC-controlled batching system, the Doebritz airlock acts as a highly accurate metering device. Its consistent volumetric displacement per revolution, combined with VFD speed control, allows for precise delivery of oat flakes by weight or volume for recipe-based formulations in cereal production, granola bars, and snack foods. The valve is fully compatible with automated clean-in-place cycles, ensuring batch-to-batch purity.

Dust Collection & Waste Handling

In dust collection systems, the Doebritz rotary valve serves as a reliable dust discharger. Its tight sealing prevents air infiltration into the dust collection system, maximizing filter efficiency. The ATEX-certified version provides a critical safety barrier in explosive dust environments, and the robust stainless steel construction handles abrasive dust particles effectively.

Global OEM Assurance & Supply Chain Advantages

Choosing Doebritz is a strategic decision for plant engineers and global procurement specialists. Our commitment to quality and reliability is backed by industry-leading certifications and a robust supply chain.

All Doebritz rotary valves are manufactured in ISO-certified facilities, utilizing advanced CNC machining centers and robotic welding. Every unit undergoes rigorous in-process and final quality inspections, including leakage and runout testing to ensure it meets our exacting performance standards. Our valves are certified with CE, TÜV, and Statement certifications, confirming their compliance with the most stringent international safety, health, and explosion protection regulations.

We offer comprehensive customization options, including alternative materials (SUS304, carbon steel), specialized coatings (tungsten carbide, ceramic, PTFE, PE), and custom flange standards (HG20592, DIN, ANSI). Our experienced technical team provides end-to-end support, from system design and engineering to on-site commissioning and lifecycle maintenance, ensuring your Doebritz airlock delivers decades of dependable service.

Frequently Asked Questions (FAQs)

What is the maximum working pressure for the Doebritz oat flakes airlock valve?

The standard positive pressure version is rated for high-pressure conveying up to 1.0 bar with VFD control. The flameproof/explosion-proof variant is rated up to 16 bar, making it suitable for high-differential pressure applications.

How does the quick-release feature work?

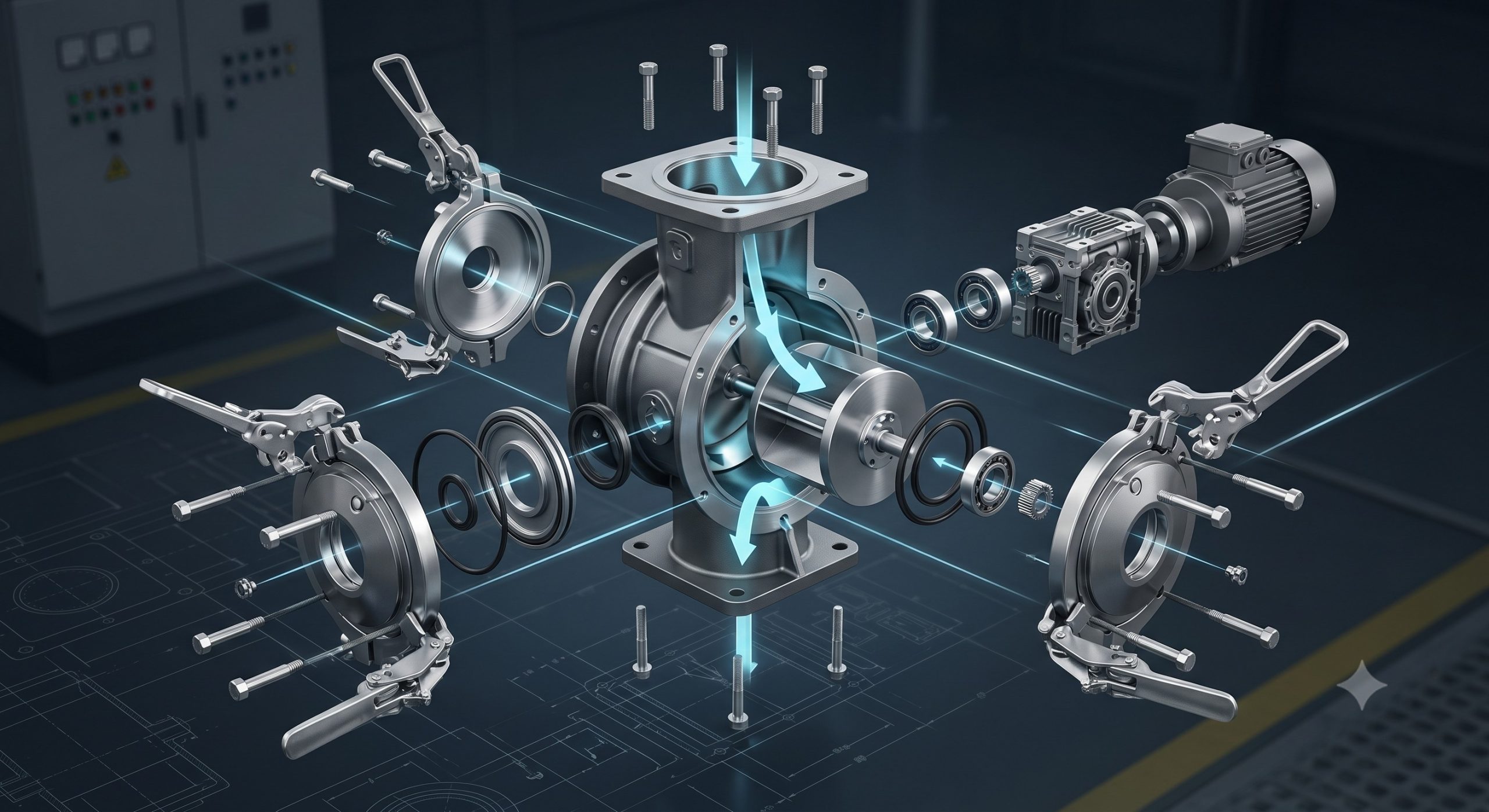

The housing features a tool-less clamping mechanism that allows the end cover and rotor assembly to be removed in minutes without any special tools. This provides immediate access to the internal components for cleaning, inspection, or maintenance.

What are the cleanroom compatibility options?

The Doebritz valve is available with internal surface finishes from Ra ≤ 1.6 µm down to mirror polish Ra ≤ 0.4 µm. It can be supplied with verification documentation to meet the cleanliness requirements for Class W, Class 10W, Class 30W, and C/D grade cleanrooms.

Is the valve suitable for sticky or heat-sensitive products like syrup-coated flakes?

Yes. Options include a water-cooled jacket to regulate product temperature and prevent adhesion. The polished internal surfaces and optional PTFE/PA coatings also reduce material sticking, ensuring consistent flow and discharge.

What is the lead time for a custom-configured Doebritz airlock valve?

Standard configurations are available for rapid dispatch. For custom-engineered units with specific materials, coatings, or flange standards, the typical lead time is 4-6 weeks. Project-specific large-volume orders can be accommodated with a coordinated supply agreement.
