Doebritz Milk Powder Star Discharge Valve: 0.1-0.2mm Clearance | 316L Hygienic ATEX Ready

Precision Engineered Doebritz Star Discharge Valve for Dairy Powder Lines

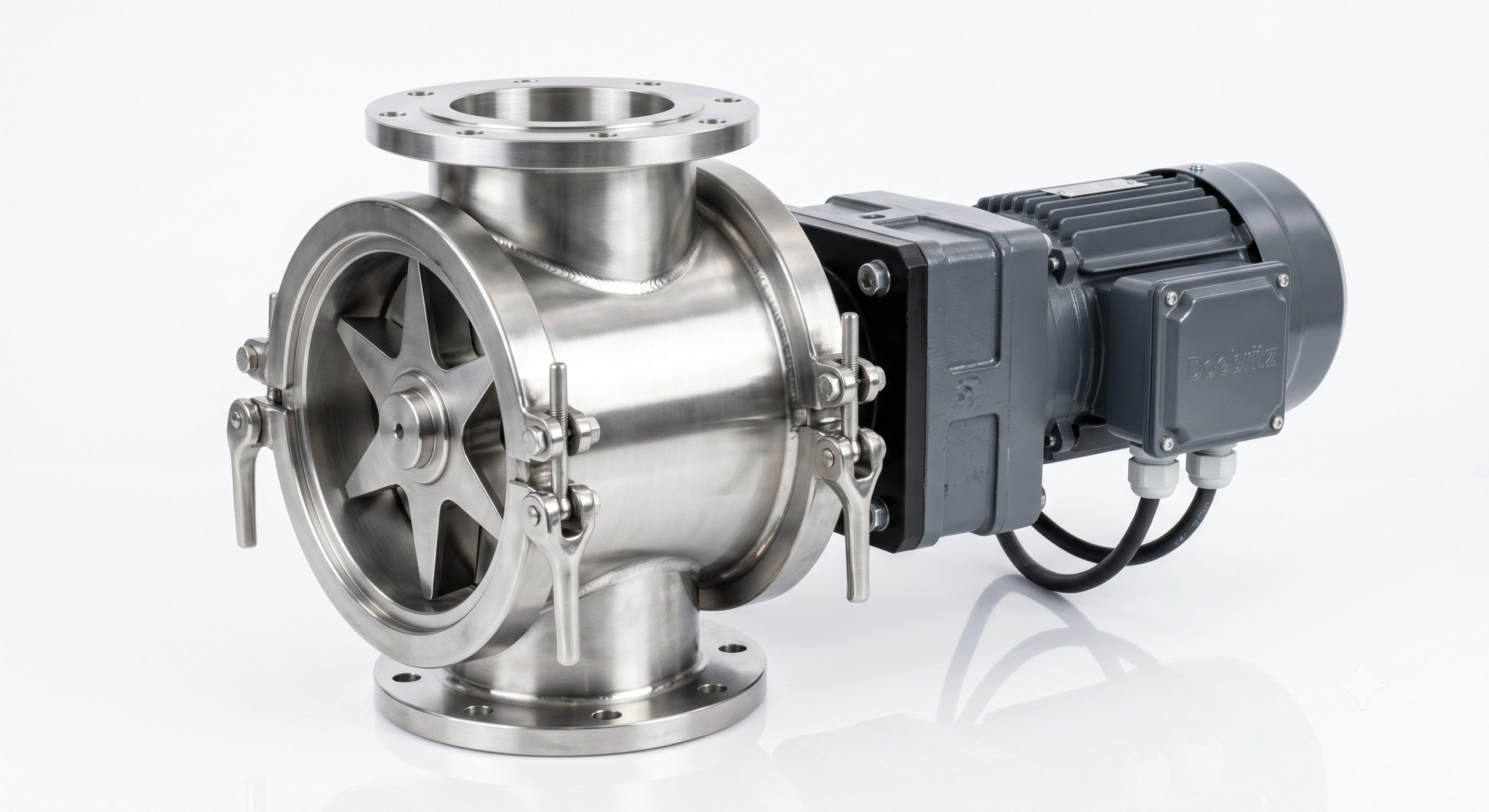

Optimize your dairy powder conveying with the Doebritz DBR-1237 series, an industrial star discharge valve (rotary airlock) specifically toleranced for the cohesive, adhesive, and hygroscopic nature of milk powder, whey, and infant formula. Manufactured from virgin SUS316L stainless steel, this heavy-duty feeder ensures absolute product purity, minimal air leakage, and continuous high volumetric efficiency.

Why Global Plant Sourcing Chooses the Doebritz Milk Powder Rotary Airlock

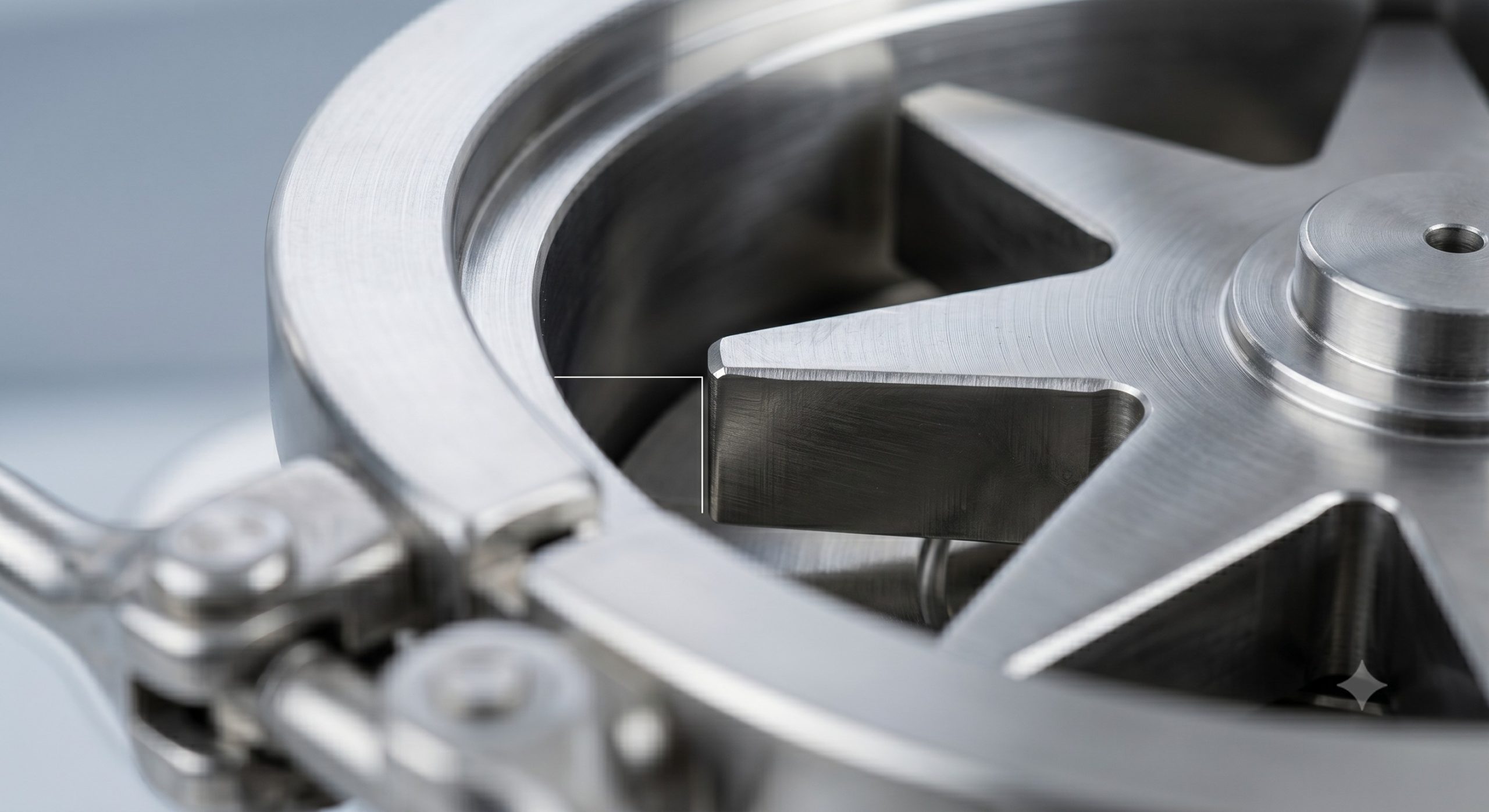

• Minimal Air Leakage & Locking Efficiency: CNC-machined rotor-to-housing clearance maintained at a strict 0.1–0.2mm, drastically reducing compressed air bypass in dense-phase pneumatic conveying systems. Achieve stable powder flow with minimal degradation.

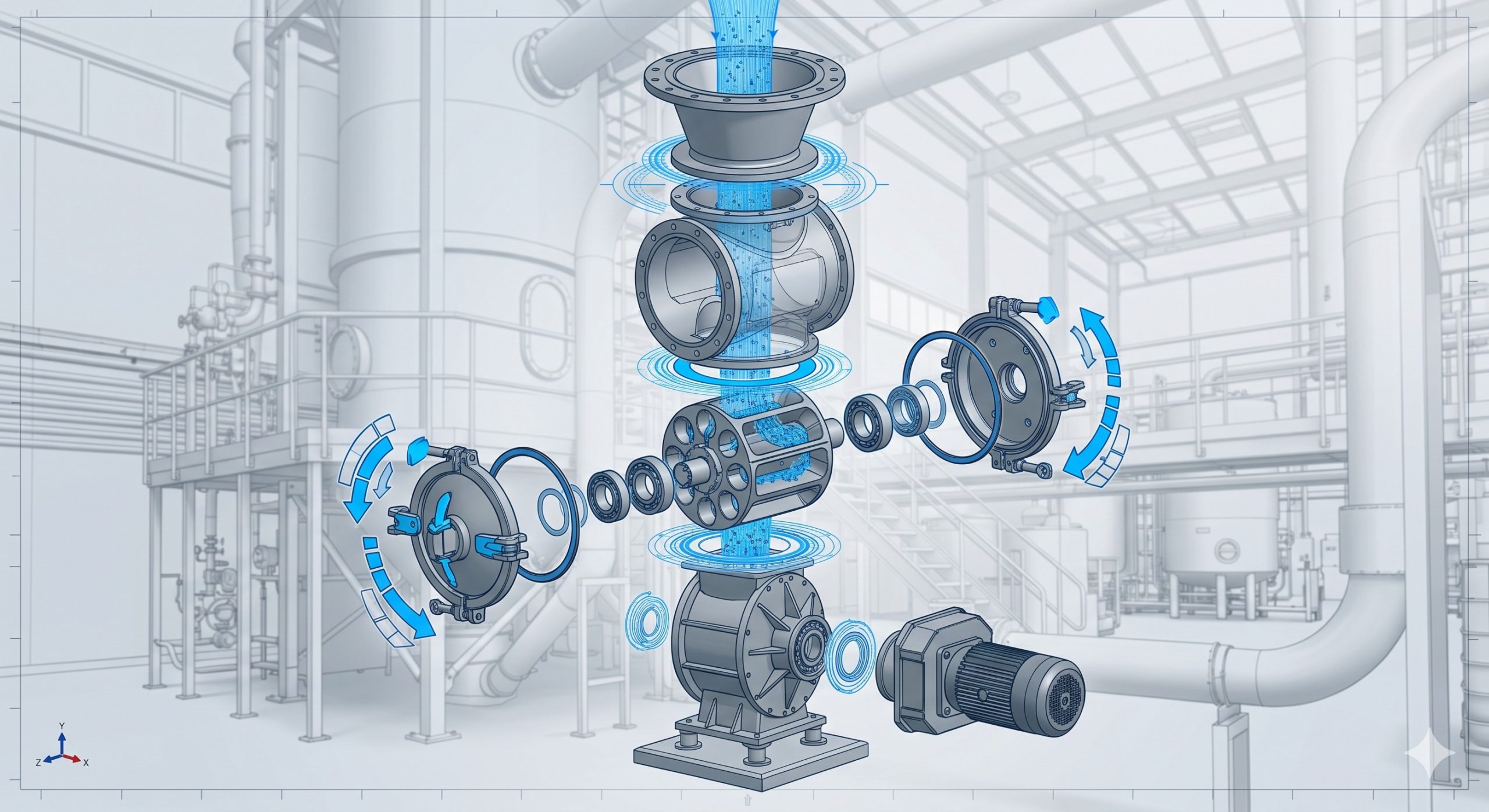

• Sanitary Quick-Release Design: Features a tool-less, quick-demountable rotor and end-cover, enabling rapid manual cleaning, full CIP (Clean-in-Place), or WIP procedures. Eliminates cross-contamination risks and reduces downtime by up to 70%.
• ATEX Certified Explosion Safety: Full ATEX Zone 20/21 (dust) and Zone 1/2 (gas) compliance. The flameproof housing is pressure-rated to 16 bar, with anti-static clearances and certified earthing, ensuring safe operation in spray-drying towers and silo discharge points.
• Doebritz CNC Machining Backbone: Every rotor is dynamically balanced on a 5-axis machining center. Our German-engineered tolerances guarantee zero contact between vanes and housing, extending MTBF in high-wear dairy applications.

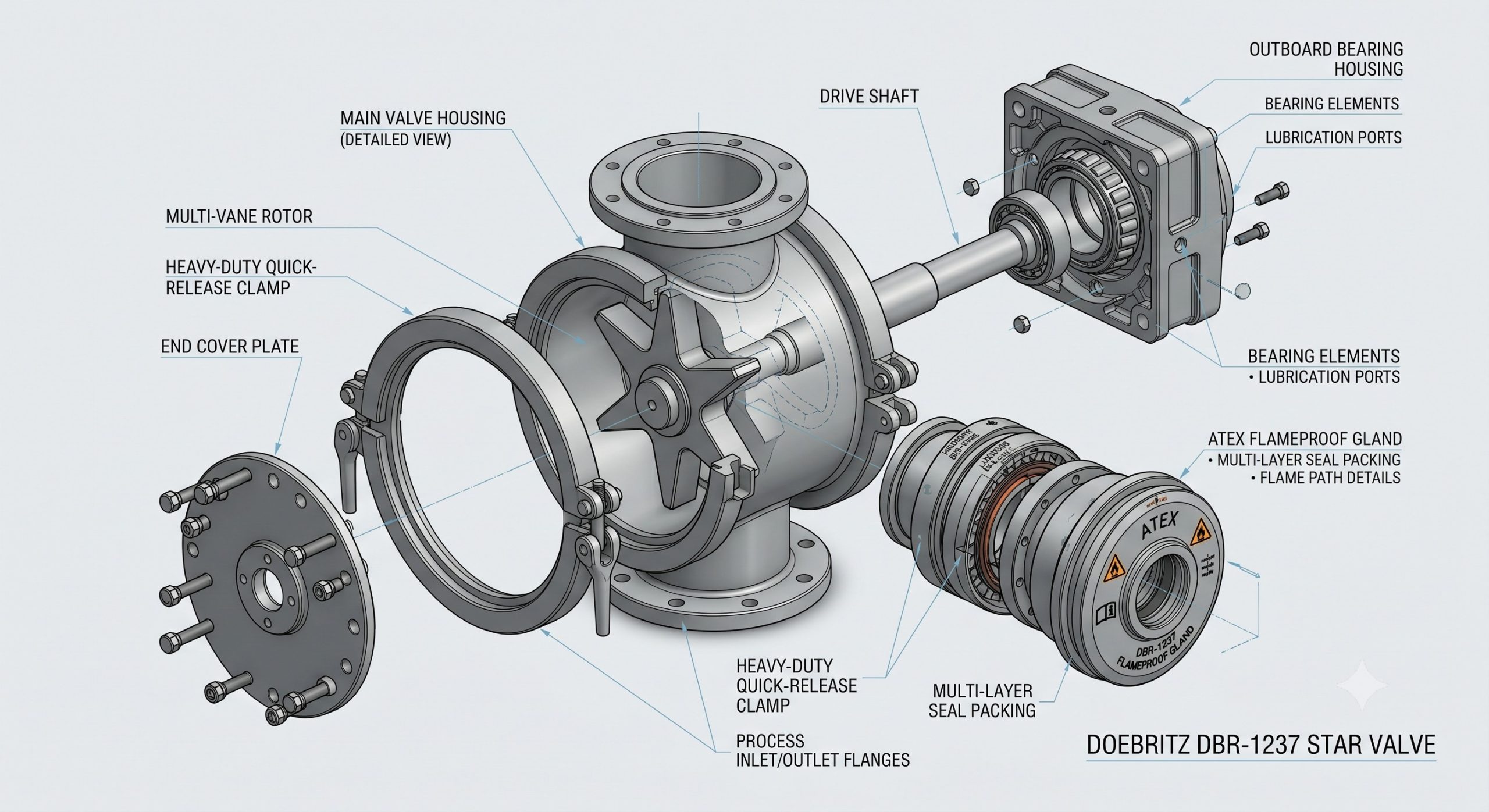

Housing & Rotor Engineering: Hygienic Execution

The Doebritz milk powder star valve features a split-type, electropolished housing with a Ra ≤ 0.4μm internal finish, preventing bacterial growth and powder buildup. The 8-vane closed rotor design (other vane counts optional) ensures consistent pocket filling and discharging, even with fine, aerated powders. Outboard bearings with a labyrinth + lip seal air purge system isolate the gearbox from the product zone, eliminating oil contamination risks. A water-cooled jacket is available for handling warm milk powder directly from fluid bed dryers.

Technical Specifications: Doebritz DBR-1237 Gravity Rotary Valve

Specification	Detail (Doebritz DBR-1237 Milk Powder Version)
Body & Rotor Material	SUS316L (AISI 316L), electropolished Ra ≤ 0.4μm
Rotor Design	8-vane closed rotor, dynamic-balanced, tip clearance 0.1-0.2mm
Shaft Sealing	Air-purged lip seal + labyrinth; FDA silicone/Viton options
Drive & Control	IEC flange gearmotor, 0.55-4kW; VFD-ready, ATEX motor option
Pressure Rating	-1 to +1 bar standard; high-pressure version up to 3.5 bar
Temperature Range	-15°C to +60°C ambient; 0-120°C product (water-cooling jacket optional)
Hygiene Compliance	EHEDG CIP-ready, FDA, EC 1935/2004; Class D/C cleanroom compatible
ATEX Certification	Zone 20/21 dust, Zone 1/2 gas; Housing pressure-tested to 16 bar
Connection Flange	HG20592 (standard), DIN/ANSI/JIS optional; DN100 to DN350
Cleaning Method	Quick-release manual cleaning, full CIP or WIP + manual inspection

Heavy-Duty Application Scenarios in Dairy Processing

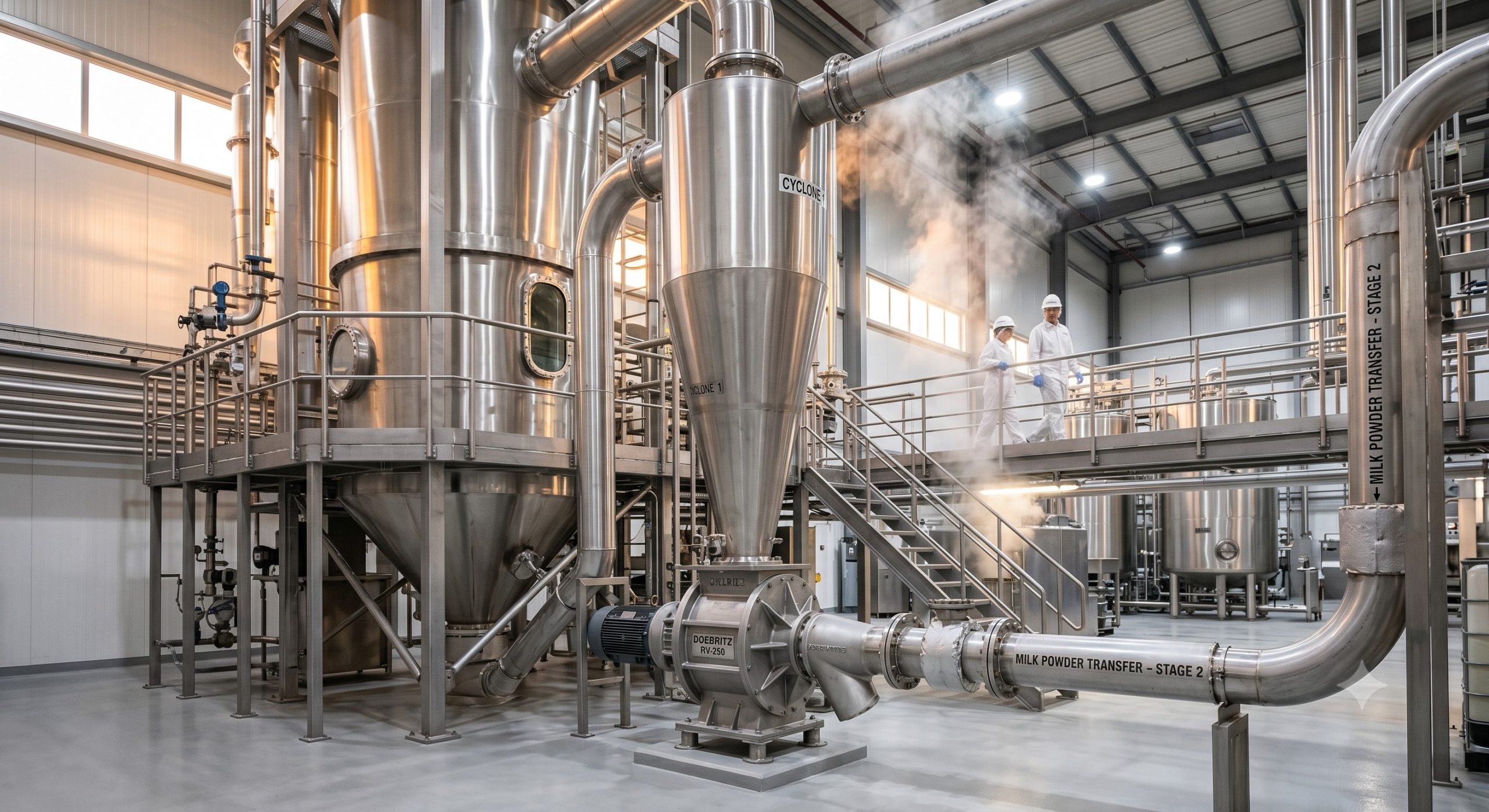

Spray Drying Tower Discharge

Installed under multi-cyclones and bag filters, the Doebritz airlock continuously discharges fine milk powder while maintaining negative pressure inside the drying chamber. The ATEX-certified construction safely handles explosive dust atmospheres (milk powder St1 class).

Pneumatic Conveying to Packing Lines

As a dense or dilute phase feeder, the valve provides consistent, pulsation-free metering to packing machines, blending silos, or big bagging stations. VFD-ready design allows precise dosing adjustment from 50% to 100% of rated capacity.

Sanitary Batching & Recipe Formulation

Integrated with PLC-based automation, the Doebritz star valve supports high-accuracy batch feeding of milk powder, protein isolates, and lactose into mixers or agglomerators, validated for GMP Class D/C cleanroom compliance.

Global OEM Supply & Customization Assurance

Doebritz provides full engineering support for greenfield projects and plant retrofits. Every milk powder star discharge valve is pressure-tested and certified before shipment. We offer direct gearmotors (Siemens, SEW, Bonfiglioli), custom flanges (DIN/ANSI/JIS), and FDA/USP Class VI seal materials. Lead times: 4-6 weeks for standard sizes, 8-10 weeks for ATEX/CIP editions. Backed by a 24-month warranty and global technical field service.

Frequently Asked Questions: Doebritz Milk Powder Star Valve

What makes this valve ideal for sticky milk powder compared to standard rotary valves?

Standard valves often suffer from smearing and blockage. The Doebritz DBR-1237 features a polished 316L housing (Ra≤0.4μm) and an adjustable tip clearance to prevent compression and buildup. Optional heating or cooling jackets further manage powder adhesion.

Is the Doebritz star valve fully CIP compatible without disassembly?

Yes. The quick-release design supports CIP/SIP procedures. For manual verification, the valve can be fully dismantled without tools in under 3 minutes, allowing thorough inspection and deep cleaning, critical for allergen changeovers.

Can this valve handle both positive and negative pressure pneumatic conveying?

Absolutely. The DBR-1237 series operates seamlessly from -1 bar (vacuum) to +1 bar (pressure) as standard. High-pressure versions up to 3.5 bar are available for long-distance dense phase conveying.

What certifications does the Doebritz milk powder valve carry?

CE, ATEX (Zone 20/21), TÜV, EHEDG (CIP), FDA compliance for food contact materials, and EC 1935/2004. Statement of Conformity and 3.1 material certificates are provided per order.

What are the standard flange and connection options?

We offer HG20592 (preferred), DIN, ANSI 150#, and JIS 10K flanges. Inlet/outlet sizes from DN100 up to DN350. Sanitary tri-clamp connections also available for pharmaceutical lines.
