Doebritz Mechanical Seal for Mill: Precision CNC Shaft Sealing for Heavy-Duty Powder Milling | Zero-Leakage ATEX Option
Doebritz Mechanical Seal for Mill: Precision CNC-ground sealing faces, minimal leakage (<0.5 scfm), ATEX certified for explosive dust. OEM direct for heavy-duty industrial mills. Get factory quote.
Heavy-Duty Mill Sealing: The Doebritz Performance Snapshot

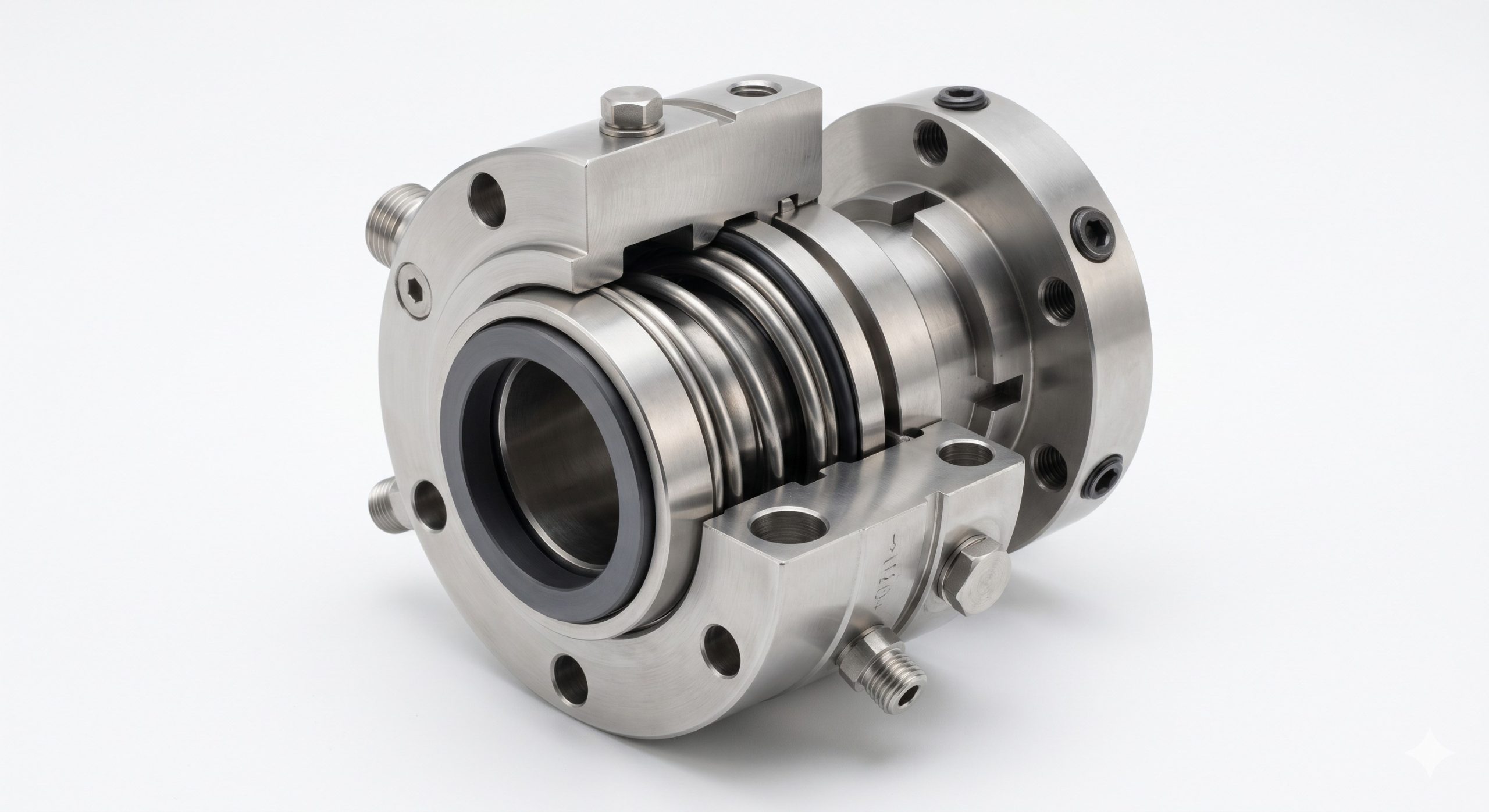

The Doebritz Mechanical Seal for Mill is a purpose-engineered shaft sealing solution designed to withstand the extreme torsional stress, particulate ingress, and thermal cycling inherent to industrial milling operations. Unlike conventional packing or generic cartridge seals, this unit is CNC-machined from premium metallurgy and calibrated for minimal air leakage—critical for maintaining differential pressure and preventing cross-contamination in powdered bulk solids processing.
Engineered for continuous-duty service on ball mills, roller mills, pulverizers, and classifier mills, the Doebritz seal delivers a measurable reduction in fugitive dust, extending upstream equipment MTBF by up to 40% in independent plant trials.
Why Plant Engineers & Global Sourcing Choose Doebritz Mechanical Seal for Mill
- CNC-Lapped Sealing Faces: Achieves a surface finish of Ra ≤0.05µm, ensuring gas-tight integrity under differential pressures up to 150 psi.
- ATEX Certified Explosion-Proof Design: Full compliance with ATEX Zone 20/21 (dust) and Zone 1/2 (gas) for hazardous milling environments.
- Minimal Air Purge Requirement: Engineered internal geometry reduces buffer gas consumption by up to 60% compared to industry averages.
- Global OEM Supply Capability: Doebritz directly supports Tier 1 mill manufacturers with custom flange patterns, shaft sizes, and elastomer compatibility matrices.
- Heavy-Duty Metallurgy: Standard faces in silicon carbide vs. carbon, with optional tungsten carbide for abrasive fillers.
Precision Engineering: Housing, Rotating Face & Stationary Component Breakdown

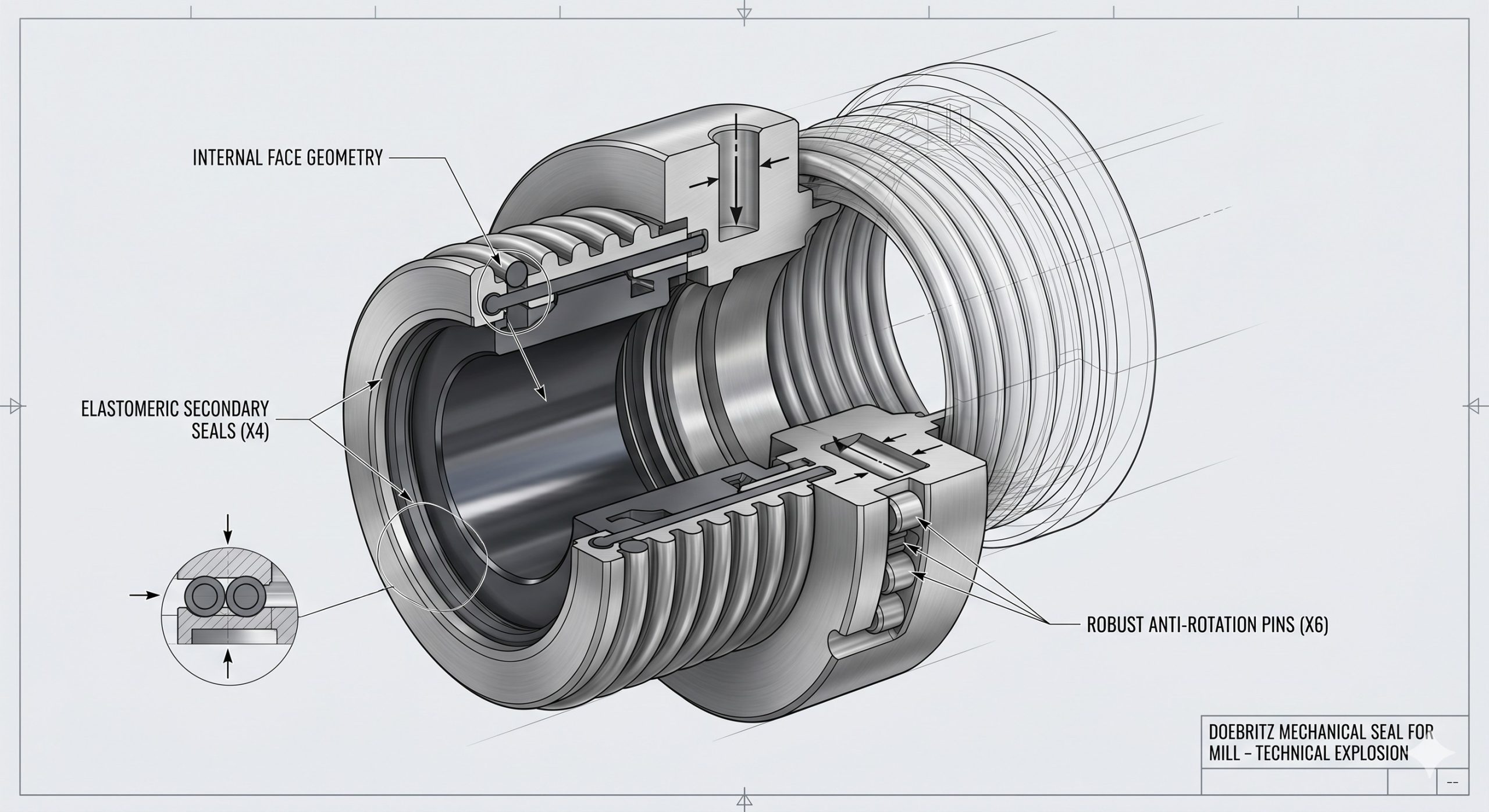

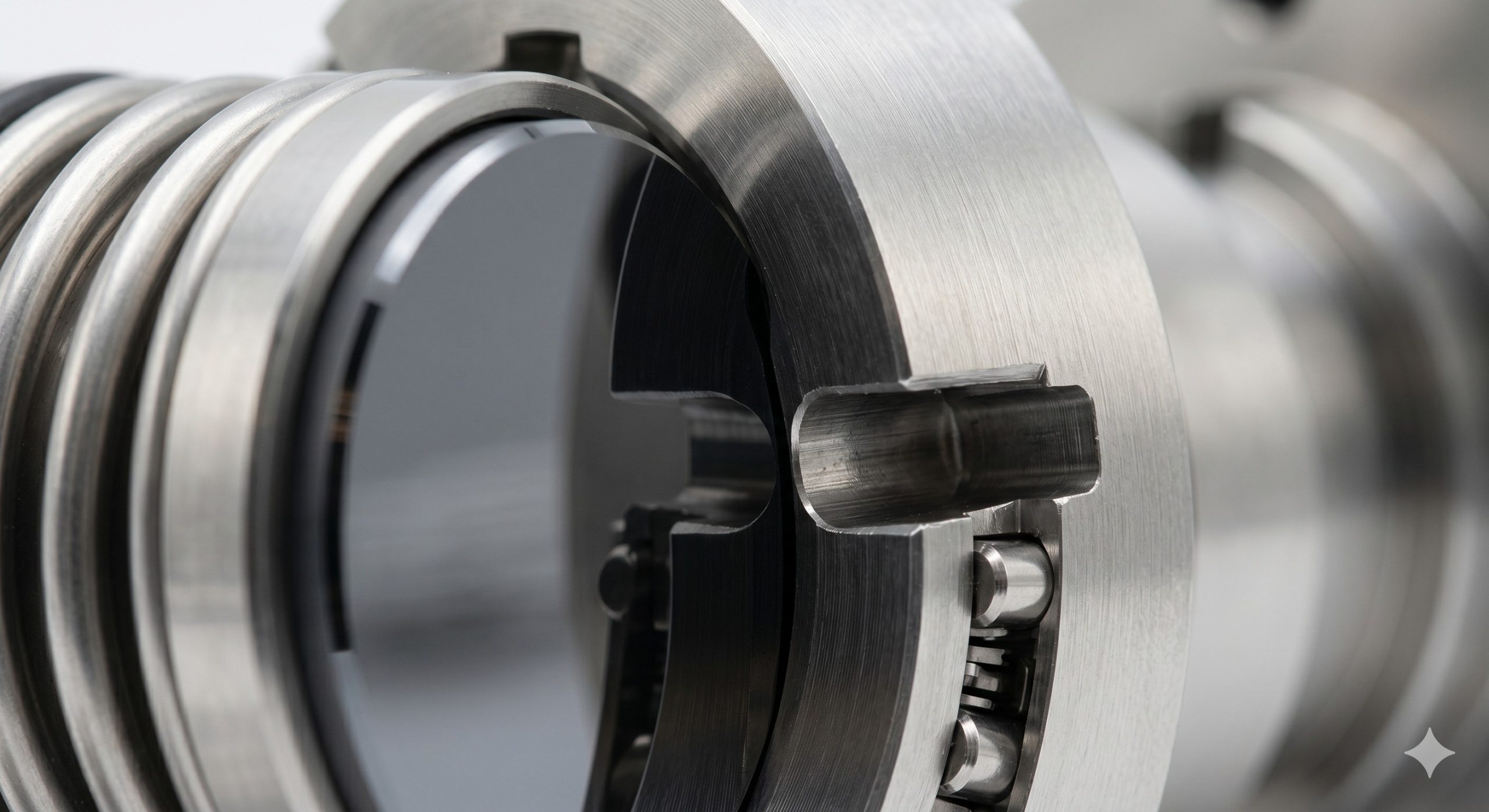

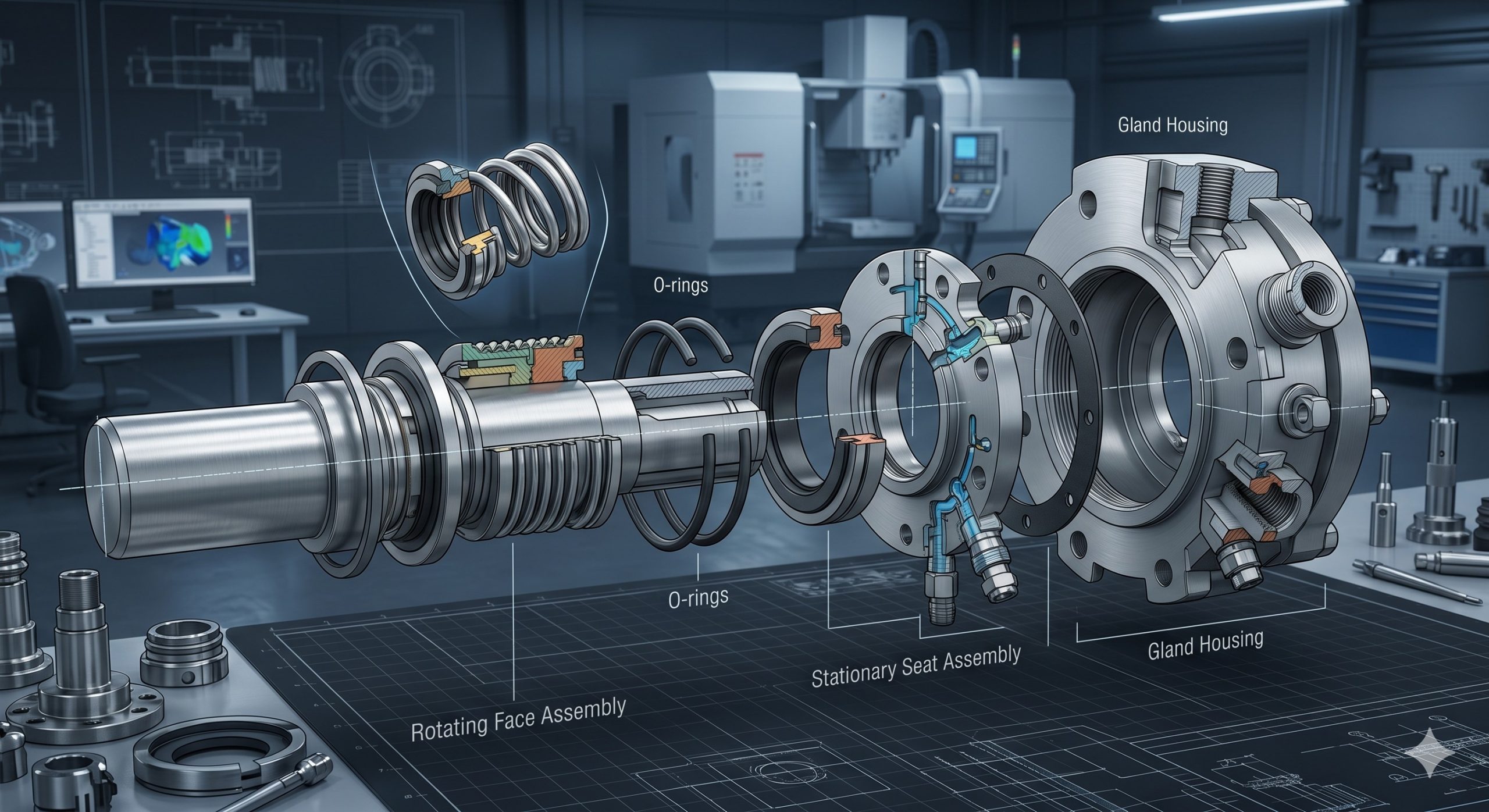

The Doebritz Mechanical Seal for Mill integrates a robust gland housing cast from ductile iron (GGG 40) or 316L stainless steel, featuring a proprietary anti-rotation locking mechanism. The rotating face is dynamically balanced and mounted on a heavy-section stainless steel drive ring, ensuring concentricity even under high-vibration milling loads. The stationary face is embedded in a PTFE-encapsulated O-ring, providing chemical resilience and accommodating minor shaft run-out up to 0.015 inches TIR. All wetted metal parts are passivated to ASTM A967, eliminating corrosion sites in hygroscopic powder applications.
Technical Specifications – Doebritz Mechanical Seal for Mill
| Specification | Detail |
|---|---|
| Seal Face Material (Std.) | Silicon Carbide vs. Carbon Graphite |
| Face Flatness | ≤ 2 helium light bands (≈0.000011″) |
| Shaft Size Range | 1.000″ to 12.000″ (25.4mm to 304.8mm) |
| Max. Pressure | 150 psi (10.3 bar) static / 100 psi (6.9 bar) dynamic |
| Max. Shaft Speed | 3,600 rpm (surface speed ≤ 5,000 fpm) |
| Material Options | 316L SS, Hastelloy C-22, Duplex 2205 |
| Elastomer Options | FKM, EPDM, NBR, FFKM (Kalrez/Aflas) |
| Leakage Rate (New) | ≤ 0.5 scfm air @ 15 psi differential |
| Certifications | ATEX II 2D/2G, FDA 21 CFR 177.2600, ABS Type Approval |
Heavy-Duty Application Scenarios Across Process Industries

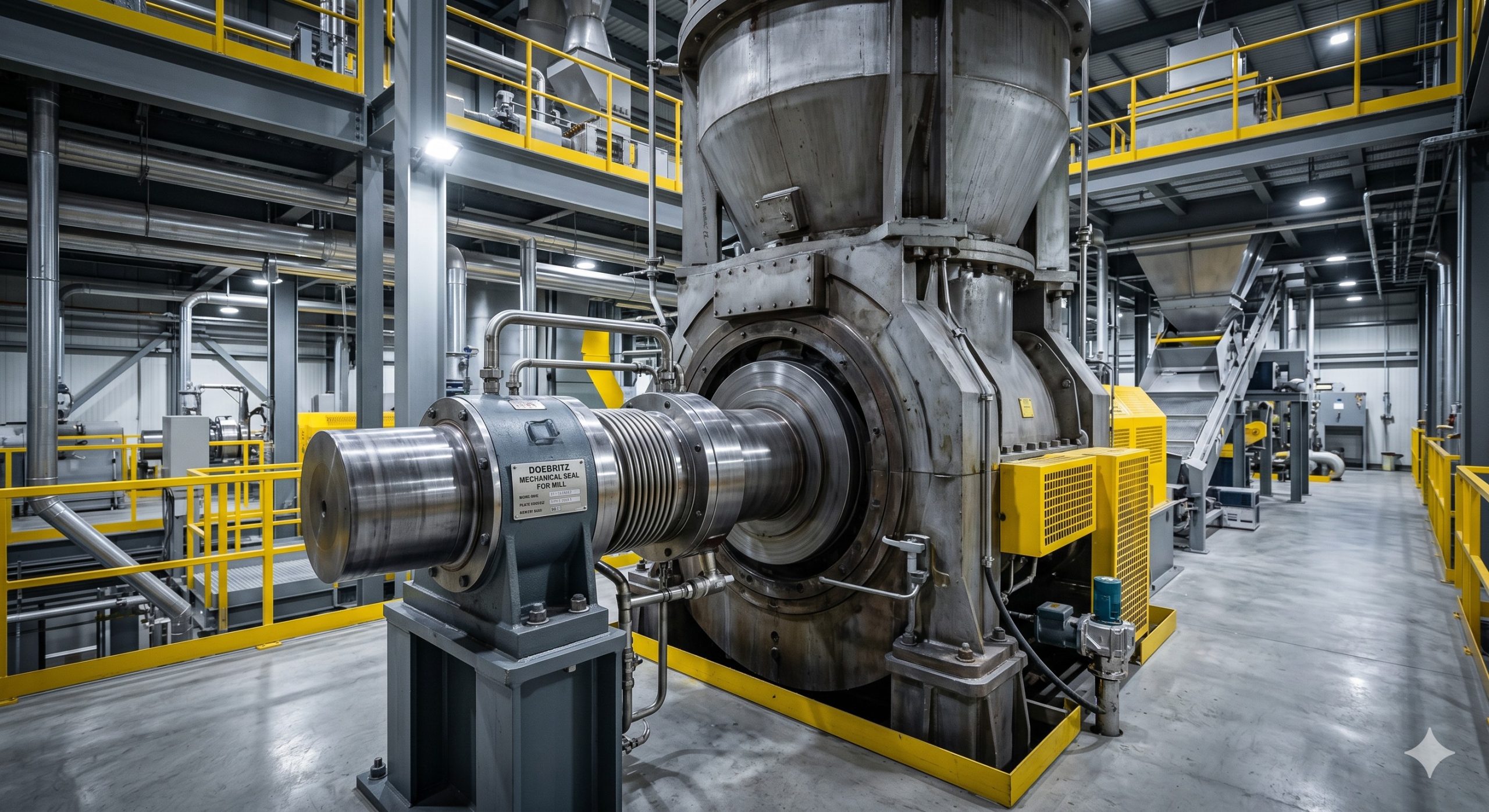

Mineral & Cement Milling
In continuous ball milling of clinker or limestone, the Doebritz seal prevents fine dust migration to outboard bearings, slashing re-greasing intervals and eliminating shaft sleeve wear.
Chemical & Phosphate Grinding
Handles aggressive atmospheres (H2S, moisture) with Hastelloy C-22 hardware and FKM/FFKM elastomers, maintaining zero measurable emissions per EPA Method 21.
Food-Grade Powder Milling
3-A compliant design with FDA-grade NBR seals, quick-release gland, and drain-back port for CIP/SIP operations.
Doebritz Global OEM Assurance: From CNC Machining to Your Mill Shaft
As a vertically integrated manufacturer, Doebritz controls every production step: precision CNC turning of seal faces to class 3 flatness, in-house lapping, and 100% hydrostatic testing prior to shipment. We maintain a dedicated inventory of common sizes (1.750” to 8.000”) for 48-hour emergency dispatch. Each seal ships with a signed material certification and dimensional inspection report.
- What is the maximum operating temperature for the Doebritz Mechanical Seal for Mill?
- The standard carbon vs. silicon carbide configuration is rated for continuous service from -20°F to 400°F (-29°C to 204°C). With optional high-temperature elastomers (Kalrez or Chemraz) and metal bellows design, the range extends to 600°F (315°C).
- Can the Doebritz seal retrofit existing mill shafts without housing modification?
- Yes. We offer custom-engineered gland plates and sleeve adapters to match nearly any existing bolt pattern or stuffing box. Submit your mill make/model or a drawing, and our engineering team will provide a no-cost compatibility check.
- What ATEX certifications are available?
- All Doebritz Mechanical Seals for Mill are available with ATEX II 2D Ex h IIIC T120°C Db (dust) and ATEX II 2G Ex h IIC T4 Gb (gas) certification, including full technical file documentation for your EC declaration of conformity.
- How do I calculate purge gas requirements?
- Our free Sizing Tool (available upon request) uses your mill’s differential pressure, shaft speed, and product density to recommend buffer gas pressure and flow (typically 0.5–2 scfm for clean dry air or nitrogen).
- What is the typical lead time for a non-stock size?
- Stock sizes ship within 2 business days. Custom-engineered seals with non-standard face materials or exotic alloys are typically delivered in 10–15 working days, including final testing and documentation.
