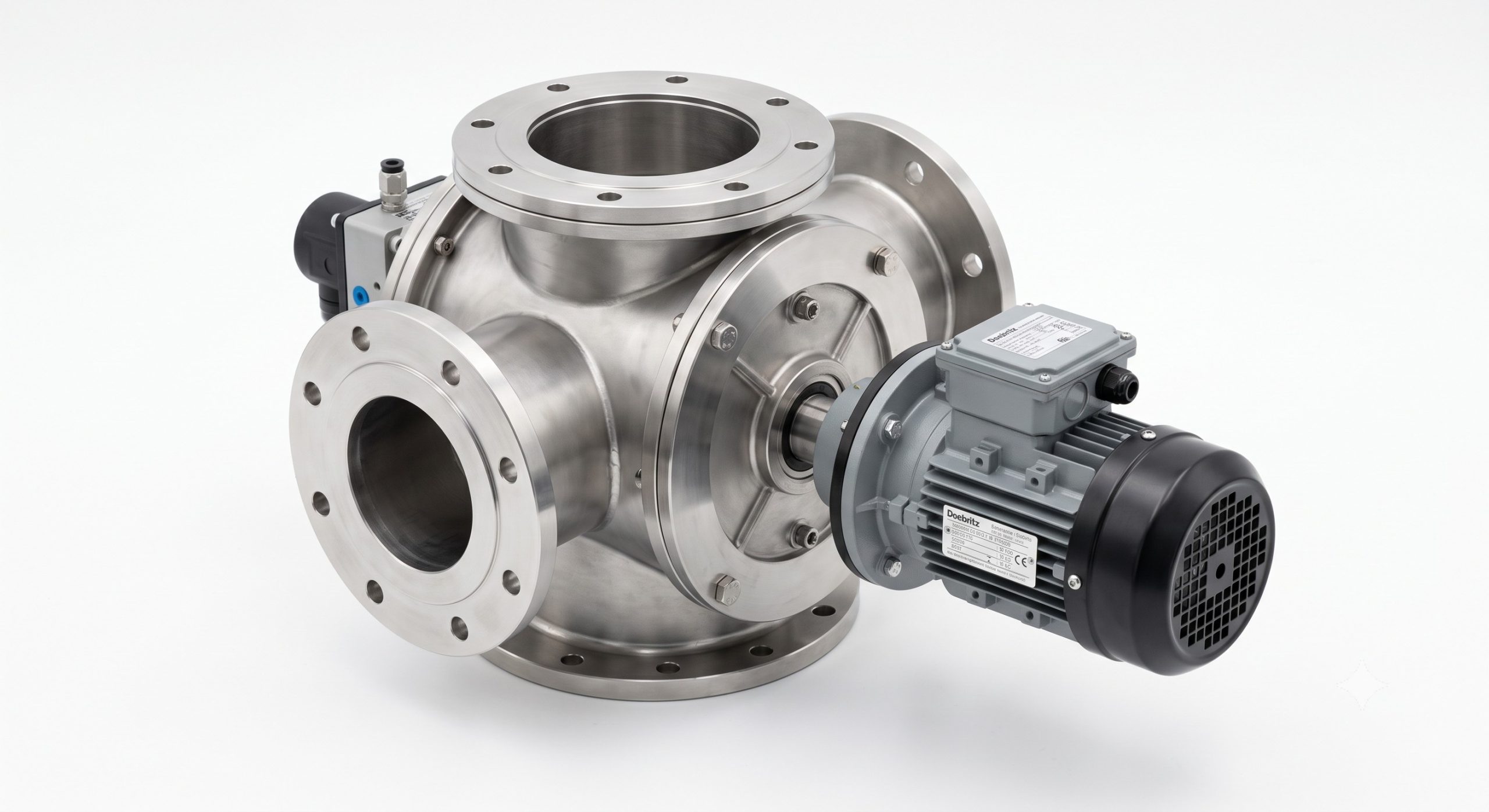

Doebritz Low Profile Rotary Valve for Powder: Cast Iron / Stainless Steel – Minimal Air Leakage

Executive Overview: Engineered for High-Performance Powder Handling

The Doebritz low profile rotary valve for powder (DBR-1237) represents the pinnacle of precision engineering for bulk solids handling. Designed for industries demanding absolute reliability, this star discharge valve excels in pneumatic conveying, gravity discharge, and metering applications. Combining a compact, low-profile design with heavy-duty construction, it delivers exceptional volumetric efficiency and minimal air leakage, ensuring your process remains stable and productive. As a direct manufacturer, Doebritz offers an unmatched combination of CNC machining precision, rigorous quality control, and global OEM supply capabilities.

Built with your operational challenges in mind, the Doebritz low profile rotary valve is the definitive solution for maintaining process integrity in the most demanding powder and bulk material applications.

Why Plant Sourcing Chooses Doebritz Quick-Release Rotary Valve

When selecting a rotary airlock, plant managers and procurement specialists prioritize performance, durability, and total cost of ownership. The Doebritz low profile rotary valve delivers on all fronts, providing a decisive competitive edge.

• Precision Machined for Minimal Air Leakage: Utilizing state-of-the-art 5-axis CNC machining, the rotor-to-housing clearance is held to an industry-leading 0.1-0.2 mm. This tight tolerance drastically reduces air leakage, optimizing your pneumatic conveying system’s efficiency and lowering energy consumption. Our commitment to precision ensures consistent, reliable sealing performance over the long term.
• Heavy-Duty Construction for Maximum MTBF: Engineered for 24/7/365 operation, the Doebritz low profile rotary valve features robust shaft designs and heavy-duty outboard bearings. This configuration isolates bearings from the material flow, protecting them from contamination and wear, and substantially extending the valve’s Mean Time Between Failures (MTBF), a critical metric for high-volume production lines.
• ATEX Certified Explosion Safety: Safety is paramount in powder handling. Doebritz offers ATEX-certified (Zone 20/21/22) versions of the low profile rotary valve. With a flameproof housing construction and a pressure resistance rating of up to 16 bar, our valves provide a secure barrier against explosion propagation, safeguarding your personnel and plant assets in hazardous environments.
• Superior Versatility with Global OEM Supply: Available in a wide range of materials (SUS304, SUS316L, Carbon Steel) and coatings (Tungsten Carbide, Ceramic, PTFE), the Doebritz valve can be tailored to handle abrasive, corrosive, or sticky powders. We support custom flanges (DIN/ANSI) and drive configurations, ensuring seamless integration into new or existing systems. As a trusted global OEM supplier, we offer agile production and reliable delivery schedules.

Housing & Rotor Engineering: Built to Last

The heart of the Doebritz low profile rotary valve is its meticulously engineered housing and rotor. The compact, low profile design minimizes headroom requirements while maximizing volumetric capacity. The housing is precision-machined from high-grade cast iron or stainless steel, ensuring a true, distortion-free bore that is essential for maintaining tight clearances.

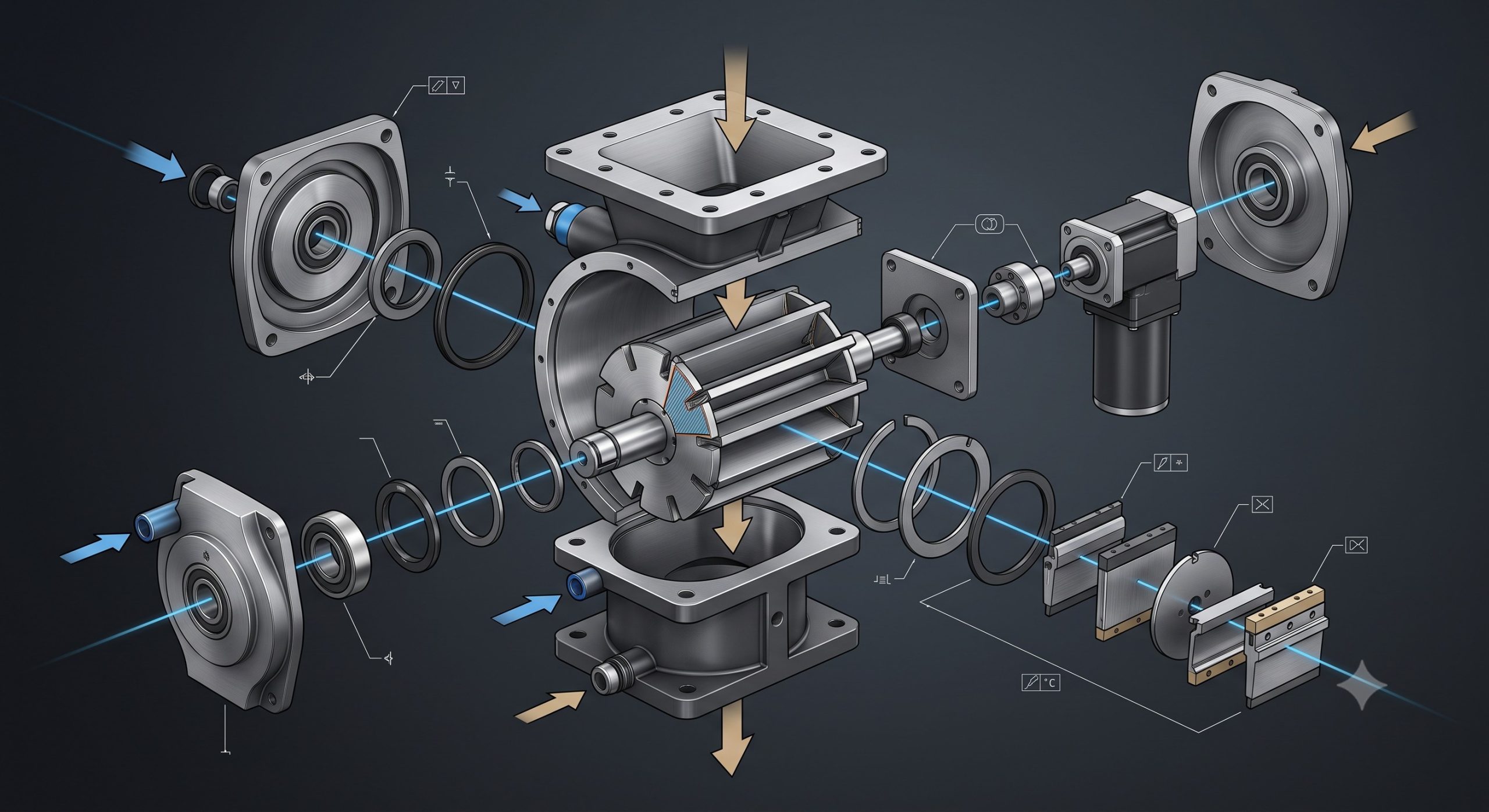

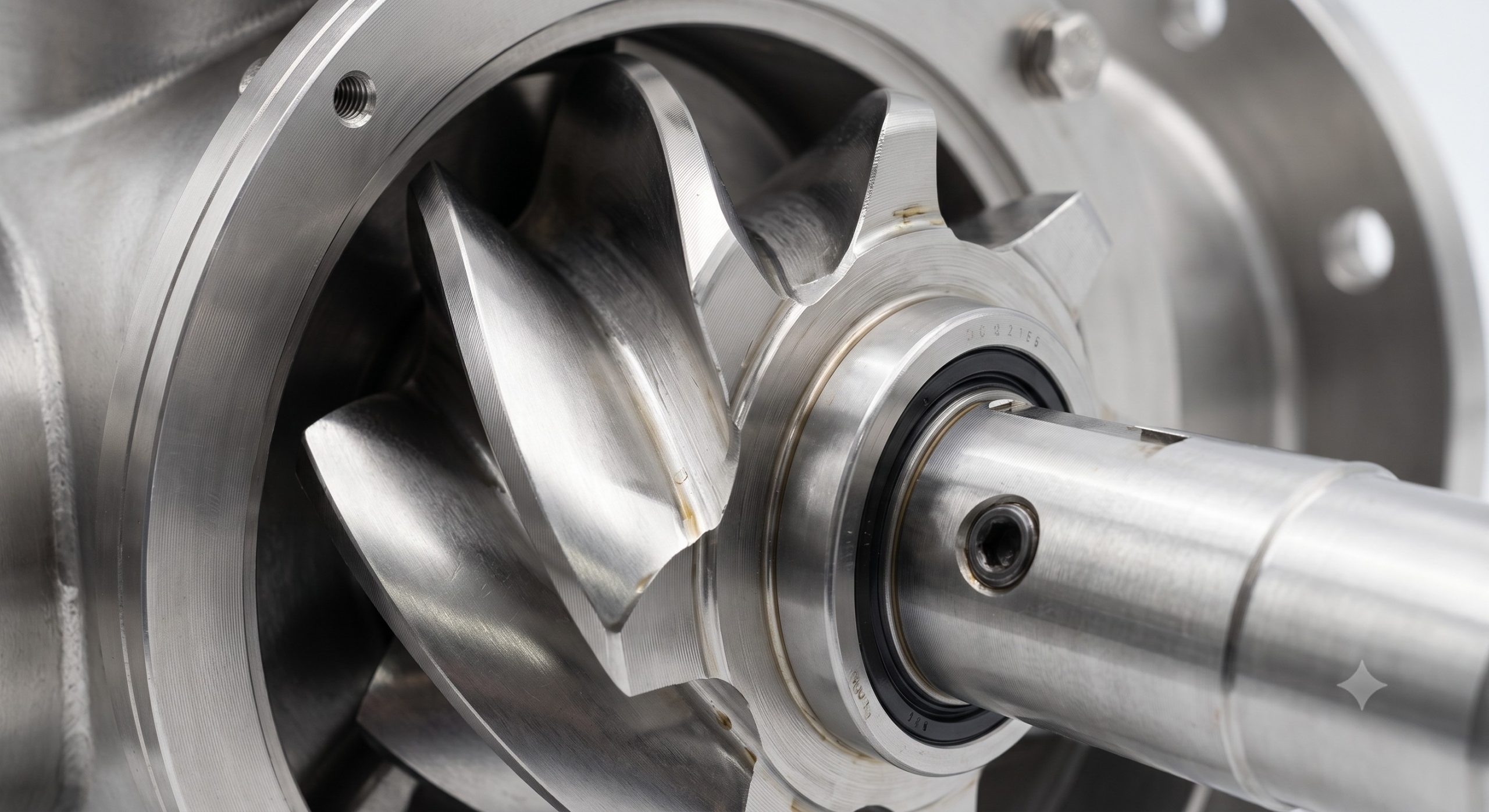

The rotor features precision-machined vanes with a design optimized for efficient material displacement and reliable air sealing. To address the challenges of abrasive materials, we offer advanced wear protection solutions including tungsten carbide and ceramic coatings applied to all contact surfaces. This extends service life many times over that of standard steel valves, significantly reducing maintenance costs and unscheduled downtime.

Technical Specifications

Below are the standard engineering parameters for the Doebritz low profile rotary valve for powder. Custom configurations are available to meet specific project requirements.

Parameter	Value
Valve Type	Low Profile Rotary Valve / Quick-Release Rotary Valve
Model	DBR-1237
Body Material	SUS304 / SUS316L / Cast Iron / Carbon Steel (Customizable)
Rotor Material	SUS304 / SUS316L with optional Tungsten Carbide or Ceramic Coating
Rotor Clearance	0.1 – 0.2 mm (Precision Machined)
Shaft Seals	Lip Seal with Air Purge / Packing Gland
Port Size	DN50 to DN350 (Customizable to DIN/ANSI)

Core Engineering Specifications

Specification	Detail
Product Series	DBR-1237 (Quick-release type)
Body Materials	Cast Iron, SUS304, SUS316L, Carbon Steel
Rotor Design	8-Vane Open Rotor (Standard), Closed Rotor (Optional)
Rotor-to-Housing Clearance	0.1 – 0.2 mm (Precision CNC Machined)
Shaft Seal Type	Lip Seal with Air Purge (Standard), Packing Gland (Optional)
Pressure Rating	Up to 1.0 bar (Standard), Up to 16 bar (ATEX Flameproof Version)
Temperature Range	Ambient: -15°C to 60°C | Material: 0°C to 120°C
Surface Finish	Internal: Ra ≤ 0.8 μm (Mirror finish available) | External: Machined ≤ 0.8 μm
Flange Standards	HG20592, DIN, ANSI (Customizable)
Inlet/Outlet Sizes	DN50, DN100, DN150, DN200, DN300, DN350
Drive Options	Direct Drive, Gearmotor, VFD for speed control
Certifications	CE, TÜV, ATEX Zone 20/21/22

Heavy-Duty Application Scenarios

The low profile design of the Doebritz rotary valve makes it exceptionally versatile for a wide range of process applications. Its compact footprint and high volumetric efficiency allow it to be used effectively in both new installations and retrofit projects.

Pneumatic Conveying Systems

As a feeder or airlock in dilute and dense phase pneumatic conveying systems, the Doebritz valve ensures stable material flow and system pressure integrity. Its low air leakage rate is critical for maintaining conveying velocity and minimizing energy waste, making it ideal for transferring powders like cement, flour, and plastic pellets over long distances.

Gravity Discharge from Silos and Hoppers

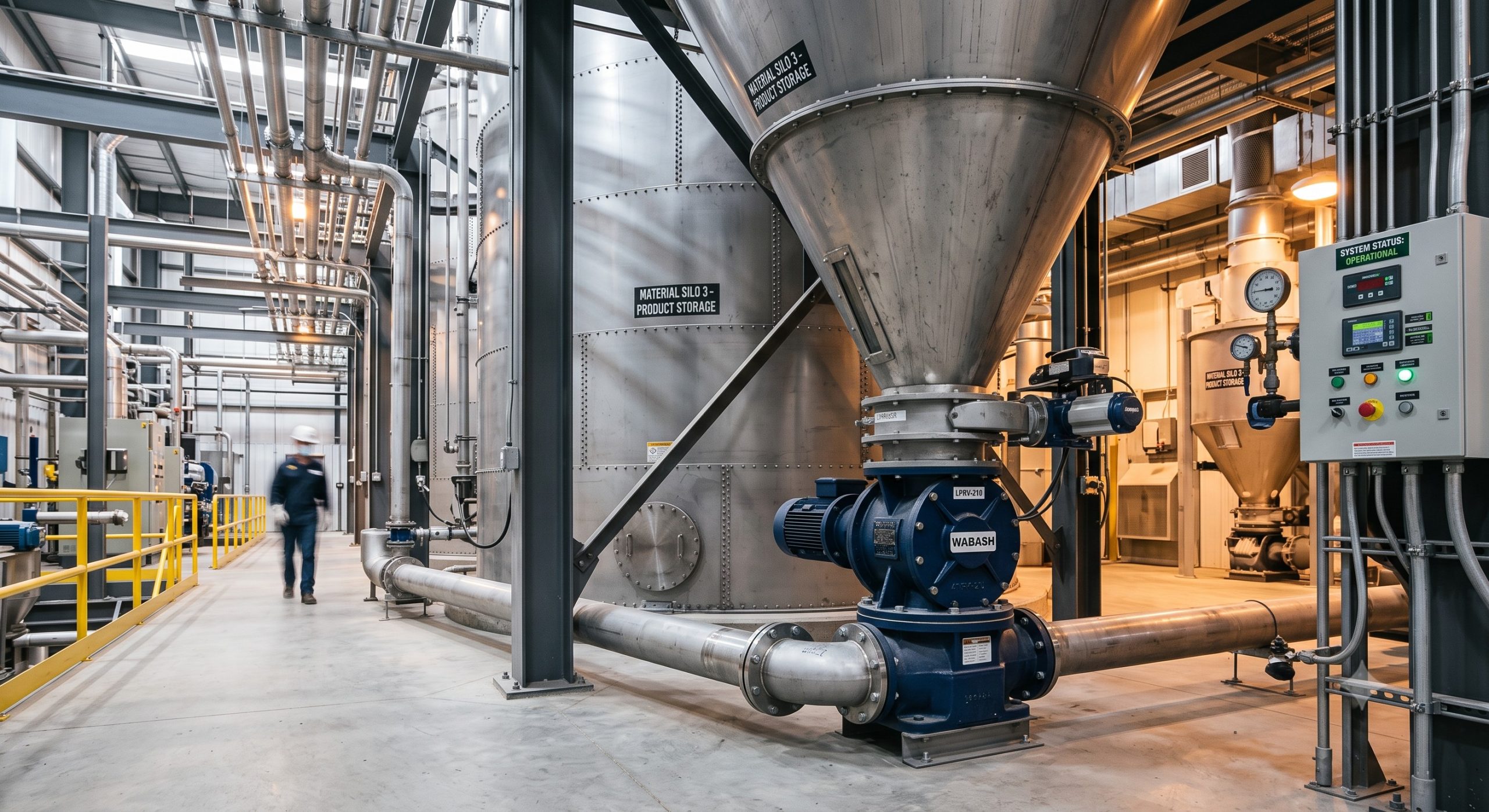

Installed under silos, hoppers, or dust collectors, the Doebritz low profile rotary valve provides a reliable, metered discharge of materials. It prevents flooding and ensures a consistent feed rate, which is essential for downstream processes like batching, blending, and packaging. The valve’s ability to handle a wide range of particle sizes and flow characteristics makes it a versatile solution for bulk material handling.

Metering and Loss-in-Weight Feeding

When paired with a variable frequency drive (VFD) and PLC control, the Doebritz rotary valve becomes a highly accurate and repeatable metering device. Its linear feed characteristic and consistent displacement allow for precise control of mass flow rate, enabling sophisticated loss-in-weight feeding systems for critical applications in the chemical and pharmaceutical industries.

Frequently Asked Questions

What is the typical air leakage rate for the Doebritz low profile rotary valve for powder?

The air leakage rate is highly dependent on the specific pressure differential and system design. However, thanks to our CNC precision machining that achieves a rotor-to-housing clearance of 0.1-0.2 mm, air leakage is kept to an absolute minimum. We can provide specific leakage curves and performance data upon request to help you size the valve for your system.

Is the Doebritz low profile rotary valve available for use in explosive atmospheres?

Yes. Doebritz offers an ATEX-certified version of the low profile rotary valve that complies with Zone 20, 21, and 22 requirements. This valve features a flameproof housing, is pressure-rated up to 16 bar, and is equipped with an explosion-proof motor and our precision-machined components to prevent ignition and contain any potential explosion.

How does the low profile design benefit my installation?

The low profile design is a significant advantage when headroom is limited. It allows for the installation of a high-capacity rotary valve under existing silos, hoppers, or dust collectors without requiring costly modifications to the supporting structure or the material handling system. This compact form factor does not compromise on performance or capacity.

Can you customize the valve for abrasive materials?

Absolutely. We understand that handling abrasive materials like carbon black, silica, or battery metals presents a significant wear challenge. Doebritz can customize your low profile rotary valve with a range of wear protection solutions, including tungsten carbide and ceramic coatings applied to the housing, rotor, and all material contact surfaces. This significantly extends the valve’s service life and reduces maintenance frequency.

What are your capabilities for OEM supply and custom flanges?

As a leading manufacturer, Doebritz is fully equipped to support global OEM projects. We can tailor the valve to your exact specifications, including custom flange drilling to DIN, ANSI, or any other standard you require. Our agile production and rigorous quality control ensure that your custom valves are delivered on time and meet your highest quality standards.
