Doebritz DBR-1237 Quick-Release Rotary Valve: Cast Iron / Stainless Steel | Minimal Air Leakage (0.1-0.2mm)

Heavy-Duty Volumetric Feeding: The Doebritz DBR-1237 Quick-Release Rotary Valve

The Doebritz DBR-1237 is a heavy-duty quick-release rotary valve engineered for extreme precision in pneumatic conveying and gravity discharge applications. Designed to operate as a reliable airlock feeder, this star discharge valve ensures minimal pressure loss, reduced air leakage, and superior volumetric efficiency. With a robust housing manufactured from Cast Iron, SUS304, or SUS316L, and precision machined rotors with radial clearances of 0.1–0.2 mm, the DBR-1237 is the definitive solution for silo discharging and dust collector hopper feeding. Backed by Doebritz’s strict quality assurance and CNC machining excellence, this valve is designed for continuous operation and rapid maintenance, making it a top-tier choice for global original equipment manufacturers (OEMs) and plant engineers.

Why Plant Sourcing Chooses Doebritz DBR-1237 (Minimal Leakage)

The advanced design of the DBR-1237 minimizes blowback, enhancing your entire material handling system’s performance. This is achieved through the precision ground rotor and housing, limiting internal leakage to a fraction of conventional valves. The unique quick-release demountable structure significantly reduces cleaning downtime, supporting both manual cleaning and online Clean-in-Place (CIP) processes.

Housing & Rotor Engineering

Superior Metallurgy & Precision Clearance

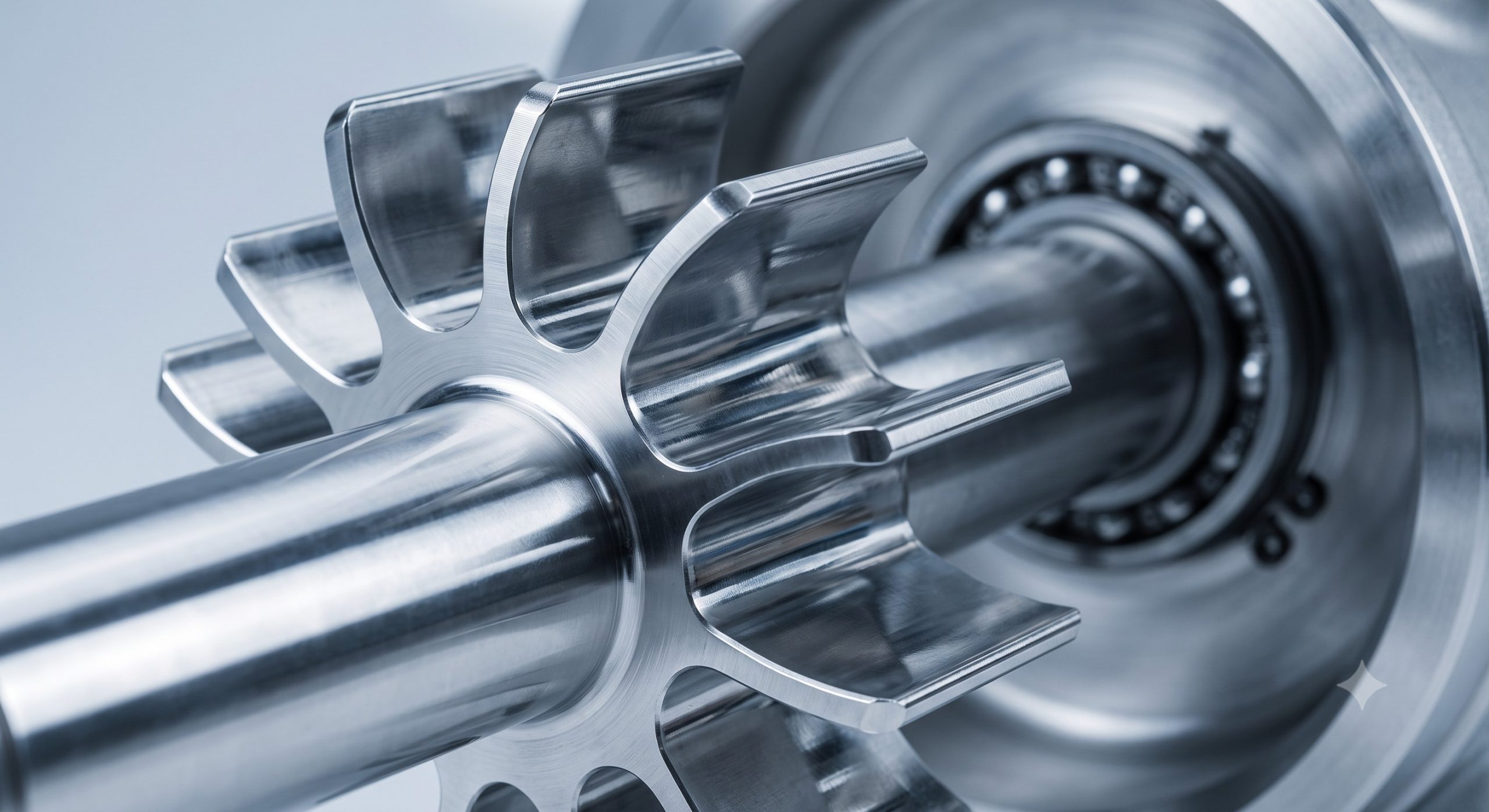

The DBR-1237 is available in SUS304, SUS316L, and carbon steel with multiple surface treatments to combat corrosion and abrasion. The rotor is dynamically balanced and manufactured using high-precision CNC equipment. The critical clearance between the rotor and the valve housing is strictly controlled to 0.1–0.2 mm, ensuring optimal pressure barrier performance. For extreme wear applications, tungsten carbide coating is available to protect against abrasive powders like carbon black and lithium battery materials.

Advanced Shaft Sealing & Bearing Protection

This valve utilizes a high-performance shaft sealing system combining lip seals and an air-purged lantern ring to prevent product contamination into the bearing housings. Outboard bearings are standard, ensuring longevity and ease of maintenance. For high-temperature processes (up to 120°C), an optional water-cooled jacket is available to maintain seal integrity and extend service life.

Specification	Detail
Body Material	SUS304, SUS316L, Carbon Steel (Coated/Nickel-Plated)
Rotor Design	8-Vane Open Rotor (Quick-Release Configuration)
Rotor-to-Housing Clearance	0.1 – 0.2 mm (Precision Ground)
Pressure Range	-1.0 bar to 1.0 bar (High Differential Pressure)
Temperature Range	Ambient: -15°C to 60°C; Material: 0°C to 120°C
Explosion Protection	ATEX Zone 20, 21, 22; Flameproof up to 16 bar
Surface Finish	Mirror finish, Ra ≤ 0.4/0.8/1.6 μm (Internal)
Connections	DN50, DN100, DN150, DN200, DN300, DN350 (HG20592)
Shaft Seal	Lip Seal with Air Purge (Lantern Ring)
Cleaning	Quick-Disassembly Manual Cleaning, CIP, WIP

Heavy-Duty Application Scenarios

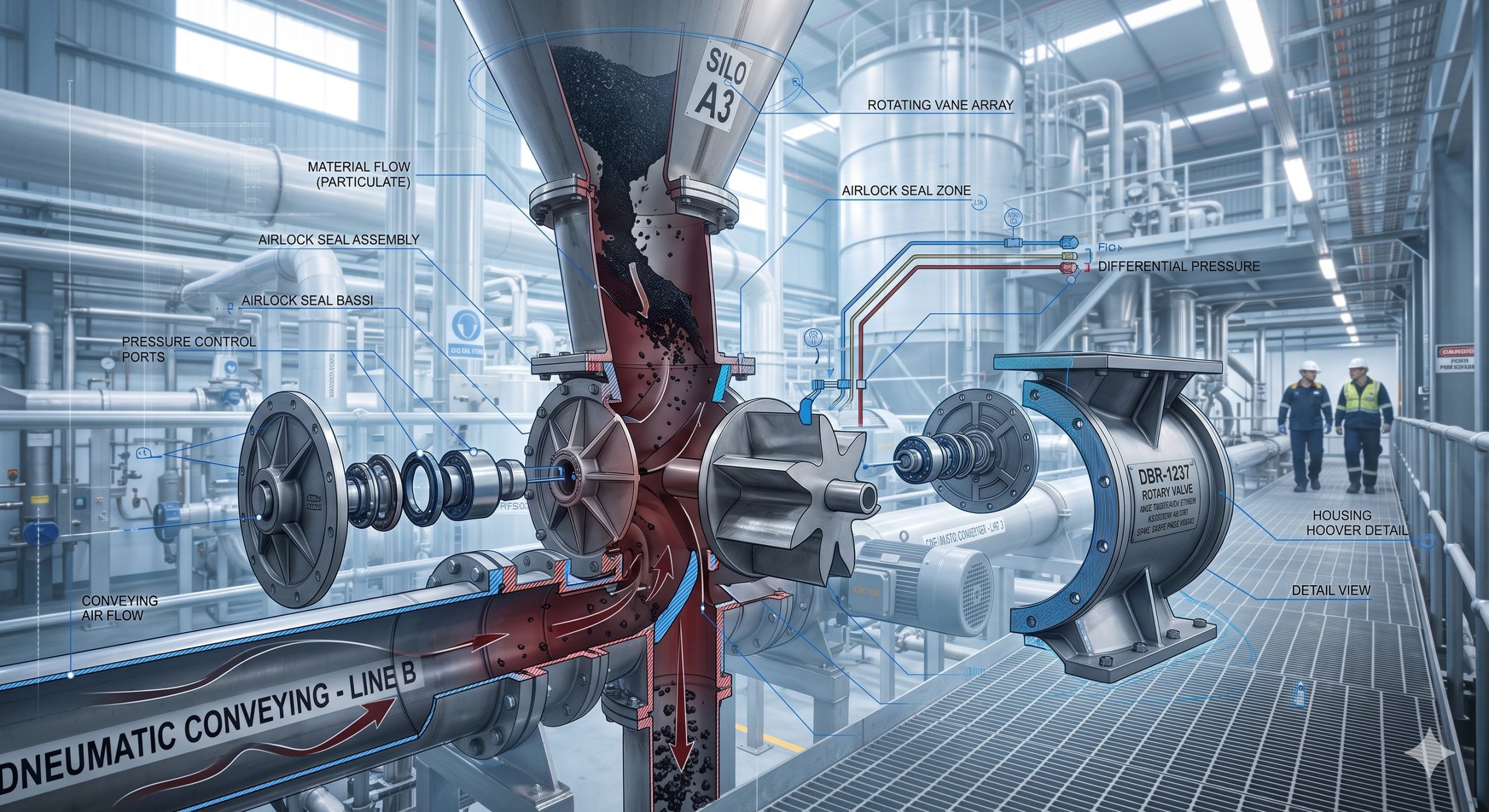

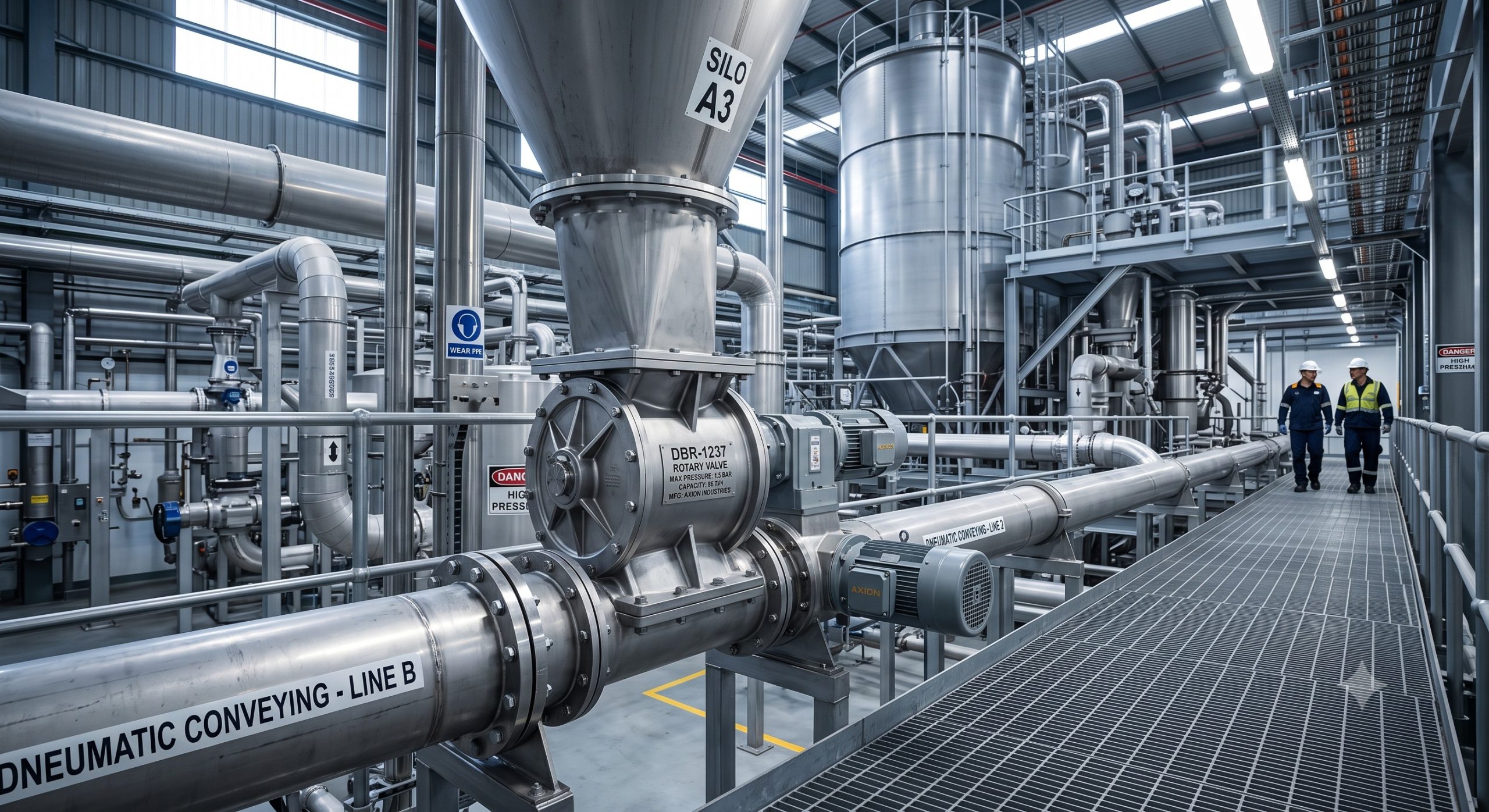

Pneumatic Conveying Systems

Whether in lean or dense phase conveying, the DBR-1237 maintains stable pressure drop and constant discharge. Its robust design handles both positive pressure (up to 1 bar) and high vacuum (down to -1 bar) environments without compromising performance. The ability to integrate with variable frequency drives (VFD) allows for precise feed-rate control, essential for batching and recipe metering.

Food & Pharmaceutical Processing

With hygienic execution, the DBR-1237 meets strict GMP requirements. Surface finishes up to Ra ≤ 0.4μm and quick-release disassembly enable thorough cleaning, eliminating cross-contamination risks for sensitive pharmaceuticals and food products. CE and TÜV certifications underpin compliance with international safety standards.

Explosion-Proof & ATEX Environments

For dust explosion hazards, the DBR-1237 is ATEX-certified for zones 20, 21, and 22. The flameproof construction and fine clearances mitigate ignition risks, ensuring operator safety and production continuity in volatile chemical and mineral processing plants.

Global OEM Assurance

Doebritz leverages its deep manufacturing heritage to deliver world-class rotary valves that drive operational efficiency. Our supply chain is built to support fast-tracked delivery of custom configurations, including flange drilling to DIN or ANSI standards. Backed by rigorous testing for air leakage and volumetric capacity, the Doebritz DBR-1237 offers a superior total cost of ownership (TCO) and serves as the definitive choice for international plant maintenance and global project integrators.

Frequently Asked Questions

What are the critical air leakage specifications for the Doebritz DBR-1237?

The precision machined clearance of 0.1-0.2 mm ensures minimal air leakage. Actual leakage volume depends on system differential pressure and rotor speed, but is significantly lower than industry standard valves, leading to lower energy costs.

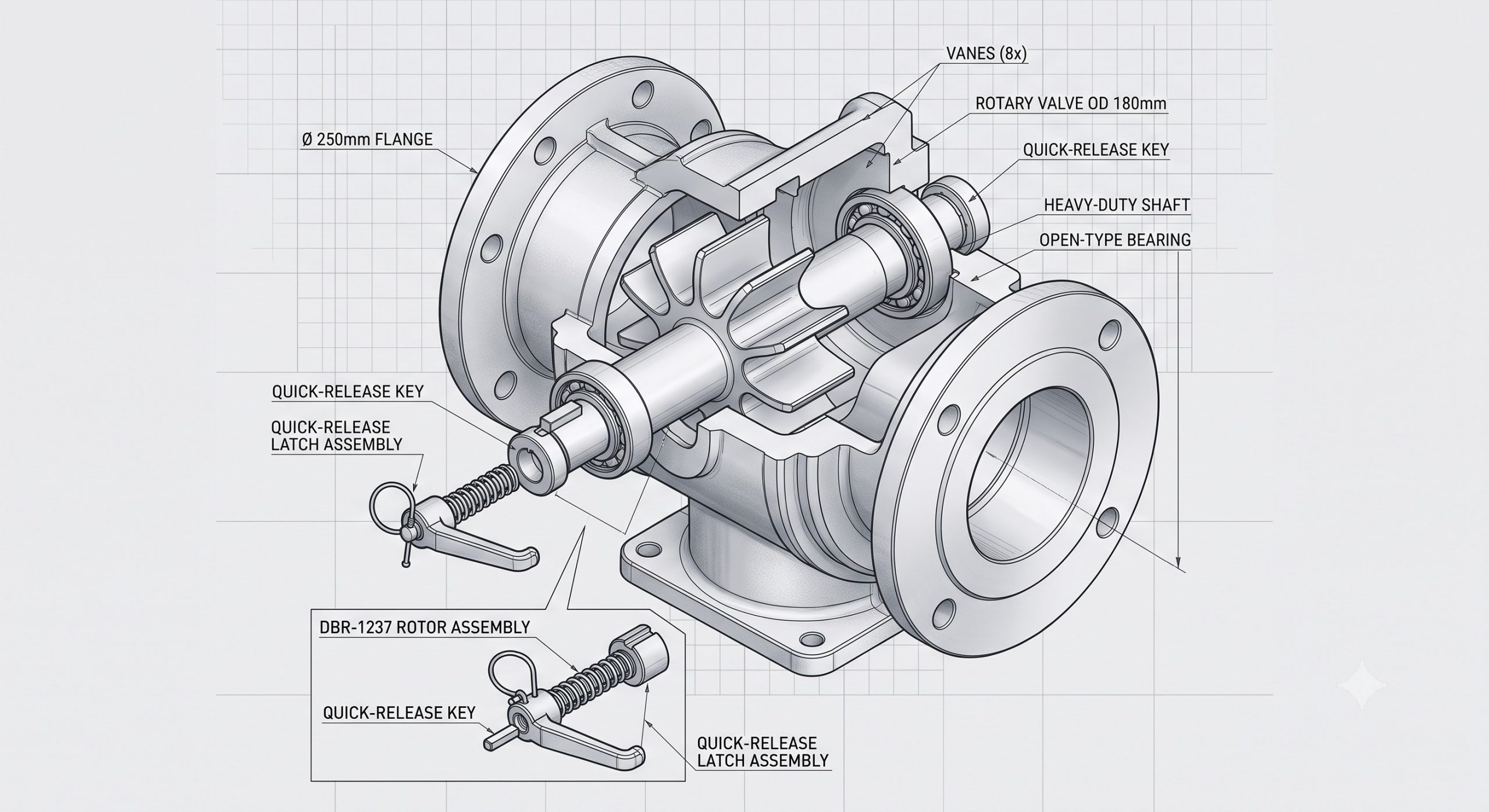

How does the quick-release system work for cleaning?

The DBR-1237 features a tool-less or single-tool clamp design on the end cover, allowing for rapid access to the rotor and valve chamber for manual inspection and cleaning, reducing maintenance downtime by up to 70%.

Is the Doebritz DBR-1237 suitable for abrasive materials?

Yes. We offer advanced wear protection options including tungsten carbide (WC) coatings, ceramic coatings, and polymer liners (PE/PTFE) on the contact surfaces of the housing and rotor to ensure maximum service life with highly abrasive products.

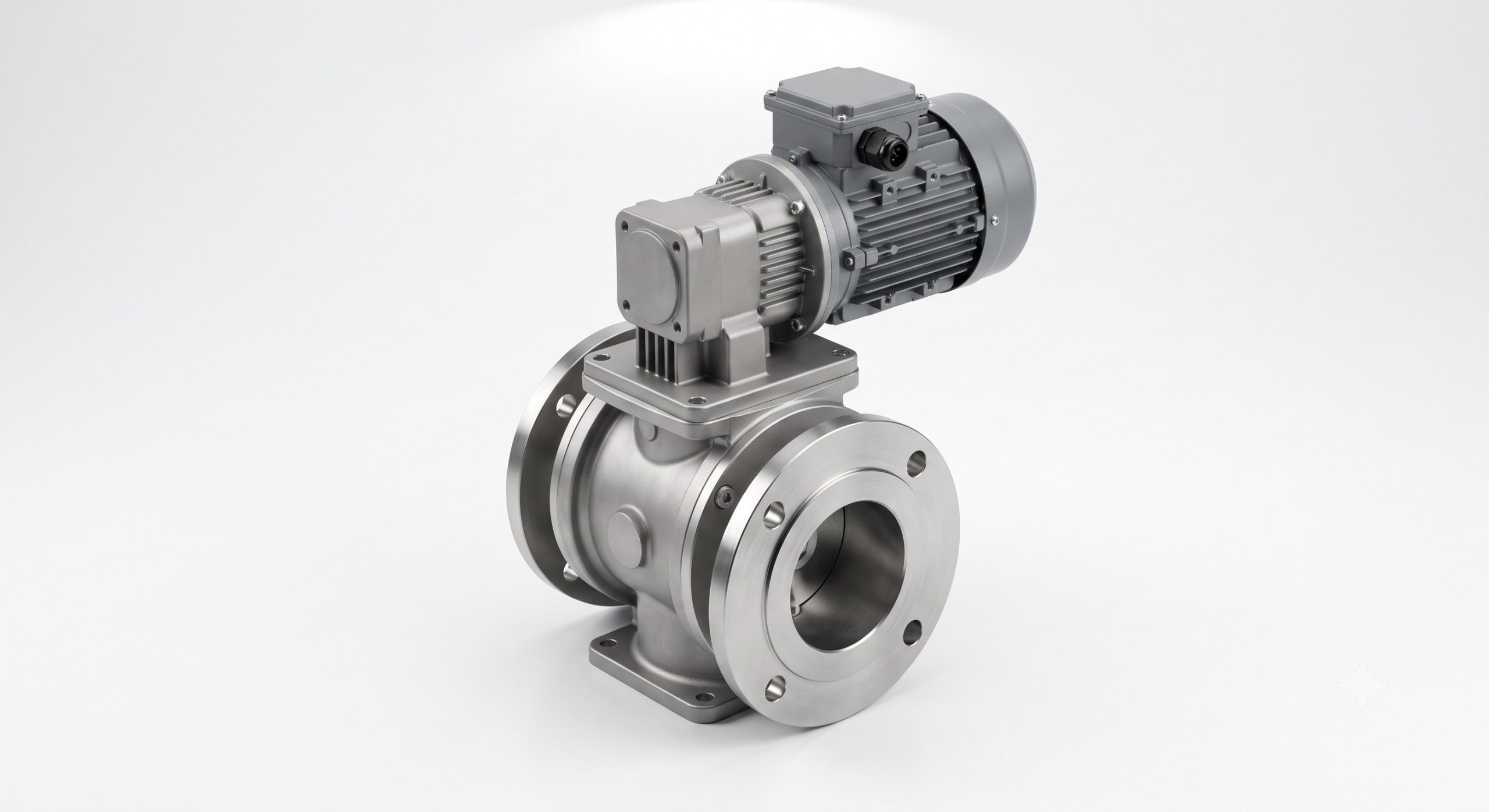

Can I configure the DBR-1237 with different drive options?

Absolutely. The valve is compatible with gearmotors, variable frequency drives (VFD), and explosion-proof motors. We can provide an integrated drive unit or a bare shaft configuration to suit your existing mechanical setup.

What certifications does the Doebritz DBR-1237 hold?

The valve is compliant with CE, TÜV, and ATEX (Zones 20, 21, 22) standards for industrial and hazardous area operations. Specific material test reports (3.1) and hygiene reports are available upon request.
