Doebritz DBR-1237 Automated Powder Dosing Station: ATEX Certified Rotary Valve | CNC-Machined Clearances

Product Summary: Doebritz DBR-1237 Automated Powder Dosing Station

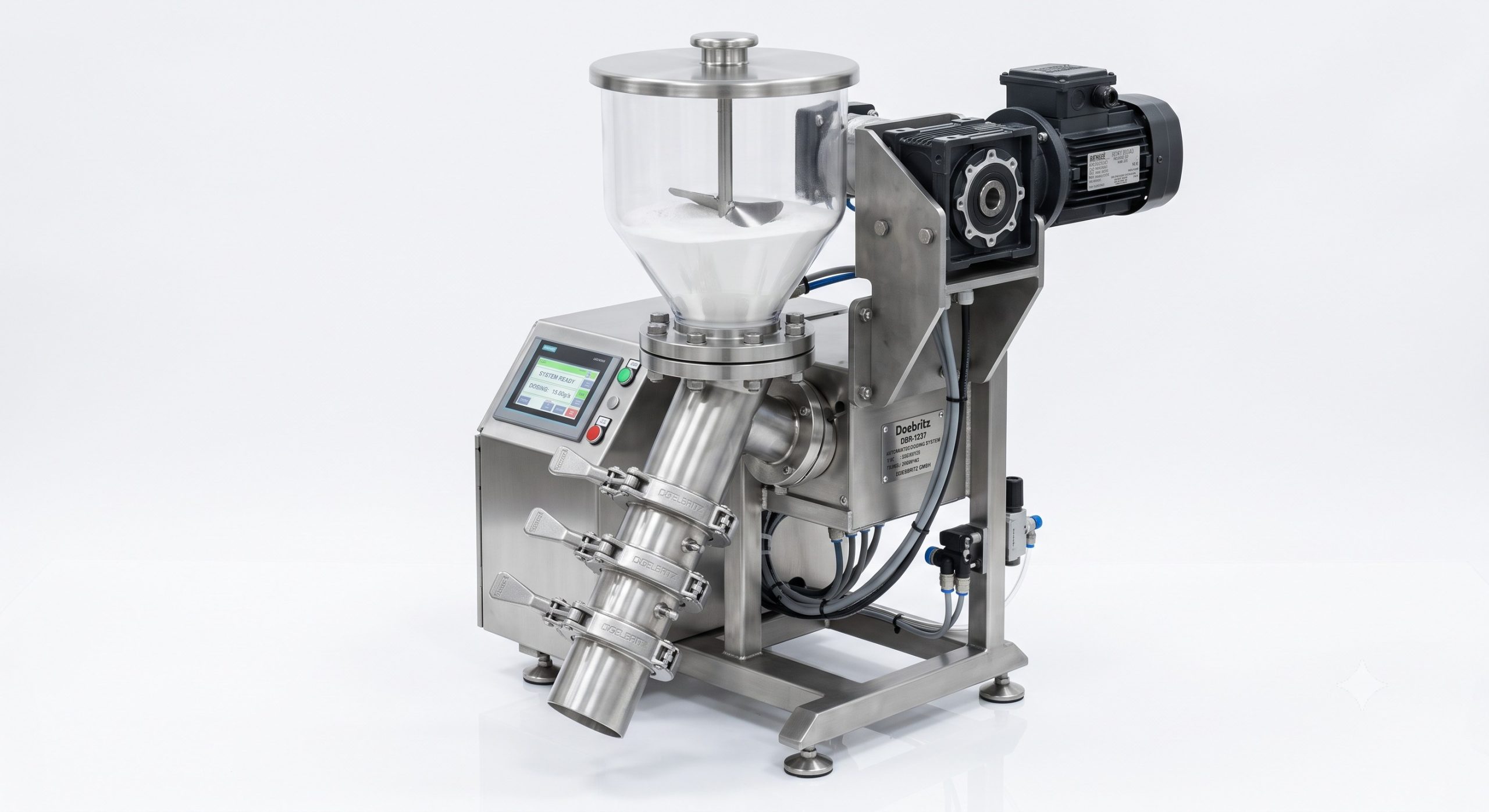

The Doebritz DBR-1237 Automated Powder Dosing Station is a high-performance, heavy-duty rotary valve engineered for precision metering and airlock sealing in bulk solids handling. Designed for continuous operation in demanding industrial environments, this dosing station integrates a quick-release demountable housing, CNC-machined rotor-to-housing clearances of 0.1–0.2 mm, and a robust shaft sealing system to ensure minimal air leakage and superior volumetric efficiency. Built to comply with ATEX Zone 20/21/22 and IECEx standards, the DBR-1237 provides a safe, reliable solution for dosing powders, pellets, and granules in food, pharmaceutical, chemical, and new energy applications.

Why Source Doebritz DBR-1237 for Your Dosing Line

• Optimal Airlock Efficiency: Precision clearances reduce air leakage, maintaining stable differential pressure for accurate dosing and lower energy costs.
• Quick-Release Demountable Design: Tool-free disassembly enables rapid cleaning, inspection, and maintenance, minimizing downtime for CIP and manual cleaning.
• ATEX & IECEx Certified: Flameproof construction with 16 bar pressure resistance ensures safe operation in potentially explosive dust atmospheres (Zones 20, 21, 22).
• Superior CNC Manufacturing: Doebritz in-house precision machining guarantees tight tolerances and consistent quality, backed by global OEM supply capability.
• Versatile Material Compatibility: Available in SUS304, SUS316L, carbon steel, and wear-resistant coatings (tungsten carbide, ceramic, PTFE, PE, PA) for abrasive, corrosive, or hygroscopic products.

Advanced Engineering for Heavy-Duty Dosing

Precision Rotor & Housing Metallurgy

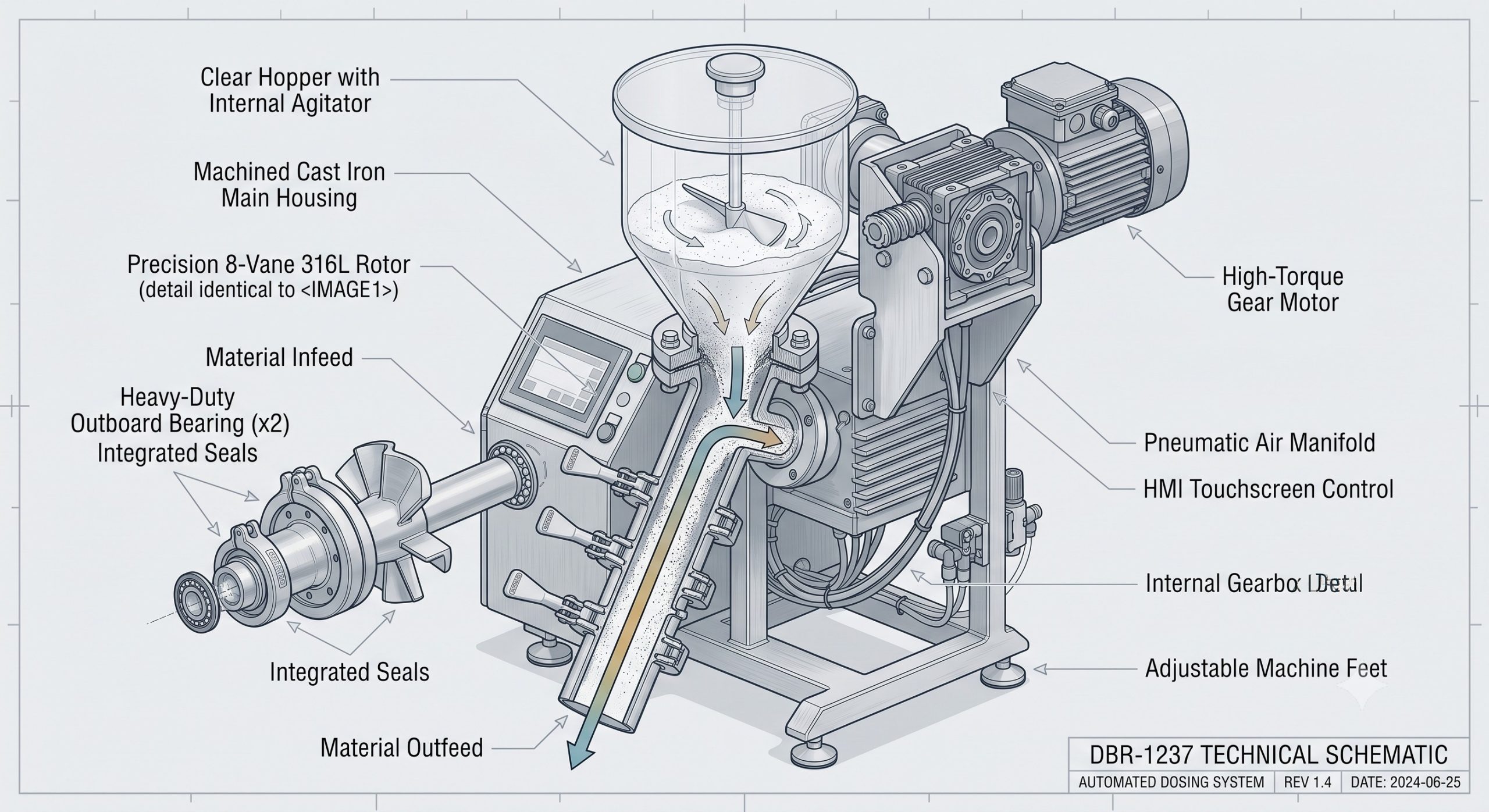

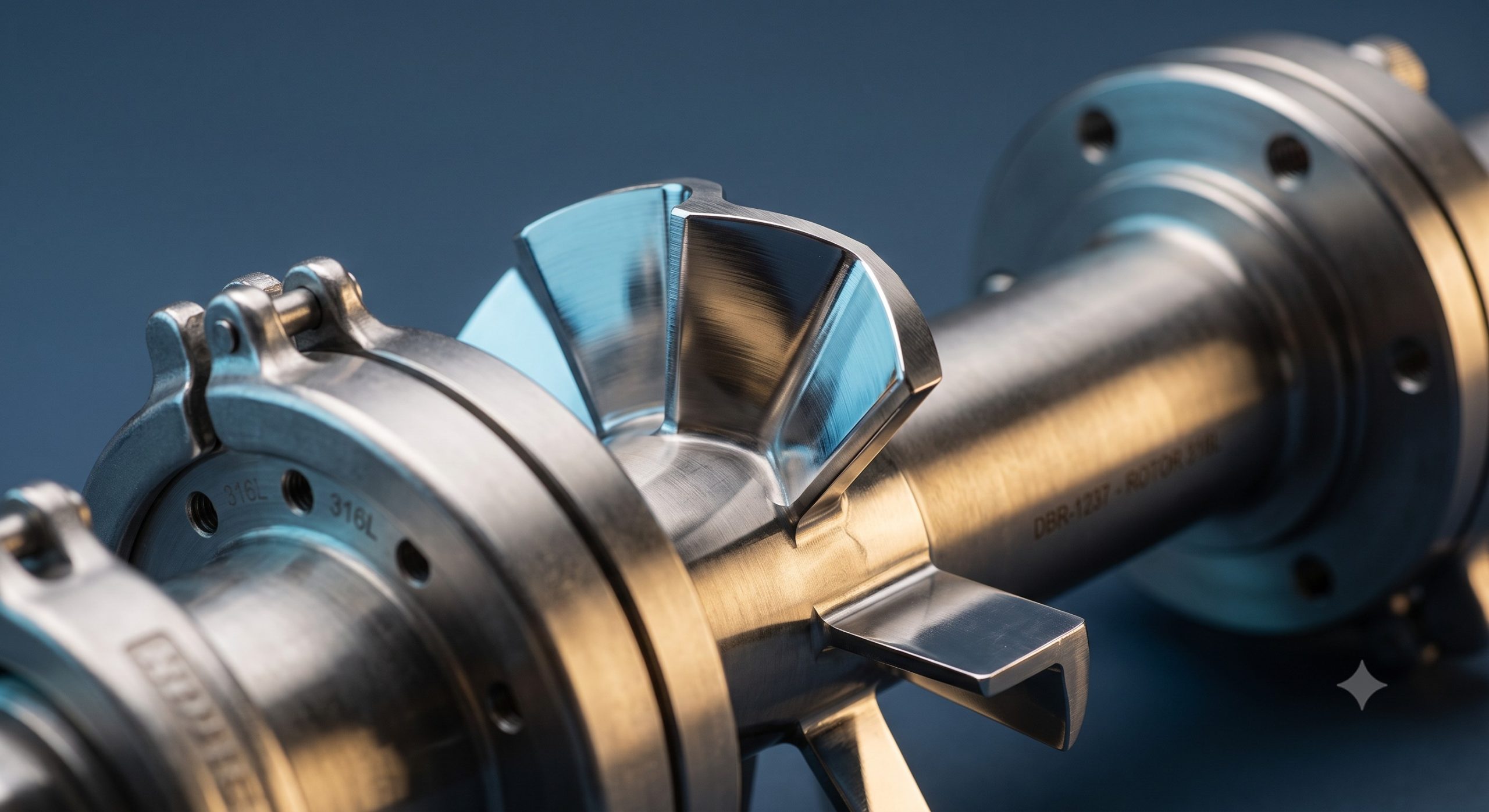

The DBR-1237 features a precision-machined 8-vane open rotor that operates with minimal radial and end clearances (0.1–0.2 mm) to ensure high volumetric efficiency and consistent fill factor. The housing is manufactured from cast iron, carbon steel, or stainless steel (SUS304/SUS316L), with optional tungsten carbide or ceramic coatings to withstand extreme abrasion from materials like carbon black, lithium battery powders, and titanium dioxide.

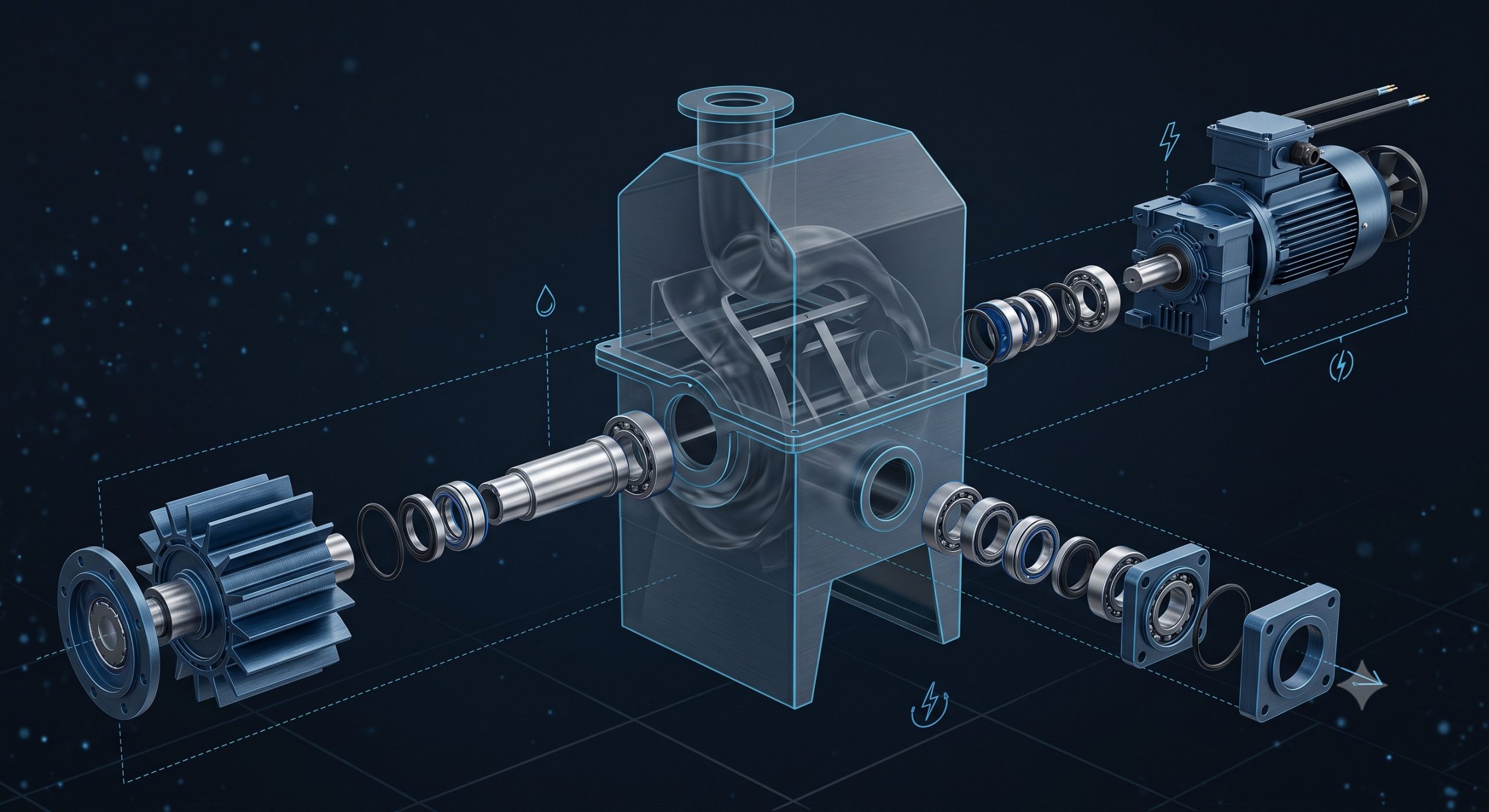

Outboard Bearing & Shaft Sealing Configuration

Designed for reliable performance, the dosing station incorporates outboard bearings isolated from the material flow, ensuring long bearing life and easy maintenance. The shaft sealing system includes multi-lip air-purged seals with optional lantern ring purge connections to prevent dust migration. For applications requiring strict hygiene, the DBR-1237 supports online CIP and WIP cleaning, and is available in sanitary 316L mirror-polished finish (Ra ≤ 0.4 μm).

Integrated Dosing Control & Automation

Equipped with a gear motor and variable frequency drive (VFD), the DBR-1237 enables continuous or batch dosing with precise speed control (PLC integration). Flow rates are adjustable to meet production needs, and the station can handle both positive pressure (up to 1 bar) and negative pressure (down to -1 bar) pneumatic conveying systems, as well as gravity flow applications.

Technical Specifications – Doebritz DBR-1237

Below are the key parameters for the DBR-1237. Custom sizes and configurations are available.

Parameter	Specification
Body Material	SUS304, SUS316L, Carbon Steel (painted / nickel-plated)
Rotor Design	8-Vane Open Rotor, CNC-machined clearances 0.1–0.2 mm
Shaft Seals	Lip seals with air purge; optional packing seals
Flange Connections	DN50, DN100, DN150, DN200, DN300, DN350 (HG20592 / DIN / ANSI)
Pressure Range	Positive: up to 1 bar; Negative: down to -1 bar (VFD controlled)
Temperature Range	Ambient: -15°C to 60°C; Material: 0°C to 120°C (optional water cooling)
ATEX Classification	Zone 20, 21, 22 (gas & dust); IECEx certified
Surface Finish (Internal)	Mirror polished, Ra ≤ 0.4 / 0.8 / 1.6 μm; tungsten carbide/ceramic/PTFE/PE/PA coatings
Cleanability	Quick-release manual cleaning, online CIP, online WIP
Certifications	CE, TÜV, ATEX, IECEx, Statement of Conformity

Surface Finishing & Cleanability

• External Surface: Anti-fingerprint, sandblasted, or shot-blasted; machined surfaces < 0.8 μm.
• Internal Surface: Mirror polished or electropolished with Ra ≤ 0.4 / 0.8 / 1.6 μm; optional wear coatings.
• Cleaning: Quick-release for manual cleaning; online CIP; online WIP with manual inspection.

Heavy-Duty Application Scenarios

Automated Powder Dosing for Food & Pharma

The DBR-1237 is ideal for sanitary dosing lines handling flour, starch, lactose, microcrystalline cellulose, protein powders, and probiotics. Its quick-clean design and Class C/D cleanroom compatibility meet GMP requirements, reducing cross-contamination risks.

Explosive Dust & Abrasive Chemical Processes

For carbon black, PE/PP pellets, PTA, and lithium battery cathode/anode materials, the ATEX-certified DBR-1237 with tungsten carbide-coated internals provides safe, long-lasting service in high-wear conditions.

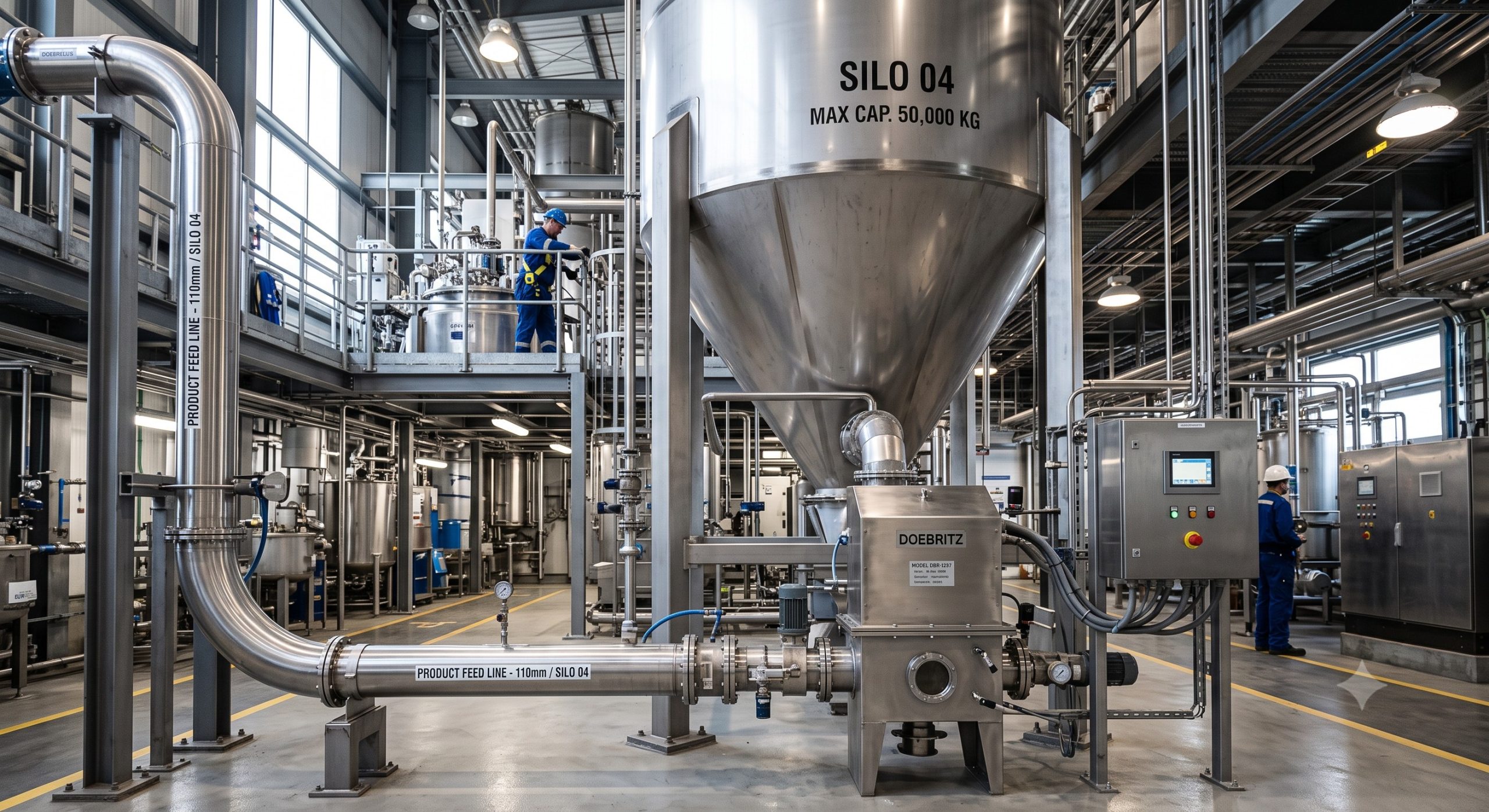

Pneumatic Conveying & Silo Discharge

As a rotary airlock feeder, the DBR-1237 ensures reliable material lock and transfer between bins, cyclones, and pneumatic lines. Its low leakage rate and precision speed control make it a core component for loss-in-weight feeding systems and automated batching plants.

Global OEM Supply & Quality Assurance

Doebritz operates a fully integrated manufacturing facility with ISO 9001 certification and advanced CNC machining centers. Every DBR-1237 dosing station undergoes 100% dimensional inspection, pressure testing, and run-testing before shipment. We provide full material traceability, NACE, CE, TÜV, and ATEX certifications. With a global supply network, we ensure competitive lead times and technical support for OEM, EPC, and plant engineering projects.

Frequently Asked Questions

What is the maximum pressure rating for the Doebritz DBR-1237?

The DBR-1237 is available in explosion-proof and flameproof configurations with a pressure rating of 16 bar, suitable for high differential pressure conveying systems.

Can the dosing station handle high-temperature materials?

Yes, the DBR-1237 is designed for material temperatures from 0°C to 120°C (optionally up to 250°C with special materials). For elevated process temperatures, a water-cooled jacket is available.

Is the DBR-1237 suitable for sanitary/food-grade applications?

Absolutely. The DBR-1237 is offered in USP Class VI and FDA-compliant materials, with mirror-polished surfaces (Ra ≤ 0.4 μm) and CIP/WIP cleaning capability, meeting GMP standards for food and pharmaceutical production.

What control options are available?

The DBR-1237 is compatible with PLC/VFD systems for closed-loop speed control, batch metering, and recipe automation. We provide motor and drive packages tailored to your control architecture.

How do I select the right size and configuration?

We offer DN50 to DN350 flange connections and multiple rotor designs. Please contact our engineering team with your material properties, flow rate, and pressure requirements for a custom sizing recommendation.
