Doebritz Corn Flour Airlock Feeder: Cast Stainless Steel – Minimal Air Leakage (ATEX Ready)

Product Summary: Doebritz Corn Flour Airlock Feeder

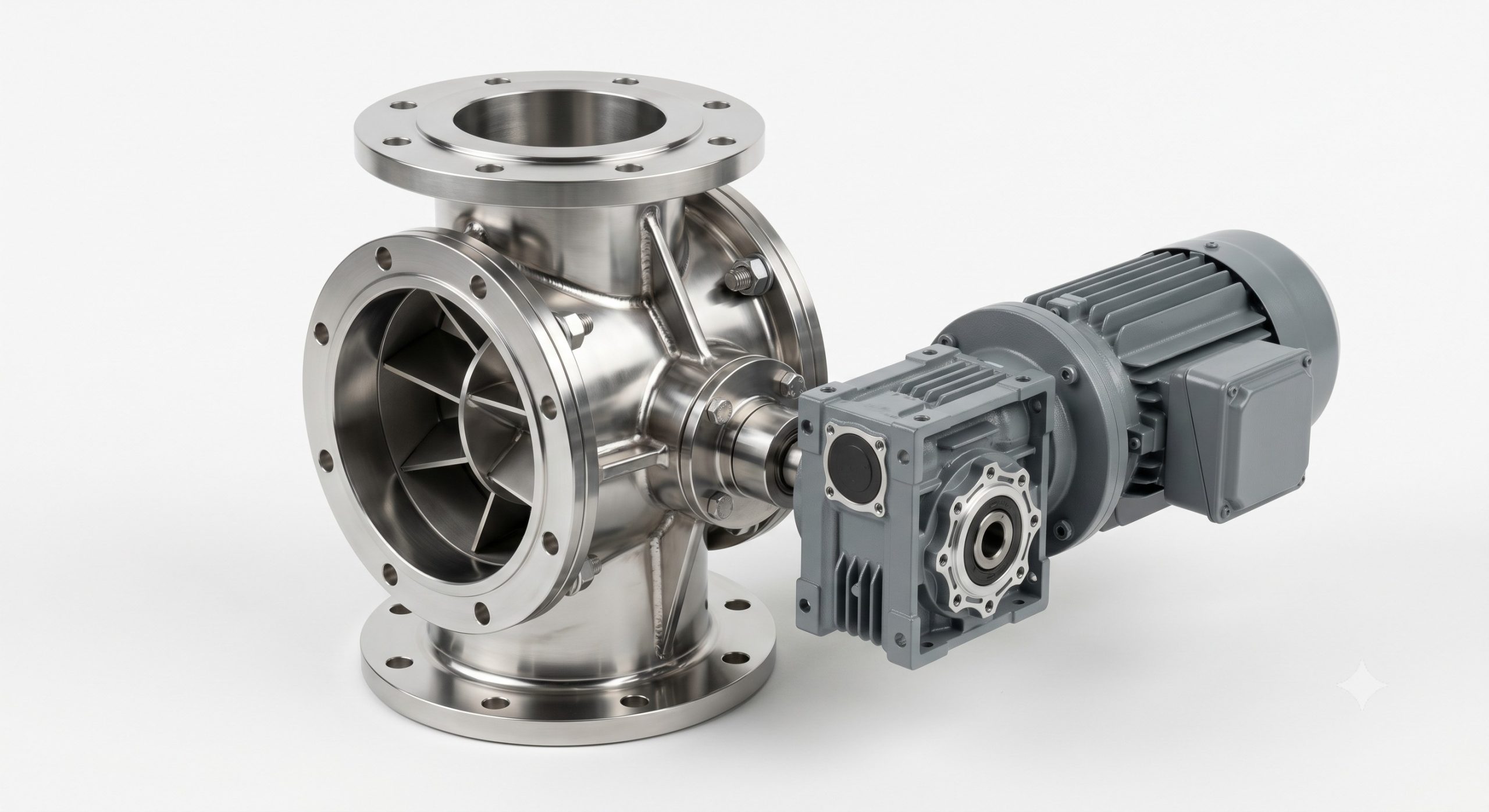

The Doebritz Corn Flour Airlock Feeder (Model DBR-1237 gravity-series) is a precision-engineered rotary valve designed specifically for high-efficiency, low-contamination handling of fine, cohesive powders such as corn flour, wheat flour, and starch. With a rotor-to-housing clearance of just 0.1–0.2mm, it delivers minimal air leakage, ensuring stable pneumatic conveying and accurate batch metering. Built on Doebritz‘s heavy-duty manufacturing platform, this unit combines quick-release hygienic design with ATEX-certified explosion-proof construction, making it the trusted choice for global food processing and grain milling operations.

Why Plant Sourcing Chooses Doebritz Corn Flour Airlock Feeder

As a direct manufacturer with 15+ years in powder handling, Doebritz addresses the three critical pain points of corn flour conveying: air leakage (material wastage), cross-contamination risk, and explosion hazards. Our DBR-1237 gravity valve delivers:

• Minimal Air Leakage: Precision-machined SUS304/SUS316L rotors with 0.1–0.2mm radial clearance reduce air infiltration to 95% for corn flour.

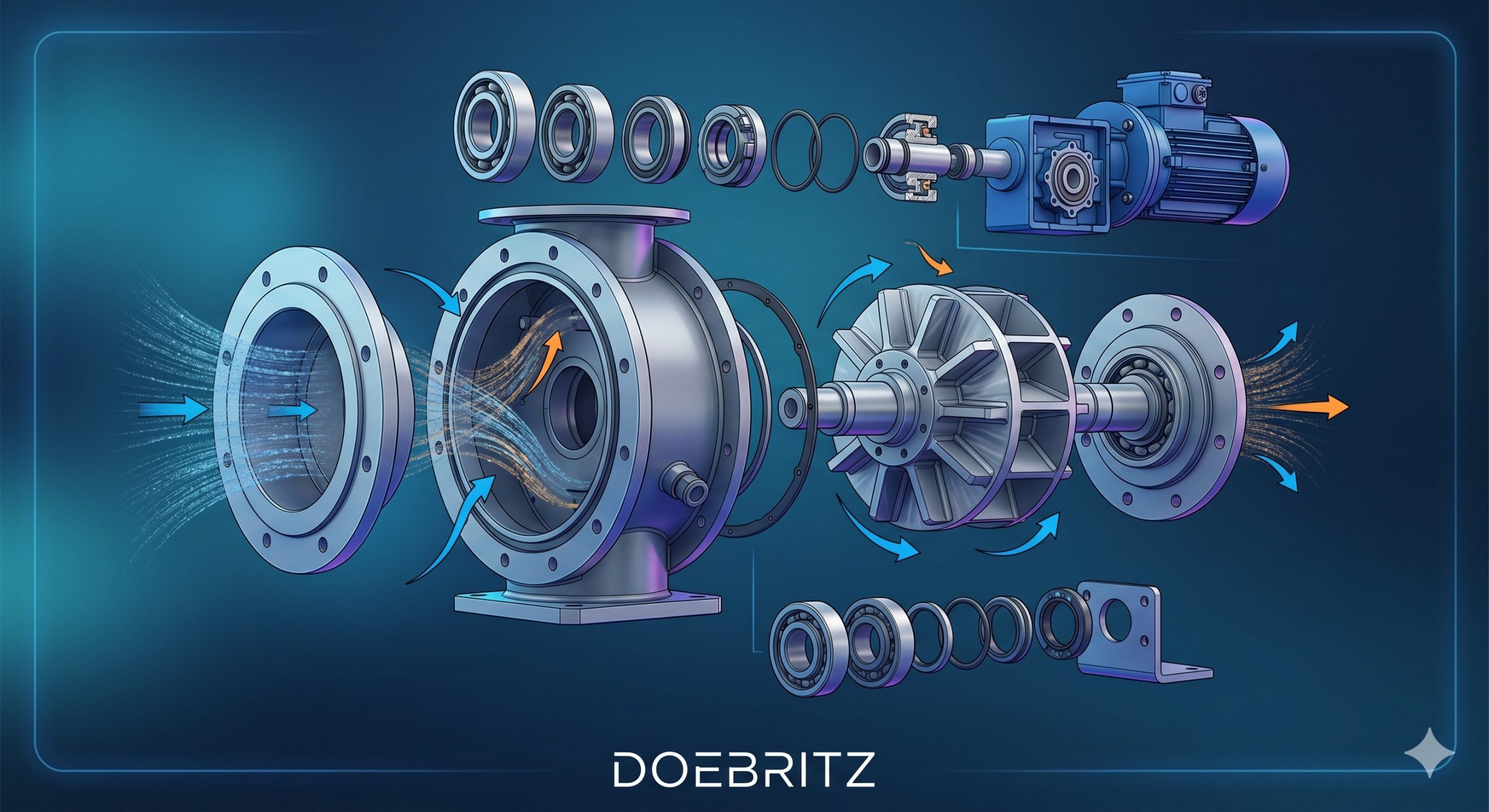

• Quick-Clean Demountable Design: Tool-free disassembly in under 3 minutes, supporting online CIP/WIP cleaning and GMP-compliant sanitation (Class C/D cleanroom ready).
• ATEX Zone 20/21/22 Compliance: Flameproof construction with 16bar pressure rating, anti-static rotor, and precision gap control eliminates dust explosion risks.
• CNC Precision & Global OEM Supply: All housings and rotors are CNC-machined on Doebritz‘s German-engineered line, with full material certs (EN 10204 3.1) and HG20592 / DIN / ANSI custom flanges.

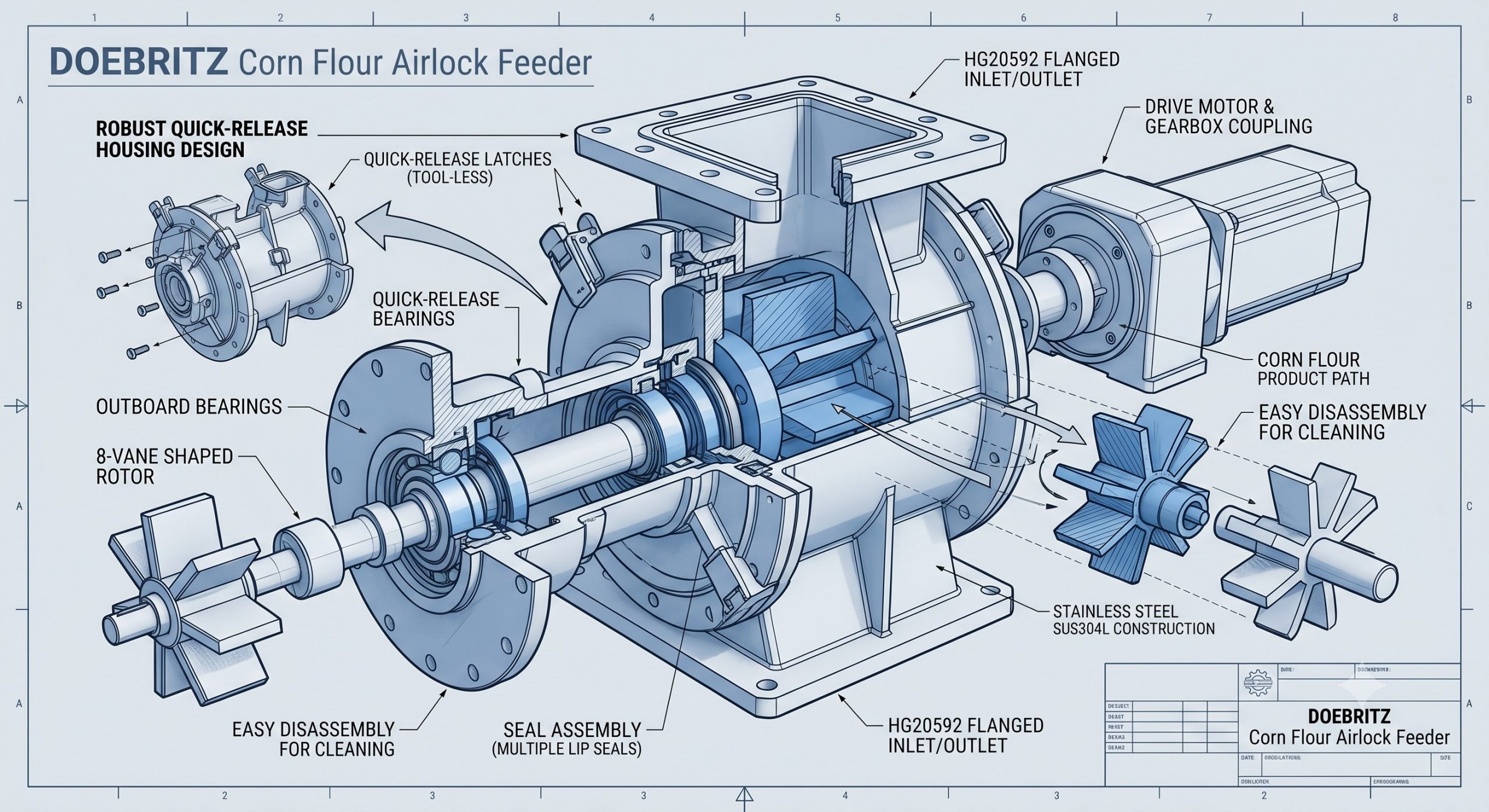

Housing & Rotor Engineering for Corn Flour

Corn flour‘s fine particle size (50–200μm) and high cohesion demand abrasion-resistant, non-stick surfaces. Doebritz delivers:

• Contact Surfaces: SUS316L with mirror polish (Ra≤0.4μm) or optional PTFE/ceramic coating to prevent flour adhesion and facilitate flow.

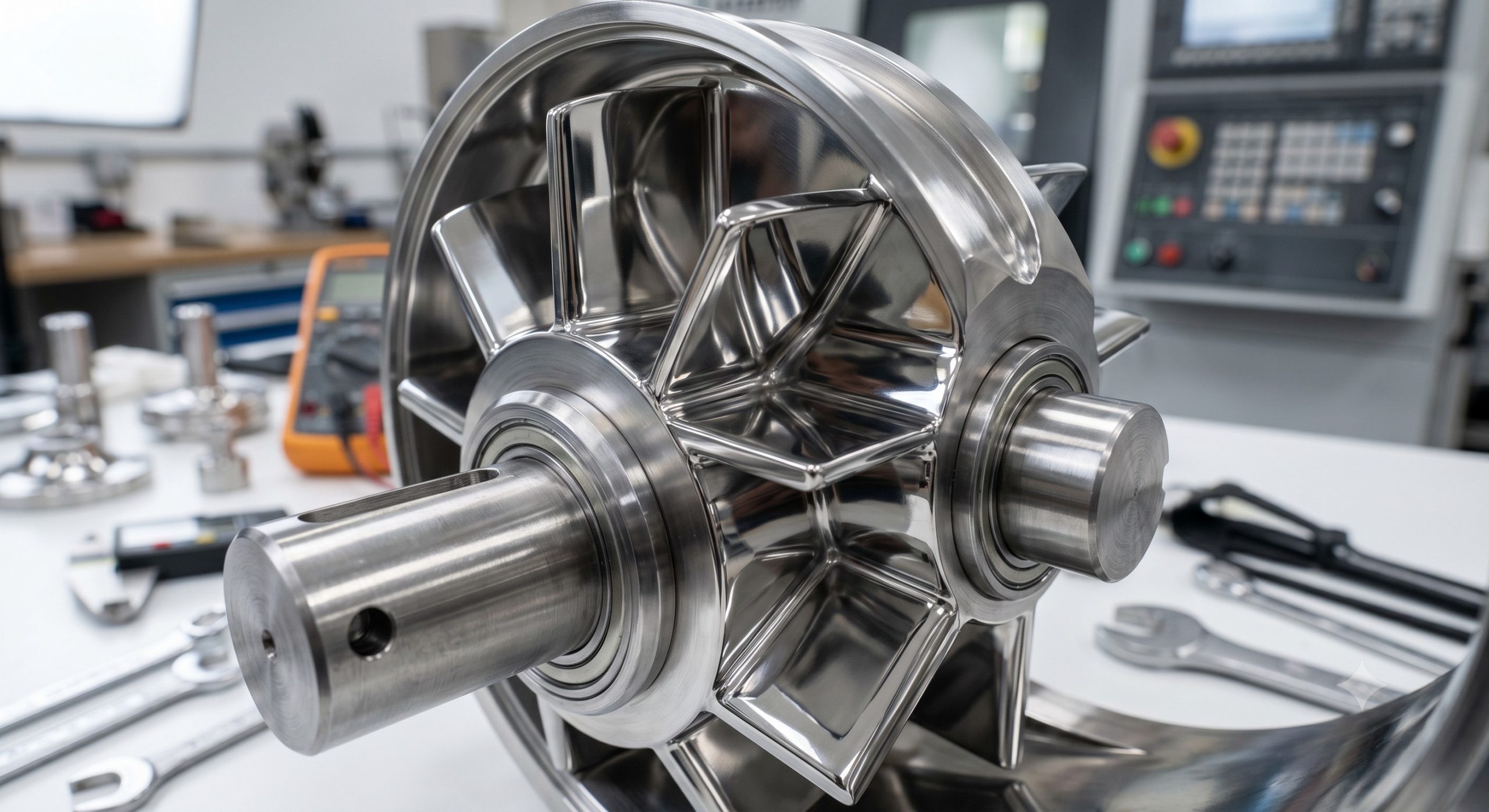

• Rotor Design: 8-vane closed or open rotor, balanced for VFD speed control (0–40 RPM), enabling precise metering from 0.5 to 15 m³/h for corn flour.
• Shaft Sealing: Lip seal with air purge or packing gland, eliminating dust leakage into bearings – tested for 20,000 hours continuous duty.
• Optional Water Cooling Jacket: Maintains material temperature ≤40°C during high-speed milling or conveying, preserving corn flour quality.

Technical Specifications: Doebritz Corn Flour Airlock Feeder

All parameters are verified under real corn flour conveying conditions (bulk density 0.5–0.7 g/cm³, temperature 20°C).

Specification	Detail
Model Series	DBR-1237 Gravity Quick-Release Type
Body Material	SUS304 / SUS316L (standard), Carbon steel (optional)
Rotor Design	8-vane, open or closed rotor, CNC-machined
Rotor-to-Housing Clearance	0.1 – 0.2 mm (customizable to 0.08mm)
Shaft Seal	Lip seal with air purge or PTFE packing gland
Pressure Range	-1bar to +1bar (standard); 16bar flameproof version
Operating Temperature	Ambient -15°C to +60°C; Material 0°C to +120°C
Port Size	DN100, DN150, DN200, DN300 (DN50/DN350 on request)
Surface Finish (Internal)	Mirror polish Ra≤0.4μm (food grade), Ra≤0.8μm standard
Cleaning	Tool-free quick-release, CIP/WIP ready
Certifications	CE, TÜV, ATEX Zone 20/21/22, FDA compliant seals

Heavy-Duty Application Scenarios for Corn Flour

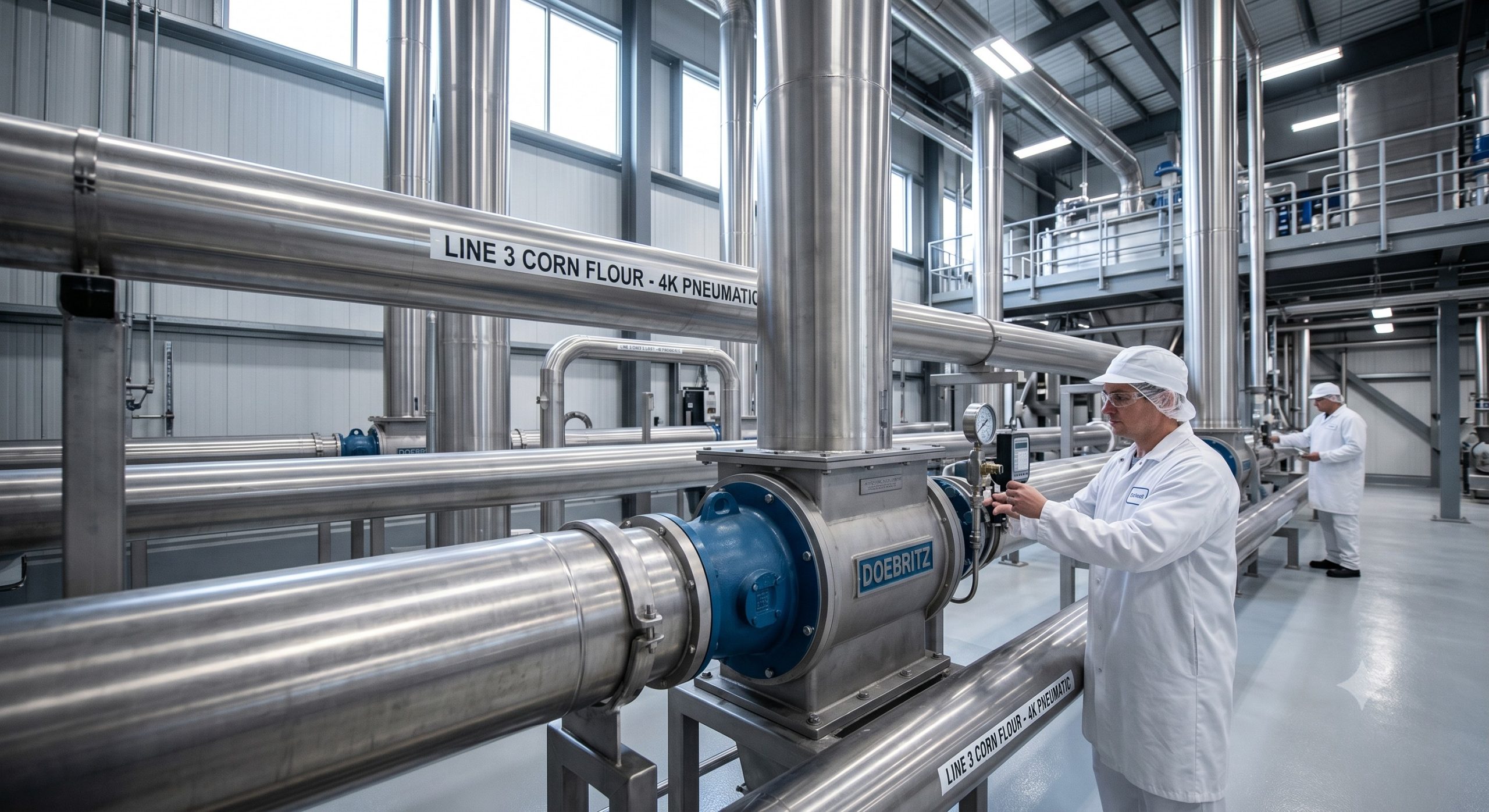

Pneumatic Conveying from Milling to Packaging

Integrate the Doebritz Corn Flour Airlock Feeder into dilute or dense phase systems (pressure range -1bar to +1bar). Minimal leakage ensures stable line pressure, eliminating blowback and filter blinding. Typical ROI: 12–18 months via reduced energy consumption and product loss.

Automated Batch Metering & Recipe Formulation

Pair with PLC and VFD for volumetric or gravimetric feeding of corn flour into mixers, extruders, or bagging lines. Achieve batch accuracy ±1% with Doebritz‘s low-pulsation rotor design, proven in 500+ food plants worldwide.

Silo Discharging & Dust Collector Hopper Unloading

Prevent bridging and rat-holing in corn flour silos. The DBR-1237‘s quick-clean access and optional vibrated flange ensure uninterrupted gravity discharge, even at -20°C ambient.

Frequently Asked Questions

What is the exact rotor-to-housing clearance for the Doebritz Corn Flour Airlock Feeder?

Standard clearance is 0.1–0.2mm (factory-set). For very fine corn flour (e.g., 80 mesh), we can reduce to 0.08mm on request. This precision is CNC-machined and 100% measured before shipment.

Is this valve suitable for both positive and negative pressure pneumatic conveying?

Yes. The DBR-1237 gravity-series handles positive pressure from 0 to 1bar and negative pressure down to -0.8bar. For higher differential pressures (up to 1.6bar), specify our heavy-duty HP series.

What certifications does Doebritz provide for the corn flour airlock feeder?

Standard: CE, TÜV, ATEX (Zone 20/21/22). For food contact: EC 1935/2004, FDA-compliant elastomers, and full material traceability. Hygienic design meets EHEDG guidelines.

Can I get custom flange drilling for my existing corn flour line?

Absolutely. Doebritz offers HG20592 (standard), DIN, ANSI 150#, JIS, or custom bolt patterns. Lead time for custom flanges: 10–15 working days for OEM orders.

How do I clean the corn flour airlock feeder for product changeovers?

Our quick-release design allows full disassembly without tools. Then manual wash, or run online CIP (1.5 bar, 70°C water) followed by a visual inspection. No dead zones, validated by riboflavin testing.

Global OEM Assurance from Doebritz

When you source the Doebritz Corn Flour Airlock Feeder, you gain a direct manufacturing partner. Every unit undergoes 100% leak testing (max 0.005 m³/h·m² at 0.6bar differential) and 20-cycle quick-release validation. Backed by a 24-month warranty and global spare parts network, Doebritz delivers the uptime and safety your corn flour production demands.
