Doebritz Coffee Quick-Release Airlock Valve | Hygienic Stainless Steel 316L & ATEX Zone 20 Ready | Minimal Air Leakage <0.2mm

Product Summary: Precision Airlock for Premium Coffee Processing

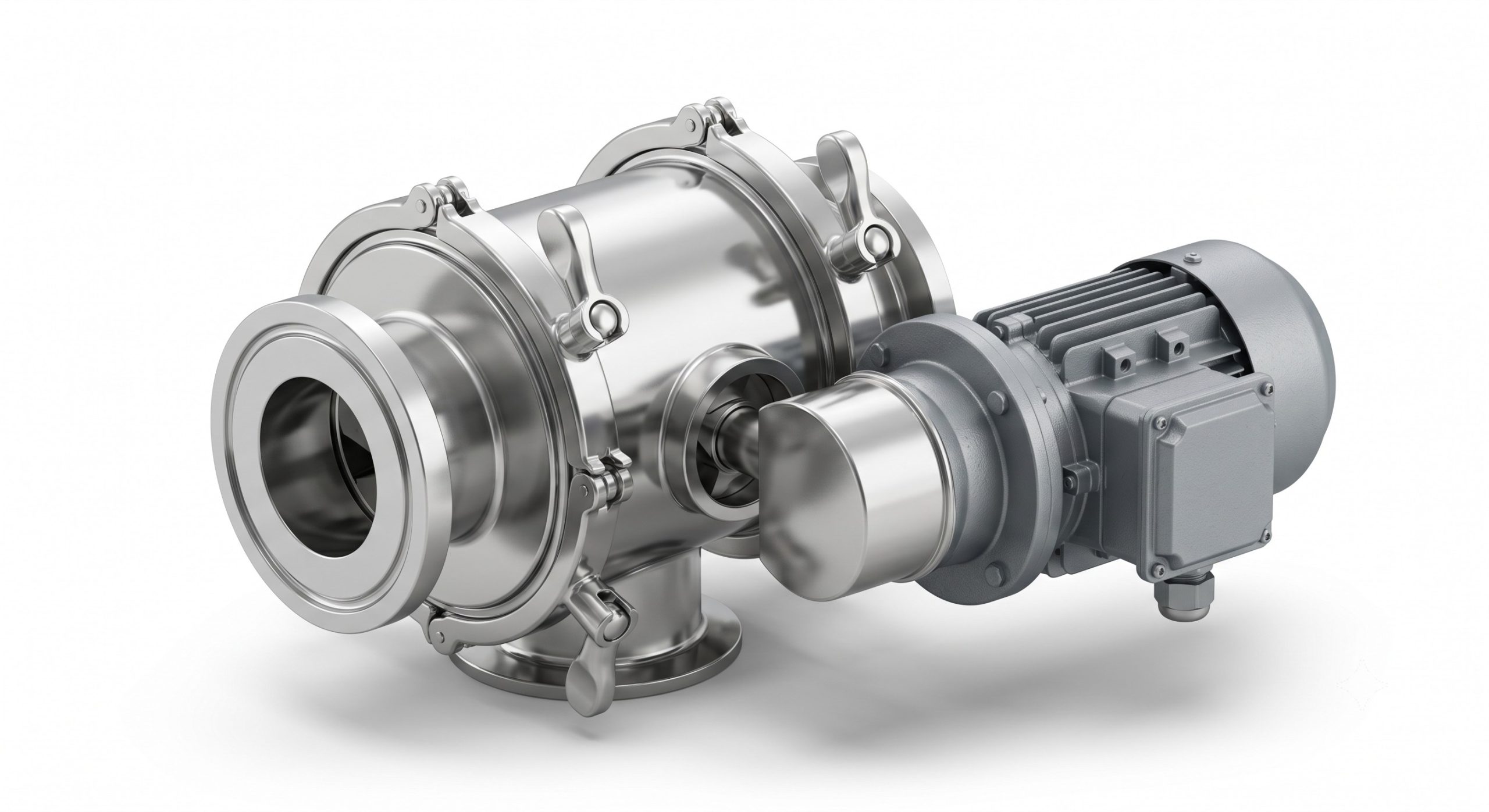

Doebritz introduces the Coffee Quick-Release Airlock Valve (Model DBR-1237), a high-performance rotary valve engineered specifically for whole-bean, ground, and freeze-dried coffee powder handling. Designed for food-grade pneumatic conveying and gravity discharge, this valve delivers minimal air leakage (0.1–0.2mm rotor-to-housing clearance), hygienic quick-release tool-less disassembly, and full ATEX Zone 20/21/22 certification. Constructed from SUS316L stainless steel with Ra≤0.4μm mirror-finished internal surfaces, it eliminates product retention and cross-contamination. Ideal for roasteries, instant coffee lines, and coffee capsule filling plants requiring stringent GMP hygiene standards and high-volume batch metering.

Why Plant Sourcing Chooses Doebritz Coffee Quick-Release Airlock Valve

In coffee processing, valve leakage causes product waste, aroma loss, and sanitation risks. Doebritz solves these challenges with heavy-duty CNC-machined components and OEM direct supply reliability.

• Minimal Air Leakage & Aroma Preservation: Precision-ground rotor and housing maintain 0.1–0.2mm radial clearance, reducing air infiltration to <0.5 m³/h at 0.6 bar differential pressure. This preserves volatile coffee oils and aromatics during dense-phase conveying.
• Hygienic Quick-Release Demountable Design: Tool-less disassembly in <5 minutes enables rapid manual cleaning, CIP, or WIP cycles. Eliminates dead zones where coffee fines accumulate, preventing mold and rancidity.
• ATEX Zone 20 Explosion-Proof Compliance: Certified flameproof construction with 16bar pressure shock resistance, anti-static rotor clearances, and ATEX-certified motor. Safe for combustible coffee dust atmospheres.
• Precision CNC Machining & Global OEM Supply: Doebritz’s in-house CNC machining centers guarantee ±0.02mm tolerances on all sealing interfaces. Direct manufacturer pricing with <15 working days lead time for standard DN100–DN200 flanges.

<img src="https://www.doebritzgroup.com/wp-content/uploads/2026/06/image_bd3cfe31-scaled.jpg" alt="Doebritz Coffee Quick-Release Airlock Valve | Hygienic Stainless Steel 316L & ATEX Zone 20 Ready | Minimal Air Leakage

Housing & Rotor Engineering – Built for Coffee Abrasion and Hygiene

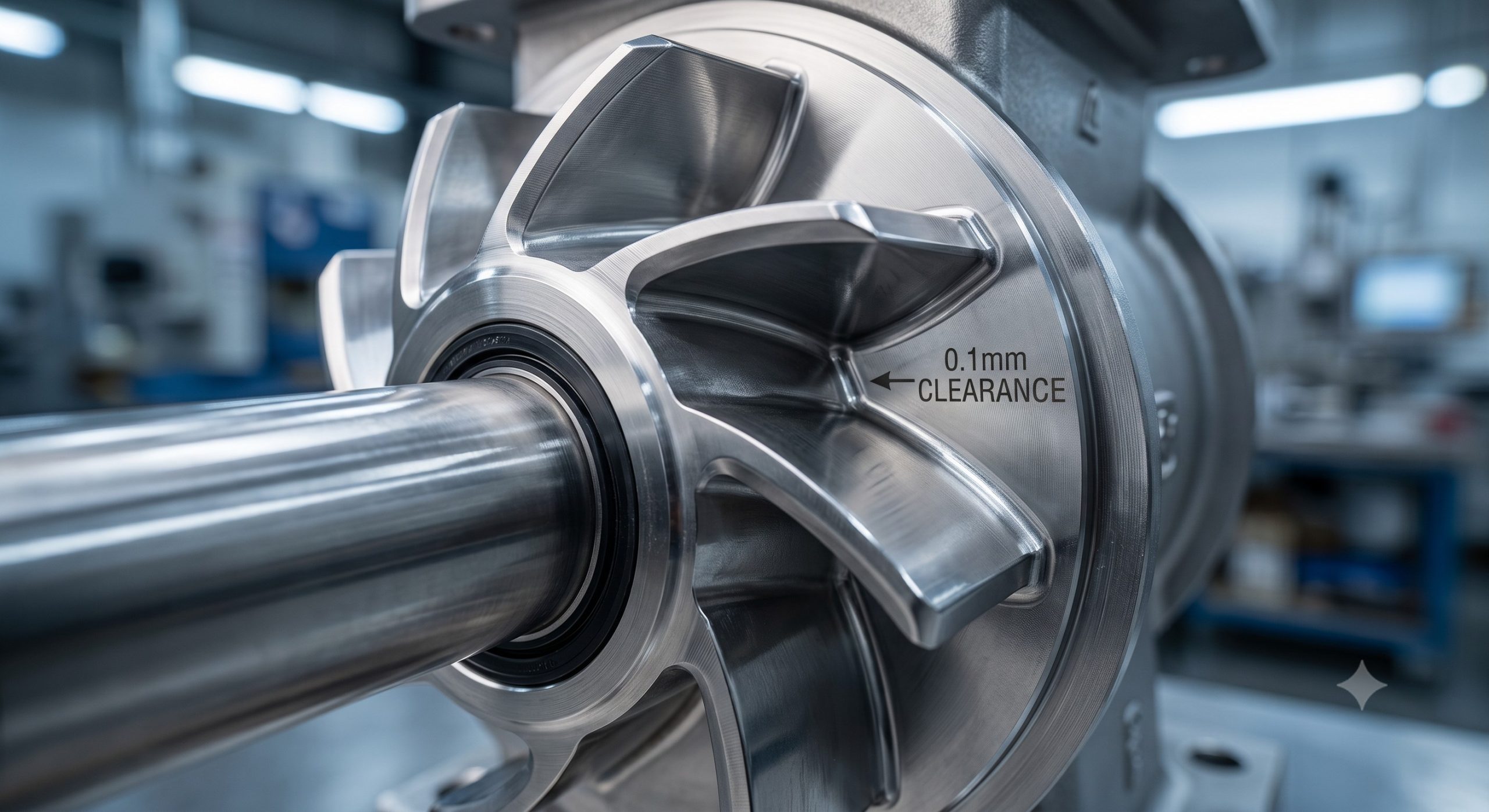

The Doebritz Coffee Quick-Release Airlock Valve features a one-piece cast SUS316L housing with no crevices or gaskets in the product zone. The 8-vane open rotor design minimizes product degradation while maximizing volumetric efficiency (95% fill factor). For ground coffee’s abrasive edges, we offer tungsten carbide coating (HVOF applied) on rotor tips and housing liner, extending wear life by 3–5x compared to standard stainless steel. Outboard bearing assemblies isolate the product zone from lubricants, meeting FDA and EC 1935/2004 food contact requirements. The lip seal with air purge prevents fines ingress into bearings, ensuring >20,000 hours MTBF.

Technical Specifications – Coffee Quick-Release Airlock Valve

Specification	Coffee Quick-Release Airlock Valve (DBR-1237)
Body & Rotor Material	SUS316L stainless steel (full contact zone), mirror polish Ra≤0.4μm
Rotor Design	8-vane open rotor, 95% volumetric efficiency
Rotor-to-Housing Clearance	0.1–0.2 mm (individually measured & certified)
Max Differential Pressure	1.0 bar (positive) / -0.8 bar (negative)
Leakage Rate	<0.5 m³/h at 0.6 bar differential (air, ambient)
Temperature Range	-15°C to +120°C (water cooling jacket option)
Flange Standard	HG20592 / DIN / ANSI (DN100, DN150, DN200, DN300, DN350)
ATEX Certification	Zone 20/21/22 internal & external, 16bar pressure shock
Cleanability	Tool-less quick-release, CIP/SIP ready, FDA-compliant seals
Motor Options	ATEX, IE3, VFD-ready, 0.37kW–7.5kW, gearmotor direct drive
Optional Coatings	HVOF tungsten carbide, ceramic, PTFE, or polymer coating
Surface Finish (External)	Grit-blasted, anti-fingerprint, or 0.8μm machined
Lead Time (Standard)	15 working days (ex-works Doebritz)

Heavy-Duty Application Scenarios for Coffee Production Lines

Roasted Bean Silo Discharging & Dense Phase Conveying

Install the Doebritz valve at silo outlets to feed roasted beans into dense-phase pneumatic conveyors. The 0.1mm ultra-tight clearance maintains conveying pressure, preventing bean breakage and reducing energy consumption by up to 18% compared to standard rotary valves.

Ground Coffee Metering into Capsule Filling Machines

With VFD and PLC control, the valve achieves ±1% batch metering accuracy for coffee capsule lines. The quick-release housing allows complete disassembly for allergen changeovers (e.g., flavored to unflavored coffee) in under 15 minutes.

Instant Coffee Powder Spray Drying Line Airlock

Equipped with water-cooled jacket option, the valve handles hygroscopic instant coffee powder at up to 120°C without caking or bridging. Ra≤0.4μm mirror interior ensures no powder adhesion, maximizing yield.

<img src="https://www.doebritzgroup.com/wp-content/uploads/2026/06/image_64b8abaa-scaled.jpg" alt="Doebritz Coffee Quick-Release Airlock Valve | Hygienic Stainless Steel 316L & ATEX Zone 20 Ready | Minimal Air Leakage

Global OEM Assurance – Doebritz Factory Direct Capabilities

As a top-tier heavy equipment OEM, Doebritz delivers full traceability including material certificates (EN 10204 3.1), 100% hydrostatic and leak testing (report provided), and 3D CAD models (STEP/IGES) for integration. We support custom flanges (DIN, ANSI, JIS), special rotor configurations (closed, adjustable, or polygonal), and third-party inspections (TÜV, BV, SGS). Volume discounts available for plant-wide replacement programs.

Frequently Asked Questions

What is the exact rotor-to-housing clearance for the Coffee Quick-Release Airlock Valve?

Doebritz guarantees 0.1–0.2mm radial clearance for all DBR-1237 valves. Each unit is individually measured and certified. This minimal clearance ensures air leakage below 0.5 m³/h at 0.6 bar differential, critical for coffee aroma retention.

Can this valve handle ground coffee’s abrasive particles?

Yes. Standard SUS316L offers good abrasion resistance. For heavy-duty continuous grinding applications, Doebritz offers an optional HVOF tungsten carbide coating on rotor tips and housing bore, increasing service life by 3–5 times.

Is the valve suitable for ATEX classified coffee dust areas?

Absolutely. The Doebritz Coffee Quick-Release Airlock Valve is ATEX certified for Zone 20, 21, and 22 (internal and external). It features flameproof housing, 16bar pressure shock resistance, anti-static clearances, and an ATEX-certified motor as standard.

How fast can I disassemble the valve for cleaning?

Tool-less disassembly takes <5 minutes. No special tools required. The end cover, rotor, and shaft can be removed as an assembly. Full strip-down to individual components takes <15 minutes for thorough CIP or manual cleaning.

What is the lead time for a custom flange configuration?

Standard DN100/DN150/DN200 flanges (HG20592, DIN, or ANSI) ship within 15 working days. Custom flanges or special rotors require 20–25 working days including CNC machining and testing.
